| 35608-30010 |
Spring Sub-Assy, 2Nd Brake Piston Return |

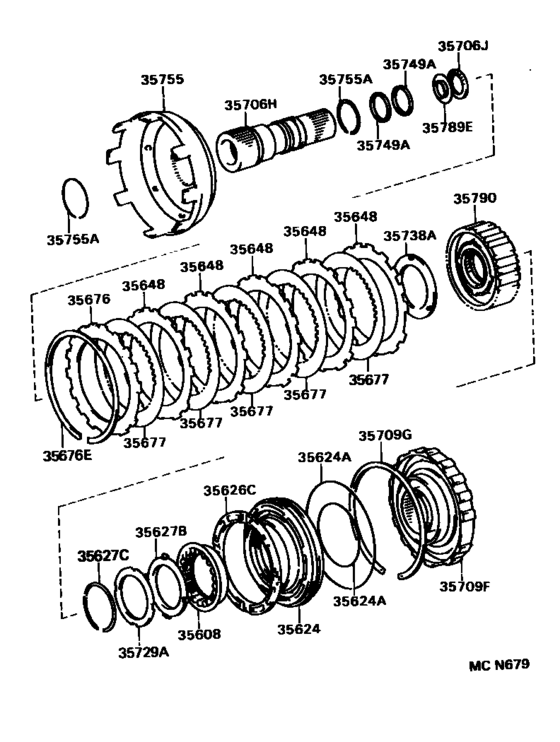

Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35624-30010 |
Piston, 2Nd Brake |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35626-30030 |
Sleeve, 2Nd Brake Piston |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35627-30010 |
Seat, 2Nd Brake Piston Return Spring |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35647-30020 |
Plate, Clutch (For 2Nd Brake) |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35647-30030 |
Plate, Clutch (For 2Nd Brake) |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35667-30020 |
Disc, Clutch (For 2Nd Brake) |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35676-30020 |
Flange, Brake (For 2Nd Brake) |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35706-30061 |
Gear Sub-Assy, Planetary Sun |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35709-30061 |
Drum Sub-Assy, 2Nd Brake |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35709-50010 |
Drum Sub-Assy, 2Nd Brake |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35729-30010 |
Washer, 1 Way Clutch Thrust, No.2 |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35738-30040 |
Washer, 1 Way Clutch Thrust, No.1 |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35749-30010 |
Ring, Sun Gear Shaft Oil Seal |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35755-50010 |
Drum, Sun Gear Input |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35789-30150 |
Race, Thrust Bearing (For Planetary Sun Gear) |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35790-30060 |
Clutch Assy, 1 Way |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35790-50010 |
Clutch Assy, 1 Way |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 90301-85001 |
Ring, O (For 2Nd Brake Piston) |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 90301-99038 |
Ring, O (For 2Nd Brake Piston) |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 90374-30006 |
Bearing, Thrust Needle Roller (For Planetary Sun Gear) |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 90520-46002 |
Ring, Shaft Snap (For Sun Gear Input Drum) |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 90520-49001 |
Ring, Shaft Snap (For Sun Gear Input Drum) |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 90520-54001 |
Ring, Shaft Snap(For 2Nd Brake Piston Return Spring Seat) |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 90521-99032 |
Ring, Hole Snap (For Direct Clutch Flange) |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 90521-99044 |
Ring (For Brake Piston Outer) |
Center Support & Planetary Sun Gear (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
