Search › Model › UZN210

UZN210

Toyota HILUX-SURF-4RUNNER · 2002 · 6,451 parts · 245 categories

6,451 items

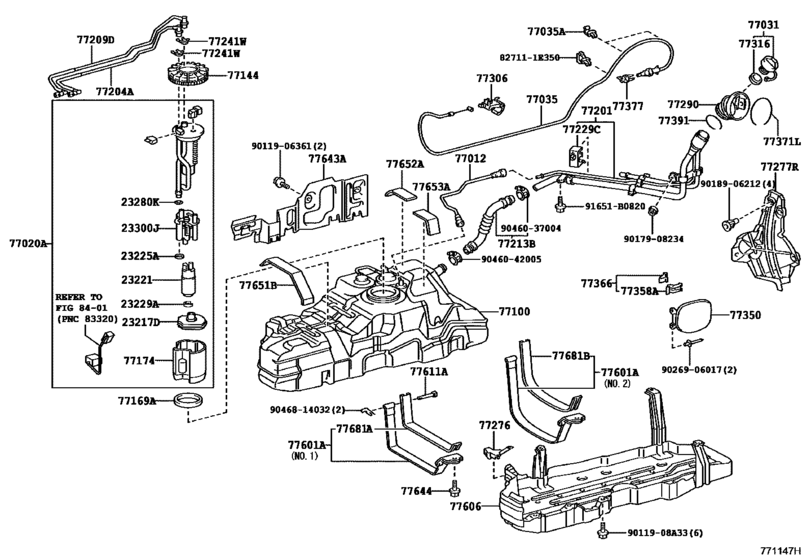

Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#) 77

#	OEM	Part name
0	82711-1E350	Clamp, Wiring Harness
0	82711-06050	Clamp, Door Scuff Plate, No.2
23217	23217-50100	Filter, Fuel Pump
23221	23220-50130	Fuel Pump
23221	23221-50100	Pump, Fuel
23221	23221-31050	Pump, Fuel
23225	23225-50010	Spacer, Fuel Pump
23229	23229-16010	Clip(For Fuel Pump Filter)
23229	23219-03010	Clip(For Fuel Pump Filter)
23280	90301-08019	Ring, O(For Fuel Pressure Regulator)
23280	90301-08020	Ring, O(For Fuel Pump)
23300	23300-50120	Filter Assy, Fuel
77012	77012-35070	Tube Sub-Assy, Fuel Tank Breather
77020	77020-35060	Tube Assy, Fuel Suction W/pump & Gage
77020	77020-35062	Tube Assy, Fuel Suction W/pump & Gage
77020	77020-35100	Tube Assy, Fuel Suction W/pump & Gage
77020	77020-35102	Tube Assy, Fuel Suction W/pump & Gage
77020	77020-35101	Tube Assy, Fuel Suction W/pump & Gage
77020	77020-35110	Tube Assy, Fuel Suction W/pump & Gage
77020	77020-35112	Tube Assy, Fuel Suction W/pump & Gage
77031	77300-33052	Cap Assy, Fuel Tank
77031	77300-33070	Cap Assy, Fuel Tank
77031	77300-47010	Cap Assy, Fuel Tank
77035	77035-35120	Cable Sub-Assy, Fuel Lid Lock Control
77035	90469-06005	Clamp(For Hood Lock Control Cable)
77100	77001-3D510	Tank Assy, Fuel
77144	77144-35010	Retainer, Fuel Pump Gauge
77169	77169-35010	Gasket, Fuel Suction Tube Set
77169	77169-30050	Gasket, Fuel Suction Tube Set - (for the fuel tank pump housing)
77174	77174-35020	Support, Fuel Suction, No.1
77174	77174-35022	Support, Fuel Suction, No.1
77201	77201-35720	Pipe Sub-Assy, Fuel Tank Inlet
77204	77204-35030	Tube, Fuel Tank Return
77209	77209-35410	Tube Sub-Assy, Fuel Tank Main
77209	77209-35440	Tube Sub-Assy, Fuel Tank Main
77213	77213-35370	Hose, Fuel Tank To Filler Pipe
77213	77213-35371	Hose, Fuel Tank To Filler Pipe
77229	77229-35060	Clamp, Breather Tube
77241	77241-60320	Clip, Tube Joint
77276	77276-35040	Protector, Fuel Hose
77277	77277-60080	Protector, Fuel Tank Filler Pipe
77290	77291-35130	Shield Assy, Fuel Tank Filler Pipe
77306	77306-28050-C0	Fuel Lid Lock Open Lever Sub-Assy (Black)
77316	77316-33042	Gasket, Fuel Tank Cap
77350	77350-35050	Lid Assy, Fuel Filler Opening
77358	77358-30060	Stopper, Fuel Filler Opening Lid
77366	77360-30080	Spring Assy, Fuel Filler Opening Lid
77366	77360-35040	Spring, Fuel Filler Opening Lid Hinge
77371	77371-35010	Ring, Fuel Tank Filler Pipe Shield
77377	77377-35010	Retainer, Fuel Filler Opening Lid Lock
77391	77391-35020	Ring, Fuel Inlet Box
77601	77601-35090	Band Sub-Assy, Fuel Tank, No.1
77601	77602-35030	Band Sub-Assy, Fuel Tank, No.1
77606	77606-35060	Protector Sub-Assy, Fuel Tank, No.1
77611	77653-35040	Pin (For Fuel Tank Band)
77643	77643-35020	Protector, Fuel Tank, No.3
77643	77643-35040	Protector, Fuel Tank, No.3
77644	77644-35030	Bolt, Fuel Tank
77651	77651-35070	Cushion, Fuel Tank
77652	77652-35060	Cushion, Fuel Tank, No.2
77653	77653-35050	Cushion, Fuel Tank, No.3
77681	77681-35030	Seat, Fuel Tank Band
77681	77681-35031	Seat, Fuel Tank Band
77681	77681-60170	Seat, Fuel Tank Band, No.2
77681	77681-35040	Seat, Fuel Tank Band
77681	77681-35041	Seat, Fuel Tank Band
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
9011908	90119-08A33	BOLT
9011906361	90119-06361	BOLT WWASHER
9017908234	90179-08234	NUT
9018906212	90189-06212	GROMMET SCREW
9026906017	90269-06017	RIVET
9046037004	90460-37004	New Genuine Part
9046042005	90460-42005	Clamp (For Fuel Filler Pipe)
9046042005	90460-40007	Clamp (For Fuel Filler Pipe)
9046814032	90468-14032	CLIP

OEM	Part name	Category
23217-50100	Filter, Fuel Pump	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
23219-03010	Clip(For Fuel Pump Filter)	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
23220-50130	Fuel Pump	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
23221-31050	Pump, Fuel	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
23221-50100	Pump, Fuel	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
23225-50010	Spacer, Fuel Pump	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
23229-16010	Clip(For Fuel Pump Filter)	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
23300-50120	Filter Assy, Fuel	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77001-3D510	Tank Assy, Fuel	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77012-35070	Tube Sub-Assy, Fuel Tank Breather	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77020-35060	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77020-35062	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77020-35100	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77020-35101	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77020-35102	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77020-35110	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77020-35112	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77035-35120	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77144-35010	Retainer, Fuel Pump Gauge	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77169-30050	Gasket, Fuel Suction Tube Set - (for the fuel tank pump housing)	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77169-35010	Gasket, Fuel Suction Tube Set	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77174-35020	Support, Fuel Suction, No.1	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77174-35022	Support, Fuel Suction, No.1	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77201-35720	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77204-35030	Tube, Fuel Tank Return	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77209-35410	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77209-35440	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77213-35370	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77213-35371	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77229-35060	Clamp, Breather Tube	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77241-60320	Clip, Tube Joint	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77276-35040	Protector, Fuel Hose	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77277-60080	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77291-35130	Shield Assy, Fuel Tank Filler Pipe	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77300-33052	Cap Assy, Fuel Tank	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77300-33070	Cap Assy, Fuel Tank	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77300-47010	Cap Assy, Fuel Tank	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77306-28050-C0	Fuel Lid Lock Open Lever Sub-Assy (Black)	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77316-33042	Gasket, Fuel Tank Cap	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77350-35050	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77358-30060	Stopper, Fuel Filler Opening Lid	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77360-30080	Spring Assy, Fuel Filler Opening Lid	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77360-35040	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77371-35010	Ring, Fuel Tank Filler Pipe Shield	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77377-35010	Retainer, Fuel Filler Opening Lid Lock	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77391-35020	Ring, Fuel Inlet Box	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77601-35090	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77602-35030	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77606-35060	Protector Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77643-35020	Protector, Fuel Tank, No.3	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77643-35040	Protector, Fuel Tank, No.3	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77644-35030	Bolt, Fuel Tank	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77651-35070	Cushion, Fuel Tank	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77652-35060	Cushion, Fuel Tank, No.2	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77653-35040	Pin (For Fuel Tank Band)	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77653-35050	Cushion, Fuel Tank, No.3	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77681-35030	Seat, Fuel Tank Band	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77681-35031	Seat, Fuel Tank Band	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77681-35040	Seat, Fuel Tank Band	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77681-35041	Seat, Fuel Tank Band	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
77681-60170	Seat, Fuel Tank Band, No.2	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
82711-06050	Clamp, Door Scuff Plate, No.2	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
82711-1E350	Clamp, Wiring Harness	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
90080-11347	New Genuine Part	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
90119-06361	BOLT WWASHER	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
90119-08A33	BOLT	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
90179-08234	NUT	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
90189-06212	GROMMET SCREW	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
90269-06017	RIVET	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
90301-08019	Ring, O(For Fuel Pressure Regulator)	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
90301-08020	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
90460-37004	New Genuine Part	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
90460-40007	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
90460-42005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
90468-14032	CLIP	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
90469-06005	Clamp(For Hood Lock Control Cable)	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
91651-B0820	Bolt, Radiator Side Support Plate	Fuel Tank & Tube ([08.2002 - 11.2004] FUEL TANK (0208-0411) ; (0411- )GRN21#)
