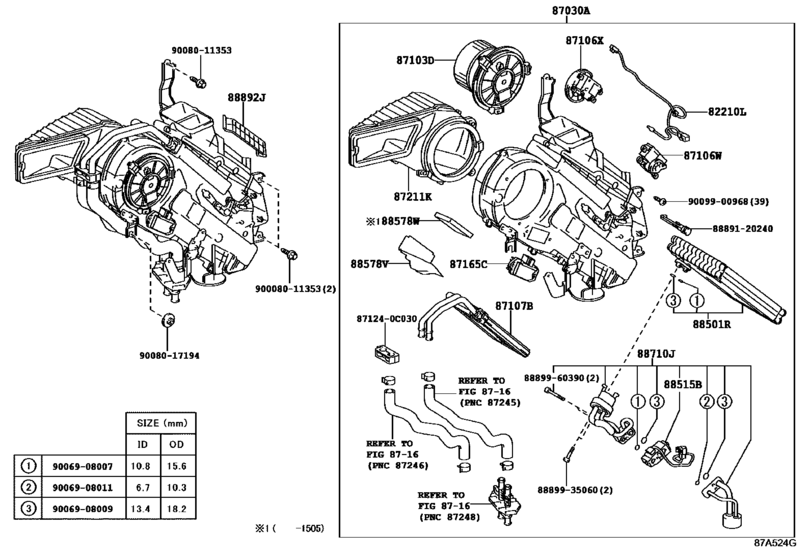

| 82210-0C030 |
Harness Assy, Air Conditioner, No.2 |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 87030-0C040 |
Unit Assy, Cooling, Rear |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 87103-0C060 |
Motor Sub-Assy, Blower W/fan(For Rear) |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 87103-0C061 |
Motor Sub-Assy, Blower W/fan(For Rear) |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 87106-0C120 |
Damper Servo Sub-Assy, Rear Cooling Unit, No.1 - DAMPER(FOR MODE REAR) |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 87106-0C130 |
Damper Servo Sub-Assy, Rear Cooling Unit, No.2 - DAMPER(FOR AIRMIX REAR) |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 87107-0C061 |
Unit Sub-Assy, Heater Radiator |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 87124-0C030 |
Clamp, Heater |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 87165-28020 |
Control, Blower Motor |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 87201-0C060 |
Duct, Air |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 88501-0C080 |
Evaporator Sub-Assy (Rear) |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 88515-60220 |
Valve, Rear Cooling Unit Expansion |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 88578-0C130 |
Packing, Cooling Unit, No.2 - COOLING UNIT, NO.3 |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 88578-0C140 |
Packing, Cooling Unit, No.1 - COOLING UNIT, NO.4 |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 88578-0E060 |
Packing, Cooling Unit, No.2 |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 88710-0C210 |
Tube, Air Conditioner Connector - AIRCONDITIONER CONNECTOR |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 88891-20240 |
Cover, Cooler, No.1 |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 88892-0C030 |
Cover Sub-Assy |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 88899-35060 |
Cover, Evaporator |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 88899-60390 |
Cover, Evaporator |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 90069-08007 |
AC ORING |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 90069-08009 |
GASKET |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 90069-08011 |
AC ORING |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 90080-11353 |
New Genuine Part |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 90080-17194 |
New Genuine Part |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
| 90099-00968 |
Screw(For Air Conditioner Unit) |
Heating & Air Conditioning - Cooler Unit ([11.2008 - ] REAR (0811- )) |
