USK60

Toyota SEQUOIA · 2007 · 6,160 parts · 224 categories

6,160 items

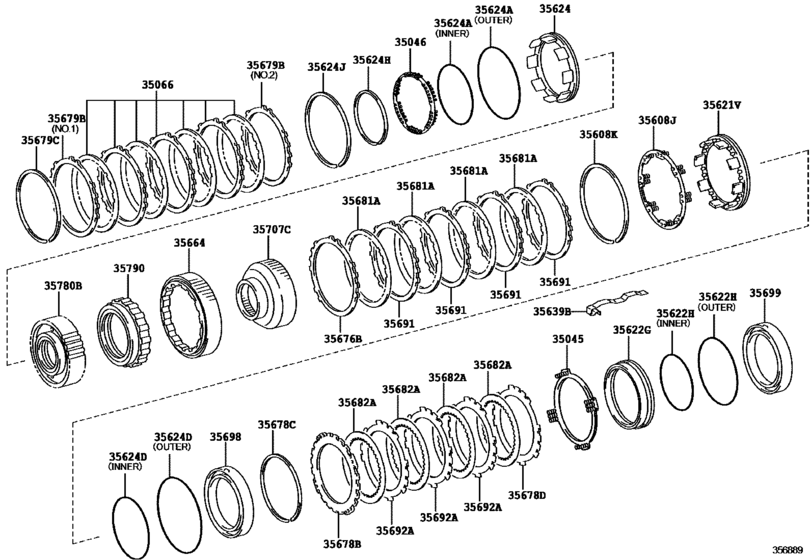

Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- )) 48

#	OEM	Part name
35045	35045-0C020	Spring Sub-Assy, Brake Piston Return,no.2
35046	35046-0C030	Spring Sub-Assy, Brake Piston Return, No.3
35066	35066-0C020	Disc Set, 2Nd Brake
35608	35608-0C020	Spring Sub-Assy, Brake Piston Return
35608	90520-99133	Ring, Snap (For Brake Piston Return Spring)
35608	90520-A0037	Ring, Snap (For Brake Piston Return Spring)
35621	35621-34020	Piston, Brake, No.1
35622	35622-34010	Piston, Brake, No.2
35622	90301-99116	Ring, O (For Brake Piston No.2)
35622	90301-99131	Ring, O (For Brake Piston No.2)
35624	35624-34010	Piston, 2Nd Brake
35624	90301-99177	Ring, O (For 2Nd Brake Piston)
35624	90301-99093	Ring, O (For Front Oil Pump Body)
35624	90301-99179	Ring, O (For Front Oil Pump Body) - O (FOR BRAKE PISTON NO.4)
35624	90520-99131	Ring, Snap (For 2Nd Brake Piston)
35624	90520-A0035	Ring, Snap (For 2Nd Brake Piston)
35624	90521-99138	Ring, Hole Snap (For 2Nd Brake Piston)
35639	35639-60010	Spring, Brake Plate Stopper
35664	35664-34020	Cylinder, 2Nd Brake
35676	35676-0C090	Flange, Brake, No.1
35676	35676-0C100	Flange, Brake, No.1
35676	35676-0C110	Flange, Brake, No.1
35676	35676-0C120	Flange, Brake, No.1
35678	35678-0C020	Flange, Brake, No.2
35678	90520-99132	Ring, Snap (For Brake No.2)
35678	90520-A0054	Ring, Snap (For Brake No.2)
35678	35678-0C030	Flange, Brake, No.2
35678	35678-0C040	Flange, Brake, No.2
35678	35678-0C050	Flange, Brake, No.2
35678	35678-0C060	Flange, Brake, No.2
35678	35678-0C070	Flange, Brake, No.2
35678	35678-0C080	Flange, Brake, No.2
35678	35678-0C090	Flange, Brake, No.2
35678	35678-0C100	Flange, Brake, No.2
35679	35679-0C020	Flange, Brake, No.3
35679	35679-0C030	Flange, Brake, No.3
35679	90520-99130	Ring, Snap (For Brake No.3)
35679	90520-A0058	Ring, Snap (For Brake No.3)
35681	35681-0C030	Disc, Brake, No.1
35682	35682-0C030	Disc, Brake, No.2
35691	35691-0C030	Plate, Brake, No.1
35692	35692-0C020	Plate, Brake, No.2
35698	35698-34020	Cylinder, Brake, No.1
35699	35699-34010	Cylinder, Brake, No.2
35707	35707-0C030	Race Sub-Assy, 1 Way Clutch, Inner
35780	35780-0C030	Clutch Assy, 1 Way N0.2
35780	35780-0C050	Clutch Assy, 1 Way N0.2
35790	35790-0C030	Clutch Assy, 1 Way

OEM	Part name	Category
35045-0C020	Spring Sub-Assy, Brake Piston Return,no.2	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35046-0C030	Spring Sub-Assy, Brake Piston Return, No.3	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35066-0C020	Disc Set, 2Nd Brake	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35608-0C020	Spring Sub-Assy, Brake Piston Return	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35621-34020	Piston, Brake, No.1	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35622-34010	Piston, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35624-34010	Piston, 2Nd Brake	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35639-60010	Spring, Brake Plate Stopper	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35664-34020	Cylinder, 2Nd Brake	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35676-0C090	Flange, Brake, No.1	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35676-0C100	Flange, Brake, No.1	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35676-0C110	Flange, Brake, No.1	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35676-0C120	Flange, Brake, No.1	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35678-0C020	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35678-0C030	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35678-0C040	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35678-0C050	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35678-0C060	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35678-0C070	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35678-0C080	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35678-0C090	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35678-0C100	Flange, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35679-0C020	Flange, Brake, No.3	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35679-0C030	Flange, Brake, No.3	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35681-0C030	Disc, Brake, No.1	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35682-0C030	Disc, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35691-0C030	Plate, Brake, No.1	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35692-0C020	Plate, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35698-34020	Cylinder, Brake, No.1	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35699-34010	Cylinder, Brake, No.2	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35707-0C030	Race Sub-Assy, 1 Way Clutch, Inner	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35780-0C030	Clutch Assy, 1 Way N0.2	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35780-0C050	Clutch Assy, 1 Way N0.2	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
35790-0C030	Clutch Assy, 1 Way	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
90301-99093	Ring, O (For Front Oil Pump Body)	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
90301-99116	Ring, O (For Brake Piston No.2)	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
90301-99131	Ring, O (For Brake Piston No.2)	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
90301-99177	Ring, O (For 2Nd Brake Piston)	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
90301-99179	Ring, O (For Front Oil Pump Body) - O (FOR BRAKE PISTON NO.4)	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
90520-99130	Ring, Snap (For Brake No.3)	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
90520-99131	Ring, Snap (For 2Nd Brake Piston)	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
90520-99132	Ring, Snap (For Brake No.2)	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
90520-99133	Ring, Snap (For Brake Piston Return Spring)	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
90520-A0035	Ring, Snap (For 2Nd Brake Piston)	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
90520-A0037	Ring, Snap (For Brake Piston Return Spring)	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
90520-A0054	Ring, Snap (For Brake No.2)	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
90520-A0058	Ring, Snap (For Brake No.3)	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
90521-99138	Ring, Hole Snap (For 2Nd Brake Piston)	Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- ))
