USK55

Toyota TUNDRA · 2007 · 4,906 parts · 233 categories
USK55 ×

← Back to categories

4,906 items

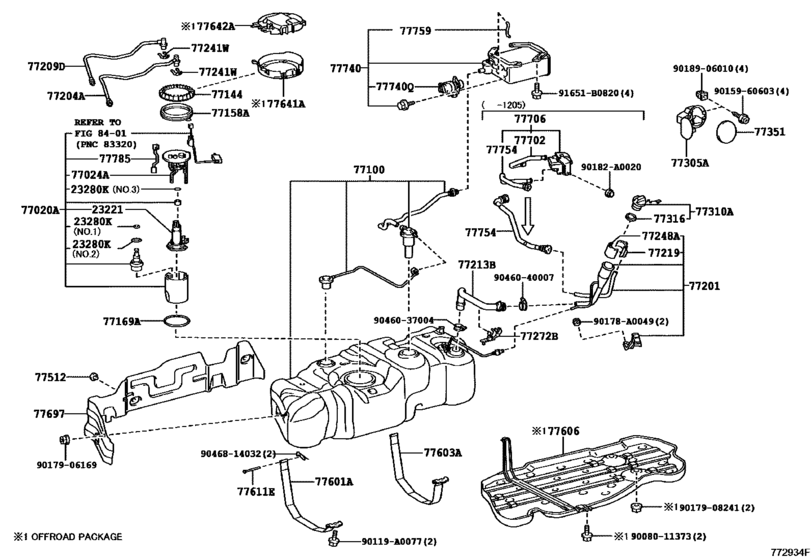

Fuel Tank & Tube ([04.2009 - 08.2013] FUEL TANK (0904-1308)UPK5#,USK5#..HTWC) 77
#OEMPart name
23221 23220-0S010 Pump Assy, Fuel W/filter
23221 23220-0S011 Pump Assy, Fuel W/filter
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
23280 90301-A0021 Seal, Fuel Pump Filter
77020 77020-0C080 Tube Assy, Fuel Suction W/pump & Gage
77020 77020-0C082 Tube Assy, Fuel Suction W/pump & Gage
77020 77020-0C081 Tube Assy, Fuel Suction W/pump & Gage
77024 77024-0C020 Plate Sub-Assy, Fuel Suction
77100 77001-0C060 Tank Assy, Fuel
77144 77144-08010 Retainer, Fuel Pump Gauge
77158 77158-08010 Support, Tank Suction Tube
77169 77169-0C010 Gasket, Fuel Suction Tube Set
77201 77201-0C080 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-0C081 Pipe Sub-Assy, Fuel Tank Inlet
77204 77204-0C030 Tube, Fuel Tank Return
77204 77204-0C070 Tube, Fuel Tank Return
77204 77204-0C060 Tube, Fuel Tank Return
77209 77209-0C060 Tube Sub-Assy, Fuel Tank Main
77209 77209-0C110 Tube Sub-Assy, Fuel Tank Main
77209 77209-0C100 Tube Sub-Assy, Fuel Tank Main
77213 77213-0C080 Hose, Fuel Tank To Filler Pipe
77219 77219-0E010 Cover, Fuel Tank Filler Pipe
77219 77219-21010 Cover, Fuel Tank Filler Pipe
77219 77219-33030 Cover, Fuel Tank Filler Pipe
77241 77241-02010 Clip, Tube Joint
77241 77241-06020 Clip, Tube Joint
77248 77248-33010 Holder, Fuel Tank Filler Pipe Cover
77248 77248-52060 Holder, Fuel Tank Filler Pipe Cover
77248 77745-0E010 Holder, Fuel Tank Filler Pipe Cover
77272 77272-0C030 Support, Breather Tube, No.1
77305 77305-0C050 Lid Sub-Assy, Fuel Filler Opening
77310 77300-06040 Cap Assy, Fuel Tank
77316 77316-06050 Gasket, Fuel Tank Cap
77316 77316-06070 Gasket, Fuel Tank Cap
77351 77351-0C070 Lid, Fuel Filler Opening, Outer
77512 77512-35140 Bracket, Fuel Tank
77601 77601-0C040 Band Sub-Assy, Fuel Tank, No.1
77601 77601-0C130 Band Sub-Assy, Fuel Tank, No.1
77601 77601-0C080 Band Sub-Assy, Fuel Tank, No.1
77603 77602-0C010 Band Sub-Assy, Fuel Tank, No.2
77603 77602-0C150 Band Sub-Assy, Fuel Tank, No.2
77603 77602-0C011 Band Sub-Assy, Fuel Tank, No.2
77603 77602-0C020 Band Sub-Assy, Fuel Tank, No.2
77603 77602-0C022 Band Sub-Assy, Fuel Tank, No.2
77603 77602-0C021 Band Sub-Assy, Fuel Tank, No.2
77603 77602-0C140 Band Sub-Assy, Fuel Tank, No.2
77603 77602-0C090 Band Sub-Assy, Fuel Tank, No.2
77603 77602-0C100 Band Sub-Assy, Fuel Tank, No.2
77606 77606-0C040 Protector Sub-Assy, Fuel Tank, No.1
77611 77653-34040 Pin, Fuel Tank Band
77611 77653-35040 Pin (For Fuel Tank Band)
77641 77641-0C030 Protector, Fuel Tank, No.1
77642 77642-0C020 Protector, Fuel Tank, No.2
77697 77697-0C020 Insulator, Fuel Tank Heat, No.1
77702 77702-0C020 Hose Sub-Assy, Canister Outlet, No.2
77706 77706-0C050 Filter Sub-Assy, Charcoal Canister
77706 77754-0C110 Hose, Charcoal Canister Outlet, No.1
77740 77740-0C050 Canister Assy, Charcoal
77740 90910-AF002 Leak Detection Pump Sub-Assy, Charcoal Canister
77740 90910-AF005 Leak Detection Pump Sub-Assy, Charcoal Canister
77754 77754-0C080 Hose, Charcoal Canister Outlet, No.1
77759 90999-92002 Air Hose (300 mm)
77785 77785-0C030 Harness, Fuel Pump
90119 90119-A0077 New Genuine Part
90178 90178-A0049 New Genuine Part
90182 90182-A0020 New Genuine Part
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9008011373 90080-11373 New Genuine Part
9015960603 90159-60603 SCREW WITH-WASHER
9017906169 90179-06169 Nut
9017908241 90179-08241 NUT
9018906010 90189-06010 Clip(For Front Door Inside Handle)
9046037004 90460-37004 New Genuine Part
9046040007 90460-40007 Clamp (For Fuel Filler Pipe)
9046814032 90468-14032 CLIP
