UPK56

Toyota TUNDRA · 2009 · 5,510 parts · 281 categories
UPK56 ×

← Back to categories

5,510 items

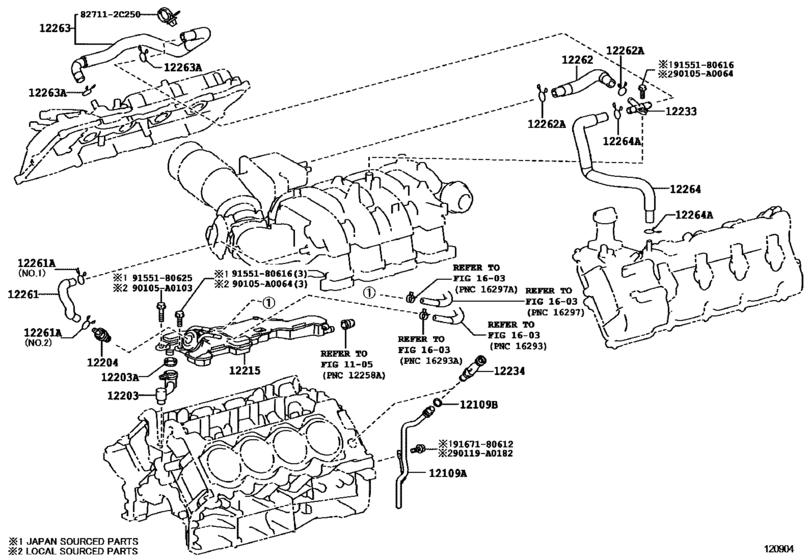

Ventilation Hose ([08.2013 - ] (1308- )1URFE) 29
#OEMPart name
12109 12109-38020 Pipe Sub-Assy, Oil Drain
12109 12109-38050 Pipe Sub-Assy, Oil Drain
12109 90301-A0029 Ring, O(For Oil Drain Pipe)
12109 96723-19010 Ring, O(For Oil Level Gage Guide)
12203 12203-0S010 Pipe Sub-Assy, Ventilation
12203 12203-38010 Pipe Sub-Assy, Ventilation
12203 12273-38020 Gasket(For Ventilation Pipe)
12204 12204-38030 Valve Sub-Assy, Ventilation
12215 12215-38020 Separator, Case
12215 12215-38030 Separator, Case
12233 12233-0S010 Connector, Ventilation No.1
12233 12233-38010 Connector, Ventilation No.1
12234 12233-38020 Connector, Ventilation No.1
12234 12233-38040 Connector, Ventilation No.1
12261 12261-38080 Hose, Ventilation
12261 12261-38110 Hose, Ventilation
12261 90467-15006 Clip Or Clamp(For Ventilation Hose)
12261 90467-16035 Clip Or Clamp(For Ventilation Hose)
12262 12262-0S020 Hose, Ventilation, No.2
12262 90467-19003 Clip Or Clamp(For Ventilation Hose)
12263 12263-38020 Hose, Ventilation, No.3
12264 12262-38070 Hose, Ventilation, No.4
90105 90105-A0064 New Genuine Part
90105 90105-A0103 Bolt(For Camshaft Housing Set)
90119 90119-A0182 New Genuine Part
827112 82711-2C250 Wire, Fuse To Fuse(for Combustion Heater)
9155180616 91551-80616 BOLT FLANGE
9155180625 91551-80625 Bolt(For Camshaft Housing Set)
9167180612 91671-80612 Bolt
