Search › Model › UPK56

UPK56

Toyota TUNDRA · 2009 · 5,510 parts · 281 categories

5,510 items

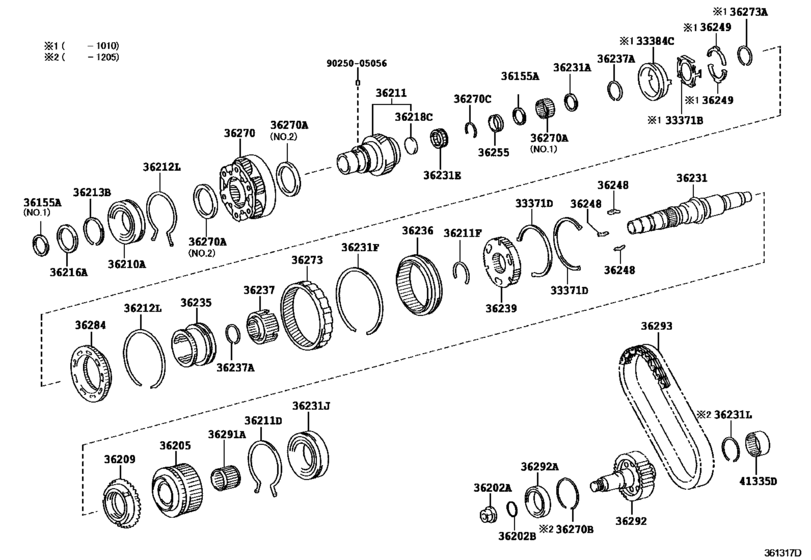

Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57) 82

#	OEM	Part name
33371	33371-34010	Spring, Synchromesh Shifting Key (For Transfer)
33371	33371-34020	Spring, Synchromesh Shifting Key, No.1 (For Transfer)
33384	33384-60090	Ring, Synchronizer, Outer No.3
33384	33384-26010	Ring, Synchronizer
36155	36155-34010	Ring, Transfer Oil Seal
36155	36155-34020	Ring, Transfer Oil Seal
36202	90179-24011	Nut (For Manual Transmission Output Shaft Rear Set)
36202	90301-31003	Ring, O(For Manual Transmisson Output Shaft Rear Set Nut)
36205	36205-0C010	Sprocket Sub-Assy, Transfer Drive
36205	36205-34031	Sprocket Sub-Assy, Transfer Drive
36209	36209-34011	Ring Set, Transfer Synchronizer
36210	90363-68001	Bearing (For Transfer Input Shaft)
36211	36201-34010	Shaft, Transfer Input
36211	90520-99126	Ring, Shaft Snap (For Transfer Output Shaft)
36211	90520-50016	Ring, Shaft Snap (For Transfer Input Shaft)
36212	90520-99123	Ring, Shaft Snap
36212	90520-99127	Ring, Shaft Snap
36213	90520-64005	Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213	90520-64006	Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213	90520-64007	Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213	90520-64008	Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213	90520-64009	Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213	90520-64010	Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213	90520-64011	Ring, Shaft Snap (For Transfer Input Gear Stopper)
36216	36216-34010	Ring, Transfer Input Shaft Seal, No.1
36218	36218-34010	Plug, Transfer Input Shaft
36231	36231-0C010	Shaft, Transfer Output, Rear
36231	36231-34012	Shaft, Transfer Output, Rear
36231	36231-34013	Shaft, Transfer Output, Rear
36231	90560-40009	Spacer (For Transfer Output Shaft)
36231	90364-32025	Bearing, Needle Roller (For Transfer Output Shaft Front)
36231	90520-99128	Ring, Hole Snap (For Transfer Input Shaft)
36231	90363-41004	Bearing, Radial Ball (For Transfer Output Shaft Rear)
36231	90363-A0012	Bearing, Radial Ball (For Transfer Output Shaft Rear)
36231	90520-56005	Ring Shaft Snap(For Transfer Driven Sprocket)
36231	90520-A0039	Ring, Shaft Snap (For Transfer Output Shaft Rear)
36235	36235-0C010	Sleeve, Transfer High & Low Clutch
36235	36235-34010	Sleeve, Transfer High & Low Clutch
36235	36235-34011	Sleeve, Transfer High & Low Clutch
36236	36236-34010	Sleeve, Front Drive Clutch
36237	36237-34010	Hub, Transfer Clutch
36237	90520-41021	Ring, Shaft Snap (For Transfer Clutch Hub)
36237	90520-41022	Ring, Shaft Snap (For Transfer Clutch Hub)
36237	90520-41023	Ring, Shaft Snap (For Transfer Clutch Hub)
36237	90520-41024	Ring, Shaft Snap (For Transfer Clutch Hub)
36237	90520-41025	Ring, Shaft Snap (For Transfer Clutch Hub)
36237	90520-41026	Ring, Shaft Snap (For Transfer Clutch Hub)
36237	90520-41027	Ring, Shaft Snap (For Transfer Clutch Hub)
36237	90520-41028	Ring, Shaft Snap (For Transfer Clutch Hub)
36237	90520-41029	Ring, Shaft Snap (For Transfer Clutch Hub)
36239	36239-34011	Hub, Transfer Drive Clutch
36239	36239-34012	Hub, Transfer Drive Clutch
36248	36248-34010	Key, Synchromesh Shifting, Transfer Drive, No.1
36249	36249-34010	Key, Synchromesh Shifting, Transfer Drive, No.2
36255	36255-0C010	Spacer, Transfer Output Shaft, No.1
36255	36255-34010	Spacer, Transfer Output Shaft, No.1
36270	36270-0C010	Gear Assy, Transfer Low Planetary
36270	36270-34010	Gear Assy, Transfer Low Planetary
36270	90364-40007	Bearing (For Transfer Low Planetary Gear)
36270	90374-73001	Bearing (For Transfer Low Planetary Gear)
36270	90374-A0043	Bearing (For Transfer Low Planetary Gear)
36270	90521-84003	Ring, Snap (For Transfer Output Front Shaft Bearing)
36270	90520-34033	Ring, Hole Snap (For Transfer Low Planetary Ring Gear) - SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING)
36273	36273-0C010	Gear, Transfer Low Planetary Ring
36273	36273-34010	Gear, Transfer Low Planetary Ring
36273	90520-A0040	Ring, Hole Snap (For Transfer Low Planetary Ring Gear)
36284	36284-34020	Piece, Transfer Low Planetary Gear Spline
36284	36284-34021	Piece, Transfer Low Planetary Gear Spline
36291	90364-49003	Bearing (For Transfer Drive Sprocket)
36292	36292-0C010	Sprocket, Transfer Driven
36292	36292-34010	Sprocket, Transfer Driven
36292	36292-34020	Sprocket, Transfer Driven
36292	36292-34011	Sprocket, Transfer Driven
36292	90363-40083	Bearing, Radial Ball (For Transfer Output Shaft Front)
36292	90363-A0013	Bearing (For Transfer Driven Sprocket)
36292	90363-A0014	Bearing (For Transfer Driven Sprocket)
36293	36293-0C010	Chain, Transfer Front Drive
36293	36293-34010	Chain, Transfer Front Drive
41335	90363-40088	Bearing (For Side Gear Shaft Holder)
41335	90365-40005	Bearing (For Side Gear Shaft Holder)
41335	90365-40009	Bearing (For Side Gear Shaft Holder)
9025005056	90250-05056	New Genuine Part

OEM	Part name	Category
33371-34010	Spring, Synchromesh Shifting Key (For Transfer)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
33371-34020	Spring, Synchromesh Shifting Key, No.1 (For Transfer)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
33384-26010	Ring, Synchronizer	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
33384-60090	Ring, Synchronizer, Outer No.3	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36155-34010	Ring, Transfer Oil Seal	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36155-34020	Ring, Transfer Oil Seal	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36201-34010	Shaft, Transfer Input	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36205-0C010	Sprocket Sub-Assy, Transfer Drive	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36205-34031	Sprocket Sub-Assy, Transfer Drive	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36209-34011	Ring Set, Transfer Synchronizer	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36216-34010	Ring, Transfer Input Shaft Seal, No.1	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36218-34010	Plug, Transfer Input Shaft	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36231-0C010	Shaft, Transfer Output, Rear	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36231-34012	Shaft, Transfer Output, Rear	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36231-34013	Shaft, Transfer Output, Rear	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36235-0C010	Sleeve, Transfer High & Low Clutch	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36235-34010	Sleeve, Transfer High & Low Clutch	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36235-34011	Sleeve, Transfer High & Low Clutch	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36236-34010	Sleeve, Front Drive Clutch	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36237-34010	Hub, Transfer Clutch	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36239-34011	Hub, Transfer Drive Clutch	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36239-34012	Hub, Transfer Drive Clutch	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36248-34010	Key, Synchromesh Shifting, Transfer Drive, No.1	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36249-34010	Key, Synchromesh Shifting, Transfer Drive, No.2	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36255-0C010	Spacer, Transfer Output Shaft, No.1	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36255-34010	Spacer, Transfer Output Shaft, No.1	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36270-0C010	Gear Assy, Transfer Low Planetary	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36270-34010	Gear Assy, Transfer Low Planetary	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36273-0C010	Gear, Transfer Low Planetary Ring	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36273-34010	Gear, Transfer Low Planetary Ring	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36284-34020	Piece, Transfer Low Planetary Gear Spline	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36284-34021	Piece, Transfer Low Planetary Gear Spline	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36292-0C010	Sprocket, Transfer Driven	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36292-34010	Sprocket, Transfer Driven	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36292-34011	Sprocket, Transfer Driven	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36292-34020	Sprocket, Transfer Driven	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36293-0C010	Chain, Transfer Front Drive	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
36293-34010	Chain, Transfer Front Drive	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90179-24011	Nut (For Manual Transmission Output Shaft Rear Set)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90250-05056	New Genuine Part	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90301-31003	Ring, O(For Manual Transmisson Output Shaft Rear Set Nut)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90363-40083	Bearing, Radial Ball (For Transfer Output Shaft Front)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90363-40088	Bearing (For Side Gear Shaft Holder)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90363-41004	Bearing, Radial Ball (For Transfer Output Shaft Rear)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90363-68001	Bearing (For Transfer Input Shaft)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90363-A0012	Bearing, Radial Ball (For Transfer Output Shaft Rear)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90363-A0013	Bearing (For Transfer Driven Sprocket)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90363-A0014	Bearing (For Transfer Driven Sprocket)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90364-32025	Bearing, Needle Roller (For Transfer Output Shaft Front)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90364-40007	Bearing (For Transfer Low Planetary Gear)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90364-49003	Bearing (For Transfer Drive Sprocket)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90365-40005	Bearing (For Side Gear Shaft Holder)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90365-40009	Bearing (For Side Gear Shaft Holder)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90374-73001	Bearing (For Transfer Low Planetary Gear)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90374-A0043	Bearing (For Transfer Low Planetary Gear)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-34033	Ring, Hole Snap (For Transfer Low Planetary Ring Gear) - SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-41021	Ring, Shaft Snap (For Transfer Clutch Hub)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-41022	Ring, Shaft Snap (For Transfer Clutch Hub)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-41023	Ring, Shaft Snap (For Transfer Clutch Hub)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-41024	Ring, Shaft Snap (For Transfer Clutch Hub)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-41025	Ring, Shaft Snap (For Transfer Clutch Hub)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-41026	Ring, Shaft Snap (For Transfer Clutch Hub)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-41027	Ring, Shaft Snap (For Transfer Clutch Hub)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-41028	Ring, Shaft Snap (For Transfer Clutch Hub)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-41029	Ring, Shaft Snap (For Transfer Clutch Hub)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-50016	Ring, Shaft Snap (For Transfer Input Shaft)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-56005	Ring Shaft Snap(For Transfer Driven Sprocket)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-64005	Ring, Shaft Snap (For Transfer Input Gear Stopper)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-64006	Ring, Shaft Snap (For Transfer Input Gear Stopper)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-64007	Ring, Shaft Snap (For Transfer Input Gear Stopper)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-64008	Ring, Shaft Snap (For Transfer Input Gear Stopper)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-64009	Ring, Shaft Snap (For Transfer Input Gear Stopper)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-64010	Ring, Shaft Snap (For Transfer Input Gear Stopper)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-64011	Ring, Shaft Snap (For Transfer Input Gear Stopper)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-99123	Ring, Shaft Snap	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-99126	Ring, Shaft Snap (For Transfer Output Shaft)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-99127	Ring, Shaft Snap	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-99128	Ring, Hole Snap (For Transfer Input Shaft)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-A0039	Ring, Shaft Snap (For Transfer Output Shaft Rear)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90520-A0040	Ring, Hole Snap (For Transfer Low Planetary Ring Gear)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90521-84003	Ring, Snap (For Transfer Output Front Shaft Bearing)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)
90560-40009	Spacer (For Transfer Output Shaft)	Transfer Gear ([11.2006 - ] (0611- )USK56..D ; (0611- )USK56..CMAX,DCB ..L,S ; (0611- )UCK55,56,57,UPK5 5,56,57,USK55,57)

Source: Public OEM parts-catalog data
Variants: 1 / 5
Category: 281
Collected: 2026-08-04
