Search › Model › UPK56

UPK56

Toyota TUNDRA · 2009 · 5,510 parts · 281 categories

5,510 items

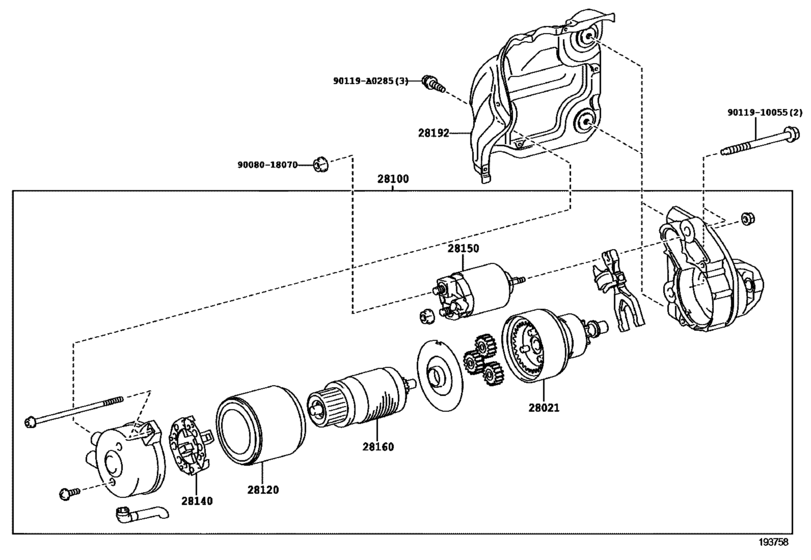

Starter ([08.2013 - ] 12V 2.0KW (1104- )3URFE ; (1104- )3URFBE..USK55,56,5 7 ; (1308- )) 21

#	OEM	Part name
28021	28021-0S031	Clutch Sub-Assy, Starter Center Bearing
28021	28021-38040	Clutch Sub-Assy, Starter Center Bearing
28100	28100-0S021	Starter Assy
28100	28100-0S060	Starter Assy
28100	28100-0S031	Starter Assy
28120	28120-0S030	Yoke Assy, Starter
28120	28120-38020	Yoke Assy, Starter
28120	28120-38070	Yoke Assy, Starter
28140	28140-37050	Holder Assy, Starter Brush
28140	28140-38070	Holder Assy, Starter Brush
28150	28150-0S020	Switch Assy, Magnet Starter
28150	28150-38030	Switch Assy, Magnet Starter
28160	28160-0S030	Armature Assy, Starter
28160	28160-0S060	Armature Assy, Starter
28160	28160-37050	Armature Assy, Starter
28160	28160-38020	Armature Assy, Starter
28160	28160-38070	Armature Assy, Starter
28192	28192-0S030	Cover, Starter
90119	90119-A0285	New Genuine Part
9008018070	90080-18070	NUT, WWASHER
9011910055	90119-10055	BOLT

OEM	Part name	Category
28021-0S031	Clutch Sub-Assy, Starter Center Bearing	Starter ([08.2013 - ] 12V 2.0KW (1104- )3URFE ; (1104- )3URFBE..USK55,56,5 7 ; (1308- ))
28021-38040	Clutch Sub-Assy, Starter Center Bearing	Starter ([08.2013 - ] 12V 2.0KW (1104- )3URFE ; (1104- )3URFBE..USK55,56,5 7 ; (1308- ))
28100-0S021	Starter Assy	Starter ([08.2013 - ] 12V 2.0KW (1104- )3URFE ; (1104- )3URFBE..USK55,56,5 7 ; (1308- ))
28100-0S031	Starter Assy	Starter ([08.2013 - ] 12V 2.0KW (1104- )3URFE ; (1104- )3URFBE..USK55,56,5 7 ; (1308- ))
28100-0S060	Starter Assy	Starter ([08.2013 - ] 12V 2.0KW (1104- )3URFE ; (1104- )3URFBE..USK55,56,5 7 ; (1308- ))
28120-0S030	Yoke Assy, Starter	Starter ([08.2013 - ] 12V 2.0KW (1104- )3URFE ; (1104- )3URFBE..USK55,56,5 7 ; (1308- ))
28120-38020	Yoke Assy, Starter	Starter ([08.2013 - ] 12V 2.0KW (1104- )3URFE ; (1104- )3URFBE..USK55,56,5 7 ; (1308- ))
28120-38070	Yoke Assy, Starter	Starter ([08.2013 - ] 12V 2.0KW (1104- )3URFE ; (1104- )3URFBE..USK55,56,5 7 ; (1308- ))
28140-37050	Holder Assy, Starter Brush	Starter ([08.2013 - ] 12V 2.0KW (1104- )3URFE ; (1104- )3URFBE..USK55,56,5 7 ; (1308- ))
28140-38070	Holder Assy, Starter Brush	Starter ([08.2013 - ] 12V 2.0KW (1104- )3URFE ; (1104- )3URFBE..USK55,56,5 7 ; (1308- ))
28150-0S020	Switch Assy, Magnet Starter	Starter ([08.2013 - ] 12V 2.0KW (1104- )3URFE ; (1104- )3URFBE..USK55,56,5 7 ; (1308- ))
28150-38030	Switch Assy, Magnet Starter	Starter ([08.2013 - ] 12V 2.0KW (1104- )3URFE ; (1104- )3URFBE..USK55,56,5 7 ; (1308- ))
28160-0S030	Armature Assy, Starter	Starter ([08.2013 - ] 12V 2.0KW (1104- )3URFE ; (1104- )3URFBE..USK55,56,5 7 ; (1308- ))
28160-0S060	Armature Assy, Starter	Starter ([08.2013 - ] 12V 2.0KW (1104- )3URFE ; (1104- )3URFBE..USK55,56,5 7 ; (1308- ))
28160-37050	Armature Assy, Starter	Starter ([08.2013 - ] 12V 2.0KW (1104- )3URFE ; (1104- )3URFBE..USK55,56,5 7 ; (1308- ))
28160-38020	Armature Assy, Starter	Starter ([08.2013 - ] 12V 2.0KW (1104- )3URFE ; (1104- )3URFBE..USK55,56,5 7 ; (1308- ))
28160-38070	Armature Assy, Starter	Starter ([08.2013 - ] 12V 2.0KW (1104- )3URFE ; (1104- )3URFBE..USK55,56,5 7 ; (1308- ))
28192-0S030	Cover, Starter	Starter ([08.2013 - ] 12V 2.0KW (1104- )3URFE ; (1104- )3URFBE..USK55,56,5 7 ; (1308- ))
90080-18070	NUT, WWASHER	Starter ([08.2013 - ] 12V 2.0KW (1104- )3URFE ; (1104- )3URFBE..USK55,56,5 7 ; (1308- ))
90119-10055	BOLT	Starter ([08.2013 - ] 12V 2.0KW (1104- )3URFE ; (1104- )3URFBE..USK55,56,5 7 ; (1308- ))
90119-A0285	New Genuine Part	Starter ([08.2013 - ] 12V 2.0KW (1104- )3URFE ; (1104- )3URFBE..USK55,56,5 7 ; (1308- ))

Source: Public OEM parts-catalog data
Variants: 1 / 5
Category: 281
Collected: 2026-08-04
