UPK56

Toyota TUNDRA · 2009 · 5,510 parts · 281 categories
UPK56 ×

← Back to categories

5,510 items

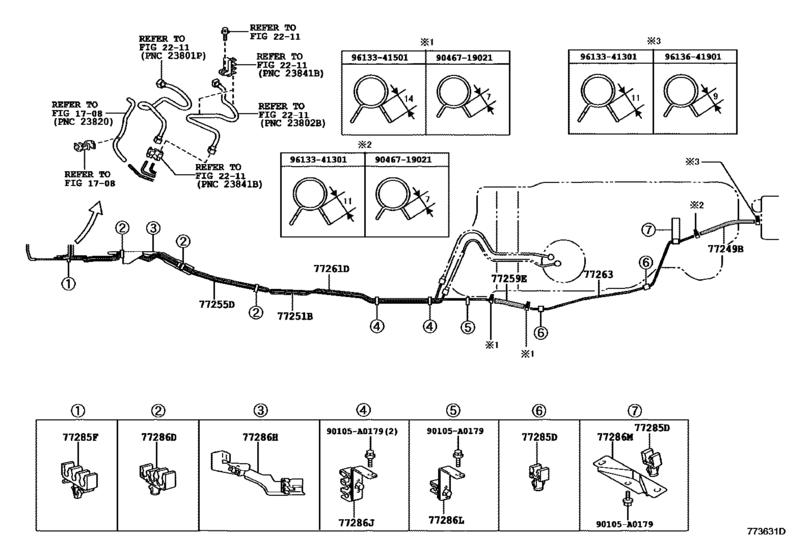

Fuel Tank & Tube ([08.2013 - ] FUEL TUBE (1308- )USK56 ; (1308- )GSK51,UPK5#,USK51. .HTWC) 21
#OEMPart name
77249 77249-0C020 Hose, Fuel
77249 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77251 77251-0C080 Tube, Fuel Main
77255 77255-0C110 Tube, Fuel Return
77259 77259-0C210 Hose, Fuel
77261 77262-0C120 Tube, Fuel Tank To Canister
77263 77263-0C031 Tube, Fuel Tank To Canister, No.3
77263 77263-0C060 Tube, Fuel Tank To Canister, No.3
77285 77285-34380 Clamp, Fuel Tube, No.1 - FUEL TUBE, NO.6
77285 77289-26010 Clamp, Fuel Tube, No.1
77286 77285-34370 Clamp, Fuel Tube, No.1
77286 77296-0C010 Clamp, Fuel Tube, No.3 - FUEL TUBE PROTECTOR, NO.1
77286 77296-0C020 Clamp, Fuel Tube, No.3
77286 77412-34010 Clamp, Fuel Tube, No.4
77286 77413-34010 Clamp, Fuel Tube, No.5
77286 77414-0C010 Clamp, Fuel Tube, No.6
90105 90105-A0179 New Genuine Part
9046719021 90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)
9613341301 96133-41301 Clip(For Fuel Vapor Feed Hose, No.2)
9613341501 96133-41501 Clip(For Air Hose No.3)
9613641901 96136-41901 Clip Or Clamp(For Ventilation Hose)
