Search › Model › UPK56

UPK56

Toyota TUNDRA · 2009 · 5,510 parts · 281 categories

5,510 items

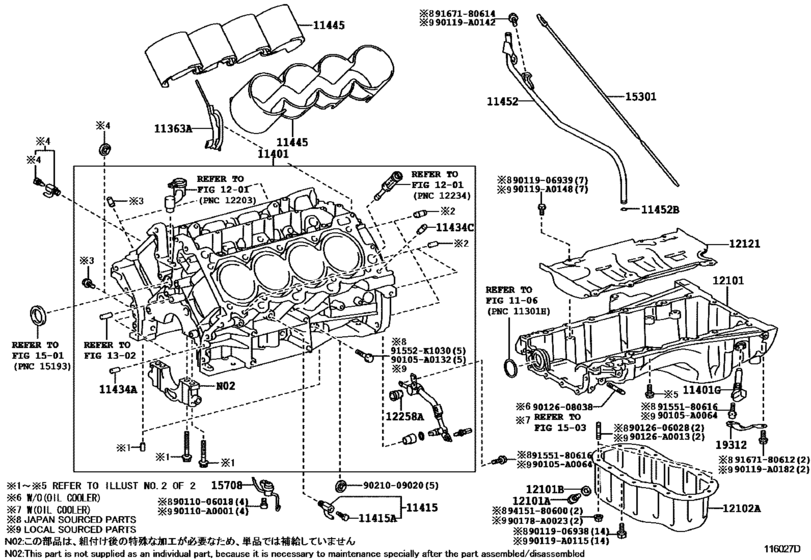

Cylinder Block ([04.2009 - ] (0904- )1URFE) 51

#	OEM	Part name
11363	11363-38020	Cover, Flywheel Housing Side
11401	11401-09735	Block Sub-Assy, Cylinder
11401	11401-09736	Block Sub-Assy, Cylinder
11401	12109-38050	Pipe Sub-Assy, Oil Drain
11401	11401-80788	Block Sub-Assy, Cylinder
11401	11401-80789	Block Sub-Assy, Cylinder
11401	11401-80833	Block Sub-Assy, Cylinder
11401	90919-05071	Sensor, Crank Position
11415	90910-09129	Cock Sub-Assy, Water Drain(For Cylinder Block)
11415	90910-09087	Plug, Water Drain Cock(For Cylinder Block)
11434	90250-04097	Pin, Straight(For Camshaft Housing Rh)
11434	90250-08120	Pin, Straight, No.1
11445	11445-0S010	Spacer, Cylinder Block Water Jacket
11445	11445-38010	Spacer, Cylinder Block Water Jacket
11452	11452-0S020	Guide, Oil Level Gage
11452	96721-19010	Ring, O(For Oil Level Gage Guide)
12101	12111-0S011	Pan Sub-Assy, Oil
12101	90341-12012	Plug(For Oil Pan Drain)
12101	90341-T0004	Plug(For Oil Pan Drain)
12101	90430-12031	Gasket (For Oil Pan Drain Plug)
12102	12102-0S010	Pan Sub-Assy, Oil, No.2
12102	12102-38010	Pan Sub-Assy, Oil, No.2
12121	12121-0S010	Plate, Oil Pan Baffle, No.1
12121	12121-38070	Plate, Oil Pan Baffle, No.1
12258	12269-38010	Gasket, Oil Return Pipe
15301	15301-0S020	Gage Sub-Assy, Oil Level
15301	15301-38061	Gage Sub-Assy, Oil Level
15301	15301-38062	Gage Sub-Assy, Oil Level
15708	15708-38020	Nozzle Sub-Assy, Oil, No.1
15708	15708-38030	Nozzle Sub-Assy, Oil, No.1
19312	19312-38010	Protector, Crank Position Sensor
90105	90105-A0064	New Genuine Part
90105	90105-A0132	New Genuine Part
90110	90110-A0001	New Genuine Part
90119	90119-A0115	New Genuine Part
90119	90119-A0142	New Genuine Part
90119	90119-A0148	New Genuine Part
90119	90119-A0182	New Genuine Part
90126	90126-A0013	Bolt, Stud(For Oil Pan)
90178	90178-A0023	Nut, Wire Adjusting, No.2
91552	91552-K1030	BOLT FLANGE
9011006018	90110-06018	Bolt(For Rear Steering Worm Control Cam)
9011906938	90119-06938	BOLT WWASHER
9011906939	90119-06939	Bolt, Hood Lock
9012606028	90126-06028	Bolt, Stud(For Oil Pan)
9012608038	90126-08038	New Genuine Part
9021009020	90210-09020	WASHER SEAL
9155180616	91551-80616	BOLT FLANGE
9167180612	91671-80612	Bolt
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
11363-38020	Cover, Flywheel Housing Side	Cylinder Block ([04.2009 - ] (0904- )1URFE)
11401-09735	Block Sub-Assy, Cylinder	Cylinder Block ([04.2009 - ] (0904- )1URFE)
11401-09736	Block Sub-Assy, Cylinder	Cylinder Block ([04.2009 - ] (0904- )1URFE)
11401-80788	Block Sub-Assy, Cylinder	Cylinder Block ([04.2009 - ] (0904- )1URFE)
11401-80789	Block Sub-Assy, Cylinder	Cylinder Block ([04.2009 - ] (0904- )1URFE)
11401-80833	Block Sub-Assy, Cylinder	Cylinder Block ([04.2009 - ] (0904- )1URFE)
11445-0S010	Spacer, Cylinder Block Water Jacket	Cylinder Block ([04.2009 - ] (0904- )1URFE)
11445-38010	Spacer, Cylinder Block Water Jacket	Cylinder Block ([04.2009 - ] (0904- )1URFE)
11452-0S020	Guide, Oil Level Gage	Cylinder Block ([04.2009 - ] (0904- )1URFE)
12102-0S010	Pan Sub-Assy, Oil, No.2	Cylinder Block ([04.2009 - ] (0904- )1URFE)
12102-38010	Pan Sub-Assy, Oil, No.2	Cylinder Block ([04.2009 - ] (0904- )1URFE)
12109-38050	Pipe Sub-Assy, Oil Drain	Cylinder Block ([04.2009 - ] (0904- )1URFE)
12111-0S011	Pan Sub-Assy, Oil	Cylinder Block ([04.2009 - ] (0904- )1URFE)
12121-0S010	Plate, Oil Pan Baffle, No.1	Cylinder Block ([04.2009 - ] (0904- )1URFE)
12121-38070	Plate, Oil Pan Baffle, No.1	Cylinder Block ([04.2009 - ] (0904- )1URFE)
12269-38010	Gasket, Oil Return Pipe	Cylinder Block ([04.2009 - ] (0904- )1URFE)
15301-0S020	Gage Sub-Assy, Oil Level	Cylinder Block ([04.2009 - ] (0904- )1URFE)
15301-38061	Gage Sub-Assy, Oil Level	Cylinder Block ([04.2009 - ] (0904- )1URFE)
15301-38062	Gage Sub-Assy, Oil Level	Cylinder Block ([04.2009 - ] (0904- )1URFE)
15708-38020	Nozzle Sub-Assy, Oil, No.1	Cylinder Block ([04.2009 - ] (0904- )1URFE)
15708-38030	Nozzle Sub-Assy, Oil, No.1	Cylinder Block ([04.2009 - ] (0904- )1URFE)
19312-38010	Protector, Crank Position Sensor	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90105-A0064	New Genuine Part	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90105-A0132	New Genuine Part	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90110-06018	Bolt(For Rear Steering Worm Control Cam)	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90110-A0001	New Genuine Part	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90119-06938	BOLT WWASHER	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90119-06939	Bolt, Hood Lock	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90119-A0115	New Genuine Part	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90119-A0142	New Genuine Part	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90119-A0148	New Genuine Part	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90119-A0182	New Genuine Part	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90126-06028	Bolt, Stud(For Oil Pan)	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90126-08038	New Genuine Part	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90126-A0013	Bolt, Stud(For Oil Pan)	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90178-A0023	Nut, Wire Adjusting, No.2	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90210-09020	WASHER SEAL	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90250-04097	Pin, Straight(For Camshaft Housing Rh)	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90250-08120	Pin, Straight, No.1	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90341-12012	Plug(For Oil Pan Drain)	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90341-T0004	Plug(For Oil Pan Drain)	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90430-12031	Gasket (For Oil Pan Drain Plug)	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90910-09087	Plug, Water Drain Cock(For Cylinder Block)	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90910-09129	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([04.2009 - ] (0904- )1URFE)
90919-05071	Sensor, Crank Position	Cylinder Block ([04.2009 - ] (0904- )1URFE)
91551-80616	BOLT FLANGE	Cylinder Block ([04.2009 - ] (0904- )1URFE)
91552-K1030	BOLT FLANGE	Cylinder Block ([04.2009 - ] (0904- )1URFE)
91671-80612	Bolt	Cylinder Block ([04.2009 - ] (0904- )1URFE)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Cylinder Block ([04.2009 - ] (0904- )1URFE)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Cylinder Block ([04.2009 - ] (0904- )1URFE)
96721-19010	Ring, O(For Oil Level Gage Guide)	Cylinder Block ([04.2009 - ] (0904- )1URFE)
