TRH112

Toyota HIACE · 2003 · 3,859 parts · 239 categories
TRH112 ×
3,859 items
Abs & Vsc ([08.1998 - ] (9808- )LH162,172,182,184,RZH102,112,12#,18#, TRH102,112,12#) 19
#OEMPart name
88263 88263-24030 Relay, Skid Control
88263 88263-14110 Relay Assy, Circuit Opening (For Esc)
88278 88278-50010 Cushion, Skid Control Computer
89411 89542-26090 Sensor, Speed
89411 89543-26090 Sensor, Speed
89411 89545-35020 Sensor, Speed
89411 89546-35020 Sensor, Speed
89411 96723-19021 Ring, O (For Speed Sensor)
89516 89516-26040 Wire, Skid Control Sensor
89540 89540-26230 Computer Assy, Skid Control
91611 91611-G0816 Bolt
91651 91651-B0618 BOLT WWASHER
91651 91651-B0640 Bolt, Rear Body Mounting
9162140820 91621-40820 Bolt
9163560618 91635-60618 New Genuine Part
9163560618 91631-B0614 BOLT WWASHER
9164580816 91645-80816 New Genuine Part
9164580816 91551-80810 New Genuine Part
9165160614 91651-60614 Bolt
Accelerator Link ([07.1999 - ] (9907- )KZH10#,11#,120,13#,TRH102,112,12#) 15
#OEMPart name
78111 78111-16010 Pedal, Accelerator
78117 90541-06038 Cushion(For Parking Brake Pedal)
78120 78010-26050 Rod Assy, Accelerator Pedal
78150 78150-26071 Wire Assy, Accelerator Flexible
78183 78183-26170 Clamp, Accelerator Control Cable
78189 78208-26010 Bolt, Accelerator Pedal Stopper
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
7821826020 78218-26020 New Genuine Part
8213326540 82133-26540 Wire, Cowl, No.3
8213326560 82133-26560 Wire, Cowl, No.3
9011908849 90119-08849 New Genuine Part
9011908849 90119-08987 New Genuine Part
9095001865 90950-01865 PLUG HOLE
9356054012 93560-54012 Screw
9616001000 96160-01000 Ring, E(For Clutch Booster Air Valve)
Air Bag ([08.1993 - ] (9308- )KZH10#,11#,12#,13#,LH16#,17#,18#,RZH1 0#,11#,12#,133,18#,TRH102,112,12#) 7
#OEMPart name
89170 89170-26140 Sensor Assy, Air Bag
89170 89170-26150 Sensor Assy, Air Bag
89176 89176-26030 Label, Air Bag Sensor Cover Caution
89179 89179-26070-B0 Cover, Air Bag Sensor
9014980023 90149-80023 New Genuine Part
9018905016 90189-05016 Grommet, Screw
9356055014 93560-55014 SCREW
Air Cleaner ([08.2003 - ] (0308- )1TRFE) 35
#OEMPart name
17700 17700-75440 Cleaner Assy, Air
17700 90175-08008 Nut, Wing(For Air Cleaner)
17705 17705-75010 Cap Sub-Assy, Air Cleaner
17736 90175-06003 Nut, Wing(For Air Cleaner)
17764 52811-95J00 Duct, Air Cleaner
17801 17801-54100 Element Sub-Assy, Air Cleaner Filter
17861 17861-75080 Connector, Intake Air
17861 96111-10750 Clamp, Hose(For Air Cleaner Duct)
17861 96111-10830 Clamp, Hose(For Air Connector)
17881 17881-75020 Hose, Air Cleaner, No.1
17881 90460-85004 Clamp(For Air Cleaner Hose, No.1)
17881 96111-10850 Clamp, Hose(For Air Connector)
17885 17885-75040 Pipe, Air Cleaner
17911 52814-95J00 Duct, Cool Air Intake, No.1
17912 52815-95J00 Duct, Cool Air Intake, No.2
17912 52820-95J00 Duct, Cool Air Intake, No.2
17913 52813-95J00 Duct, Cool Air Intake, No.3
22204 22204-75030 Meter Sub-Assy, Intake Air Flow
22250 22250-75050 Meter Assy, Intake Air Flow
52829 52829-95J00-01 Grille, Cool Air Intake
53955 53955-95402 Cushion, Air Cleaner Inlet
9009900289 90099-00289 SCREW
9010906364 90109-06364 New Genuine Part
9010906364 90109-06145 New Genuine Part
9011908806 90119-08806 BOLT WWASHER
9016440072 90164-40072 Screw
9017908026 90179-08026 Nut (For Front Wiper Arm Setting)
9018904085 90189-04085 GROMMET SCREW
9046001056 90460-01056 New Genuine Part
9048016027 90480-16027 New Genuine Part
9056010064 90560-10064 New Genuine Part
9099992002 90999-92002 Air Hose (300 mm)
9155180612 91551-80612 Bolt (For Front Differential Breather Plug Oil Deflector)
9165140820 91651-40820 Bolt
9165160614 91651-60614 Bolt
Alternator ([08.2003 - ] 12V 80A (0308- )1TRFE) 11
#OEMPart name
27020 27060-75310 Alternator Assy
27020 27060-75311 Alternator Assy
27020 91552-81085 Bolt(For Alternator)
27330 27330-62220 Rotor Assy, Alternator
27330 27330-30130 Rotor Assy, Alternator
27357 27357-22200 Holder, Alternator, W/rectifier
27370 27370-23120 Holder Assy, Alternator Brush
27411 27411-31200 Pulley, Alternator
27700 27700-75030 Regulator Assy, Generator
9155281040 91552-81040 Bolt(For Alternator)
9415080600 94150-80600 NUT FLANGE
Antenna ([08.1989 - ] ﾗｼﾞｵ (8908- )) 5
#OEMPart name
86300 86300-26100 Antenna Assy, W/holder
9015750022 90157-50022 New Genuine Part
9017906216 90179-06216 Direct
9017906216 90179-06274 Nut
9046710048 90467-10048 New Genuine Part

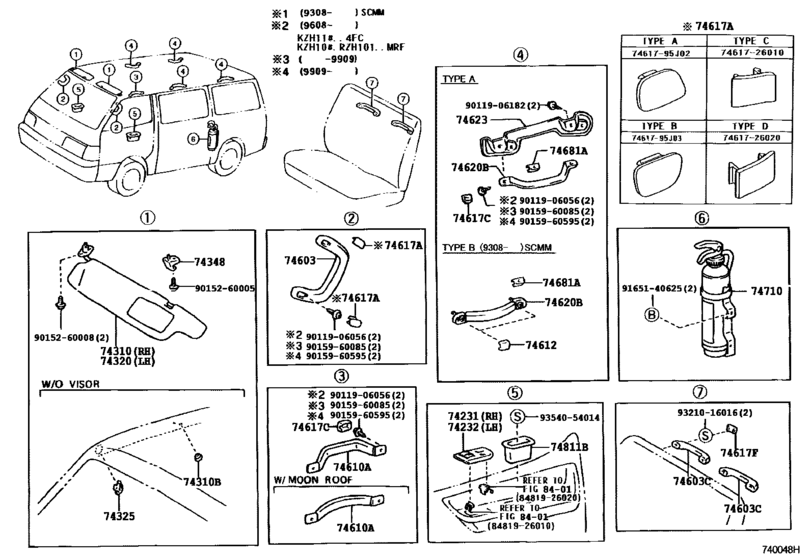

Armrest & Visor ([08.1989 - ] (8908- )03S,05S,06S,08S,09S,10S,15S) 29
#OEMPart name
74231 74231-26230-B0 Panel, Front Armrest Base, Upper Rh
74232 74232-26070-B0 Panel, Front Armrest Base, Upper Lh
74310 74310-26880-B0 Visor Assy, Rh
74310 74310-2F010-B0 Visor Assy, Rh
74320 74320-26610-B0 Visor Assy, Lh
74320 74320-26670-B0 Visor Assy, Lh
74348 74348-26020-B0 Holder, Visor
74348 74348-26020-B3 Holder, Visor
74603 74610-26010-B5 Grip Sub-Assy, Assist, Front
74617 74617-26010-B5 Plug, Assist Grip
74617 74617-26010-B3 Plug, Door Assist Grip
74617 74617-26020-B5 Plug, Assist Grip
74617 74617-26020-B3 Plug, Assist Grip
74617 74617-16010-B7 Plug, Assist Grip
74617 74617-16010-P9 Plug, Assist Grip (Gray)
74620 74610-20040-B1 Grip Sub-Assy, Assist
74620 74610-20040-B7 Grip Sub-Assy, Assist
74811 74811-95J04-B0 Handle, Door Pull
74811 74811-95J04-B2 Handle, Door Pull
9011906056 90119-06056 New Genuine Part
9011906056 90119-06442 BOLT WWASHER
9011906182 90119-06182 Bolt, W/washer (For Floor Shift)
9015260005 90152-60005 SCREW
9015260008 90152-60008 New Genuine Part
9015960085 90159-60085 New Genuine Part
9015960595 90159-60595 New Genuine Part
9165140625 91651-40625 New Genuine Part
9321016016 93210-16016 SCREW
9354054014 93540-54014 SCREW

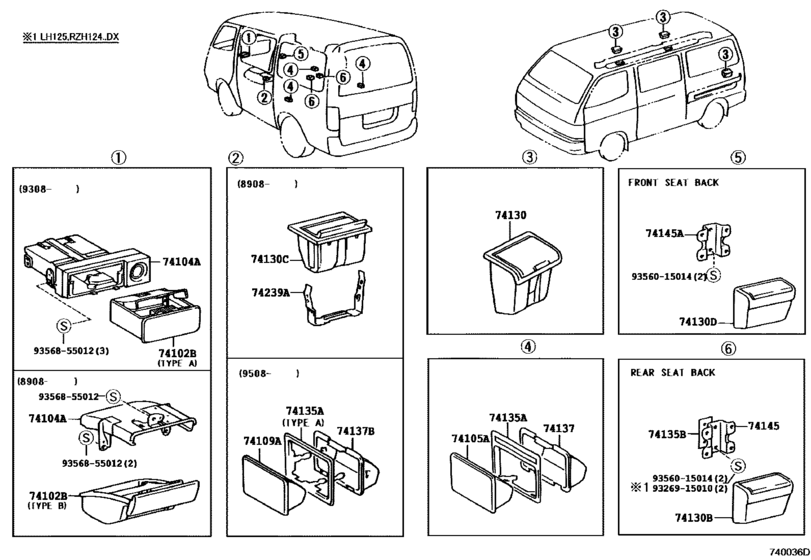

Ash Receptacle ([08.1989 - ] (8908- )) 9
#OEMPart name
74102 74102-26010-C0 Box Sub-Assy, Front Ash Receptacle
74104 74104-95J05 Retainer Sub-Assy, Front Ash Receptacle
74109 74109-32010-B3 Box Sub-Assy, Ash Receptacle
74109 74109-20080-22 Receptacle Assy, Rear Ash (Black)
74135 74135-26010 Retainer, Rear Ash Receptacle, No.1
74137 74137-12010 Retainer, Rear Ash Receptacle, Inner
9326915010 93269-15010 New Genuine Part
9356015014 93560-15014 SCREW
9356855012 93568-55012 SCREW
Automatic Door ([08.1989 - ] (8908- )) 2
#OEMPart name
9113140670 91131-40670 New Genuine Part
9461210601 94612-10601 New Genuine Part
Back Door Lock & Hinge ([08.2003 - ] (0308- )TRH102,112,12#) 37
#OEMPart name
68810 68810-95J02 Hinge Assy, Back Door, Upper
68820 68820-95J02 Hinge Assy, Back Door, Lower
68825 68825-95700 Plate, Back Door Hinge
68907 68907-26490 Stay Sub-Assy, Back Door Damper, Rh
68908 68908-26490 Stay Sub-Assy, Back Door Damper, Lh
69150 69150-95J00 Actuator Assy, Back Door Lock
69290 69290-95J01 Handle Assy, Back Door Inside
69291 69291-95J00-B3 Handle Assy, Back Door Inside
69291 69291-95J00-B6 Handle Assy, Back Door Inside
69298 69298-95J00 Cover, Back Door Inside Handle
69350 69350-95J02 Lock Assy, Back Door
69358 69358-95J00 Protector, Back Door Lock
69359 90541-09001 Cushion, Back Door Lock
69403 69403-26050 Stopper Sub-Assy, Back Door Side Female, Rh
69430 69430-95J01 Striker Assy, Back Door Lock
69449 69449-95J00 Shim, Back Door Lock Striker
69461 69461-26060 Stopper, Back Door Side Male, Rh
69690 69690-95J04 Control Assy, Back Door Remote
69706 69706-95J01 Rod Sub-Assy, Back Door Lock Remote Control
69741 69741-28010-C1 Knob, Back Door Lock Control (Black)
69749 69749-30020 Clamp, No.1(For Back Door Lock Control Cable)
69751 69751-95J00-C0 Holder, Door Lock Control Knob
91616 91616-B0825 New Genuine Part
9011906549 90119-06549 BOLT WWASHER
9011906883 90119-06883 New Genuine Part
9011908464 90119-08464 Bolt, W/washer(For Side Gate, Rh)
9011908830 90119-08830 Bolt(For Oil Receiver Pipe)
9011908830 47327-60232 Tube, Rear Brake, No.7
9015760012 90157-60012 New Genuine Part
9015960066 90159-60066 New Genuine Part
9017608032 90176-08032 New Genuine Part
9018906018 90189-06018 GROMMET
9095006096 90950-06096 Plug, Hole(For Hood)
9165140614 91651-40614 Bolt
9321954012 93219-54012 New Genuine Part
9354054014 93540-54014 SCREW
9359016014 93590-16014 New Genuine Part
Back Door Panel & Glass ([08.1989 - ] (8908- )) 5
#OEMPart name
6777116080 67771-16080 Retainer (For Quarter Inside Trim Board)
6777126010 67771-26010 Retainer (For Quarter Inside Trim Board)
6777220021 67772-20021 Cap, Front Door Trim Retainer
9046708037 90467-08037-N8 Clip(For Back Door Trim Panel)
904670803733 90467-08037-33 Clip(For Slide Door Trim Board)
Back Door Panel & Glass ([08.2003 - ] (0308- )TRH102,112,12#) 17
#OEMPart name
67005 67005-95N65 Panel Sub-Assy, Back Door
67685 67685-95J01 Packing, Back Door Service Hole, No.1
67686 67526-95A00 Packing, Slide Door Lower Cover, Rh
67847 67847-95J05 Cover, Back Door Service Hole, No.1
67848 67848-95J00 Cover, Back Door Service Hole, No.2
67881 67881-95J16 Weatherstrip, Back Door
68131 68131-26190 Glass, Back Door
68131 68131-26291 Glass, Back Door
68291 68291-95J05 Weatherstrip, Back Door Glass
7119626030 71196-26030 Clip(For Rear Spoiler)
9014960027 90149-60027 New Genuine Part
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9018906002 90189-06002 GROMMET, SCREW
9033340001 90333-40001 Plate, Noise Control, No.1
9043005003 90430-05003 GASKET
9095901477 90959-01477 New Genuine Part

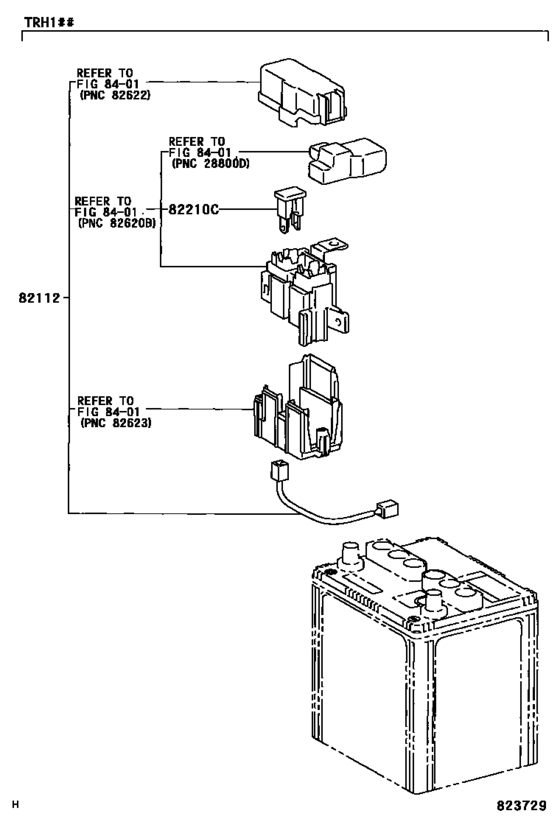

Battery & Battery Cable ([08.1989 - ] (8908- )) 4
#OEMPart name
28800 90982-05037 Terminal, Battery Positive
28800 82821-95J01 Cover, Connector(For Battery Terminal)
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut

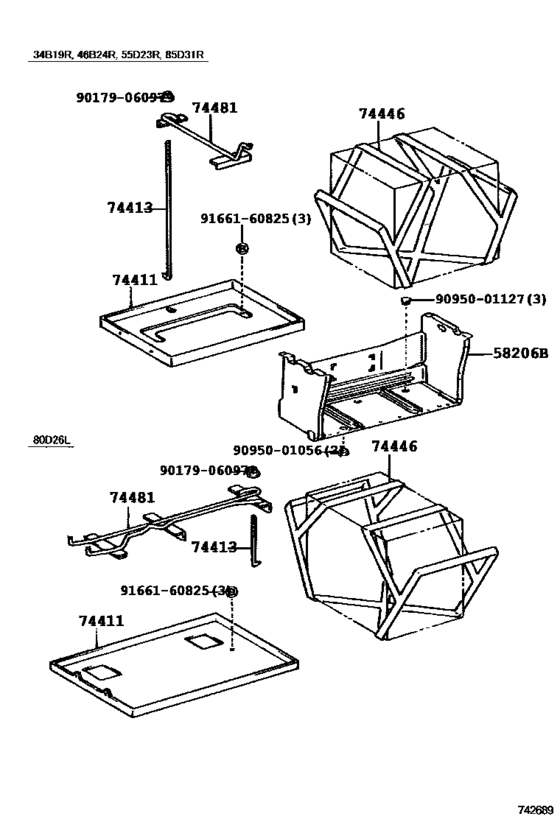

Battery Carrier ([08.1989 - ] (8908- )) 10
#OEMPart name
74411 74411-95J03 Carrier, Battery
74413 74451-95J02 Bolt, Battery Clamp
74446 74446-95702 Belt Sub-Assy, Battery
74481 74404-26060 Clamp, Battery Hold Down
9017906097 90179-06097 Clip(For Front Bumper), No.1
9017906097 90179-06206 Nut
9095001056 90950-01056 Plug, Hole(For Floor Panel)
9095001056 90950-01826 Plug, Hole(For Floor Panel)
9095001127 90950-01127 Grommet (For Cooler Unit)
9166160825 91661-60825 New Genuine Part

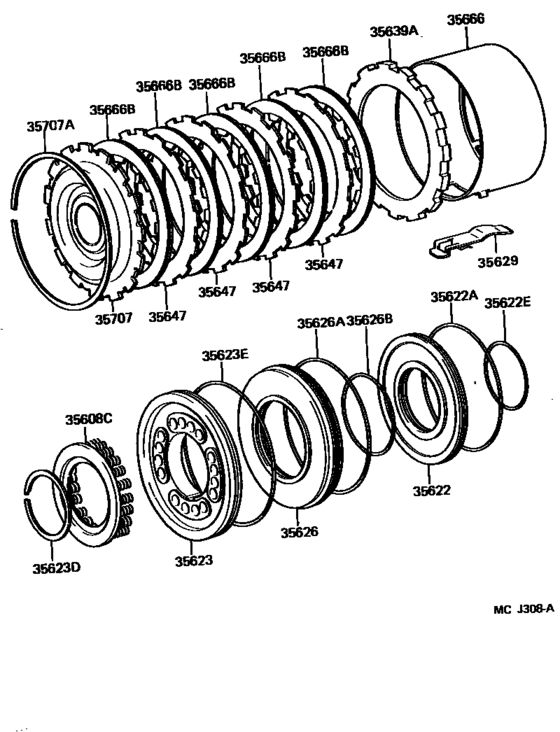

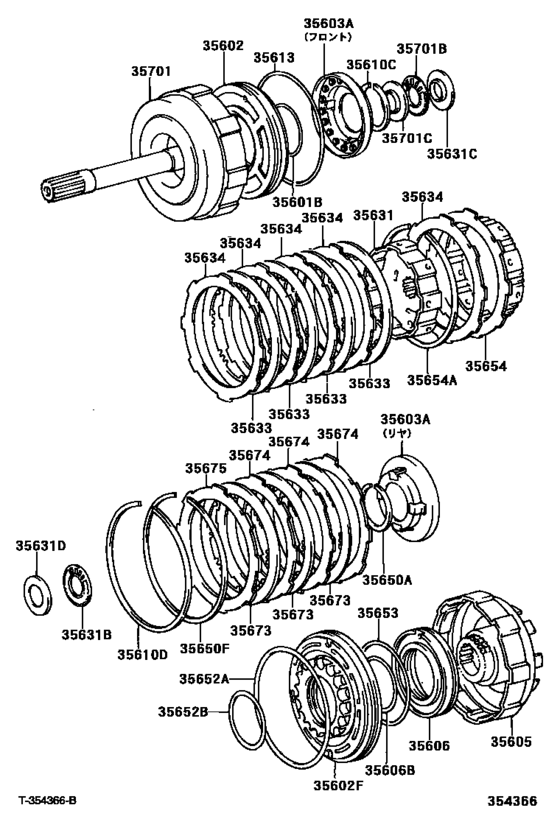

Brake Band & Multiple Disc Clutch (Atm) ([08.2003 - ] A45DE (0308- )TRH102,112,12#..4FC) 27
#OEMPart name
35601 90301-56007 Ring, O (For Underdrive Clutch Piston)
35602 35602-22030 Piston Sub-Assy, Front Clutch
35602 35602-30041 Piston Sub-Assy, Front Clutch
35603 35603-22010 Spring Sub-Assy, Forward Clutch Return
35603 35603-22040 Spring Sub-Assy, Forward Clutch Return
35605 35605-22011 Drum Sub-Assy, Rear Clutch W/2Nd Sun Gear
35606 35606-22010 Piston Sub-Assy, Rear Clutch
35610 90520-39261 Ring, Shaft Snap (For Front Clutch Piston Return Spring)
35610 90520-99012 Ring, Hole Snap (For Front Multiple Disc Clutch)
35613 90301-99058 Ring, O (For Overdrive Direct Clutch Piston)
35631 35631-43010 Hub, Clutch(For Multiple Disc Clutch)
35631 90374-28014 Bearing, Thrust Needle Roller(For Overdrive)
35631 35789-22050 Race, Thrust Bearing (For Rear Planetary Ring Gear Front)
35631 35789-43010 Race, Thrust Bearing (For Rear Planetary Ring Gear Rear)
35633 35677-22080 Disc, Clutch (For Front Clutch)
35634 35634-22040 Plate, Clutch (For Overdrive)
35634 35634-30070 Plate, Clutch (For Overdrive)
35650 90521-99139 Ring, Hole Snap (For Overdrive Brake Return Spring Seat)
35653 90301-83001 Ring, O (For Rear Clutch Piston)
35654 35654-30010 Hub, Rear Clutch
35654 90521-99146 Ring, Hole Snap, No.1 (For Overdrive)
35675 35675-22120 Flange, Rear Clutch
35675 35675-22130 Flange, Rear Clutch
35675 35675-22140 Flange, Overdrive Clutch
35701 35701-30043 Shaft Sub-Assy, Input
35701 90374-23012 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)
35701 35789-22010 Race, Thrust Bearing(For Overdrive Planetary Gear)
Brake Booster & Vacuum Tube ([07.2003 - ] (0307- )TRH102,112,12#) 15
#OEMPart name
44610 44610-26431 Booster Assy, Brake
44610 44610-26471 Booster Assy, Brake
44730 44730-24020 Valve Assy, Vacuum Check(For Brake)
44730 96133-41500 Clamp Or Clip(For Air Hose, No.5)
44758 44758-26060 Bracket, Vacuum Check Valve
44761 44761-26350 Tube, Intake Manifold Or Vacuum Pump To Connector
44764 44764-26071 Tube, Connector To Brake Booster
44771 44771-26090 Hose, Vacuum Tube Connector
44772 44772-26130 Hose, Check Valve To Connector Tube
44774 44774-26370 Hose, Union To Connector Tube
44776 44776-26020 Hose, Brake Booster
47289 47289-60020 Label, Brake Master Cylinder Adjust Information
91611 91611-B0816 Bolt
9017908038 90179-08038 Nut
9046110734 90461-10734 New Genuine Part
Brake Master Cylinder ([08.1989 - ] (8908- )) 20
#OEMPart name
4493 04493-25070 Cylinder Kit, Brake Master
4493 04493-26190 Cylinder Kit, Brake Master
47201 47201-26520 Cylinder Sub-Assy, Brake Master
47201 47201-26550 Cylinder Sub-Assy, Brake Master
47202 47220-26210 Reservoir Sub-Assy, Brake Master Cylinder
47210 90430-06104 Gasket(For Brake Actuator)
47210 90109-06077 Bolt(For Brake Master Cylinder)
47230 47230-28010 Cap Assy, Brake Master Cylinder Reservoir Filler
47234 47234-26210 Tube, Reservoir, No.1
47235 47235-26190 Tube, Brake Master Cyrinder Reservoir, No.2
47236 96133-41500 Clamp Or Clip(For Air Hose, No.5)
47264 47264-22010 Clevis, Master Cylinder Push Rod
47264 47264-28010 Clevis, Master Cylinder Push Rod
47299 47299-26020 Strainer, Brake Master Cylinder Reservoir
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9161160616 91611-60616 Bolt(For Transaxle Case Receiver)
9161160616 91611-B0616 Bolt(For Transaxle Case Receiver)
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
Brake No.3, 1St & Reverse Brake (Atm) ([10.1990 - ] A44DE,A45DL,A45DF,A45DE (8908-9010)4FC ; (9010- )TRH102,112,12# ; (90 10- )LH102,103,107,113,119,123,1 29,162,17#,18#,RZ H10#,111,112,124,125,133,183..4FC) 22
#OEMPart name
35608 35608-20020 Spring Sub-Assy, 2Nd Brake Piston Return
35622 35622-22010 Piston, Brake, No.2
35622 90301-99084 Ring, O (For Underdrive Brake Piston)
35622 90301-56007 Ring, O (For Underdrive Clutch Piston)
35623 35623-22010 Piston, Brake, No.3
35623 90520-52262 Ring, Shaft Snap (For Underdrive Return Spring)
35623 90301-99110 Ring, O (For Brake Piston Outer)
35626 35626-22010 Sleeve, Brake Reaction
35626 90301-99109 Ring (For Brake Reaction Sleeve Outer)
35626 90301-67005 Ring (For Brake Reaction Sleeve Inner)
35629 35629-22010 Spring (1St & Revs Brake Plate Stopper)
35639 35639-22010 Plate, Clutch Pressure (For Brake)
35639 35639-22020 Plate, Clutch Pressure (For Brake)
35639 35639-22030 Plate, Clutch Pressure (For Brake)
35639 35639-22040 Plate, Clutch Pressure (For Brake)
35639 35639-22050 Plate, Clutch Pressure (For Brake)
35639 35639-22060 Plate, Clutch Pressure (For Brake)
35647 35647-22010 Plate, Clutch, No.2
35666 35666-30010 Tube, Brake Apply
35666 35633-22060 Disc, Clutch (For Brake)
35707 35707-30020 Race Sub-Assy, 1 Way Clutch, Inner
35707 90521-99140 Ring (For Rear Brake)
Brake Pedal & Bracket ([08.1989 - ] (8908- )) 18
#OEMPart name
47101 47101-26111 Pedal Sub-Assy, Brake
47101 90508-32035 Spring(For Brake Pedal Return)
47101 90386-13007 Bush(For Clutch Pedal)
47121 31321-14020 Pad, Clutch Pedal
47124 91112-61070 Shaft, Clutch Pedal
47124 90387-10004 Collar, Clutch Pedal Shaft
47131 90541-06036 Cushion, No.1(For Clutch Pedal)
47264 90240-10037 Pin(For Push Rod)
55150 55150-26021 Bracket Assy, Pedal
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part

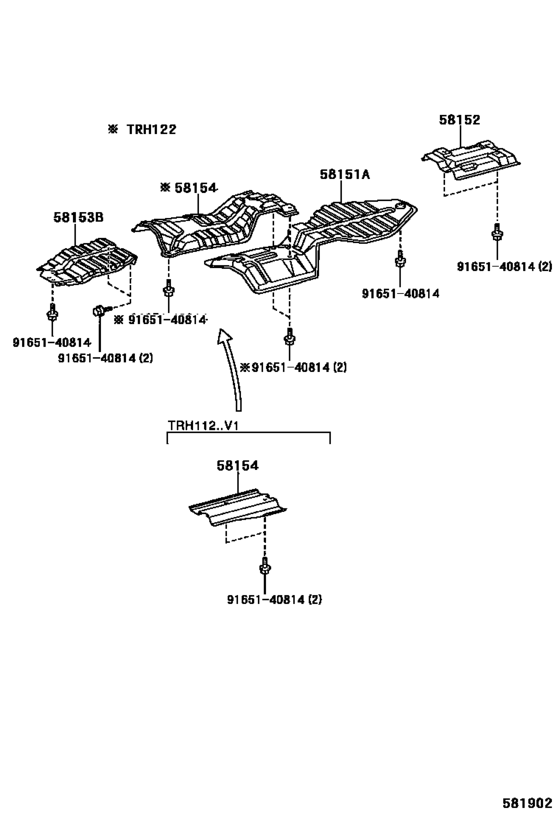

5842628020 58426-28020 Protector, Engine Sub Cover
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9046816026 90468-16026 New Genuine Part
9165160818 91651-60818 BOLTWWASHER
9413061000 94130-61000 Nut(For Clutch Pedal Stopper)
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
Brake Tube & Clamp ([08.1989 - ] (8908- )) 24
#OEMPart name
31478 31478-30010 Bleeder Plug Cap
47910 47910-26221 Valve Assy, Load Sensing Proportioning
47910 47547-27030 Plug, Bleeder(For Front Disc Brake)
47920 47920-26080 Spring Assy, Load Sensing
47920 90387-08099 Collar(For Load Sensing Spring)
47920 90467-31110 Clip(For Load Sensing Valve Boot)
47920 90202-10103 Washer(For Load Sensing Spring)
47931 47931-26110 Bracket, Load Sensing Valve
47933 47933-26092 Bracket, Load Sensing Shackle, No.1
47935 47935-35030 Shackle, Load Sensing Spring, No.1
47935 47924-35010 Bush, Load Sensing Valve
47936 47936-26020 Shackle, Load Sensing Spring, No.2
47937 47937-26020 Plate, Load Sensing Valve Set
47938 47938-26343 Insulator, Load Sensing Spring Shackle Haet
90015 90015-AD101 New Genuine Part
91611 91611-B0816 Bolt
9020108062 90201-08062 Retainer(For Load Sensing Spring Shackle)
9020123360 90201-23360 WASHER
9113150840 91131-50840 BOLT
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9461210800 94612-10800 Washer, Plate(For Repair Actuator Set)
9538102020 95381-02020 PIN
Brake Tube & Clamp ([08.1996 - ] ｱﾘ(ABS) (9608- )KZH10#,11#,12#,13#,LH16#,17#,18#,RZH1 0#,11#,12#,133,18#,TRH102,112,12#) 6
#OEMPart name
44510 44050-26010 Actuator Assy, Brake
44545 44545-42020 Holder, Brake Actuator Bolt
44546 44546-42020 Cushion, Brake Actuator Bolt
44591 44590-26020 Bracket, Brake Actuator, No.1
9009905277 90099-05277 New Genuine Part
9011908699 90119-08699 New Genuine Part
Brake Tube & Clamp ([08.1998 - ] ｱﾘ(ABS) (9808- )LH162,172,182,184,RZH102,112,12#,18#, TRH102,112,12#) 71
#OEMPart name
31478 31478-30010 Bleeder Plug Cap
47311 47311-26431 Tube, Front Brake, No.1
47311 47311-26660 Tube, Front Brake, No.1
47311 90414-10022 Way, No.1(For Front Brake Tube)
47311 90904-12011 Way, No.1(For Front Brake Tube)
47312 47312-26340 Tube, Front Brake, No.2
47312 90904-13001 Way, No.2(For Front Brake Tube)
47313 47313-26141 Tube, Front Brake, No.3
47313 47313-26250 Tube, Front Brake, No.3
47313 90947-02C04 Hose, Flexible, No.1(For Front)
47313 90947-02C05 Hose, Flexible, No.1(For Front)
47313 90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313 90430-10074 Gasket(For Oil Pressure Regulator)
47314 47314-26180 Tube, Front Brake, No.4
47314 47314-26190 Tube, Front Brake, No.4
47315 47315-26140 Tube, Front Brake, No.5
47315 47315-26150 Tube, Front Brake, No.5
47316 47316-26150 Tube, Front Brake, No.6
47316 96940-33107 Hose, Flexible(For Rear Brake Tube)
47317 47317-26240 Tube, Front Brake, No.7
47318 47318-26130 Tube, Front Brake, No.8
47319 47319-26180 Tube, Front Brake, No.9
47321 47321-26341 Tube, Rear Brake, No.1
47321 47321-26490 Tube, Rear Brake, No.1
47321 90412-10166 Way, No.1(For Rear Brake Tube)
47322 47322-26290 Tube, Rear Brake, No.2
47322 90413-10243 Way, No.2(For Rear Brake Tube)
47323 47323-26340 Tube, Rear Brake, No.3
47324 47324-26180 Tube, Rear Brake, No.4
47325 47325-26350 Tube, Rear Brake, No.5
47326 47326-26360 Tube, Rear Brake, No.6
47327 47327-26281 Tube, Rear Brake, No.7
47328 47328-26070 Tube, Rear Brake, No.8
47329 47329-26220 Tube, Rear Brake, No.9
47331 47331-26130 Tube, Rear Brake, No.10
47351 47351-26171 Bracket, Flexible Hose, No.1
47361 47361-26050 Tube, Front Brake, No.10
47362 47362-26050 Tube, Front Brake, No.11
47371 47371-26180 Clamp, Brake Tube, No.1
47378 47378-26032 Protector, Brake Tube
47383 47383-26070 Bracket, Connector
47391 47391-26010 Way, Brake Tube
47910 47910-26221 Valve Assy, Load Sensing Proportioning
47910 47547-27030 Plug, Bleeder(For Front Disc Brake)
47936 47936-26020 Shackle, Load Sensing Spring, No.2
91611 91611-B0816 Bolt
91611 91611-G0816 Bolt
91611 91611-G0820 Bolt
9094901 90949-01A33 New Genuine Part
9094901 90949-01A34 New Genuine Part
9094901 90949-01A35 New Genuine Part
9017908230 90179-08230 New Genuine Part
9046106112 90461-06112 Clamp, Brake Tube, No.6
9046112328 90461-12328 New Genuine Part
9046400447 90464-00447 Clamp, Brake Tube, No.3
9046400581 90464-00581 New Genuine Part
9046400704 90464-00704 Clamp, Brake Tube, No.3
9046400705 90464-00705 New Genuine Part
9046808032 90468-08032 CLIP
9048001069 90480-01069 Grommet(For Brake Tube)
9048001194 90480-01194 New Genuine Part
9048001196 90480-01196 New Genuine Part
9048001359 90480-01359 New Genuine Part
9094901535 90949-01535 New Genuine Part
9094901536 90949-01536 Clamp, Brake Tube, No.15
9094901592 90949-01592 New Genuine Part
9161160814 91611-60814 Bolt
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165140816 91651-40816 BOLT
9165140820 91651-40820 Bolt
Camshaft & Valve ([08.2003 - ] (0308- )1TRFE) 48
#OEMPart name
13050 13050-75010 Gear Assy, Camshaft Timing
13506 13506-75040 Chain Sub-Assy
13511 13501-75050 Camshaft
13511 13501-75051 Camshaft
13512 13502-75040 Camshaft, No.2
13512 13502-75041 Camshaft, No.2
13516 13516-75040 Jet, Oil
13523 13523-75030 Gear Or Sprocket, Camshaft Timing
13523 90105-12149 Bolt(For Camshaft Timing Gear)
13540 13540-75030 Tensioner Assy, Chain, No.1
13540 13540-75031 Tensioner Assy, Chain, No.1
13540 13540-75041 Tensioner Assy, Chain, No.1
13540 13552-75020 Gasket(For Chain Tensioner)
13540 13552-75030 Gasket(For Chain Tensioner)
13559 13559-75030 Slipper, Chain Tensioner
13559 13559-75050 Slipper, Chain Tensioner
13561 13561-75030 Damper, Chain Vibration, No.1
13561 13561-75050 Damper, Chain Vibration, No.1
13566 13566-75010 Guide, Timing Chain
13566 13566-75020 Guide, Timing Chain
13711 13711-75100 Valve, Intake
13711 90913-02101 Seal Or Ring, O(For Valve Stem Oil) - Intake side
13711 90913-02112 Seal Or Ring, O(For Valve Stem Oil)
13711 90501-32050 Spring, Compression(For Inner)
13711 90501-32055 Spring, Compression(For Inner)
13715 13715-75090 Valve, Exhaust
13716 13716-75020 Cap, Valve Stem
13734 13734-62020 Washer, Plate(For Valve Spring Seat)
13741 13741-20020 Retainer, Valve Spring
13741 13741-20021 Retainer, Valve Spring
13741 90913-03028 Lock, Valve Spring Retainer
13750 13750-0W030 Adjuster Assy, Valve Lash
13750 13750-21010 Adjuster Assy, Valve Lash
13750 13750-31030 Adjuster Assy, Valve Lash
13750 13750-75020 Adjuster Assy, Valve Lash
13801 13801-23011 Arm Sub-Assy, Valve Rocker, No.1
15043 15043-75010 Pipe Sub-Assy, Camshaft Oil Delivery
15043 96723-19014 Ring, O(For Camshaft Oil Delivery Pipe)
91511 91511-C0850 New Genuine Part
9010908181 90109-08181 BOLT
9011912370 90119-12370 Bolt(For Camshaft Timing Gear)
9012606026 90126-06026 Bolt, Stud(Manifold To Throttle Body)
9155180614 91551-80614 Bolt(For Vacuum Transmitting Pipe)
9155180616 91551-80616 BOLT FLANGE
9155180625 91551-80625 Bolt(For Camshaft Housing Set)
9155180816 91551-80816 Bolt(For Manual Transmission Oil Separator)
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
9672319011 96723-19011 Ring, O(For Camshaft Oil Delivery Pipe)
Caution Plate & Name Plate (Engine) ([08.1989 - ] (8908- )) 1
#OEMPart name
1356410010 13564-10010 Plate, Timing Belt Caution
Caution Plate ([08.1989 - ] (8908- )) 11
#OEMPart name
11296 11296-75100 Label, Engine Service Information
74529 69339-12010 Plate, Child Protector Lock Caution
74529 69339-AA020 Plate, Child Protector Lock Caution
74539 74539-26010 Plate, Radiator Shutter Caution
74541 74541-26021 Label, Slide Door Glass Caution
74541 74541-26010 Label, Door Closer Caution, Rh
74553 74553-95J00 Plate, Front Seat Caution
74562 74562-40040 Emission Control System Information Label (1 star)
74571 47288-27020 Plate, Brake Fluid Caution
74582 74552-2F282 Plate, Safety Caution
89176 89176-32010 Label, Air Bag Deployment Information

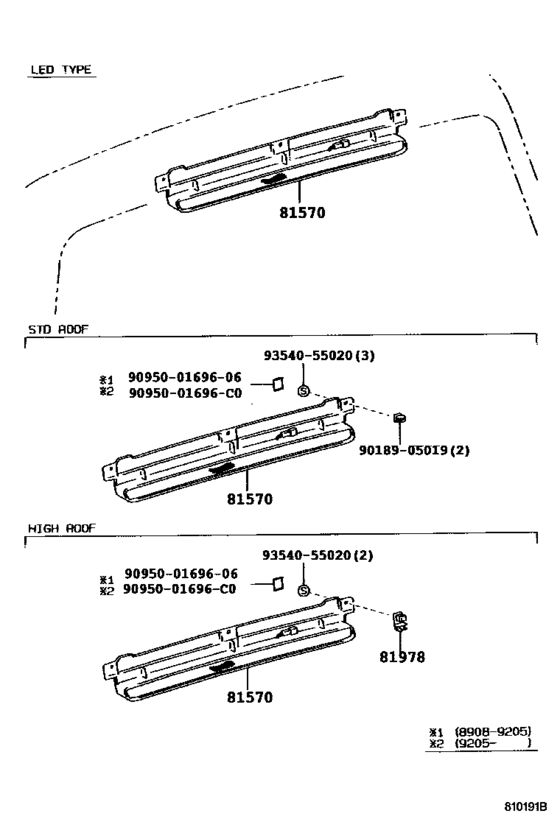

Center Stop Lamp ([05.1992 - ] 1 BULB (9205- )) 7
#OEMPart name
81570 81570-26130 Lamp Assy, Center Stop
81570 90981-11039 Bulb (For License Plate Lamp)
81570 90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)
81977 81977-26020 Cover, Center Stop Lamp
5218812150 52188-12150 Spacer, Rear Bumper Mounting
9015960198 90159-60198 New Genuine Part
9015960384 90159-60384 New Genuine Part
Center Stop Lamp ([07.1999 - ] 1 BULB (9907- )) 7
#OEMPart name
81570 81570-26130 Lamp Assy, Center Stop
81570 90981-11039 Bulb (For License Plate Lamp)
81570 90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)
81977 81977-26020 Cover, Center Stop Lamp
9018905019 90189-05019 New Genuine Part
9090189030 90901-89030 GROMMET SCREW
9354055030 93540-55030 New Genuine Part
Center Stop Lamp ([07.1999 - ] 5 BULB (9907- )) 8
#OEMPart name
81570 81570-26130 Lamp Assy, Center Stop
81570 90981-11039 Bulb (For License Plate Lamp)
81570 90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)
81977 81977-26020 Cover, Center Stop Lamp
9018905019 90189-05019 New Genuine Part
9090189030 90901-89030 GROMMET SCREW
9095001696 90950-01696-C0 New Genuine Part
9354055020 93540-55020 SCREW
Center Stop Lamp ([08.1989 - ] LED (8908- )) 5
#OEMPart name
81570 81570-26130 Lamp Assy, Center Stop
9018905019 90189-05019 New Genuine Part
9095001696 90950-01696-C0 New Genuine Part
9354055020 93540-55020 SCREW
909500169606 90950-01696-06 New Genuine Part
Center Support & Planetary Sun Gear (Atm) ([10.1990 - ] A45DL,A45DF,A45DE (8908-9010)4FC ; (9010- )LH102,103,107,113,11 9,123,129,162,17#,18#,RZH10#,111,11 2,124,125,133,183 ,TRH102,112,12#..4FC) 27
#OEMPart name
34625 35676-22030 Flange, Overdrive Brake
35608 35608-20010 Spring Sub-Assy, 2Nd Brake Piston Return
35608 35608-30020 Spring Sub-Assy, 2Nd Brake Piston Return
35617 35617-28010 Ring, Clutch Drum Oil Seal
35620 35677-30140 Disc, Clutch (For Overdrive)
35620 90521-99139 Ring, Hole Snap (For Overdrive Brake Return Spring Seat)
35621 35621-30010 Piston, Brake, No.1
35621 90301-99110 Ring, O (For Brake Piston Outer)
35621 90301-56007 Ring, O (For Underdrive Clutch Piston)
35621 90301-99107 Ring (For Rear Brake Piston Outer)
35624 35624-22010 Piston, Brake, No.1
35627 90520-52262 Ring, Shaft Snap (For Underdrive Return Spring)
35634 35648-30020 Plate, Clutch (For Rear Brake)
35634 35634-22060 Plate, Clutch (For Overdrive)
35662 35662-30010 Hub, Brake
35675 35675-22140 Flange, Overdrive Clutch
35677 35677-22070 Disc, Clutch (For Rear Brake)
35706 35706-30050 Gear Sub-Assy, Planetary Sun
35706 90374-21001 Race, Thrust Bearing (For Rear Planetary Ring Gear Front)
35706 90520-34001 Ring, Shaft Snap (For Sun Gear Front)
35706 35789-43020 Race, Thrust Bearing (For Planetary Sun Gear Front)
35709 35709-30051 Support Sub-Assy, Center
35719 35719-30050 Gear, Rear Planetary Sun
35749 35749-22010 Ring, Sun Gear Shaft Oil Seal
35790 35791-30100 Clutch Assy, 1 Way
35793 35793-22011 Retainer, 1 Way Clutch
9010508141 90105-08141 New Genuine Part

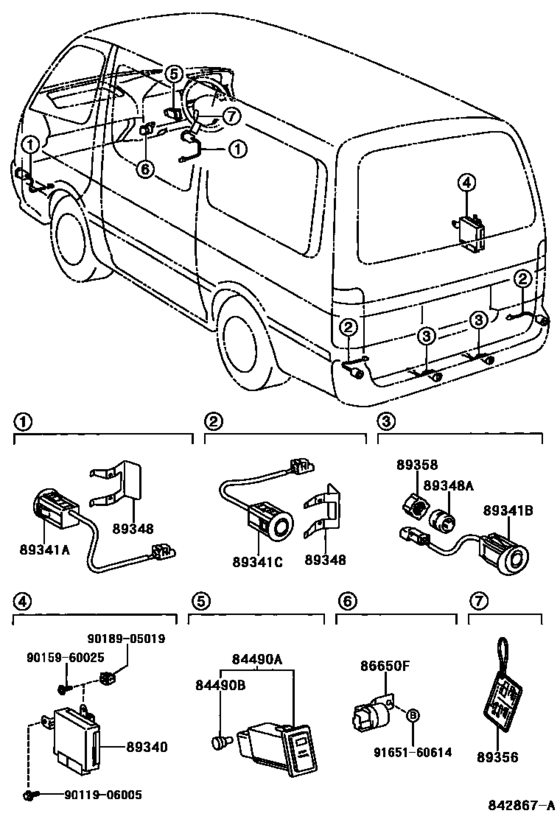

Clearance & Back Sonar ([07.1999 - ] (9907- )) 15
#OEMPart name
84490 84490-95J01 Switch Assy, Back Sonar Or Clearance Sonar
84490 84999-10320 Bulb, Satellite Switch
86650 86650-95J05 Buzzer Assy
89340 89340-26101 Computer Assy, Rear Clearance Warning
89341 89341-26080-A3 Sensor, Ultrasonic, No.2
89341 89341-26080-B0 Sensor, Ultrasonic, No.2
89341 89341-26080-B1 Sensor, Ultrasonic, No.2
89341 89341-26080-G2 Sensor, Ultrasonic, No.2
89341 89341-26080-G4 Sensor, Ultrasonic, No.2
89348 89348-95J01 Retainer, Ultrasonic Sensor, No.2
89358 89358-95J00 Nut, Ultrasonic Sensor
9011906005 90119-06005 New Genuine Part
9015960025 90159-60025 SCREW W-WASHER
9018905019 90189-05019 New Genuine Part
9165160614 91651-60614 Bolt
Console Box & Bracket ([08.1989 - ] ｼ-ﾄﾊﾞﾂｸ ﾀｲﾌﾟ (8908- )) 10
#OEMPart name
58811 58811-26040-B0 Box, Console
58908 58908-32040 Lock Sub-Assy, Console Compartment Door
58919 58919-32030 Plate, Console Box
9017904017 90179-04017 New Genuine Part
9054103006 90541-03006 Cushion(For Cup Holder)
9324954012 93249-54012 New Genuine Part
9354054010 93540-54010 Screw, Roof Headlining Trim
9354054020 93540-54020 New Genuine Part
9354054025 93540-54025 New Genuine Part
9356054012 93560-54012 Screw
Console Box & Bracket ([08.1993 - ] ｼﾌﾄ ｺﾝｿ-ﾙ (9308- )) 20
#OEMPart name
58856 58856-95J04-C0 Holder, Console
58910 58910-95J01-B0 Box Assy, Console, Rear
58921 58921-95J00-B0 Panel, Rear Console, Upper
58959 58959-26010 Cushion, Console Compartment Door
58964 58964-20020 Stopper, Console Compartment Door, No.1
58965 58965-95J06 Stopper, Console Compartment Door, No.2
9015950176 90159-50176 New Genuine Part
9018905016 90189-05016 Grommet, Screw
9018905126 90189-05126 GROMMET SCREW
9018905155 90189-05155 New Genuine Part
9056010062 90560-10062 Spacer(For Tilt Lever Lock Shaft)
9354015014 93540-15014 New Genuine Part
9354024012 93540-24012 New Genuine Part
9356055014 93560-55014 SCREW
9356754512 93567-54512 SCREW
9356754512 93568-54512 SCREW
9356755012 93567-55012 New Genuine Part
9356755012 93568-55012 SCREW
9616000500 96160-00500 Ring, E(For Over Center Lever)
9616000900 96160-00900 Ring, E(For Injection Pump Lever)
Console Box & Bracket ([08.1995 - ] ｾﾝﾀ-ｺﾝｿ-ﾙ ﾎﾞﾂｸｽ (TYPE A) (9508- )) 33
#OEMPart name
55547 55547-95J00-C0 Cover, Remote Control Mirror Hole
55604 55604-26040 Holder Sub-Assy, Instrument Panel Cup
55625 55625-26010-B0 Tray, Instrument Panel Cup Holder
55633 55633-89101 Support, Instrument Panel Cup Holder, No.1
55636 55636-26010 Bracket, Instrument Panel Under Cover, No.1
58811 58811-26040-B0 Box, Console
58825 55440-26050 Box, Instrument Panel
58828 58828-26021 Bracket, Console Box, Lower
58834 58834-26050-B0 Cover, Console, Lower
58839 58839-95J00-B0 Cover, Console Box Hole
58871 90541-03078 Cushion(For Cup Holder)
58902 58902-26010 Bracket Sub-Assy, Console Box Hinge, No.1
58903 58903-26020 Bracket Sub-Assy, Console Box Hinge, No.2
58905 58905-26090-B0 Door Sub-Assy, Console Compartment
58908 58908-32040 Lock Sub-Assy, Console Compartment Door
58909 58909-26010 Stopper Sub-Assy, Console Compartment Door
58909 58909-26020 Stopper Sub-Assy, Console Compartment Door
58919 58919-32030 Plate, Console Box
58941 58904-26020-B0 Cover, Parking Brake Hole
58968 58968-26010 Shim, Console Compartment Door Stopper
58969 58969-20010 Retainer, Console Compartment Door Stopper
58991 58991-95J03 Bracket, Console Box Mounting, Upper
58995 58995-95J02 Bracket, Console Box Mounting, No.1
9017604015 90176-04015 New Genuine Part
9017910073 90179-10073 New Genuine Part
9331914008 93319-14008 SCREW
9352053008 93520-53008 New Genuine Part
9352054010 93520-54010 Screw
9354013008 93540-13008 New Genuine Part
9356054014 93560-54014 SCREW
9356055014 93560-55014 SCREW
9356854512 93568-54512 SCREW
9356855012 93568-55012 SCREW
Crankshaft & Piston ([08.2003 - 01.2005] (0308-0501)1TRFE) 38
#OEMPart name
11011 11011-75020 Washer Set, Crankshaft Thrust
11011 11011-75021 Washer Set, Crankshaft Thrust
11702 11704-75031 Bearing Set, Crankshaft
11702 11704-75033 Bearing Set, Crankshaft
11711 11701-75030-01 Bearing, Crankshaft
11711 11701-75033-01 Bearing, Crankshaft
11711 11701-75030-02 Bearing, Crankshaft
11711 11701-75033-02 Bearing, Crankshaft
11711 11701-75030-03 Bearing, Crankshaft
11711 11701-75033-03 Bearing, Crankshaft
11711 11701-75031-01 Bearing, Crankshaft
11711 11701-75031-02 Bearing, Crankshaft
11711 11701-75031-03 Bearing, Crankshaft
13011 13011-75100 Ring Set, Piston
13011 13013-75100 Piston Ring Set
13041 13041-75030-04 Bearing, Connecting Rod
13041 13041-75070-04 Bearing, Connecting Rod
13041 13041-75030-05 Bearing, Connecting Rod
13041 13041-75070-05 Bearing, Connecting Rod
13041 13041-75030-06 Bearing, Connecting Rod
13041 13041-75070-06 Bearing, Connecting Rod
13101 13101-75120 Piston Sub-Assy, W/pin
13101 13103-75120 Piston Sub-Assy, W/pin
13101 90520-22025 Ring, Hole Snap(For Piston Pin)
13201 13201-79455 Rod Sub-Assy, Connecting
13201 13201-79478 Rod Sub-Assy, Connecting
13202 13204-75030 Bearing Set, Connecting Rod
13202 13204-75070 Bearing Set, Connecting Rod
13265 13265-28010 Bolt, Connecting Rod
13265 13265-28020 BOLT CONNECTING ROD
13411 13401-75010 Crankshaft
13471 13408-75040 Pulley, Crankshaft
13471 13408-75050 Pulley, Crankshaft
13471 90280-05005 Key(For Oil Pump Drive Spline)
13471 90105-16041 Bolt(For Crankshaft Pulley Set)
13521 13521-75020 Gear Or Sprocket, Crankshaft Timing
13521 13521-75021 Gear Or Sprocket, Crankshaft Timing
19315 19315-75020 Rotor, Crank Position Sensor
Cylinder Block ([08.2003 - ] (0308- )1TRFE) 39
#OEMPart name
11401 11401-80059 Block Sub-Assy, Cylinder
11401 11401-80827 Block Sub-Assy, Cylinder
11401 11401-80719 Block Sub-Assy, Cylinder
11401 11401-80749 Block Sub-Assy, Cylinder
11415 90910-09075 Cock Sub-Assy, Water Drain(For Cylinder Block)
11415 90910-09129 Cock Sub-Assy, Water Drain(For Cylinder Block)
11415 90910-09087 Plug, Water Drain Cock(For Cylinder Block)
11416 90910-02092 Bolt(For Crankshaft Bearing Cap Set)
11416 90910-02179 Bolt(For Crankshaft Bearing Cap Set)
11421 90126-06015 Bolt, Stud(For Oil Pan)
11431 96411-63000 Plug, Tight
11431 96411-63500 Plug, Tight
11431 96411-64000 Plug, Tight, No.2
11434 90250-06003 Pin, Straight
11434 90250-10113 Pin, Straight(For Timing Gear Cover Set)
11434 90253-11005 Pin, Ring(For Camshaft Bearing Cap Setting)
11434 90253-15001 Pin, Straight(For Clutch Housing Set)
11434 90253-15016 Pin, Straight(For End Plate)
11434 90253-14004 Pin, Straight (For Cylinder Head Set)
11452 11409-75070 Guide, Oil Level Gage
11452 11409-75071 Guide, Oil Level Gage
11496 11496-75011 Gasket, Oil Hole Cover Plate
12101 12101-75140 Pan Sub-Assy, Oil
12101 90341-12012 Plug(For Oil Pan Drain)
12101 90341-T0004 Plug(For Oil Pan Drain)
12101 90430-12031 Gasket (For Oil Pan Drain Plug)
12102 12102-75010 Pan Sub-Assy, Oil, No.2
15301 15301-75091 Gage Sub-Assy, Oil Level
15708 15708-75010 Nozzle Sub-Assy, Oil, No.1
15708 15708-75020 Nozzle Sub-Assy, Oil, No.1
9011006036 90110-06036 BOLT HEXAGON SOCKET
9012608037 90126-08037 Bolt, Stud(For Oil Strainer)
9017906326 90179-06326 NUT W-WASHER
9017906326 90182-A0010 New Genuine Part
9017908087 90179-08087 Nut
9155100820 91551-00820 Bolt, Hexagon (For Rear Spring Seat Bolt)
9155100840 91551-00840 Bolt (For Transaxle Housing & Transaxle Case Setting)
9164180818 91641-80818 BOLT WWASHER
9167380614 91673-80614 BOLT, FLANGE W/WASER
Cylinder Head ([08.2003 - ] (0308- )1TRFE) 45
#OEMPart name
11101 11101-75140 Head Sub-Assy, Cylinder
11101 11101-75142 Head Sub-Assy, Cylinder
11101 11115-75070 Gasket, Cylinder Head
11101 11310-75066 Cover Sub-Assy, Timing Chain Or Belt
11101 11101-75141 Head Sub-Assy, Cylinder
11101 90910-02091 Bolt(For Cylinder Head Set)
11101 90910-02187 Bolt(For Cylinder Head Set)
11101 90201-11034 Washer, Plate(For Cylinder Head Set)
11101 15330-75010 Valve Assy, Camshaft Timing Oil Control
11115 11115-75040 Gasket, Cylinder Head
11115 11115-75041 Gasket, Cylinder Head
11116 96411-62500 Plug, Tight, No.1
11117 90341-20002 Plug, W/head Taper Screw, No.1
11117 90341-32002 Plug, W/head Straight Screw, No.2
11117 90430-20004 Gasket(For Cylinder Head Screw Plug)
11117 90430-33001 Gasket(For Cylinder Head Screw Plug)
11122 11122-75020 Bush, Intake Valve Guide
11122 11123-75020 Bush, Intake Valve Guide
11131 11131-75090 Seat, Intake Valve
11131 11132-28021 Seat, Intake Valve
11135 11135-75080 Seat, Exhaust Valve
11135 11136-75080 Seat, Exhaust Valve
11151 90253-10006 Pin, Ring(For Camshaft Bearing Cap Setting)
11159 90119-07013 Bolt(For Camshaft Bearing Cap To Housing Rh, No.1)
11201 11201-75050 Cover Sub-Assy, Cylinder Head
11201 11201-75055 Cover Sub-Assy, Cylinder Head
11201 11201-75051 Cover Sub-Assy, Cylinder Head
11213 11213-75040 Gasket, Cylinder Head Cover
11213 11213-75041 Gasket, Cylinder Head Cover
11214 11214-75010 Gasket, Cylinder Head Cover, No.2
11214 11214-75012 Gasket, Cylinder Head Cover, No.2
12108 12180-55010 Cap Sub-Assy, Oil Filler
12108 90430-37140 Gasket(For Oil Filler Cap)
12281 12281-75040 Hanger, Engine, No.1
12281 12281-75050 Hanger, Engine, No.1
15330 90099-14137 Ring, O(For Cam Timing Oil Control Valve)
15678 15678-21010 Filter, Oil Control Valve
91552 91552-A1020 New Genuine Part
9010506202 90105-06202 Bolt(For Cylinder Head Cover)
9012606026 90126-06026 Bolt, Stud(Manifold To Throttle Body)
9034114013 90341-14013 Plug, W/head Taper Screw, No.1
9043014009 90430-14009 Gasket(For Cylinder Head Screw Plug)
9155380628 91553-80628 BOLT FLANGE
9167180612 91671-80612 Bolt
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
Disc Wheel & Wheel Cap ([08.1989 - ] (8908- )) 81
#OEMPart name
42601 42601-26410 Wheel, Disc (For Spare)
42601 90942-01007 Nut, Hub (For Axle)
42611 90942-05009 Valve (For Tubeless Tire)
42611 90080-94031 Valve (For Tubeless Tire)
42621 42621-26190 Cap, Wheel
9008042101 90080-42101 Weight, Balance (For Disc Wheel)
9008042105 90080-42105 Weight, Balance (For Disc Wheel)
9008042109 90080-42109 Weight, Balance (For Disc Wheel)
9008042113 90080-42113 Weight, Balance (For Disc Wheel)
9008042115 90080-42115 Weight, Balance (For Disc Wheel)
9008042115 90942-03025 Weight, Balance (For Disc Wheel)
9008042117 90080-42117 Weight, Balance (For Disc Wheel)
9008042119 90080-42119 Weight, Balance (For Disc Wheel)
9008042121 90080-42121 Weight, Balance (For Disc Wheel)
9094203017 90942-03017 Weight, Balance (For Disc Wheel)
9094203020 90942-03020 Weight, Balance (For Disc Wheel)
9094203022 90942-03022 Weight, Balance (For Disc Wheel)
9094203027 90942-03027 Weight, Balance (For Disc Wheel)
9094203029 90942-03029 Weight, Balance (For Disc Wheel)
9094203031 90942-03031 Weight, Balance (For Disc Wheel)
9094203041 90942-03041 Weight, Balance (For Disc Wheel)
9094203047 90942-03047 Weight, Balance (For Disc Wheel)
9094203047 90942-03366 Weight, Balance (For Disc Wheel)
9094203049 90942-03049 Weight, Balance (For Disc Wheel)
9094203049 90942-03083 Weight, Balance (For Disc Wheel)
9094203051 90942-03051 Weight, Balance (For Disc Wheel)
9094203051 90942-03085 Weight, Balance (For Disc Wheel)
9094203052 90942-03052 Weight, Balance (For Disc Wheel)
9094203052 90942-03368 Weight, Balance (For Disc Wheel)
9094203064 90942-03064 Weight, Balance (For Disc Wheel)
9094203064 90942-03084 Weight, Balance (For Disc Wheel)
9094203079 90942-03079 Weight, Balance (For Disc Wheel)
9094203079 90942-03362 Weight, Balance (For Disc Wheel)
9094203080 90942-03080 Weight, Balance (For Disc Wheel)
9094203080 90942-03364 Weight, Balance (For Disc Wheel)
9094203081 90942-03081 Weight, Balance (For Disc Wheel)
9094203082 90942-03082 Weight, Balance (For Disc Wheel)
9094203086 90942-03086 Weight, Balance (For Disc Wheel)
9094203107 90942-03107 Weight, Balance (For Disc Wheel)
9094203107 90942-03360 Weight, Balance (For Disc Wheel)
9094203119 90942-03119 Weight, Balance (For Disc Wheel)
9094203120 90942-03120 Weight, Balance (For Disc Wheel)
9094203121 90942-03121 Weight, Balance (For Disc Wheel)
9094203122 90942-03122 Weight, Balance (For Disc Wheel)
9094203123 90942-03123 Weight, Balance (For Disc Wheel)
9094203124 90942-03124 Weight, Balance (For Disc Wheel)
9094203125 90942-03125 Weight, Balance (For Disc Wheel)
9094203126 90942-03126 Weight, Balance (For Disc Wheel)
9094203127 90942-03127 Weight, Balance (For Disc Wheel)
9094203128 90942-03128 Weight, Balance (For Disc Wheel)
9094203129 90942-03129 Weight, Balance (For Disc Wheel)
9094203130 90942-03130 Weight, Balance (For Disc Wheel)
9094203131 90942-03131 Weight, Balance (For Disc Wheel)
9094203132 90942-03132 Weight, Balance (For Disc Wheel)
9094203133 90942-03133 Weight, Balance (For Disc Wheel)
9094203146 90942-03146 Weight, Balance (For Disc Wheel)
9094203147 90942-03147 Weight, Balance (For Disc Wheel)
9094203148 90942-03148 Weight, Balance (For Disc Wheel)
9094203149 90942-03149 Weight, Balance (For Disc Wheel)
9094203150 90942-03150 Weight, Balance (For Disc Wheel)
9094203151 90942-03151 Weight, Balance (For Disc Wheel)
9094203152 90942-03152 Weight, Balance (For Disc Wheel)
9094203153 90942-03153 Weight, Balance (For Disc Wheel)
9094203154 90942-03154 Weight, Balance (For Disc Wheel)
9094203155 90942-03155 Weight, Balance (For Disc Wheel)
9094203156 90942-03156 Weight, Balance (For Disc Wheel)
9094203163 90942-03163 Weight, Balance (For Disc Wheel)
9094203167 90942-03167 Weight, Balance (For Disc Wheel)
9094203218 90942-03218 Weight, Balance (For Disc Wheel)
9094203218 90942-03369 Weight, Balance (For Disc Wheel)
9094203219 90942-03219 Weight, Balance (For Disc Wheel)
9094203219 90942-03361 Weight, Balance (For Disc Wheel)
9094203220 90942-03220 Weight, Balance (For Disc Wheel)
9094203220 90942-03363 Weight, Balance (For Disc Wheel)
9094203221 90942-03221 Weight, Balance (For Disc Wheel)
9094203221 90942-03365 Weight, Balance (For Disc Wheel)
9094203222 90942-03222 Weight, Balance (For Disc Wheel)
9094203222 90942-03367 Weight, Balance (For Disc Wheel)
9094203223 90942-03223 Weight, Balance (For Disc Wheel)
9094203224 90942-03224 Weight, Balance (For Disc Wheel)
9094203225 90942-03225 Weight, Balance (For Disc Wheel)
Door Motor & Door Solenoid ([08.1989 - ] (8908- )) 5
#OEMPart name

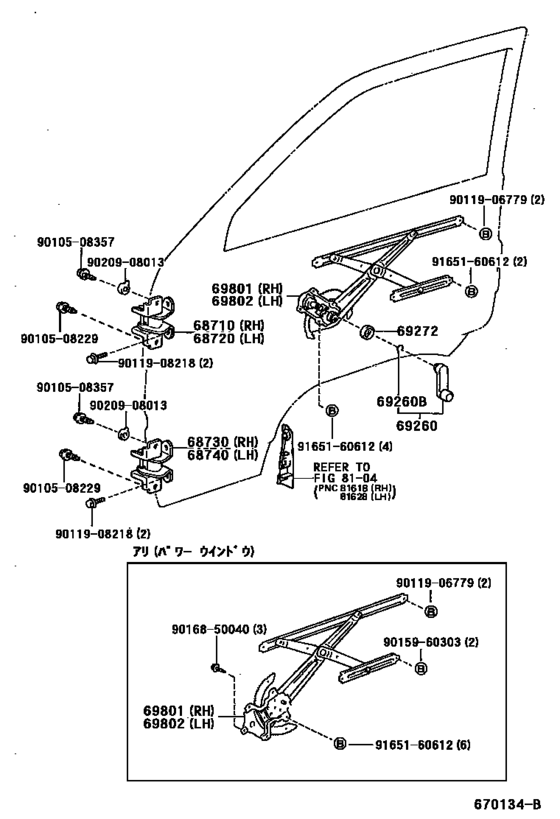

85710 85710-26040 Motor Assy, Power Window Regulator, Front Rh
85720 85720-26020 Motor Assy, Power Window Regulator, Front Lh
9016850024 90168-50024 New Genuine Part
9016850024 90168-50013 SCREW
9016850040 90168-50040 SCREW TAPPING
Electronic Fuel Injection System ([08.2003 - ] (0308- )TRH102,112,12#) 11
#OEMPart name
85910 90987-02012 Relay, Ignition, No.1
89422 89422-16010 Sensor, Water Temperature (For E.f.i.)
89661 89661-26890 Computer, Engine Control
89661 89661-26892 Computer, Engine Control
89661 89661-26891 Computer, Engine Control
89667 89667-26130 Bracket, Engine Control Computer
89668 89668-26130 Bracket, Engine Control Computer, No.2
89669 89669-26090 Bracket, Engine Control Computer, No.3
9015960076 90159-60076 SCREW, W/WASHER TAPP
9043012005 90430-12005 Gasket(For Water Hole)
9331915010 93319-15010 SCREW
Emblem & Name Plate ([07.1999 - ] (9907- )) 14
#OEMPart name
75311 75311-28050 Emblem, Radiator Grille (Or Front Panel)
75311 75441-26180 Plate, Front Name, No.1
75311 75441-26190 Plate, Front Name, No.1
75311 75441-26110 Plate, Rear Name, No.1
75441 75441-26230 Plate, Rear Name, No.1
75441 75441-26220 Plate, Rear Name, No.1
75442 75442-26290 Plate, Back Door Name, No.2
75442 75442-26270 Plate, Back Door Name, No.2
75443 75442-26280 Plate, Back Door Name, No.3
75445 75472-95022 Plate, Rear Name, No.6 (Maximum Load)
75485 75485-26030 Plate, Back Window Name
75485 75485-26040 Plate, Back Window Name
75485 75485-26120 Plate, Back Window Name
75485 75485-12380 Plate, Back Window Name
Engine Oil Pump ([08.2003 - ] (0308- )1TRFE) 11
#OEMPart name
15100 90301-19021 Ring, O(For Oil Pump)
15104 15104-75111 Strainer Sub-Assy, Oil
15104 90126-08037 Bolt, Stud(For Oil Strainer)
15131 15131-46040 Valve, Oil Pump Relief
15133 15133-17010 Plug, Oil Pump Relief Valve
15134 15134-67020 Gasket, Oil Pump Relief Valve
15147 15147-75030 Gasket, Oil Strainer
91511 91511-K0616 New Genuine Part
9017908087 90179-08087 Nut
9155180616 91551-80616 BOLT FLANGE
9155180814 91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt)
Engine Overhaul Gasket Kit ([08.2003 - ] (0308- )1TRFE) 6
#OEMPart name
4111 04111-75261 Gasket Kit, Engine Overhaul
4111 04111-75830 Gasket Kit, Engine Overhaul
4111 04111-75891 Gasket Kit, Engine Overhaul
4112 04112-75250 Gasket Kit, Engine Valve Grind
4112 04112-75750 Gasket Kit, Engine Valve Grind
4112 04112-75801 Gasket Kit, Engine Valve Grind

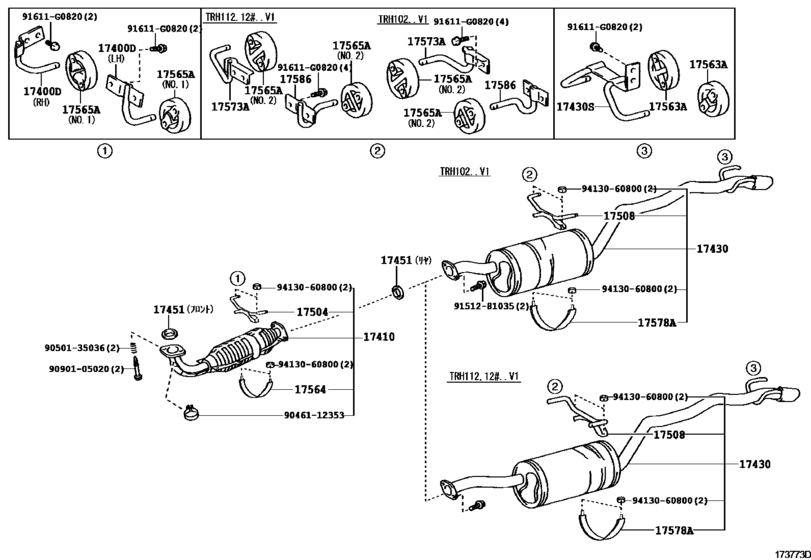

Exhaust Pipe ([08.2003 - ] (0308- )1TRFE..COM,V1) 23
#OEMPart name
17400 17587-75011 Bracket, Catalytic Converter Support
17400 17588-75011 Bracket, Catalytic Converter Support
17410 17410-75430 Pipe Assy, Exhaust, Front
17430 17430-75660 Pipe Assy, Exhaust, Tail
17430 17574-75010 Bracket, Exhaust Tail Pipe (For Rear)
17451 17451-22070 Gasket, Exhaust Pipe
17451 90917-06057 Gasket, Exhaust Pipe, Center
17504 17504-75040 Bracket Sub-Assy, Catalytic Converter
17508 17508-75070 Support Sub-Assy, Exhaust Pipe, No.3
17563 17565-63020 Ring, Catalytic Converter
17564 17564-75070 Support,exhaust Pipe, No.4
17565 17565-74280 Support, Exhaust Pipe, No.1
17573 17573-75020 Bracket, Exhaust Pipe Support, No.3
17573 17573-75021 Bracket, Exhaust Pipe Support, No.3
17578 17578-54050 Clamp, Muffler
17586 17586-75010 Bracket, Heat Insulator, No.1
91611 91611-G0820 Bolt
9046112353 90461-12353 Clamp, Exhaust Pipe
9050135036 90501-35036 SPRING COMPRESSION
9090105020 90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front)
9151281035 91512-81035 BOLT
9413060800 94130-60800 Nut(For Clutch Pedal Stopper)
9413060800 90170-A0003 New Genuine Part
Extension Housing (Atm) ([08.2003 - ] A45DE (0308- )TRH102,112,12#..4FC) 11
#OEMPart name
4332 04332-30030 Seal Kit, Oil(For Automatic Extention Housing)
35108 35108-25010 Housing Sub-Assy, Extension (Atm)
35108 90311-38032 Seal, Oil(For Manual Transmission Extension Housing)
35108 33145-30010 Retainer, Extension Housing Dust Seal(Mtm)
35108 90303-38010 Seal, Dust(For Manual Transmission Extension Housing)
35146 33146-30020 Deflector, Extension Housing Dust(Mtm)
35182 35182-28010 Gasket, Extension Housing (Atm)
35189 35189-30010 Gasket, Extension Housing Bush Apply Tube
35847 35847-25010 Tube, Extension Housing Bush Apply
9011910232 90119-10232 Bolt (For Transmission Housing & Case Setting)
9011910233 90119-10233 New Genuine Part
Floor Insulator ([08.2003 - ] (0308- )TRH112,122..V1) 6
#OEMPart name
58151 58151-26080 Insulator, Floor Heat, No.1
58152 58152-95J04 Insulator Sub-Assy, Center Floor Heat, No.2
58153 58153-95J02 Insulator, Floor Heat, No.3
58154 58154-26010 Insulator, Front Floor Heat, No.2 Lower
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
Floor Mat & Silencer Pad ([08.1989 - ] ﾌﾛﾝﾄ ﾌﾛｱ = ｶｰﾍﾟｯﾄ (8908- )GL,SGL,SGLE ; (9308- )DX) 34
#OEMPart name
58076 58076-95J00-B0 Cover Sub-Assy, Jack Box Hole
58510 58510-2W500-B0 Carpet Assy, Front Floor, Front
58510 58510-2W510-B0 Carpet Assy, Front Floor, Front
58519 58519-26330-B0 Mat, Rear Wheel House, Rh
58520 58520-26102-B2 Carpet Assy, Engine Cover
58530 58530-26690-B0 Carpet Assy, Header
58562 58562-26011-B1 Carpet, Front Seat Side, Lh
58570 58517-26380-B0 Mat Assy, Rear Floor
58585 58585-26060 Cover, Rear Floor Seat Lock
64706 64706-95J00-B0 Cover Sub-Assy, Side Trim Tool Bag - BLUISH GRAY
67907 67907-26070-B0 Plate Sub-Assy, Center Door Scuff
67907 67907-95J04-B0 Plate Sub-Assy, Center Door Scuff
67913 67910-95J00-B0 Plate, Front Door Scuff, Rh
67914 67914-95J01-B0 Plate, Front Door Scuff, Lh
67914 67914-95J03-B0 Plate, Front Door Scuff, Lh
67933 67933-95J00-B0 Plate, Front Door Scuff, Rear Rh
67935 67935-95J02 Plate, Back Door Scuff
93530 93530-A5014 New Genuine Part
9016750038 90167-50038 New Genuine Part
9016860013 90168-60013 SCREW
9018905055 90189-05055 GROMMET
9018905096 90189-05096 GROMMET, SCREW
9018906084 90189-06084 NUT
9033906015 90339-06015 New Genuine Part
9046709090 90467-09090 New Genuine Part
9046709193 90467-09193 New Genuine Part
9046709206 90467-09206 Clip, Front Air Shutter Seal
9046905001 90469-05001 CLAMP
9053006001 90530-06001 Fastener, Hook
9053006007 90530-06007 New Genuine Part
9054106010 90541-06010 Cushion(For Back Door Lock Striker)
9353045016 93530-45016 New Genuine Part
9356055014 93560-55014 SCREW
9356055020 93560-55020 SCREW
Fog Lamp ([07.1999 - ] (9608-9907)KZH10#,11#,12#,13#,LH16#,17#,18#,RZH1 0#,11#,12#,133 ; (9907- )LH16#,1 7#,18#,RZH102,112 ,12#,18#,TRH102,112,12#) 9
#OEMPart name
81210 81210-26010 Lamp Assy, Fog
81210 90981-13071 Bulb, Fog Lamp
81211 81211-26010 Lamp Unit, Fog Lamp, Rh
81215 81215-26010 Socket & Wire, Fog Lamp
81220 81220-26010 Lamp Assy, Fog, Lh
81221 81221-26010 Lamp Unit, Fog Lamp, Lh
9015960413 90159-60413 SCREW WWASHER
9017906127 90179-06127 Bracket, Front Licence Plate Mounting
9018906111 90189-06111 CLIP
Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )2WD) 44
#OEMPart name
4485 04485-26050 Shaft Kit, Upper Suspension Arm
4485 04485-26120 Shaft Kit, Upper Suspension Arm - FRONT SUSPENSION UPPER ARM, RH
43211 43211-26110 Knuckle, Steering, Rh
43211 43211-26120 Knuckle, Steering, Rh
43212 43212-26080 Knuckle, Steering, Lh
43212 43212-26090 Knuckle, Steering, Lh
43330 43330-29295 Joint Assy, Lower Ball, Front
43330 43330-29515 Joint Assy, Lower Ball, Front
43346 43346-26010 Protector, Lower Ball Joint Dust Cover
43355 43355-26010 Deflector, Lower Arm Ice, Rh
48066 48066-29075 Arm Sub-Assy, Front Suspension, Upper Rh
48067 48067-29075 Arm Sub-Assy, Front Suspension, Upper Lh
48068 48068-26131 Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068 48068-26132 Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48069 48069-26131 Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48069 48069-26132 Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48167 48106-26040 Arm, Torque
48190 48190-26020 Cam Assy, Camber Adjust
48198 48198-26010 Cam, Camber Adjust, No.2
48331 48331-26100 Bumper, Front Spring, No.1
48332 48332-35020 Bumper, Front Spring, No.2
48631 90948-02142 Retainer, Cushion(For Front Suspension Upper Arm Rh) - REAR (refer to scheme)
48631 90948-02143 Retainer, Cushion(For Front Suspension Upper Arm) - FRONT (refer to scheme)
48632 48632-26010 Bush, Upper Arm - FRONT (refer to scheme)
48632 48635-26010 Bush, Upper Arm
48654 48061-26050 Bush, Lower Arm
9010114041 90101-14041 Bolt, Hexagon(For Cab Mounting Baracket)
9010212005 90102-12005 Bolt(For Backing Plate To Steering Knuckle Arm Setting)
9010512284 90105-12284 Bolt(For Torque Arm Setting)
9010512285 90105-12285 Bolt(For Torque Arm Setting)
9017016010 90170-16010 NUT HEXAGON
9017016023 90170-16023 NUT
9017112004 90171-12004 Nut(For Backing Plate To Steering Knuckle Arm Setting)
9017112011 90171-12011 Nut
9017116005 90171-16005 Nut, Castle(For Tie Rod End)
9017908141 90179-08141 Nut (For Transmission Control Cable)
9017908141 90179-08038 Nut
9017918004 90179-18004 Nut
9025203011 90252-03011 PIN
9025204003 90252-04003 PIN
9415010801 94150-10801 New Genuine Part
9418040800 94180-40800 NUT
9462211400 94622-11400 New Genuine Part
9462211600 94622-11600 WASHER
Front Axle Hub ([08.1989 - ] (8908- )KZH100,110,120,132,LH100,102,103,110, 113,115,120,123,125,140,162,172,182 ,184,RZH10#,11#,1 2#,133,18#,TRH102,112,12#) 13
#OEMPart name
42611 90942-02047 Bolt, Hub
43502 43502-26070 Hub Sub-Assy, Front Axle, Rh
43502 43503-26040 Hub Sub-Assy, Front Axle
43510 90311-50005 Seal, Oil (For Front Axle Hub)
43510 90368-34001 Bearing
43510 90368-21001 Bearing, Tapered Roller (For Front Axle Outer Bearing)
43510 90214-20007 Washer, Claw (For Front Axle Hub Rh)
43510 90170-19185 Nut (For Axle Shaft)
43512 43512-26140 Disc, Front
43514 43514-35010 Cap, Front Hub Grease
43525 43525-22010 Cap, Front Wheel Adjusting Lock
9011910753 90119-10753 New Genuine Part
9025204002 90252-04002 PIN
Front Bumper & Bumper Stay ([07.1999 - ] (9907- )LH16#,17#,18#,RZH102,112,12#,18#,TRH1 02,112,12#) 14
#OEMPart name
52115 52115-26030 Support, Front Bumper Side, Rh
52116 52116-26030 Support, Front Bumper Side, Lh
52119 52119-26310-A0 Cover, Front Bumper
52119 52119-26300 Cover, Front Bumper
52119 52119-26310-B0 Cover, Front Bumper
52119 52119-26310-G0 Cover, Front Bumper
52119 52119-26310-G1 Cover, Front Bumper
52127 52127-26020 Cover, Front Bumper Hole, Rh
52128 52128-26020 Cover, Front Bumper Hole, Lh
52535 52535-26010 Retainer, Front Bumper Side, Rh
9010908197 90109-08197 New Genuine Part
9010908197 90109-08067 BOLT
9017906127 90179-06127 Bracket, Front Licence Plate Mounting
9356855012 93568-55012 SCREW
Front Clearance Lamp ([08.1989 - ] (8908- )) 10
#OEMPart name
81610 81610-26042 Lamp Assy, Parking & Clearance, Rh
81610 99132-21210 Bulb, Cornering Lamp
81611 81611-26042 Lens, Parking & Clearance Lamp, Rh
81615 81615-26030 Socket And Wire, Clearance Lamp
81620 81620-26042 Lamp Assy, Parking & Clearance, Lh
81621 81621-26042 Lens, Parking & Clearance Lamp, Lh
9016750035 90167-50035 SCREW PAN TAPPING
9018906018 90189-06018 GROMMET
9046705072 90467-05072 New Genuine Part
9046712066 90467-12066 New Genuine Part
Front Disc Brake Caliper & Dust Cover ([08.1989 - ] (8908- )) 4
#OEMPart name
4465 04465-26320 Pad Kit, Disc Brake, Front
4465 04465-YZZF2 BRAKE PAD KIT
4945 04945-26151 Shim Kit, Anti Squeal, Front
4947 04947-26040 Fitting Kit, Disc Brake, Front
Front Disc Brake Caliper & Dust Cover ([08.1996 - ] (9308-9608)KZH10#,11#,12#,13#,LH109,119,129,RZH1 00,101,111,133 ; (9608- )) 34
#OEMPart name
4479 04479-26061 Cylinder Kit, Disc Brake, Front
4479 04478-26030 Cylinder Kit, Disc Brake, Front
31478 31478-30010 Bleeder Plug Cap
47547 47547-12010 Plug, Bleeder(For Release Cylinder)
47710 90101-12132 Bolt, Hexagon(For Front Disc Brake Caliper)
47715 47715-50010 Pin, Disc Brake Cylinder Slide
47715 47715-50030 Pin, Disc Brake Cylinder Slide
47715 90105-08164 Bolt(For Front Disc Brake Cylinder Slide)
47716 47716-26050 Plate, Pad Support, No.1(For Front Disc Brake)
47717 47717-26020 Plate, Pad Support, No.2(For Front Disc Brake)
47721 47721-26102 Mounting, Front Disc Brake Cylinder, Rh
47721 47721-26103 Mounting, Front Disc Brake Cylinder, Rh
47722 47722-26032 Mounting, Front Disc Brake Cylinder, Lh
47722 47722-26033 Mounting, Front Disc Brake Cylinder, Lh
47730 47730-26122 Cylinder Assy, Front Disc Brake, Rh
47731 47731-25010 Piston, Front Disc Brake
47731 90522-76001 Ring, Set(For Front Disc Brake Piston)
47750 47750-26122 Cylinder Assy, Disc Brake, Lh
47769 47769-50010 Bush, Cylinder Slide, No.1(For Front Disc Brake)
47771 47771-26030 Plate, Pad Wear Indicator, No.1
47772 47772-26030 Plate, Pad Wear Indicator, No.2
47775 47775-30070 Boot, Bush Dust(For Front Disc Brake)
47775 47775-50010 Boot, Bush Dust(For Front Disc Brake)
47781 47703-26010 Cover, Disc Brake Dust, Front Rh
47781 47703-26040 Cover, Disc Brake Dust, Front Rh
47782 47704-26010 Cover, Disc Brake Dust, Front Lh
47782 47704-26040 Cover, Disc Brake Dust, Front Lh
91611 91611-B0812 Bolt
9011908 90119-08A21 Bolt
9011908 91611-60814 Bolt
9020112051 90201-12051 WASHER
9020112452 90201-12452 Nut(For Backing Plate To Steering Knuckle Setting)
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
Front Door Lock & Handle ([08.1993 - ] (9308- )) 36
#OEMPart name
69205 69205-26010-B0 Handle Sub-Assy, Front Door Inside, Rh
69206 69206-26010-B0 Handle Sub-Assy, Front Door Inside, Lh
69210 69210-95J03 Handle Assy, Front Door, Outside Rh
69210 90541-04014 Cushion, Console Box
69220 69220-95J03 Handle Assy, Front Door Outside, Lh
69277 69277-95J00-B0 Bezel, Front Door Inside Handle, Rh
69278 69278-95J00-B0 Bezel, Front Door Inside Handle, Lh
69293 69293-12030 Snap, Front Door Outside Handle
69293 69293-12040 Snap, Front Door Outside Handle
69310 69030-26021 Lock Assy, Front Door, Rh
69310 69030-26040 Lock Assy, Front Door, Rh
69320 69040-26100 Lock Assy, Front Door, Lh
69410 69410-26010 Plate Assy, Front Door Lock Striker
69511 69511-26010 Retainer, Front Door Lock Cylinder
69711 69711-95J01 Link, Front Door Lock Remote Control, Rh
69712 69712-95J01 Link, Front Door Lock Remote Control, Lh
69731 69750-26030 Link, Front Door Inside Locking, No.1 Rh
69732 69760-26030 Link, Front Door Inside Locking, No.1 Lh
69733 69733-26010 Link, Front Door Inside Locking, Rh
69734 69734-26010 Link, Front Door Inside Locking, Lh
69749 69749-20030 Clamp, Front Door Lock Link
69759 69759-14050 Snap(For Rear Door Inside Handle)
69759 69759-24030 Snap, Door Inside Handle Link
69759 69759-24040 Snap, Door Inside Handle Link
69759 69759-24070 Snap(For Rear Door Inside Handle)
9014860022 90148-60022 BOLT
9014860022 90148-A0005 Hexalobular Screw
9014860044 90148-60044 New Genuine Part
9015960303 90159-60303 SCREW
9015960539 90159-60539 New Genuine Part
9015960573 90159-60573 New Genuine Part
9015980036 90159-80036 SCREWWWASHER
9018906128 90189-06128 GROMMET SCREW
9046704014 90467-04014 Clamp, Rear Door Lock Link
9046708117 90467-08117 Clamp, Rear Door Lock
9352054010 93520-54010 Screw
Front Door Panel & Glass ([08.1989 - ] ﾄﾞｱﾊﾟﾈﾙ (8908- )) 41
#OEMPart name
67001 67001-26121 Panel Sub-Assy, Front Door, Rh
67001 90541-09038 Cushion, Front Door Panel
67001 90541-10025 Cushion, Front Door Panel
67002 67002-26121 Panel Sub-Assy, Front Door, Lh
67111 67111-95J05 Panel, Front Door, Outer Rh
67112 67112-95J05 Panel, Front Door, Outer Lh
67403 67403-95J03 Frame Sub-Assy, Front Door, Rear Lower Rh
67404 67404-95J03 Frame Sub-Assy, Front Door, Rear Lower Lh
67492 67492-95J00 Garnish, Front Door Lower Frame Bracket, Lh
67831 67831-95J02 Cover, Front Door Service Hole, Rh
67832 67832-95J02 Cover, Front Door Service Hole, Lh
67835 67835-95J00 Cover, Front Door Service Hole Sub
67836 67836-95J00 Cover, Front Door Service Hole Sub, Lh
67837 67837-95J00 Seal, Front Door Vent, Rh
67861 67861-26030 Weatherstrip, Front Door, Rh
67862 67862-26030 Weatherstrip, Front Door, Lh
67863 67863-95J00 Weatherstrip, Front Door, No.2 Rh
67863 67863-95J01 Weatherstrip, Front Door, No.2 Rh
67863 67867-12150 Clip(For Hood Air Intake Duct Seal)
67863 67867-95J03 Retainer, Rh(For Front Door No.2 Weatherstrip)
67864 67864-95J00 Weatherstrip, Front Door, No.2 Lh
67864 67864-95J01 Weatherstrip, Front Door, No.2 Lh
68101 68111-26120 Glass Sub-Assy, Front Door, Rh
68102 68112-26120 Glass Sub-Assy, Front Door, Lh
68127 68127-95J03 Shutter, Front Door, Lower Rh
68141 68141-95J04 Run, Front Door Glass, Rh
68151 68151-95J00 Run, Front Door Glass, Lh
68160 68161-26030 Weatherstrip Assy, Front Door Glass, Outer Rh
68161 68212-95J00 Clip, Door Glass Weatherstrip(For Front Door)
68210 68162-26030 Weatherstrip Assy, Front Door Glass, Outer Lh
68610 68610-26010 Check Assy, Front Door
68617 68617-20011 Pin(For Door Check)
69951 69951-26020 Bracket, Front Door Glass
69961 69961-26020 Retainer, Front Door Glass
6777295 67772-95J03 Retainer, Front Pillar Cover
8271110270 82711-10270 Wire, Fuse To Fuse(for Combustion Heater)
9016740046 90167-40046 New Genuine Part
9017906159 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9017906159 90080-17210 Nut, Rear Wiper Link Pivot, No.1
9165160612 91651-60612 BOLT
9356855014 93568-55014 Screw
Front Door Panel & Glass ([08.2003 - ] ﾄﾞｱﾄﾘﾑ (0308- )TRH102,112,12#) 21
#OEMPart name
67060 67060-26050-B0 Board Assy, Front Door Trim, Lower Rh
67070 67070-26050-B0 Board Assy, Front Door Trim, Lower Lh
67491 67771-28020 Retainer, Lower Back Finish Panel
67601 67610-26570-B0 Board Sub-Assy, Front Door Trim, Rh
67601 67771-26010 Retainer (For Quarter Inside Trim Board)
67601 90467-07043-B0 Clip (For Side Heater Cover)
67601 90339-10002-B0 Cap(For Front Door Trim Board)
67601 90950-01503-B2 Plug, Hole(For Front Door Trim Board)
67601 90950-01503-C0 Plug, Hole (For Roof Side Inner Garnish)
67602 67620-26550-B0 Board Sub-Assy, Front Door Trim, Lh
67625 67625-26030 Bracket, Front Door Trim, No.1
67625 67635-26020 Bracket, Front Door Trim, No.1
67772 67772-95J02 Cap, Front Door Trim Retainer
68170 68171-95J02 Weatherstrip Assy, Front Door Glass, Inner
68170 68172-95J02 Weatherstrip Assy, Front Door Glass, Inner
68170 68211-95J00 Clip(For Front Door Glass Inner Weatherstrip Set)
68170 68211-95J02 Clip(For Front Door Glass Inner Weatherstrip Set)
9015940204 90159-40204 New Genuine Part
9015960303 90159-60303 SCREW
9018904101 90189-04101 New Genuine Part
9018906018 90189-06018 GROMMET
Front Door Window Regulator & Hinge ([08.1989 - ] (8908- )) 11
#OEMPart name
68710 68710-95J01 Hinge Assy, Front Door, Upper Rh
69801 69801-95J01 Regulator Sub-Assy, Front Door Window, Rh
69802 69802-95J01 Regulator Sub-Assy, Front Door Window, Lh
9010508229 90105-08229 New Genuine Part
9010508357 90105-08357 New Genuine Part
9011906779 90119-06779 BOLT W-WASHER
9011908218 90119-08218 BOLT
9015960303 90159-60303 SCREW
9016850040 90168-50040 SCREW TAPPING
9020908013 90209-08013 WASHER
9165160612 91651-60612 BOLT
Front Floor Panel & Front Floor Member ([07.1999 - ] (9907- )LH16#,17#,18#,RZH102,112,12#,18#,TRH1 02,112,12#) 45
#OEMPart name
53701 53701-95J09 Apron Sub-Assy, Front Fender, Rh
53702 53702-26050 Apron Sub-Assy, Front Fender, Lh
53707 53707-26020 Apron Sub-Assy, Fender Side, Rh
53708 53708-26120 Apron Sub-Assy, Fender Side, Lh
53708 53708-26130 Apron Sub-Assy, Fender Side, Lh
53761 53761-95J02 Bracket, Battery Clamp Mounting
53885 53885-95J02 Seal, Fender Apron Mudguard, Rh
53886 53886-95J02 Seal, Fender Apron Mudguard, Lh
57045 57045-26110 Plate Sub-Assy, Floor Side Rail, Rh
57046 57046-26111 Plate Sub-Assy, Floor Side Rail, Lh
57046 57046-26181 Plate Sub-Assy, Floor Side Rail, Lh
57101 57101-26420 Member Sub-Assy, Front Side, Rh
57102 57102-26440 Member Sub-Assy, Front Side, Lh
57102 57102-26460 Member Sub-Assy, Front Side, Lh
57104 57104-26110 Member Sub-Assy, Front Cross
57104 57104-26140 Member Sub-Assy, Front Cross
57147 57105-26011 Plate, Front Side Member, Rear Rh
57147 57105-26090 Plate, Front Side Member, Rear Rh
57148 57106-26011 Plate, Front Side Member, Rear Lh
57148 57106-26070 Plate, Front Side Member, Rear Lh
57155 57155-26010 Reinforcement, Front Side Member, No.3, Rh
57171 57171-95J00 Bracket, Crossmember Floor, No.1
57193 57193-26060 Block, Front Crossmember, No.1
57195 57195-95J02 Bracket, Shift Control Cable
57218 57218-95J01 Gusset, Front Side Member, No.1
57219 57219-26010 Gusset, Front Side Member, No.2
57221 57221-26010 Bracket, Front Side Member, Rh
57222 57222-95J00 Bracket, Front Side Member, Lh
57229 57229-26010 Gusset, Front Side Member, No.2 Lh
58107 58127-26021 Reinforce Sub-Assy, Front Cross To Front Panel, Rh
58339 58339-95J00 Bracket, Jack Up
91641 91641-K0816 BOLT WWASHER
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
1788995 17889-95J00 Box, Air Cleaner Hose, No.2
3996795660 39967-95660 New Genuine Part
9010512295 90105-12295 New Genuine Part
9011908795 90119-08795 New Genuine Part
9033330002 90333-30002 Cover, Front Floor Hole
9046707069 90467-07069 Clip (For Quarter Inside Trim Board)
9046707186 90467-07186 New Genuine Part
9048025008 90480-25008 New Genuine Part
9095001112 90950-01112 Plug, Hole(For Heater Control Cable Hole)
9165140820 91651-40820 Bolt
Front Floor Panel & Front Floor Member ([08.1989 - ] (8908- )) 64
#OEMPart name
51773 90467-07041-C0 Clip(For Steering Column Cover)
51773 51773-95J01 Cover, Step Plate, Rh
51774 51774-95J01 Cover, Step Plate, Lh
53202 58202-95J01 Panel Sub-Assy, Seat Floor, Lh
53881 53881-95J02 Mudguard, Front Rh
58078 58078-26010 Balancer Sub-Assy, Engine Service Hole Cover
58101 58101-26A70 Pan Sub-Assy, Front Floor
58101 58101-26A90 Pan Sub-Assy, Front Floor
58191 58191-95J02 Footrest, Front Floor
58198 58198-20030 Clip, Footrest
58198 58198-95J00 Clip, Footrest
58213 58201-26110 Panel, Seat Floor, Rh
58307 58307-95701 Bracket, Brake Tube Connector, No.1
58401 90904-67033 Clip(For Deck Board No.1)
58407 58407-26130 Cover Sub-Assy, Engine Service Hole Sub
58410 59208-26100 Cover, Engine Service Hole
58410 90541-09028 Cushion, No.1
58410 90541-09126 Cushion, No.1
58435 58435-95J02 Packing, Engine Main Cover
58444 58444-95J01 Packing, Engine Sub Cover, No.1
58445 58445-95400 Cushion, No.1
58471 58471-26011 Silencer, Engine Main Cover
58472 58472-26020 Silencer, Engine Sub Cover
58472 58472-26030 Silencer, Engine Sub Cover
58478 58478-95J01 Packing, Engine Sub Cover, No.2
58479 58479-95J02 Packing, Engine Sub Cover, No.3
58709 58709-95J02 Catch Sub-Assy, Engine Service Cover
58709 71902-95J01 Catch, Engine Service Hole Cover
58936 58936-95J01-C0 Band, Engine Service Hole Cover Support
58939 90149-60112 Screw, Engine Service Hole Cover Support Band
76603 76603-29185 Mudguard Sub-Assy, Front Fender, Rh
76604 76604-29185 Mudguard Sub-Assy, Front Fender, Lh
76621 76621-29085 Mudguad, Front Fender, Rh
76622 76622-29085 Mudguard, Front Fender, Lh
91611 91611-G0820 Bolt
5816626010 58166-26010 Cover, Front Floor, Lh
6792132010 67921-32010 Retainer, Cowl Side Trim
9010906194 90109-06194 Bolt, Body Mounting
9011906090 90119-06090 New Genuine Part
9011906090 90119-06877 BOLT WWASHER
9011908240 90119-08240 New Genuine Part
9015960365 90159-60365 New Genuine Part
9015960391 90159-60391 New Genuine Part
9017910015 90179-10015 NUT
9018906029 90189-06029 GROMMET
9018906116 90189-06116 CLIP
9018906135 90189-06135 New Genuine Part
9020106204 90201-06204 Washer, Plate(For Steering Tilt Lever)
9046707064 90467-07064 Clip(For Hood To Radiator Support Seal)
9046707108 90467-07108 Clip (For Roof Side Garnish)
9046707108 90467-07108-C0 Clip (For Roof Side Garnish)
9046708008 90467-08008 Clip, Step Plate Cover
9095001027 90950-01027 Plug, Hole, No.3(For Dash Panel)
9095001065 90950-01065 Plug, Hole(For Front Fender Apron)
9095001112 90950-01112 Plug, Hole(For Heater Control Cable Hole)
9095001126 90950-01126 Grommet, Safety Band Anchorage Nut
9095001759 90950-01759 PLUG
9095001849 90950-01849 New Genuine Part
9095006060 90950-06060 New Genuine Part
9155380814 91553-80814 BOLT FLANGE
9165160814 91651-60814 Clamp Or Clip, Hose(for Radiator Outlet No.1)
9165160814 91651-B0814 Bolt with washer
9165260616 91652-60616 New Genuine Part
9324016016 93240-16016 New Genuine Part
Front Panel & Windshield Glass ([08.1989 - ] (8908- )) 20
#OEMPart name
4562 04562-26010 Dam Kit, Windshield Glass
53827 53827-95J00 Protector, Front Fender Side Panel
53827 53827-36010 Protector, Front Fender Side Panel, Rh
55700 55701-26062 Panel Assy, Front
55706 55706-95J04 Reinforcement Sub-Assy, Front Panel, Upper
56111 56111-26211 Glass, Windshield
56115 56115-95J00 Stopper, Windshield Glass, No.1
56116 56116-95J00 Spacer, Windshield Glass
4741926010 47419-26010 Plug, Hole(for Front Brake)
9010908189 90109-08189 New Genuine Part
9040607001 90406-07001 New Genuine Part
9048001536 90480-01536 New Genuine Part
9048001537 90480-01537 New Genuine Part
9095001093 90950-01093 Plug, Hole(For Glove Compartment)
9095001093 90950-01409 Plug, Hole(For Glove Compartment)
9095001759 90950-01759 PLUG
9165140816 91651-40816 BOLT
9165540820 91655-40820 New Genuine Part
9165540820 91653-40820 BOLT, W/WASHER
904670601701 90467-06017-01 Clip(For Front Bumper Retainer)
Front Spring & Shock Absorber ([08.1989 - ] (8908- )LH102,103,110,113,115,120,123,125,140 ,162,172,182,184,RZH102,110,112,12# ,133,18#,TRH102,1 12,12#) 45
#OEMPart name
48107 48107-26050 Arm Sub-Assy, Anchor, Rh
48108 48108-26050 Arm Sub-Assy, Anchor, Lh
48161 48161-26200 Spring, Torsion Bar, Rh
48162 48162-26200 Spring, Torsion Bar, Lh
48169 48169-26050 Swivel, Anchor Arm
48173 48173-27010 Seat, Anchor Arm Adjuster
48173 90101-12165 Bolt, Hexagon(For Anchor Arm Adjusting)
48174 48174-26010 Cover, Torsion Bar Dust
48178 48178-26030 Protector, Torsion Bar Dust Cover, Rh
48510 48511-80055 Absorber Assy, Shock, Front Rh
48510 90948-01031 Cushion, Shock Absorber
48510 90948-02017 Retainer, Cushion, No.1(For Front Shock Absorber)
48510 90948-02002 Retainer, Steering Damper Cushion
48660 48661-26020 Bar Assy, Strut, Rh
48674 48674-26021 Cushion, Strut Bar
48674 90948-02062 Retainer, Cushion(For Strut Bar Cushion)
48674 90387-18005 Collar(For Strut Bar Cushion)
48811 48811-26230 Bar, Stabilizer, Front
48815 48815-26171 Bush, Front Stabilizer Bar, No.1
48817 90948-01002 Cushion
48817 90948-02004 Cushion Retainer
48817 90948-02005 Retainer No.2
48819 48819-26050 Bolt, Front Stabilizer
48824 48824-26110 Bracket, Front Stabilizer, No.1 Rh
48827 48827-26020 Bracket, Front Stabilizer, No.2 Rh
48828 48828-26020 Bracket, Front Stabilizer, No.2 Lh
48829 48829-26080 Bracket, Front Stabilizer, No.1 Lh
9010112164 90101-12164 BOLT HEXAGON
9010112170 90101-12170 BOLT HEXAGON
9010510166 90105-10166 BOLT
9011608083 90116-08083 New Genuine Part
9011908793 90119-08793 BOLT WWASHER
9017010021 90170-10021 Nut(For Steering Center Arm)
9017012004 90170-12004 NUT
9017012008 90170-12008 NUT
9017018001 90170-18001 NUT
9017908061 90179-08061 Nut (For Connecting Rod Swivel)
9020118011 90201-18011 WASHER
9020618001 90206-18001 WASHER
9162660830 91626-60830 New Genuine Part
9162660830 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9165140816 91651-40816 BOLT
9418461001 94184-61001 Nut(For Front Stabilizer Bar)
9462111000 94621-11000 Washer, Spring(For Steering Center Arm)
9462211200 94622-11200 WASHER
Front Steering Gear & Link ([07.1999 - ] (9907- )) 2
#OEMPart name
40120 40120-26341 Gear Assy,power Steering,rebuilt
44200 44200-26341 Link Assy, Power Steering
Front Steering Gear & Link ([08.1989 - ] (8908- )KZH100,110,120,132,LH100,102,103,110, 113,115,120,123,125,140,162,172,182 ,184,RZH10#,11#,1 2#,133,18#,TRH102,112,12#) 9
#OEMPart name
45046 45046-29325 Tie Rod End Sub-Assy
45046 90171-14002 Nut (For Rear Steering Knuckle Arm)
45611 45611-26110 Arm, Steering Knuckle, Rh
45612 45612-26110 Arm, Steering Knuckle, Lh
9017015001 90170-15001 Nut, Rack End Lock
9017017001 90170-17001 NUT HEXAGON
9413061200 94130-61200 Nut
9453101200 94531-01200 WASHER
9538103022 95381-03022 Cotter pin
Front Steering Gear & Link ([08.1993 - ] ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ (9308- )KZH100,110,120,132,LH103,113,123,125, 162,172,182,184,RZH10#,11#,12#,133, 18#,TRH102,112,12 #) 39
#OEMPart name
44015 44015-22020 Nut Sub-Assy, Bearing Guide
44015 90301-43002 Ring, O(For Bearing Guide Nut)
44015 90310-25004 Seal, Oil(For Bearing Guide Nut)
44201 44201-26013 Valve Sub-Assy, Power Steering Control
44201 90562-33007 Ring(For Power Steering Control Valve)
44201 90364-13003 Bearing(For Power Steering Control Valve Lower)
44203 44203-26041 Housing Sub-Assy, Power Steering Rack
44204 44204-26030 Rack Sub-Assy, Power Steering
44204 90301-39003 Ring(For Rack Steering Piston)
44204 90562-43001 Ring(For Rack Steering Piston)
44206 90386-30001 Bush(For Power Steering Cylinder Tube)
44210 44210-26012 Valve Assy, Power Steering Control
44210 90410-06005 Seat, Union(Pressure Control Valve Assy)
44210 90301-51001 Ring, O(For Adjuster Plug)
44210 90311-19002 Seal, Oil(For Adjuster Plug)
44210 90363-19003 Bearing(For Rear Steering Control Valve Housing)
44211 44211-26101 Housing, Control Valve
44253 90310-30011 Seal, Oil(For Rear Steering Rack Housing)
44253 90560-30007 Spacer(For Rear Steering Rack Housing Sub-Assy)
44275 44275-26020 Stopper, Cylinder End
44275 90301-41004 Ring, O(For Rack End Guide)
44277 44277-28010 Seat, Rack Guide
44418 44418-26040 Tube, Steering Right Turn Pressure
44418 90410-04002 Seat, Union(For Power Steering Rack Housing)
44419 44419-26040 Tube, Steering Left Turn Pressure
45222 45222-51010 Cover, Dust(For Power Steering Gear)
45503 45503-29565 End Sub-Assy, Steering Rack
45503 90214-14005 Washer, Claw(For Power Steering Rack End)
45523 45523-28010 Guide, Rack(For Power Steering)
45523 90501-29044 Spring(For Power Steering Rack Guide)
45524 45524-20040 Cap, Rack Guide Spring(For Power Steering)
45524 90179-36002 Nut(For Power Steering Pinion Cap)
45535 45535-26030 Boot, Steering Rack, No.1
45535 90460-55016 Clamp(For Power Steering Rack Boot)
45535 90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)
9014930004 90149-30004 Screw(For Steering Rack Boot Clamp)
9151160825 91511-60825 Bolt (For Transfer Stiffener Plate)
9151160825 91511-B0825 Bolt (For Transfer Stiffener Plate)
9161160830 91611-60830 Bolt(For Clutch Release Cylinder Setting)
Front Steering Gear & Link ([08.1993 - ] ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ (9308- )KZH100,110,120,132,RZH100,101,111,133 ,TRH102,112,12#) 13
#OEMPart name
4445 04445-26060 Gasket Kit, Power Steering Gear(For Rack & Pinion)
4445 04445-26160 Gasket Kit, Power Steering Gear(For Rack & Pinion)
4455 04455-26030 Gasket Kit, Power Steering Control Valve Overhole
4455 04455-26040 Gasket Kit, Power Steering Control Valve Overhole
40120 40120-26341 Gear Assy,power Steering,rebuilt
45046 90171-14002 Nut (For Rear Steering Knuckle Arm)
45514 45514-26020 Bracket, Steering Rack Housing, No.1
45515 45515-26020 Bracket, Steering Rack Housing, No.2
45517 45517-26020 Grommet, Steering Rack Housing, No.2
4551926020 45519-26020 Packing, Steering Rack Housing
9011912107 90119-12107 New Genuine Part
9017912021 90179-12021 NUT
9538103022 95381-03022 Cotter pin
Front Steering Gear & Link ([08.1993 - ] ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ (9308- )LH103,113,123,125,162,172,182,184,RZH 102,112,12#,18#,TRH102,112,12#) 10
#OEMPart name
4445 04445-26060 Gasket Kit, Power Steering Gear(For Rack & Pinion)
4445 04445-26160 Gasket Kit, Power Steering Gear(For Rack & Pinion)
4455 04455-26030 Gasket Kit, Power Steering Control Valve Overhole
4455 04455-26040 Gasket Kit, Power Steering Control Valve Overhole
40120 40120-26341 Gear Assy,power Steering,rebuilt
45514 45514-26020 Bracket, Steering Rack Housing, No.1
45515 45515-26020 Bracket, Steering Rack Housing, No.2
45516 45516-26010 Grommet, Steering Rack Housing, No.1
45517 45517-26020 Grommet, Steering Rack Housing, No.2
9011912107 90119-12107 New Genuine Part
Front Turn Signal Lamp ([08.1993 - ] (8908-9308) ; (9308- )LH10#,11#,12#,16#,17#,1 8#,RZH102,112,12#,18#,TRH102,112,12 #) 10
#OEMPart name
81510 81510-26061 Lamp Assy, Front Turn Signal, Rh
81510 90981-13043 Bulb (12V 21W)
81510 99132-12050 Bulb (12V 5W)
81510 90080-81053 Bulb(For Clearance Lamp)
81511 81511-26061 Lens, Front Turn Signal Lamp, Rh
81515 81515-26050 Wire Sub-Assy, Front Turn Signal Lamp Body
81520 81520-26061 Lamp Assy, Front Turn Signal, Lh
81521 81521-26061 Lens, Front Turn Signal Lamp, Lh
9016750035 90167-50035 SCREW PAN TAPPING
9356755020 93567-55020 SCREW
Front Turn Signal Lamp ([08.1996 - ] (9608- )) 9
#OEMPart name
81510 81510-26061 Lamp Assy, Front Turn Signal, Rh
81510 90981-13043 Bulb (12V 21W)
81510 99132-12050 Bulb (12V 5W)
81510 90080-81053 Bulb(For Clearance Lamp)
81511 81511-26061 Lens, Front Turn Signal Lamp, Rh
81515 81515-26050 Wire Sub-Assy, Front Turn Signal Lamp Body
81520 81520-26061 Lamp Assy, Front Turn Signal, Lh
81521 81521-26061 Lens, Front Turn Signal Lamp, Lh
9016750035 90167-50035 SCREW PAN TAPPING
Front Ventilator ([08.1989 - ] (8908- )) 6
#OEMPart name
55950 55950-95J03 Nozzle Assy, Defroster
55952 55952-95J01 Nozzle, Defroster, Front Lh
55961 55970-95J03-B0 Nozzle, Side Defroster, No.1
55962 55980-95J03-B0 Nozzle, Side Defroster, No.2
55972 55972-95J01 Duct, Side Defroster Nozzle, No.2
9356855012 93568-55012 SCREW
Fuel Injection System ([08.2003 - 01.2005] (0308-0501)1TRFE) 33
#OEMPart name
22030 22030-75010 Body Assy, Throttle W/motor
22271 22271-0C010 Gasket, Throttle Body
22271 22271-37010 Gasket, Throttle Body
22271 22271-75030 Gasket, Throttle Body
22271 22271-75031 Gasket, Throttle Body
23250 23209-79155 Injector Assy, Fuel
23250 23209-79205 Injector Assy, Fuel
23250 90301-07024 Ring, O(For Fuel Injector)
23270 23270-75010 Damper Assy, Fuel Pressure Pulsation
23270 23270-75050 Damper Assy, Fuel Pressure Pulsation
23270 90301-07037 Ring, O(For Fuel Injector)
23271 23271-75180 Hose, Fuel
23273 23273-75250 Hose, Fuel, No.2
23280 23280-75040 Regulator Assy, Fuel Pressure
23280 23280-75130 REGULATOR ASSY
23291 23291-73010 Insulator, Injector Vibration
23300 23030-75010 Filter, Fuel(For Efi)
23807 23807-75050 Pipe Sub-Assy, Fuel Delivery
23807 23807-75052 Pipe Sub-Assy, Fuel Delivery
23807 90561-08036 Spacer, No.1(For Delivery Pipe)
23841 23841-28010 Clamp, Fuel Pipe, No.1(For Efi)
23841 23841-21050 Clamp, Fuel Pipe, No.1(For Efi)
91671 91671-A0612 BOLT FLANGE
91671 91671-K0835 New Genuine Part
9010506202 90105-06202 Bolt(For Cylinder Head Cover)
9012606027 90126-06027 STUD HEXALOBULAR
9030119006 90301-19006 Ring, O(For Fuel Injector)
9046400654 90464-00654 Direct
9046912010 90469-12010 Clamp Or Clip(For Radiator Reserve Tank Hose No.3)
9056110020 90561-10020 SPACER
9162140814 91621-40814 Bolt
9415180641 94151-80641 NUT FLANGE
9613551100 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
Fuel Injection System ([08.2003 - 01.2005] (0308-0501)1TRFE..COM,V1) 9
#OEMPart name
23206 77203-26190 Bracket, Fuel Pump
23206 77169-32010 Gasket, Fuel Pump Bracket
23217 23217-50020 Filter, Fuel Pump
23220 23220-43070 Pump Assy, Fuel
23229 23229-16010 Clip(For Fuel Pump Filter)
23229 23219-03010 Clip(For Fuel Pump Filter)
23233 23239-11010 Hose, Fuel Pump
23233 90467-12067 Clip(For Fuel Pump Hose)
23249 23249-74150 Rubber, Cushion(For Fuel Pump)
Fuel Tank & Tube ([07.2003 - ] FUEL TUBE (0307- )TRH102,112,12#..COM,V1) 26
#OEMPart name
77249 95337-06018 Hose, Fuel Emission
77251 77205-26150 Tube, Fuel Main
77251 95337-06022 Hose, Fuel, No.2
77252 77206-26030 Tube, Fuel Main, No.2
77254 77263-26200 Tube, Fuel Emission, No.1
77255 77255-26640 Tube, Fuel Return
77276 77276-26081 Protector, Fuel Hose
77285 77285-26090 Clamp, Fuel Tube, No.1
77295 77295-26010 Grommet, Fuel Tube
77295 77295-35110 Grommet, Fuel Tube
77701 77701-26030 Hose Sub-Assy, Canister Outlet, No.1
77740 77704-12490 Canister Sub-Assy, Charcoal
77751 77751-26110 Bracket, Charcoal Canister Base
77754 77754-26050 Hose, Charcoal Canister Outlet, No.1
77754 77754-26080 Hose, Charcoal Canister Outlet, No.1
77778 77778-26010 Bracket, Fuel Hose Protector
9046400581 90464-00581 New Genuine Part
9046714001 90467-14001 Clip Or Clamp(For Ventilation Hose)
9046714001 90466-T0026 Clip Or Clamp(For Ventilation Hose)
9091710085 90917-10085 New Genuine Part
9094901541 90949-01541 New Genuine Part
9094901649 90949-01649 New Genuine Part
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165140820 91651-40820 Bolt
9613251100 96132-51100 Clip (For Hose)
Fuel Tank & Tube ([08.2003 - ] FUEL TANK (0308- )TRH102,112,12#..COM,V1) 58
#OEMPart name
77011 77011-26010 Pipe Sub-Assy, Fuel Tank Filler, Lower
77018 95337-06007 Hose, Fuel Tank Evaporation Vent
77026 77026-26060 Tube Sub-Assy, Fuel Evaporation, No.1
77035 77035-26100 Cable Sub-Assy, Fuel Lid Lock Control
77037 77037-12040 Lock Sub-Assy, Fuel Tank Cap
77037 77037-38010 Lock Sub-Assy, Fuel Tank Cap
77051 77051-95J01-C0 Lever Sub-Assy, Fuel Lid Open
77100 77001-26490 Tank Assy, Fuel
77100 77001-26910 Tank Assy, Fuel (lpg)
77100 90105-12116 Plug(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77148 77148-32010 Bracket, Fuel Tube To Tank
77178 77178-20010 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-26010 Gasket, Fuel Tank Evap/vent Tube
77179 77179-26011 Gasket, Fuel Suction Tube Set, No.1
77201 77201-26170 Pipe Sub-Assy, Fuel Tank Inlet
77201 95312-13032 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77213 77213-26080 Hose, Fuel Tank To Filler Pipe
77251 90480-75002 Shield, Fuel Tank Inlet Pipe
77295 77295-26010 Grommet, Fuel Tube
77295 77295-35110 Grommet, Fuel Tube
77295 77295-26020 Grommet, Fuel Tube
77310 77310-48010 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-26010 Lid Assy, Fuel Filler Opening
77366 77366-95J01 Spring, Fuel Filler Opening Lid Hinge
77380 77380-26010 Valve Assy, Fuel Cut Off
77397 77397-95J01 Plate, Fuel Inlet Pipe Seal
77420 77420-26010 Valve Assy, Fuel Cut Off, No.2
77451 77451-26010 Protector, Fuel Inlet Hose
91631 91631-B0612 BRACKET
91631 91631-J0612 BRACKET
93319 93319-A4010 SCREW WWASHER
8271195 82711-95J03 Wire, Fuse To Fuse(for Combustion Heater)
8281795 82817-95J55 Support, Slide Roof Rain Channel Hose
9094901 90949-01A84 Clamp, Height Control Tube, No.3
5999926010 59999-26010 Clamp(for Floor Mat)
7728126040 77281-26040 Bracket, Fuel Main Tube, No.1
9011908833 90119-08833 New Genuine Part
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9018210005 90182-10005 NUT WWASHER
9026903002 90269-03002 RIVET
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046055003 90460-55003 Clamp Or Clip(For Air Hose, No.1)
9046708043 90467-08043 Clamp, Hood Lock Control Cable
9048013026 90480-13026 New Genuine Part
9048031010 90480-31010 Grommet
9048092002 90480-92002 GROMMET
9054109078 90541-09078 Cushion, Front Door Panel
9095901450 90959-01450 Clamp, Fuel Tube, No.1
9155380612 91553-80612 BOLT FLANGE
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165140816 91651-40816 BOLT
9338116012 93381-16012 Screw
9613251100 96132-51100 Clip (For Hose)
Headlamp ([08.1993 - ] ﾅｼ(ﾌｵｸﾞﾗﾝﾌﾟ) (9308- )LH10#,11#,12#,16#,17#,18#,RZH102,112, 12#,18#,TRH102,112,12#) 21
#OEMPart name
55871 55871-26010 Seal, Air Duct
81110 81110-26061 Headlamp Assy, Rh
81110 81130-26061 Unit Assy, Headlamp, Rh
81110 90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)
81110 90084-98033 Bulb(For Headlamp, No.1)
81144 90075-99084 Cover, Headlamp, No.1
81144 90075-99083 Cap, Headlamp Locking
81150 81150-26061 Headlamp Assy, Lh
81150 81170-26061 Unit Assy, Headlamp, Lh
87236 87236-26010 Cover, Heater Blower
7119628040 71196-28040 Clip(for Rear Spoiler)
8113722530 81137-22530 Nut, Headlamp Self Locking
8113722530 90075-10004 Nut, Headlamp Self Locking
9007550008 90075-50008 New Genuine Part
9007550009 90075-50009 New Genuine Part
9007550010 90075-50010 New Genuine Part
9007550011 90075-50011 New Genuine Part
9011908795 90119-08795 New Genuine Part
9015960008 90159-60008 SCREW
9015960025 90159-60025 SCREW W-WASHER
9018906018 90189-06018 GROMMET
Heating & Air Conditioning - Compressor ([08.2003 - ] (0308- )TRH102,112,12#) 15
#OEMPart name
88320 88320-2F010 Compressor Assy, Cooler
88330 88335-14020 Washer
88410 88410-2F010 Clutch Assy, Magnet
88431 88431-25290 Bracket, Compressor Mounting, No.1
88545 88440-25070 Pulley Assy, Idle
88688 88688-33260 Bracket, Cooler Compressor
9011908 90119-08B42 BOLT WWASHER
9009140612 90091-40612 New Genuine Part
9009904349 90099-04349 Bolt, Magnet Clutch Setting
9009907065 90099-07065 SNAP RING
9009907114 90099-07114 Ring, Snap (For Magnet Clutch)
9010508403 90105-08403 BOLT FLANGE
9010510362 90105-10362 New Genuine Part
9151281035 91512-81035 BOLT
9331915008 93319-15008 SCREW
Heating & Air Conditioning - Control & Air Duct ([08.2003 - ] ﾌﾛﾝﾄｺﾝﾄﾛ-ﾙ(ﾚﾊﾞ-ﾀｲﾌﾟ) (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#,RZH10#,11#,12#,133,18# ; (0308- )TRH1 02,112,12#..CD,DX,GL,SGLE) 11
#OEMPart name
55905 55905-22260 Knob, Heater Control
55905 55905-22280 Knob, Heater Control
55906 55906-26010 Cable Sub-Assy, Defroster Damper Control
55907 55907-26170 Cable Sub-Assy, Water Valve Control
55908 55908-26100 Cable Sub-Assy, Air Inlet Damper Control
55909 55909-95J01 Cable Sub-Assy, Airmix Damper Control
55910 55910-26080 Control Assy, Heater Or Boost Ventilator
55910 90480-13013 Grommet(For Heater Control Cable)
55922 55922-95J01 Bracket, Heater Control Base
8712420020 87124-20020 Clamp, Heater Control
9356015020 93560-15020 SCREW
Heating & Air Conditioning - Control & Air Duct ([08.2003 - ] ﾌﾛﾝﾄﾀﾞｸﾄ (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#,RZH10#,11#,12#,133,18# ; (0308- )TRH1 02,112,12#) 12
#OEMPart name
55077 55077-26010 Cover Sub-Assy, Heater Air Duct Hole
55086 55086-95J03 Duct Sub-Assy, Heater To Register, Center
55843 55843-26010 Duct, Heater To Register, No.1
55845 55845-26020 Duct, Heater To Register, No.3
55845 55845-95J03 Duct, Heater To Register, No.3
87211 87211-95J11 Duct, Air, No.1
9015950068 90159-50068 SCREW
9015960259 90159-60259 SCREW
9017906060 90179-06060 Nut, Wing(For Air Cleaner)
9018906084 90189-06084 NUT
9356015020 93560-15020 SCREW
9356855012 93568-55012 SCREW
Heating & Air Conditioning - Control & Air Duct ([08.2003 - ] ﾘﾔｸ-ﾗ ﾀﾞｸﾄ (0308- )TRH102,112..SRF..DX,SGLE) 18
#OEMPart name
87284 88032-95J03 Resistor Sub-Assy, Variable
88561 88561-95J05-B2 Grille, Cooler Air Inlet
88573 88573-95J00-B1 Base, Grille
88573 88573-95J01-B1 Base, Grille
88604 88604-95J03-B1 Panel Sub-Assy, Cooler Control
88610 88610-26040 Switch Assy, Cooler Control
88610 88610-95J02-B1 Switch Assy, Cooler Control
88611 88611-95A01 Knob, Cooler Control Switch
88891 88891-95J04-B7 Cover, Cooler
88891 88891-95J39-B3 Cover, Cooler
8857826010 88578-26010 Paking, Cooler Air Duct
8857826010 88578-50160 Packing, Cooling Unit, No.1
8871822420 88718-22420 Pipe, Cooler Refrigerant Suction, No.2
9011906882 90119-06882 New Genuine Part
9011906882 90119-06311 BOLT
9321913005 93219-13005 New Genuine Part
9321913008 93219-13008 New Genuine Part
9331515010 93315-15010 New Genuine Part
Heating & Air Conditioning - Control & Air Duct ([08.2003 - ] ﾘﾔｺﾝﾄﾛ-ﾙ (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#,RZH10#,11#,12#,133,18# ; (0308- )TRH1 02,112,12#..SG) 7
#OEMPart name
55519 55519-95J05 Plate, Heater Control Name
55905 55905-10110 Knob, Heater Control
5593322020 55933-22020 Clamp, Heater Control Wire
9046710007 90467-10007 New Genuine Part
9048001532 90480-01532 New Genuine Part
9356614512 93566-14512 SCREW
9356614512 93568-54512 SCREW
Heating & Air Conditioning - Cooler Piping ([08.1989 - ] (8908- )) 3
#OEMPart name
88723 88733-27010 Label, Cooler Service Caution
88723 88733-50010 Label, Cooler Service Caution
88723 88733-40020 Label, Cooler Service Caution
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] CONDENSER(DEALER OPT) (9808-9907)KZH10#,11#,126..5F ; (9808- )LH16# ,17#,18#,RZH10#,11#,12#,133,18# ; ( 0308- )TRH102, 112,12#) 33
#OEMPart name
88453 88453-26020 Fan, Cooling (For Condenser)
88454 88454-26100 Shroud, Fan
88460 88460-26510 Condenser Assy, Cooler
88460 88460-26530 Condenser Assy, Cooler
88461 88461-26140 Core, Cooler Condenser
88550 88550-26050 Motor Assy, Blower
88550 88550-26110 Motor Assy, Blower
88584 88584-26050 Guide, Cooler Air
88590 88590-26140 Blower Assy, W/shroud
88590 88590-26150 Blower Assy, W/shroud
88635 88635-26030 Thermistor, Cooler No.2
88715 88715-26330 Pipe, Cooler Refrigerant Discharge, A
8271110380 82711-10380 Wire, Fuse To Fuse(for Combustion Heater)
8846326310 88463-26310 Bracket, Cooler Condenser, No.1
8846326320 88463-26320 Bracket, Cooler Condenser, No.1
8846326350 88463-26350 Bracket, Cooler Condenser, No.1
8846326360 88463-26360 Bracket, Cooler Condenser, No.1
8846326370 88463-26370 Bracket, Cooler Condenser, No.1
8846326380 88463-26380 Bracket, Cooler Condenser, No.1
8846335120 88463-35120 Bracket, Cooler Condenser, No.1
8846730270 88467-30270 Cushion, Cooler Condenser, No.1
8857826080 88578-26080 Paking, Cooler Air Duct
8871826810 88718-26810 Pipe, Cooler Refrigerant Suction, No.2
8889226020 88892-26020 Bracket, Cooler Evaporator Mounting
9009120609 90091-20609 BOLT
9009120803 90091-20803 New Genuine Part
9009904117 90099-04117 Bolt, Radiator Side Support Plate
9009904376 90099-04376 New Genuine Part
9009905164 90099-05164 Nut
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9011908354 90119-08354 SCREW
9017906274 90179-06274 Nut
9338556025 93385-56025 New Genuine Part
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] CONDENSER(MAKER OPT) (9808- )LH162,17#,182,188,RZH101,111..05S,07S ,08S,10S ; (0308- )TRH102,112,12 #) 33
#OEMPart name
88453 88453-26020 Fan, Cooling (For Condenser)
88454 88454-26100 Shroud, Fan
88460 88460-26510 Condenser Assy, Cooler
88460 88460-26530 Condenser Assy, Cooler
88461 88461-26140 Core, Cooler Condenser
88550 88550-26050 Motor Assy, Blower
88550 88550-26110 Motor Assy, Blower
88584 88584-26050 Guide, Cooler Air
88590 88590-26140 Blower Assy, W/shroud
88590 88590-26150 Blower Assy, W/shroud
88635 88635-26030 Thermistor, Cooler No.2
88715 88715-26330 Pipe, Cooler Refrigerant Discharge, A
8271110380 82711-10380 Wire, Fuse To Fuse(for Combustion Heater)
8846326310 88463-26310 Bracket, Cooler Condenser, No.1
8846326320 88463-26320 Bracket, Cooler Condenser, No.1
8846326350 88463-26350 Bracket, Cooler Condenser, No.1
8846326360 88463-26360 Bracket, Cooler Condenser, No.1
8846326370 88463-26370 Bracket, Cooler Condenser, No.1
8846326380 88463-26380 Bracket, Cooler Condenser, No.1
8846335120 88463-35120 Bracket, Cooler Condenser, No.1
8846730270 88467-30270 Cushion, Cooler Condenser, No.1
8857826080 88578-26080 Paking, Cooler Air Duct
8871826810 88718-26810 Pipe, Cooler Refrigerant Suction, No.2
8889226020 88892-26020 Bracket, Cooler Evaporator Mounting
9009120609 90091-20609 BOLT
9009904117 90099-04117 Bolt, Radiator Side Support Plate
9009904376 90099-04376 New Genuine Part
9009905164 90099-05164 Nut
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9011908354 90119-08354 SCREW
9017906274 90179-06274 Nut
9165140820 91651-40820 Bolt
9338556025 93385-56025 New Genuine Part
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] FRONT PIPING (0308- )TRH124 ; (0308- )TRH102,112,122..S GL,SGLE) 47
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88471 88471-28100 Tank, Receiver Air Conditioner
88472 88472-26110 Bracket, Receiver Tank, No.1
88472 88472-26150 Bracket, Receiver Tank, No.1
88605 88605-2F520 Harness Sub-Assy, Wiring Air Conditioner
88605 88648-26040 Harness Sub-Assy, Wiring Air Conditioner
88645 88645-26010 Switch, Pressure No.1
88645 88645-34010 Switch, Pressure
88645 88645-04040 Switch, Pressure
88711 88711-2F210 Hose, Cooler Refrigerant Discharge, No.1
88712 88704-26010 Hose, Cooler Refrigerant Suction, No.1
88716 88716-2F480 Pipe, Cooler Refrigerant Liquid, A
88716 88716-2F500 Pipe, Cooler Refrigerant Liquid, A
88716 88710-2F440 Pipe, Cooler Refrigerant Liquid, B
88716 88716-2F800 Tube, Liquid
88716 88716-2F810 Pipe, Cooler Refrigerant Liquid, B
88716 88716-26850 Pipe, Cooler Refrigerant Liquid, E
88717 88717-2F150 Pipe, Cooler Refrigerant Suction, A
88717 88717-2F170 Pipe, Cooler Refrigerant Suction, E
88717 88717-2F320 Pipe, Cooler Refrigerant Suction, E
88723 88733-27010 Label, Cooler Service Caution
88723 88733-50010 Label, Cooler Service Caution
88723 88733-40020 Label, Cooler Service Caution
91651 91651-B0822 BOLT WWASHER
886882 88688-2F080 Bracket, Cooler Diaphragm
887182 88718-2A230 Clamp(For Cooler Refrigerant Pipe), No.3
887182 88718-2F050 Pipe, Cooler Refrigerant Suction, No.2
887182 88718-2F230 Pipe, Cooler Refrigerant Suction, No.2
8868826140 88688-26140 Bracket, Cooler Diaphragm
8871826150 88718-26150 Pipe, Cooler Refrigerant Suction, No.2
8871826840 88718-26840 Pipe, Cooler Refrigerant Suction, No.2
8871832220 88718-32220 Clamp(For Cooler Refrigerant Pipe), No.2
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9009914122 90099-14122 O-RING
9011906088 90119-06088 Bolt, W/washer (For Floor Shift)
9011906462 90119-06462 New Genuine Part
9011906675 90119-06675 New Genuine Part
9017906274 90179-06274 Nut
9165140816 91651-40816 BOLT
9165160635 91651-60635 BOLT
9338516016 93385-16016 New Genuine Part
9338516025 93385-16025 New Genuine Part
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )TRH124 ; (0308- )TRH102,112,122..S GLE) 20
#OEMPart name
88721 88721-26070 Hose, Liquid, A
88722 88712-2F130 Hose, Suction, A
88726 88716-2F560 Pipe, Cooler Refrigerant Liquid, B
88726 88710-2F290 Pipe, Cooler Refrigerant Liquid, F
88727 88717-2F450 Pipe, Cooler Refrigerant Suction, B
91651 91651-B0822 BOLT WWASHER
886882 88688-2F170 Bracket, Cooler Diaphragm
887182 88718-2F040 Pipe, Cooler Refrigerant Suction, No.2
8871495 88714-95J00 Protector, Wiring Harness, No.4
8871895 88718-95J39 Pipe, Cooler Refrigerant Suction, No.2
8889895 88898-95J21 Tube Sub-assy, Equalizer
8871826040 88718-26040 Pipe, Cooler Refrigerant Suction, No.2
8871826210 88718-26210 Pipe, Cooler Refrigerant Suction, No.2
8871826230 88718-26230 Pipe, Cooler Refrigerant Suction, No.2
8889826010 88898-26010 Tube Sub-assy, Equalizer
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9048030015 90480-30015 New Genuine Part
9165160614 91651-60614 Bolt
Heating & Air Conditioning - Cooler Unit ([03.1991 - ] REAR UNIT (CANPING CAR) (9103- )) 31
#OEMPart name
87105 87105-95J00 Fan Sub-Assy, Blower, Rear
87105 88541-95J00 Fan Sub-Assy, Blower, Rear
88501 88501-26180 Evaporator Sub-Assy (Rear)
88510 88510-2F330 Unit Assy, Cooling (Rear)
88515 88515-26060 Valve, Rear Cooling Unit Expansion
88536 88536-95J12 Bracket, Cooling Unit, No.1
88536 88536-95J13 Bracket, Cooling Unit, No.1
88539 88539-95J02 Hose, Cooler Unit Drain, No.1
88605 88605-2F430 Harness Sub-Assy, Wiring Air Conditioner
88625 88625-26020 Thermistor, Cooler, No.1
88625 88625-26030 Thermistor, Cooler, No.1
8857895 88578-95J09 Paking, Cooler Air Duct
8871495 88714-95J00 Protector, Wiring Harness, No.4
8271122270 82711-22270 Clamp(For Transfer Vacuum Tube)
8711614010 87116-14010 Spring, Heater Case Fastening
8856922290 88569-22290 Holder, Thermistor
8856922290 88626-33010 Holder, Thermistor
8856926030 88569-26030 Clamp (for Cooler Relay)
8857826010 88578-26010 Paking, Cooler Air Duct
8857826010 88578-50160 Packing, Cooling Unit, No.1
9009900968 90099-00968 Screw(For Air Conditioner Unit)
9009902210 90099-02210 New Genuine Part
9009904381 90099-04381 BOLT
9009905164 90099-05164 Nut
9009914044 90099-14044 Ring, O(For Cooler Refrigerant Liquid Hose)
9009914045 90099-14045 Ring, O(For Cooler Refrigerant Suction Hose)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9009932138 90099-32138 New Genuine Part
9048020013 90480-20013 New Genuine Part
9048026022 90480-26022 Grommet (For Cooler Unit)
9354015012 93540-15012 New Genuine Part
Heating & Air Conditioning - Cooler Unit ([07.1998 - ] REAR UNIT BRACKET (9807- )) 7
#OEMPart name
88536 88536-95J14 Bracket, Cooling Unit, No.2
88536 88536-95J15 Bracket, Cooling Unit, No.2
88536 88536-95J12 Bracket, Cooling Unit, No.1
88536 88536-95J13 Bracket, Cooling Unit, No.1
9011906882 90119-06882 New Genuine Part
9011906882 90119-06311 BOLT
9017906274 90179-06274 Nut
Heating & Air Conditioning - Cooler Unit ([08.1989 - ] REAR UNIT (DEALER OPTION) (8908- )) 17
#OEMPart name
88510 88510-2F330 Unit Assy, Cooling (Rear)
88539 88539-95J02 Hose, Cooler Unit Drain, No.1
88605 88605-2F430 Harness Sub-Assy, Wiring Air Conditioner
88635 88635-95J00 Resistor, Cooler Unit Blower
8856995 88569-95J00 Clamp (For Cooler Wiring Harness), No.1
8857895 88578-95J01 Paking, Cooler Air Duct
8857895 88578-95J09 Paking, Cooler Air Duct
8889995 88899-95J19 Moulding, Protector
8271195704 82711-95704 Wire, Fuse To Fuse(for Combustion Heater)
8889787101 88897-87101 Connector, Cooler Drain Hose
9009932138 90099-32138 New Genuine Part
9041315001 90413-15001 Connector, Cooler Drain Hose
9048020013 90480-20013 New Genuine Part
9048026022 90480-26022 Grommet (For Cooler Unit)
9338516014 93385-16014 New Genuine Part
9354014012 93540-14012 Screw
9354015012 93540-15012 New Genuine Part
Heating & Air Conditioning - Cooler Unit ([08.1989 - ] REAR UNIT BRACKET (DEALER OPTION) (8908- )) 11
#OEMPart name
88536 88536-95J14 Bracket, Cooling Unit, No.2
88536 88536-95J15 Bracket, Cooling Unit, No.2
88536 88536-95J12 Bracket, Cooling Unit, No.1
88536 88536-95J13 Bracket, Cooling Unit, No.1
8868826010 88688-26010 Bracket, Cooler Diaphragm
9009120604 90091-20604 New Genuine Part
9017906274 90179-06274 Nut
9338516014 93385-16014 New Genuine Part
9338518016 93385-18016 New Genuine Part
9354015012 93540-15012 New Genuine Part
9354055012 93540-55012 SCREW, TAPPING
Heating & Air Conditioning - Cooler Unit ([08.1989 - ] REAR UNIT BRACKET (MAKER OPTION) (8908- )) 8
#OEMPart name
88536 88536-95J12 Bracket, Cooling Unit, No.1
88536 88536-95J13 Bracket, Cooling Unit, No.1
88536 88536-95J14 Bracket, Cooling Unit, No.2
88536 88536-95J15 Bracket, Cooling Unit, No.2
9011906311 90119-06311 BOLT
9017906274 90179-06274 Nut
9165140614 91651-40614 Bolt
9354025010 93540-25010 Screw, Pillar Joint Setting
Heating & Air Conditioning - Cooler Unit ([08.1989 - ] REAR UNIT---TWIN TYPE (DEALER OPT) (8908- )) 13
#OEMPart name
88510 88510-2F330 Unit Assy, Cooling (Rear)
88539 88539-95J02 Hose, Cooler Unit Drain, No.1
88605 88605-2F430 Harness Sub-Assy, Wiring Air Conditioner
8856995 88569-95J00 Clamp (For Cooler Wiring Harness), No.1
8857895 88578-95J01 Paking, Cooler Air Duct
8857895 88578-95J09 Paking, Cooler Air Duct
8889995 88899-95J19 Moulding, Protector
8721195704 87211-95704 Duct, Heater Air, Rear No.1
9041315001 90413-15001 Connector, Cooler Drain Hose
9048020013 90480-20013 New Genuine Part
9048026022 90480-26022 Grommet (For Cooler Unit)
9338516014 93385-16014 New Genuine Part
9354015012 93540-15012 New Genuine Part
Heating & Air Conditioning - Cooler Unit ([08.1989 - ] REAR UNIT---TWIN TYPE (MAKER OPT) (8908- )) 19
#OEMPart name
87105 87105-95J00 Fan Sub-Assy, Blower, Rear
87105 88541-95J00 Fan Sub-Assy, Blower, Rear
88501 88501-26180 Evaporator Sub-Assy (Rear)
88510 88510-2F330 Unit Assy, Cooling (Rear)
88536 88536-95J12 Bracket, Cooling Unit, No.1
88536 88536-95J13 Bracket, Cooling Unit, No.1
88539 88539-95J02 Hose, Cooler Unit Drain, No.1
88550 88550-95J00 Motor Sub-Assy, Rear Heater Blower
88605 88605-2F430 Harness Sub-Assy, Wiring Air Conditioner
8857895 88578-95J01 Paking, Cooler Air Duct
8871495 88714-95J00 Protector, Wiring Harness, No.4
8889995 88899-95J19 Moulding, Protector
8271122270 82711-22270 Clamp(For Transfer Vacuum Tube)
8851528040 88515-28040 Valve, Rear Cooling Unit Expansion
9009914044 90099-14044 Ring, O(For Cooler Refrigerant Liquid Hose)
9009914045 90099-14045 Ring, O(For Cooler Refrigerant Suction Hose)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9041315001 90413-15001 Connector, Cooler Drain Hose
9048026022 90480-26022 Grommet (For Cooler Unit)
Heating & Air Conditioning - Cooler Unit ([08.1993 - ] FRONT DUAL (9308- )) 25
#OEMPart name
88510 88510-26510 Unit Assy, Cooler
88539 88539-26150 Hose, Cooler Unit Drain, No.1
88578 88578-12490 Packing, Cooling Unit, No.2
88605 88605-2F700 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-2F710 Harness Sub-Assy, Cooler Wiring, No.1
88630 88630-14030 Relay Assy, Cooler
88650 88650-26390 Amplifier Assy, Cooler Stabilizer
88899 88891-95J27 Cover, Cooler Control
8868895 88688-95J75 Bracket, Cooler Diaphragm
8889595 88895-95J10 Holder, Fuse
8868826260 88688-26260 Bracket, Cooler Diaphragm
8868826360 88688-26360 Bracket, Cooler Diaphragm
8868826410 88688-26410 Bracket, Cooler Diaphragm
8889126140 88891-26140 Packing (for Cooler)
8889126150 88891-26150 Packing (for Cooler)
9009490413 90094-90413 New Genuine Part
9009900149 90099-00149 New Genuine Part
9011906121 90119-06121 New Genuine Part
9011906121 90119-06361 BOLT WWASHER
9015960096 90159-60096 New Genuine Part
9018906084 90189-06084 NUT
9046805047 90468-05047 CLIP
9165260616 91652-60616 New Genuine Part
9331515010 93315-15010 New Genuine Part
9356055016 93560-55016 Screw(For Mat Set Plate)
Heating & Air Conditioning - Cooler Unit ([08.1993 - ] FRONT SINGLE (9308- )) 25
#OEMPart name
88510 88510-26510 Unit Assy, Cooler
88539 88539-26150 Hose, Cooler Unit Drain, No.1
88605 88605-2F700 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-2F710 Harness Sub-Assy, Cooler Wiring, No.1
88630 88630-14030 Relay Assy, Cooler
88650 88650-26390 Amplifier Assy, Cooler Stabilizer
88899 88891-95J27 Cover, Cooler Control
8868895 88688-95J75 Bracket, Cooler Diaphragm
8868895 88688-95J86 Bracket, Cooler Stabilizer Amplifier
8889595 88895-95J10 Holder, Fuse
8856926030 88569-26030 Clamp (for Cooler Relay)
8868826260 88688-26260 Bracket, Cooler Diaphragm
8868826410 88688-26410 Bracket, Cooler Diaphragm
8889126140 88891-26140 Packing (for Cooler)
8889126150 88891-26150 Packing (for Cooler)
9009490413 90094-90413 New Genuine Part
9009900149 90099-00149 New Genuine Part
9011906121 90119-06121 New Genuine Part
9011906121 90119-06361 BOLT WWASHER
9015960096 90159-60096 New Genuine Part
9018906084 90189-06084 NUT
9046805047 90468-05047 CLIP
9165260616 91652-60616 New Genuine Part
9331515010 93315-15010 New Genuine Part
9356055016 93560-55016 Screw(For Mat Set Plate)
Heating & Air Conditioning - Cooler Unit ([08.1993 - ] FRONT(DEALER OPTION) (9308- )) 13
#OEMPart name
88501 88501-26031 Evaporator Sub-Assy, Cooler, No.1
88510 88510-26510 Unit Assy, Cooler
88515 88515-20100 Valve, Cooler Expansion
88515 88515-22240 Valve, Cooler Expansion
88625 88625-26020 Thermistor, Cooler, No.1
88625 88625-26030 Thermistor, Cooler, No.1
88710 88710-26140 Tube Assy, Air Conditioner
8711614010 87116-14010 Spring, Heater Case Fastening
9009900968 90099-00968 Screw(For Air Conditioner Unit)
9009904381 90099-04381 BOLT
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
Heating & Air Conditioning - Cooler Unit ([08.1993 - ] REAR UNIT (MAKER OPTION) (9308- )) 41
#OEMPart name
87105 87105-95J00 Fan Sub-Assy, Blower, Rear
87105 88541-95J00 Fan Sub-Assy, Blower, Rear
88501 88501-26180 Evaporator Sub-Assy (Rear)
88510 88510-2F330 Unit Assy, Cooling (Rear)
88515 88515-26060 Valve, Rear Cooling Unit Expansion
88536 88536-95J12 Bracket, Cooling Unit, No.1
88536 88536-95J13 Bracket, Cooling Unit, No.1
88536 88536-95J14 Bracket, Cooling Unit, No.2
88536 88536-95J15 Bracket, Cooling Unit, No.2
88539 88539-95J02 Hose, Cooler Unit Drain, No.1
88550 88550-95J00 Motor Sub-Assy, Rear Heater Blower
88605 88605-2F430 Harness Sub-Assy, Wiring Air Conditioner
88635 88635-95J00 Resistor, Cooler Unit Blower
827113 82711-3H360 Wire, Fuse To Fuse(for Combustion Heater)
8857895 88578-95J09 Paking, Cooler Air Duct
8857895 88578-95J01 Paking, Cooler Air Duct
8889995 88899-95J19 Moulding, Protector
6324995700 63249-95700 Supporter, Water Hose
8271122270 82711-22270 Clamp(For Transfer Vacuum Tube)
9009900931 90099-00931 New Genuine Part
9009902210 90099-02210 New Genuine Part
9009904469 90099-04469 New Genuine Part
9009905164 90099-05164 Nut
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9009932138 90099-32138 New Genuine Part
9011906120 90119-06120 BOLT
9011906462 90119-06462 New Genuine Part
9011906572 90119-06572 New Genuine Part
9017906069 90179-06069 Direct
9017906274 90179-06274 Nut
9018306020 90183-06020 New Genuine Part
9018905019 90189-05019 New Genuine Part
9041315001 90413-15001 Connector, Cooler Drain Hose
9048020013 90480-20013 New Genuine Part
9048026022 90480-26022 Grommet (For Cooler Unit)
9095006067 90950-06067 New Genuine Part
9353055016 93530-55016 New Genuine Part
9354015016 93540-15016 New Genuine Part
9354055014 93540-55014 New Genuine Part
9354055016 93540-55016 SCREW
Heating & Air Conditioning - Cooler Unit ([08.1993 - ] REAR UNIT BRACKET (MAKER OPTION) (9308- )) 7
#OEMPart name
88536 88536-95J12 Bracket, Cooling Unit, No.1
88536 88536-95J13 Bracket, Cooling Unit, No.1
88536 88536-95J14 Bracket, Cooling Unit, No.2
88536 88536-95J15 Bracket, Cooling Unit, No.2
9011906120 90119-06120 BOLT
9011906572 90119-06572 New Genuine Part
9017906274 90179-06274 Nut
Heating & Air Conditioning - Cooler Unit ([08.1995 - ] REAR UNIT (MAKER OPTION) (9508- )) 25
#OEMPart name
87105 87105-95J00 Fan Sub-Assy, Blower, Rear
87105 88541-95J00 Fan Sub-Assy, Blower, Rear
88501 88501-26180 Evaporator Sub-Assy (Rear)
88510 88510-2F330 Unit Assy, Cooling (Rear)
88515 88515-26060 Valve, Rear Cooling Unit Expansion
88539 88539-95J02 Hose, Cooler Unit Drain, No.1
88550 88550-95J00 Motor Sub-Assy, Rear Heater Blower
88605 88605-2F430 Harness Sub-Assy, Wiring Air Conditioner
827113 82711-3H360 Wire, Fuse To Fuse(for Combustion Heater)
8857895 88578-95J01 Paking, Cooler Air Duct
8857895 88578-95J09 Paking, Cooler Air Duct
8271122270 82711-22270 Clamp(For Transfer Vacuum Tube)
8889426040 88894-26040 New Genuine Part
9009900931 90099-00931 New Genuine Part
9009902210 90099-02210 New Genuine Part
9009904469 90099-04469 New Genuine Part
9009905164 90099-05164 Nut
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9011906120 90119-06120 BOLT
9011906462 90119-06462 New Genuine Part
9017906274 90179-06274 Nut
9018905019 90189-05019 New Genuine Part
9048020013 90480-20013 New Genuine Part
9354055016 93540-55016 SCREW
Heating & Air Conditioning - Cooler Unit ([08.1996 - ] COOL BOX (9608- )) 13
#OEMPart name
8857895 88578-95J07 Paking, Cooler Air Duct
8857895 88578-95J10 Paking, Cooler Air Duct
8871895 88718-95J69 Pipe, Cooler Refrigerant Suction, No.2
8889795 88897-95J06 Valve, Cooler Magnet
8889795 88897-95J07 Valve, Cooler Magnet
8857826030 88578-26030 Paking, Cooler Air Duct
8868826800 88688-26800 Bracket, Cooler Diaphragm
8868826800 88688-26810 Bracket, Cooler Diaphragm
9009490414 90094-90414 New Genuine Part
9165260616 91652-60616 New Genuine Part
9356815012 93568-15012 SCREW
9356815012 93568-55012 SCREW
9359016014 93590-16014 New Genuine Part
Heating & Air Conditioning - Cooler Unit ([08.1996 - ] COOL BOX UNIT (9608- )) 3
#OEMPart name
9009905164 90099-05164 Nut
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9354014010 93540-14010 Clip, Headlining Retainer
Heating & Air Conditioning - Cooler Unit ([08.1998 - ] FRONT(MAKER OPTION) (9808- )) 38
#OEMPart name
88501 88501-26031 Evaporator Sub-Assy, Cooler, No.1
88510 88510-26510 Unit Assy, Cooler
88515 88515-20100 Valve, Cooler Expansion
88515 88515-22240 Valve, Cooler Expansion
88539 88539-26150 Hose, Cooler Unit Drain, No.1
88605 88605-2F700 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-2F710 Harness Sub-Assy, Cooler Wiring, No.1
88625 88625-26020 Thermistor, Cooler, No.1
88625 88625-26030 Thermistor, Cooler, No.1
88630 88630-14030 Relay Assy, Cooler
88650 88650-26390 Amplifier Assy, Cooler Stabilizer
88710 88710-26140 Tube Assy, Air Conditioner
88899 88891-95J27 Cover, Cooler Control
8868895 88688-95J75 Bracket, Cooler Diaphragm
8889595 88895-95J10 Holder, Fuse
8711614010 87116-14010 Spring, Heater Case Fastening
8856926030 88569-26030 Clamp (for Cooler Relay)
8868826260 88688-26260 Bracket, Cooler Diaphragm
8868826360 88688-26360 Bracket, Cooler Diaphragm
8868826410 88688-26410 Bracket, Cooler Diaphragm
9009490413 90094-90413 New Genuine Part
9009900149 90099-00149 New Genuine Part
9009900930 90099-00930 New Genuine Part
9009900968 90099-00968 Screw(For Air Conditioner Unit)
9009904381 90099-04381 BOLT
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9011906121 90119-06121 New Genuine Part
9011906121 90119-06361 BOLT WWASHER
9015960096 90159-60096 New Genuine Part
9018906084 90189-06084 NUT
9046805047 90468-05047 CLIP
9165260616 91652-60616 New Genuine Part
9331515010 93315-15010 New Genuine Part
9338516020 93385-16020 New Genuine Part
9338516020 93385-26020 New Genuine Part
9356055016 93560-55016 Screw(For Mat Set Plate)
Heating & Air Conditioning - Cooler Unit ([08.2003 - ] REAR UNIT (0308- )TRH12# ; (0308- )TRH102,112..SGLE) 25
#OEMPart name
87105 87105-95J00 Fan Sub-Assy, Blower, Rear
87105 88541-95J00 Fan Sub-Assy, Blower, Rear
88501 88501-26180 Evaporator Sub-Assy (Rear)
88510 88510-2F330 Unit Assy, Cooling (Rear)
88515 88515-26060 Valve, Rear Cooling Unit Expansion
88539 88539-95J02 Hose, Cooler Unit Drain, No.1
88550 88550-95J00 Motor Sub-Assy, Rear Heater Blower
88605 88605-2F430 Harness Sub-Assy, Wiring Air Conditioner
88625 88625-26020 Thermistor, Cooler, No.1
88625 88625-26030 Thermistor, Cooler, No.1
88635 88635-95J00 Resistor, Cooler Unit Blower
8857895 88578-95J09 Paking, Cooler Air Duct
8889995 88899-95J19 Moulding, Protector
8271122270 82711-22270 Clamp(For Transfer Vacuum Tube)
8856926030 88569-26030 Clamp (for Cooler Relay)
9009900931 90099-00931 New Genuine Part
9009900968 90099-00968 Screw(For Air Conditioner Unit)
9009902210 90099-02210 New Genuine Part
9009905164 90099-05164 Nut
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9009932138 90099-32138 New Genuine Part
9018306020 90183-06020 New Genuine Part
9048026022 90480-26022 Grommet (For Cooler Unit)
9353055016 93530-55016 New Genuine Part
9354055014 93540-55014 New Genuine Part
Heating & Air Conditioning - Heater Unit & Blower ([08.2003 - ] ﾌﾛﾝﾄﾋ-ﾀ ﾌﾞﾛﾜ (0308- )TRH102,112,12#) 8
#OEMPart name
55076 55076-26020 Net Sub-Assy, Air Duct
87103 87103-26010 Motor Sub-Assy, Heater Blower, W/fan
87103 87103-26050 Motor Sub-Assy, Heater Blower, W/fan
87130 87130-26120 Blower Assy, Heater, Front
87130 87130-95J04 Blower Assy, Heater, Front
87138 87138-95J04 Resistor, Heater Blower
9017906060 90179-06060 Nut, Wing(For Air Cleaner)
9165160614 91651-60614 Bolt
Heating & Air Conditioning - Heater Unit & Blower ([08.2003 - ] ﾌﾛﾝﾄﾋ-ﾀ ﾕﾆﾂﾄ (0108- )LH162,17#,RZH102,112..SGL ; (0308- )TRH102,112,12#) 9
#OEMPart name
87107 87107-26080 Unit Sub-Assy, Heater Radiator
87107 87107-26100 Unit Sub-Assy, Heater Radiator
87150 87150-26290 Radiator Assy, Heater
87150 87150-26300 Radiator Assy, Heater
87174 87174-95J07 Guide, Air Heater
87211 87211-95J13 Duct, Air
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9048001529 90480-01529 New Genuine Part
Heating & Air Conditioning - Heater Unit & Blower ([08.2003 - ] ﾘﾔﾋ-ﾀ---ﾋﾞﾙﾄｲﾝﾀｲﾌﾟ (0308- )TRH112..V1..5D) 8
#OEMPart name
87104 87104-26010 Motor Sub-Assy, Rear Heater Blower
87105 87105-95J00 Fan Sub-Assy, Blower, Rear
87107 87107-26160 Unit Sub-Assy, Rear Heater
87120 87110-26200 Heater Assy, Rear
87125 87125-95J07-B0 Grille, Air Outlet
87138 87138-26120 Resistor, Rear Heater Blower
9015960025 90159-60025 SCREW W-WASHER
9018905163 90189-05163 GROMMET SCREW
Heating & Air Conditioning - Water Piping ([08.2003 - ] (0308- )TRH102,112..V1..5D) 26
#OEMPart name
87029 87029-95J01 Cover Sub-Assy, Heater Inlet Hole
87208 87208-26840 Pipe Sub-Assy, Heater Water, A
87208 87208-2F260 Pipe Sub-Assy, Heater Water, B
87208 87208-2F100 Pipe Sub-Assy, Heater Water, C
87208 87208-2F160 Pipe Sub-Assy, Heater Water, D
87208 87208-2F140 Pipe Sub-Assy, Heater Water, E
87237 87237-95J00 Cover, Heater Pipng
87240 87240-26100 Valve Assy, Rear Heater Water
87245 87245-26A20 Hose, Heater Water, Inlet H
87255 99556-20200 Hose, Water(For Lpg Regulator Outlet)
87255 99556-20490 Hose, Heater Water, Inlet B
87255 99556-20500 Hose, Rear Heater Water Inlet, B
87255 87245-95J55 Hose, Rear Heater Water Inlet, C
87255 87245-95J53 Hose, Rear Heater Water Inlet, D
87256 87245-95J52 Hose, Rear Heater Water Outlet, B
87256 87245-95J54 Hose, Rear Heater Water Outlet, C
5736295 57362-95J01 Packing, Outrigger Hole Cover
8712895 87128-95J01 Grommet, Heater
9015960025 90159-60025 SCREW W-WASHER
9015960191 90159-60191 New Genuine Part
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9018905163 90189-05163 GROMMET SCREW
9046719010 90467-19010 New Genuine Part
9046719022 90467-19022 Clip(For Ventilation Hose No.2)
9165140816 91651-40816 BOLT
9338116012 93381-16012 Screw
Heating & Air Conditioning - Water Piping ([08.2003 - ] ﾌﾛﾝﾄ (0308- )TRH102,112,12#) 15
#OEMPart name
87208 87208-26A10 Pipe Sub-Assy, Heater Water
87208 87208-26A30 Pipe Sub-Assy, Heater Water
87208 87208-26A00 Pipe Sub-Assy, Heater Water, G
87208 87208-26A20 Pipe Sub-Assy, Heater Water, G
87209 87245-26A00 Hose Sub-Assy, Water
87240 87240-26090 Valve Assy, Heater Water
87245 87245-26A10 Hose, Heater Water, Inlet A
87245 87245-2F440 Hose, Heater Water ,inlet C
87245 87245-2F180 Hose, Heater Water, Inlet E
87246 87245-2F490 Hose, Heater Water, Outlet A
87256 99556-20200 Hose, Water(For Lpg Regulator Outlet)
9046722008 90467-22008 Clip(For Water By-Pass Hose No.1)
9046722008 90467-22011 Clip(For Water By-Pass Hose No.1)
9165140816 91651-40816 BOLT
9613442100 96134-42100 Clip(For Water By-Pass Hose Assy)
Horn ([07.1999 - ] (9907- )) 5
#OEMPart name
86520 86520-26150 Horn Assy, Low Pitched
86591 86591-26020 Bracket, Horn
9011908063 90119-08063 BOLT
9011908103 90119-08103 New Genuine Part
9011908795 90119-08795 New Genuine Part
Ignition Coil & Spark Plug ([08.2003 - ] (0308- )1TRFE) 4
#OEMPart name
19100 90919-01191 Spark Plug (Denso SK20HR11)
19500 90919-02248 Coil Assy, Ignition
19500 90919-02260 Coil Assy, Ignition
91551 91551-A0622 BOLT FLANGE
Indicator ([08.1989 - ] (8908- )) 3
#OEMPart name
81850 81850-95J00 Lamp Assy, Indicator
81850 90981-11014 Bulb, Position Indicator Lamp
81942 81942-26010 Sheet, Heater Control Name
Inside Trim Board ([08.1989 - ] (8908- ) ; (9010-9308)LH140) 41
#OEMPart name
62211 62211-26080-B0 Garnish, Front Pillar, Rh
62211 62211-95J12-B3 Garnish, Front Pillar, Rh
62212 62212-26080-B0 Garnish, Front Pillar, Lh
62212 62212-95J10-B3 Garnish, Front Pillar, Lh
62313 62313-95J01-B0 Trim, Front Door Opening, Rh
62313 62313-95J00-B0 Moulding, Front Door Opening Trim, Rh
62413 62413-26150-B0 Garnish, Center Pillar, Lower Rh
62413 90467-10034-B0 Clip (For Center Lower Garnish)
62414 62414-26120-B0 Garnish, Center Pillar, Lower Lh
62424 62424-95J01-B0 Cover, Center Pillar Garnish, Lower Lh
62580 62580-26080-B0 Board Assy, Side Heater Cover, Rh
62587 62587-95J02 Retainer, Side Heater Cover
62588 90467-07043-B0 Clip (For Side Heater Cover)
62588 90467-07090-B1 Clip (For Side Heater Cover)
62630 62630-2F220-B0 Panel Assy, Quarter Trim, Rear Rh
62630 62630-2F630-B0 Panel Assy, Quarter Trim, Rear Rh
62630 62630-95J35-B0 Panel Assy, Quarter Trim, Rear Rh
62630 62630-95J39-B0 Panel Assy, Quarter Trim, Rear Rh
62640 62640-95J49-B0 Panel Assy, Quarter Trim, Rear Lh
6777295 67772-95J02 Cap, Front Door Trim Retainer
6199126010 61991-26010 Protector, Front Pillar Door Hinge
6199226010 61992-26010 New Genuine Part
6777112050 67771-12050 Clip, Radiator Grille
6777116080 67771-16080 Retainer (For Quarter Inside Trim Board)
6777126010 67771-26010 Retainer (For Quarter Inside Trim Board)
6777130070 67771-30070 Retainer(For Deck Side Trim Panel)
6777189109 67771-89109 Clip(For Step Plate)
6777195705 67771-95705 Weatherstrip, Back Door Trim, Rh
6792195500 67921-95500 Retainer, Rear Door Scuff Plate
9018905015 90189-05015 Nut, Headlamp Self Locking
9018905019 90189-05019 New Genuine Part
9046709182 90467-09182 Clip(For Rear Door Trim Board)
9046805047 90468-05047 CLIP
9046805096 90468-05096 CLIP
9163140612 91631-40612 New Genuine Part
9163140620 91631-40620 New Genuine Part
9354056014 93540-56014 New Genuine Part
9356056012 93560-56012 Screw
9356056016 93560-56016 SCREW
9356615512 93566-15512 New Genuine Part
9356615512 93568-55012 SCREW
Inside Trim Board ([08.2003 - ] (0308- )TRH102,112,12#..CD,DX,SGLE) 29
#OEMPart name
56153 56153-26010-B0 Moulding, Front Window, Inner Center
62211 62211-26080-B0 Garnish, Front Pillar, Rh
62211 62211-95J12-B3 Garnish, Front Pillar, Rh
62212 62212-26080-B0 Garnish, Front Pillar, Lh
62212 62212-95J10-B3 Garnish, Front Pillar, Lh
62313 62313-95J01-B0 Trim, Front Door Opening, Rh
62313 62313-95J00-B0 Moulding, Front Door Opening Trim, Rh
62413 62413-26150-B0 Garnish, Center Pillar, Lower Rh
62413 90467-10034-B0 Clip (For Center Lower Garnish)
62414 62414-26120-B0 Garnish, Center Pillar, Lower Lh
62424 62424-95J01-B0 Cover, Center Pillar Garnish, Lower Lh
62580 62580-26080-B0 Board Assy, Side Heater Cover, Rh
62630 62630-2F220-B0 Panel Assy, Quarter Trim, Rear Rh
62630 62630-2F630-B0 Panel Assy, Quarter Trim, Rear Rh
62630 62630-95J35-B0 Panel Assy, Quarter Trim, Rear Rh
62630 62630-95J39-B0 Panel Assy, Quarter Trim, Rear Rh
62640 62640-95J49-B0 Panel Assy, Quarter Trim, Rear Lh
6199126010 61991-26010 Protector, Front Pillar Door Hinge
6199226010 61992-26010 New Genuine Part
6777112050 67771-12050 Clip, Radiator Grille
6777116080 67771-16080 Retainer (For Quarter Inside Trim Board)
6777126010 67771-26010 Retainer (For Quarter Inside Trim Board)
6777189109 67771-89109 Clip(For Step Plate)
6792195500 67921-95500 Retainer, Rear Door Scuff Plate
9018905019 90189-05019 New Genuine Part
9046709182 90467-09182 Clip(For Rear Door Trim Board)
9046805047 90468-05047 CLIP
9046805096 90468-05096 CLIP
9356056012 93560-56012 Screw
Instrument Panel & Glove Compartment ([07.1999 - ] (9907- )LH16#,17#,18#,RZH102,112,12#,18#,TRH1 02,112,12#) 73
#OEMPart name
50540 50540-26070-B0 Do0R Assy, Air Bag Passenger
55303 55303-95J05 Stay Sub-Assy, Instrument Panel
55306 55306-95J01 Brace Sub-Assy, Instrument Panel, No.1
55306 55306-26060 Brace Sub-Assy, Instrument Panel To Cowl
55307 55307-95J05 Brace Sub-Assy, Instrument Panel, No.2
55308 55308-26021 Bracket Sub-Assy, Instrument Panel, Center
55312 55312-26071-B0 Panel, Instrument, Lower
55312 55312-26110-B0 Panel, Instrument, Lower
55331 55330-26043 Reinforcement, Instrument Panel
55331 55330-26142 Reinforcement, Instrument Panel
55351 55351-26050 Brace, Instrument Panel To Floor
55373 55373-95J01 Bracket, Oil Reservoir Tank
55374 55374-26040 Bracket, Instrument Panel Lower Mounting, No.1
55375 55375-26020 Bracket, Instrument Panel Lower Mounting, No.2
55394 55394-95J00 Bolt, Instrument Panel
55404 55404-26260 Panel Sub-Assy, Instrument Cluster Finish, No.2
55409 55473-26010-B0 Panel Sub-Assy, Instrument Panel Speaker, No.2
55432 55432-26021-B0 Panel, Instrument Panel Finish, Lower Rh
55434 55434-26032-B0 Panel, Instrument Panel Finish, Lower Center
55441 55440-26050 Box, Instrument Panel
55445 55445-95J00 Plate, Instrument Panel Finish
55446 55446-95J00 Base, Switch Hole, No.1
55467 55303-26020 Retainer, Instrument Panel Safety Pad, No.2
55477 55477-95J01 Bezel, Cigarette Lighter Hole
55510 55501-26010-B0 Door Assy, Glove Compartment
55521 55521-16030 Cover, Radio Tuner Opening
55531 55305-26040 Panel, Glove Compartment
55534 55534-95J00 Cover, Illumination Lamp Hole
55534 84656-26020 Cover, Illumination Lamp Hole
55539 55539-95J02-C0 Cover, Spare Switch Hole, No.2
55539 55539-32010-C0 Cover, Cooler Switch Hole (BLACK)
55560 55560-26010-B0 Lock Assy, Glove Compartment Door
55561 55561-95J01 Striker, Glove Compartment Door Lock
55562 55562-95J00 Pin, Glove Compartment Door Lock
55568 55568-26010 Plate, Glove Compartment Door Pad
55573 55573-95J00 Hinge, Glove Compartment Door
55650 55650-95J08 Register Assy, Instrument Panel, No.1
55660 55660-26010-B0 Register Assy, Instrument Panel, No.2
55670 55670-95J03 Register Assy, Instrument Panel, Center
56119 56151-26010 Seal, Windshield Glass
61166 61166-95J00 Bracket, Instrument Panel To Cowl Side, Lh
61181 61181-95J04 Bracket, Instrument Panel Side
73960 73960-26130 Air Bag Assy, Instrument Panel Passenger W/o Door
91651 91651-B0618 BOLT WWASHER
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9011908103 90119-08103 New Genuine Part
9015950115 90159-50115 New Genuine Part
9015950338 90159-50338 New Genuine Part
9016850033 90168-50033 New Genuine Part
9017905030 90179-05030 NUT
9017908179 90179-08179 New Genuine Part
9018305103 90183-05103 NUT
9018905016 90189-05016 Grommet, Screw
9018905096 90189-05096 GROMMET, SCREW
9018905101 90189-05101 New Genuine Part
9024904062 90249-04062 PIN
9046710048 90467-10048 New Genuine Part
9046714013 90467-14013 New Genuine Part
9046715015 90467-15015 CLIP
9046804147 90468-04147 Clip(For Back Door Trim Board)
9046805096 90468-05096 CLIP
9163140616 91631-40616 Bolt(For Head To Camshaft Bearing Cap)
9165160614 91651-60614 Bolt
9165160618 91651-60618 Bolt(For Oil Receiver Pipe)
9331315012 93313-15012 New Genuine Part
9352054012 93520-54012 Screw
9354055016 93540-55016 SCREW
9356055016 93560-55016 Screw(For Mat Set Plate)
9356615514 93566-15514 Direct
9356615514 93568-55014 Screw
9356855012 93568-55012 SCREW
Interior Lamp ([08.1989 - ] (8908- )) 28
#OEMPart name
81230 81230-87004 Lamp Assy, Courtesy
81230 99132-13050 Bulb(For Courtesy Lamp)
81230 00234-13050 Bulb,Room Lamp
81231 81231-30080 Lens, Courtesy Lamp
81240 81240-26130-B0 Lamp Assy, Room, No.1
81240 99132-12100 Bulb, Room Lamp, No.1
81241 81241-95J11 Lens, Room Lamp, No.1
81250 90981-11021 Bulb, Room Lamp, No.2
81380 81250-95J05-B0 Lamp Assy, Step Or Spot
81381 81251-12030 Lens, Room Lamp, No.2
81870 81870-95J01 Lamp Assy, Key Cylinder
81870 90981-11014 Bulb, Position Indicator Lamp
9011906200 90119-06200 New Genuine Part
9011906438 90119-06438 New Genuine Part
9011906568 90119-06568 New Genuine Part
9015460028 90154-60028 New Genuine Part
9015950087 90159-50087 New Genuine Part
9015960002 90159-60002 Bolt, W/washer (For Floor Shift)
9015960002 90119-06182 Bolt, W/washer (For Floor Shift)
9163140612 91631-40612 New Genuine Part
9331315010 93313-15010 SCREW
9331316014 93313-16014 Clamp, Fuel Tube
9353024016 93530-24016 SCREW
9354013010 93540-13010 SCREW
9354024516 93540-24516 New Genuine Part
9356014014 93560-14014 SCREW
9356016012 93560-16012 New Genuine Part
9356055014 93560-55014 SCREW
Lock Cylinder Set ([08.1989 - ] (8908- )) 13
#OEMPart name
69057 69057-26080 Cylinder & Key Set, Ignition Switch Lock
69503 69503-26560 Cylinder Set, Lock
69503 69503-26550 Cylinder Set, Lock
69503 90999-00185 Key, Blank
69503 90999-00186 Key, Blank
69510 69510-26020 Cylinder Assy, Front Door Lock, Rh
69520 69520-26020 Cylinder Assy, Front Door Lock, Lh
69530 69530-26030 Cylinder Assy, Slide Door Lock, Rh
69540 69540-26050 Cylinder Assy, Slide Door Lock, Lh
69560 69560-26020 Cylinder Assy, Back Door Lock
69570 69570-26030 Cylinder Assy, Ignition Switch Lock
9322954010 93229-54010 New Genuine Part
9356854512 93568-54512 SCREW
Lock Cylinder Set ([10.1990 - ] ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) (9010- )) 9
#OEMPart name
69057 69057-26080 Cylinder & Key Set, Ignition Switch Lock
69510 69510-26020 Cylinder Assy, Front Door Lock, Rh
69520 69520-26020 Cylinder Assy, Front Door Lock, Lh
69530 69530-26030 Cylinder Assy, Slide Door Lock, Rh
69540 69540-26050 Cylinder Assy, Slide Door Lock, Lh
69560 69560-26020 Cylinder Assy, Back Door Lock
69570 69570-26030 Cylinder Assy, Ignition Switch Lock
9322954010 93229-54010 New Genuine Part
9356854512 93568-54512 SCREW
Manifold ([08.2003 - ] (0308- )1TRFE) 19
#OEMPart name
17111 17120-0C010 Manifold, Intake
17111 17120-0C011 Manifold, Intake
17111 17120-75010 Manifold, Intake
17111 90126-08026 Bolt, Stud(For Intake Manifold To Cylinder Head)
17141 17141-75100 Manifold, Exhaust
17141 17141-75101 Manifold, Exhaust
17141 90126-08037 Bolt, Stud(For Oil Strainer)
17167 17167-75150 Insulator, Exhaust Manifold Heat, No.1
17167 17167-75171 Insulator, Exhaust Manifold Heat, No.1
17167 17167-75151 Insulator, Exhaust Manifold Heat, No.1
17173 17173-75030 Gasket, Exhaust Manifold To Head
17177 17177-0C010 Gasket, Intake Manifold To Head, No.1
17177 17177-75040 Gasket, Intake Manifold To Head, No.1
91551 91551-B0828 New Genuine Part
9017908101 90179-08101 NUT
9167100835 91671-00835 New Genuine Part
9167180814 91671-80814 BOLT FLANGE WWASER
9167180814 90119-A0165 New Genuine Part
9415180800 94151-80800 Nut (For Transmission Control Cable)
Meter ([08.2003 - ] ｽﾋﾟｰﾄﾞﾒｰﾀ ｾﾝｻ (9308- )KZH10#,11#,12#,13#,LH10#,11#,12#,16#, 17#,18#,RZH10#,11#,12#,133,18# ; (0 308- )TRH102,1 12,12#) 3
#OEMPart name
83181 83181-28010 Sensor, Speedometer
83181 90301-18004 Ring, O (For Atm Speedometer Driven Hole Cover)
9165140825 91651-40825 Bolt(For Clutch Release Cylinder Setting)
Meter ([08.2003 - ] ｽﾋﾟｰﾄﾞﾒｰﾀ(ｱﾅﾛｸﾞ:ｱﾘ(ﾀｺﾒｰﾀ)) (9608-9907) ; (9907- )KZH10#,11#,120,13#,LH16 #,17#,18#,RZH10#,11#,12#,18#..03S,0 5S,06S,08S,09S,10 S,15S ; (0308- )TRH102,112,122..SGL,SGLE) 19
#OEMPart name
83102 83861-26412 Plate Sub-Assy, Combination Meter Circuit, No.1
83110 83220-26110 Speedometer Assy
83128 83224-26380 Knob, Trip Counter
83132 83841-26380 Case, Combination Meter
83134 83821-26390 Cover, Combination Meter, No.1
83145 83833-26010 Lens, Meter, No.1
83145 83831-26380 Lens, Meter, No.2
83145 83831-26410 Lens, Meter, No.3
83145 83832-26390 Lens, Meter, No.4
83270 83881-26790 Tachometer Assy, Engine
83293 83293-26021 Computer, Total Counter Module
83310 83882-26390 Gage Assy, Fuel Receiver
83910 83910-26010 Clock Assy
9007600001 90076-00001 SCREW WITH WASHER
9007600002 90076-00002 SCREW TAPPING
9018305103 90183-05103 NUT
9354014012 93540-14012 Screw
9356715016 93567-15016 New Genuine Part
9356715016 93568-55016 Screw
Meter ([08.2003 - ] ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒｰﾀ:ｱﾘ(ﾀｺﾒｰﾀ)) (9608-9907) ; (9907- )KZH10#,11#,120,13#,LH16 #,17#,18#,RZH10#,11#,12#,18#..03S,0 5S,06S,08S,09S,10 S,15S ; (0308- )TRH102,112,122..SGL,SGLE) 4
#OEMPart name
83100 83120-24010 Bulb, Combination Meter, No.1
83100 83120-60020 Bulb, Combination Meter, No.1
83100 90010-06006 Bulb, Combination Meter, No.1
83100 90010-06007 Bulb, Combination Meter, No.1
Mirror ([08.1989 - ] ｲﾝﾅﾐﾗ- (8908- )) 7
#OEMPart name
87810 87810-95J10 Mirror Assy, Inner Rear View
87810 99132-12100 Bulb, Room Lamp, No.1
87827 87828-10010 Absorber, Inner Rear View Mirror
87827 87828-22020 Absorber, Inner Rear View Mirror
87827 87828-30010 Absorber, Inner Rear View Mirror
87834 81241-95J03 Cover, Inner Rear View Mirror Stay Holder
9015260008 90152-60008 New Genuine Part
Mirror ([08.1989 - ] ﾘﾔｱﾝﾀﾞﾐﾗ- (8908- )) 3
#OEMPart name
87907 87907-95J02 Mirror Sub-Assy, Outer Under View
87950 87950-95J03 Mirror Assy, Outer Under Rear View
9015460013 90154-60013 SCREW
Mirror ([08.2003 - ] ｱｳﾀﾐﾗ-(ｵｵｶﾞﾀﾐﾗ-) (0308- )LH178..DX ; (0308- )TRH102,112..SG ; (0308- )LH178..5D..SGLE ; (03 08- )LH16#,172 ,18#,TRH12#..DX,GL,SGLE) 7
#OEMPart name
87906 87940-26420 Mirror Sub-Assy, Outer Rear View, Lh
87907 87907-26040 Mirror Sub-Assy, Outer Under View
87910 87910-26360 Mirror Assy, Outer Rear View, Rh
87919 87919-26020 Bracket, Outer Mirror
9010506264 90105-06264 New Genuine Part
9015160014 90151-60014 SCREW
9015460013 90154-60013 SCREW
Moulding ([08.1989 - ] (8908- )) 18
#OEMPart name
75531 75531-26061 Moulding, Windshield, Outer Upper
75535 75535-26031 Moulding, Windshield, Outside Lower
75548 75548-26010 Fastener, Windshield Outside Moulding, No.1
75551 75551-26050 Moulding, Roof Drip Side Finish, Rh
75552 75552-26050 Moulding, Roof Drip Side Finish, Lh
75553 75553-26050 Moulding, Roof Drip Side Finish, Rear Rh
75554 75554-26050 Moulding, Roof Drip Side Finish, Rear Lh
75555 75555-26010 Connector, Roof Drip Moulding
75651 75651-95J15 Moulding, Quarter, Outside Rh
75652 75652-95J32 Moulding, Quarter, Outside Lh
75653 75653-95J26 Moulding, Quarter, Outside Rear Rh
75654 75654-95J26 Moulding, Quarter, Outside Rear Lh
75731 75731-95J16 Moulding, Front Door, Outside Rh
75732 75732-95J16 Moulding, Front Door, Outside Lh
75741 75741-95J23 Moulding, Rear Door, Outside Rh
75742 75742-95J05 Moulding, Rear Door, Outside Lh
75853 76561-95J05 Moulding, Center Pillar, Rh
75854 76562-95J16 Moulding, Center Pillar, Lh
Mounting ([08.2003 - ] (0308- )1TRFE) 13
#OEMPart name
12311 12311-75080 Bracket, Engine Mounting, Front No.1 Rh
12315 12315-75070 Bracket, Engine Mounting, Front No.1 Lh
12321 12303-67031 Bracket Sub-Assy, Engine Mounting, Rear
12361 12361-38130 Insulator, Engine Mounting, Front
12381 12381-75030 Stabilizer, Engine Mounting
12388 12388-67011 Stopper, Engine Mounting Bracket, Rear
9010113003 90101-13003 BOLTHEXAGON
9011910742 90119-10742 New Genuine Part
9011910813 90119-10813 BOLT W-WASHER
9017912102 90179-12102 New Genuine Part
9164180822 91641-80822 New Genuine Part
9411041300 94110-41300 NUT
9461211300 94612-11300 Washer(For Outer Lever Oil Setting)
Oil Cooler & Tube (Atm) ([08.2003 - ] A45DE (0308- )TRH102,112,12#..4FC) 22
#OEMPart name
32906 32907-26040 Tube Sub-Assy, Oil Cooler
32906 90445-17151 Hose, Oil Cooler Tube(For Inlet)
32906 90445-17125 Hose, Oil Cooler Tube(For Outlet)
32921 32921-26350 Tube, Oil Cooler Inlet, No.1
32921 32921-26351 Tube, Oil Cooler Inlet, No.1
32921 32918-28010 Union(For Oil Cooler Tube)
32921 90407-16010 Union(For Oil Cooler Tube)
32921 32941-26170 Hose(For Oil Cooler Inlet)
32921 90301-10189 Ring, O(For Oil Cooler Tube Union)
32921 90467-16022 Clip(For Water Inlet Hose)
32922 32922-26340 Tube, Oil Cooler Outlet, No.1
32922 32922-26341 Tube, Oil Cooler Outlet, No.1
32922 90445-17128 Hose(For Oil Cooler Inlet)
32923 32909-25080 Clamp, Automatic Transmission Oil Cooler Tube
32923 32909-25090 Clamp, Automatic Transmission Oil Cooler Tube, No.4
32923 32909-26170 Clamp, Automatic Transmission Oil Cooler Tube, No.4
32926 32926-30020 Cushion, Oil Cooler Tube(Atm)
32926 32926-30060 Cushion, Oil Cooler Tube(Atm)
91611 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
91611 91611-B0812 Bolt
91612 91612-B1014 BOLT WWASHER
91651 91651-G0612 New Genuine Part
Oil Filter ([08.2003 - ] (0308- )1TRFE) 13
#OEMPart name
15600 90404-19015 Union(For Oil Filter)
15601 90915-20003 Oil Filter Sub-Assy (THAILAND) - MADE IN THAILAND
15601 90915-YZZD2 Oil Filter (THAILAND) - Made in Thailand
15601 90915-20005 Oil Filter (THAILAND)
15609 15609-75050 Bracket Sub-Assy, Oil Filter
15609 90430-28004 Gasket(For Oil Filter Bracket Union)
15609 90341-16023 Plug, W/head Straight Screw(For Oil Filter Bracket)
15609 90430-16009 Gasket, Straight Screw Plug No.1(For Cylinder Block)
15609 90401-19005 Bolt, Union(For Oil Filter Bracket)
15609 90301-68005 Ring, O(For Oil Filter Bracket)
9212280825 92122-80825 Bolt, Stud(For Manifold To Cylinder Head)
9415180800 94151-80800 Nut (For Transmission Control Cable)
9672324016 96723-24016 Ring, O
Overdrive & Electronic Controlled Transmission ([08.2003 - ] (0308- )TRH102,112,12#..4FC) 14
#OEMPart name
33485 33485-28010 Plate, Speedometer Sleeve Lock (Atm)
84722 84722-26080-B1 Switch, Transmission Control
85420 35250-30030 Solenoid Assy, Transmission
85420 35250-28030 Solenoid Assy, Transmission
89411 89411-50010 Sensor, Speed
89413 89413-22010 Sensor, Transmission Revolution
89414 89414-22020 Rotor, Sensor
89429 89429-34010 Sensor, Temperature
91611 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
8271189130 82711-89130 Wire, Fuse To Fuse(for Combustion Heater)
9011906875 90119-06875 New Genuine Part
9028003005 90280-03005 Key, Oil Pump Drive Shaft
9151180614 91511-80614 BOLT FLANGE
9161160814 91611-60814 Bolt
Overdrive Gear (Atm) ([08.2003 - ] A45DE (0308- )TRH102,112,12#..4FC) 37
#OEMPart name
34101 34101-22020 Case Sub-Assy, Overdrive
34601 34601-28010 Drum Sub-Assy, Overdrive Direct Clutch
34601 90520-52262 Ring, Shaft Snap (For Underdrive Return Spring)
34601 35677-30140 Disc, Clutch (For Overdrive)
34601 90521-99146 Ring, Hole Snap, No.1 (For Overdrive)
34601 90521-99001 Ring, Hole Snap, No.2 (For Overdrive)
34602 34602-22010 Piston Sub-Assy, Overdrive Direct Clutch
34602 90301-56007 Ring, O (For Underdrive Clutch Piston)
34602 90301-99058 Ring, O (For Overdrive Direct Clutch Piston)
34603 34603-22010 Spring Sub-Assy, Overdrive Brake Return
34604 34604-22010 Spring Sub-Assy, Overdrive Clutch Return
34615 35634-30070 Plate, Clutch (For Overdrive)
34618 34618-30010 Plate, Clutch (For Overdrive)
34622 34622-22020 Piston, Overdrive Brake
34622 90301-99103 Ring, O (For Overdrive Brake Piston)
34622 90301-99111 Ring, O (For Overdrive Brake Piston)
34623 90521-99004 Ring, Hole Snap (For Overdrive Brake Return Spring Seat)
34624 34624-26010 Hub, Overdrive Brake
34625 34625-22020 Flange, Overdrive Brake, No.1
34626 35677-43010 Disc, Clutch (For Overdrive)
34705 34705-30021 Gear Sub-Assy, Overdrive Planetary Ring
34710 34710-28030 Gear Assy, Overdrive Planetary
34710 90521-99003 Ring, Hole Snap(For Overdrive Planetary Gear)
34710 34739-30041 Race, Thrust Bearing(For Overdrive Planetary Gear)
34710 90374-37003 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)
34713 34713-28010 Race, 1 Way Clutch Outer (For Overdrive)
34714 35791-28010 Clutch, 1Way, No.1(For Overdrive)
34735 34735-30020 Washer, Overdrive Planetary Gear Thrust, No.1
34736 34736-30010 Washer, Overdrive Planetary Gear Thrust, No.2
34737 34737-28010 Washer, Overdrive Planetary Gear Thrust, No.3
34738 34738-28010 Washer, Overdrive Planetary Gear Thrust, No.4
34739 34739-30020 Race, Thrust Bearing(For Overdrive)
34739 35789-22030 Race, Thrust Bearing(For Overdrive)
34739 90374-28014 Bearing, Thrust Needle Roller(For Overdrive)
35617 35617-43010 Ring, Clutch Drum Oil Seal (For Overdrive)
35634 34634-30010 Plate, Clutch (For Overdrive)
35634 35634-30080 Flange, Overdrive Brake, No.1
Parking Brake & Cable ([08.1989 - ] (8908- )COM,V1,WG) 34
#OEMPart name
46201 46201-26010-B0 Lever Sub-Assy, Parking Brake
46217 46217-16030-B1 Knob, Parking Brake Release Rod
46225 90501-10069 Spring, Compression(For Parking Brake Pawl Rod)
46301 90386-16009 Bush(For Intermediate Lever)
46301 90387-10110 Collar(For Intermediate Lever)
46301 90508-26079 Spring, Torsion(For Parking Brake Intermediate Lever)
46321 46321-26151 Lever, Parking Brake Intermediate
46322 46322-26011 Lever, Intermediate, No.2
46356 46356-26130 Bracket, Intermediate Lever(For Parking Brake)
46410 46410-26420 Cable Assy, Parking Brake, No.1
46420 46420-26431 Cable Assy, Parking Brake, No.2
46430 46430-26280 Cable Assy, Parking Brake, No.3
46440 46440-26031 Cable Assy, Parking Brake, No.4
46451 46451-26140 Bracket, Cable Support
46451 46451-26130 Bracket, Cable Support
46452 46452-26061 Bracket, Parking Brake Cable Support, No.2
46453 46453-26030 Bracket, Cable Support, No.3
46458 46458-28010 Retainer, Cable
91611 91611-B0816 Bolt
91611 91611-G0612 Bolt
91611 91611-G0820 Bolt
9011906286 90119-06286 New Genuine Part
9011906286 91611-B0612 New Genuine Part
9011906315 90119-06315 BOLT
9011908165 90119-08165 New Genuine Part
9017908044 90179-08044 NUT
9046806076 90468-06076 New Genuine Part
9094901561 90949-01561 New Genuine Part
9151261050 91512-61050 Bolt(For Alternator)
9161160814 91611-60814 Bolt
9165160825 91651-60825 Bolt, Hexagon(For Steering Column Bracket)
9165160825 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9413061000 94130-61000 Nut(For Clutch Pedal Stopper)
9451101000 94511-01000 Washer(For Rear Drive Shaft)
Partial Engine Assembly ([08.1989 - ] (8908- )) 4
#OEMPart name
11000 19000-75820 Engine Assy, Partial
11000 12261-75140 Hose, Ventilation
11000 15330-75010 Valve Assy, Camshaft Timing Oil Control
11000 19000-75822 Engine Assy, Partial
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2003 - ] A45DE (0308- )TRH102,112,12#..4FC) 24
#OEMPart name
33481 33481-25021 Gear, Speedometer Drive (Atm)
35074 35074-30030 Gear Sub-Assy, Rear Planetary Ring
35074 90522-20037 Ring, Set (For Rear Planetary Ring Gear)
35074 35789-22020 Race, Thrust Bearing (For Rear Planetary Ring Gear Rear)
35074 90374-28014 Bearing, Thrust Needle Roller(For Overdrive)
35481 90360-06004 Ball, Detent(For Gear Shift Head No.4)
35481 90080-36191 Ball, Check Valve
35481 90520-28009 Ring Or Spacer (For Mtm Speedometer Drive Gear)
35481 90520-29004 Ring, Shaft Snap (For Atm Speedmeter Drive Gear)
35704 35704-30040 Carrier Sub-Assy, Planetary W/lock Gear
35708 35708-30041 Shaft Sub-Assy, Planetary Intermediate
35735 35735-22010 Ring, Planetary Output Snap
35737 35737-22010 Washer, Planetary Carrier Thrust
35738 35738-30030 Washer, Planetary Carrier Thrust, No.2
35739 35739-30020 Washer, Planetary Carrier Thrust, No.3
35743 35743-30010 Gear, Front Planetary Ring
35743 90520-99121 Ring, Shaft Snap (For Front Planetary Ring Gear)
35748 35748-30010 Ring, Intermediate Shaft Sleeve Oil Seal
35760 35760-30040 Gear Assy, Rear Planetary
35770 35770-53010 Shaft Assy, Output
35770 90374-38013 Bearing, Thrust (For Output Shaft)
35770 35789-22040 Race, Thrust Bearing (For Output Shaft)
35792 35792-30030 Clutch, 1 Way, No.2
35792 90521-79148 Ring, Hole Snap(For Overdrive Planetary Gear)
Power Steering Tube ([08.2003 - ] (0308- )TRH102,112,12#) 10
#OEMPart name
0 91673-E1090 New Genuine Part
44327 44327-26020 Gasket, Pressure Port, No.1
44327 44327-30040 Gasket, Pressure Port, No.1
44410 44410-26870 Tube Assy, Pressure Feed
44411 90401-16014 Bolt, Union(For Pressure Feed Tube)
44416 44416-26080 Tube, Return(For Steering Gear Outlet)
9046716008 90467-16008 Clip(For Oil Return Hose)
9046716008 90467-16019 Clip(For Return No.1)
9165140816 91651-40816 BOLT
9165140820 91651-40820 Bolt
Propeller Shaft & Universal Joint ([08.1989 - ] (8908- )KZH100,110,LH100,102,103,110,113,115, 140,162,172,RZH10#,11#,TRH102,112) 47
#OEMPart name
4371 04371-60080 Spider Kit, Universal Joint(For Propeller Shaft)
4371 04371-60100 Spider Kit, Universal Joint(For Propeller Shaft)
37101 90937-01132 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01136 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01140 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01147 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01148 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01149 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01150 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01151 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01152 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01153 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01154 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01155 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01156 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01157 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01158 Piece, Balance, No.1 (For Propeller Shaft)
37110 37110-26410 Shaft Assy, Propeller
37110 90105-10424 Bolt, No.1 (For Propeller Shaft & Differential Setting)
37110 90105-10466 Bolt, No.1 (For Propeller Shaft & Differential Setting)
37110 90178-10006 Nut, No.1 (For Propeller Shaft & Differential Setting)
37110 90178-10007 Nut, No.1 (For Propeller Shaft & Differential Setting)
37110 90560-10101 Washer, No.1 (For Propeller Shaft & Differential Setting)
37110 90560-10102 Washer, No.1 (For Propeller Shaft & Differential Setting)
37302 37302-35030 Yoke Sub-Assy, Universal Joint Sleeve
37315 37315-35070 Yoke, Universal Joint Flange
37331 37331-30010 Cover, Sliding Shaft Dust
37401 90520-25039 Ring, Hole Snap (For Spider Bearing)
37401 90520-25040 Ring, Hole Snap (For Spider Bearing)
37401 90520-25041 Ring, Hole Snap (For Spider Bearing)
37401 90520-25042 Ring, Hole Snap (For Spider Bearing)
37401 90520-25043 Ring, Hole Snap (For Spider Bearing)
37401 90520-25044 Ring, Hole Snap (For Spider Bearing)
37401 90520-25045 Ring, Hole Snap (For Spider Bearing)
37401 90520-25046 Ring, Hole Snap (For Spider Bearing)
37401 90520-25047 Ring, Hole Snap (For Spider Bearing)
37401 90520-25048 Ring, Hole Snap (For Spider Bearing)
37401 90520-25049 Ring, Hole Snap (For Spider Bearing)
37401 90520-25050 Ring, Hole Snap (For Spider Bearing)
37401 90520-25051 Ring, Hole Snap (For Spider Bearing)
37401 90520-25052 Ring, Hole Snap (For Spider Bearing)
37401 90520-25053 Ring, Hole Snap (For Spider Bearing)
37401 90520-25054 Ring, Hole Snap (For Spider Bearing)
37401 90520-25055 Ring, Hole Snap (For Spider Bearing)
37401 90520-25056 Ring, Hole Snap (For Spider Bearing)
37401 90520-25057 Ring, Hole Snap (For Spider Bearing)
37401 90520-25058 Ring, Hole Snap (For Spider Bearing)
Protector Pipe, Roll Bar & Handrail ([08.1989 - ] (8908- )) 3
#OEMPart name
9010608002 90106-08002 New Genuine Part
9010608003 90106-08003 New Genuine Part
9056009039 90560-09039 New Genuine Part
Radiator & Water Outlet ([08.2003 - ] (0308- )1TRFE) 52
#OEMPart name
16261 16261-75140 Hose, Water By-Pass
16261 16261-75141 Hose, Water By-Pass
16261 90466-13003 Clamp Or Clip, Hose(For Water By-Pass Hose)
16264 16264-75080 Hose, Water By-Pass, No.2
16264 16264-75081 Hose, Water By-Pass, No.2
16268 16268-75091 Pipe, Water By-Pass, No.1 (replaced to metal pipe)
16268 16258-75010 Gasket(For Water By-Pass Pipe)
16279 16279-75080 Pipe, Water By-Pass, No.3
16281 16281-75100 Hose, Water By-Pass, No.4
16281 96134-42100 Clip(For Water By-Pass Hose Assy)
16321 16321-75020 Inlet, Water
16325 16325-75010 Gasket, Water Inlet Housing, No.1
16325 16325-75011 Gasket, Water Inlet Housing, No.1
16326 16325-76010 Gasket, Water Inlet Housing, No.1
16331 90916-03093 Thermostat
16361 16361-38010 Fan
16400 16400-75350 Radiator Assy
16400 16417-15210 Plug, Radiator Drain Cock
16400 16418-15520 Packing(For Radiator Drain Cock)
16400 99555-40150 Hose, Water, No.1
16400 90467-28007 Clip Or Clamp(For Ventilation Hose)
16400 99555-10330 Hose, Water, No.2
16400 96135-51300 Clamp, Hose
16401 16401-54750 Radiator Cap
16403 16403-75330 Core Sub-Assy, Radiator
16411 16411-75350 Pipe, Radiator Filler
16442 16442-5B750 Ring, O(For Radiator Upper Tank)
16453 16453-75350 Plate, Radiator Side
16454 16454-5B750 Plate, Radiator Side
16470 16470-75110 Tank Assy, Radiator Reserve
16470 85338-75010 Hose Or Pipe(For Radiator Reserve Tank)
16470 90445-12078 Hose(For Radiator Breather)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16471 16405-75090 Cap Sub-Assy, Reserve Tank
16472 85338-70100 Hose, Breather
16547 16547-67040 Bush, Radiator Support, No.1
16571 16571-75250 Hose, Radiator, Inlet
16571 90467-37005 Clip(For Water Inlet Hose)
16572 16572-75260 Hose, Radiator, Outlet
16701 16701-75040 Shroud Sub-Assy, Fan
91621 91621-B0625 New Genuine Part
1645567020 16455-67020 Bolt, Radiator Side Support Plate
9011910550 90119-10550 New Genuine Part
9011910550 90080-11399 New Genuine Part
9017906311 90179-06311 New Genuine Part
9017908068 90179-08068 NUT
9017908240 90179-08240 New Genuine Part
9155180820 91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover)
9165140614 91651-40614 Bolt
9167180816 91671-80816 Bolt (For Transmission Control Cable Bracket)
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
9415180800 94151-80800 Nut (For Transmission Control Cable)
Radiator Grille ([08.1998 - ] (9808- )LH16#,17#,18#,RZH102,112,12#,18#,TRH1 02,112,12#) 7
#OEMPart name
53111 53100-26140 Grille, Radiator
53111 53100-26250 Grille, Radiator
53111 53100-26260 Grille, Radiator
53145 53145-26010 Clip, Radiator Grille Garnish
9016840128 90168-40128 New Genuine Part
9046709201 90467-09201 New Genuine Part
9046710162 90467-10162 Clip, Front Wheel Opening Extensoion
Radiator Support & Wind Guide ([07.1999 - ] (9907- )) 15
#OEMPart name
53180 53180-26040 Shutter Assy, Radiator
53186 53186-95J00 Hook, Radiator Shutter
53294 53294-26010 Deflector, Radiator Lower Air, No.1
53727 53727-95J04 Shutter, Hot Air Side, Rh
53727 53728-95J02 Shutter, Hot Air Side, Lh
53735 53735-95J03 Shutter, Hot Air, Upper
53737 53737-26070 Shutter, Hot Air, Lower
53738 53738-95J00 Shutter, Hot Air, Lower Lh
91651 91651-G0612 New Genuine Part
9011908012 90119-08012 New Genuine Part
9011908012 91651-40812 New Genuine Part
9046708063 90467-08063 Clip(For Hood To Radiator Support Seal)
9166140822 91661-40822 New Genuine Part
904670601711 90467-06017-11 Clip(For Front Bumper Retainer)
904670601711 90467-06017-B7 Clip(For Deck Trim Side Cover)
Radio Receiver & Amplifier & Condenser ([08.1989 - ] ｺﾝﾃﾞﾝｻ & ﾉｲｽﾞﾌｲﾙﾀ- (8908- )) 5
#OEMPart name
86011 90980-04083 Condenser
86011 90980-05211 Filter, Noise
9011908063 90119-08063 BOLT
9017906216 90179-06216 Direct
9017906216 90179-06274 Nut
Radio Receiver & Amplifier & Condenser ([08.1996 - ] RADIO (9608- )) 9
#OEMPart name
86120 86120-2B520 Receiver Assy, Radio
86211 86211-95J11 Bracket, Radio, No.1
86212 86212-95J09 Bracket, Radio, No.2
9014950032 90149-50032 Screw
9015350010 90153-50010 BOLT
9015960259 90159-60259 SCREW
9018906018 90189-06018 GROMMET
9165160614 91651-60614 Bolt
9356055016 93560-55016 Screw(For Mat Set Plate)
Rear Axle Housing & Differential ([08.1989 - ] (8908- )) 14
#OEMPart name
4412 04412-26070 Gasket Kit, Rear Differential Carrier
41110 90116-08329 Bolt, No.1 (For Rear Differential Carrier Set)
41110 90116-08334 Bolt, No.1 (For Rear Differential Carrier Set)
42110 42110-26421 Housing Assy, Rear Axle
42110 42110-26461 Housing Assy, Rear Axle
42110 90341-18006 Plug (No magnet)
42110 12157-10010 Gasket (For Drain Plug)
42110 90930-03031 Plug, Breather(For Parking Cover)
42110 90341-18057 Drain Plug (with Magnet)
42139 42139-26030 Deflector, Rear Axle Housing Oil
42181 42181-60020 Gasket, Rear Differential Carrier
42181 42181-0K030 Gasket, Rear Differential Carrier
9017008204 90170-08204 Nut (For Propeller Shaft)
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
Rear Axle Housing & Differential ([08.1989 - ] ｱｸｽﾙｺ-ﾄﾞ=GXX2,(2ﾋﾟﾆｵﾝ) (8908- )) 48
#OEMPart name
41101 41101-35041 Carrier Sub-Assy, Differential, Rear
41110 41110-26101 Carrier Assy, Differential, Rear
41110 41110-26651 Carrier Assy, Differential, Rear
41201 41201-29736 Final Gear Kit, Differential, Rear
41201 90366-35044 Bearing (For Rear Drive Pinion Rear)
41201 90366-30078 Bearing (For Rear Drive Pinion Front)
41201 90311-41009 Seal, Oil (For Front Differential Carrier)
41201 90201-35497 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35498 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35499 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35500 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35501 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35502 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35503 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35504 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35505 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35506 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35507 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35508 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35509 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35510 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35511 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35512 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35513 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35514 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35515 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35516 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35517 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35518 Washer, Plate (For Rear Differential Drive Pinion)
41204 41204-35081 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204 41204-35082 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204 90177-22003 Nut (For Rear Drive Pinion)
41214 41214-26011 Slinger, Rear Differential Drive Pinion Oil
41222 41222-35020 Plate, Rear Differential Ring Gear Set Bolt Lock
41222 90101-11353 Bolt (For Rear Differential Ring Gear Set)
41231 41231-40011 Spacer, Rear Differential Drive Pinion Bearing
41252 41252-35041 Deflector, Dust (For Rear Differential)
41301 90368-45066 Bearing(For Rear Differential Case)
41302 41311-40020 Case Sub-Assy, Rear Differential
41331 41331-35011 Gear, Rear Differential Side
41341 41341-35020 Pinion, Rear Differential
41342 41342-39610 Shaft, Rear Differential Pinion
41343 90250-06085 Pin, Straight (For Differential Pinion Shaft)
41351 41351-30052 Washer, Rear Differential Pinion Thrust
41361 41361-40021 Washer, Rear Differential Side Gear Thrust, No.1
41361 41362-40021 Washer, Rear Differential Side Gear Thrust, No.1
41361 41363-40021 Washer, Rear Differential Side Gear Thrust, No.1
9161160814 91611-60814 Bolt
Rear Axle Housing & Differential ([08.1989 - ] ｱｸｽﾙｺ-ﾄﾞ=GXX4,(4ﾋﾟﾆｵﾝ) (8908- )) 46
#OEMPart name
41101 41101-35041 Carrier Sub-Assy, Differential, Rear
41110 41110-26101 Carrier Assy, Differential, Rear
41110 41110-26651 Carrier Assy, Differential, Rear
41201 41201-29736 Final Gear Kit, Differential, Rear
41201 90366-35044 Bearing (For Rear Drive Pinion Rear)
41201 90366-30078 Bearing (For Rear Drive Pinion Front)
41201 90311-41009 Seal, Oil (For Front Differential Carrier)
41201 90201-35497 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35498 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35499 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35500 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35501 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35502 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35503 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35504 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35505 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35506 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35507 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35508 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35509 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35510 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35511 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35512 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35513 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35514 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35515 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35516 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35517 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35518 Washer, Plate (For Rear Differential Drive Pinion)
41204 41204-35081 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204 41204-35082 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204 90177-22003 Nut (For Rear Drive Pinion)
41214 41214-26011 Slinger, Rear Differential Drive Pinion Oil
41222 41222-35020 Plate, Rear Differential Ring Gear Set Bolt Lock
41222 90101-11353 Bolt (For Rear Differential Ring Gear Set)
41231 41231-40011 Spacer, Rear Differential Drive Pinion Bearing
41252 41252-35041 Deflector, Dust (For Rear Differential)
41301 90368-45066 Bearing(For Rear Differential Case)
41302 41311-40020 Case Sub-Assy, Rear Differential
41331 41331-35011 Gear, Rear Differential Side
41341 41341-35020 Pinion, Rear Differential
41351 41351-30052 Washer, Rear Differential Pinion Thrust
41361 41361-40021 Washer, Rear Differential Side Gear Thrust, No.1
41361 41362-40021 Washer, Rear Differential Side Gear Thrust, No.1
41361 41363-40021 Washer, Rear Differential Side Gear Thrust, No.1
9161160814 91611-60814 Bolt
Rear Axle Housing & Differential ([11.1995 - ] LSD,ｱｸｽﾙｺ-ﾄﾞ=GXX5 (9511- )) 43
#OEMPart name
41101 41101-35041 Carrier Sub-Assy, Differential, Rear
41110 41110-26101 Carrier Assy, Differential, Rear
41110 41110-26651 Carrier Assy, Differential, Rear
41201 41201-29736 Final Gear Kit, Differential, Rear
41201 90366-35044 Bearing (For Rear Drive Pinion Rear)
41201 90366-30078 Bearing (For Rear Drive Pinion Front)
41201 90311-41009 Seal, Oil (For Front Differential Carrier)
41201 90201-35497 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35498 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35499 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35500 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35501 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35502 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35503 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35504 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35505 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35506 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35507 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35508 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35509 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35510 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35511 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35512 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35513 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35514 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35515 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35516 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35517 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35518 Washer, Plate (For Rear Differential Drive Pinion)
41204 41204-35081 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204 41204-35082 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204 90177-22003 Nut (For Rear Drive Pinion)
41214 41214-26011 Slinger, Rear Differential Drive Pinion Oil
41222 41222-35020 Plate, Rear Differential Ring Gear Set Bolt Lock
41222 90101-11353 Bolt (For Rear Differential Ring Gear Set)
41231 41231-40011 Spacer, Rear Differential Drive Pinion Bearing
41252 41252-35041 Deflector, Dust (For Rear Differential)
41301 90368-45066 Bearing(For Rear Differential Case)
41302 41311-40020 Case Sub-Assy, Rear Differential
41331 41331-35011 Gear, Rear Differential Side
41341 41341-35020 Pinion, Rear Differential
41351 41351-30052 Washer, Rear Differential Pinion Thrust
9161160814 91611-60814 Bolt
Rear Axle Shaft & Hub ([08.1989 - ] (8908- )) 20
#OEMPart name
42301 42301-26943 Shaft Sub-Assy, Rear Axle
42311 90310-50001 Seal, Oil (For Rear Axle Shaft)
42311 90310-50006 Seal, Oil (For Rear Axle Shaft)
42311 90363-40071 Bearing (For Rear Axle Shaft)
42311 90520-36045 Ring, Snap (For Rear Axle Shaft)
42311 90313-54001 Seal, Oil (For Rear Axle Shaft Outer)
42403 42431-26130 Drum Sub-Assy, Rear Brake
42403 90937-01117 Piece, Balance (For Rear Brake Drum)
42403 90937-01118 Piece, Balance (For Rear Brake Drum)
42403 90937-01119 Piece, Balance (For Rear Brake Drum)
42403 90937-01195 Piece, Balance (For Rear Brake Drum)
42403 90937-01196 Piece, Balance (For Rear Brake Drum)
42421 42421-26030 Case, Rear Axle Bearing
42423 42423-20010 Retainer, Rear Axle Bearing, Inner
42424 90301-92002 Ring, O (For Bearing Retainer Set)
42441 42441-35020 Deflector, Brake Drum Oil
42443 42443-55020 Gasket, Brake Drum Oil Deflector
42444 42444-26020 Gasket, Brake Drum (For Rear Axle)
42611 90942-02052 Bolt, Hub (For Rear Axle)
43517 43517-35010 Rotor, Skid Control, Rear
Rear Bumper & Bumper Stay ([08.1993 - ] LH125(ﾖｳｼﾞﾊﾞｽ),RZH124(ﾊﾝﾃﾞｲｷﾔﾌﾞ) (9308- )LH125..DX ; (9308- )LH10#,11#,123, 129,16#,17#,18#,RZH102,112,12#,133, 18#,TRH102,112,12 # ; (0012- )GCGN) 27
#OEMPart name
52157 52157-95J00 Support, Rear Bumper Side, No.2 Rh
52158 52158-95J00 Support, Rear Bumper Side, No.2 Lh
52159 52159-95J24-A2 Cover, Rear Bumper
52159 52159-95J22 Cover, Rear Bumper
52159 52159-95J24-B2 Cover, Rear Bumper
52159 52159-95J24-G1 Cover, Rear Bumper
52159 52159-95J24-G4 Cover, Rear Bumper
52159 52159-95J25-A2 Cover, Rear Bumper
52159 52159-95J23 Cover, Rear Bumper
52159 52159-95J25-B2 Cover, Rear Bumper
52159 52159-95J25-G1 Cover, Rear Bumper
52159 52159-95J25-G4 Cover, Rear Bumper
52191 52191-95J00 Grommet, Rear Bumper Stay
52302 52302-95J00 Step Sub-Assy, Back
9015950110 90159-50110 SCREW
9015950376 90159-50376 SCREW WWASHER
9018905073 90189-05073 CLIP
9018905164 90189-05164 GROMMET SCREW
9018906018 90189-06018 GROMMET
9026905046 90269-05046 New Genuine Part
9046706073 90467-06073 Clip (For Rear Seat Back)
9046709093 90467-09093 Piece, Rear Bumper
9095001695 90950-01695 New Genuine Part
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165140816 91651-40816 BOLT
9356855012 93568-55012 SCREW
Rear Combination Lamp ([08.1989 - ] (8908- )) 14
#OEMPart name
81550 81550-95J10 Lamp Assy, Rear Combination, Rh
81550 99132-21210 Bulb, Cornering Lamp
81550 99132-11210 Bulb (12V 21W)
81551 81551-95J10 Lens, Rear Combination Lamp, Rh
81554 81554-95J10 Gasket, Rear Combination Lamp Body, Rh
81555 81555-95J10 Socket & Wire Sub-Assy, Rear Combination Lamp
81560 81560-95J10 Lamp Assy, Rear Combination, Lh
81561 81561-95J10 Lens, Rear Combination Lamp, Lh
81564 81564-95J10 Gasket, Rear Combination Lamp Body, Lh
8155991701 81559-91701 Screw
9016460036 90164-60036 New Genuine Part
9018906018 90189-06018 GROMMET
9095001705 90950-01705 New Genuine Part
9354086025 93540-86025 New Genuine Part
Rear Door Lock & Handle ([08.1989 - ] (8908- )) 34
#OEMPart name
67836 67836-26030 Cover, Rear Door Lock Child Protection, Rh
69070 69070-26030-B2 Handle Assy, Slide Door, Inside, Rh
69080 69080-26030-B2 Handle Assy, Slide Door, Inside, Lh
69230 69230-26050 Handle Assy, Rear Door Outside, Rh
69240 69240-26060 Handle Assy, Rear Door Outside, Lh
69267 69267-26010 Seal, Slide Door Inside Handle, No.1
69267 69268-95J01 Seal, Slide Door Inside Handle, No.1
69284 69284-95J00-B3 Plug, Slide Door Inside Handle
69330 69330-95J00 Lock Assy, Rear Door, Rh
69340 69340-95J01 Lock Assy, Rear Door, Lh
69470 69470-26010 Plate Assy, Slide Door Lock Striker
69480 69480-26020 Hook Assy, Slide Door Front Lock
69480 69481-25010 Hook Assy, Slide Door Front Lock
69482 69482-26010 Cover, Slide Door Front Lock Hook
69485 69485-26010 Bracket, Slide Door Front Lock Striker
69486 69486-95701 Cover, Slide Door Front Lock Striker
69630 69630-26160 Control Assy, Slide Door Lock Remote
69640 69640-26270 Control Assy, Slide Door Lock Remote, Lh
69707 69707-95J01-B2 Rod Sub-Assy, Slide Door Locking Control Push, Rh
69707 69707-95J01-B1 Rod Sub-Assy, Slide Door Locking Control Push, Rh
69708 69708-95J01-B2 Rod Sub-Assy, Slide Door Locking Control Push, Lh
69708 69708-95J01-B1 Rod Sub-Assy, Slide Door Locking Control Push, Lh
69749 69749-95J00 Clamp, Rear Door Lock Link
91616 91616-B0825 New Genuine Part
91631 91631-B0614 BOLT WWASHER
9011908 90119-08A51 New Genuine Part
9011906779 90119-06779 BOLT W-WASHER
9015920001 90159-20001 New Genuine Part
9015960596 90159-60596 SCREW WWASHER
9015980065 90159-80065 New Genuine Part
9046708006 90467-08006 New Genuine Part
9151140608 91511-40608 New Genuine Part
9331116016 93311-16016 SCREW
9338116010 93381-16010 New Genuine Part
Rear Door Panel & Glass ([08.1989 - ] (8908- )) 18
#OEMPart name
58743 58743-95J00 Protector, Slide Door Panel, Rh
58744 58744-95J00 Protector, Slide Door Panel, Lh
67003 67003-26150 Door Sub-Assy, Slide, Rh
67004 67004-26330 Door Sub-Assy, Slide, Lh
67525 67525-95J00 Cover, Slide Door Panel, Lower
67528 67528-95J00 Packing, Slide Door Lower Cover
67852 67852-95J03 Cover, Slide Door Service Hole, No.2
67857 67857-95J00 Seal, Slide Door Panel Hole
67871 67871-95J02 Weatherstrip, Rear Door, Rh
67872 67872-95J00 Weatherstrip, Rear Door, Lh
67887 67887-95J00 Weatherstrip, Rear Door, No.2
67897 67897-95J00 Seal, Slide Door, Lower
9014960027 90149-60027 New Genuine Part
9018906062 90189-06062 New Genuine Part
9018906221 90189-06221 New Genuine Part
9095001133 90950-01133 Plug, Hole(For Front Fender Apron)
9095006001 90950-06001 Protector, Front Side Panel, No.3
9095006098 90950-06098 Cover, Dash Panel Service Hole
Rear Door Panel & Glass ([08.2003 - ] (9308- )KZH100,11#,13#,LH10#,11#,12#,16#,17#, 18#,RZH100,102,11#,12#,133,18#..CD, DX,GL,SGLE ; (030 8- )TRH102,112,12#..CD,DX,SGLE) 3
#OEMPart name
67603 67630-95J04-B0 Board Sub-Assy, Rear Door Trim, Rh
67604 67640-95J19-B0 Board Sub-Assy, Rear Door Trim, Lh
6777126010 67771-26010 Retainer (For Quarter Inside Trim Board)
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )2WD) 29
#OEMPart name
4474 04474-35070 Cylinder Kit, Rear Wheel
4495 04495-26180 Shoe Kit, Rear Brake
4906 04906-35140 Cup Kit, Rear Wheel Cylinder
47043 47043-26140 Plate Sub-Assy, Brake Backing, Rear Rh
47043 90114-10002 Bolt, Serration (For Rear Axle Flange)
47043 90179-10041 Nut(For Backing Plate To Rear Axle Housing Setting)
47044 47044-26140 Plate Sub-Assy, Brake Backing, Rear Lh
47061 47061-35020 Strut Set, Parking Brake Shoe, Rh
47062 47062-35020 Strut Set, Parking Brake Shoe, Rh
47430 90501-20012 Spring(For Front Brake Shoe Hold Down)
47430 90506-20070 Spring, Tension(For Rear Brake Shoe Return)
47430 90507-12036 Spring, Tension(For Rear Brake Shoe Return)
47447 47447-20010 Pin, Shoe Hold Down Spring(For Front Brake)
47449 47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)
47492 47492-28010 Plug, Shoe Inspection(For Rear Brake)
47492 47492-06010 Plug, Shoe Inspection(For Rear Brake)
47496 47491-20011 Plug, Hole(For Rear Brake)
47509 90029-60009 Spring Sub-Assy, Rear Wheel Cylinder Piston
47547 47547-20030 Plug, Bleeder(For Power Steering By-Pass Valve)
47548 31478-30010 Bleeder Plug Cap
47550 47550-35180 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47601 90213-07010 Washer, Type C(For Parking Brake Shoe)
47601 96160-00500 Ring, E(For Over Center Lever)
47611 47611-26050 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
47612 47612-26050 Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)
47643 47643-26020 Lever, Rear Brake Automatic Adjust, Rh
47644 47644-26020 Lever, Rear Brake Automatic Adjust, Lh
9011906084 90119-06084 Bolt(For Rear Wheel Cylinder)
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
Rear Floor Panel & Rear Floor Member ([08.1989 - ] (8908- )) 2
#OEMPart name
58266 58266-95J00 Bracket, Fuel Tube Clamp
58266 58266-95J01 Bracket, Fuel Tube Clamp
Rear Floor Panel & Rear Floor Member ([08.1989 - ] (8908- )LH102,103,109,113,119,123,129,16#,17# ,182,188,RZH102,112,122,18#,TRH102, 112,122..V1) 95
#OEMPart name
53761 53761-26010 Bracket, Battery Clamp Mounting
57023 57023-95N23 Member Sub-Assy, Rear Side, Rh
57024 57024-95N16 Member Sub-Assy, Rear Side, Lh
57071 57071-95J57 Hanger Sub-Assy, Rear Spring, Front, Rh
57072 57072-95J60 Hanger Sub-Assy, Rear Spring, Front, Lh
57078 57069-95J05 Member Sub-Assy, Rear Floor Rear Cross, Outer
57078 57069-95J10 Member Sub-Assy, Rear Floor Rear Cross, Outer
57079 57068-95J08 Member Sub-Assy, Rear Floor Rear Cross, Inner
57307 57317-95J06 Outrigger Sub-Assy, No.4 Rh
57308 57308-95J11 Outrigger Sub-Assy, No.4 Lh
57361 57094-95J00 Cover, No.2 Outerigger Hole
57361 57361-95J01 Cover, Outrigger Hole
57362 57362-95J01 Packing, Outrigger Hole Cover
57413 57413-95N04 Rail, Floor Side, Center Rh
57413 57413-95N08 Rail, Floor Side, Center Rh
57414 57414-95J72 Rail, Floor Side, Center Lh
57415 57415-95J32 Rail, Floor Side, Rear Rh
57415 57415-95J33 Rail, Floor Side, Rear Rh
57416 57416-95J24 Rail, Floor Side, Rear Lh
57515 57515-95J00 Bracket, Parking Brake, Rh
57617 57617-95J09 Retainer, Exhaust Pipe Bracket
57617 57617-95J10 Retainer, Exhaust Pipe Bracket
57652 57652-95J04 Member, Rear Floor Cross, No.1
57653 57653-26110 Member, Rear Floor Cross, No.2
57654 57654-95J06 Member, Rear Floor Cross, No.3
57656 57656-95J04 Member, Rear Floor Croos, No.5
57657 57657-95J04 Member, Rear Floor Cross, No.6
57657 57657-95J05 Crossmember, Rear Floor, No.6
57658 57658-95J01 Member, Rear Floor Cross, No.7
57665 57665-26020 Reinforcement, Rear Floor Crossmember, No.2
57688 57688-95J02 Reinforcement, Rear Floor Crossmember
57691 57691-95J01 Brace, Rear Floor No.2 Crossmember, Inner Rh
57692 57692-95J01 Brace, Rear Floor No.2 Crossmember, Inner Lh
57693 57693-95J01 Brace, Rear Floor No.6 Crossmember
57695 57695-95J01 Extension, Rear Floor Crossmember Rear Side, Rh
57696 57696-95J00 Extension, Rear Floor Crossmember Rear Side, Lh
57699 57699-95J01 Retainer, Fuel Tank Set Band
57767 57767-95J02 Retainer, Fuel Tank Band
57767 57767-95J03 Retainer, Fuel Tank Band
58022 58022-95J06 Reinforcement Sub-Assy, Header Panel
58106 58106-95A00 Bracket Sub-Assy, Brake Tube, No.2
58194 58194-95J03 Retainer, Engine Cover Hinge
58207 58207-95J10 Cover Sub-Assy, Transmission Service Hole
58209 58209-95J01 Cover Sub-Assy, Battery Service Hole
58221 58221-26171 Panel, Header
58221 58221-26170 Panel, Header
58221 90333-35001 New Genuine Part
58223 58223-95J01 Reinforcement, Header Panel, No.2
58273 58273-95J00 Reinforcement, Belt Anchor To Center Floor
58303 58303-26130 Step Sub-Assy, Rear Floor, Rh
58303 58303-26140 Step Sub-Assy, Rear Floor, Rh
58304 58304-95J74 Step Sub-Assy, Rear Floor, Lh
58307 58307-95701 Bracket, Brake Tube Connector, No.1
58311 58311-2N350 Pan, Rear Floor
58311 58311-2N360 Pan, Rear Floor
58445 58445-95J01 Lock, Battery Service Hole Cover
58446 58446-95J02 Protector, Battery
58449 58449-95J00 Reinforcement, Rear Floor Pan, No.2 Lh
58451 58405-26030 Cover, Air Cleaner Service Hole
58458 58458-95J01 Knob, Battery Service Hole Cover
58465 58465-95J05 Packing, Transmission Service Hole Cover
58466 58327-95J08 Silencer, Transmission Service Hole Cover, No.1
58475 58475-95J00 Packing, Inspection Hole Cover
59209 59209-95J00 Cover Sub-Assy, Inspection Hole
59363 59363-26150 Retainer, Rear Seat, No.1 C
59364 59364-26100 Retainer, Rear Seat, No.1 D
65557 65557-95J03 Retainer, Rope Hook
65557 58352-26070 Bracket, Rear Floor Stay
65557 90333-25001 Plug, Hole(For Hood)
66311 66311-28010 Hook, Rope
91631 91631-B0614 BOLT WWASHER
5744295 57442-95J00 Plug, Step Panel Hole
9011906598 90119-06598 BOLT
9011906598 91631-A0618 New Genuine Part
9011910099 90119-10099 New Genuine Part
9033320001 90333-20001 PLUG
9048001520 90480-01520 New Genuine Part
9090467033 90904-67033 Clip(For Deck Board No.1)
9095001006 90950-01006 Plug, Hole(For Front Fender)
9095001027 90950-01027 Plug, Hole, No.3(For Dash Panel)
9095001036 90950-01036 Plug, Hole(For Luggage Compartment Door Panel)
9095001038 90950-01038 Plug, Hole(For Instrument Lower Panel)
9095001424 90950-01424 PLUG
9095001424 90950-01759 PLUG
9095001429 90950-01429 PLUG
9095001687 90950-01687 New Genuine Part
9095001691 90950-01691 New Genuine Part
9095001849 90950-01849 New Genuine Part
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165160614 91651-60614 Bolt
9331116010 93311-16010 Screw
9417120800 94171-20800 NUT
904670501801 90467-05018-01 Clip, Slide Door Trim Carpet
904670501801 90467-05018-22 New Genuine Part
Rear Floor Panel & Rear Floor Member ([08.1993 - ] (9308- )) 18
#OEMPart name
5744295 57442-95J00 Plug, Step Panel Hole
9033330002 90333-30002 Cover, Front Floor Hole
9033330008 90333-30008 PLUG PLATE
9033340001 90333-40001 Plate, Noise Control, No.1
9095001126 90950-01126 Grommet, Safety Band Anchorage Nut
9095001181 90950-01181 Plug, Hole(For Front Fender Apron)
9095001272 90950-01272 New Genuine Part
9095001429 90950-01429 PLUG
9095001510 90950-01510 New Genuine Part
9095001691 90950-01691 New Genuine Part
9095001759 90950-01759 PLUG
9095001824 90950-01824 PLUG HOLE
9095001849 90950-01849 New Genuine Part
9095001864 90950-01864 Plug, Hole(For Luggage Compartment Door Panel)
9095001889 90950-01889 New Genuine Part
9095001913 90950-01913 New Genuine Part
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
Rear License Plate Lamp ([08.1998 - 01.2005] (9808-0501)SGL,SGLE) 12
#OEMPart name
81270 81270-26100-B0 Lamp Assy, License Plate
81270 99132-12050 Bulb (12V 5W)
81270 90080-81053 Bulb(For Clearance Lamp)
81271 81271-95J07 Lens, License Plate Lamp
81272 81272-95J07 Gasket, License Plate Lamp Lens
81273 81273-95J07 Body, License Plate Lamp
81276 81276-26100 Rim, License Plate Lamp
81277 81278-95J07 Handle, License Plate Lamp
8127989118 81279-89118 Washer, Side Turn Signal Lamp
9007522004 90075-22004 WASHER
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
Rear Spring & Shock Absorber ([08.1989 - ] (8908- )RZH112..V2..5F..CD ; (8908- )LH102 ,103,109,11#,12#,140,162,172,182,18 4,RZH102,110,112, 12#,18#,TRH102,112,12#..COM,V1,WG) 26
#OEMPart name
4483 04483-26100 Shackle Kit, Rear Spring
48046 48046-26120 Seat Sub-Assy, Spring U Bolt, Rh
48046 90117-14059 Bolt, U(For Rear Spring)
48210 90385-18008 Bush(For Rear Spring Shackle Upper)
48341 48341-26220 Bumper, Rear Spring
48530 48531-80545 Absorber Assy, Shock, Rear Rh
48530 90948-03012 Washer, Front Shock Absorber Cushion, No.1
48530 90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)
48530 90948-03015 Washer, Front Shock Absorber Cushion, No.1
48530 90948-03011 Washer, Front Shock Absorber Cushion, No.1
48530 90385-16009 Cushion, Shock Absorber
48530 90385-19006 Cushion, Shock Absorber
91611 91611-B0816 Bolt
91611 91611-G0820 Bolt
91612 91612-B1020 Bolt (For Transfer Case)Cover No.2
9010114021 90101-14021 BOLT
9010514020 90105-14020 BOLT
9017014012 90170-14012 Nut, Rack End Lock
9017914023 90179-14023 Nut(For Rear Spring U Bolt)
9038714011 90387-14011 COLLAR
9161961220 91619-61220 Bolt, Stud
9413001002 94130-01002 Nut, Booster Sleeve Cylinder
9453101400 94531-01400 New Genuine Part
9461211001 94612-11001 Washer, Plate (For Center Support Bearing Housing)
9461211400 94612-11400 WASHERPLATE
9462111400 94621-11400 WASHER
Rear Spring & Shock Absorber ([08.1993 - ] (9308- )KZH10#,11#,12#,13#,RZH100,101,111,133 ,TRH102,112,12#) 24
#OEMPart name
48341 48341-26220 Bumper, Rear Spring
48530 48531-80545 Absorber Assy, Shock, Rear Rh
48530 90948-03012 Washer, Front Shock Absorber Cushion, No.1
48530 90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)
48530 90948-03015 Washer, Front Shock Absorber Cushion, No.1
48530 90948-03011 Washer, Front Shock Absorber Cushion, No.1
91611 91611-G0820 Bolt
9010516008 90105-16008 New Genuine Part
9010516012 90105-16012 Bolt, Hexagon(For Upper Control Arm)
9010516013 90105-16013 Bolt, Hexagon(For Lateral Control Rod)
9011910523 90119-10523 New Genuine Part
9011910765 90119-10765 BOLT WWASHER
9011910837 90119-10837 New Genuine Part
9017008015 90170-08015 Nut, No.1 (For Propeller Shaft & Differential Setting)
9017910022 90179-10022 Nut(For Rear Support To Rear Shock Absorber)
9017910172 90179-10172 NUT
9017912140 90179-12140 Nut
9161160820 91611-60820 Bolt(For Transaxle & Engine Setting)
9418461600 94184-61600 New Genuine Part
9418461601 94184-61601 New Genuine Part
9418711200 94187-11200 Nut
9418711200 90177-12002 Nut
9461210800 94612-10800 Washer, Plate(For Repair Actuator Set)
9461311600 94613-11600 New Genuine Part
Rear Spring & Shock Absorber ([08.1996 - ] 5-LEAF(TYPE G) (9608- )RZH112..V2..5D ; (9608- )RZH112,TR H102,112..V1 ; (9608- )LH103,123 ,129,162,182,RZH1 02,18#,TRH122) 12
#OEMPart name
48210 48210-2F051 Spring Assy, Rear Rh
48210 90389-14007 Bush(For Rear Spring Leaf)
48210 90389-14037 Bush(For Rear Spring Leaf)
48211 48201-2F050 Leaf, Rear Spring, No.1
48212 48212-2F050 Leaf, Rear Spring, No.2
48213 48202-2F050 Leaf, Rear Spring, No.3
48214 48203-2F050 Leaf, Rear Spring, No.4
48215 48204-2F051 Leaf, Rear Spring, No.5
48247 48247-26720 Bolt, Rear Spring, Center
48252 48252-26070 Silencer, Front Spring
48252 48252-26401 Silencer, Rear Spring
48284 48284-37130 Nut, Front Spring Center Bolt
Rear Ventilator & Roof Ventilator ([08.1989 - ] (8908- )) 14
#OEMPart name
55856 55856-95J00-B1 Louver, Rear Ventilator
62903 62903-95J00 Duct Sub-Assy, Quarter Ventilator, Rh
62904 62904-95J00 Duct Sub-Assy, Quarter Ventilator, Lh
62905 62905-26030 Louver, Quater Ventilation, Rh
62906 62906-26030 Louver, Quater Ventilation, Lh
62941 62941-95J01 Retainer, Quarter Vent Duct
62941 62942-95J01 Retainer, Quarter Vent Duct
62955 62955-26010 Retainer, Quarter Vent Louver
62955 90467-10077 Retainer, Quarter Vent Louver
67772 67772-95J01 Retainer, Front Door Lower Frame Bracket Garnish
9018904002 90189-04002 GROMMET
9043008001 90430-08001 New Genuine Part
9046710127 90467-10127 Retainer, Quarter Vent Louver, Lh
9356014012 93560-14012 SCREW
Rear Washer ([08.1989 - ] (8908- )) 24
#OEMPart name
85033 85332-95J03 Cap Assy, Rear Washer
85035 85035-95J08 Nozzle Sub-Assy, Rear Washer
85310 85310-22080 Motor And Pump Assy, Windshield Washer
85330 85330-95J08 Jar Assy, Rear Washer
85330 90099-32089 Bush, Headlamp Cleaner Washer Jar
85330 90068-32002 Bush, Windshield Washer Jar
85348 85355-20200 Joint, Windshield Washer Hose, No.1
85348 85349-89122 Valve Sub-Assy, Washer
85348 85355-14481 Joint, Windshield Washer Elbow, No.1
85371 90099-33299 Joint, Windshield Washer Elbow, No.2
85372 90446-06013 Hose, Windshield Washer (From Motor To Joint)
85373 90099-33080 Hose, Windshield Washer (From Motor To Joint)
8537395 85373-95J02 Hose, Windshield Washer (from Joint To Nozzle)
6784826020 67848-26020 Cover, Back Door Service Hole, Lh
8271116100 82711-16100 Wire, Fuse To Fuse(for Combustion Heater)
8537995701 85379-95701 Joint
9009210101 90092-10101 Nut (For Front Wiper Arm Setting)
9009904565 90099-04565 New Genuine Part
9009905188 90099-05188 New Genuine Part
9046400052 90464-00052 New Genuine Part
9046907001 90469-07001 New Genuine Part
9048001560 90480-01560 Grommet(For Heater Control Cable)
9163140616 91631-40616 Bolt(For Head To Camshaft Bearing Cap)
9611110380 96111-10380 Clamp Or Clip, Hose(For Radiator Inlet)
Rear Wiper ([08.1996 - ] (9608- )) 13
#OEMPart name
85120 85130-26060 Motor And Bracket Assy, Rear Wiper
85160 85160-95J04 Link Assy, Rear Wiper
85168 85168-95700 Nut, Windshield Wiper Link Pivot
85169 85179-95J01 Washer, Rear Wiper Link Pivot, No.1
85178 90179-06125 Nut (For Rear Wiper Arm Setting)
85188 85178-95J00 Cap, Rear Wiper Pivot, No.1
85190 85241-26020 Arm Assy, Rear Wiper
85214 85214-26010 Rubber, Rear Wiper
85220 85242-26020 Blade Assy, Rear Wiper
85220 85291-60060 Blade Assy, Windshield Wiper
85220 85291-44080 Blade Assy, Windshield Wiper
85224 85224-20380 Plate, Rear Wiper Rubber Backing, No.1
9165140614 91651-40614 Bolt
Roof Headlining & Silencer Pad ([08.1989 - ] (8908- )SRF..CD,DX,GL,SGLE ; (9010-9308)SW) 5
#OEMPart name
63311 63311-26090-B0 Headlining, Roof No.1
63312 63312-26070-B0 Headlining, Roof, No.2
63313 63313-26080-B0 Headlining, Roof, No.3
6777116080 67771-16080 Retainer (For Quarter Inside Trim Board)
9016460002 90164-60002 New Genuine Part
Roof Panel & Back Panel ([08.1989 - ] (8908- )SRF) 11
#OEMPart name
63071 63071-26030 Frame Sub-Assy, Back Door Opening, Upper
63102 63102-95J06 Panel Sub-Assy, Windshield Header
63105 63105-26900 Reinforcement Sub-Assy, Roof Panel, No.3
63111 63111-26370 Panel, Roof
63141 63141-26030 Reinforcement, Roof Panel, No.1
63141 63141-26900 Reinforcement, Roof Panel, No.1
63142 63142-26900 Reinforcement, Roof Panel, No.2
9014960027 90149-60027 New Genuine Part
9018306012 90183-06012 New Genuine Part
9018306020 90183-06020 New Genuine Part
9018905019 90189-05019 New Genuine Part
Roof Panel & Back Panel ([08.1989 - ] ｱﾘ(ﾌﾛﾝﾄ ﾁﾙﾄﾙ-ﾌ) (8908- )SRF) 20
#OEMPart name
91651 91651-G0610 New Genuine Part
6323626030 63236-26030 Clamp, Sliding Roof Drain Hose
9004430071 90044-30071 New Genuine Part
9010906317 90109-06317 New Genuine Part
9011906182 90119-06182 Bolt, W/washer (For Floor Shift)
9011906568 90119-06568 New Genuine Part
9011906588 90119-06588 BOLT WWASHER
9015360013 90153-60013 New Genuine Part
9015450019 90154-50019 New Genuine Part
9017906063 90179-06063 New Genuine Part
9017906171 90179-06171 Nut, Cap(For Cylinder Head Cover)
9017906274 90179-06274 Nut
9038511005 90385-11005 BUSH
9046717126 90467-17126 Clip Or Clamp(For Ventilation Hose)
9046720010 90467-20010 Clip Or Clamp(For Ventilation Hose)
9048026003 90480-26003 Grommet (For Cooler Unit)
9048030006 90480-30006 New Genuine Part
9324056012 93240-56012 New Genuine Part
9356054010 93560-54010 SCREW
9418040600 94180-40600 Retainer, Roof Window Hinge
Seat & Seat Track ([07.1999 - ] ﾌﾛﾝﾄ ｼ-ﾄ(ﾍﾂﾄﾞﾚｽﾄ ﾌﾞﾝﾘｼｷ:2ﾆﾝｶﾞｹ ｼ-ﾄ) (9907- )TRH112..SGL,SGLE ; (9907- )KZH10#, 11#,120,13#,LH162,17#,182,188,RZH10 #,112,183,TRH102, 122..03S,05S,07S,08S,10S) 50
#OEMPart name
71011 71011-95J06 Frame Sub-Assy, Front Seat Cushion, Rh
71012 71012-26010 Frame Sub-Assy, Front Seat Cushion, Lh
71013 71013-26070 Frame Sub-Assy, Front Seat Back, Rh
71014 71014-26051 Frame Sub-Assy, Front Seat Back, Lh
71071 71071-26102-B4 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-26103-B4 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71072-26142-B4 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26143-B4 Cover, Front Seat Cushion, Lh(For Separate Type)
71073 71073-26182-B2 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26183-B2 Cover, Front Seat Back, Rh(For Separate Type)
71074 71074-26272-B2 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26273-B2 Cover, Front Seat Back, Lh(For Separate Type)
71128 71128-95J08 Plate, Front Seat Cushion Cover Set, Outside Lh
71410 71410-26092-P2 Cushion Assy, Front Seat, Rh(For Separate Type)
71420 71420-26132-P2 Cushion Assy, Front Seat, Lh (For Separate Type)
71430 71401-26092-P2 Back Assy, Front Seat, Rh(For Separate Type)
71440 71402-26102-P2 Back Assy, Front Seat, Lh(For Separate Type)
71511 71511-95J11 Pad, Front Seat Cushion, Rh(For Separate Type)
71512 71512-26050 Pad, Front Seat Cushion, Lh (For Separate Type)
71551 71551-95J18 Pad, Front Seat Back, Rh(For Separate Type)
71552 71551-26100 Pad, Front Seat Back, Lh(For Separate Type)
71811 71811-95J00-B0 Cover, Reclining Adjuster, Rh
71812 71812-95J00-B0 Cover, Reclining Adjuster, Lh
71831 71831-95J00-B0 Cover, Front Seat Hinge, Rh
71832 71832-95J01-B0 Cover, Front Seat Hinge, Lh
71910 71920-26022-B3 Headrest Assy, Front Seat
71910 71920-26023-B3 Headrest Assy, Front Seat
71931 71930-26010-B1 Support, Front Seat Headrest
71931 71930-26010-B3 Support, Front Seat Headrest
71931 71931-26010-B1 Support, Front Seat Headrest
71931 71931-26010-B3 Support, Front Seat Headrest
72110 72110-95J05 Track Assy, Front Seat, Outer Rh
72120 72120-26010 Track Assy, Front Seat, Outer Lh
72130 72130-26010 Track Assy, Front Seat, Inner Rh
72140 72140-95J02 Track Assy, Front Seat,inner Lh
72213 72213-12040 Knob, Seat Track Adjusting Handle
72525 72525-95J01-B0 Handle, Reclining Adjuster Release, Rh
91611 91611-B0616 Bolt(For Transaxle Case Receiver)
9010508109 90105-08109 New Genuine Part
9011908079 90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel)
9011908086 90119-08086 Bolt(For Transmission Input Damper Cover & Flywheel)
9011908269 90119-08269 Bolt(For Drive Plate & Torque Converter Setting)
9011910101 90119-10101 BOLT
9011910854 90119-10854 New Genuine Part
9016740044 90167-40044 BOLT
9017910073 90179-10073 New Genuine Part
9038612051 90386-12051 Bush (For Front Seat Hinge Pin)
9046708008 90467-08008 Clip, Step Plate Cover
9053006007 90530-06007 New Genuine Part
9354054012 93540-54012 Screw, Headlamp
Seat & Seat Track ([07.1999 - ] ﾌﾛﾝﾄ ｼ-ﾄ(ﾍﾂﾄﾞﾚｽﾄ ﾌﾞﾝﾘｼｷ:3ﾆﾝｶﾞｹ ｼ-ﾄ) (9907- )GL ; (9907- )LH16#,17#,182,188,RZH 102,112,18#,TRH102,112,122..03S,06S ,09S) 45
#OEMPart name
71011 71011-95J06 Frame Sub-Assy, Front Seat Cushion, Rh
71013 71013-26070 Frame Sub-Assy, Front Seat Back, Rh
71014 71014-26051 Frame Sub-Assy, Front Seat Back, Lh
71071 71071-26102-B4 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-26103-B4 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71072-26142-B4 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26143-B4 Cover, Front Seat Cushion, Lh(For Separate Type)
71073 71073-26182-B2 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26183-B2 Cover, Front Seat Back, Rh(For Separate Type)
71074 71074-26272-B2 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26273-B2 Cover, Front Seat Back, Lh(For Separate Type)
71128 71128-95J08 Plate, Front Seat Cushion Cover Set, Outside Lh
71410 71410-26092-P2 Cushion Assy, Front Seat, Rh(For Separate Type)
71420 71420-26132-P2 Cushion Assy, Front Seat, Lh (For Separate Type)
71430 71401-26092-P2 Back Assy, Front Seat, Rh(For Separate Type)
71440 71402-26102-P2 Back Assy, Front Seat, Lh(For Separate Type)
71511 71511-95J11 Pad, Front Seat Cushion, Rh(For Separate Type)
71512 71512-26050 Pad, Front Seat Cushion, Lh (For Separate Type)
71551 71551-95J18 Pad, Front Seat Back, Rh(For Separate Type)
71552 71551-26100 Pad, Front Seat Back, Lh(For Separate Type)
71811 71811-95J00-B0 Cover, Reclining Adjuster, Rh
71812 71812-95J00-B0 Cover, Reclining Adjuster, Lh
71831 71831-95J00-B0 Cover, Front Seat Hinge, Rh
71832 71832-95J01-B0 Cover, Front Seat Hinge, Lh
71910 71920-26022-B3 Headrest Assy, Front Seat
71910 71920-26023-B3 Headrest Assy, Front Seat
71931 71930-26010-B1 Support, Front Seat Headrest
71931 71930-26010-B3 Support, Front Seat Headrest
71931 71931-26010-B1 Support, Front Seat Headrest
71931 71931-26010-B3 Support, Front Seat Headrest
72110 72110-95J05 Track Assy, Front Seat, Outer Rh
72130 72130-26010 Track Assy, Front Seat, Inner Rh
72213 72213-12040 Knob, Seat Track Adjusting Handle
72525 72525-95J01-B0 Handle, Reclining Adjuster Release, Rh
9010508109 90105-08109 New Genuine Part
9011908079 90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel)
9011910101 90119-10101 BOLT
9011910854 90119-10854 New Genuine Part
9011910855 90119-10855 New Genuine Part
9016740044 90167-40044 BOLT
9017910073 90179-10073 New Genuine Part
9038612051 90386-12051 Bush (For Front Seat Hinge Pin)
9046708008 90467-08008 Clip, Step Plate Cover
9052308001 90523-08001 E Ring (For Tilt Motor Shaft, Lower)
9354054012 93540-54012 Screw, Headlamp
Seat & Seat Track ([08.1989 - ] ﾎｸﾞﾘﾝｸﾞ (8908- )) 2
#OEMPart name
9046816019 90468-16019 Clip (For Rear Seat Back)
9046818008 90468-18008 Clip (For Rear Seat Back)
Seat & Seat Track ([08.1998 - ] (9808- )06S) 32
#OEMPart name
71621 71621-95701 Pad, Rear Seat Cushion Silencer, A
72613 72613-26060 Striker, Front Seat Lock
72630 72630-26030 Lock Assy, Rear No.1 Seat
72658 72658-95701-11 Knob, Rear Seat Lock Handle
72665 72665-26010-B0 Cover, Rear Seat Back Lock
79011 79011-26182-B2 Cover Sub-Assy, No.1 Seat Cushion
79011 79011-26183-B2 Cover Sub-Assy, No.1 Seat Cushion
79013 79013-26102-B2 Cover Sub-Assy, No.1 Seat Back
79013 79013-26103-B2 Cover Sub-Assy, No.1 Seat Back
79107 79107-26110 Leg Sub-Assy, No.1 Seat, Rear
79120 79120-26182-B6 Cushion Assy, No.1 Seat
79135 79135-95J16 Pad, No.1 Seat Cushion
79140 79140-26122 Back Assy, No.1 Seat
79160 79160-26180 Spring Assy, No.1 Seat Cushion
79175 79175-26250 Pad, No.1 Seat Back
79175 79175-95J13 Pad, No.1 Seat Back
79175 79175-95J04 Pad, No.1 Seat Back
79180 79103-26161 Spring Assy, No.1 Seat Back
79189 71334-26051 Stopper, No.1 Seat Leg
79199 79199-95J00 Holder, No.1 Seat Leg Stopper
91612 91612-B1020 Bolt (For Transfer Case)Cover No.2
9010510241 90105-10241 New Genuine Part
9011910116 90119-10116 New Genuine Part
9011910116 90119-10229 BOLT
9011910409 90119-10409 New Genuine Part
9011910412 90119-10412 New Genuine Part
9011911029 90119-11029 New Genuine Part
9016450020 90164-50020 New Genuine Part
9016740044 90167-40044 BOLT
9024908106 90249-08106 New Genuine Part
9050726009 90507-26009 Spring, Rear Seat Cushion
9052306017 90523-06017 Ring, E
Seat & Seat Track ([08.2001 - ] (0108- )LH16#,17#,182,188,RZH102,112,18#,TRH1 02,112,12#..05S,06S,15S) 53
#OEMPart name
71617 71695-95J02-B0 Protector, Rear Seat Back
71621 71621-95701 Pad, Rear Seat Cushion Silencer, A
71833 71833-26020-B0 Cover, Rear Seat Reclining, No.1 Rh
71834 71834-26030-B0 Cover, Rear Seat Reclining, No.1 Lh
71837 72708-95J00-B0 Cover, Rear Seat Reclining, Inner Rh
71838 72709-95J00-B0 Cover, Rear Seat Reclining, Inner Lh
71843 71843-95700-B0 Cover, Rear Seat Reclining, No.2 Rh
71844 71844-95700-B0 Cover, Rear Seat Reclining, No.2 Lh
71931 71930-26010-B1 Support, Front Seat Headrest
71931 71930-26010-B3 Support, Front Seat Headrest
71931 71931-26010-B0 Support, Front Seat Headrest
71931 71931-26010-B3 Support, Front Seat Headrest
71931 71931-26010-B1 Support, Front Seat Headrest
71940 71940-26032-B3 Headrest Assy, Rear Seat
71940 71940-26033-B3 Headrest Assy, Rear Seat
72525 72525-95J01-B0 Handle, Reclining Adjuster Release, Rh
72613 72613-26060 Striker, Front Seat Lock
72630 72630-26030 Lock Assy, Rear No.1 Seat
72658 72658-95701-11 Knob, Rear Seat Lock Handle
72665 72665-26010-B0 Cover, Rear Seat Back Lock
72710 72710-26040-B0 Adjuster Assy, No.1 Seat Reclining, Rh
72720 72720-26060-B0 Adjuster Assy, No.1 Seat Reclining, Lh
79011 79011-26182-B2 Cover Sub-Assy, No.1 Seat Cushion
79011 79011-26183-B2 Cover Sub-Assy, No.1 Seat Cushion
79013 79013-26102-B2 Cover Sub-Assy, No.1 Seat Back
79013 79013-26103-B2 Cover Sub-Assy, No.1 Seat Back
79107 79107-26110 Leg Sub-Assy, No.1 Seat, Rear
79120 79120-26182-B6 Cushion Assy, No.1 Seat
79135 79135-95J16 Pad, No.1 Seat Cushion
79140 79140-26122 Back Assy, No.1 Seat
79160 79160-26180 Spring Assy, No.1 Seat Cushion
79169 79169-95J05 Rod, Rear Seat Hinge Connector
79175 79175-26250 Pad, No.1 Seat Back
79175 79175-95J13 Pad, No.1 Seat Back
79175 79175-95J04 Pad, No.1 Seat Back
79180 79103-26161 Spring Assy, No.1 Seat Back
79189 71334-26051 Stopper, No.1 Seat Leg
79199 79199-95J00 Holder, No.1 Seat Leg Stopper
91612 91612-B1020 Bolt (For Transfer Case)Cover No.2
9011910116 90119-10116 New Genuine Part
9011910116 90119-10229 BOLT
9011910315 90119-10315 BOLT
9011910409 90119-10409 New Genuine Part
9011910412 90119-10412 New Genuine Part
9011911029 90119-11029 New Genuine Part
9016450020 90164-50020 New Genuine Part
9016740044 90167-40044 BOLT
9024908106 90249-08106 New Genuine Part
9046803018 90468-03018 New Genuine Part
9050726009 90507-26009 Spring, Rear Seat Cushion
9052306017 90523-06017 Ring, E
9353044016 93530-44016 New Genuine Part
9616000500 96160-00500 Ring, E(For Over Center Lever)
Seat & Seat Track ([08.2002 - ] ﾌﾛﾝﾄ ｼ-ﾄ(ﾍﾂﾄﾞﾚｽﾄ ｲﾂﾀｲｼｷ:3ﾆﾝｶﾞｹ ｼ-ﾄ) (9907-0208)KZH13#,LH16#,17#,18#,RZH102,112,12#,1 8# ; (0208- )KZH13#,LH16#,17#,18 2,188,RZH102,112, 18#,TRH102,112,122) 38
#OEMPart name
71011 71011-95J06 Frame Sub-Assy, Front Seat Cushion, Rh
71013 71013-26070 Frame Sub-Assy, Front Seat Back, Rh
71014 71014-26051 Frame Sub-Assy, Front Seat Back, Lh
71071 71071-26102-B4 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-26103-B4 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71072-26142-B4 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26143-B4 Cover, Front Seat Cushion, Lh(For Separate Type)
71073 71073-26182-B2 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26183-B2 Cover, Front Seat Back, Rh(For Separate Type)
71074 71074-26272-B2 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26273-B2 Cover, Front Seat Back, Lh(For Separate Type)
71128 71128-95J08 Plate, Front Seat Cushion Cover Set, Outside Lh
71410 71410-26092-P2 Cushion Assy, Front Seat, Rh(For Separate Type)
71420 71420-26132-P2 Cushion Assy, Front Seat, Lh (For Separate Type)
71430 71401-26092-P2 Back Assy, Front Seat, Rh(For Separate Type)
71440 71402-26102-P2 Back Assy, Front Seat, Lh(For Separate Type)
71511 71511-95J11 Pad, Front Seat Cushion, Rh(For Separate Type)
71512 71512-26050 Pad, Front Seat Cushion, Lh (For Separate Type)
71551 71551-95J18 Pad, Front Seat Back, Rh(For Separate Type)
71552 71551-26100 Pad, Front Seat Back, Lh(For Separate Type)
71811 71811-95J00-B0 Cover, Reclining Adjuster, Rh
71831 71831-95J00-B0 Cover, Front Seat Hinge, Rh
71832 71832-95J01-B0 Cover, Front Seat Hinge, Lh
72110 72110-95J05 Track Assy, Front Seat, Outer Rh
72130 72130-26010 Track Assy, Front Seat, Inner Rh
72213 72213-12040 Knob, Seat Track Adjusting Handle
72525 72525-95J01-B0 Handle, Reclining Adjuster Release, Rh
9010508109 90105-08109 New Genuine Part
9011908079 90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel)
9011910101 90119-10101 BOLT
9011910854 90119-10854 New Genuine Part
9011910855 90119-10855 New Genuine Part
9016740044 90167-40044 BOLT
9017910073 90179-10073 New Genuine Part
9038612051 90386-12051 Bush (For Front Seat Hinge Pin)
9046708008 90467-08008 Clip, Step Plate Cover
9052308001 90523-08001 E Ring (For Tilt Motor Shaft, Lower)
9354054012 93540-54012 Screw, Headlamp
Seat Belt ([08.1989 - ] (8908- )KZH13#,LH102,103,109,113,115,119,123, 125,129,16#,17#,18#,RZH102,112,12#, 133,18#,TRH102,11 2,12#) 20
#OEMPart name
73013 73013-26040 Plate Sub-Assy, Front Seat Belt Inner Anchor, Rh
73146 73146-95J00-B1 Cover, Front Seat Belt Inner Anchor Bracket, Rh
73178 73178-95J00 Cover, Seat Track
73180 73011-12040 Bracket Assy, Seat Belt Inner Anchor, Rh
73210 73210-26520-B0 Belt Assy, Front Seat Outer, Rh
73210 73210-26640-B0 Belt Assy, Front Seat Outer, Rh
73220 73220-26240-B1 Belt Assy, Front Seat Outer, Lh
73220 73220-26340-B1 Belt Assy, Front Seat Outer, Lh
73230 73230-26150-B1 Belt Assy, Front Seat Inner, Rh
73240 73240-26120-B3 Belt Assy, Front Seat Inner, Lh
73240 73240-26120-B4 Belt Assy, Front Seat Inner, Lh
9010511036 90105-11036 New Genuine Part
9011910492 90119-10492 New Genuine Part
9015960389 90159-60389 New Genuine Part
9033340001 90333-40001 Plate, Noise Control, No.1
9046110595 90461-10595 New Genuine Part
9095001126 90950-01126 Grommet, Safety Band Anchorage Nut
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9354054012 93540-54012 Screw, Headlamp
Seat Belt ([08.2003 - ] ﾊﾝﾊﾞｲﾃﾝ ｵﾌﾟｼﾖﾝ (8908- )LH102,103,109,113,119,123,129,140,16# ,17#,182,188,RZH102,112,122,18#..03 S,05S,06S ; (0308 - )TRH102,112,122..05S,06S) 9
#OEMPart name
73033 73033-26080 Plate Sub-Assy, Rear Shoulder Belt Anchor, Rh
73033 73033-26081 Plate Sub-Assy, Rear Shoulder Belt Anchor, Rh
73034 73034-26060 Plate Sub-Assy, Rear Shoulder Belt Anchor, Lh
73034 73034-26061 Plate Sub-Assy, Rear Shoulder Belt Anchor, Lh
73223 73223-26010-B1 Cover, Seat Belt Retractor
73360 73360-26181-B1 Belt Assy, Rear Seat 3 Point Type, Outer Rh
73370 73370-26101-B1 Belt Assy, Rear Seat 3 Point Type, Outer Lh
73380 73380-26270-B1 Belt Assy, Rear No.1 Seat, Inner Rh
73390 73390-26240-B1 Belt Assy, Rear No.1 Seat, Inner Lh
Separator & Separator Curtain ([08.1989 - ] (8908- )LH10#,11#,12#,140,16#,17#,18#,RZH10#, 11#,12#,133,18#,TRH102,112,122) 3
#OEMPart name
9016750044 90167-50044 New Genuine Part
9053006001 90530-06001 Fastener, Hook
9354055012 93540-55012 SCREW, TAPPING
Separator & Separator Curtain ([08.1989 - ] 03S,05S,06S (8908- )LH10#,11#,12#,140,16#,17#,18#,RZH10#, 11#,12#,133,18#,TRH102,112,122) 17
#OEMPart name
74084 74081-26010-B0 Stay Sub-Assy, Separator Bar
74805 74810-95J05-B0 Bar Sub-Assy, Separator, A
74851 74851-95J01-B0 Bracket, Separator Bar, Upper Rh
74851 74851-95J04-B0 Bracket, Separator, Upper Rh
74852 74852-95J00-B0 Bracket, Separator, Rh
74852 74852-95J04-B0 Bracket, Separator, Upper Lh
74854 74854-95J06-B0 Stop, Separator
74854 74854-95J07-B0 Stop, Separator
74856 74856-95A00 Plate, Spring Set
74867 74867-95J00-B0 Bracket, Separator Bar, No.4
74867 74879-95J01-B0 Bracket, Separator Bar, Lh
9015460043 90154-60043 SCREW CROSSRECESS
9015940092 90159-40092 New Genuine Part
9026903011 90269-03011 New Genuine Part
9050112079 90501-12079 New Genuine Part
9050112118 90501-12118 New Genuine Part
9461211000 94612-11000 Plate, Spring Set
Separator & Separator Curtain ([08.1989 - ] 08S,09S (8908- )LH10#,11#,12#,140,16#,17#,18#,RZH10#, 11#,12#,133,18#,TRH102,112,122) 12
#OEMPart name
74805 74810-95J05-B0 Bar Sub-Assy, Separator, A
74854 74854-95J06-B0 Stop, Separator
74854 74854-95J07-B0 Stop, Separator
74867 74867-95J00-B0 Bracket, Separator Bar, No.4
9014940010 90149-40010 New Genuine Part
9015440009 90154-40009 New Genuine Part
9015460043 90154-60043 SCREW CROSSRECESS
9015460044 90154-60044 New Genuine Part
9015940095 90159-40095 New Genuine Part
9015960151 90159-60151 New Genuine Part
9050116073 90501-16073 New Genuine Part
9461211000 94612-11000 Plate, Spring Set
Shift Lever & Retainer ([08.1996 - ] (8908-9308)4FC ; (9308-9608)4FC..CD,CTM,DX,GL,SG L ; (9608- )KZH11#,LH103,11#,123 ,129,162,17#,18#, RZH102,11#,12#,133,183,TRH102,112,12#..4FC) 41
#OEMPart name
33058 33058-26010 Bracket Sub-Assy, Shift Lock Solenoid
33502 33502-26051 Plate Sub-Assy, Shift Lever
33502 90387-09041 Collar (For Floor Shift Setting)
33502 90480-13012 Grommet (For Shift Lever Plate)
33502 90387-08102 Collar (For Shift Lever Plate)
33503 33055-26020 Lever Sub-Assy, Shift(For Floor Shift)
33504 90159-40109 Bolt Or Pin (For Shift Lever Knob Setting)
33504 33542-20081-B1 Knob Sub-Assy, Shift Lever
33511 33511-14010 Shaft, Control (For Floor Shift)
33550 99132-12034 Bulb, Position Indicator Lamp
33550 00234-00158 Bulb, Position Indicator Lamp
33550 90339-09001 Cap, Position Indicator Lamp
33563 33563-26010 Button, Shift Lock Release
33563 90501-05027 Spring, Compression (For Shift Lock Release Button)
33564 33564-26010 Link, Shift Lock Release, No.1
33597 33597-26020 Seat, Shift Lever, No.1 (For Floor Shift)
33623 33623-20020-B1 Button, Shift Lever Knob
33623 33623-20020-C0 Button, Shift Lever Knob
33623 90501-07009 Spring, Compression (For Shift Lever Knob)
33625 33625-24010 Sleeve, Shift Lever Knob
33631 33631-27020 Rod, Detent
33631 90501-07074 Spring, Compression (For Detent Rod)
33631 90256-04006 Pin, Grooved (For Detent Rod)
33635 33635-26030 Guide, Wire (For Shift Lever)
33636 33636-35010 Protector, Wire
33805 33805-26010 Plate Sub-Assy, Shift Lock (For Floor Shift)
33878 33878-27010 Label, Shift Lock Information, No.2
33886 33886-16010 Stopper, Shift Lever
35198 35198-26010 Bracket, Wire Harness Clamp, No.4
35906 35906-26030 Wire Sub-Assy, Indicator Lamp
35921 35921-26070 Plate, Control Position Indicator
35971 35971-26060 Housing, Position Indicator, Upper
35974 35974-26020 Housing, Position Indicator, Lower
35975 35975-26020 Cover, Slide (For Position Indicator)
9018905126 90189-05126 GROMMET SCREW
9046312570 90463-12570 CLAMP
9166140820 91661-40820 New Genuine Part
9331515012 93315-15012 SCREWWWASHER
9413060800 94130-60800 Nut(For Clutch Pedal Stopper)
9413060800 90170-A0003 New Genuine Part
9453100800 94531-00800 Washer (For Transfer Shift Outer Lever)
Shift Lever & Retainer ([08.2003 - ] (0308- )LH162,17#,18#,TRH102,112,12#..4FC) 42
#OEMPart name
33531 33531-26030 Boot, Dust (For Control Shift Lever)
33532 33532-26030 Plate, Dust Boot
33671 33671-26180 Support, Control Rod, No.1
33671 33673-26110 Support, Control Rod, No.1
33705 33705-26100 Support Sub-Assy, Cross Shaft, No.1 (For Floor Shift)
33710 33710-26200 Rod Assy, Gear Shifting, No.1
33723 33723-26020 Swivel, Connecting Rod (For Floor Shift)
33723 90389-08005 Bushing(For Gear Selecting Rod)
33723 90480-17177 Grommet (For Transmission Control Rod)
33740 33740-26020 End Assy, Connecting Rod, No.1(For Column Shift)
33742 33742-26200 Rod, Gear Shifting, No.2(For Floor Shift)
33742 90240-08034 Pin, W/hole (For Gear Shifting Rod No.3)
33742 90240-08042 Pin, W/hole(For Gear Selecting Rod No.2)
33750 33740-26030 End, Connecting Rod, No.2 (For Floor Shift)
33770 33770-26140 Cross Shaft Assy (For Floor Shift)
33772 33772-26010 Bush (For Cross Shaft)
33772 33772-20010 Bush (For Control Rod Support)
33773 33773-20020 Support, Cross Shaft, No.1 (For Colum Shift)
33773 96151-01600 Ring, Snap
33775 33775-28040 Cover, Cross Shaft Dust (For Column Shift)
33775 33775-26050 Cover, Cross Shaft Dust, No.2 (For Floor Shift)
33775 33775-34010 Cover, Cross Shaft Dust, No.2 (For Column Shift)
33785 33785-26050 Insulator, Cross Shaft Lever Heat, No.1 (For Floor Shift)
33786 33785-26060 Insulator, Cross Shaft Lever Heat, No.2 (For Floor Shift)
33787 33786-26040 Insulator, Cross Shaft Lever Heat, No.3
33810 33810-26160 Shaft Assy, Cross, No.2
33810 90387-09034 Collar (For Cross Shaft Support)
33840 33840-26250 Rod Assy, Gear Shifting, No.3
91611 91611-B0816 Bolt
91611 91611-G0820 Bolt
9011908053 90119-08053 New Genuine Part
9011908053 91661-40825 New Genuine Part
9017908038 90179-08038 Nut
9046803011 90468-03011 CLIP
9046814004 90468-14004 Union, Auxiliary Fuel Band
9048017024 90480-17024 Grommet (For Cross Shaft Support)
9165140610 91651-40610 RIVET
9413060800 94130-60800 Nut(For Clutch Pedal Stopper)
9413060800 90170-A0003 New Genuine Part
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
9461210800 94612-10800 Washer, Plate(For Repair Actuator Set)
9461310800 94613-10800 Spacer (For Control Select Lever Support)
Short Block Assembly ([08.1989 - ] (8908- )) 1
#OEMPart name
11400 11400-75140 Block Assy, Short
Side Member ([08.1989 - ] (8908- )) 23
#OEMPart name
62429 62429-95J02 Cover, Center Pillar Service Hole
8889895 88898-95J21 Tube Sub-assy, Equalizer
8889895 88898-95J24 Tube Sub-assy, Equalizer
9003480031 90034-80031 Clip (For Assist Grip)
9009932138 90099-32138 New Genuine Part
9011908821 90119-08821 New Genuine Part
9018306020 90183-06020 New Genuine Part
9033301009 90333-01009 New Genuine Part
9033320001 90333-20001 PLUG
9095001027 90950-01027 Plug, Hole, No.3(For Dash Panel)
9095001047 90950-01047 Plug, Hole, No.1(For Dash Panel)
9095001065 90950-01065 Plug, Hole(For Front Fender Apron)
9095001112 90950-01112 Plug, Hole(For Heater Control Cable Hole)
9095001181 90950-01181 Plug, Hole(For Front Fender Apron)
9095001184 90950-01184 PLUG
9095001326 90950-01326 New Genuine Part
9095001421 90950-01421 New Genuine Part
9095001660 90950-01660 New Genuine Part
9095001759 90950-01759 PLUG
9095001849 90950-01849 New Genuine Part
9095001901 90950-01901 Cap, Spare Wheel Carrier Handle
9095006013 90950-06013 New Genuine Part
9095006017 90950-06017 New Genuine Part
Side Member ([08.1989 - ] (8908- )SRF..5D) 78
#OEMPart name
58741 58741-95J02 Protector, Quarter Panel, Rh
58741 58741-95J04 Protector, Quarter Panel, Rh
58742 58742-95J02 Protector, Quarter Panel, Lh
58742 58742-95J04 Protector, Quarter Panel, Lh
61023 61023-26060 Pillar Sub-Assy, Front Body, Inner Rh
61023 61023-26070 Pillar Sub-Assy, Front Body, Inner Rh
61023 90333-25003 Plug, Hole(For Hood)
61024 61024-26040 Pillar Sub-Assy, Front Body, Inner Lh
61027 61027-95J17 Pillar Sub-Assy, Front Body, Outer Rh
61028 61028-26061 Pillar Sub-Assy, Front Body, Outer Lh
61033 61033-95J04 Reinforce Sub-Assy, Back Door Opening Side
61051 61615-95J09 Panel Sub-Assy, Quarter Lock, Inner Rh
61052 61616-95J03 Panel Sub-Assy, Quarter Lock, Inner Lh
61211 61201-26011 Rail, Roof Side, Outer Rh
61212 61202-26011 Rail, Roof Side, Outer Lh
61231 61231-95J05 Rail, Roof Side, Inner Rh
61232 61232-95J06 Rail, Roof Side, Inner Lh
61233 61207-95J03 Rail, Roof Side, Inner No.2 Rh
61233 61207-26090 Rail, Roof Side, Inner No.2 Rh
61233 90333-20001 PLUG
61234 61208-26090 Rail, Roof Side, Inner No.2 Lh
61261 61261-95J04 Channel, Roof Drip, Rh
61262 61262-95J04 Channel, Roof Drip, Lh
61301 61301-26470 Pillar Sub-Assy, Center Body, Outer Rh
61302 61302-26460 Pillar Sub-Assy, Center Body, Outer Lh
61307 61307-26370 Pillar Sub-Assy, Center Body, Inner Rh
61307 61307-26390 Pillar Sub-Assy, Center Body, Inner Rh
61308 61308-26330 Pillar Sub-Assy, Center Body, Inner Lh
61339 61339-26020 Seal, Center Body Pillar, Inner No.1
61391 61391-95J00 Spacer, Center Body Pillar, Inner
61411 61411-95J01 Panel, Fender, Outer Rh
61412 61412-95J01 Panel, Fender, Outer Lh
61413 61413-26010 Reinforcement, Rocker Panel, No.2 Rh
61414 61414-26010 Reinforcement, Rocker Panel, No.2 Lh
61415 61415-95J01 Panel, Front Step, Under, Rh
61416 61416-95J01 Panel, Front Step Under, Lh
61423 61423-95J02 Panel, Fender, Inner Lower Rh
61424 61424-95J02 Panel, Fender, Inner Lower Lh
61451 61451-95J00 Panel, Rocker, Outer Rh
61605 61605-95J03 Panel, Quarter, Rh
61605 61605-95J04 Panel, Quarter, Rh
61606 61705-95J07 Frame Sub-Assy, Back Door Opening Side, Rh
61606 61606-95J03 Panel, Quarter, Lh
61606 61606-95J04 Panel, Quarter, Lh
61611 61601-26151 Panel, Quarter, Rh
61612 61602-2F741 Panel, Quarter, Lh
61613 61607-26340 Panel Sub-Assy, Quarter, Inner Rear Rh
61614 61608-26370 Panel Sub-Assy, Quarter, Inner Rear Lh
61614 61608-26480 Panel Sub-Assy, Quarter, Inner Rear Lh
61617 61617-95J00 Panel, Quarter Inner, Lower Rh
61618 61618-95J00 Panel, Quarter, Inner Lower Lh
61625 61625-95J04 Extension, Quarter Panel, Inner Rear Rh
61626 61626-95J03 Extension, Quarter Panel, Inner Rear Lh
61633 61633-95J05 Panel, Quarter Wheel House, Inner
61637 61637-95J00 Reinforcement, Quarter, Inner Rh
61638 61638-95J01 Reinforcement, Quarter, Inner Lh
61706 61706-95J06 Frame Sub-Assy, Back Door Opening Side, Lh
61741 61741-95J01 Reinforcement, Back Door Opening, Upper Rh
61742 61742-95J01 Reinforcement, Back Door Opening, Upper Lh
61744 61034-95J01 Reinforcement, Back Door Opening Side, Lh
62428 62428-26050 Cover, Center Pillar, Rh
62429 62429-95J02 Cover, Center Pillar Service Hole
62657 62657-95J01 Cover, Quarter Panel Inner, Lh
67898 67898-95J00 Seal, Slide Door, Lower No.2
76607 76607-29395 Mudguard Sub-Assy, Quarter Panel, Rear Rh
76608 76608-29415 Mudguard Sub-Assy, Quarter Panel, Rear Lh
9010906194 90109-06194 Bolt, Body Mounting
9011906779 90119-06779 BOLT W-WASHER
9014960027 90149-60027 New Genuine Part
9015950050 90159-50050 New Genuine Part
9015960391 90159-60391 New Genuine Part
9018905016 90189-05016 Grommet, Screw
9018905019 90189-05019 New Genuine Part
9018906094 90189-06094 GROMMET SCREW
9018906116 90189-06116 CLIP
9095001047 90950-01047 Plug, Hole, No.1(For Dash Panel)
9095001184 90950-01184 PLUG
9165160614 91651-60614 Bolt
Side Window ([08.2003 - ] (0308- )TRH102,112,12#..SG) 29
#OEMPart name
62149 62149-26050 Tape, Side Window Frame
62149 62149-26060 Tape, Side Window Frame
62229 62229-95J01 Packing, Side Window
62249 62249-95700 Plate, Side Window, Rh
62279 62279-95J03 Spacer, Side Window Frame, Upper
62715 62715-26360 Glass, Side Rear Window, Rh
62716 62716-26380 Glass, Side Rear Window, Lh
62719 62719-95J02 Packing, Side Front Window, Upper
62719 62719-95J03 Packing, Side Front Window, Upper
62724 62724-95J04 Stop, Side Front Window Glass, Rh
62732 62732-26111 Glass, Slide Door Window, Front Rh
62735 62735-26101 Grass, Slide Door Window, Rear Rh
62736 62736-26090 Glass, Slide Door Window, Rear Lh
62743 62743-95J12 Weatherstrip, Side Rear Window
62749 62749-95J01 Seal, Side Window Frame
62762 62733-26240 Glass, Side Door Window, Front Lh
62783 62783-95J00 Sash, Side Window, Center
62793 62793-95J01 Retainer, Side Window Lock, Rh
62897 62897-95J07 Tube, Side Window Guard
62898 62898-95J02 Tube, Side Window Guard, Lh
62910 62910-95703 Lock, Side Window, No.1 Glass (For Slide Type)
67043 67043-95J01 Frame Sub-Assy, Slide Door Window, Rh
67044 67044-95J02 Frame Sub-Assy, Slide Door Window, Lh
9015460043 90154-60043 SCREW CROSSRECESS
9015960587 90159-60587 New Genuine Part
9016440091 90164-40091 SCREW
9321984008 93219-84008 New Genuine Part
9354083008 93540-83008 SCREW, TAPPING
9354084008 93540-84008 New Genuine Part
Slide Roller & Rail ([08.1989 - ] (8908- )) 55
#OEMPart name
68029 68029-26050 Base Sub-Assy, Slide Door Lower Roller
68303 68303-26070 Rail Sub-Assy, Slide Door, Center Rh
68304 68304-26080 Rail Sub-Assy, Slide Door, Center Lh
68308 68308-26010 Rail Sub-Assy, Slide Door, Upper Rh
68309 68309-26010 Rail Sub-Assy, Slide Door, Upper Lh
68310 68310-26030 Roller Assy, Slide Door, Upper
68317 68317-26010 Stopper, Slide Door Upper Rail, Rh
68334 68334-95700 Roller, Slide Door Center, No.2
68335 68335-95702 Pad, Slide Door Upper Rail
68345 68345-95J01-C0 Cover, Slide Door Center Rail
68350 68350-26060 Roller Assy, Slide Door, Lower Rh
68360 68360-26050 Roller Assy, Slide Door, Lower Lh
68373 68373-26060 Moulding, Slide Rail End, Rh
68374 68374-26060 Moulding, Slide Rail End, Lh
68376 68376-95J00 Bracket, Slide Door Center Rail
68377 68377-95J02 Pad, Slide Door Center Rail, Front
68378 68378-95J02 Pad, Slide Door Rail
68379 68379-95J01 Spring, Slide Door Catch, Rh
68380 68380-26020 Hinge Assy, Slide Door, Center Rh
68389 68389-95J01 Spring, Slide Door Catch, Lh
68390 68390-26030 Hinge Assy, Slide Door, Center Lh
68395 68395-26010 Packing, Slide Door Center Rail
68395 68395-95J00 Packing, Slide Door Center Rail
69043 69043-95J00 Stopper Sub-Assy, Slide Door Down Female
69405 69405-95J05 Stop Sub-Assy, Slide Door Open
69413 69416-26010 Stop, Slide Door Down Male
91511 91511-G0610 New Genuine Part
91511 91621-G0612 New Genuine Part
9011908 90119-08A51 New Genuine Part
9010508095 90105-08095 BOLT
9010508108 90105-08108 New Genuine Part
9010508108 91511-60810 BOLT
9011906524 90119-06524 New Genuine Part
9011906885 90119-06885 Bolt, Radiator Tank Pipe
9011908507 90119-08507 New Genuine Part
9011908589 90119-08589 New Genuine Part
9011908774 90119-08774 New Genuine Part
9011908984 90119-08984 New Genuine Part
9015460044 90154-60044 New Genuine Part
9015940007 90159-40007 New Genuine Part
9015960459 90159-60459 New Genuine Part
9016260005 90162-60005 SCREW
9017908043 90179-08043 New Genuine Part
9017908043 90179-08074 New Genuine Part
9017908046 90179-08046 New Genuine Part
9018906063 90189-06063 GROMMETSCREW
9038710112 90387-10112 New Genuine Part
9054109027 90541-09027 Cushion, Slide Door Stop
9054112009 90541-12009 Cushion, Front Door Panel
9161660616 91616-60616 BOLT
9163140825 91631-40825 New Genuine Part
9338116012 93381-16012 Screw
9411040600 94110-40600 Nut, Rock
9616000600 96160-00600 Ring, E(For Clutch Pedal Pawl)
9674119017 96741-19017 New Genuine Part
Slide Roller & Rail ([08.1996 - ] (9608- )) 24
#OEMPart name
91641 91641-H0625 BOLT WWASHER
91641 91641-H0632 BOLT WWASHER
91641 91641-H0650 New Genuine Part
9011908984 90119-08984 New Genuine Part
9017908043 90179-08043 New Genuine Part
9017908043 90179-08074 New Genuine Part
9020108571 90201-08571 New Genuine Part
9020109011 90201-09011 New Genuine Part
9020916004 90209-16004 New Genuine Part
9036308012 90363-08012 New Genuine Part
9036312016 90363-12016 New Genuine Part
9036325059 90363-25059 New Genuine Part
9036350008 90363-50008 New Genuine Part
9036412008 90364-12008 New Genuine Part
9038908117 90389-08117 New Genuine Part
9038910043 90389-10043 New Genuine Part
9054101001 90541-01001 Cushion(For Parking Brake Pedal)
9095903119 90959-03119 New Genuine Part
9095903139 90959-03139 New Genuine Part
9321016012 93210-16012 New Genuine Part
9324955006 93249-55006 New Genuine Part
9331915014 93319-15014 Screw, Cover Set, No.1
9413060500 94130-60500 NUT
9616000600 96160-00600 Ring, E(For Clutch Pedal Pawl)
Spare Wheel Carrier ([08.1989 - ] (8908- )COM,V1,WG) 13
#OEMPart name
51900 51903-26410 Carrier Assy, Spare Wheel
51937 51937-26010 Plate, Spare Wheel Carrier Lock
51938 51938-26040 Lock, Spare Wheel Carrier
51943 51943-26120 Bracket, Spare Wheel Carrier, No.1
51955 51955-26040 Hinge, Spare Wheel Carrier, No.1
9010912035 90109-12035 BOLT
9011912167 90119-12167 New Genuine Part
9020112581 90201-12581 WASHER
9044017043 90440-17043 TUBE
9165140820 91651-40820 Bolt
9165140825 91651-40825 Bolt(For Clutch Release Cylinder Setting)
9165160825 91651-60825 Bolt, Hexagon(For Steering Column Bracket)
9165160825 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
Speaker ([08.1989 - ] ﾌﾛﾝﾄ (8908- )) 6
#OEMPart name
86160 86160-26510 Speaker Assy, Front No.1
86160 86160-26520 Speaker Assy, Front No.1
9018305103 90183-05103 NUT
9356055016 93560-55016 Screw(For Mat Set Plate)
9356715016 93567-15016 New Genuine Part
9356715016 93568-55016 Screw
Speaker ([08.1996 - ] ﾘﾔ (9608- )) 8
#OEMPart name
86160 86160-26510 Speaker Assy, Front No.1
86160 86160-26520 Speaker Assy, Front No.1
9015750022 90157-50022 New Genuine Part
9015960025 90159-60025 SCREW W-WASHER
9015960303 90159-60303 SCREW
9018905019 90189-05019 New Genuine Part
9018906018 90189-06018 GROMMET
9162640616 91626-40616 New Genuine Part
Speedometer Driven Gear (Atm) ([08.1993 - ] A45DF,A45DE,A45DL (9308-9508)LH119,129..4FC ; (9308- )LH103,113 ,123,162,172,182,184,RZH10#,11#,12# ,133,183,TRH102,1 12,12#..4FC) 1
#OEMPart name
33403 33482-39395 Gear Sub-Assy, Speedometer Driven (Atm)
Spoiler & Side Mudguard ([07.1999 - ] (9907- )) 8
#OEMPart name
9010906190 90109-06190 BOLT
9010906331 90109-06331 New Genuine Part
9015750017 90157-50017 New Genuine Part
9015950358 90159-50358 New Genuine Part
9015960476 90159-60476 SCREW WWASHER
9017906127 90179-06127 Bracket, Front Licence Plate Mounting
9018906029 90189-06029 GROMMET
9046709077 90467-09077 Clip(For Rear Combination Lamp)
Standard Tool ([08.1989 - ] (8908- )) 8
#OEMPart name
9110 09111-26110 Jack Assy
9114 09114-28010 Extension Sub-Assy, Jack Handle
9115 09115-28030 Rod Sub-Assy, Jack Handle
9116 09116-35041 Lever, Jack Handle
9120 09120-12011 Bag, Tool (Black)
9150 09150-40010 Wrench, Hub Nut Box
9150 09033-1C100 WRENCH
9184 09184-00010 Stopper, Wheel
Starter ([08.1998 - ] 12V 1.0KW (9808- )1RZE,2RZE,1TRFE) 47
#OEMPart name
28011 28011-70020 Clutch Sub-Assy, Starter
28011 28011-76070 Clutch Sub-Assy, Starter
28013 28013-70030 Bearing, Starter Center & Shock Absorber, No.1
28013 90099-10181 Bearing, Starter Center & Shock Absorber, No.2
28014 28014-70020 Shaft Sub-Assy, Planet Carrier
28014 90099-10180 Bush Or Bearing, Planet Carrier Shaft
28100 28100-75090 Starter Assy
28100 28100-75091 Starter Assy
28100 28100-75150 Starter Assy
28100 28100-75151 Starter Assy
28110 28110-75090 Housing Assy, Starter Drive
28110 28110-75150 Housing Assy, Starter Drive
28110 90099-10171 Bearing(For Starter Housing)
28113 28113-70020 Lever, Starter Pinion Drive
28119 28199-46080 Cover, Starter End Frame
28119 28199-74110 Cover, Starter End Frame
28120 28120-66040 Yoke Assy, Starter
28120 28120-70050 Yoke Assy, Starter
28120 90099-14092 Ring, O(For Starter Yoke)
28130 28130-13080 Frame Assy, Starter Commutator End
28130 28130-64170 Frame Assy, Starter Commutator End
28130 90099-10183 Bearing, Starter Flange
28140 28140-70020 Holder Assy, Starter Brush
28140 28140-76070 Holder Assy, Starter Brush
28142 28142-70020 Brush, Starter
28143 28143-70020 Spring, Starter Brush
28143 90099-17112 Spring, Starter Brush
28150 28150-75130 Switch Assy, Magnet Starter
28150 28150-75150 Switch Assy, Magnet Starter
28160 28160-70050 Armature Assy, Starter
28160 28160-74070 Armature Assy, Starter
28163 28163-70020 Nut Or Collar, Pinion Stop, Starter
28177 28177-70020 Plate(For Starter Armature)
28255 28255-70020 Gear, Planet
28256 28256-70020 Gear, Starter Internal
9009690030 90096-90030 Ring, Snap, Starter Clutch Housing Disc
9009900270 90099-00270 Screw, Starter
9009901538 90099-01538 New Genuine Part
9009901539 90099-01539 New Genuine Part
9009901542 90099-01542 New Genuine Part
9009904448 90099-04448 Bolt, Starter
9009905178 90099-05178 New Genuine Part
9009907124 90099-07124 Bearing(For Starter Housing)
9009912405 90099-12405 New Genuine Part
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9161261055 91612-61055 Bolt (For Transfer Case)
Starter ([08.2003 - ] 12V 1.4KW (0308- )1TRFE) 44
#OEMPart name
28011 28011-70020 Clutch Sub-Assy, Starter
28011 28011-76070 Clutch Sub-Assy, Starter
28100 28100-75090 Starter Assy
28100 28100-75091 Starter Assy
28100 28100-75150 Starter Assy
28100 28100-75151 Starter Assy
28110 28110-75090 Housing Assy, Starter Drive
28110 28110-75150 Housing Assy, Starter Drive
28119 28199-46080 Cover, Starter End Frame
28119 28199-74110 Cover, Starter End Frame
28120 28120-66040 Yoke Assy, Starter
28120 28120-70050 Yoke Assy, Starter
28130 28130-13080 Frame Assy, Starter Commutator End
28130 28130-64170 Frame Assy, Starter Commutator End
28140 28140-70020 Holder Assy, Starter Brush
28140 28140-76070 Holder Assy, Starter Brush
28143 28143-70020 Spring, Starter Brush
28143 90099-17112 Spring, Starter Brush
28150 28150-75130 Switch Assy, Magnet Starter
28150 28150-75150 Switch Assy, Magnet Starter
28159 28159-55050 Cover, Starter Protector
28160 28160-70050 Armature Assy, Starter
28160 28160-74070 Armature Assy, Starter
28160 90099-10196 Bearing, Starter Armature
28160 90099-10197 Bearing, Starter Armature
28165 28165-76070 Spring, Starter Magnet Switch Return
28169 28169-55050 Clamp, Starter Motor Lead Wire
28175 28175-55050 Gasket, Magnet Switch Cover
28226 28226-22050 Starter Kit, Battery Terminal
28226 28226-74070 Starter Kit, Battery Terminal
28228 28228-26040 Roller, Starter Idle Gear Clutch
28229 28229-74070 Retainer, Starter Idle Gear
28235 28235-55050 Plunger, Magnet Switch
28252 28254-74070 Pinion, Starter Drive
9009900270 90099-00270 Screw, Starter
9009904448 90099-04448 Bolt, Starter
9009904449 90099-04449 New Genuine Part
9009904474 90099-04474 New Genuine Part
9009905129 90099-05129 Nut (For Front Wiper Arm Setting)
9009912009 90099-12009 Ball, Starter Clutch
9009914064 90099-14064 Rubber(For Starter Yoke)
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9161261055 91612-61055 Bolt (For Transfer Case)
Steering Column & Shaft ([02.1995 - ] ﾃﾞﾝﾄﾞｳﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ (9502- )) 38
#OEMPart name
45025 45025-26022 Cover Sub-Assy, Steering Column Hole, No.1
45025 45025-26060 Cover Sub-Assy, Steering Column Hole, No.1
45026 45026-26011 Cover Sub-Assy, Steering Column Hole, No.2
45201 90363-18008 Bearing(For Steering Main Shaft)
45201 90363-18017 Bearing(For Steering Main Shaft)
45201 90520-17042 Ring, Shaft Snap(For Steering Main Shaft)
45201 90501-40017 Spring, Compression(For Steering Main Shaft)
45204 45204-26091 Tube Assy, Steering Column, Lower
45209 45209-26020 Yoke Sub-Assy, Steering Sliding
45210 45210-26050 Shaft Assy, Steering Main
45215 45215-12010 Collar, Main Shaft Bearing Thrust
45280 45280-26151 Bracket Assy, Steering Column, Upper
45856 45856-22010 Bolt, Tilt Steering, No.1
45856 45856-22020 Bolt, Tilt Steering, No.2
45879 45879-26020 Bracket, Steering Column Upper Support, No.2
45879 45879-26040 Bracket, Steering Column Upper Support, No.2
45897 45897-12020 Bolt, Steering Lock Set
91631 91631-G0618 New Genuine Part
91651 91651-G0825 New Genuine Part
9010906161 90109-06161 New Genuine Part
9011908560 90119-08560 Bolt, Hexagon
9011908560 90080-11555 Bolt w-washer
9011908845 90119-08845 New Genuine Part
9011908845 91621-40812 BOLT
9017908068 90179-08068 NUT
9017908141 90179-08141 Nut (For Transmission Control Cable)
9017908141 90179-08038 Nut
9038908081 90389-08081 Bush(For Tilt Steering Bolt No.2)
9038910024 90389-10024 Bush(For Tilt Steering Bolt No.1)
9161260612 91612-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161260612 91611-G0612 Bolt
9161260820 91612-60820 Bolt(For Clutch Release Cylinder Setting)
9161260820 91611-G0820 Bolt
9164180820 91641-80820 Bolt(For Transaxle & Engine Setting)
9164180820 91641-H0820 Bolt
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9331914006 93319-14006 SCREW WITH WASHER
Steering Column & Shaft ([08.1989 - ] (8908- )) 54
#OEMPart name
45222 45222-27030 Cover, Dust(For Steering Bevel Gear)
45222 45222-27050 Cover, Dust(For Steering Bevel Gear)
45266 45266-26020 Cover, Steering Intermediate Shaft Dust
45283 45283-22010 Plate, Safety Caution
45286 45286-26380-B0 Cover, Steering Column
45286 45287-26280-B0 Cover, Steering Column
45308 90311-15002 Seal, Oil(For Steering Bevel Gear Housing)
45312 45312-26140 Bracket, Steering Bevel Gear Housing
45380 45380-37010 Gear Assy, Steering Bevel
45380 90209-18002 Washer(For Steering Bevel Gear)
45380 90209-18003 Washer(For Steering Bevel Gear)
45380 90209-18004 Washer(For Steering Bevel Gear)
45380 90209-18005 Washer(For Steering Bevel Gear)
45380 90209-18006 Washer(For Steering Bevel Gear)
45380 90209-18007 Washer(For Steering Bevel Gear)
45380 90209-18008 Washer(For Steering Bevel Gear)
45383 90501-18063 Spring, Compression(For Steering Bevel Gear)
45383 90501-20080 Spring, Compression(For Steering Bevel Gear)
45383 90363-15010 Bearing, Radial Ball(For Steering Bevel Gear)
45384 45384-27010 Cover, Steering Bevel Gear
45385 45385-27010 Seat, Lock Bolt(For Steering Bevel Gear)
45385 90113-08006 Bolt, Set(For Lock Bolt Seat)
45388 45388-27010 Plate, Steering Bevel Gear
45389 45389-27010 Holder, Steering Bevel Gear Spring
45389 45389-27021 Holder, Steering Bevel Gear Spring
45390 45390-26031 Shaft Assy, Steering Torque
45545 45545-10010 Screw, Pinion Bearing Adjusting
45545 90179-38001 Nut(For Pinion Bearing Adjusting Screw)
45635 45635-26040 Support, Intermediate Link Joint Protector
45636 45636-26020 Protector, Intermediate Link Joint, Upper
45637 45637-26050 Protector, Inter Link Joint, Lwr No.1
45638 45638-26011 Protector, Inter Link Joint, Lower No.2
45895 45895-26040 Plate, Tilt Lever Instruction
9010510093 90105-10093 New Genuine Part
9011906255 90119-06255 New Genuine Part
9011906447 90119-06447 New Genuine Part
9011908560 90119-08560 Bolt, Hexagon
9011908560 90080-11555 Bolt w-washer
9016450048 90164-50048 SCREW
9017008021 90170-08021 New Genuine Part
9017908141 90179-08141 Nut (For Transmission Control Cable)
9017908141 90179-08038 Nut
9036418006 90364-18006 Bearing
9036418007 90364-18007 New Genuine Part
9046812016 90468-12016 New Genuine Part
9161261040 91612-61040 Bolt(For Transmission Case & Engine Setting)
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165140820 91651-40820 Bolt
9165161025 91651-61025 Bolt with washer
9331514010 93315-14010 SCREW
9356855014 93568-55014 Screw
9413001002 94130-01002 Nut, Booster Sleeve Cylinder
Steering Column & Shaft ([08.1989 - ] ｼﾕﾄﾞｳﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ (8908- )) 62
#OEMPart name
45025 45025-26022 Cover Sub-Assy, Steering Column Hole, No.1
45025 45025-26060 Cover Sub-Assy, Steering Column Hole, No.1
45201 90363-18008 Bearing(For Steering Main Shaft)
45201 90363-18017 Bearing(For Steering Main Shaft)
45201 90520-17042 Ring, Shaft Snap(For Steering Main Shaft)
45201 90501-40017 Spring, Compression(For Steering Main Shaft)
45204 45204-26091 Tube Assy, Steering Column, Lower
45205 45205-26230 Tube Sub-Assy, Steering Column, Upper
45209 45209-26020 Yoke Sub-Assy, Steering Sliding
45210 45210-26050 Shaft Assy, Steering Main
45215 45215-12010 Collar, Main Shaft Bearing Thrust
45280 45280-26151 Bracket Assy, Steering Column, Upper
45804 94613-10601 Washer (For Primary Regulator Valve)
45804 90507-08010 Spring, Tension(For Steering Tilt Lever)
45804 90507-08012 Spring, Tension(For Steering Tilt Lever)
45804 90507-12035 Spring, Tension(For Steering Tilt Lever)
45819 45819-22060 Retainer, Tilt Lever
45820 45820-12020 Spring Assy, Tilt Steering Support
45826 90386-06043 Bush(For Steering Column Tube)
45826 45826-22050 Lever, Steering Tilt
45827 45827-22030 Lever, Steering Tilt Sub
45831 45831-22020 Bolt, Tilt Lever Lock, No.1
45856 45856-22010 Bolt, Tilt Steering, No.1
45856 45856-22020 Bolt, Tilt Steering, No.2
45879 45879-26020 Bracket, Steering Column Upper Support, No.2
45879 45879-26040 Bracket, Steering Column Upper Support, No.2
45880 45880-26010 Lever Assy, Steering Tilt
45890 45890-20110 Pawl Assy, Tilt Steering
45890 45890-22090 Pawl Assy, Tilt Steering
45893 45893-20260 Stopper, Tilt Steering Pawl
45893 45893-20270 Stopper, Tilt Steering Pawl
45893 45893-20280 Stopper, Tilt Steering Pawl
45893 45893-20290 Stopper, Tilt Steering Pawl
45893 45893-20300 Stopper, Tilt Steering Pawl
45893 45893-20310 Stopper, Tilt Steering Pawl
45893 45893-20320 Stopper, Tilt Steering Pawl
45893 45893-24010 Stopper, Tilt Steering Pawl
45893 45893-24020 Stopper, Tilt Steering Pawl
45893 45893-24030 Stopper, Tilt Steering Pawl
45893 45893-24040 Stopper, Tilt Steering Pawl
45893 45893-24050 Stopper, Tilt Steering Pawl
45893 45893-24060 Stopper, Tilt Steering Pawl
45893 45893-24070 Stopper, Tilt Steering Pawl
45897 45897-12020 Bolt, Steering Lock Set
91611 91611-G0820 Bolt
91621 91621-B0625 New Genuine Part
9010906162 90109-06162 Bolt(For Steering Tilt Lever)
9011908560 90119-08560 Bolt, Hexagon
9011908560 90080-11555 Bolt w-washer
9017906156 90179-06156 Nut (For Transmission Control Cable)
9017908044 90179-08044 NUT
9017908068 90179-08068 NUT
9017910065 90179-10065 Nut, Master Cylinder Push Rod Clevis Lock
9050425002 90504-25002 Spring(For Steering Column Tube)
9161160820 91611-60820 Bolt(For Transaxle & Engine Setting)
9165160818 91651-60818 BOLTWWASHER
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9338315014 93383-15014 Screw(For Steering Tilt Lever)
9411040600 94110-40600 Nut, Rock
9451200600 94512-00600 Washer, Seal(For Head Cover Set)
9616000800 96160-00800 Ring, E(For Counter Weight)
Steering Column & Shaft ([08.1989 - ] ﾁﾙﾄｽﾃｱﾘﾝｸﾞ (ﾅｼ ﾃﾚｽｺﾋﾟﾂｸ) (8908- )) 68
#OEMPart name
45025 45025-26022 Cover Sub-Assy, Steering Column Hole, No.1
45025 45025-26060 Cover Sub-Assy, Steering Column Hole, No.1
45026 45026-26011 Cover Sub-Assy, Steering Column Hole, No.2
45201 90363-18008 Bearing(For Steering Main Shaft)
45201 90363-18017 Bearing(For Steering Main Shaft)
45201 90520-17042 Ring, Shaft Snap(For Steering Main Shaft)
45201 90501-40017 Spring, Compression(For Steering Main Shaft)
45204 45204-26091 Tube Assy, Steering Column, Lower
45205 45205-26230 Tube Sub-Assy, Steering Column, Upper
45209 45209-26020 Yoke Sub-Assy, Steering Sliding
45210 45210-26050 Shaft Assy, Steering Main
45215 45215-12010 Collar, Main Shaft Bearing Thrust
45271 45271-26010 Clamp, Steering Column, Upper
45280 45280-26151 Bracket Assy, Steering Column, Upper
45804 94613-10601 Washer (For Primary Regulator Valve)
45804 90507-08010 Spring, Tension(For Steering Tilt Lever)
45804 90507-08012 Spring, Tension(For Steering Tilt Lever)
45804 90507-12035 Spring, Tension(For Steering Tilt Lever)
45819 45819-22060 Retainer, Tilt Lever
45820 45820-12020 Spring Assy, Tilt Steering Support
45826 90386-06043 Bush(For Steering Column Tube)
45826 45826-22050 Lever, Steering Tilt
45827 45827-22030 Lever, Steering Tilt Sub
45831 45831-22020 Bolt, Tilt Lever Lock, No.1
45856 45856-22010 Bolt, Tilt Steering, No.1
45856 45856-22020 Bolt, Tilt Steering, No.2
45877 45877-26010 Spacer, Steering Column Bracket
45879 45879-26020 Bracket, Steering Column Upper Support, No.2
45879 45879-26040 Bracket, Steering Column Upper Support, No.2
45880 45880-26010 Lever Assy, Steering Tilt
45890 45890-20110 Pawl Assy, Tilt Steering
45890 45890-22090 Pawl Assy, Tilt Steering
45893 45893-20260 Stopper, Tilt Steering Pawl
45893 45893-20270 Stopper, Tilt Steering Pawl
45893 45893-20280 Stopper, Tilt Steering Pawl
45893 45893-20290 Stopper, Tilt Steering Pawl
45893 45893-20300 Stopper, Tilt Steering Pawl
45893 45893-20310 Stopper, Tilt Steering Pawl
45893 45893-20320 Stopper, Tilt Steering Pawl
45893 45893-24010 Stopper, Tilt Steering Pawl
45893 45893-24020 Stopper, Tilt Steering Pawl
45893 45893-24030 Stopper, Tilt Steering Pawl
45893 45893-24040 Stopper, Tilt Steering Pawl
45893 45893-24050 Stopper, Tilt Steering Pawl
45893 45893-24060 Stopper, Tilt Steering Pawl
45893 45893-24070 Stopper, Tilt Steering Pawl
45897 45897-12020 Bolt, Steering Lock Set
91611 91611-G0820 Bolt
91631 91631-G0618 New Genuine Part
91641 91641-H0822 New Genuine Part
91651 91651-G0825 New Genuine Part
9010906162 90109-06162 Bolt(For Steering Tilt Lever)
9011906576 90119-06576 New Genuine Part
9011906576 90119-06791 New Genuine Part
9011908560 90119-08560 Bolt, Hexagon
9011908560 90080-11555 Bolt w-washer
9017906156 90179-06156 Nut (For Transmission Control Cable)
9017908141 90179-08141 Nut (For Transmission Control Cable)
9017908141 90179-08038 Nut
9017910065 90179-10065 Nut, Master Cylinder Push Rod Clevis Lock
9050425002 90504-25002 Spring(For Steering Column Tube)
9165160818 91651-60818 BOLTWWASHER
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9338315014 93383-15014 Screw(For Steering Tilt Lever)
9411040600 94110-40600 Nut, Rock
9451200600 94512-00600 Washer, Seal(For Head Cover Set)
9616000800 96160-00800 Ring, E(For Counter Weight)
Steering Column & Shaft ([08.1989 - ] ﾘｼﾞﾂﾄﾞ ｽﾃｱﾘﾝｸﾞ (8908- )) 26
#OEMPart name
45025 45025-26022 Cover Sub-Assy, Steering Column Hole, No.1
45025 45025-26060 Cover Sub-Assy, Steering Column Hole, No.1
45201 90363-18008 Bearing(For Steering Main Shaft)
45201 90363-18017 Bearing(For Steering Main Shaft)
45201 90520-17042 Ring, Shaft Snap(For Steering Main Shaft)
45201 90501-40017 Spring, Compression(For Steering Main Shaft)
45204 45204-26091 Tube Assy, Steering Column, Lower
45205 45205-26230 Tube Sub-Assy, Steering Column, Upper
45209 45209-26020 Yoke Sub-Assy, Steering Sliding
45210 45210-26050 Shaft Assy, Steering Main
45215 45215-12010 Collar, Main Shaft Bearing Thrust
45271 45271-26010 Clamp, Steering Column, Upper
45280 45280-26151 Bracket Assy, Steering Column, Upper
45879 45879-26020 Bracket, Steering Column Upper Support, No.2
45879 45879-26040 Bracket, Steering Column Upper Support, No.2
45897 45897-12020 Bolt, Steering Lock Set
91611 91611-G0612 Bolt
91611 91611-G0820 Bolt
9011908560 90119-08560 Bolt, Hexagon
9011908560 90080-11555 Bolt w-washer
9020119010 90201-19010 New Genuine Part
9161260612 91612-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9164180820 91641-80820 Bolt(For Transaxle & Engine Setting)
9164180820 91641-H0820 Bolt
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
Steering Wheel ([08.1998 - ] 2-SPOKE(URETHANE) (9808- )) 14
#OEMPart name
45100 45100-26220-B0 Wheel Assy, Steering
45100 45100-26220-B2 Wheel Assy, Steering
45100 45100-26250-B0 Wheel Assy, Steering
45105 45105-26100 Plate Sub-Assy, Horn Button Contact, No.1
45130 45130-26240-B0 Button Assy, Horn
45130 45130-26240-B3 Button Assy, Horn
45130 45130-26340-B0 Button Assy, Horn
45155 45155-12050 Spacer(For Horn Button Contact Plate)
45180 45180-26030-B0 Cover Sub-Assy, Steering Wheel
45186 45186-26010-B0 Cover, Steering Wheel, Lower No.2
45201 90179-12071 Nut, Steering Wheel Set
9015950016 90159-50016 New Genuine Part
9016840103 90168-40103 New Genuine Part
9356014020 93560-14020 New Genuine Part
Steering Wheel ([08.1998 - ] 2-SPOKE(URETHANE),ｱﾘ(*80) (9808- )) 9
#OEMPart name
45100 45100-26220-B0 Wheel Assy, Steering
45100 45100-26220-B2 Wheel Assy, Steering
45100 45100-26250-B0 Wheel Assy, Steering
45130 45130-26240-B0 Button Assy, Horn
45130 45130-26240-B3 Button Assy, Horn
45130 45130-26340-B0 Button Assy, Horn
45186 45186-26010-B0 Cover, Steering Wheel, Lower No.2
45201 90179-12071 Nut, Steering Wheel Set
9014860011 90148-60011 Screw, Steering Wheel Pad Attaching
Suspension Crossmember & Under Cover ([08.1989 - ] (8908- )LH100,110,120,140,RZH10#,11#,12#,133, 18#,TRH102,112,12#) 9
#OEMPart name
51021 51021-95J09 Member Sub-Assy, Engine Front Support
51203 51203-26160 Crossmember Sub-Assy, Front Suspension
51217 51217-26060 Reinforcement, Front Suspension Member, Rh
51218 51218-95J02 Reinforcement, Front Suspension Member, Lh
51403 51403-95J01 Bracket Sub-Assy, Engine Rear Mounting
9010514071 90105-14071 New Genuine Part
9010514136 90105-14136 Bolt, Engine Front Mounting Member
9010514137 90105-14137 Bolt, Engine Front Mounting Member
9166161030 91661-61030 Bolt
Switch & Relay & Computer ([08.1989 - ] ｶｳﾙ ﾘﾚ- & ｽｲﾂﾁ (8908- )) 24
#OEMPart name
28300 28300-75010 Relay Assy, Starter
81980 81980-50030 Flasher Assy, Turn Signal
82223 82223-26040 Wire, Switch
82825 82825-26010 Cover, Relay
83650 90986-01005 Fusee
84340 84340-42020 Switch Assy, Stop Lamp
85980 85980-26090 Relay Assy, Door Control
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part
8271595 82715-95J00 Bracket,wiring Harness Clamp
9011906198 90119-06198 New Genuine Part
9046313003 90463-13003 Clamp, Hood Lock Control Wire
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9165140614 91651-40614 Bolt
9165140816 91651-40816 BOLT
9165160614 91651-60614 Bolt
9165640814 91656-40814 New Genuine Part
9165640814 91651-40814 BOLT
9338516012 93385-16012 New Genuine Part
9356755016 93567-55016 Screw
9356755016 93568-55016 Screw
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
Switch & Relay & Computer ([08.1989 - ] ﾌﾛﾝﾄ ﾄﾞｱ ｽｲﾂﾁ (8908- )) 35
#OEMPart name
28300 28300-75010 Relay Assy, Starter
82620 82620-26410 Block Assy, Fusible Link
82622 82622-26020 Cover, Fusible Link, Upper
82623 82623-26040 Cover, Fusible Link, Lower
84233 84231-26100 Switch Assy, Courtesy Lamp (For Front Door)
84485 84485-26010 Switch, Power Outlet(Ac100V Accessory Socket)
84485 84999-10320 Bulb, Satellite Switch
84485 90010-01024 Bulb, Main Switch Assy
84550 84550-16060 Switch Assy, Parking Brake
84730 84730-26070 Switch Assy, Heater Blower
84730 84730-95J05 Switch Assy, Heater Blower
84730 84730-95J06 Switch Assy, Heater Blower
84810 84810-32070 Switch Assy, Power Window Regulator
84820 84820-26140 Master Switch Assy, Power Window Regulator
84931 84931-26030 Switch, Door Control
84931 84931-26100 Switch, Door Control
85530 85530-26060 Socket Assy, Power Outlet, No.1
85933 85933-26010 Computer, Shift Lock Control
8481926010 84819-26010 New Genuine Part
8481926020 84819-26020 New Genuine Part
8481926030 84819-26030 New Genuine Part
9010906296 90109-06296 BOLT
9011906390 90119-06390 BOLT WWASHER
9011908063 90119-08063 BOLT
9015360012 90153-60012 New Genuine Part
9016426001 90164-26001 New Genuine Part
9016430003 90164-30003 New Genuine Part
9016440100 90164-40100 New Genuine Part
9165160614 91651-60614 Bolt
9331514014 93315-14014 SCREW
9331915010 93319-15010 SCREW
9351016012 93510-16012 Screw, Pillar Joint Setting
9354016012 93540-16012 New Genuine Part
9354016012 93540-56012 New Genuine Part
9354054014 93540-54014 SCREW
Switch & Relay & Computer ([08.1989 - ] ﾌﾛﾝﾄ ﾌﾛｱ ﾘﾚ- & ｽｲﾂﾁ,ﾄﾞｱ ｺﾝﾄﾛ-ﾙ (8908- )) 31
#OEMPart name
84234 84231-26110 Switch Assy, Courtesy Lamp (For Rear Door)
84261 84261-26071 Junction, Slide Door Control,male
84262 84262-95J03 Junction, Slide Door Control, Female
84730 84730-26070 Switch Assy, Heater Blower
84730 84730-95J05 Switch Assy, Heater Blower
84730 84730-95J06 Switch Assy, Heater Blower
84732 84732-95J06 Switch, Rear Heater Blower
85336 85335-25010 Switch Assy, Reserve Tank Level Warning
85530 85530-26010 Socket Assy, Power Outlet, Rear No.1
86210 86210-26050 Inverter Assy, Voltage
2332264020 23322-64020 Plug, Drain(For Fuel Filter)
2334454010 23344-54010 O-Ring (For Drain Plug)
8271126120 82711-26120 Wire, Fuse To Fuse(for Combustion Heater)
9010906296 90109-06296 BOLT
9011906005 90119-06005 New Genuine Part
9011906171 90119-06171 BOLT
9011906390 90119-06390 BOLT WWASHER
9011906885 90119-06885 Bolt, Radiator Tank Pipe
9011906911 90119-06911 BOLT WWASHER
9015360012 90153-60012 New Genuine Part
9015920001 90159-20001 New Genuine Part
9015960025 90159-60025 SCREW W-WASHER
9015960121 90159-60121 New Genuine Part
9017906274 90179-06274 Nut
9018905019 90189-05019 New Genuine Part
9018905131 90189-05131 WASHER
9046304340 90463-04340 New Genuine Part
9046306097 90463-06097 New Genuine Part
9322913014 93229-13014 New Genuine Part
9331913010 93319-13010 New Genuine Part
9353055020 93530-55020 SCREW
Switch & Relay & Computer ([08.1989 - ] ﾘﾔ ﾌﾛｱ,ﾊﾞﾂｸﾄﾞｱ ﾘﾚ- & ｽｲﾂﾁ (8908- )) 9
#OEMPart name
83320 83320-80341 Gage Assy, Fuel Sender
83361 83361-20030 Gasket, Fuel Tank Vent
93319 93319-A4010 SCREW WWASHER
9011906390 90119-06390 BOLT WWASHER
9015960025 90159-60025 SCREW W-WASHER
9016150004 90161-50004 New Genuine Part
9018905019 90189-05019 New Genuine Part
9018905063 90189-05063 New Genuine Part
9165160614 91651-60614 Bolt
Switch & Relay & Computer ([08.1989 - ] ﾙ-ﾌ ﾘﾚ- & ｽｲﾂﾁ (8908- )) 10
#OEMPart name
91641 91641-H0625 BOLT WWASHER
8271526010 82715-26010 Bracket,wiring Harness Clamp
8271526700 82715-26700 Bracket,wiring Harness Clamp
9015130004 90151-30004 New Genuine Part
9015930121 90159-30121 New Genuine Part
9015960086 90159-60086 New Genuine Part
9018905019 90189-05019 New Genuine Part
9321915008 93219-15008 New Genuine Part
9354015016 93540-15016 New Genuine Part
9413060300 94130-60300 New Genuine Part
Switch & Relay & Computer ([08.1995 - ] ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ ｽｲﾂﾁ (9508- )) 27
#OEMPart name
84162 84160-95J05 Switch, Front Fog Lamp
84162 84160-95J03 Switch, Front Fog Lamp
84162 84160-95D00 Switch, Front Fog Lamp
84330 84332-26080 Switch Assy, Hazard Warning Signal
84330 84999-10320 Bulb, Satellite Switch
84485 84485-26010 Switch, Power Outlet(Ac100V Accessory Socket)
84485 90010-01024 Bulb, Main Switch Assy
84660 84660-26010 Switch, Cooler
84660 84660-22080 Switch, Cooler
84730 84732-22130 Switch Assy, Heater Blower
84730 84732-22132 Switch Assy, Heater Blower
84730 90981-11014 Bulb, Position Indicator Lamp
84730 84998-10050 Cap, Satellite Switch
84730 84730-26070 Switch Assy, Heater Blower
84730 84730-95J05 Switch Assy, Heater Blower
84730 84730-95J06 Switch Assy, Heater Blower
84790 84790-26050 Switch Assy, Rear Window Defogger
84790 84790-43010 Switch Assy, Rear Window Defogger
84790 84790-95J01 Switch Assy, Rear Window Defogger
84790 84999-10310 Bulb, Air Conditioner Control
85500 85500-17060 Lighter Assy, Cigarette
85500 90010-01022 Bulb, Key Cylinder Lamp
85513 85513-28020 Cover, Cigarette Lighter
85515 85515-26010 Stay, Cigarette Lighter Bezel
85520 85520-17020 Knob And Element Assy, Cigarette Lighter
85530 85530-26060 Socket Assy, Power Outlet, No.1
88607 88607-16010 Bulb(For Cooler Switch)
Switch & Relay & Computer ([08.1996 - ] ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ ﾘﾚ- (9608- )) 26
#OEMPart name
82600 90982-09005 Fuse, Fuse Block
82600 90982-09007 Fusible Link
82600 90982-09009 Fusible Link
82600 90982-09010 Fusible Link
82600 90982-09011 Fusible Link
82610 82610-26080 Block Assy, Fuse
82615 82605-26020 Bracket, Fuse
82616 82616-20010 Puller, Fuse
82660 82660-26041 Block Assy, Relay, Cowl Side
82660 82660-26140 Block Assy, Relay
82660 82660-26150 Block Assy, Relay
82660 82660-26160 Block Assy, Relay
82660 82660-26170 Block Assy, Relay
82661 82661-26051 Cover, Relay Block, No.1
82661 82661-26073 Cover, Relay Block, No.1
82672 82672-26031 Cover, Junction Block
82672 82672-26020 Cover, Junction Block
82734 82734-26022 Block, Center Junction
85910 90987-04002 Relay, Ignition, No.1
85910 90987-02024 Relay, Ignition, No.1
85916 90987-02006 Relay
85916 90987-02012 Relay, Ignition, No.1
88630 90987-04004 Relay, Starter Cut
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part
9011906885 90119-06885 Bolt, Radiator Tank Pipe
Switch & Relay & Computer ([08.1998 - ] ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ (9808- )03S,05S,06S,08S,09S,10S,15S) 18
#OEMPart name
84140 84140-26180 Switch Assy, Headlamp Dimmer
84306 84306-26070 Cable Sub-Assy, Spiral
84310 84310-2F230 Switch Assy, Turn Signal
84310 84319-10010 Housing, Steering Wheel Switch
84310 84652-26560 Switch Assy, Windshield Wiper
84310 84310-2F400 Switch Assy, Turn Signal
84310 84319-26030 Housing, Steering Wheel Switch
84312 84312-26010 Plate, Horn Contact
84450 84450-26090 Switch Assy, Ignition Or Starter
84450 84450-26100 Switch Assy, Ignition Or Starter
85432 85432-22010 Solenoid, Key Inter Lock
89435 89435-26090 Bracket, Connector Cover
9014940013 90149-40013 New Genuine Part
9046400551 90464-00551 New Genuine Part
9165140816 91651-40816 BOLT
9331913008 93319-13008 New Genuine Part
9331915012 93319-15012 Screw
9338315012 93383-15012 SCREW WWASHER
Switch & Relay & Computer ([08.2003 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (0308- )TRH102,112,12#) 17
#OEMPart name
83530 83530-28020 Switch Assy, Oil Pressure (For Engine)
83530 83530-60020 Switch Assy, Oil Pressure (For Engine) - ＹＡＺＡＫＩ→ＤＥＮＳＯ
83530 83530-0E010 Switch Assy, Oil Pressure (For Engine)
84540 84540-30290 Switch Assy, Neutral Start
84540 84540-30300 Switch Assy, Neutral Start
89438 89438-33010 Switch, Power Steering Oil Pressure
89465 89465-26110 Sensor, Oxygen
89491 89491-25030 Sensor, Engine Oil Level
89491 89493-60010 Gasket, Engine Oil Level Sensor
89615 89615-20090 Sensor, Knock Control
91511 91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front)
827152 82715-2F260 Bracket,wiring Harness Clamp
9043018008 90430-18008 Gasket
9043018008 90430-T0021 Gasket(For Manual Transmission Filler Plug)
9165160614 91651-60614 Bolt
9166140820 91661-40820 New Genuine Part
9338516025 93385-16025 New Genuine Part
Throttle Link & Valve Lever (Atm) ([10.1990 - ] A45DL,A45DF,A44DE,A45DE (8908-9010)4FC ; (9010- )TRH102,112,12# ; (90 10- )LH102,103,107,113,119,123,1 29,162,17#,18#,RZ H10#,111,112,124,125,133,183..4FC) 16
#OEMPart name
35501 35501-26020 Rod Sub-Assy, Parking Lock
35505 35505-22040 Lever Sub-Assy, Manual Valve
35506 90254-04011 Pin, Slotted Spring (For Transfer Manual Valve Lever)
35506 90311-11003 Seal, Oil (For Manual Valve Lever Shaft)
35506 90560-20025 Spacer (For Manual Valve Lever)
35556 35556-26010 Shaft, Parking Lock Pawl
35556 90523-08021 Ring, E (For Parking Lock Pawl Shaft)
35557 35557-26020 Pawl, Parking Lock
35557 90508-21001 Spring, Torsion (For Parking Lock Pawl)
35561 35561-40010 Shaft Sub-Assy, Manual Valve Lever
35572 35572-26010 Lever, Transmission Control Shaft, Rh
35595 35595-40010 Bracket, Parking Lock Pawl
9010106024 90101-06024 New Genuine Part
9411050800 94110-50800 Nut(For Repair Actuator Set)
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9454200600 94542-00600 New Genuine Part
Timing Gear Cover & Rear End Plate ([08.2003 - ] (0308- )1TRFE) 41
#OEMPart name
11301 90301-25014 Ring, O(For Timing Gear Case, Upper)
11301 90341-16022 Plug, W/head Straight Screw(For Timing Gear Case)
11301 90919-05059 Sensor, Crank Position
11301 90919-05036 Sensor, Cam Position
11301 90469-07018 Clamp
11302 11310-75060 Cover Sub-Assy, Timing Chain Or Belt
11302 11310-75061 Cover Sub-Assy, Timing Chain Or Belt
11302 11310-75066 Cover Sub-Assy, Timing Chain Or Belt
11302 91671-80840 BOLT FLANGE
11303 90311-48020 Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11354 11354-75020 Seal, Flywheel Housing Dust
11354 11354-75030 Seal, Flywheel Housing Dust
11355 11355-75020 Plate, Rear End
11355 11355-75021 Plate, Rear End
11355 90950-01967 Plug, Hole(For Rear End Plate)
11381 11381-75010 Retainer, Engine Rear Oil Seal
11381 11381-75012 Retainer, Engine Rear Oil Seal
11381 90311-88005 Seal, Engine Rear Oil
11381 90311-88006 Seal, Engine Rear Oil
16603 16603-75010 Pulley Sub-Assy, Idler
16620 16620-75010 Tensioner Assy, V-Ribbed Belt
16620 16620-75030 Tensioner Assy, V-Ribbed Belt
16620 16620-75031 Tensioner Assy, V-Ribbed Belt
91551 91551-A0622 BOLT FLANGE
91672 91672-K1075 BOLT FLANGE
9010508020 90105-08020 Bolt(For Transaxle Case & Transmission Case Setting)
9010508338 90105-08338 BOLT WASHER BASED
9010508424 90105-08424 New Genuine Part
9011608337 90116-08337 BOLT STUD
9018010005 90180-10005 New Genuine Part
9155100820 91551-00820 Bolt, Hexagon (For Rear Spring Seat Bolt)
9155180616 91551-80616 BOLT FLANGE
9155180875 91551-80875 Bolt, Compressor, No.1
9155281040 91552-81040 Bolt(For Alternator)
9164180835 91641-80835 Bolt, Compressor, No.1
9167180814 91671-80814 BOLT FLANGE WWASER
9167180814 90119-A0165 New Genuine Part
9167281090 91672-81090 New Genuine Part
9211280822 92112-80822 New Genuine Part
9415180800 94151-80800 Nut (For Transmission Control Cable)
9672335028 96723-35028 Gasket(For Oil Filter Cap)
Tool Box & License Plate Bracket ([08.1989 - ] (8908- )) 3
#OEMPart name
58780 58780-95J01 Band Assy, Tool Box
75231 75231-95J00 Box, Tool Bag
9046708076 90467-08076-C0 Clip(For Room Partition Board)
Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - ] A44DE,A45DL,A45DE,A45DF (8908-9010)4FC ; (9010- )LH102,103,107,113,11 9,123,129,162,17#,18#,RZH10#,111,11 2,124,125,133,183 ,TRH102,112,12#..4FC) 26
#OEMPart name
30250 30250-26090 Converter Assy, Torque, Rebuilt
32000 32000-26090 Converter Assy, Torque
32101 32101-26010 Gear Sub-Assy, Drive Plate & Ring
32101 90119-09009 Bolt(For Drive Plate & Torque Converter Setting)
32101 90119-09010 Bolt(For Drive Plate & Torque Converter Setting)
32101 90105-10276 Bolt, Hexagon(For Drive Plate Setting)
32116 32116-26010 Spacer, Drive Plate, Front
32117 32117-26010 Spacer, Drive Plate, Rear
35301 35301-22021 Body Sub-Assy, Front Oil Pump
35301 90311-38064 Seal, Oil (For Front Oil Pump)
35301 90301-99010 Ring, O (For Front Oil Pump Body)
35321 35321-22020 Gear Sub-Assy, Front Oil Pump Drive
35321 35321-22030 Gear Sub-Assy, Front Oil Pump Drive
35321 35321-22040 Gear Sub-Assy, Front Oil Pump Drive
35321 35321-22050 Gear Sub-Assy, Front Oil Pump Drive
35321 35321-22060 Gear Sub-Assy, Front Oil Pump Drive
35322 35322-22020 Gear, Front Oil Pump Driven
35322 35322-22030 Gear, Front Oil Pump Driven
35322 35322-22040 Gear, Front Oil Pump Driven
35322 35322-22050 Gear, Front Oil Pump Driven
35322 35322-22060 Gear, Front Oil Pump Driven
35370 35370-22060 Shaft Assy, Stator
35617 35617-32010 Ring, Clutch Drum Oil Seal
35701 90374-25003 Bearing, Thrust (For Input Shaft Front)
9010506126 90105-06126 Bolt (For Stator Shaft)
9010508137 90105-08137 Bolt (For Front Oil Pump Setting)
Transaxle Or Transmission Assy & Gasket Kit (Atm) ([07.2000 - ] A44DE,A45DL,A45DF,A45DE (0007- )LH162,172,182,184,RZH10#,11#,125,183, TRH102,112,12#..4FC) 4
#OEMPart name
4351 04351-26090 Gasket Kit, Automatic Transmission Overhaul
4351 04351-26091 Gasket Kit, Automatic Transmission Overhaul
30030 30030-2F630 Transmission Assy, Rebuilt
35000 35000-2F630 Transmission Assy, Automatic
Transmission Case & Oil Pan (Atm) ([08.2003 - ] A45DE (0308- )TRH102,112,12#..4FC) 33
#OEMPart name
35013 35013-26350 Tube Sub-Assy, Transmission Oil Filler
35103 35103-26300 Gage Sub-Assy, Transmission Oil Level
35104 35104-22060 Case Sub-Assy, Automatic Transmission
35104 90341-08001 Plug, Transaxle Case, No.1
35104 90930-03098 Plug, Breather, No.1 (Atm)
35104 90930-03168 Plug, Breather, No.1 (Atm)
35104 90445-11145 Hose (For Breather Plug)
35106 35106-26060 Pan Sub-Assy, Automatic Transmission Oil
35106 90341-10011 Drain Plug (No Type)
35106 35178-30010 Drain Plug Gasket
35111 35111-26070 Housing, Automatic Transmission
35111 90301-99054 Ring, O (For Automatic Transmission Housing)
35111 90301-06196 O Ring, Transaxle Case, No.1
35139 35139-26020 Bracket, Oil Filler Tube
35143 35143-22010 Cover, Transmission Case, Rear
35144 35144-28010 Gasket, Transmission Case Rear Cover
35168 35168-22011 Gasket, Automatic Transmission Oil Pan
35336 90301-09173 Ring, O(For Transmission Oil Filler Tube)
35394 35394-30011 Magnet, Oil Cleaner (For Transmission)
35519 35519-20030 Label, Automatic Transmission Information
91611 91611-B0816 Bolt
91619 91619-G1255 New Genuine Part
9094901 90949-01B81 New Genuine Part
9010510190 90105-10190 New Genuine Part
9010512144 90105-12144 New Genuine Part
9011906117 90119-06117 Bolt (For Automatic Transmission Oil Pan)
9011906117 90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)
9161261040 91612-61040 Bolt(For Transmission Case & Engine Setting)
9161261055 91612-61055 Bolt (For Transfer Case)
9165140610 91651-40610 RIVET
9165140816 91651-40816 BOLT
9322016012 93220-16012 SCREW
9613251000 96132-51000 Clip Or Clamp(For Ventilation Hose)
V-Belt ([08.1989 - ] (8908- )) 2
#OEMPart name
16361 90916-02640 Belt, V(For Fan & Alternator)
16361 90916-02708 Belt, V(For Fan & Alternator)
Vacuum Piping ([08.2003 - ] (0308- )1TRFE) 7
#OEMPart name
23820 23820-75110 Hose Assy, Fuel Vapor Feed
23827 23827-75280 Hose, Fuel Vapor Feed, No.2
23827 96132-51300 Clip(For Ventilation Hose No.2)
23829 23829-75310 Hose, Fuel Vapor Feed
25860 25860-75270 Valve Assy, Vacuum Switching, No.1
91671 91671-A0612 BOLT FLANGE
9046400723 90464-00723 Clamp Or Clip, Hose(For Water By-Pass Hose)
Valve Body & Oil Strainer (Atm) ([08.2003 - ] A45DE (0308- )TRH102,112,12#..4FC) 26
#OEMPart name
35208 35208-28010 Spring Sub-Assy, B-2 Accumulator
35208 90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)
35216 35216-28010 Stopper, Valve Sleeve
35283 35283-28010 Sleeve, Lock Up Control Solenoid
35285 35285-28010 Plate, Solenoid Lock
35290 35290-25010 Solenoid Assy, Line Pressure Control
35330 35330-22032 Strainer Assy, Valve Body Oil
35410 35410-25090 Body Assy, Transmission Valve
35421 35421-26010 Piston, Accumulator, No.1
35421 90501-20162 Spring, Compression (For Accumulator Piston No.1)
35421 90501-25037 Spring, Compression (For Accumulator Piston No.1)
35421 90301-29011 Ring (For Accumulator Piston No.1)
35421 90301-23010 Ring (For Accumulator Piston No.1)
35421 35441-30010 Piston, Accumulator, No.2
35421 90501-25061 Spring, Compression (For Accumulator Piston No.2)
35421 90301-26012 Ring (For Accumulator Piston No.1)
35421 90301-18010 Ring (For Accumulator Piston No.2)
35421 35421-22030 Piston, Accumulator, No.3
35421 90301-21012 Ring (For Accumulator Piston No.3)
35892 35892-22010 Tube, Overdrive Brake
91511 91511-C0630 New Genuine Part
91511 91511-C0635 BOLT, FLANGE
9010506018 90105-06018 Bolt (For Throttle Valve Cam Set)
9010506028 90105-06028 New Genuine Part
9010506049 90105-06049 Bolt(For Transmission Case No.2 Plate)
9151180614 91511-80614 BOLT FLANGE
Vane Pump & Reservoir (Power Steering) ([08.2003 - ] (0308- )TRH102,112,12#) 6
#OEMPart name
4446 04446-32050 Gasket Kit, Power Steering Pump
40130 40130-25140 Pump Assy,vane Rebuilt
44305 44305-22040 Cap Sub-Assy, Vane Pump Oil Reservoir
44305 44305-22061 Cap Sub-Assy, Vane Pump Oil Reservoir
44320 44310-25140 Pump Assy, Vane
44360 44306-25060 Reservoir Sub-Assy, Vane Pump Oil
Ventilation Hose ([08.2003 - ] (0308- )1TRFE) 10
#OEMPart name
12204 12204-0C010 Valve Sub-Assy, Ventilation
12229 12229-75040 Pipe, Ventilation
12261 12261-75100 Hose, Ventilation
12261 90467-14001 Clip Or Clamp(For Ventilation Hose)
12261 90466-T0026 Clip Or Clamp(For Ventilation Hose)
12262 12262-75200 Hose, Ventilation, No.2
12262 90467-21004 Clip Or Clamp(For Ventilation Hose)
12263 12263-75070 Hose, Ventilation, No.3
12263 90467-17012 Clip Or Clamp(For Ventilation Hose)
9155180814 91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt)
Water Pump ([08.2003 - ] (0308- )1TRFE) 21
#OEMPart name
16100 16100-79445 Pump Assy, Engine Water
16100 90301-28012 Ring, O(For Water Pump)
16100 90301-25020 Ring, O(For Water Pump)
16124 16124-75030 Gasket, Water Pump Cover
16198 92122-80818 Bolt, Stud(For Water Pump Pulley Seat)
16210 16210-75090 Coupling Assy, Fluid
16371 16371-75040 Pulley, Fan
16603 16603-31010 Pulley Sub-Assy, Idler, No.1
16603 16603-31040 Pulley Sub-Assy, Idler, No.1
16603 90387-10174 COLLAR
16603 91672-81060 BOLT FLANGE
16659 16659-31010 Plate, Idler Pulley Cover, No.2
16659 16659-31011 Plate, Idler Pulley Cover, No.2
16659 16659-AD010 Plate, Idler Pulley Cover, No.2
91511 91511-K0616 New Genuine Part
9010910179 90109-10179 BOLT
9038710172 90387-10172 New Genuine Part
9056010019 90560-10019 Spacer(For Pump Bracket, Front)
9155180616 91551-80616 BOLT FLANGE
9155281055 91552-81055 Shaft, Brake Pedal
9415180800 94151-80800 Nut (For Transmission Control Cable)
Windshield Washer ([08.1989 - ] (8908- )) 25
#OEMPart name
85031 85031-30010 Valve Sub-Assy, Washer
85031 85031-12250 Valve Sub-Assy, Washer
85035 85035-95J01 Nozzle Sub-Assy, Washer
85035 85035-95J05 Nozzle Sub-Assy, Washer
85035 85035-95J10 Nozzle Sub-Assy, Washer
85310 85330-35050 Motor And Pump Assy, Windshield Washer
85330 85330-95J06 Jar Assy, Windshield Washer
85330 90099-32089 Bush, Headlamp Cleaner Washer Jar
85330 90068-32002 Bush, Windshield Washer Jar
85332 85332-95J00 Cap, Windshield Washer Jar
85342 85342-95J02 Holder, Washer Nozzle
85348 85348-12250 Joint, Windshield Washer Hose, No.1
85348 85349-89122 Valve Sub-Assy, Washer
85349 85349-32150 Joint, Windshield Washer Hose, No.1
85371 90099-33299 Joint, Windshield Washer Elbow, No.2
85371 90446-06013 Hose, Windshield Washer (From Motor To Joint)
85372 90099-59302 Hose, Windshield Washer (From Joint To Joint), No.1
85373 85374-26060 Hose, Windshield Washer (From Joint To Nozzle)
85373 90099-33418 Hose, Windshield Washer (From Joint To Joint), No.1
7728126040 77281-26040 Bracket, Fuel Main Tube, No.1
8271112140 82711-12140 Wire, Fuse To Fuse(for Combustion Heater)
9015960424 90159-60424 SCREWWWASHER
9095901375 90959-01375 New Genuine Part
9162640816 91626-40816 New Genuine Part
9166160816 91661-60816 Bolt
Windshield Wiper ([08.1996 - ] (9608- )) 23
#OEMPart name
85110 85110-26090 Motor Assy, Windshield Wiper
85110 85110-26130 Motor Assy, Windshield Wiper
85154 85154-26050 Packing, Front Wiper Shaft
85160 85160-95J02 Link Assy, Windshield Wiper
85168 85168-95700 Nut, Windshield Wiper Link Pivot
85178 90179-08113 Nut (For Front Wiper Arm Setting)
85190 85211-26040 Arm Assy, Windshield Wiper
85190 85221-26030 Arm Assy, Windshield Wiper
85214 85214-48020 Rubber, Wiper, Rh
85214 85214-53041 Rubber, Wiper, Lh
85220 85212-26040 Blade Assy, Windshield Wiper - RH side
85220 85212-26041 Blade Assy, Windshield Wiper
85220 85222-26040 Blade Assy, Windshield Wiper - LH side
85220 85222-48111 Blade, Fr Wiper, Lh - LH side
85220 85291-22080 Blade Assy, Windshield Wiper
85220 85291-33050 Blade Assy, Windshield Wiper
85224 85224-26030 Plate, Wiper Rubber Backing, No.1
85224 85224-35040 Plate, Wiper Rubber Backing, No.3
85230 85269-95J01 Bracket Assy, Windshield Wiper
9011908063 90119-08063 BOLT
9011908103 90119-08103 New Genuine Part
9165160814 91651-60814 Clamp Or Clip, Hose(for Radiator Outlet No.1)
9165160814 91651-B0814 Bolt with washer
Wireless Door Lock ([08.2002 - ] (0208- )SGL,SGLE) 9
#OEMPart name
89070 89070-33070 Transmitter Assy, Door Control
89071 89071-33030 Module Set, Transmitter Sub-Assy, Door Control
89072 89072-33020 Housing Set, Door Control Transmitter
89708 89708-26090 Cylinder Set, Wireless Door Lock
89741 89741-26150 Receiver, Door Control
89745 89745-40010 Transmitter Battery
8975840010 89758-40010 Packing, Door Control Transmitter
8975940010 89759-40010 Screw, Door Control Transmitter
8975940020 89759-40020 Screw, Door Control Transmitter
Wiring & Clamp ([08.1989 - ] ｴﾝｼﾞﾝ NO.2 (8908- )) 22
#OEMPart name
82122 82122-26570 Wire, Engine, No.2
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part
827112 82711-2A190 Wire, Fuse To Fuse(for Combustion Heater)
827152 82715-2F150 Bracket,wiring Harness Clamp
827152 82715-2F250 Bracket,wiring Harness Clamp
8271595 82715-95J12 Bracket,wiring Harness Clamp
8271595 82715-95J25 Bracket,wiring Harness Clamp
8271526100 82715-26100 Bracket,wiring Harness Clamp
8271526230 82715-26230 Bracket,wiring Harness Clamp
8271594350 82715-94350 Bracket,wiring Harness Clamp
9011908063 90119-08063 BOLT
9011908103 90119-08103 New Genuine Part
9016860010 90168-60010 New Genuine Part
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9046106645 90461-06645 New Genuine Part
9046110275 90461-10275 New Genuine Part
9048001419 90480-01419 New Genuine Part
9161961216 91619-61216 New Genuine Part
9165161032 91651-61032 BOLT
9338515010 93385-15010 Screw(For Steering Tilt Lever)
Wiring & Clamp ([08.1989 - ] ｴﾝｼﾞﾝ ﾙｰﾑ (ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ) (8908- )) 38
#OEMPart name
91651 90119-A0109 New Genuine Part
827112 82711-2A710 Wire, Fuse To Fuse(for Combustion Heater)
827152 82715-2F010 Bracket,wiring Harness Clamp
827152 82715-2F240 Bracket,wiring Harness Clamp
827152 82715-2F300 Bracket,wiring Harness Clamp
827152 82715-2F290 Bracket,wiring Harness Clamp
8270295 82702-95J00 Bracket Sub-assy, Wiring Harness
8271195 82711-95J12 Wire, Fuse To Fuse(for Combustion Heater)
8271195 82711-95J24 Wire, Fuse To Fuse(for Combustion Heater)
8271595 82715-95J00 Bracket,wiring Harness Clamp
8271595 82715-95J03 Bracket,wiring Harness Clamp
8271595 82715-95J11 Bracket,wiring Harness Clamp
8271595 82715-95J13 Bracket,wiring Harness Clamp
8271595 82715-95J26 Bracket,wiring Harness Clamp
8270226020 82702-26020 Bracket Sub-assy, Wiring Harness
8270226030 82702-26030 Bracket Sub-assy, Wiring Harness
8271110370 82711-10370 Wire, Fuse To Fuse(for Combustion Heater)
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
8271112320 82711-12320 Wire, Fuse To Fuse(for Combustion Heater)
8271122270 82711-22270 Clamp(For Transfer Vacuum Tube)
8271126070 82711-26070 Wire, Fuse To Fuse(for Combustion Heater)
8271126100 82711-26100 Wire, Fuse To Fuse(for Combustion Heater)
8271526130 82715-26130 Bracket,wiring Harness Clamp
8272926270 82729-26270 New Genuine Part
9015950068 90159-50068 SCREW
9015950220 90159-50220 New Genuine Part
9015960025 90159-60025 SCREW W-WASHER
9018905055 90189-05055 GROMMET
9046310055 90463-10055 New Genuine Part
9046315439 90463-15439 New Genuine Part
9046400500 90464-00500 New Genuine Part
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165140816 91651-40816 BOLT
9165160814 91651-60814 Clamp Or Clip, Hose(for Radiator Outlet No.1)
9165160814 91651-B0814 Bolt with washer
9324016016 93240-16016 New Genuine Part
Wiring & Clamp ([08.1989 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐｯｼｮﾝ (ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ) (8908- )) 48
#OEMPart name
91621 91621-J0612 BOLT W-WASHER
91622 91622-G1014 BOLT WWASHER
827112 82711-2A140 Wire, Fuse To Fuse(for Combustion Heater)
8271195 82711-95J12 Wire, Fuse To Fuse(for Combustion Heater)
8271195 82711-95J26 Wire, Fuse To Fuse(for Combustion Heater)
8271595 82715-95J39 Bracket,wiring Harness Clamp
8271112120 82711-12120 Clamp(Rear Seat)
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
8271122270 82711-22270 Clamp(For Transfer Vacuum Tube)
8271124010 82711-24010 Wire, Fuse To Fuse(for Combustion Heater)
8271125030 82711-25030 Wire, Fuse To Fuse(for Combustion Heater)
8271126110 82711-26110 Wire, Fuse To Fuse(for Combustion Heater)
8271130260 82711-30260 Wire, Fuse To Fuse(for Combustion Heater)
8271187009 82711-87009 Wire, Fuse To Fuse(for Combustion Heater)
8271522560 82715-22560 Bracket,wiring Harness Clamp
8271525850 82715-25850 Bracket,wiring Harness Clamp
8271525860 82715-25860 Bracket,wiring Harness Clamp
8271526030 82715-26030 Bracket,wiring Harness Clamp
8271526110 82715-26110 Bracket,wiring Harness Clamp
8271526120 82715-26120 Bracket,wiring Harness Clamp
8271526140 82715-26140 Bracket,wiring Harness Clamp
8271526141 82715-26141 Bracket,wiring Harness Clamp
8271526150 82715-26150 Bracket,wiring Harness Clamp
8271526160 82715-26160 Bracket,wiring Harness Clamp
8271526161 82715-26161 Bracket,wiring Harness Clamp
8271526290 82715-26290 Bracket,wiring Harness Clamp
8271528370 82715-28370 Bracket,wiring Harness Clamp
8271528430 82715-28430 Bracket,wiring Harness Clamp
8271530500 82715-30500 Bracket,wiring Harness Clamp
8271550160 82715-50160 Bracket,wiring Harness Clamp
8272926050 82729-26050 New Genuine Part
8272926280 82729-26280 New Genuine Part
8272926290 82729-26290 New Genuine Part
8272926300 82729-26300 New Genuine Part
8272926310 82729-26310 New Genuine Part
9011908413 90119-08413 New Genuine Part
9046106102 90461-06102 New Genuine Part
9116261216 91162-61216 New Genuine Part
9121241016 91212-41016 New Genuine Part
9155180814 91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt)
9161160612 91611-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612 91611-G0612 Bolt
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165160612 91651-60612 BOLT
9167180612 91671-80612 Bolt
Wiring & Clamp ([08.1989 - ] ｺﾈｸﾀ (8908- )) 18
#OEMPart name
9098010173 90980-10173 New Genuine Part
9098010179 90980-10179 New Genuine Part
9098010355 90980-10355 New Genuine Part
9098010619 90980-10619 Housing, Connector
9098010795 90980-10795 HOUSING CONNECTOR
9098010859 90980-10859 Housing, Connector
9098010893 90980-10893 New Genuine Part
9098010908 90980-10908 HOUSING CONNECTOR
9098010942 90980-10942 Housing, Connector
9098011011 90980-11011 HOUSING,CONNECTOR
9098011019 90980-11019 HOUSING, CONNECTOR
9098011075 90980-11075 HOUSING CONNECTOR
9098011149 90980-11149 Connector, housing
9098011156 90980-11156 Housing, Connector
9098011162 90980-11162 Housing, Connector
9098011235 90980-11235 Connector housing
9098011294 90980-11294 HOUSING CONNECTOR
9098011314 90980-11314 HOUSING, CONNECTOR
Wiring & Clamp ([08.1989 - ] ﾄﾞｱ & ｼｰﾄ (8908- )) 8
#OEMPart name
82151 82151-26026 Wire, Front Door, Rh
82152 82152-26055 Wire, Front Door, Lh
8271595 82715-95J06 Bracket,wiring Harness Clamp
8271595 82715-95J20 Bracket,wiring Harness Clamp
8271114230 82711-14230 Wire, Fuse To Fuse(for Combustion Heater)
9165140614 91651-40614 Bolt
9165260616 91652-60616 New Genuine Part
9338516014 93385-16014 New Genuine Part
Wiring & Clamp ([08.1989 - ] ﾊﾞｯｸ ﾄﾞｱ (8908- )) 11
#OEMPart name
82185 82185-26031 Wire, Back Door, No.2
82186 82186-95J01 Wire, Rear Window, No.1
82188 82188-26011 Wire, Back Door, No.3
6139195 61391-95J00 Spacer, Center Body Pillar, Inner
8281995 82819-95J18 Grommet, Wiring Harness
8281995 82819-95J19 Grommet, Wiring Harness
8271114560 82711-14560 Wire, Fuse To Fuse(for Combustion Heater)
8281926300 82819-26300 Grommet, Wiring Harness
8281926310 82819-26310 Grommet, Wiring Harness
9015460024 90154-60024 New Genuine Part
9015460024 90154-60024-C0 New Genuine Part
Wiring & Clamp ([08.1989 - ] ﾌﾚｰﾑ (ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ) (8908- )) 12
#OEMPart name
827152 82715-2F350 Bracket,wiring Harness Clamp
827152 82715-2F360 Bracket,wiring Harness Clamp
8271595 82715-95J13 Bracket,wiring Harness Clamp
8271595 82715-95J30 Bracket,wiring Harness Clamp
8271595 82715-95J36 Bracket,wiring Harness Clamp
8270226070 82702-26070 Bracket Sub-assy, Wiring Harness
8271122690 82711-22690 Wire, Fuse To Fuse(for Combustion Heater)
8271126160 82711-26160 Wire, Fuse To Fuse(for Combustion Heater)
8271526240 82715-26240 Bracket,wiring Harness Clamp
8271526270 82715-26270 Bracket,wiring Harness Clamp
8271526570 82715-26570 Bracket,wiring Harness Clamp
9065140816 90651-40816 New Genuine Part
Wiring & Clamp ([08.1989 - ] ﾌﾛｱ & ﾌﾚｰﾑ (8908- )) 15
#OEMPart name
82119 82219-26060 Wire, Sensor
82119 82219-26070 Wire, Sensor
82158 82158-26011 Wire, Step Panel, Lh
82162 82162-26061 Wire, Floor, No.2
82164 82164-26490 Wire, Frame
82165 82165-26031 Wire, Frame, No.2
82169 82169-26070 Wire Frame, No.3
9011906390 90119-06390 BOLT WWASHER
9011908103 90119-08103 New Genuine Part
9048040507 90480-40507 New Genuine Part
9098005073 90980-05073 Filter, Noise
9162140820 91621-40820 Bolt
9165640820 91656-40820 BOLT
9165640820 91651-60816 BOLT
9165660820 91656-60820 New Genuine Part
Wiring & Clamp ([08.1989 - ] ﾌﾛｱ (ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ) (8908- )) 13
#OEMPart name
827112 82711-2A710 Wire, Fuse To Fuse(for Combustion Heater)
827152 82715-2F310 Bracket,wiring Harness Clamp
8271195 82711-95J22 Wire, Fuse To Fuse(for Combustion Heater)
8271195 82711-95J32 Wire, Fuse To Fuse(for Combustion Heater)
8271595 82715-95J13 Bracket,wiring Harness Clamp
8271595 82715-95J21 Bracket,wiring Harness Clamp
8270226070 82702-26070 Bracket Sub-assy, Wiring Harness
8271122690 82711-22690 Wire, Fuse To Fuse(for Combustion Heater)
8271126130 82711-26130 Wire, Fuse To Fuse(for Combustion Heater)
8271126160 82711-26160 Wire, Fuse To Fuse(for Combustion Heater)
8271126200 82711-26200 Wire, Fuse To Fuse(for Combustion Heater)
8271526220 82715-26220 Bracket,wiring Harness Clamp
9165140816 91651-40816 BOLT
Wiring & Clamp ([08.1989 - ] ﾙｰﾌ (8908- )) 15
#OEMPart name
82171 82171-26616 Wire, Roof, No.1
82171 82171-26635 Wire, Roof, No.1
82171 82171-2F770 Wire, Roof, No.1
82719 82719-26020-B0 Cover, Wire Hanress Service Hole(For Center Pillar)
827112 82711-2A710 Wire, Fuse To Fuse(for Combustion Heater)
6139195 61391-95J00 Spacer, Center Body Pillar, Inner
8271195 82711-95J28 Wire, Fuse To Fuse(for Combustion Heater)
8271114230 82711-14230 Wire, Fuse To Fuse(for Combustion Heater)
8271130130 82711-30130 Wire, Fuse To Fuse(for Combustion Heater)
8271195015 82711-95015 Wire, Fuse To Fuse(for Combustion Heater)
8281726290 82817-26290 Protector, Wiring Harness, No.1
9011906005 90119-06005 New Genuine Part
9015960086 90159-60086 New Genuine Part
9018905019 90189-05019 New Genuine Part
9163140612 91631-40612 New Genuine Part
Wiring & Clamp ([08.1993 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐｯｼｮﾝ (9308- )KZH10#,11#,12#,13#,TRH102,112,12#) 15
#OEMPart name
82121 82121-26A00 Wire, Engine
82125 82125-25140 Wire, Transmission
82125 82125-26180 Wire, Transmission
82219 82219-26160 Wire, Sensor
82823 82823-22050 Cap, Terminal, No.1
91511 91511-B0812 BOLT FLANGE
91611 91611-B0816 Bolt
91641 91641-H0614 New Genuine Part
91642 91642-H0614 New Genuine Part
9017004002 90170-04002 Nut, Connecting(For Glow Plug)
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9018904024 90189-04024 Grommet, Screw(For Glow Plug)
9151180616 91511-80616 New Genuine Part
9167380814 91673-80814 Bolt Flange W Washe
Wiring & Clamp ([08.1993 - ] ﾍｯﾄﾞﾗﾝﾌﾟ,ﾌｫｸﾞ,ABS (9308- )) 7
#OEMPart name
82020 82020-26153 Harness Assy, Wiring Cowl To Headlamp
82024 82024-26030 Wire Sub-Assy, Fog Lamp Feed
82025 82025-26010 Wiring Sub-Assy, Front Side
827152 82715-2F270 Bracket,wiring Harness Clamp
8271526670 82715-26670 Bracket,wiring Harness Clamp
9011908103 90119-08103 New Genuine Part
9011908795 90119-08795 New Genuine Part
Wiring & Clamp ([08.1996 - ] ｶｳﾙ (9608- )) 14
#OEMPart name
82131 82135-26802 Wire, Cowl
82168 82167-26031 Wire, Seat, No.1
82210 90982-08202 Fusible Link
82210 90982-08246 Fusible Link
82210 90982-08280 Fusible Link
82210 90982-08281 Fusible Link
827113 82711-3F120 Wire, Fuse To Fuse(for Combustion Heater)
8271195015 82711-95015 Wire, Fuse To Fuse(for Combustion Heater)
8271526250 82715-26250 Bracket,wiring Harness Clamp
8272926160 82729-26160 New Genuine Part
9015950068 90159-50068 SCREW
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165160614 91651-60614 Bolt
Wiring & Clamp ([08.2003 - ] ｴﾝｼﾞﾝ ﾙｰﾑ (0308- )TRH102,112,12#) 14
#OEMPart name
82111 82115-26132 Wire, Engine Room Main
82111 82115-26142 Wire, Engine Room Main
82111 82115-26152 Wire, Engine Room Main
82157 82157-26010 Wire, Step Panel, Rh
82210 90982-08202 Fusible Link
82210 90982-08246 Fusible Link
82210 90982-08280 Fusible Link
82210 90982-08281 Fusible Link
82223 82223-26080 Wire, Switch
82817 82817-20160 Protector, Wiring Harness, No.1
91631 91631-J0612 BRACKET
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part
9356055014 93560-55014 SCREW
Wiring & Clamp ([08.2003 - ] ｴﾝｼﾞﾝ ﾙｰﾑ NO.2 (0308- )TRH102,112,12#) 5
#OEMPart name
82112 82112-26530 Wire, Engine Room, No.2
82210 90982-08202 Fusible Link
82210 90982-08246 Fusible Link
82210 90982-08280 Fusible Link
82210 90982-08281 Fusible Link
Wiring & Clamp ([08.2003 - ] ｹｰﾌﾞﾙ ﾎﾞﾝﾄﾞ (0308- )TRH102,112,12#) 2
#OEMPart name
82001 90980-07228 Cable, Bond, No.1
9011908063 90119-08063 BOLT
Source
Public OEM parts-catalog data
Variants
1 / 21
Category
239
Collected
2026-08-03
