Search › Model › TGN36

TGN36

Toyota HILUX-4RUNNER-TRUCK · 2005 · 3,045 parts · 193 categories

3,045 items

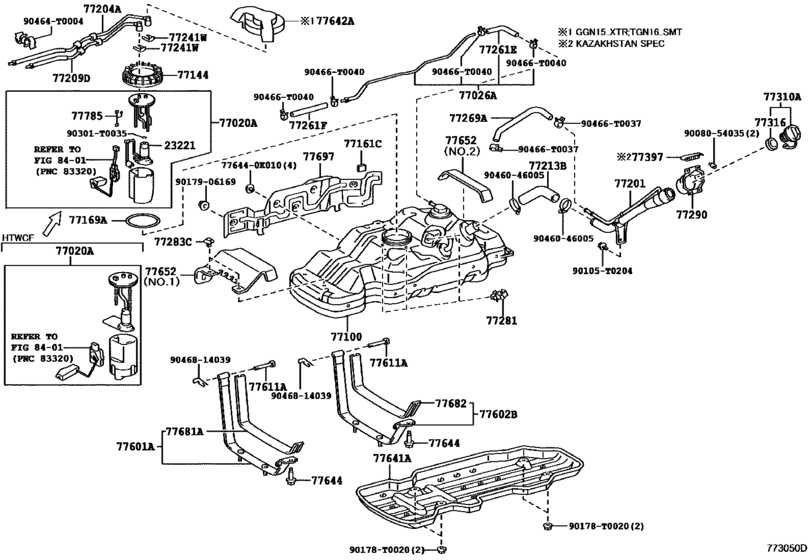

Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU) 46

#	OEM	Part name
23221	23220-0C051	Pump, Fuel
23221	23220-0C140	Pump, Fuel
77020	77020-0K180	Tube Assy, Fuel Suction W/pump & Gage
77026	77026-0K010	Tube Sub-Assy, Fuel Evaporation, No.1
77100	77001-0K091	Tank Assy, Fuel
77144	77144-0K010	Retainer, Fuel Pump Gauge
77161	77671-0K010	Protector, Fuel Tank, Lower
77169	77169-0K010	Gasket, Fuel Suction Tube Set
77201	77201-0K070	Pipe Sub-Assy, Fuel Tank Inlet
77204	77204-0K010	Tube, Fuel Tank Return
77209	77209-0K010	Tube Sub-Assy, Fuel Tank Main
77213	77213-0K020	Hose, Fuel Tank To Filler Pipe
77213	77213-0K021	Hose, Fuel Tank To Filler Pipe
77241	77241-33011	Clip, Tube Joint
77261	95333-06030	Hose, Fuel
77261	95338-06030	HOSE, FUEL
77269	77269-0K020	Hose, Fuel Tank Breather
77281	77281-0K070	Bracket, Fuel Main Tube, No.1
77283	77283-0K010	Bracket, Fuel Tank Protector
77290	77290-0K030	Shield Assy, Fuel Tank Filler Pipe
77310	77300-52030	Cap Assy, Fuel Tank
77316	77316-52040	Gasket, Fuel Tank Cap
77601	77601-0K100	Band Sub-Assy, Fuel Tank, No.1
77602	77602-0K090	Band Sub-Assy, Fuel Tank, No.1 Lh
77611	77653-0K041	Pin (For Fuel Tank Band)
77641	77641-0K150	Protector, Fuel Tank, No.1
77644	77644-35030	Bolt, Fuel Tank
77652	77652-0K010	Cushion, Fuel Tank, No.1
77652	77652-0K020	Cushion, Fuel Tank, No.1
77681	77681-0K070	Seat, Fuel Tank Band
77682	77682-0K040	Seat, Fuel Tank Band, Lh
77697	77697-0K010	Insulator, Fuel Tank Heat, No.1
77785	77785-0K010	Harness, Fuel Pump
77785	77785-0K011	Harness, Fuel Pump
90105	90105-T0204	New Genuine Part
90178	90178-T0020	New Genuine Part
90301	90301-T0035	Ring, O(For Fuel Pump)
90464	90464-T0004	New Genuine Part
90466	90466-T0037	CLIP HOSE
90466	90466-T0040	Clip(For Fuel Hose No.2)
776440	77644-0K010	Bracket, Fuel Tank
9008054035	90080-54035	CUSHION
9008054035	90541-06058	CUSHION
9017906169	90179-06169	Nut
9046046005	90460-46005	Clamp (For Fuel Filler Pipe)
9046814039	90468-14039	CLIP

OEM	Part name	Category
23220-0C051	Pump, Fuel	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
23220-0C140	Pump, Fuel	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77001-0K091	Tank Assy, Fuel	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77020-0K180	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77026-0K010	Tube Sub-Assy, Fuel Evaporation, No.1	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77144-0K010	Retainer, Fuel Pump Gauge	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77169-0K010	Gasket, Fuel Suction Tube Set	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77201-0K070	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77204-0K010	Tube, Fuel Tank Return	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77209-0K010	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77213-0K020	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77213-0K021	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77241-33011	Clip, Tube Joint	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77269-0K020	Hose, Fuel Tank Breather	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77281-0K070	Bracket, Fuel Main Tube, No.1	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77283-0K010	Bracket, Fuel Tank Protector	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77290-0K030	Shield Assy, Fuel Tank Filler Pipe	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77300-52030	Cap Assy, Fuel Tank	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77316-52040	Gasket, Fuel Tank Cap	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77601-0K100	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77602-0K090	Band Sub-Assy, Fuel Tank, No.1 Lh	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77641-0K150	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77644-0K010	Bracket, Fuel Tank	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77644-35030	Bolt, Fuel Tank	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77652-0K010	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77652-0K020	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77653-0K041	Pin (For Fuel Tank Band)	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77671-0K010	Protector, Fuel Tank, Lower	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77681-0K070	Seat, Fuel Tank Band	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77682-0K040	Seat, Fuel Tank Band, Lh	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77697-0K010	Insulator, Fuel Tank Heat, No.1	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77785-0K010	Harness, Fuel Pump	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
77785-0K011	Harness, Fuel Pump	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
90080-54035	CUSHION	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
90105-T0204	New Genuine Part	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
90178-T0020	New Genuine Part	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
90179-06169	Nut	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
90301-T0035	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
90460-46005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
90464-T0004	New Genuine Part	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
90466-T0037	CLIP HOSE	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
90466-T0040	Clip(For Fuel Hose No.2)	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
90468-14039	CLIP	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
90541-06058	CUSHION	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
95333-06030	Hose, Fuel	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
95338-06030	HOSE, FUEL	Fuel Tank & Tube ([07.2011 - ] FUEL TANK(UNLEADED GASOLINE) (1107- )GGN15,25,35,TGN15,16,26,36..CBU)
