Search › Model › TGN36

TGN36

Toyota HILUX-4RUNNER-TRUCK · 2005 · 3,045 parts · 193 categories

3,045 items

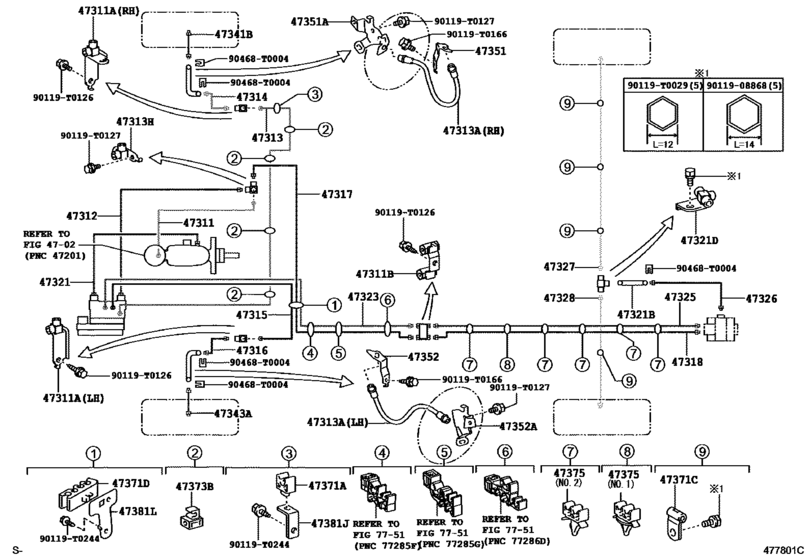

Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL) 56

#	OEM	Part name
47311	47311-0K030	Tube, Front Brake, No.1
47311	47311-0K070	Tube, Front Brake, No.1
47311	90412-10251	Way(For Front Brake Tube)
47311	90412-10252	Way(For Front Brake Tube)
47311	90412-10253	Way, No.1(For Front Brake Tube)
47312	47312-0K030	Tube, Front Brake, No.2
47312	47312-0K060	Tube, Front Brake, No.2
47313	47313-0K040	Tube, Front Brake, No.3
47313	47313-0K100	Tube, Front Brake, No.3
47313	90080-94029	Hose, Flexible, No.1(For Front)
47313	90413-10312	Way, No.3(For Front Brake Tube)
47314	47314-0K030	Tube, Front Brake, No.4
47314	47314-0K050	Tube, Front Brake, No.4
47315	47315-0K040	Tube, Front Brake, No.5
47315	47315-0K100	Tube, Front Brake, No.5
47316	47316-0K030	Tube, Front Brake, No.6
47316	47316-0K050	Tube, Front Brake, No.6
47317	47317-0K020	Tube, Front Brake, No.7
47317	47317-0K060	Tube, Front Brake, No.7
47318	47318-0K040	Tube, Front Brake, No.8
47318	47318-0K070	Tube, Front Brake, No.8
47321	47321-0K030	Tube, Rear Brake, No.1
47321	47321-0K060	Tube, Rear Brake, No.1
47321	90947-T2015	Hose, Flexible(For Rear Brake Tube)
47321	90413-10308	Way, No.1(For Rear Brake Tube)
47323	47323-0K040	Tube, Rear Brake, No.3
47323	47323-0K100	Tube, Rear Brake, No.3
47325	47325-0K050	Tube, Rear Brake, No.5
47325	47325-0K090	Tube, Rear Brake, No.5
47326	47329-0K021	Tube, Rear Brake, No.6
47327	47327-0K021	Tube, Rear Brake, No.7
47327	47327-0K031	Tube, Rear Brake, No.7
47328	47328-0K021	Tube, Rear Brake, No.8
47328	47328-0K031	Tube, Rear Brake, No.8
47341	47341-0K030	Tube, Wheel Cylinder, Front Rh No.1
47343	47343-0K030	Tube, Wheel Cylinder, Front Lh No.1
47351	47351-0K010	Bracket, Flexible Hose(For Front Rh)
47351	47353-0K020	Bracket, Flexible Hose, Front Rh No.1
47352	47352-0K030	Bracket, Flexible Hose(For Front Lh)
47352	47354-0K020	Bracket, Flexible Hose, Front Lh No.1
47371	90949-T1011	Clamp, Brake Tube, No.1
47371	90461-T0001	Clamp, Brake Tube, No.7
47371	90461-T0002	Clamp, Brake Tube, No.7
47371	90949-T1010	Clamp, Brake Tube, No.8
47373	90949-T1012	Clamp, Brake Tube, No.3
47375	90469-T0006	Clamp, Brake Tube, No.5
47375	90949-T1004	Clamp, Brake Tube, No.5
47381	90949-T2001	Bracket, Brake Tube Clamp, No.2
47381	90949-T2002	Bracket, Brake Tube Clamp, No.3
90119	90119-T0029	Bolt (For Transmission Control Cable Bracket)
90119	90119-T0126	BOLT WWASHER
90119	90119-T0127	New Genuine Part
90119	90119-T0166	BOLT WWASHER
90119	90119-T0244	BOLT WWASHER
90468	90468-T0004	CLIP
9011908868	90119-08868	BOLT WWASHER

OEM	Part name	Category
47311-0K030	Tube, Front Brake, No.1	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47311-0K070	Tube, Front Brake, No.1	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47312-0K030	Tube, Front Brake, No.2	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47312-0K060	Tube, Front Brake, No.2	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47313-0K040	Tube, Front Brake, No.3	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47313-0K100	Tube, Front Brake, No.3	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47314-0K030	Tube, Front Brake, No.4	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47314-0K050	Tube, Front Brake, No.4	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47315-0K040	Tube, Front Brake, No.5	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47315-0K100	Tube, Front Brake, No.5	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47316-0K030	Tube, Front Brake, No.6	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47316-0K050	Tube, Front Brake, No.6	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47317-0K020	Tube, Front Brake, No.7	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47317-0K060	Tube, Front Brake, No.7	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47318-0K040	Tube, Front Brake, No.8	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47318-0K070	Tube, Front Brake, No.8	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47321-0K030	Tube, Rear Brake, No.1	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47321-0K060	Tube, Rear Brake, No.1	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47323-0K040	Tube, Rear Brake, No.3	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47323-0K100	Tube, Rear Brake, No.3	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47325-0K050	Tube, Rear Brake, No.5	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47325-0K090	Tube, Rear Brake, No.5	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47327-0K021	Tube, Rear Brake, No.7	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47327-0K031	Tube, Rear Brake, No.7	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47328-0K021	Tube, Rear Brake, No.8	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47328-0K031	Tube, Rear Brake, No.8	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47329-0K021	Tube, Rear Brake, No.6	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47341-0K030	Tube, Wheel Cylinder, Front Rh No.1	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47343-0K030	Tube, Wheel Cylinder, Front Lh No.1	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47351-0K010	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47352-0K030	Bracket, Flexible Hose(For Front Lh)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47353-0K020	Bracket, Flexible Hose, Front Rh No.1	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
47354-0K020	Bracket, Flexible Hose, Front Lh No.1	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90080-94029	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90119-T0029	Bolt (For Transmission Control Cable Bracket)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90119-T0126	BOLT WWASHER	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90119-T0127	New Genuine Part	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90119-T0166	BOLT WWASHER	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90119-T0244	BOLT WWASHER	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90412-10251	Way(For Front Brake Tube)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90412-10252	Way(For Front Brake Tube)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90412-10253	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90413-10308	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90413-10312	Way, No.3(For Front Brake Tube)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90461-T0001	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90461-T0002	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90468-T0004	CLIP	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90469-T0006	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90947-T2015	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90949-T1004	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90949-T1010	Clamp, Brake Tube, No.8	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90949-T1011	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90949-T1012	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90949-T2001	Bracket, Brake Tube Clamp, No.2	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)
90949-T2002	Bracket, Brake Tube Clamp, No.3	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )TGN26..LHD..GCC,GEN ; (1107- )KUN2 5,TGN26..SR..ANCOM,SA ; (1107- ) GGN25,KUN2#,35,TG N36..LHD..DCB,THDCB,XTR..ANCOM,GCC,GEN,PHL)

Source: Public OEM parts-catalog data
Variants: 2 / 50
Category: 193
Collected: 2026-08-04
