Search › Model › TGN10

TGN10

Toyota HILUX-4RUNNER-TRUCK · 2005 · 2,630 parts · 187 categories

2,630 items

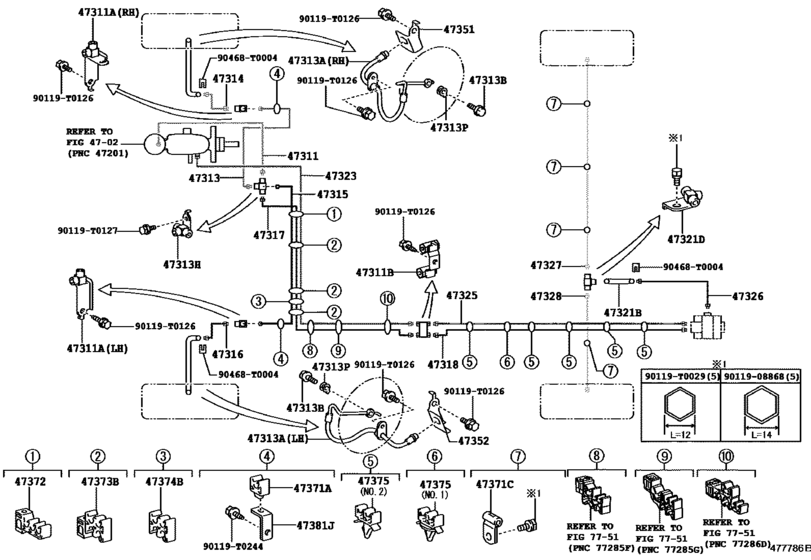

Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH) 44

#	OEM	Part name
47311	47311-0K010	Tube, Front Brake, No.1
47311	90412-10251	Way(For Front Brake Tube)
47311	90412-10252	Way(For Front Brake Tube)
47311	90412-10253	Way, No.1(For Front Brake Tube)
47313	47313-0K010	Tube, Front Brake, No.3
47313	47313-0K020	Tube, Front Brake, No.3
47313	90947-T2004	Hose, Flexible, No.1(For Front)
47313	90947-T2005	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	90413-10309	Way, No.3(For Front Brake Tube)
47313	90414-10055	Way, No.3(For Front Brake Tube)
47313	47389-50021	Gasket(For Front Flexible Hose)
47314	47314-0K020	Tube, Front Brake, No.4
47315	47315-0K010	Tube, Front Brake, No.5
47315	47315-0K020	Tube, Front Brake, No.5
47316	47316-0K020	Tube, Front Brake, No.6
47317	47317-0K010	Tube, Front Brake, No.7
47318	47318-0K010	Tube, Front Brake, No.8
47321	90947-T2011	Hose, Flexible(For Rear Brake Tube)
47321	90413-10311	Way, No.1(For Rear Brake Tube)
47323	47323-0K010	Tube, Rear Brake, No.3
47323	47323-0K020	Tube, Rear Brake, No.3
47325	47325-0K010	Tube, Rear Brake, No.5
47326	47329-0K011	Tube, Rear Brake, No.6
47327	47327-0K011	Tube, Rear Brake, No.7
47328	47328-0K011	Tube, Rear Brake, No.8
47351	47353-0K010	Bracket, Flexible Hose(For Front Rh)
47351	47353-0K011	Bracket, Flexible Hose(For Front Rh)
47352	47354-0K010	Bracket, Flexible Hose(For Front Lh)
47371	90949-T1011	Clamp, Brake Tube, No.1
47371	90461-T0001	Clamp, Brake Tube, No.7
47372	90949-T1014	Clamp, Brake Tube, No.2
47373	90949-T1008	Clamp, Brake Tube, No.3
47374	90949-T1009	Clamp, Brake Tube, No.4
47375	90469-T0007	Clamp, Brake Tube, No.5
47375	90949-T1006	Clamp, Brake Tube, No.8 - BRAKE TUBE, NO.5
47381	90949-T2001	Bracket, Brake Tube Clamp, No.2
90119	90119-T0029	Bolt (For Transmission Control Cable Bracket)
90119	90119-T0126	BOLT WWASHER
90119	90119-T0127	New Genuine Part
90119	90119-T0244	BOLT WWASHER
90468	90468-T0004	CLIP
9011908868	90119-08868	BOLT WWASHER

OEM	Part name	Category
47311-0K010	Tube, Front Brake, No.1	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
47313-0K010	Tube, Front Brake, No.3	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
47313-0K020	Tube, Front Brake, No.3	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
47314-0K020	Tube, Front Brake, No.4	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
47315-0K010	Tube, Front Brake, No.5	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
47315-0K020	Tube, Front Brake, No.5	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
47316-0K020	Tube, Front Brake, No.6	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
47317-0K010	Tube, Front Brake, No.7	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
47318-0K010	Tube, Front Brake, No.8	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
47323-0K010	Tube, Rear Brake, No.3	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
47323-0K020	Tube, Rear Brake, No.3	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
47325-0K010	Tube, Rear Brake, No.5	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
47327-0K011	Tube, Rear Brake, No.7	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
47328-0K011	Tube, Rear Brake, No.8	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
47329-0K011	Tube, Rear Brake, No.6	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
47353-0K010	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
47353-0K011	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
47354-0K010	Bracket, Flexible Hose(For Front Lh)	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
47389-50021	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90119-T0029	Bolt (For Transmission Control Cable Bracket)	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90119-T0126	BOLT WWASHER	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90119-T0127	New Genuine Part	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90119-T0244	BOLT WWASHER	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90412-10251	Way(For Front Brake Tube)	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90412-10252	Way(For Front Brake Tube)	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90412-10253	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90413-10309	Way, No.3(For Front Brake Tube)	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90413-10311	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90414-10055	Way, No.3(For Front Brake Tube)	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90461-T0001	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90468-T0004	CLIP	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90469-T0007	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90947-T2004	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90947-T2005	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90947-T2011	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90949-T1006	Clamp, Brake Tube, No.8 - BRAKE TUBE, NO.5	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90949-T1008	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90949-T1009	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90949-T1011	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90949-T1014	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
90949-T2001	Bracket, Brake Tube Clamp, No.2	Brake Tube & Clamp ([07.2011 - ] (1107- )KUN16..DLX..TH ; (1107- )KUN10,15, TGN10,16..RHD..DCR,HDCR,HTWC..GEN,I DN,PKN,TH)
