| 11301-75050 |
Case Sub-Assy, Timing Gear |

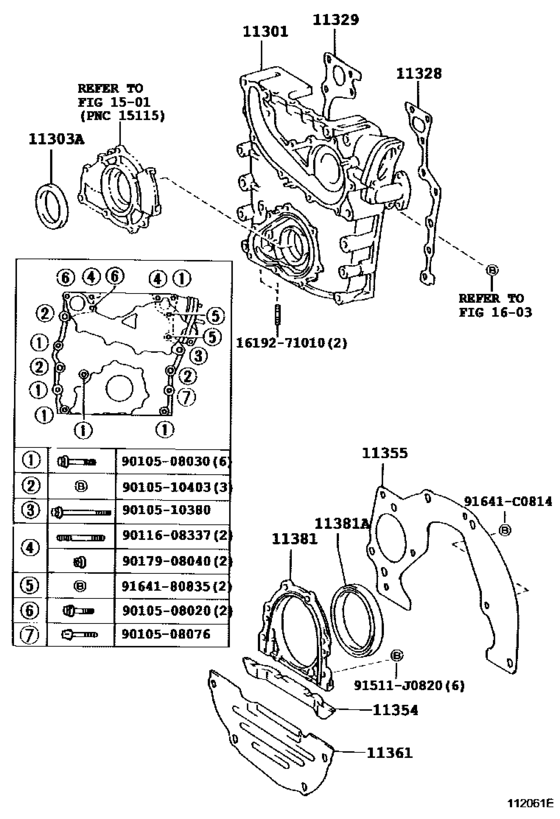

Timing Gear Cover & Rear End Plate ([07.2001 - 08.2003] (0107-0308)1RZE) |
| 11328-75010 |
Gasket, Timing Gear Or Chain Cover |
Timing Gear Cover & Rear End Plate ([07.2001 - 08.2003] (0107-0308)1RZE) |
| 11329-75010 |
Gasket, Timing Gear Rear Cover |
Timing Gear Cover & Rear End Plate ([07.2001 - 08.2003] (0107-0308)1RZE) |
| 11354-75010 |
Seal, Flywheel Housing Dust |
Timing Gear Cover & Rear End Plate ([07.2001 - 08.2003] (0107-0308)1RZE) |
| 11355-75010 |
Plate, Rear End |
Timing Gear Cover & Rear End Plate ([07.2001 - 08.2003] (0107-0308)1RZE) |
| 11361-75020 |
Cover, Flywheel Housing Under |
Timing Gear Cover & Rear End Plate ([07.2001 - 08.2003] (0107-0308)1RZE) |
| 11381-75010 |
Retainer, Engine Rear Oil Seal |
Timing Gear Cover & Rear End Plate ([07.2001 - 08.2003] (0107-0308)1RZE) |
| 11381-75012 |
Retainer, Engine Rear Oil Seal |
Timing Gear Cover & Rear End Plate ([07.2001 - 08.2003] (0107-0308)1RZE) |
| 16192-71010 |
BOLT |
Timing Gear Cover & Rear End Plate ([07.2001 - 08.2003] (0107-0308)1RZE) |
| 90105-08020 |
Bolt(For Transaxle Case & Transmission Case Setting) |
Timing Gear Cover & Rear End Plate ([07.2001 - 08.2003] (0107-0308)1RZE) |
| 90105-08030 |
Bolt(For Camshaft Housing Set) |
Timing Gear Cover & Rear End Plate ([07.2001 - 08.2003] (0107-0308)1RZE) |
| 90105-08076 |
BOLT |
Timing Gear Cover & Rear End Plate ([07.2001 - 08.2003] (0107-0308)1RZE) |
| 90105-10380 |
BOLT WASHER BASED |
Timing Gear Cover & Rear End Plate ([07.2001 - 08.2003] (0107-0308)1RZE) |
| 90105-10403 |
BOLT WASHER BASED |
Timing Gear Cover & Rear End Plate ([07.2001 - 08.2003] (0107-0308)1RZE) |
| 90116-08337 |
BOLT STUD |
Timing Gear Cover & Rear End Plate ([07.2001 - 08.2003] (0107-0308)1RZE) |
| 90179-08040 |
Nut, Cap(For Cylinder Head Cover) |
Timing Gear Cover & Rear End Plate ([07.2001 - 08.2003] (0107-0308)1RZE) |
| 90311-48020 |
Seal, Oil(For Timing Gear Case Or Timing Chain Case) |
Timing Gear Cover & Rear End Plate ([07.2001 - 08.2003] (0107-0308)1RZE) |
| 90311-88005 |
Seal, Engine Rear Oil |
Timing Gear Cover & Rear End Plate ([07.2001 - 08.2003] (0107-0308)1RZE) |
| 90311-88006 |
Seal, Engine Rear Oil |
Timing Gear Cover & Rear End Plate ([07.2001 - 08.2003] (0107-0308)1RZE) |
| 91511-J0820 |
Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
Timing Gear Cover & Rear End Plate ([07.2001 - 08.2003] (0107-0308)1RZE) |
| 91641-80835 |
Bolt, Compressor, No.1 |
Timing Gear Cover & Rear End Plate ([07.2001 - 08.2003] (0107-0308)1RZE) |
| 91641-C0814 |
BOLT W-WASHER |
Timing Gear Cover & Rear End Plate ([07.2001 - 08.2003] (0107-0308)1RZE) |
