Search › Model › RZY230

RZY230

Toyota DYNA-TOYOACE · 2001 · 3,856 parts · 204 categories

3,856 items

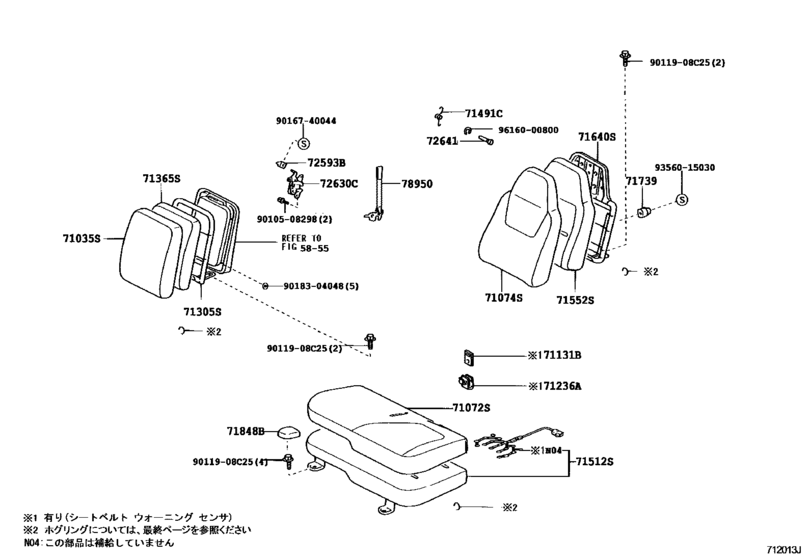

Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3) 47

#	OEM	Part name
71035	71095-25070-B0	Cover, Front Seat Back, Center
71035	71095-25090-B0	Cover, Front Seat Back, Center
71035	71095-37200-B0	Cover, Front Seat Back, Center
71035	71095-37200-B1	Cover, Front Seat Back, Center
71072	71072-25100-B1	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-25200-B0	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-25160-B1	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-25210-B0	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-37790	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-37790-B1	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-3V070-B0	Cover, Front Seat Cushion, Lh(For Separate Type)
71074	71074-25120-B0	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-25240-B0	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-25170-B0	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-25220-B0	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-25180-B0	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-25230-B0	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-37810-B4	Cover, Front Seat Back, Lh(For Separate Type)
71074	70169-37060-B0	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-37850-B4	Cover, Front Seat Back, Lh(For Separate Type)
71074	70169-37050-B0	Cover, Front Seat Back, Lh(For Separate Type)
71131	71131-37030	Plate, Front Seat Cushion, No.1
71236	71236-37010	Clamp, Rear Seat Cushion Spring
71305	71305-37090	Frame Sub-Assy, Center Seat Back
71305	71305-37020	Frame Sub-Assy, Center Seat Back
71365	71365-37060	Pad, Center Seat Back
71491	71491-89101	Spring, Rear Seat Back Lock Hook
71512	71052-37030	Pad, Front Seat Cushion, Lh (For Separate Type)
71512	71502-37160	Pad, Front Seat Cushion, Lh (For Separate Type)
71552	71552-37090	Pad, Front Seat Back, Lh(For Separate Type)
71552	71552-37100	Pad, Front Seat Back, Lh(For Separate Type)
71640	71014-37100	Spring Assy, Front Seat Back, Lh(For Separate Type)
71640	71014-37050	Spring Assy, Front Seat Back, Lh(For Separate Type)
71640	71630-37080	Spring Assy, Front Seat Back, Lh(For Separate Type)
71640	71014-37070	Spring Assy, Front Seat Back, Lh(For Separate Type)
71739	71739-37010	Cushion, Seat Support
71848	72137-35050-B1	Cap, Seat Adjuster Cover, Rh
72593	72593-37020-B0	Knob, Reclining Remote Control Lever, Rh
72630	72630-37020	Lock Assy, Rear Seat Back, Rh
72641	72641-37010	Pin, Rear Seat Back Lock
78950	71026-37010-B0	Support, Front Seat Back, Lh
9011908	90119-08C25	BOLT WWASHER
9010508298	90105-08298	New Genuine Part
9016740044	90167-40044	BOLT
9018304048	90183-04048	New Genuine Part
9356015030	93560-15030	New Genuine Part
9616000800	96160-00800	Ring, E(For Counter Weight)

OEM	Part name	Category
70169-37050-B0	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
70169-37060-B0	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71014-37050	Spring Assy, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71014-37070	Spring Assy, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71014-37100	Spring Assy, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71026-37010-B0	Support, Front Seat Back, Lh	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71052-37030	Pad, Front Seat Cushion, Lh (For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71072-25100-B1	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71072-25160-B1	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71072-25200-B0	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71072-25210-B0	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71072-37790	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71072-37790-B1	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71072-3V070-B0	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71074-25120-B0	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71074-25170-B0	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71074-25180-B0	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71074-25220-B0	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71074-25230-B0	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71074-25240-B0	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71074-37810-B4	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71074-37850-B4	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71095-25070-B0	Cover, Front Seat Back, Center	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71095-25090-B0	Cover, Front Seat Back, Center	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71095-37200-B0	Cover, Front Seat Back, Center	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71095-37200-B1	Cover, Front Seat Back, Center	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71131-37030	Plate, Front Seat Cushion, No.1	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71236-37010	Clamp, Rear Seat Cushion Spring	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71305-37020	Frame Sub-Assy, Center Seat Back	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71305-37090	Frame Sub-Assy, Center Seat Back	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71365-37060	Pad, Center Seat Back	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71491-89101	Spring, Rear Seat Back Lock Hook	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71502-37160	Pad, Front Seat Cushion, Lh (For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71552-37090	Pad, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71552-37100	Pad, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71630-37080	Spring Assy, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
71739-37010	Cushion, Seat Support	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
72137-35050-B1	Cap, Seat Adjuster Cover, Rh	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
72593-37020-B0	Knob, Reclining Remote Control Lever, Rh	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
72630-37020	Lock Assy, Rear Seat Back, Rh	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
72641-37010	Pin, Rear Seat Back Lock	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
90105-08298	New Genuine Part	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
90119-08C25	BOLT WWASHER	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
90167-40044	BOLT	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
90183-04048	New Genuine Part	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
93560-15030	New Genuine Part	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
96160-00800	Ring, E(For Counter Weight)	Seat & Seat Track ([07.2001 - 09.2007] ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ) (0107-0709)T2,T3,T4..CBU,IV3)
