| 35608-20010 |
Spring Sub-Assy, 2Nd Brake Piston Return |

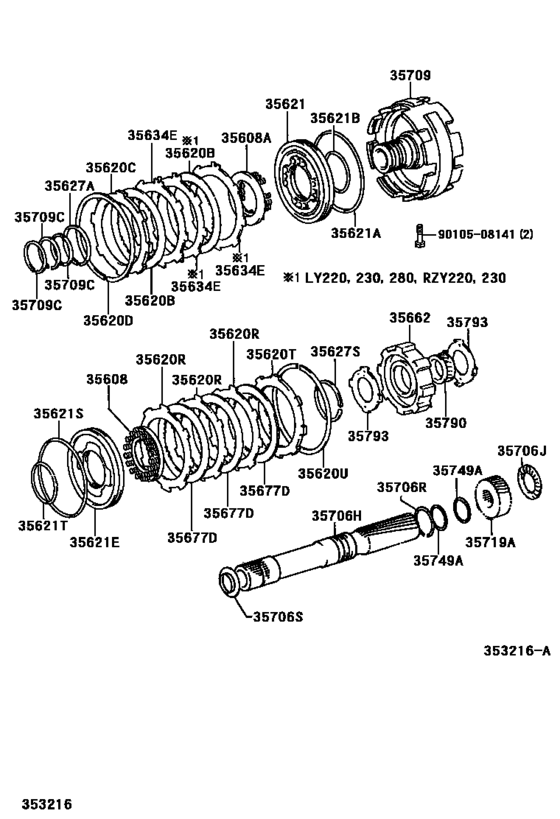

Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 35608-30020 |
Spring Sub-Assy, 2Nd Brake Piston Return |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 35617-16010 |
Ring, Oil Seal (For Overdrive Case) |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 35621-30010 |
Piston, Brake, No.1 |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 35624-22010 |
Piston, Brake, No.1 |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 35634-22060 |
Plate, Clutch (For Overdrive) |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 35648-30020 |
Plate, Clutch (For Rear Brake) |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 35662-30010 |
Hub, Brake |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 35675-22140 |
Flange, Overdrive Clutch |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 35676-22030 |
Flange, Overdrive Brake |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 35677-22070 |
Disc, Clutch (For Rear Brake) |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 35677-30140 |
Disc, Clutch (For Overdrive) |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 35706-30050 |
Gear Sub-Assy, Planetary Sun |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 35709-12020 |
Support Sub-Assy, Center |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 35719-30050 |
Gear, Rear Planetary Sun |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 35749-22010 |
Ring, Sun Gear Shaft Oil Seal |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 35789-43020 |
Race, Thrust Bearing (For Planetary Sun Gear Front) |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 35791-30100 |
Clutch Assy, 1 Way |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 35793-22011 |
Retainer, 1 Way Clutch |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 90105-08141 |
New Genuine Part |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 90301-56007 |
Ring, O (For Underdrive Clutch Piston) |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 90301-99107 |
Ring (For Rear Brake Piston Outer) |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 90301-99110 |
Ring, O (For Brake Piston Outer) |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 90374-21001 |
Race, Thrust Bearing (For Rear Planetary Ring Gear Front) |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 90520-34001 |
Ring, Shaft Snap (For Sun Gear Front) |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 90520-52262 |
Ring, Shaft Snap (For Underdrive Return Spring) |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
| 90521-99139 |
Ring, Hole Snap (For Overdrive Brake Return Spring Seat) |
Center Support & Planetary Sun Gear (Atm) ([07.2001 - ] A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230,TRY220,230.. TS..ATM) |
