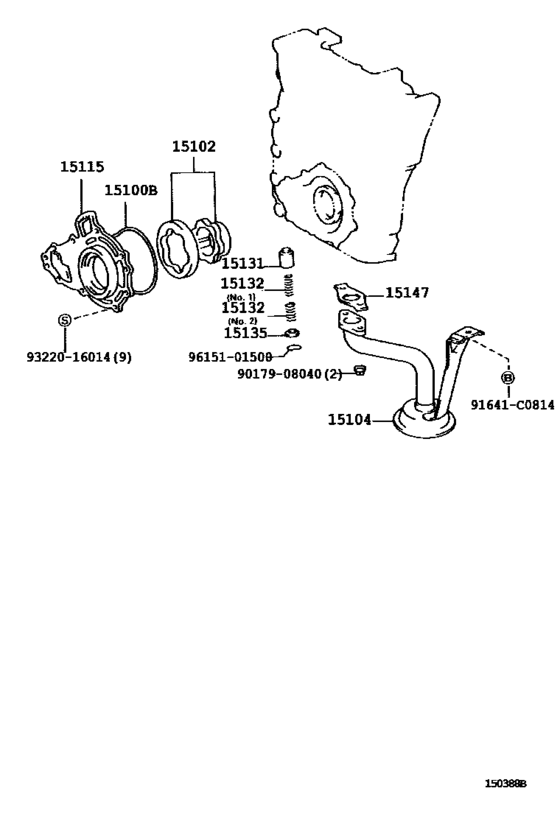

| 15103-75020 |
Rotor Set, Oil Pump |
Engine Oil Pump ([06.2003 - ] (0306- )3RZFPE..RZU280) |
| 15104-75040 |
Strainer Sub-Assy, Oil |
Engine Oil Pump ([06.2003 - ] (0306- )3RZFPE..RZU280) |
| 15115-75020 |
Cover, Oil Pump |
Engine Oil Pump ([06.2003 - ] (0306- )3RZFPE..RZU280) |
| 15131-24010 |
Valve, Oil Pump Relief |
Engine Oil Pump ([06.2003 - ] (0306- )3RZFPE..RZU280) |
| 15132-75020 |
Spring, Oil Pump Relief Valve |
Engine Oil Pump ([06.2003 - ] (0306- )3RZFPE..RZU280) |
| 15132-75021 |
Spring, Oil Pump Relief Valve |
Engine Oil Pump ([06.2003 - ] (0306- )3RZFPE..RZU280) |
| 15135-75040 |
Retainer, Oil Pump Relief Valve |
Engine Oil Pump ([06.2003 - ] (0306- )3RZFPE..RZU280) |
| 15147-75020 |
Gasket, Oil Strainer |
Engine Oil Pump ([06.2003 - ] (0306- )3RZFPE..RZU280) |
| 15188-75021 |
Ring, O(For Oil Pump) |
Engine Oil Pump ([06.2003 - ] (0306- )3RZFPE..RZU280) |
| 90179-08040 |
Nut, Cap(For Cylinder Head Cover) |
Engine Oil Pump ([06.2003 - ] (0306- )3RZFPE..RZU280) |
| 91641-C0814 |
BOLT W-WASHER |
Engine Oil Pump ([06.2003 - ] (0306- )3RZFPE..RZU280) |
| 93220-16014 |
SCREW |
Engine Oil Pump ([06.2003 - ] (0306- )3RZFPE..RZU280) |
| 96151-01500 |
Ring, Hole Snap (For Pressure Regulator Valve Set) |
Engine Oil Pump ([06.2003 - ] (0306- )3RZFPE..RZU280) |
