RZN174

Toyota HILUX-4RUNNER-TRUCK · 1997 · 5,576 parts · 388 categories

← Back to categories

5,576 items

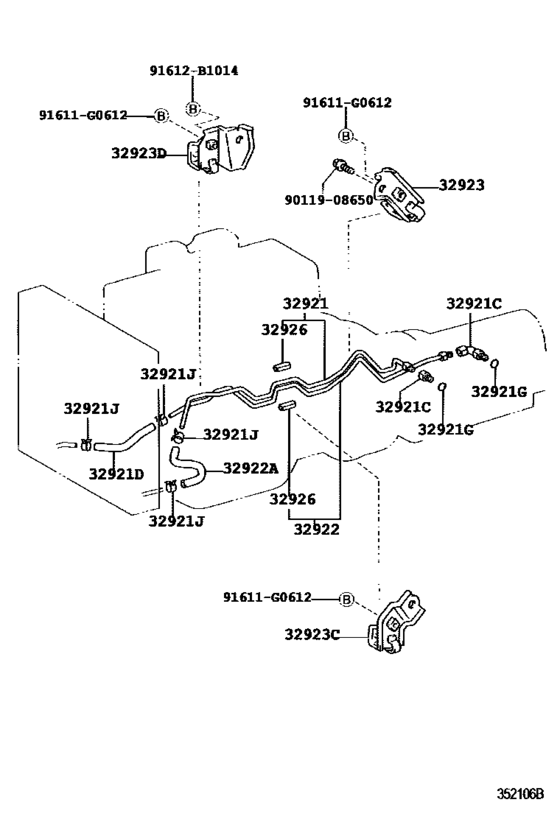

Oil Cooler & Tube (Atm) ([08.1999 - ] A340F (9908- )RZN169,174) 17

#	OEM	Part name
32921	32921-35350	Tube, Oil Cooler Inlet, No.1
32921	90407-16009	Union(For Oil Cooler Tube)
32921	90407-16012	Union(For Oil Cooler Tube)
32921	90445-17097	Hose, Oil Cooler Water Outlet
32921	90301-11006	O Ring, Transaxle Case Elbow
32921	90467-16013	Clip(For Oil Return Hose)
32921	90467-16022	Clip(For Water Inlet Hose)
32922	32922-35380	Tube, Oil Cooler Outlet, No.1
32922	90445-17102	Hose(For Oil Cooler Inlet)
32923	32909-35180	Clamp, Automatic Transmission Oil Cooler Tube
32923	32909-38010	Clamp, Automatic Transmission Oil Cooler Tube, No.4
32923	32909-34040	Clamp, Automatic Transmission Oil Cooler Tube, No.4
32926	32926-30020	Cushion, Oil Cooler Tube(Atm)
32926	32926-30060	Cushion, Oil Cooler Tube(Atm)
91611	91611-G0612	Bolt
91612	91612-B1014	BOLT WWASHER
9011908650	90119-08650	New Genuine Part

OEM	Part name	Category
32909-34040	Clamp, Automatic Transmission Oil Cooler Tube, No.4	Oil Cooler & Tube (Atm) ([08.1999 - ] A340F (9908- )RZN169,174)
32909-35180	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([08.1999 - ] A340F (9908- )RZN169,174)
32909-38010	Clamp, Automatic Transmission Oil Cooler Tube, No.4	Oil Cooler & Tube (Atm) ([08.1999 - ] A340F (9908- )RZN169,174)
32921-35350	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([08.1999 - ] A340F (9908- )RZN169,174)
32922-35380	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([08.1999 - ] A340F (9908- )RZN169,174)
32926-30020	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([08.1999 - ] A340F (9908- )RZN169,174)
32926-30060	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([08.1999 - ] A340F (9908- )RZN169,174)
90119-08650	New Genuine Part	Oil Cooler & Tube (Atm) ([08.1999 - ] A340F (9908- )RZN169,174)
90301-11006	O Ring, Transaxle Case Elbow	Oil Cooler & Tube (Atm) ([08.1999 - ] A340F (9908- )RZN169,174)
90407-16009	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([08.1999 - ] A340F (9908- )RZN169,174)
90407-16012	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([08.1999 - ] A340F (9908- )RZN169,174)
90445-17097	Hose, Oil Cooler Water Outlet	Oil Cooler & Tube (Atm) ([08.1999 - ] A340F (9908- )RZN169,174)
90445-17102	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([08.1999 - ] A340F (9908- )RZN169,174)
90467-16013	Clip(For Oil Return Hose)	Oil Cooler & Tube (Atm) ([08.1999 - ] A340F (9908- )RZN169,174)
90467-16022	Clip(For Water Inlet Hose)	Oil Cooler & Tube (Atm) ([08.1999 - ] A340F (9908- )RZN169,174)
91611-G0612	Bolt	Oil Cooler & Tube (Atm) ([08.1999 - ] A340F (9908- )RZN169,174)
91612-B1014	BOLT WWASHER	Oil Cooler & Tube (Atm) ([08.1999 - ] A340F (9908- )RZN169,174)
