Search › Model › RZN174

RZN174

Toyota HILUX-4RUNNER-TRUCK · 1997 · 5,576 parts · 388 categories

5,576 items

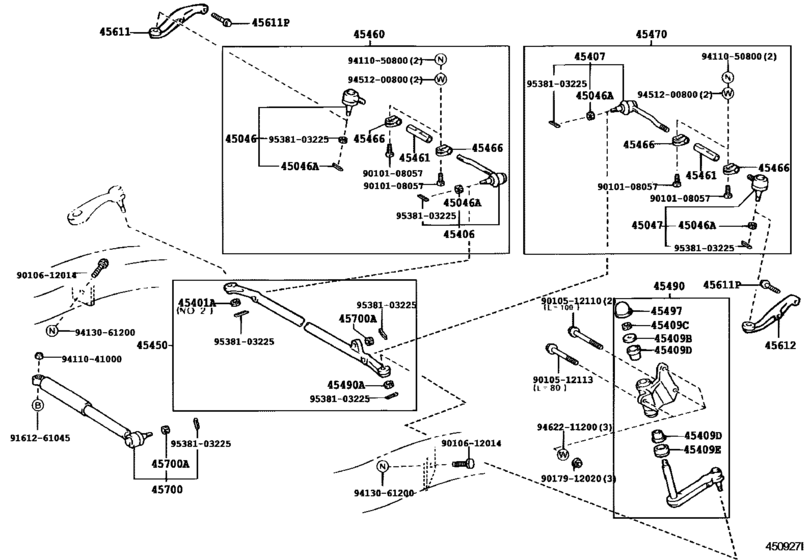

Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174) 57

#	OEM	Part name
44107	44107-35170	Housing Sub-Assy, Power Steering Gear
44107	90364-36006	Bearing, Needle Roller(For Power Steering Gear Housing)
44107	90301-37006	Ring, O(For Power Steering Gear Housing)
44107	90301-69002	Ring, O(For Power Steering Gear Housing)
44107	96711-19010	Ring, O(For Oil Level Gage Guide)
44107	90562-35001	Ring(For Power Steering Gear Housing)
44107	90562-36002	Ring(For Power Steering Gear Housing)
44107	90521-48002	Ring, Hole Snap(For Power Steering Gear Housing)
44107	90311-36005	Seal, Oil(For Power Steering Gear Housing)
44108	44108-60020	Cover Sub-Assy, Side
44108	90301-64002	Ring, O(For Side Cover)
44111	44111-60030	Shaft, Cross
44120	44120-35320	Valve Assy, W/ball Nut
44142	44142-60020	Nut, Lock
44152	44152-30020	Plunger, Power Piston
44152	90501-20095	Spring, Compression(For Power Piston Plunger)
44153	44153-30020	Guide, Power Piston Plunger
44154	44154-30020	Nut, Power Piston Plunger Guide
44154	96711-19014	O-Ring
44257	90210-10001	Washer, Seal(For Cross Shaft Adjusting Screw)
44447	44447-35030	Bracket, Hose Support, No.1
45046	45046-39385	End Sub-Assy, Tie Rod
45046	90171-14042	Nut, Castle(For Pitman Arm)
45357	45357-60030	Screw, Cross Shaft Adjusting
45401	90170-22058	Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)
45406	45406-39185	Rod Sub-Assy, Tie
45409	90201-14010	Washer, Plate(For Idler Arm Rubber Bush)
45409	94184-61401	Nut(For Idler Arm Support)
45409	90389-21004	Bush(For Idler Arm)
45409	90304-31012	Seal, Dust(For Idler Arm Support)
45450	45451-39305	Rod Assy, Steering Relay
45460	45460-39505	Rod Assy, Tie, Rh
45461	45465-35040	Rod, Steering Tie
45466	45466-30020	Clamp, Tie Rod End
45490	45490-39445	Arm Assy, Steering Idler
45490	45490-39446	Arm Assy, Steering Idler
45490	90171-12028	Nut, Castle(For Pitman Arm)
45497	45497-28010	Cap, Idler Arm Bracket
45611	45611-35130	Arm, Steering Knuckle, Rh
45611	90105-14043	Bolt(For Steering Knuckle Arm Rh)
45612	45612-35150	Arm, Steering Knuckle, Lh
45700	45700-39046	Damper Assy, Steering
45700	45700-39085	Damper Assy, Steering
9010108057	90101-08057	BOLT
9010512110	90105-12110	BOLT
9010512113	90105-12113	New Genuine Part
9010612014	90106-12014	New Genuine Part
9011910582	90119-10582	New Genuine Part
9017010208	90170-10208	NUT
9017912020	90179-12020	Nut(For Parking Brake Plate To Rear Axle Housing)
9161261045	91612-61045	Bolt(For Transaxle & Engine Setting)
9411041000	94110-41000	Nut(For Steering Damper)
9411050800	94110-50800	Nut(For Repair Actuator Set)
9413061200	94130-61200	Nut
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9462211200	94622-11200	WASHER
9538103225	95381-03225	PIN COTTER

OEM	Part name	Category
44107-35170	Housing Sub-Assy, Power Steering Gear	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
44108-60020	Cover Sub-Assy, Side	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
44111-60030	Shaft, Cross	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
44120-35320	Valve Assy, W/ball Nut	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
44142-60020	Nut, Lock	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
44152-30020	Plunger, Power Piston	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
44153-30020	Guide, Power Piston Plunger	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
44154-30020	Nut, Power Piston Plunger Guide	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
44447-35030	Bracket, Hose Support, No.1	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
45046-39385	End Sub-Assy, Tie Rod	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
45357-60030	Screw, Cross Shaft Adjusting	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
45406-39185	Rod Sub-Assy, Tie	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
45451-39305	Rod Assy, Steering Relay	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
45460-39505	Rod Assy, Tie, Rh	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
45465-35040	Rod, Steering Tie	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
45466-30020	Clamp, Tie Rod End	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
45490-39445	Arm Assy, Steering Idler	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
45490-39446	Arm Assy, Steering Idler	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
45497-28010	Cap, Idler Arm Bracket	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
45611-35130	Arm, Steering Knuckle, Rh	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
45612-35150	Arm, Steering Knuckle, Lh	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
45700-39046	Damper Assy, Steering	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
45700-39085	Damper Assy, Steering	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90101-08057	BOLT	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90105-12110	BOLT	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90105-12113	New Genuine Part	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90105-14043	Bolt(For Steering Knuckle Arm Rh)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90106-12014	New Genuine Part	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90119-10582	New Genuine Part	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90170-10208	NUT	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90170-22058	Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90171-12028	Nut, Castle(For Pitman Arm)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90171-14042	Nut, Castle(For Pitman Arm)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90179-12020	Nut(For Parking Brake Plate To Rear Axle Housing)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90201-14010	Washer, Plate(For Idler Arm Rubber Bush)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90210-10001	Washer, Seal(For Cross Shaft Adjusting Screw)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90301-37006	Ring, O(For Power Steering Gear Housing)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90301-64002	Ring, O(For Side Cover)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90301-69002	Ring, O(For Power Steering Gear Housing)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90304-31012	Seal, Dust(For Idler Arm Support)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90311-36005	Seal, Oil(For Power Steering Gear Housing)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90364-36006	Bearing, Needle Roller(For Power Steering Gear Housing)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90389-21004	Bush(For Idler Arm)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90501-20095	Spring, Compression(For Power Piston Plunger)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90521-48002	Ring, Hole Snap(For Power Steering Gear Housing)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90562-35001	Ring(For Power Steering Gear Housing)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
90562-36002	Ring(For Power Steering Gear Housing)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
91612-61045	Bolt(For Transaxle & Engine Setting)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
94110-41000	Nut(For Steering Damper)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
94110-50800	Nut(For Repair Actuator Set)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
94130-61200	Nut	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
94184-61401	Nut(For Idler Arm Support)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
94622-11200	WASHER	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
95381-03225	PIN COTTER	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
96711-19010	Ring, O(For Oil Level Gage Guide)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)
96711-19014	O-Ring	Front Steering Gear & Link ([08.1997 - ] (9708- )LN16#,17#,RZN16#,174)

Source: Public OEM parts-catalog data
Variants: 2 / 3
Category: 388
Collected: 2026-08-04
