Search › Model › RZN174

RZN174

Toyota HILUX-4RUNNER-TRUCK · 1997 · 5,576 parts · 388 categories

5,576 items

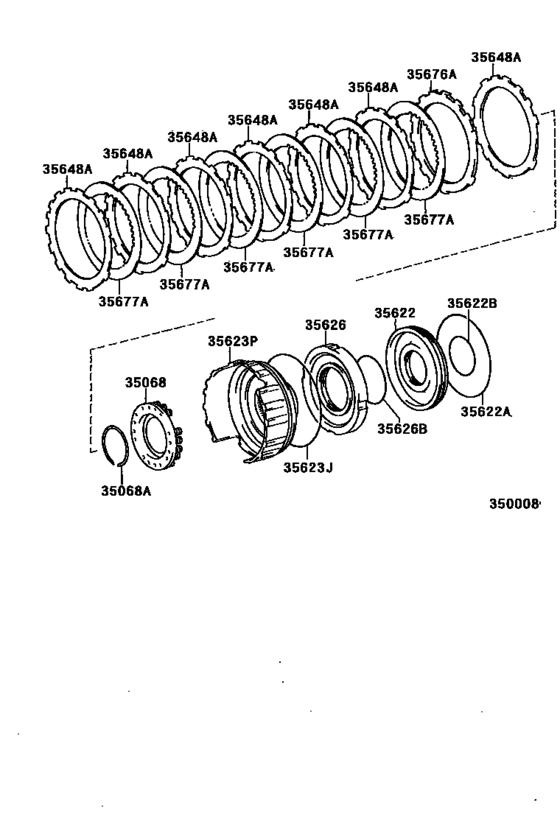

Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A340F,A343F (9708- )LN165,170,RZN169,174) 21

#	OEM	Part name
35068	35068-30011	Spring Sub-Assy, 1St & Reverse Brake Return
35068	90520-52262	Ring, Shaft Snap (For Underdrive Return Spring)
35622	35622-30010	Piston, Brake, No.2
35622	90301-99193	Ring, O (For Overdrive Brake Piston)
35622	90301-57188	Ring, O (For Underdrive Clutch Piston)
35622	90301-56007	Ring, O (For Underdrive Clutch Piston)
35623	90301-99192	Ring, O (For Overdrive Direct Clutch Piston)
35623	35623-30012	Piston, 1St & Reverse Brake, No.2
35626	35626-30020	Sleeve, Brake Reaction
35626	90301-67005	Ring (For Brake Reaction Sleeve Inner)
35626	90301-68191	Ring (For Brake Reaction Sleeve Inner)
35648	35648-30031	Plate, Clutch (For 1St & Reverse Brake)
35676	35676-30100	Flange, Brake (For 1St & Reverse Brake)
35676	35676-30110	Flange, Brake (For 1St & Reverse Brake)
35676	35676-50010	Flange, Brake (For 1St & Reverse Brake)
35676	35676-50020	Flange, Brake (For 1St & Reverse Brake)
35676	35676-50030	Flange, Brake (For 1St & Reverse Brake)
35676	35676-50040	Flange, Brake (For 1St & Reverse Brake)
35676	35676-50050	Flange, Brake (For 1St & Reverse Brake)
35676	35676-50060	Flange, Brake (For 1St & Reverse Brake)
35677	35677-30180	Disc, Clutch (For 1St & Reverse Brake)

OEM	Part name	Category
35068-30011	Spring Sub-Assy, 1St & Reverse Brake Return	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A340F,A343F (9708- )LN165,170,RZN169,174)
35622-30010	Piston, Brake, No.2	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A340F,A343F (9708- )LN165,170,RZN169,174)
35623-30012	Piston, 1St & Reverse Brake, No.2	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A340F,A343F (9708- )LN165,170,RZN169,174)
35626-30020	Sleeve, Brake Reaction	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A340F,A343F (9708- )LN165,170,RZN169,174)
35648-30031	Plate, Clutch (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A340F,A343F (9708- )LN165,170,RZN169,174)
35676-30100	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A340F,A343F (9708- )LN165,170,RZN169,174)
35676-30110	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A340F,A343F (9708- )LN165,170,RZN169,174)
35676-50010	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A340F,A343F (9708- )LN165,170,RZN169,174)
35676-50020	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A340F,A343F (9708- )LN165,170,RZN169,174)
35676-50030	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A340F,A343F (9708- )LN165,170,RZN169,174)
35676-50040	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A340F,A343F (9708- )LN165,170,RZN169,174)
35676-50050	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A340F,A343F (9708- )LN165,170,RZN169,174)
35676-50060	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A340F,A343F (9708- )LN165,170,RZN169,174)
35677-30180	Disc, Clutch (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A340F,A343F (9708- )LN165,170,RZN169,174)
90301-56007	Ring, O (For Underdrive Clutch Piston)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A340F,A343F (9708- )LN165,170,RZN169,174)
90301-57188	Ring, O (For Underdrive Clutch Piston)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A340F,A343F (9708- )LN165,170,RZN169,174)
90301-67005	Ring (For Brake Reaction Sleeve Inner)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A340F,A343F (9708- )LN165,170,RZN169,174)
90301-68191	Ring (For Brake Reaction Sleeve Inner)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A340F,A343F (9708- )LN165,170,RZN169,174)
90301-99192	Ring, O (For Overdrive Direct Clutch Piston)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A340F,A343F (9708- )LN165,170,RZN169,174)
90301-99193	Ring, O (For Overdrive Brake Piston)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A340F,A343F (9708- )LN165,170,RZN169,174)
90520-52262	Ring, Shaft Snap (For Underdrive Return Spring)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A340F,A343F (9708- )LN165,170,RZN169,174)
