Search › Model › RZN174

RZN174

Toyota HILUX-4RUNNER-TRUCK · 1997 · 5,576 parts · 388 categories

5,576 items

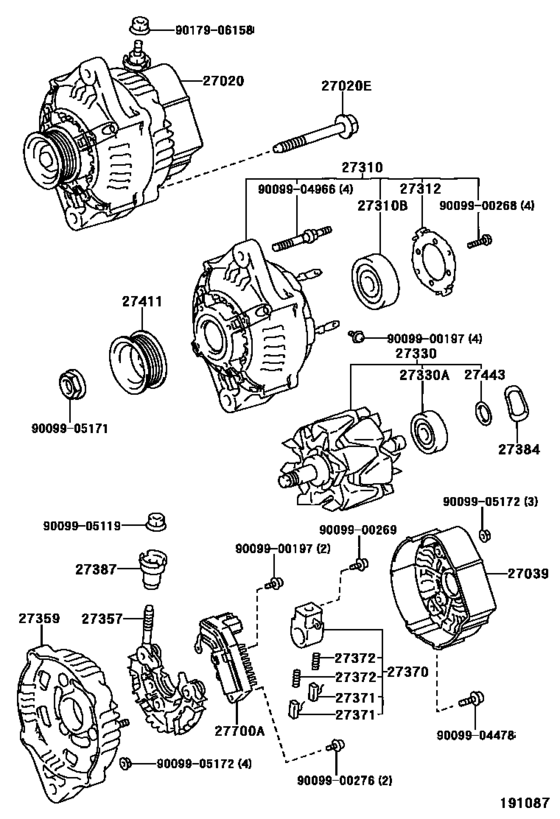

Alternator ([08.1999 - ] (9908- )3RZFE) 28

#	OEM	Part name
27020	27060-75150	Alternator Assy
27020	90105-10221	Bolt, Hexagon(For Air Pump Bracket Setting)
27039	27039-67100	Cover, Alternator Rear End
27310	27310-75160	Frame Assy, Drive End, Alternator
27310	90099-10199	Bearing(For Alternator Drive End Frame)
27312	27312-72100	Plate, Bearing Retainer, Alternator
27330	27330-67100	Rotor Assy, Alternator
27330	90099-10216	Bearing(For Alternator Rotor)
27357	27357-67100	Holder, Alternator, W/rectifier
27359	27359-75160	Frame, Alternator Rectifier End
27370	27370-35060	Holder Assy, Alternator Brush
27371	27371-70300	Brush, Alternator
27372	27372-87501	Spring, Alternator Brush
27384	27384-16380	Washer
27387	27387-70171	Insulator, Terminal
27411	27411-16150	Pulley, Alternator
27443	27443-63020	Cover, Alternator Bearing
27700	27700-75020	Regulator Assy, Generator
9009900197	90099-00197	Screw
9009900268	90099-00268	Screw(For Alternator Drive End Frame)
9009900269	90099-00269	New Genuine Part
9009900276	90099-00276	New Genuine Part
9009904478	90099-04478	New Genuine Part
9009904966	90099-04966	Bearing(for Alternator Rotor)
9009905119	90099-05119	New Genuine Part
9009905171	90099-05171	Nut(For Alternator Pulley)
9009905172	90099-05172	New Genuine Part
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2

OEM	Part name	Category
27039-67100	Cover, Alternator Rear End	Alternator ([08.1999 - ] (9908- )3RZFE)
27060-75150	Alternator Assy	Alternator ([08.1999 - ] (9908- )3RZFE)
27310-75160	Frame Assy, Drive End, Alternator	Alternator ([08.1999 - ] (9908- )3RZFE)
27312-72100	Plate, Bearing Retainer, Alternator	Alternator ([08.1999 - ] (9908- )3RZFE)
27330-67100	Rotor Assy, Alternator	Alternator ([08.1999 - ] (9908- )3RZFE)
27357-67100	Holder, Alternator, W/rectifier	Alternator ([08.1999 - ] (9908- )3RZFE)
27359-75160	Frame, Alternator Rectifier End	Alternator ([08.1999 - ] (9908- )3RZFE)
27370-35060	Holder Assy, Alternator Brush	Alternator ([08.1999 - ] (9908- )3RZFE)
27371-70300	Brush, Alternator	Alternator ([08.1999 - ] (9908- )3RZFE)
27372-87501	Spring, Alternator Brush	Alternator ([08.1999 - ] (9908- )3RZFE)
27384-16380	Washer	Alternator ([08.1999 - ] (9908- )3RZFE)
27387-70171	Insulator, Terminal	Alternator ([08.1999 - ] (9908- )3RZFE)
27411-16150	Pulley, Alternator	Alternator ([08.1999 - ] (9908- )3RZFE)
27443-63020	Cover, Alternator Bearing	Alternator ([08.1999 - ] (9908- )3RZFE)
27700-75020	Regulator Assy, Generator	Alternator ([08.1999 - ] (9908- )3RZFE)
90099-00197	Screw	Alternator ([08.1999 - ] (9908- )3RZFE)
90099-00268	Screw(For Alternator Drive End Frame)	Alternator ([08.1999 - ] (9908- )3RZFE)
90099-00269	New Genuine Part	Alternator ([08.1999 - ] (9908- )3RZFE)
90099-00276	New Genuine Part	Alternator ([08.1999 - ] (9908- )3RZFE)
90099-04478	New Genuine Part	Alternator ([08.1999 - ] (9908- )3RZFE)
90099-04966	Bearing(for Alternator Rotor)	Alternator ([08.1999 - ] (9908- )3RZFE)
90099-05119	New Genuine Part	Alternator ([08.1999 - ] (9908- )3RZFE)
90099-05171	Nut(For Alternator Pulley)	Alternator ([08.1999 - ] (9908- )3RZFE)
90099-05172	New Genuine Part	Alternator ([08.1999 - ] (9908- )3RZFE)
90099-10199	Bearing(For Alternator Drive End Frame)	Alternator ([08.1999 - ] (9908- )3RZFE)
90099-10216	Bearing(For Alternator Rotor)	Alternator ([08.1999 - ] (9908- )3RZFE)
90105-10221	Bolt, Hexagon(For Air Pump Bracket Setting)	Alternator ([08.1999 - ] (9908- )3RZFE)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([08.1999 - ] (9908- )3RZFE)
