RZN140

Toyota TACOMA · 1995 · 6,238 parts · 276 categories

← Back to categories

6,238 items

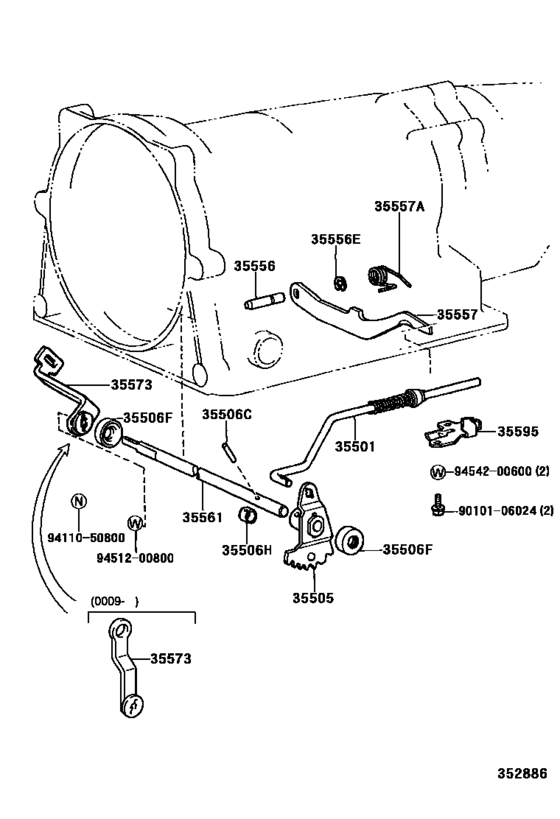

Throttle Link & Valve Lever (Atm) ([01.1995 - ] A43D,A44D (9501- )RZN140,150..ATM) 17

#	OEM	Part name
35501	35501-22020	Rod Sub-Assy, Parking Lock
35505	35505-28010	Lever Sub-Assy, Manual Valve
35506	90254-04011	Pin, Slotted Spring (For Transfer Manual Valve Lever)
35506	90311-11003	Seal, Oil (For Manual Valve Lever Shaft)
35506	90560-20003	Spacer (For Transfer Manual Valve Lever)
35506	90560-20025	Spacer (For Manual Valve Lever)
35556	35556-26010	Shaft, Parking Lock Pawl
35556	90523-08021	Ring, E (For Parking Lock Pawl Shaft)
35557	35557-26020	Pawl, Parking Lock
35557	90508-25001	Spring, Torsion (For Parking Lock Pawl)
35561	35561-30060	Shaft Sub-Assy, Manual Valve Lever
35573	35573-35060	Lever, Transmission Control Shaft, Lh
35595	35595-40010	Bracket, Parking Lock Pawl
9010106024	90101-06024	New Genuine Part
9411050800	94110-50800	Nut(For Repair Actuator Set)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9454200600	94542-00600	New Genuine Part

OEM	Part name	Category
35501-22020	Rod Sub-Assy, Parking Lock	Throttle Link & Valve Lever (Atm) ([01.1995 - ] A43D,A44D (9501- )RZN140,150..ATM)
35505-28010	Lever Sub-Assy, Manual Valve	Throttle Link & Valve Lever (Atm) ([01.1995 - ] A43D,A44D (9501- )RZN140,150..ATM)
35556-26010	Shaft, Parking Lock Pawl	Throttle Link & Valve Lever (Atm) ([01.1995 - ] A43D,A44D (9501- )RZN140,150..ATM)
35557-26020	Pawl, Parking Lock	Throttle Link & Valve Lever (Atm) ([01.1995 - ] A43D,A44D (9501- )RZN140,150..ATM)
35561-30060	Shaft Sub-Assy, Manual Valve Lever	Throttle Link & Valve Lever (Atm) ([01.1995 - ] A43D,A44D (9501- )RZN140,150..ATM)
35573-35060	Lever, Transmission Control Shaft, Lh	Throttle Link & Valve Lever (Atm) ([01.1995 - ] A43D,A44D (9501- )RZN140,150..ATM)
35595-40010	Bracket, Parking Lock Pawl	Throttle Link & Valve Lever (Atm) ([01.1995 - ] A43D,A44D (9501- )RZN140,150..ATM)
90101-06024	New Genuine Part	Throttle Link & Valve Lever (Atm) ([01.1995 - ] A43D,A44D (9501- )RZN140,150..ATM)
90254-04011	Pin, Slotted Spring (For Transfer Manual Valve Lever)	Throttle Link & Valve Lever (Atm) ([01.1995 - ] A43D,A44D (9501- )RZN140,150..ATM)
90311-11003	Seal, Oil (For Manual Valve Lever Shaft)	Throttle Link & Valve Lever (Atm) ([01.1995 - ] A43D,A44D (9501- )RZN140,150..ATM)
90508-25001	Spring, Torsion (For Parking Lock Pawl)	Throttle Link & Valve Lever (Atm) ([01.1995 - ] A43D,A44D (9501- )RZN140,150..ATM)
90523-08021	Ring, E (For Parking Lock Pawl Shaft)	Throttle Link & Valve Lever (Atm) ([01.1995 - ] A43D,A44D (9501- )RZN140,150..ATM)
90560-20003	Spacer (For Transfer Manual Valve Lever)	Throttle Link & Valve Lever (Atm) ([01.1995 - ] A43D,A44D (9501- )RZN140,150..ATM)
90560-20025	Spacer (For Manual Valve Lever)	Throttle Link & Valve Lever (Atm) ([01.1995 - ] A43D,A44D (9501- )RZN140,150..ATM)
94110-50800	Nut(For Repair Actuator Set)	Throttle Link & Valve Lever (Atm) ([01.1995 - ] A43D,A44D (9501- )RZN140,150..ATM)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Throttle Link & Valve Lever (Atm) ([01.1995 - ] A43D,A44D (9501- )RZN140,150..ATM)
94542-00600	New Genuine Part	Throttle Link & Valve Lever (Atm) ([01.1995 - ] A43D,A44D (9501- )RZN140,150..ATM)
