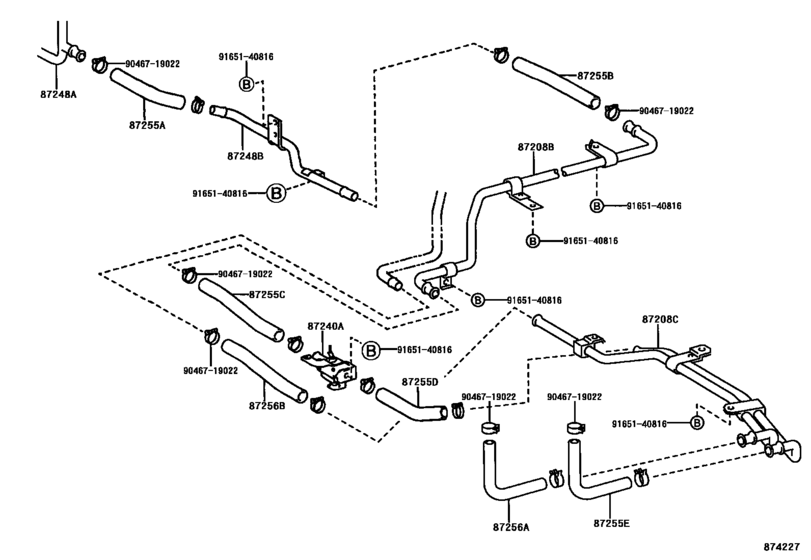

| 87208-26700 |
Pipe, Heater Water Inlet, A |
Heating & Air Conditioning - Water Piping ([08.1998 - ] REAR (9808- )RZH102,103,114,115,155..09S,10S,11S,1 2S ; (0108- )RZH104,105,113,114, 115,155..08S,11S, 12S,15S) |
| 87208-26840 |
Pipe Sub-Assy, Heater Water, A |
Heating & Air Conditioning - Water Piping ([08.1998 - ] REAR (9808- )RZH102,103,114,115,155..09S,10S,11S,1 2S ; (0108- )RZH104,105,113,114, 115,155..08S,11S, 12S,15S) |
| 87208-26860 |
Pipe Sub-Assy, Heater Water, B |
Heating & Air Conditioning - Water Piping ([08.1998 - ] REAR (9808- )RZH102,103,114,115,155..09S,10S,11S,1 2S ; (0108- )RZH104,105,113,114, 115,155..08S,11S, 12S,15S) |
| 87208-2F090 |
Pipe Sub-Assy, Heater Water, C |
Heating & Air Conditioning - Water Piping ([08.1998 - ] REAR (9808- )RZH102,103,114,115,155..09S,10S,11S,1 2S ; (0108- )RZH104,105,113,114, 115,155..08S,11S, 12S,15S) |
| 87240-95J09 |
Valve Assy, Rear Heater Water |
Heating & Air Conditioning - Water Piping ([08.1998 - ] REAR (9808- )RZH102,103,114,115,155..09S,10S,11S,1 2S ; (0108- )RZH104,105,113,114, 115,155..08S,11S, 12S,15S) |
| 87245-2F790 |
Hose, Rear Heater Water Inlet, A(From Engine) |
Heating & Air Conditioning - Water Piping ([08.1998 - ] REAR (9808- )RZH102,103,114,115,155..09S,10S,11S,1 2S ; (0108- )RZH104,105,113,114, 115,155..08S,11S, 12S,15S) |
| 87245-95J63 |
Hose, Rear Heater Water Inlet, E(To Heater Unit) |
Heating & Air Conditioning - Water Piping ([08.1998 - ] REAR (9808- )RZH102,103,114,115,155..09S,10S,11S,1 2S ; (0108- )RZH104,105,113,114, 115,155..08S,11S, 12S,15S) |
| 87245-95J64 |
Hose, Rear Heater Water Outlet, A (From Heater Unit) |
Heating & Air Conditioning - Water Piping ([08.1998 - ] REAR (9808- )RZH102,103,114,115,155..09S,10S,11S,1 2S ; (0108- )RZH104,105,113,114, 115,155..08S,11S, 12S,15S) |
| 90467-19022 |
Clip(For Ventilation Hose No.2) |
Heating & Air Conditioning - Water Piping ([08.1998 - ] REAR (9808- )RZH102,103,114,115,155..09S,10S,11S,1 2S ; (0108- )RZH104,105,113,114, 115,155..08S,11S, 12S,15S) |
| 91651-40816 |
BOLT |
Heating & Air Conditioning - Water Piping ([08.1998 - ] REAR (9808- )RZH102,103,114,115,155..09S,10S,11S,1 2S ; (0108- )RZH104,105,113,114, 115,155..08S,11S, 12S,15S) |
| 99556-20200 |
Hose, Water(For Lpg Regulator Outlet) |
Heating & Air Conditioning - Water Piping ([08.1998 - ] REAR (9808- )RZH102,103,114,115,155..09S,10S,11S,1 2S ; (0108- )RZH104,105,113,114, 115,155..08S,11S, 12S,15S) |
| 99556-20300 |
Hose, Water(For Lpg Regulator Inlet) |
Heating & Air Conditioning - Water Piping ([08.1998 - ] REAR (9808- )RZH102,103,114,115,155..09S,10S,11S,1 2S ; (0108- )RZH104,105,113,114, 115,155..08S,11S, 12S,15S) |
