Search › Model › RZH155

RZH155

Toyota HIACE · 2000 · 4,108 parts · 252 categories

4,108 items

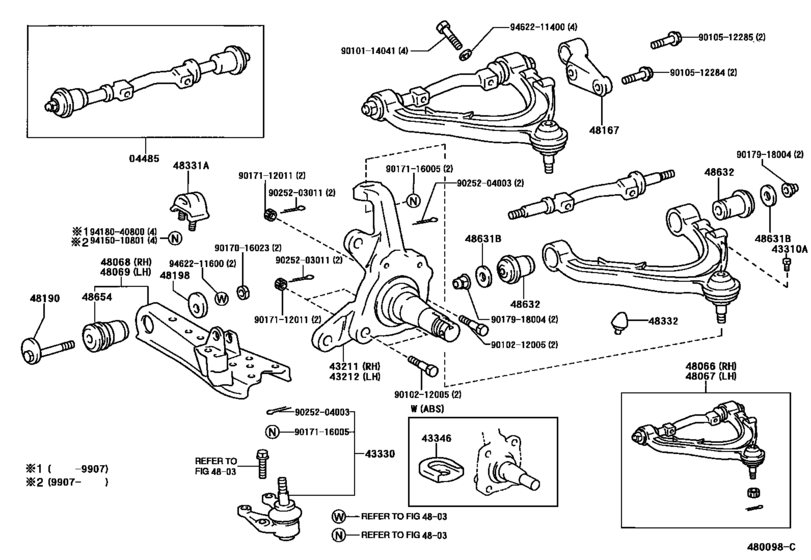

Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#) 38

#	OEM	Part name
4485	04485-26061	Shaft Kit, Upper Suspension Arm
43211	43211-26110	Knuckle, Steering, Rh
43211	43211-26120	Knuckle, Steering, Rh
43212	43212-26080	Knuckle, Steering, Lh
43212	43212-26090	Knuckle, Steering, Lh
43330	43330-29295	Joint Assy, Lower Ball, Front
43330	43330-29515	Joint Assy, Lower Ball, Front
43346	43346-26010	Protector, Lower Ball Joint Dust Cover
48066	48066-29095	Arm Sub-Assy, Front Suspension, Upper Rh
48067	48067-29095	Arm Sub-Assy, Front Suspension, Upper Lh
48068	48068-26121	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	48068-26122	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48069	48069-26121	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48069	48069-26122	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48167	48106-26040	Arm, Torque
48190	48190-26020	Cam Assy, Camber Adjust
48198	48198-26010	Cam, Camber Adjust, No.2
48331	48331-26091	Bumper, Front Spring, No.1
48332	48332-35020	Bumper, Front Spring, No.2
48631	90948-02142	Retainer, Cushion(For Front Suspension Upper Arm Rh) - REAR (refer to scheme)
48631	90948-02143	Retainer, Cushion(For Front Suspension Upper Arm) - FRONT (refer to scheme)
48632	48632-26050	Bush, Upper Arm
48632	48635-26040	Bush, Upper Arm - REAR (refer to scheme)
48654	48061-26050	Bush, Lower Arm
9010114041	90101-14041	Bolt, Hexagon(For Cab Mounting Baracket)
9010212005	90102-12005	Bolt(For Backing Plate To Steering Knuckle Arm Setting)
9010512284	90105-12284	Bolt(For Torque Arm Setting)
9010512285	90105-12285	Bolt(For Torque Arm Setting)
9017016023	90170-16023	NUT
9017112011	90171-12011	Nut
9017116005	90171-16005	Nut, Castle(For Tie Rod End)
9017918004	90179-18004	Nut
9025203011	90252-03011	PIN
9025204003	90252-04003	PIN
9415010801	94150-10801	New Genuine Part
9418040800	94180-40800	NUT
9462211400	94622-11400	New Genuine Part
9462211600	94622-11600	WASHER

OEM	Part name	Category
04485-26061	Shaft Kit, Upper Suspension Arm	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
43211-26110	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
43211-26120	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
43212-26080	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
43212-26090	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
43330-29295	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
43330-29515	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
43346-26010	Protector, Lower Ball Joint Dust Cover	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
48061-26050	Bush, Lower Arm	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
48066-29095	Arm Sub-Assy, Front Suspension, Upper Rh	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
48067-29095	Arm Sub-Assy, Front Suspension, Upper Lh	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
48068-26121	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
48068-26122	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
48069-26121	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
48069-26122	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
48106-26040	Arm, Torque	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
48190-26020	Cam Assy, Camber Adjust	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
48198-26010	Cam, Camber Adjust, No.2	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
48331-26091	Bumper, Front Spring, No.1	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
48332-35020	Bumper, Front Spring, No.2	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
48632-26050	Bush, Upper Arm	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
48635-26040	Bush, Upper Arm - REAR (refer to scheme)	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
90101-14041	Bolt, Hexagon(For Cab Mounting Baracket)	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
90102-12005	Bolt(For Backing Plate To Steering Knuckle Arm Setting)	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
90105-12284	Bolt(For Torque Arm Setting)	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
90105-12285	Bolt(For Torque Arm Setting)	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
90170-16023	NUT	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
90171-12011	Nut	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
90171-16005	Nut, Castle(For Tie Rod End)	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
90179-18004	Nut	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
90252-03011	PIN	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
90252-04003	PIN	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
90948-02142	Retainer, Cushion(For Front Suspension Upper Arm Rh) - REAR (refer to scheme)	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
90948-02143	Retainer, Cushion(For Front Suspension Upper Arm) - FRONT (refer to scheme)	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
94150-10801	New Genuine Part	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
94180-40800	NUT	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
94622-11400	New Genuine Part	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
94622-11600	WASHER	Front Axle Arm & Steering Knuckle ([08.1995 - ] (9508- )RZH114,115..CIS,GCC ; (9508- )LH10 #,11#,125,154,162,164,172,174,184,R ZH10#,112,113,125 ,135,15#)
