RZH112

Toyota HIACE · 1989 · 3,693 parts · 213 categories

← Back to categories

3,693 items

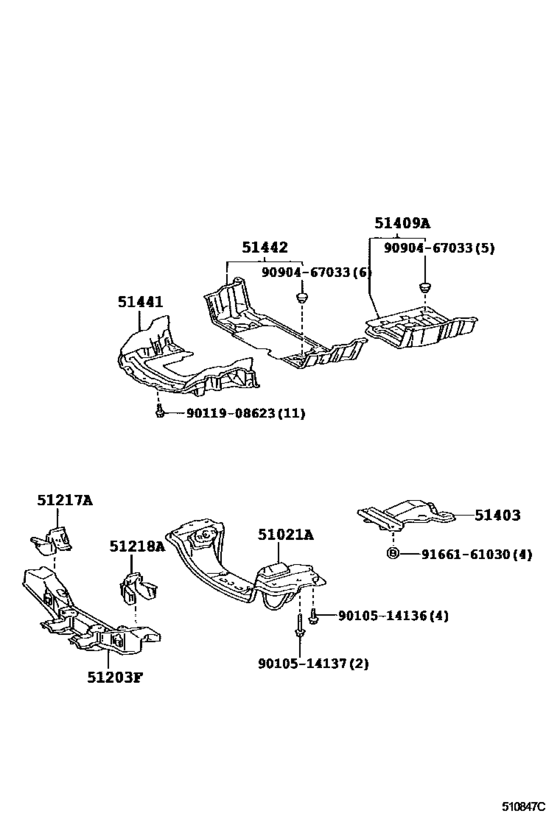

Suspension Crossmember & Under Cover ([08.2002 - ] (0208- )LH10#,11#,154,162,166,172,176,RZH102, 104,105,112,114,115,135,15#..CIS,GC C,GEN..CBR,DSL,EF I) 10

#	OEM	Part name
51021	51021-95J09	Member Sub-Assy, Engine Front Support
51203	51203-26160	Crossmember Sub-Assy, Front Suspension
51217	51217-26060	Reinforcement, Front Suspension Member, Rh
51218	51218-95J02	Reinforcement, Front Suspension Member, Lh
51403	51403-95J00	Bracket Sub-Assy, Engine Rear Mounting
9010514136	90105-14136	Bolt, Engine Front Mounting Member
9010514137	90105-14137	Bolt, Engine Front Mounting Member
9011908623	90119-08623	New Genuine Part
9090467033	90904-67033	Clip(For Deck Board No.1)
9166161030	91661-61030	Bolt

OEM	Part name	Category
51021-95J09	Member Sub-Assy, Engine Front Support	Suspension Crossmember & Under Cover ([08.2002 - ] (0208- )LH10#,11#,154,162,166,172,176,RZH102, 104,105,112,114,115,135,15#..CIS,GC C,GEN..CBR,DSL,EF I)
51203-26160	Crossmember Sub-Assy, Front Suspension	Suspension Crossmember & Under Cover ([08.2002 - ] (0208- )LH10#,11#,154,162,166,172,176,RZH102, 104,105,112,114,115,135,15#..CIS,GC C,GEN..CBR,DSL,EF I)
51217-26060	Reinforcement, Front Suspension Member, Rh	Suspension Crossmember & Under Cover ([08.2002 - ] (0208- )LH10#,11#,154,162,166,172,176,RZH102, 104,105,112,114,115,135,15#..CIS,GC C,GEN..CBR,DSL,EF I)
51218-95J02	Reinforcement, Front Suspension Member, Lh	Suspension Crossmember & Under Cover ([08.2002 - ] (0208- )LH10#,11#,154,162,166,172,176,RZH102, 104,105,112,114,115,135,15#..CIS,GC C,GEN..CBR,DSL,EF I)
51403-95J00	Bracket Sub-Assy, Engine Rear Mounting	Suspension Crossmember & Under Cover ([08.2002 - ] (0208- )LH10#,11#,154,162,166,172,176,RZH102, 104,105,112,114,115,135,15#..CIS,GC C,GEN..CBR,DSL,EF I)
90105-14136	Bolt, Engine Front Mounting Member	Suspension Crossmember & Under Cover ([08.2002 - ] (0208- )LH10#,11#,154,162,166,172,176,RZH102, 104,105,112,114,115,135,15#..CIS,GC C,GEN..CBR,DSL,EF I)
90105-14137	Bolt, Engine Front Mounting Member	Suspension Crossmember & Under Cover ([08.2002 - ] (0208- )LH10#,11#,154,162,166,172,176,RZH102, 104,105,112,114,115,135,15#..CIS,GC C,GEN..CBR,DSL,EF I)
90119-08623	New Genuine Part	Suspension Crossmember & Under Cover ([08.2002 - ] (0208- )LH10#,11#,154,162,166,172,176,RZH102, 104,105,112,114,115,135,15#..CIS,GC C,GEN..CBR,DSL,EF I)
90904-67033	Clip(For Deck Board No.1)	Suspension Crossmember & Under Cover ([08.2002 - ] (0208- )LH10#,11#,154,162,166,172,176,RZH102, 104,105,112,114,115,135,15#..CIS,GC C,GEN..CBR,DSL,EF I)
91661-61030	Bolt	Suspension Crossmember & Under Cover ([08.2002 - ] (0208- )LH10#,11#,154,162,166,172,176,RZH102, 104,105,112,114,115,135,15#..CIS,GC C,GEN..CBR,DSL,EF I)
