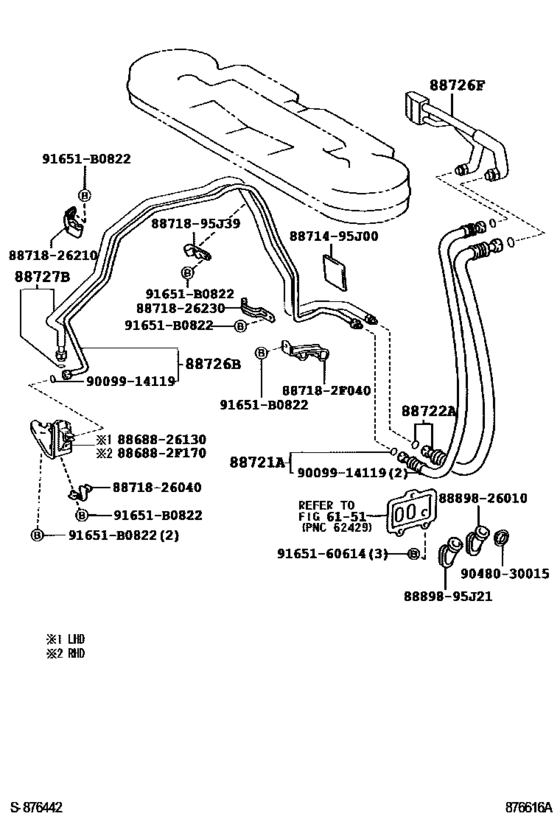

| 88688-26130 |
Bracket, Cooler Diaphragm |
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )DEFI ; (0308- )LH172,RZH113..GCC ; (0308- )LH104,114,164,166,174,1 76,RZH102,104,105 ,11#..4D..SG) |
| 88688-2F170 |
Bracket, Cooler Diaphragm |
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )DEFI ; (0308- )LH172,RZH113..GCC ; (0308- )LH104,114,164,166,174,1 76,RZH102,104,105 ,11#..4D..SG) |
| 88710-2F290 |
Pipe, Cooler Refrigerant Liquid, F |
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )DEFI ; (0308- )LH172,RZH113..GCC ; (0308- )LH104,114,164,166,174,1 76,RZH102,104,105 ,11#..4D..SG) |
| 88712-26230 |
Hose, Suction, A |
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )DEFI ; (0308- )LH172,RZH113..GCC ; (0308- )LH104,114,164,166,174,1 76,RZH102,104,105 ,11#..4D..SG) |
| 88712-2F140 |
Hose, Suction, A |
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )DEFI ; (0308- )LH172,RZH113..GCC ; (0308- )LH104,114,164,166,174,1 76,RZH102,104,105 ,11#..4D..SG) |
| 88714-95J00 |
Protector, Wiring Harness, No.4 |
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )DEFI ; (0308- )LH172,RZH113..GCC ; (0308- )LH104,114,164,166,174,1 76,RZH102,104,105 ,11#..4D..SG) |
| 88716-2F560 |
Pipe, Cooler Refrigerant Liquid, B |
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )DEFI ; (0308- )LH172,RZH113..GCC ; (0308- )LH104,114,164,166,174,1 76,RZH102,104,105 ,11#..4D..SG) |
| 88717-2F270 |
Pipe, Cooler Refrigerant Suction, B |
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )DEFI ; (0308- )LH172,RZH113..GCC ; (0308- )LH104,114,164,166,174,1 76,RZH102,104,105 ,11#..4D..SG) |
| 88717-2F450 |
Pipe, Cooler Refrigerant Suction, B |
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )DEFI ; (0308- )LH172,RZH113..GCC ; (0308- )LH104,114,164,166,174,1 76,RZH102,104,105 ,11#..4D..SG) |
| 88718-26040 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )DEFI ; (0308- )LH172,RZH113..GCC ; (0308- )LH104,114,164,166,174,1 76,RZH102,104,105 ,11#..4D..SG) |
| 88718-26210 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )DEFI ; (0308- )LH172,RZH113..GCC ; (0308- )LH104,114,164,166,174,1 76,RZH102,104,105 ,11#..4D..SG) |
| 88718-26230 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )DEFI ; (0308- )LH172,RZH113..GCC ; (0308- )LH104,114,164,166,174,1 76,RZH102,104,105 ,11#..4D..SG) |
| 88718-2F040 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )DEFI ; (0308- )LH172,RZH113..GCC ; (0308- )LH104,114,164,166,174,1 76,RZH102,104,105 ,11#..4D..SG) |
| 88718-95J39 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )DEFI ; (0308- )LH172,RZH113..GCC ; (0308- )LH104,114,164,166,174,1 76,RZH102,104,105 ,11#..4D..SG) |
| 88721-26080 |
Hose, Liquid, A |
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )DEFI ; (0308- )LH172,RZH113..GCC ; (0308- )LH104,114,164,166,174,1 76,RZH102,104,105 ,11#..4D..SG) |
| 88898-26010 |
Tube Sub-assy, Equalizer |
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )DEFI ; (0308- )LH172,RZH113..GCC ; (0308- )LH104,114,164,166,174,1 76,RZH102,104,105 ,11#..4D..SG) |
| 88898-95J21 |
Tube Sub-assy, Equalizer |
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )DEFI ; (0308- )LH172,RZH113..GCC ; (0308- )LH104,114,164,166,174,1 76,RZH102,104,105 ,11#..4D..SG) |
| 90099-14119 |
Ring, O(For Cooler Refrigerant Liquid Pipe) |
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )DEFI ; (0308- )LH172,RZH113..GCC ; (0308- )LH104,114,164,166,174,1 76,RZH102,104,105 ,11#..4D..SG) |
| 90099-14119-TH |
O RING |
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )DEFI ; (0308- )LH172,RZH113..GCC ; (0308- )LH104,114,164,166,174,1 76,RZH102,104,105 ,11#..4D..SG) |
| 90480-30015 |
New Genuine Part |
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )DEFI ; (0308- )LH172,RZH113..GCC ; (0308- )LH104,114,164,166,174,1 76,RZH102,104,105 ,11#..4D..SG) |
| 91651-60614 |
Bolt |
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )DEFI ; (0308- )LH172,RZH113..GCC ; (0308- )LH104,114,164,166,174,1 76,RZH102,104,105 ,11#..4D..SG) |
| 91651-B0822 |
BOLT WWASHER |
Heating & Air Conditioning - Cooler Piping ([08.2003 - ] REAR PIPING (0308- )DEFI ; (0308- )LH172,RZH113..GCC ; (0308- )LH104,114,164,166,174,1 76,RZH102,104,105 ,11#..4D..SG) |
