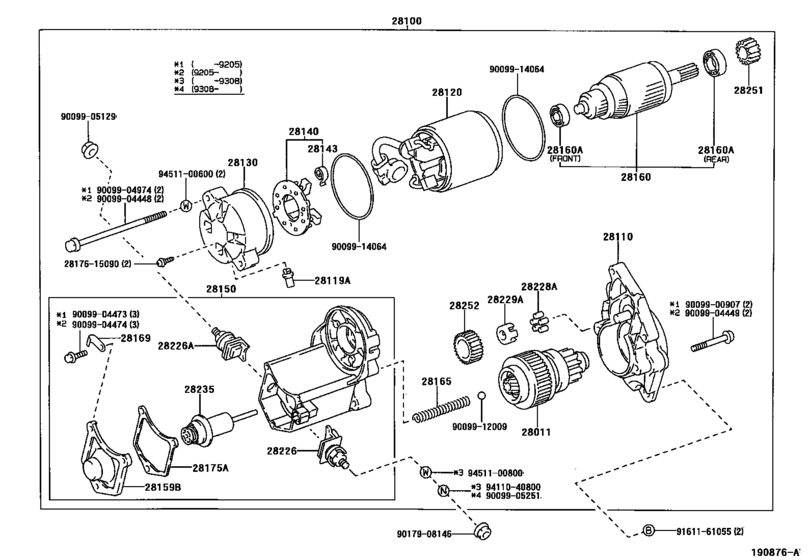

| 28011-70020 |
Clutch Sub-Assy, Starter |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 28100-75150 |
Starter Assy |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 28100-75151 |
Starter Assy |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 28110-75150 |
Housing Assy, Starter Drive |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 28120-70050 |
Yoke Assy, Starter |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 28130-13080 |
Frame Assy, Starter Commutator End |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 28140-70020 |
Holder Assy, Starter Brush |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 28143-70020 |
Spring, Starter Brush |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 28150-75150 |
Switch Assy, Magnet Starter |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 28160-70050 |
Armature Assy, Starter |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 28176-15090 |
Screw, Starter |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 28176-87701 |
Screw, Starter |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 28199-46080 |
Cover, Starter End Frame |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 90099-00907 |
New Genuine Part |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 90099-04448 |
Bolt, Starter |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 90099-04449 |
New Genuine Part |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 90099-04473 |
New Genuine Part |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 90099-04474 |
New Genuine Part |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 90099-04974 |
New Genuine Part |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 90099-05129 |
Nut (For Front Wiper Arm Setting) |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 90099-05251 |
New Genuine Part |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 90099-12009 |
Ball, Starter Clutch |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 90099-14064 |
Rubber(For Starter Yoke) |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 90179-08146 |
Nut |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 90179-08204 |
Nut |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 91611-61055 |
Bolt(For Clutch Release Cylinder Setting) |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 94110-40800 |
Nut(For Steering Damper) |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 94130-00802 |
Nut, No.1 (For Center Support Bearing) |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 94511-00600 |
Washer, Lock, No.2 |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
| 94511-00800 |
WASHERSPRING |
Starter ([08.1989 - ] 12V 1.4KW (8908- )1RZ,2RZ#..RZH114,115,125 ; (8908- )1RZ#,2RZ#..RZH10#,112,113,135,15#. .SMRF,SRF) |
