Search › Model › RZH105

RZH105

Toyota HIACE · 1993 · 4,107 parts · 247 categories
RZH105 ×

← Back to categories

4,107 items

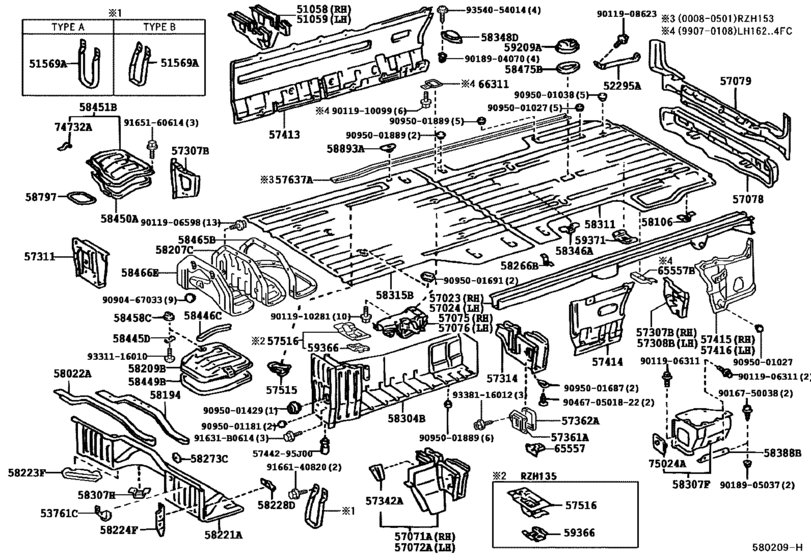

Rear Floor Panel & Rear Floor Member ([08.1989 - ] (8908- )LH104,105,114,115,125,162,172,174,184 ,RZH104,105,11#,125,135,153..RHD..4 D) 81
#OEMPart name
53761 53761-26010 Bracket, Battery Clamp Mounting
57023 57023-95N21 Member Sub-Assy, Rear Side, Rh
57023 57023-95N37 Member Sub-Assy, Rear Side, Rh
57024 57024-26350 Member Sub-Assy, Rear Side, Lh
57024 57024-95N22 Member Sub-Assy, Rear Side, Lh
57071 57071-26160 Hanger Sub-Assy, Rear Spring, Front, Rh
57071 57071-95J49 Hanger Sub-Assy, Rear Spring, Front, Rh
57072 57072-95J51 Hanger Sub-Assy, Rear Spring, Front, Lh
57078 57069-26010 Member Sub-Assy, Rear Floor Rear Cross, Outer
57078 57069-95J08 Member Sub-Assy, Rear Floor Rear Cross, Outer
57079 57068-95J07 Member Sub-Assy, Rear Floor Rear Cross, Inner
57079 57068-95J08 Member Sub-Assy, Rear Floor Rear Cross, Inner
57307 57317-95J06 Outrigger Sub-Assy, No.4 Rh
57307 57317-95J08 Outrigger Sub-Assy, No.4 Rh
57308 57308-95J11 Outrigger Sub-Assy, No.4 Lh
57311 57301-95J08 Outrigger, No.1 Rh
57342 57342-95J09 Gusset, Outrigger, No.2 Lh
57361 57094-95J00 Cover, No.2 Outerigger Hole
57362 57362-95J01 Packing, Outrigger Hole Cover
57413 57405-95J80 Rail, Floor Side, Center Rh
57413 57405-95N02 Rail, Floor Side, Center Rh
57414 57406-95J51 Rail, Floor Side, Center Lh
57414 57414-95J68 Rail, Floor Side, Center Lh
57415 57415-95J33 Rail, Floor Side, Rear Rh
57416 57416-95J24 Rail, Floor Side, Rear Lh
57515 57515-95J00 Bracket, Parking Brake, Rh
57516 57506-95J01 Bracket Sub-Assy, Parking Brake, Lh
58022 58022-95J06 Reinforcement Sub-Assy, Header Panel
58106 58106-95A00 Bracket Sub-Assy, Brake Tube, No.2
58194 58194-95J03 Retainer, Engine Cover Hinge
58207 58207-95J10 Cover Sub-Assy, Transmission Service Hole
58209 58209-95J01 Cover Sub-Assy, Battery Service Hole
58221 58221-95P40 Panel, Header
58221 58221-26020 Panel, Header
58221 90333-25001 Plug, Hole(For Hood)
58223 58223-95J01 Reinforcement, Header Panel, No.2
58224 58224-95J01 Reinforcement, Header Panel, No.3
58228 58228-26010 Patch, Header Panel, Lh
58266 58266-95J01 Bracket, Fuel Tube Clamp
58273 58273-95J00 Reinforcement, Belt Anchor To Center Floor
58304 58304-95J67 Step Sub-Assy, Rear Floor, Lh
58304 58304-95J71 Step Sub-Assy, Rear Floor, Lh
58304 58304-95J74 Step Sub-Assy, Rear Floor, Lh
58304 58304-95N05 Step Sub-Assy, Rear Floor, Lh
58307 58307-95701 Bracket, Brake Tube Connector, No.1
58311 58311-95P11 Pan, Rear Floor
58311 58311-95P12 Pan, Rear Floor
58311 90333-40001 Plate, Noise Control, No.1
58445 58445-95J01 Lock, Battery Service Hole Cover
58446 58446-95J02 Protector, Battery
58449 58449-95J00 Reinforcement, Rear Floor Pan, No.2 Lh
58451 58405-95J01 Cover, Air Cleaner Service Hole
58458 58458-95J01 Knob, Battery Service Hole Cover
58465 58465-95J05 Packing, Transmission Service Hole Cover
58466 58327-95J08 Silencer, Transmission Service Hole Cover, No.1
59371 59371-95J00 Retainer, Rear Seat, No.3
91631 91631-B0614 BOLT WWASHER
5744295 57442-95J00 Plug, Step Panel Hole
9011906311 90119-06311 BOLT
9011906598 90119-06598 BOLT
9011906598 91631-A0618 New Genuine Part
9011908623 90119-08623 New Genuine Part
9011910099 90119-10099 New Genuine Part
9011910281 90119-10281 New Genuine Part
9016750038 90167-50038 New Genuine Part
9018904070 90189-04070 New Genuine Part
9018905037 90189-05037 GROMMET
9090467033 90904-67033 Clip(For Deck Board No.1)
9095001027 90950-01027 Plug, Hole, No.3(For Dash Panel)
9095001038 90950-01038 Plug, Hole(For Instrument Lower Panel)
9095001181 90950-01181 Plug, Hole(For Front Fender Apron)
9095001429 90950-01429 PLUG
9095001687 90950-01687 New Genuine Part
9095001691 90950-01691 New Genuine Part
9095001889 90950-01889 New Genuine Part
9165160614 91651-60614 Bolt
9166140820 91661-40820 New Genuine Part
9331116010 93311-16010 Screw
9338116012 93381-16012 Screw
9354054014 93540-54014 SCREW
904670501822 90467-05018-22 New Genuine Part
