Search › Model › RZH105

RZH105

Toyota HIACE · 1993 · 4,107 parts · 247 categories

4,107 items

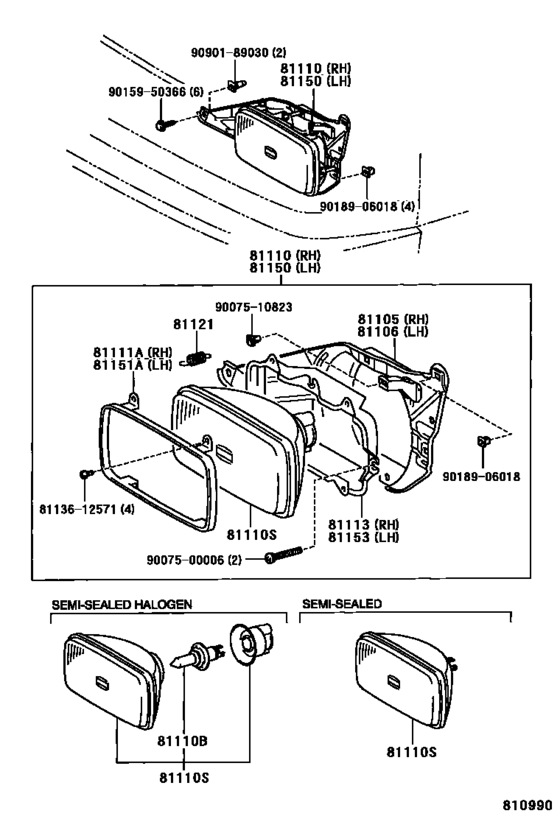

Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN) 25

#	OEM	Part name
81105	81115-26290	Housing Sub-Assy, Headlamp, Rh
81106	81155-26290	Housing Sub-Assy, Headlamp, Lh
81110	81110-26270	Headlamp Assy, Rh
81110	81110-26280	Headlamp Assy, Rh
81110	81130-26270	New Genuine Part
81110	90981-04H21	Sealed Beam Unit (2 pcs set) Halogen
81110	90981-04H22	SEALED BEAM UNIT, H4 (2 pcs set)
81110	90981-13015	Bulb(For Headlamp, No.1)
81110	90981-13058	Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)
81110	90084-98033	Bulb(For Headlamp, No.1)
81110	90981-04011	Sealed Beam Unit, No.1
81110	90981-04029	Sealed Beam Unit, No.1
81111	81111-16020	Ring, Sealed Beam Retaining
81113	81113-16220	Ring, Sealed Beam Mounting, No.1
81121	90075-25509	Spring, Headlamp Tension
81150	81150-26270	Headlamp Assy, Lh
81150	81150-26280	Headlamp Assy, Lh
81150	81170-26270	Unit Assy, Headlamp Daytime Running Light, Lh
81153	81153-16220	Ring, Sealed Beam Mounting, No.1
8113612571	81136-12571	Screw
9007500006	90075-00006	Screw, Headlamp Adjusting
9007510823	90075-10823	CLIP
9015950366	90159-50366	New Genuine Part
9018906018	90189-06018	GROMMET
9090189030	90901-89030	GROMMET SCREW

OEM	Part name	Category
81110-26270	Headlamp Assy, Rh	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
81110-26280	Headlamp Assy, Rh	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
81111-16020	Ring, Sealed Beam Retaining	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
81113-16220	Ring, Sealed Beam Mounting, No.1	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
81115-26290	Housing Sub-Assy, Headlamp, Rh	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
81130-26270	New Genuine Part	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
81136-12571	Screw	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
81150-26270	Headlamp Assy, Lh	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
81150-26280	Headlamp Assy, Lh	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
81153-16220	Ring, Sealed Beam Mounting, No.1	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
81155-26290	Housing Sub-Assy, Headlamp, Lh	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
81170-26270	Unit Assy, Headlamp Daytime Running Light, Lh	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
90075-00006	Screw, Headlamp Adjusting	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
90075-10823	CLIP	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
90075-25509	Spring, Headlamp Tension	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
90084-98033	Bulb(For Headlamp, No.1)	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
90159-50366	New Genuine Part	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
90189-06018	GROMMET	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
90901-89030	GROMMET SCREW	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
90981-04011	Sealed Beam Unit, No.1	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
90981-04029	Sealed Beam Unit, No.1	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
90981-04H21	Sealed Beam Unit (2 pcs set) Halogen	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
90981-04H22	SEALED BEAM UNIT, H4 (2 pcs set)	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
90981-13015	Bulb(For Headlamp, No.1)	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
90981-13058	Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)	Headlamp ([08.1998 - ] (9808- )RZH113..LHD..03S..GEN ; (9808- )LH 102,103,104,11#,125,162,172,184,RZH 10#,114,115,125.. DX,STD..ARL,GCC,GEN)
