RZH105

Toyota HIACE · 1993 · 4,107 parts · 247 categories
RZH105 ×

← Back to categories

4,107 items

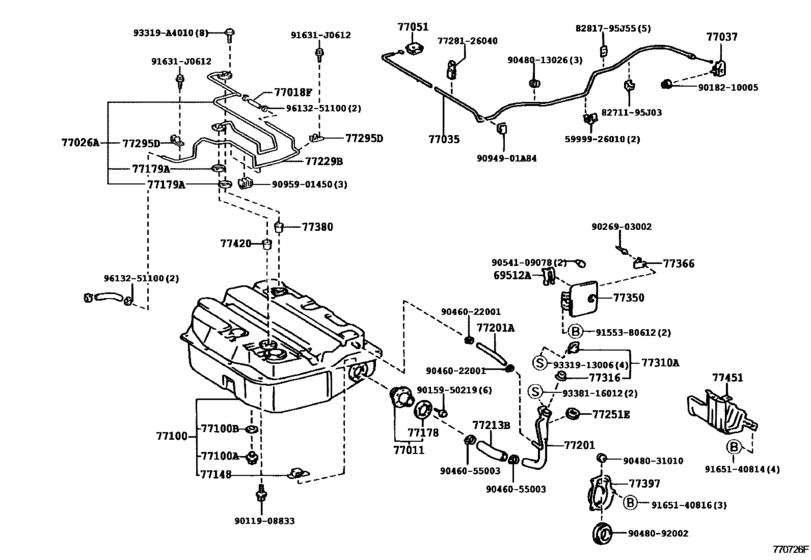

Fuel Tank & Tube ([07.1999 - 08.2003] (9907-0308)EFI) 60
#OEMPart name
69512 69512-87001 Retainer, Front Door Lock Cylinder
77011 77011-26010 Pipe Sub-Assy, Fuel Tank Filler, Lower
77018 95333-06010 Hose, Fuel
77018 95337-06007 Hose, Fuel Tank Evaporation Vent
77026 77026-26060 Tube Sub-Assy, Fuel Evaporation, No.1
77035 77035-26090 Cable Sub-Assy, Fuel Lid Lock Control
77037 77037-12040 Lock Sub-Assy, Fuel Tank Cap
77037 77037-38010 Lock Sub-Assy, Fuel Tank Cap
77051 77051-95J01-C0 Lever Sub-Assy, Fuel Lid Open
77100 77001-26490 Tank Assy, Fuel
77100 77001-26910 Tank Assy, Fuel (lpg)
77100 90105-12116 Plug(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77148 77148-32010 Bracket, Fuel Tube To Tank
77178 77178-20010 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-26010 Gasket, Fuel Tank Evap/vent Tube
77179 77179-26011 Gasket, Fuel Suction Tube Set, No.1
77201 77201-26230 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-26151 Pipe Sub-Assy, Fuel Tank Inlet
77201 95311-13032 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77201 95312-13032 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77213 77213-26080 Hose, Fuel Tank To Filler Pipe
77229 77229-26010 Tube, Fuel Tank Evaporation Vent, No.3
77251 90480-75002 Shield, Fuel Tank Inlet Pipe
77295 77295-26020 Grommet, Fuel Tube
77310 77310-48010 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-26010 Lid Assy, Fuel Filler Opening
77350 77350-95J00 Lid Assy, Fuel Filler Opening
77366 77366-95J01 Spring, Fuel Filler Opening Lid Hinge
77380 77380-26010 Valve Assy, Fuel Cut Off
77397 77397-95J01 Plate, Fuel Inlet Pipe Seal
77420 77420-26010 Valve Assy, Fuel Cut Off, No.2
77451 77451-26010 Protector, Fuel Inlet Hose
91631 91631-J0612 BRACKET
93319 93319-A4010 SCREW WWASHER
8271195 82711-95J03 Wire, Fuse To Fuse(for Combustion Heater)
8281795 82817-95J55 Support, Slide Roof Rain Channel Hose
9094901 90949-01A84 Clamp, Height Control Tube, No.3
5999926010 59999-26010 Clamp(for Floor Mat)
7728126040 77281-26040 Bracket, Fuel Main Tube, No.1
9011908833 90119-08833 New Genuine Part
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9018210005 90182-10005 NUT WWASHER
9026903002 90269-03002 RIVET
9046022001 90460-22001 CLAMP
9046055003 90460-55003 Clamp Or Clip(For Air Hose, No.1)
9048013026 90480-13026 New Genuine Part
9048031010 90480-31010 Grommet
9048092002 90480-92002 GROMMET
9054109078 90541-09078 Cushion, Front Door Panel
9095901450 90959-01450 Clamp, Fuel Tube, No.1
9155380612 91553-80612 BOLT FLANGE
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165140816 91651-40816 BOLT
9331913006 93319-13006 New Genuine Part
9338116012 93381-16012 Screw
9613251100 96132-51100 Clip (For Hose)
