RZH105

Toyota HIACE · 1993 · 4,107 parts · 247 categories
RZH105 ×

← Back to categories

4,107 items

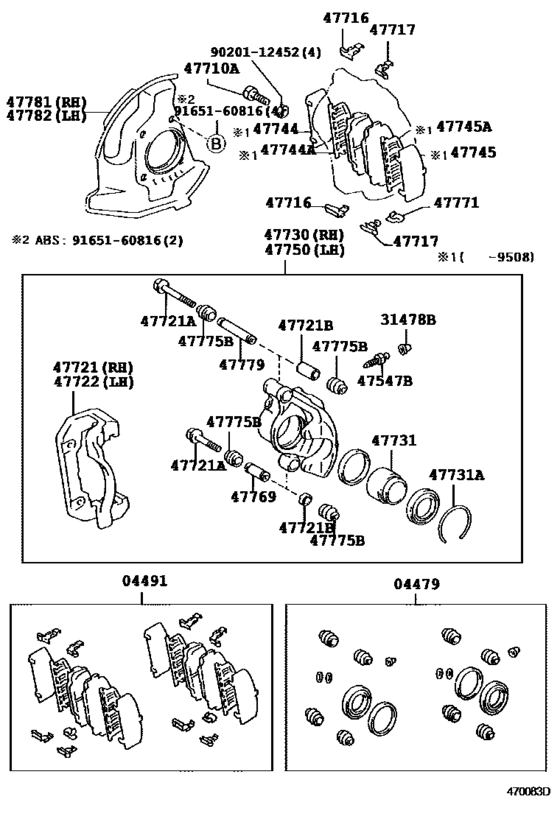

Front Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )LH125,172,174,RZH112,114,115,125 ; (9 808- )LH102,103,104,11#,154,162, 164,RZH10#,113,15 5..SRF) 41
#OEMPart name
4479 04479-26040 Cylinder Kit, Disc Brake, Front
4479 04479-26060 Cylinder Kit, Disc Brake, Front
4479 04478-26030 Cylinder Kit, Disc Brake, Front
4479 04479-26061 Cylinder Kit, Disc Brake, Front
31478 31478-30010 Bleeder Plug Cap
47547 47547-12010 Plug, Bleeder(For Release Cylinder)
47710 90101-12132 Bolt, Hexagon(For Front Disc Brake Caliper)
47716 47716-26040 Plate, Pad Support, No.1(For Front Disc Brake)
47716 47716-26050 Plate, Pad Support, No.1(For Front Disc Brake)
47717 47717-26010 Plate, Pad Support, No.2(For Front Disc Brake)
47717 47717-26020 Plate, Pad Support, No.2(For Front Disc Brake)
47721 47721-26080 Mounting, Front Disc Brake Cylinder, Rh
47721 47721-26102 Mounting, Front Disc Brake Cylinder, Rh
47721 47721-26103 Mounting, Front Disc Brake Cylinder, Rh
47721 90119-10014 Bolt(For Front Disc Brake Cylinder Mounting)
47721 90119-10249 Bolt(For Front Disc Brake Cylinder Mounting)
47721 90387-16004 Collar(For Front Disc Brake Cylinder Mounting)
47721 90387-16005 Collar(For Front Disc Brake Cylinder Mounting)
47722 47722-26032 Mounting, Front Disc Brake Cylinder, Lh
47722 47722-26033 Mounting, Front Disc Brake Cylinder, Lh
47730 47730-26060 Cylinder Assy, Front Disc Brake, Rh
47730 47730-26122 Cylinder Assy, Front Disc Brake, Rh
47731 47731-25010 Piston, Front Disc Brake
47731 90522-76001 Ring, Set(For Front Disc Brake Piston)
47750 47750-26060 Cylinder Assy, Disc Brake, Lh
47750 47750-26122 Cylinder Assy, Disc Brake, Lh
47769 47769-40010 Bush, Cylinder Slide, No.1(For Front Disc Brake)
47769 47769-50010 Bush, Cylinder Slide, No.1(For Front Disc Brake)
47771 47771-26030 Plate, Pad Wear Indicator, No.1
47771 47771-35010 Plate, Pad Wear Indicator, No.1
47775 47775-26020 Boot, Bush Dust, No.1
47775 47775-30070 Boot, Bush Dust(For Front Disc Brake)
47775 47775-50010 Boot, Bush Dust(For Front Disc Brake)
47779 47779-40010 Bush, Cylinder Slide, No.2(For Front Disc Brake)
47781 47703-26010 Cover, Disc Brake Dust, Front Rh
47781 47781-26070 Cover, Disc Brake Dust, Front Rh
47782 47704-26010 Cover, Disc Brake Dust, Front Lh
47782 47782-26070 Cover, Disc Brake Dust, Front Lh
9020112452 90201-12452 Nut(For Backing Plate To Steering Knuckle Setting)
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
