RT118

Toyota CORONA · 1973 · 4,722 parts · 176 categories

4,722 items

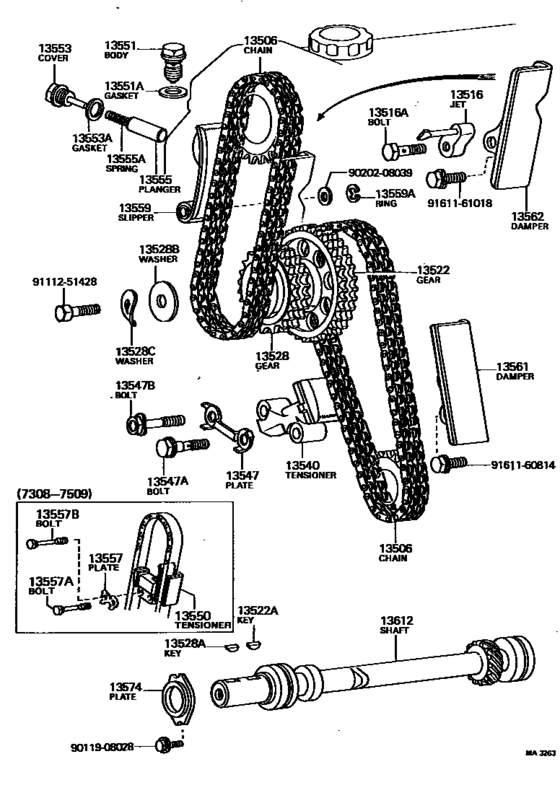

Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#) 37

#	OEM	Part name
13506	13506-33010	Chain Sub-Assy
13516	13516-34010	Jet, Oil
13516	90401-10001	Bolt Union(For Oil Jet)
13516	90401-10002	Bolt Union(For Oil Jet)
13522	13522-33010	Gear, Pump Drive Shaft
13522	90280-05010	Key(For Oil Pump Drive Spline)
13528	13528-33010	Gear, Camshaft Drive
13528	90201-14293	Washer, Plate(For Timing Gear)
13528	90206-14048	Washer, Wave(For Camshaft Drive Gear Set)
13540	13540-33014	Tensioner Assy, Chain, No.1
13547	13547-33010	Plate, Tensioner Bolt Lock, No.1
13547	90119-08013	Bolt(For Tensioner Lock Plate Set)
13547	90401-10049	Bolt, Union(For Tensioner Lock Plate)
13550	13550-33016	Tensioner Assy, Chain, No.2
13551	13551-34010	Body, Chain Tensioner, No.2
13551	90430-16162	Gasket(For Chain Tensioner Body)
13553	13553-34010	Cover, Chain Tensioner Dust
13555	13555-34010	Plunger, Chain Tensioner, No.2
13555	13555-34011	Plunger, Chain Tensioner, No.2
13555	90501-09005	Spring(For Chain Tensioner Plunger)
13557	13557-33011	Plate, Tensioner Bolt Lock, No.2
13557	90401-10073	Bolt(For Tensioner Lock Plate Set)
13559	13559-34020	Slipper, Chain Tensioner
13559	96160-00700	Ring, E(For Chain Tensioner Slipper)
13561	13561-33011	Damper, Chain Vibration, No.1
13561	13561-34010	Damper, Chain Vibration, No.1
13562	13562-34020	Damper, Chain Vibration, No.2
13574	13574-33010	Plate, Pump Drive Shaft
13612	13612-33010	Shaft, Pump Drive
13612	13612-33011	Shaft, Pump Drive
9011908028	90119-08028	New Genuine Part
9011908028	91651-40818	BOLT, W-WASHER
9020208039	90202-08039	WASHER
9111251428	91112-51428	BOLT
9161160814	91611-60814	Bolt
9161161018	91611-61018	Bolt (For Transfer Case)Cover No.2
9161161018	91612-B1020	Bolt (For Transfer Case)Cover No.2

OEM	Part name	Category
13506-33010	Chain Sub-Assy	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
13516-34010	Jet, Oil	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
13522-33010	Gear, Pump Drive Shaft	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
13528-33010	Gear, Camshaft Drive	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
13540-33014	Tensioner Assy, Chain, No.1	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
13547-33010	Plate, Tensioner Bolt Lock, No.1	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
13550-33016	Tensioner Assy, Chain, No.2	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
13551-34010	Body, Chain Tensioner, No.2	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
13553-34010	Cover, Chain Tensioner Dust	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
13555-34010	Plunger, Chain Tensioner, No.2	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
13555-34011	Plunger, Chain Tensioner, No.2	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
13557-33011	Plate, Tensioner Bolt Lock, No.2	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
13559-34020	Slipper, Chain Tensioner	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
13561-33011	Damper, Chain Vibration, No.1	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
13561-34010	Damper, Chain Vibration, No.1	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
13562-34020	Damper, Chain Vibration, No.2	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
13574-33010	Plate, Pump Drive Shaft	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
13612-33010	Shaft, Pump Drive	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
13612-33011	Shaft, Pump Drive	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
90119-08013	Bolt(For Tensioner Lock Plate Set)	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
90119-08028	New Genuine Part	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
90201-14293	Washer, Plate(For Timing Gear)	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
90202-08039	WASHER	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
90206-14048	Washer, Wave(For Camshaft Drive Gear Set)	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
90280-05010	Key(For Oil Pump Drive Spline)	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
90401-10001	Bolt Union(For Oil Jet)	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
90401-10002	Bolt Union(For Oil Jet)	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
90401-10049	Bolt, Union(For Tensioner Lock Plate)	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
90401-10073	Bolt(For Tensioner Lock Plate Set)	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
90430-16162	Gasket(For Chain Tensioner Body)	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
90501-09005	Spring(For Chain Tensioner Plunger)	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
91112-51428	BOLT	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
91611-60814	Bolt	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
91611-61018	Bolt (For Transfer Case)Cover No.2	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
91651-40818	BOLT, W-WASHER	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
96160-00700	Ring, E(For Chain Tensioner Slipper)	Timing Chain ([08.1973 - 05.1979] (7308-7905)16R,18R#)
