Search › Model › RN85

RN85

Toyota HILUX-4RUNNER-TRUCK · 1988 · 2,744 parts · 176 categories

2,744 items

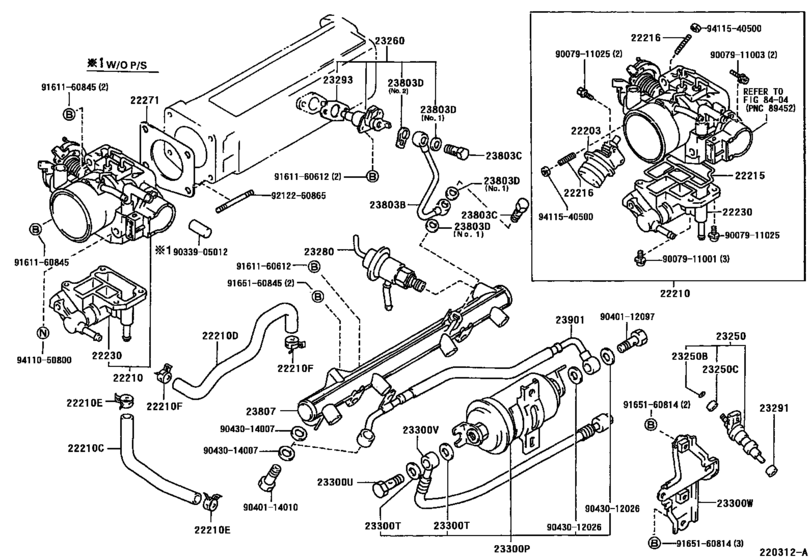

Fuel Injection System ([01.1994 - ] (9401- )22RE) 59

#	OEM	Part name
22203	22202-35300	Dash Pot Sub-Assy(For Throttle Body)
22203	22202-35271	Dash Pot Sub-Assy(For Throttle Body)
22210	22210-35301	Body Assy, Throttle
22210	16267-35030	Hose, Water By-Pass, No.1
22210	16264-35030	Hose, Water By-Pass, No.2
22210	90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)
22210	96135-51300	Clamp, Hose
22215	22215-35270	Gasket, Throttle Body Cover
22216	22216-35300	Screw, Dash Pot Adjusting
22230	22230-35030	Valve Assy, Auxiliary Air
22271	22271-35020	Gasket, Throttle Body
23091	23091-35060	Tube Sub-Assy, Fuel Pump
23206	23206-35300	Bracket, Fuel Pump
23206	77169-14010	Gasket, Fuel Pump Bracket
23217	23217-74021	Filter, Fuel Pump
23220	23221-16490	Pump Assy, Fuel
23220	23221-28280	Pump Assy, Fuel (without filter)
23229	23229-16010	Clip(For Fuel Pump Filter)
23229	23219-03010	Clip(For Fuel Pump Filter)
23233	23239-11010	Hose, Fuel Pump
23233	90467-12067	Clip(For Fuel Pump Hose)
23249	23249-74610	Rubber, Cushion(For Fuel Pump)
23250	23209-35040	Injector Assy, Fuel
23250	90301-07001	Ring, O(For Fuel Injector)
23250	90301-07024	Ring, O(For Fuel Injector)
23250	90480-13005	Grommet(For Fuel Injector)
23260	23260-39075	Injector Assy, Cold Start Fuel
23280	23280-35030	Regulator Assy, Fuel Pressure
23291	23291-41010	Insulator, Injector Vibration
23293	23293-35020	Gasket, Cold Start Injector
23300	23300-39065	Filter, Fuel(For Efi)
23300	90430-12026	Gasket
23300	90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)
23300	23906-35040	Hose, Fuel(For Fuel Inlet)
23300	23264-35020	Bracket, Fuel Filter
23803	23801-35010	Pipe Sub-Assy, Fuel, No.3
23803	90401-08003	Bolt, Union
23803	90430-08014	Gasket(For Oil Filter Outlet Pipe)
23803	90430-08015	Gasket
23807	23807-35020	Pipe Sub-Assy, Fuel Delivery
23901	23901-35010	Tube Sub-Assy, Fuel
9007911001	90079-11001	SCREW
9007911003	90079-11003	New Genuine Part
9007911025	90079-11025	New Genuine Part
9033905012	90339-05012	New Genuine Part
9040114010	90401-14010	New Genuine Part
9043014007	90430-14007	Gasket, Pipe Fuel Delivary Inlet
9161160612	91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612	91611-G0612	Bolt
9161160845	91611-60845	Bolt(for Clutch Release Cylinder Setting)
9161160845	91611-B0845	Bolt(for Clutch Release Cylinder Setting)
9165160814	91651-60814	Clamp Or Clip, Hose(for Radiator Outlet No.1)
9165160814	91651-B0814	Bolt with washer
9165160845	91651-60845	Bolt(For Rocker Support Set)
9165160845	91651-B0845	Bolt, Flange (For Idler)
9212260865	92122-60865	Bolt, Stud(For Water Outlet)
9338115010	93381-15010	SCREW
9411050800	94110-50800	Nut(For Repair Actuator Set)
9411540500	94115-40500	Nut(For Lpg Filter Stud Bolt Set)

OEM	Part name	Category
16264-35030	Hose, Water By-Pass, No.2	Fuel Injection System ([01.1994 - ] (9401- )22RE)
16267-35030	Hose, Water By-Pass, No.1	Fuel Injection System ([01.1994 - ] (9401- )22RE)
22202-35271	Dash Pot Sub-Assy(For Throttle Body)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
22202-35300	Dash Pot Sub-Assy(For Throttle Body)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
22210-35301	Body Assy, Throttle	Fuel Injection System ([01.1994 - ] (9401- )22RE)
22215-35270	Gasket, Throttle Body Cover	Fuel Injection System ([01.1994 - ] (9401- )22RE)
22216-35300	Screw, Dash Pot Adjusting	Fuel Injection System ([01.1994 - ] (9401- )22RE)
22230-35030	Valve Assy, Auxiliary Air	Fuel Injection System ([01.1994 - ] (9401- )22RE)
22271-35020	Gasket, Throttle Body	Fuel Injection System ([01.1994 - ] (9401- )22RE)
23091-35060	Tube Sub-Assy, Fuel Pump	Fuel Injection System ([01.1994 - ] (9401- )22RE)
23206-35300	Bracket, Fuel Pump	Fuel Injection System ([01.1994 - ] (9401- )22RE)
23209-35040	Injector Assy, Fuel	Fuel Injection System ([01.1994 - ] (9401- )22RE)
23217-74021	Filter, Fuel Pump	Fuel Injection System ([01.1994 - ] (9401- )22RE)
23219-03010	Clip(For Fuel Pump Filter)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
23221-16490	Pump Assy, Fuel	Fuel Injection System ([01.1994 - ] (9401- )22RE)
23221-28280	Pump Assy, Fuel (without filter)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
23229-16010	Clip(For Fuel Pump Filter)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
23239-11010	Hose, Fuel Pump	Fuel Injection System ([01.1994 - ] (9401- )22RE)
23249-74610	Rubber, Cushion(For Fuel Pump)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
23260-39075	Injector Assy, Cold Start Fuel	Fuel Injection System ([01.1994 - ] (9401- )22RE)
23264-35020	Bracket, Fuel Filter	Fuel Injection System ([01.1994 - ] (9401- )22RE)
23280-35030	Regulator Assy, Fuel Pressure	Fuel Injection System ([01.1994 - ] (9401- )22RE)
23291-41010	Insulator, Injector Vibration	Fuel Injection System ([01.1994 - ] (9401- )22RE)
23293-35020	Gasket, Cold Start Injector	Fuel Injection System ([01.1994 - ] (9401- )22RE)
23300-39065	Filter, Fuel(For Efi)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
23801-35010	Pipe Sub-Assy, Fuel, No.3	Fuel Injection System ([01.1994 - ] (9401- )22RE)
23807-35020	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([01.1994 - ] (9401- )22RE)
23901-35010	Tube Sub-Assy, Fuel	Fuel Injection System ([01.1994 - ] (9401- )22RE)
23906-35040	Hose, Fuel(For Fuel Inlet)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
77169-14010	Gasket, Fuel Pump Bracket	Fuel Injection System ([01.1994 - ] (9401- )22RE)
90079-11001	SCREW	Fuel Injection System ([01.1994 - ] (9401- )22RE)
90079-11003	New Genuine Part	Fuel Injection System ([01.1994 - ] (9401- )22RE)
90079-11025	New Genuine Part	Fuel Injection System ([01.1994 - ] (9401- )22RE)
90301-07001	Ring, O(For Fuel Injector)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
90301-07024	Ring, O(For Fuel Injector)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
90339-05012	New Genuine Part	Fuel Injection System ([01.1994 - ] (9401- )22RE)
90401-08003	Bolt, Union	Fuel Injection System ([01.1994 - ] (9401- )22RE)
90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
90401-14010	New Genuine Part	Fuel Injection System ([01.1994 - ] (9401- )22RE)
90430-08014	Gasket(For Oil Filter Outlet Pipe)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
90430-08015	Gasket	Fuel Injection System ([01.1994 - ] (9401- )22RE)
90430-12026	Gasket	Fuel Injection System ([01.1994 - ] (9401- )22RE)
90430-14007	Gasket, Pipe Fuel Delivary Inlet	Fuel Injection System ([01.1994 - ] (9401- )22RE)
90467-12067	Clip(For Fuel Pump Hose)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
90480-13005	Grommet(For Fuel Injector)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
91611-60845	Bolt(for Clutch Release Cylinder Setting)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
91611-B0845	Bolt(for Clutch Release Cylinder Setting)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
91611-G0612	Bolt	Fuel Injection System ([01.1994 - ] (9401- )22RE)
91651-60814	Clamp Or Clip, Hose(for Radiator Outlet No.1)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
91651-60845	Bolt(For Rocker Support Set)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
91651-B0814	Bolt with washer	Fuel Injection System ([01.1994 - ] (9401- )22RE)
91651-B0845	Bolt, Flange (For Idler)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
92122-60865	Bolt, Stud(For Water Outlet)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
93381-15010	SCREW	Fuel Injection System ([01.1994 - ] (9401- )22RE)
94110-50800	Nut(For Repair Actuator Set)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
94115-40500	Nut(For Lpg Filter Stud Bolt Set)	Fuel Injection System ([01.1994 - ] (9401- )22RE)
96135-51300	Clamp, Hose	Fuel Injection System ([01.1994 - ] (9401- )22RE)
