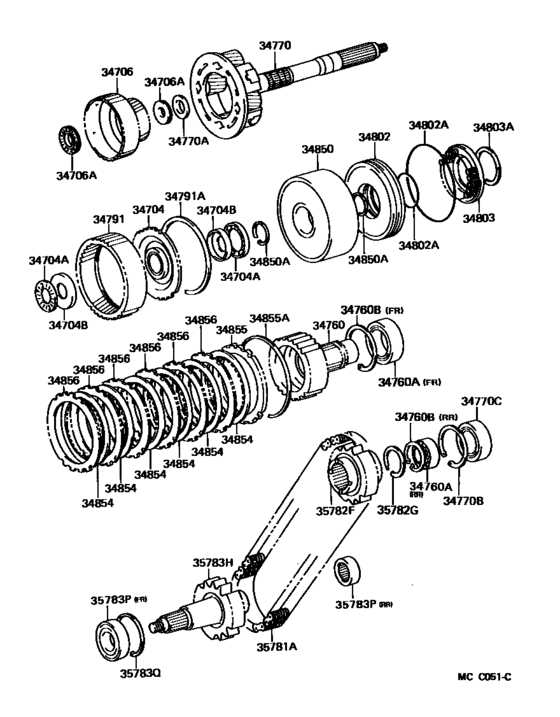

| 34653-35010 |
Disc, Transfer Direct Clutch |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 34653-35020 |
Disc, Transfer Direct Clutch |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 34655-35010 |
Flange, Transfer Direct Clutch |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 34656-35010 |
Plate, Transfer Direct Clutch |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 34704-35010 |
Flange Sub-Assy, Transfer Planetary Ring Gear |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 34706-35010 |
Gear Sub-Assy, Transfer Planetary Sun |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 34760-35010 |
Shaft Assy, Transfer Front Output |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 34770-35010 |
Shaft Assy, Transfer Rear Output |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 34791-35010 |
Gear, Transfer Planetary Ring |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 34802-35010 |
Piston Sub-Assy, Transfer Front Drive Clutch |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 34803-35010 |
Spring Sub-Assy, Front Drive Clutch Return |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 34850-35010 |
Drum Assy, Transfer Front Drive Clutch |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 35781-35010 |
Chain, Front Drive |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 35782-35010 |
Sprocket, Drive |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 35782-35011 |
Sprocket, Drive |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 35783-35010 |
Sproket, Driven |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 35783-35011 |
Sproket, Driven |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 35789-35030 |
Race, Thrust Bearing (For Transfer Rear Output Shaft) |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 35789-35040 |
Race, Thrust Bearing (For Planetary Ring Gear Flange) |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 90301-60003 |
Ring, O (For Transfer Direct Clutch Piston) |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 90301-99041 |
Ring, O (For Transfer Direct Clutch Piston) |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 90363-30046 |
Bearing (For Transfer Rear Output Shaft) |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 90363-51001 |
Bearing (For Transfer Front Output Shaft) |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 90364-35006 |
Bearing(For Transfer Driven Sproket) |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 90364-45003 |
Bearing (For Transfer Front Output Shaft) |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 90374-19001 |
Bearing, Thrust (For Transfer Planetary Sun Gear) |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 90374-30007 |
Bearing, Thrust (For Transfer Planetary Sun Gear) |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 90374-35002 |
Bearing, Thrust (For Transfer Planetary Ring Gear Flange) |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 90374-38001 |
Bearing, Thrust (For Transfer Planetary Ring Gear Flange) |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 90520-32003 |
Ring, Shaft Snap (For Transfer Front Drive (Clutch Drum) |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 90520-45002 |
Ring, Shaft Snap(For Drive Sprocket) |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 90520-56001 |
Ring, Snap (For Transfer Direct Clutch Return Spring) |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 90521-74001 |
Ring, Snap (For Transfer Rear Output Shaft) |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 90521-84001 |
Ring, Hole Snap (For Transfer Front Output Shaft Bearing) |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 90521-99036 |
Ring, Snap (For Transfer Direct Clutch Flange) |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
| 90521-99039 |
Ring, Hole Snap (For Transfer Planetary Ring Gear) |
Front Drive Clutch & Gear ([01.1985 - ] (8501- )) |
