RN65

Toyota HILUX-4RUNNER-TRUCK · 1983 · 4,653 parts · 184 categories

4,653 items

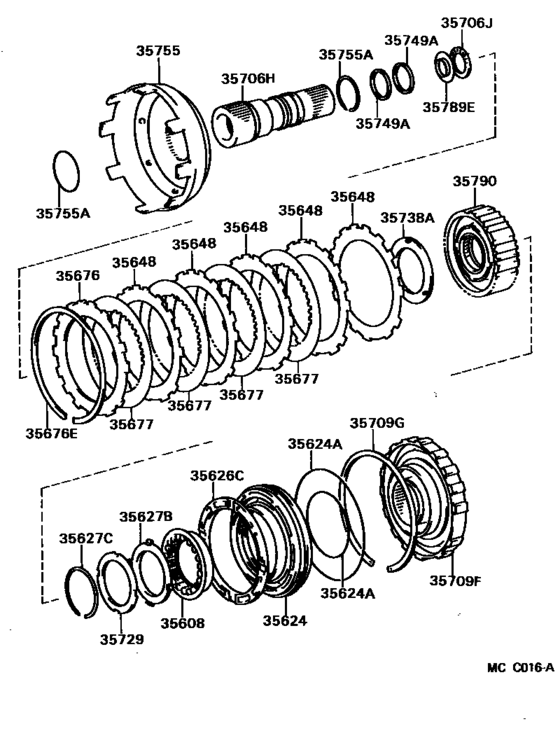

Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC) 27

#	OEM	Part name
35608	35608-30010	Spring Sub-Assy, 2Nd Brake Piston Return
35624	35624-30010	Piston, 2Nd Brake
35624	90301-85001	Ring, O (For 2Nd Brake Piston)
35624	90301-99038	Ring, O (For 2Nd Brake Piston)
35626	35626-35010	Sleeve, 2Nd Brake Piston
35627	35627-30010	Seat, 2Nd Brake Piston Return Spring
35627	90520-54001	Ring, Shaft Snap(For 2Nd Brake Piston Return Spring Seat)
35648	35647-30020	Plate, Clutch (For 2Nd Brake)
35676	35676-30020	Flange, Brake (For 2Nd Brake)
35676	90521-99032	Ring, Hole Snap (For Direct Clutch Flange)
35677	35667-30020	Disc, Clutch (For 2Nd Brake)
35706	35706-30060	Gear Sub-Assy, Planetary Sun
35706	35706-30061	Gear Sub-Assy, Planetary Sun
35706	90374-30006	Bearing, Thrust Needle Roller (For Planetary Sun Gear)
35709	35709-30060	Drum Sub-Assy, 2Nd Brake
35709	35709-30061	Drum Sub-Assy, 2Nd Brake
35709	90521-99044	Ring (For Brake Piston Outer)
35729	35729-30010	Washer, 1 Way Clutch Thrust, No.2
35738	35738-30040	Washer, 1 Way Clutch Thrust, No.1
35749	35749-30010	Ring, Sun Gear Shaft Oil Seal
35755	35755-30010	Drum, Sun Gear Input
35755	35755-50010	Drum, Sun Gear Input
35755	90520-46002	Ring, Shaft Snap (For Sun Gear Input Drum)
35755	90520-49001	Ring, Shaft Snap (For Sun Gear Input Drum)
35789	35789-30150	Race, Thrust Bearing (For Planetary Sun Gear)
35790	35790-30030	Clutch Assy, 1 Way
35790	35790-30060	Clutch Assy, 1 Way

OEM	Part name	Category
35608-30010	Spring Sub-Assy, 2Nd Brake Piston Return	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
35624-30010	Piston, 2Nd Brake	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
35626-35010	Sleeve, 2Nd Brake Piston	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
35627-30010	Seat, 2Nd Brake Piston Return Spring	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
35647-30020	Plate, Clutch (For 2Nd Brake)	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
35667-30020	Disc, Clutch (For 2Nd Brake)	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
35676-30020	Flange, Brake (For 2Nd Brake)	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
35706-30060	Gear Sub-Assy, Planetary Sun	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
35706-30061	Gear Sub-Assy, Planetary Sun	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
35709-30060	Drum Sub-Assy, 2Nd Brake	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
35709-30061	Drum Sub-Assy, 2Nd Brake	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
35729-30010	Washer, 1 Way Clutch Thrust, No.2	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
35738-30040	Washer, 1 Way Clutch Thrust, No.1	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
35749-30010	Ring, Sun Gear Shaft Oil Seal	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
35755-30010	Drum, Sun Gear Input	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
35755-50010	Drum, Sun Gear Input	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
35789-30150	Race, Thrust Bearing (For Planetary Sun Gear)	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
35790-30030	Clutch Assy, 1 Way	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
35790-30060	Clutch Assy, 1 Way	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
90301-85001	Ring, O (For 2Nd Brake Piston)	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
90301-99038	Ring, O (For 2Nd Brake Piston)	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
90374-30006	Bearing, Thrust Needle Roller (For Planetary Sun Gear)	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
90520-46002	Ring, Shaft Snap (For Sun Gear Input Drum)	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
90520-49001	Ring, Shaft Snap (For Sun Gear Input Drum)	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
90520-54001	Ring, Shaft Snap(For 2Nd Brake Piston Return Spring Seat)	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
90521-99032	Ring, Hole Snap (For Direct Clutch Flange)	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
90521-99044	Ring (For Brake Piston Outer)	Center Support & Planetary Sun Gear (Atm) ([01.1985 - ] (8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6 #..4FC)
