Search › Model › RN41

RN41

Toyota HILUX-4RUNNER-TRUCK · 1978 · 3,662 parts · 178 categories

3,662 items

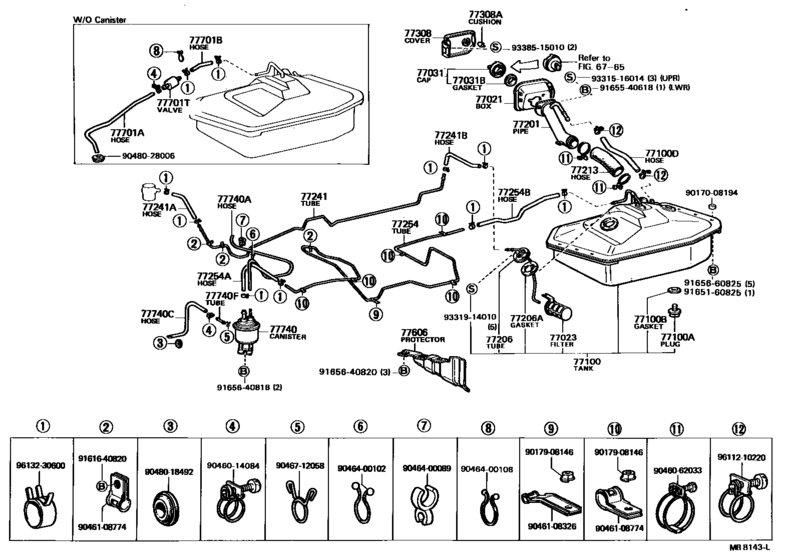

Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41) 70

#	OEM	Part name
77021	65507-89108	Box Assy, Fuel Tank Inlet
77023	77023-12050	Filter Sub-Assy, Fuel Suction Tube
77031	77310-12100	Cap Assy, Fuel Tank
77031	77316-12050	Gasket (For Fuel Tank Cap)
77100	77100-35090	Tank Assy, Fuel
77100	77100-35091	Tank Assy, Fuel
77100	90105-12018	Plug(For Fuel Tank)
77100	90430-12245	Gasket(For Fuel Tank)
77100	90445-21883	Hose, Fuel, No.1(For Fuel Tank)
77100	77100-35140	Tank Assy, Fuel
77201	77201-35101	Pipe Sub-Assy, Fuel Tank Inlet
77201	77201-35141	Pipe Sub-Assy, Fuel Tank Inlet
77206	83361-20030	Gasket, Fuel Tank Vent
77206	77203-35091	Tube Sub-Assy, Fuel Tank Suction
77213	77213-35030	Hose, Fuel Tank Sub Inlet
77213	77213-35070	Hose, Fuel Tank Sub Inlet
77241	77251-35130	Tube, Fuel Main, No.1
77241	77251-35131	Tube, Fuel Main, No.1
77241	95332-06030	Hose(For Carburetor)
77241	95333-06030	Hose, Fuel
77241	77251-35112	Tube, Fuel Main, No.1
77254	77261-35070	Tube, Fuel Emission, No.1
77254	95332-06060	Hose, Fuel
77254	95333-06060	Hose, Fuel
77308	77305-89101	Cover Sub-Assy, Fuel Inlet Box
77308	90541-08003	Cushion(For Inspection Opening)
77606	77161-35010	Protector Sub-Assy, Fuel Tank, No.1
77606	77161-35040	Protector Sub-Assy, Fuel Tank, No.1
77701	90446-12006	Hose, Fuel, No.1 (For Breather Valve)
77701	90446-12007	Hose, Fuel, No.1 (For Breather Valve)
77701	95332-06010	Hose, Fuel Pipe, No.1
77701	95333-06010	Hose, Fuel
77701	90917-10054	Valve, Check (For Main Fuel Tank)
77740	77740-35025	Canister Assy, Charcoal
77740	95411-19960	Hose, Vacuum, No.2 (For Front Drive Shift)
77740	90999-92003	Hose, Breather (For Transfer Case)
77740	77754-35060	Hose, Fuel, No.3(For Charcoal Canister)
77740	77246-35010	Tube, Fuel, No.1(For Charcoal Canister)
9017008194	90170-08194	Nut(For Backing Plate To Rear Axle Housing Setting)
9017008194	94130-00802	Nut, No.1 (For Center Support Bearing)
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9046014084	90460-14084	New Genuine Part
9046062033	90460-62033	Clamp(For Air Cleaner Hose, No.1)
9046062033	96111-10620	Clamp, Hose(For Air Connector)
9046108326	90461-08326	New Genuine Part
9046108326	90461-08592	New Genuine Part
9046108774	90461-08774	Clamp, Brake Tube, No.18
9046400089	90464-00089	New Genuine Part
9046400102	90464-00102	Clamp, No.3(For Luggage Door Lock Control Cable)
9046400108	90464-00108	New Genuine Part
9046712058	90467-12058	Clamp Or Clip(For Radiator Reserve Tank Hose)
9048018492	90480-18492	New Genuine Part
9048028006	90480-28006	New Genuine Part
9161640820	91616-40820	Bolt, Engine Rear Cover Hinge Set
9165160825	91651-60825	Bolt, Hexagon(For Steering Column Bracket)
9165160825	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)
9165540618	91655-40618	New Genuine Part
9165540618	91651-60616	BOLT
9165640818	91656-40818	Clamp Or Clip, Hose(For Radiator Outlet No.1)
9165640818	91651-B0814	Bolt with washer
9165640820	91656-40820	BOLT
9165640820	91651-60816	BOLT
9165660825	91656-60825	Bolt, Hexagon(For Steering Column Bracket)
9331516014	93315-16014	Screw
9331914010	93319-14010	SCREW
9338515010	93385-15010	Screw(For Steering Tilt Lever)
9611210220	96112-10220	Clamp Or Clip, Hose(For Water By-Pass Hose)
9613230600	96132-30600	Clip(For Actuator Hose)
9613230600	96132-51100	Clip (For Hose)

OEM	Part name	Category
65507-89108	Box Assy, Fuel Tank Inlet	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
77023-12050	Filter Sub-Assy, Fuel Suction Tube	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
77100-35090	Tank Assy, Fuel	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
77100-35091	Tank Assy, Fuel	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
77100-35140	Tank Assy, Fuel	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
77161-35010	Protector Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
77161-35040	Protector Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
77201-35101	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
77201-35141	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
77203-35091	Tube Sub-Assy, Fuel Tank Suction	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
77213-35030	Hose, Fuel Tank Sub Inlet	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
77213-35070	Hose, Fuel Tank Sub Inlet	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
77246-35010	Tube, Fuel, No.1(For Charcoal Canister)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
77251-35112	Tube, Fuel Main, No.1	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
77251-35130	Tube, Fuel Main, No.1	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
77251-35131	Tube, Fuel Main, No.1	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
77261-35070	Tube, Fuel Emission, No.1	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
77305-89101	Cover Sub-Assy, Fuel Inlet Box	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
77310-12100	Cap Assy, Fuel Tank	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
77316-12050	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
77740-35025	Canister Assy, Charcoal	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
77754-35060	Hose, Fuel, No.3(For Charcoal Canister)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
83361-20030	Gasket, Fuel Tank Vent	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
90105-12018	Plug(For Fuel Tank)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
90170-08194	Nut(For Backing Plate To Rear Axle Housing Setting)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
90179-08146	Nut	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
90179-08204	Nut	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
90430-12245	Gasket(For Fuel Tank)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
90445-21883	Hose, Fuel, No.1(For Fuel Tank)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
90446-12006	Hose, Fuel, No.1 (For Breather Valve)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
90446-12007	Hose, Fuel, No.1 (For Breather Valve)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
90460-14084	New Genuine Part	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
90460-62033	Clamp(For Air Cleaner Hose, No.1)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
90461-08326	New Genuine Part	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
90461-08592	New Genuine Part	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
90461-08774	Clamp, Brake Tube, No.18	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
90464-00089	New Genuine Part	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
90464-00102	Clamp, No.3(For Luggage Door Lock Control Cable)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
90464-00108	New Genuine Part	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
90467-12058	Clamp Or Clip(For Radiator Reserve Tank Hose)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
90480-18492	New Genuine Part	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
90480-28006	New Genuine Part	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
90541-08003	Cushion(For Inspection Opening)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
90917-10054	Valve, Check (For Main Fuel Tank)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
90999-92003	Hose, Breather (For Transfer Case)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
91616-40820	Bolt, Engine Rear Cover Hinge Set	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
91651-60616	BOLT	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
91651-60816	BOLT	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
91651-60825	Bolt, Hexagon(For Steering Column Bracket)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
91651-B0814	Bolt with washer	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
91655-40618	New Genuine Part	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
91656-40818	Clamp Or Clip, Hose(For Radiator Outlet No.1)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
91656-40820	BOLT	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
91656-60825	Bolt, Hexagon(For Steering Column Bracket)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
93315-16014	Screw	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
93319-14010	SCREW	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
93385-15010	Screw(For Steering Tilt Lever)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
94130-00802	Nut, No.1 (For Center Support Bearing)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
95332-06010	Hose, Fuel Pipe, No.1	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
95332-06030	Hose(For Carburetor)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
95332-06060	Hose, Fuel	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
95333-06010	Hose, Fuel	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
95333-06030	Hose, Fuel	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
95333-06060	Hose, Fuel	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
95411-19960	Hose, Vacuum, No.2 (For Front Drive Shift)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
96111-10620	Clamp, Hose(For Air Connector)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
96112-10220	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
96132-30600	Clip(For Actuator Hose)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([08.1978 - ] (7808- )RN30,31,40,41)

Source: Public OEM parts-catalog data
Variants: 2 / 36
Category: 178
Collected: 2026-08-04
