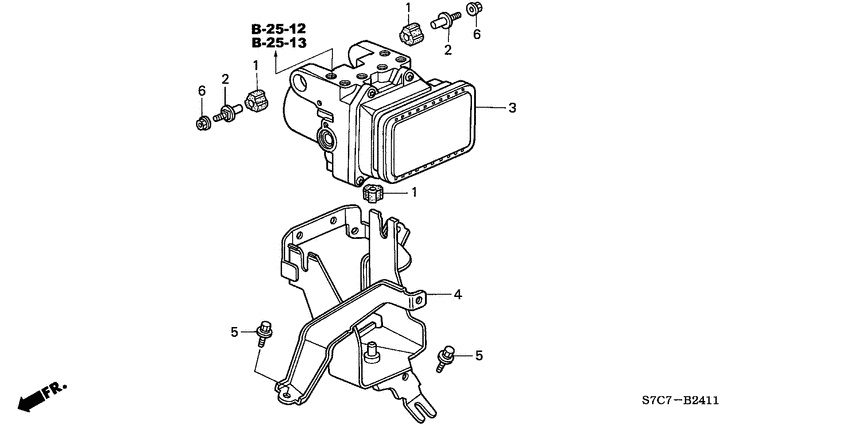

Abs modulator (2.0L) 4

#	OEM	部品名
1	57101-S2A-003	Rubber - ABS MOUNTING
2	57102-S2A-003	Bolt - ABS MOUNTING
3	57110-S7A-J01	Modulator assy
4	57115-S7C-J60	Bracket - MODULATOR

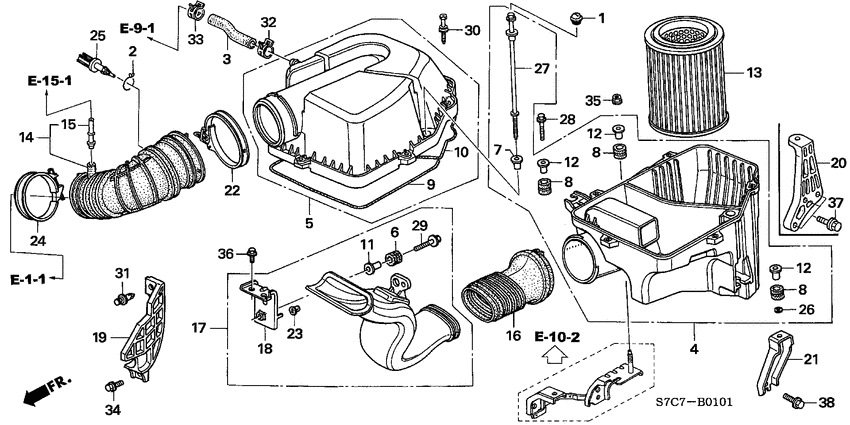

Air cleaner (2.0L) 32

#	OEM	部品名
1	11813-PN4-010	Grommet - TIMING BELT COVER HOLE
2	15772-551-000	Clip - BREATHER TUBE
3	17153-PNA-010	Tube - BREATHER
4	17201-PNA-000	Case set, AIR CLEANER
5	17202-PNB-010	Cover set - AIR CLEANER
6	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING
7	17212-PNA-000	Rubber - AIR CLEANER MOUNTING
8	17212-PN3-000	Rubber, AIR CLEANER MOUNTING
8	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
9	17213-PNA-000	Rubber a - AIR CLEANER SEAL
10	17214-PNA-000	Rubber b - AIR CLEANER SEAL
11	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)
12	17216-PN3-000	Collar - AIR CLEANER MOUNTING
13	17220-PNB-Y01	Element comp - AIR CLEANER
14	17228-PNE-G00	Tube comp - AIR FLOW
15	17229-P8A-A00	Joint - AIR HOSE
16	17251-PNA-000	Tube a - AIR INTAKE
17	17252-PNA-000	Tube assy. b - AIR INTAKE
18	17253-PNA-000	Stay comp - AIR INTAKE
19	17254-PNE-000	Plate - AIR GUIDE
21	17263-PNA-900	Stay comp. d - AIR CLEANER
22	17314-PNA-013	Clamp - AIR FLOW
23	17263-P0A-000	Rubber - AIR CLEANER STAY
24	17315-PNC-003	Clamp - AIR FLOW TUBE
25	37880-PLC-004	Sensor assy - AIR TEMP (MATSUSHITA DENSHI)
26	75353-671-000	Lock - SCREW
27	90001-PNA-003	Bolt - SPECIAL FLANGE, 6X163
28	90001-P0A-000	Bolt-washer - SPECIAL, 6X35
29	90005-P28-A00	Bolt-washer - SPECIAL, 6X28
30	90091-P36-000	Bolt-washer - 5X28
31	90602-PWA-003	Clamp, Tube (D25)
33	91405-PNA-003	Clamp - BREATHER TUBE

Air conditioner (COMPRESSOR; 2.0L) 18

#	OEM	部品名
1	38773-PNA-003	Clip - WIRE HARNESS
2	38773-PR3-003	Clip - WIRE HARNESS
3	38801-P9K-E01	Valve sub assy. - SAFETY
4	38810-PNA-J01	Compressor comp. - DENSO
5	38812-PH1-003	Ring b - SNAP
6	38812-671-003	Ring a - SNAP
7	38816-PNA-003	Stay - LEAD WIRE
8	38827-PH7-003	Screw-washer - 5X8
9	38829-PR3-003	Bolt - WASHER HEAD
10	38900-PNA-003	Clutch set
11	38912-PH1-N01	Plate set - WASHER
12	38920-PNA-023	Belt - COMPRESSOR (BANDO)
12	38920-PNC-004	Belt - COMPRESSOR (MITSUBOSHI)
13	38924-PNA-J01	Stator set
14	38930-PNA-000	Bracket - COMPRESSOR
15	90006-PDA-E01	Bolt - SOCKET, 6X15
16	90023-PNA-000	Bolt - FLANGE, 8X80
17	90024-PNA-000	Bolt - FLANGE, 8X65

Air conditioner (CONDENSER) 20

#	OEM	部品名
3	38611-PNA-003	Fan - COOLING(DENSO)(NATURAL)
4	38615-PNA-003	Shroud comp. - AIR CONDITIONER
6	38616-P3G-003	Motor - COOLING FAN
7	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
7	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
8	80100-S7A-Y02	Condenser assy
8	80100-S7A-Y62	Condenser assy
9	80101-S7A-003	Filter sub assy.
10	80111-S7A-013	Bracket - UPPER
11	80112-S7A-013	Upper comp. - BRACKET
12	80113-S7A-003	Bracket comp. a - CONDENSER LOWER
13	80114-S7A-003	Bracket comp. b - CONDENSER LOWER
14	80175-S0X-A01	Mount - RUBBER
15	80175-S0X-A21	Mount - CONDENSER
16	80191-S7A-003	Bolt-washer - 6X30
17	80192-S7A-003	Bolt-washer - 5X24
18	80193-S7A-003	Bolt-washer - 6X16
19	80194-S7A-003	Plate
20	90041-P3G-003	Screw-washer - 5X11
21	90041-P5A-003	Screw-washer - 4X11

Air conditioner (REAR BLOWER MOTOR) 3

#	OEM	部品名
1	79310-S7A-961	Motor assy. - FAN
2	79330-S7A-961	Resistor - BLOWER
3	90127-SX0-003	Screw - TAPPING, 4X16

Air conditioner (REAR COOLER SHORT PARTS) 17

#	OEM	部品名
1	79360-S7A-961	Relay assy - POWER
2	80205-S7A-961	Clamp a
3	80206-SX0-961	Holder
4	80216-S7A-961	Insulator a - PIPE
5	80217-S7A-961	Insulator b - PIPE
6	80218-SM4-003	Insulator - EXPANSION
7	80224-S7A-961	Insulator b - EXPANSION
8	80225-S7A-961	Evaporator assy.
9	80226-S7A-961	Valve assy.
10	80227-S7A-961	Pipe assy.
11	80271-S7A-960	Hose - DRAIN (RR.)
12	80811-S7A-962	Duct - RR. INTAKE UNIT
13	80871-SN7-003	O-ring - 5/8"
14	80872-SN7-003	O-ring - 1/2"
15	80873-SN7-003	O-ring - 8MM
16	90121-S0X-A01	Bolt - FLANGE, 5X30
17	90127-SX0-003	Screw - TAPPING, 4X16

Air conditioner (REAR COOLER UNIT) 2

#	OEM	部品名
1	79300-S7A-961	Blower assy
2	80250-S7A-962	Cooling unit - RR.

Air conditioner (SENSOR) 5

#	OEM	部品名
1	80510-S0A-941	Sensor - SUN BEAM
2	80521-S7A-941	Bracket - AMBIENT SENSOR
3	80525-S30-941	Sensor assy - AMBIENT
4	80530-S2R-941	Sensor assy - IN CAR
5	80541-S7A-G41	Hose - ASPIRATOR

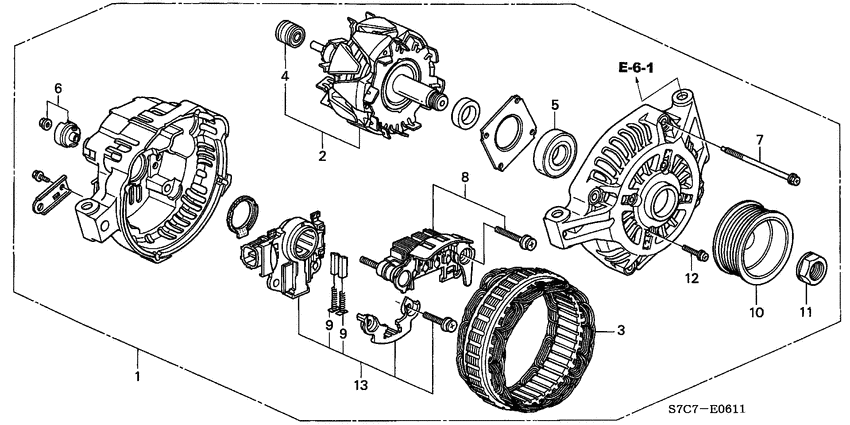

Alternator (MITSUBISHI; 2.0L) 13

#	OEM	部品名
1	31100-PNC-004	Alternator assy - AHGA61) (MITSUBISHI
2	31101-PNA-004	Rotor assy.
3	31102-PNA-004	Stator
4	31111-P08-J02	Bearing - RR. GENERATOR
5	31114-P01-014	Bearing - FR. GENERATOR
6	31123-PNA-004	Terminal set
7	31125-P08-J02	Bolt - FLANGE
8	31127-PGM-004	Rectifier assy.
9	31140-P64-902	Brush set
10	31141-PNA-004	Pulley
11	31142-P08-J02	Nut
12	31146-PE0-004	Screw
13	31150-PNC-004	Regulator set

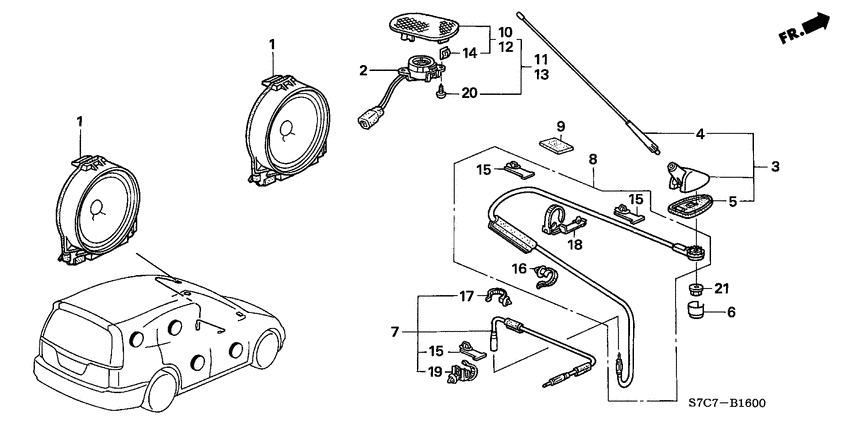

Antenna/speaker 12

#	OEM	部品名
1	39120-S5A-911	Speaker assy - 17CM SINGLE) (PIONEER
3	39150-SAA-003	Antenna assy - ROOF
4	39152-S7A-003	Mast assy. - ANTENNA
5	39154-SEN-003	Pad
6	39151-SAA-003	Cap - ROOF ANTENNA
7	39156-S7A-B01	Sub feeder
8	39159-S7A-G01	Feeder - ROOF ANTENNA
9	72327-SD5-000	Seal b - FR. DOOR HOLE (30X50)
15	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
16	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
17	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
18	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)

Atf pipe 7

#	OEM	部品名
1	24901-PNA-010	Holder - CONTROL WIRE
2	25610-PRM-003	Gauge comp. - ATF
3	25910-PRP-000	Pipe comp. a - ATF
4	25920-PRP-000	Pipe comp. b - ATF
5	25951-639-000	Bolt - JOINT
5	25951-RGR-000	Bolt - JOINT
6	90471-RGR-000	Washer - DRAIN PLUG, 12MM

Auto air conditioner control 1

#	OEM	部品名
12	79671-S84-A41	Bulb - NEO WEDGE (14V 100MA)

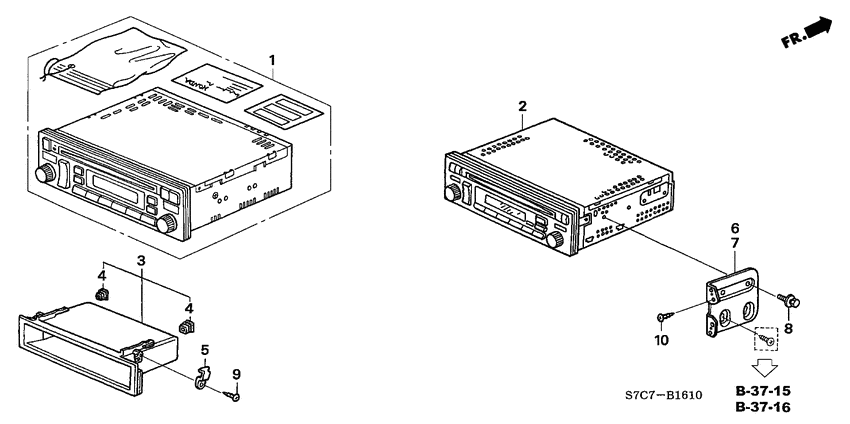

Auto radio 7

#	OEM	部品名
2	39100-S7A-U01	Tuner assy - AUTO RADIO (ALPINE) (30WX4)
3	39116-SD4-010	Pocket - AUTO RADIO
4	39118-SD4-000	Rubber - RING
5	39181-SK7-A02	Bracket - AUTO RADIO JOINT
6	77255-S7A-900	Bracket - R. RADIO
7	77256-S7A-900	Bracket - L. RADIO
8	91551-SE0-003	Bolt - FLANGE, 5X7

Battery (2.0L) 12

#	OEM	部品名
1	31500-S7C-G01	Battery - 46B24L<S>-MF) (PANASONIC
2	31512-S7A-000	Plate - BATTERY SETTING
3	31513-SP0-010	Bolt - BATTERY SETTING (210MM)
4	31521-S7A-000	Box - BATTERY
5	31531-S7A-000	Cover - BATTERY
6	31542-SA5-665	Plug - VENT (MF) (PANASONIC)
7	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)
8	32600-S7C-960	Cable assy - BATTERY EARTH
9	32601-SK7-900	Bolt - BATTERY TERMINAL
10	32602-SK7-900	Nut - BATTERY TERMINAL
11	90149-SE0-003	Bolt - EARTH, 6X16
12	90182-SB6-000	Bolt-washer - 6X16

Brake lines (ABS; 2.0L; LH) 29

#	OEM	部品名
1	01464-S7A-N01	Hose set - R. FR. BRAKE
2	01465-S7A-N01	Hose set - L. FR. BRAKE
3	01466-S7A-J51	Hose set - R. RR. BRAKE
4	01468-S7A-J51	Hose set - L. RR. BRAKE
5	46330-S7A-J10	Pipe comp. c - BRAKE
6	46340-S7A-J10	Pipe comp. d - BRAKE
7	46374-S7C-G51	Pipe comp. u - BRAKE
8	46375-S7C-G51	Pipe comp. v - BRAKE
9	46376-S7C-E51	Pipe comp. w - BRAKE
10	46377-S7C-E00	Pipe comp. x - BRAKE
11	46378-S7C-E52	Pipe comp. y - BRAKE
12	46379-S7C-E51	Pipe comp. z - BRAKE
13	46380-SH3-000	Grommet a - BRAKE PIPE
14	46391-SZ3-003	Clip - BRAKE PIPE
15	46391-S5A-J01	Clip - BRAKE PIPE
16	46391-S7C-J50	Clip - BRAKE PIPE
17	46393-S5A-J00	Clip - BRAKE PIPE
18	46393-S84-A00	Clamp - BRAKE PIPE
19	46396-S7A-003	Clip - BRAKE PIPE
20	46396-S84-E51	Clip - BRAKE PIPE
21	46435-S7A-J00	Bracket a - R. RR. BRAKE HOSE
22	46436-S7A-J00	Bracket a - L. RR. BRAKE HOSE
23	46437-S7A-J50	Bracket - R. RR. BRAKE HOSE
24	46438-S7A-J50	Bracket - L. RR. BRAKE HOSE
25	46462-SE0-000	Bolt - OIL
26	46470-S7A-003	Joint - FOUR WAY
27	46472-568-000	Packing - OIL BOLT
28	90361-SV4-003	Nut - PAINT CUTTING, 6MM
29	90651-538-000	Clip - BRAKE HOSE

Brake master cylinder/mas ter power (LH) 27

#	OEM	部品名
1	01469-S6D-R00	Power set - MASTER (7"+8")
2	46017-S7A-000	Hose set - RESERVE TANK
3	46100-S7A-G02	Cylinder assy. - MASTER
4	46120-S0A-013	Piston assy. - PRIMARY
5	46122-S5A-J51	Piston assy. - SECONDARY
6	46135-S5A-J41	Guide assy - PISTON
7	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
8	46185-SE0-003	Seal - ROD
9	46191-S2K-000	Packing - MASTER POWER
11	46402-S7C-G61	Tube assy - MASTER POWER
14	46406-S7A-G10	Stay - MASTER POWER TUBE
15	46407-S84-A01	Clamp - TUBE
16	46512-S70-000	Pin - PEDAL
17	46661-S7A-G00	Reservoir set
18	46662-S9A-003	Cap comp. - RESERVE TANK
19	46665-S04-J01	Grommet
20	46666-S2K-003	Filter - BRAKE RESERVOIR
21	46669-S5A-003	Diaphragm
22	46672-S6A-003	Hose - RESERVE TANK
24	46674-S7A-G50	Bracket comp. - BRAKE RESERVE TANK
25	46680-S7A-003	Union - RESERVOIR
26	46911-S70-003	Pin, LOCK(8MM)
27	53729-671-003	Clamp d - 15.5MM
28	57173-SB0-801	O-ring - CONNECTOR
29	57515-S30-003	Pin - STOP
30	57562-SF1-003	Circlip
31	90361-SV4-003	Nut - PAINT CUTTING, 6MM

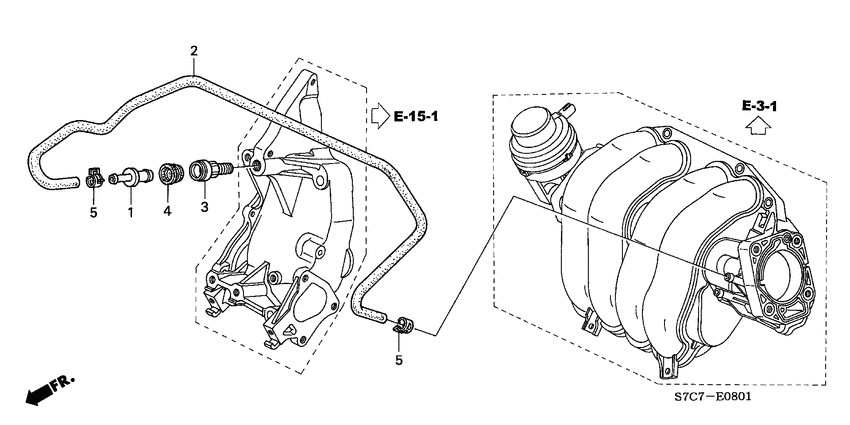

Breather tube (2.0L) 4

#	OEM	部品名
1	17130-PNA-003	Valve assy. - PCV
2	17131-PNA-000	Tube - PCV
3	17136-PNA-000	Joint - PCV VALVE
4	17139-PK1-000	Grommet - PCV VALVE

Bumpers 16

#	OEM	部品名
3	33505-S7A-J01	Reflector assy - R. RR.
4	33555-S7A-J01	Reflector assy - L. RR.
7	71140-S7A-N00	Beam comp - R. FR. BUMPER UPPER
8	71143-S7A-N00	Beam - FR. BUMPER CENTER
11	71190-S7A-N00	Beam comp - L. FR. BUMPER UPPER
12	71193-S7A-003	Spacer - R. FR. BUMPER SIDE
13	71198-S7A-003	Spacer - L. FR. BUMPER SIDE
16	71555-S7A-N00	Stay - RR. BUMPER LOWER
17	71593-S7A-003	Spacer - R. RR. BUMPER SIDE
18	71598-S7A-003	Spacer - L. RR. BUMPER SIDE
19	90103-SDA-A00	Screw - TAPPING, 5X20
21	90106-SS0-003	Grommet - SCREW
22	90664-SB3-003	Grommet - SCREW, 5MM
23	90675-SA5-003	Nut - CLIP, 6MM
24	91503-SZ3-003	Clip A
25	91503-SZ5-003	Clip - BUMPER FACE

Camshaft/cam chain (2.0L) 18

#	OEM	部品名
1	14110-PNE-010	Camshaft comp. - IN.
2	14113-PNA-003	Plate - CAM PULSE
3	14114-PNA-003	Plate - TDC PULSE
4	14115-PNA-000	Bolt - SEALING, 14MM
5	14120-PNA-020	Camshaft comp. - EX.
6	14210-PNA-000	Sprocket - CAM CHAIN DRIVEN (46T)
7	14310-RBC-003	Actuator assy, VTC(46T)
8	14401-PNA-004	CHAIN (170L) (BORG WARNER)
9	14510-PNA-003	Tensioner Assy, CAM CHAIN
9	14510-PRB-A01	Tensioner Assy, Cam Chain
10	14511-PNA-003	Stopper - TOOL
11	14520-PNA-003	ARM, CAM CHAIN TENSIONER
12	14530-PNA-003	GUIDE, CAM CHAIN
13	14540-PRB-A01	GUIDE B, CAM CHAIN
14	90003-PNA-000	Bolt - TENSIONER PIVOT
15	90032-PNA-000	Bolt - FLANGE, 12X47
16	90042-PNA-003	Bolt - FLANGE, 10X32
17	90703-PNA-300	Dowel pin - 4.2X10.3

Chain case (2.0L) 9

#	OEM	部品名
1	11410-RRA-A00	Case assy. - CHAIN
1	11410-PNC-000	Case assy. Chain
2	11412-PNA-000	Cover - CHAIN CASE
3	37500-PNB-003	Sensor assy - CRANK
4	90021-PNA-000	Bolt - SPECIAL, 6X31
5	91212-PNC-004	Oil seal - 43X58X7 (ARAI)
5	91212-PNC-003	Oil seal - 43X58X7 (NOK)
6	91302-PNA-004	O-ring - CHAIN CASE
7	91333-PNA-003	O-ring - 15X1.9

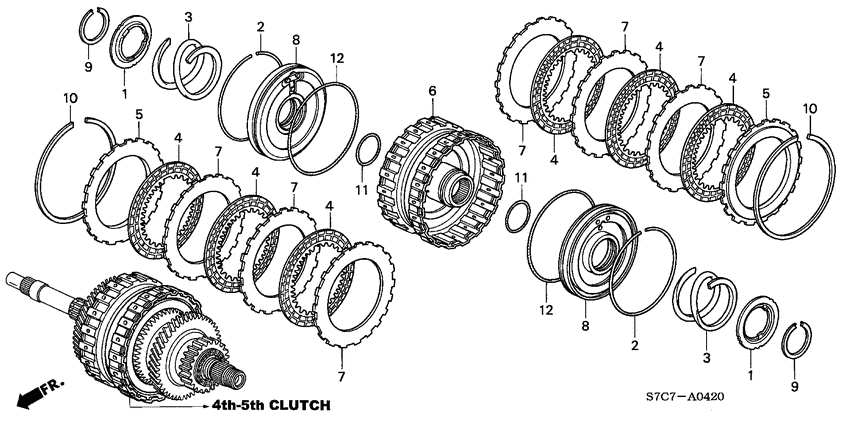

Clutch (4TH-5TH) 22

#	OEM	部品名
1	22533-PX4-010	Seat - RETURN SPRING
2	22536-PRP-013	Spring - CLUTCH WAVE
3	22541-PX4-004	Spring - CLUTCH RETURN (SANKO)
3	22541-P0Y-005	Spring - CLUTCH RETURN (JAYTEC)
4	22546-PPV-A01	Disk - CLUTCH
5	22586-RCL-003	Plate - CLUTCH END (6) (2.6MM)
5	22581-RCL-003	Plate - CLUTCH END (1) (2.1MM)
5	22588-RCL-003	Plate - CLUTCH END (8) (2.8MM)
5	22583-RCL-003	Plate - CLUTCH END (3) (2.3MM)
5	22585-RCL-003	Plate - CLUTCH END (5) (2.5MM)
5	22587-RCL-003	Plate - CLUTCH END (7) (2.7MM)
5	22582-RCL-003	Plate - CLUTCH END (2) (2.2MM)
5	22589-RCL-003	Plate - CLUTCH END (9) (2.9MM)
5	22584-RCL-003	Plate - CLUTCH END (4) (2.4MM)
6	22651-RCL-013	Guide comp - CLUTCH
7	22653-RCL-003	Plate - CLUTCH WAVE (2.3MM)
8	22680-RCR-901	Piston comp - CLUTCH
8	22680-RCL-003	Piston comp - CLUTCH
9	90603-PX4-000	Circlip - EXTERNAL, 47MM
10	90605-P7T-003	Ring - SNAP, 133MM
11	91302-PX4-004	O-ring - 46.8X2.2 (NOK)
12	91303-PX4-004	O-ring - 114X2.2 (NOK)

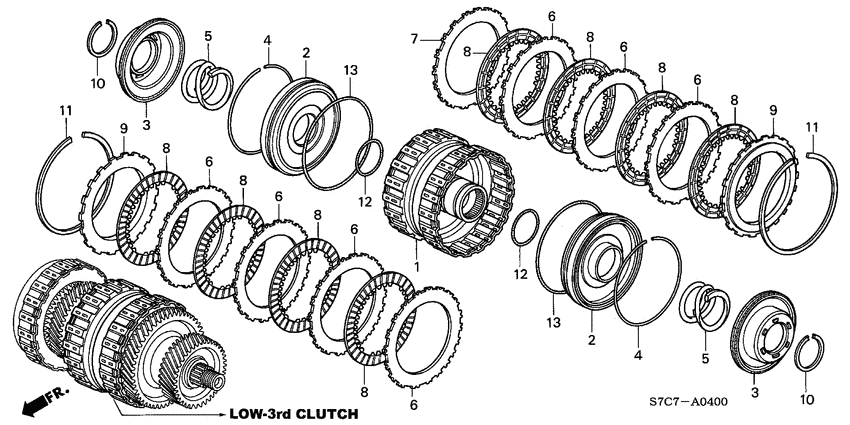

Clutch (LOW-THIRD) 24

#	OEM	部品名
1	22510-PRP-003	Guide comp - CLUTCH (1-3)
2	22521-PRP-003	Piston - CLUTCH
3	22533-RCL-003	Retainer comp - RETURN SPRING
4	22536-PRP-013	Spring - CLUTCH WAVE
5	22541-PRP-003	Spring - CLUTCH RETURN (F.C.C)
6	22543-PRP-003	Plate - CLUTCH WAVE (2.0MM)
7	22543-PRP-901	Plate - CLUTCH (2.0MM)
8	22544-PRP-003	Disk - CLUTCH
9	22558-PRP-003	Plate - CLUTCH END (8) (3.0MM)
9	22553-PRP-003	Plate - CLUTCH END (3) (2.5MM)
9	22560-PRP-003	Plate - CLUTCH END (10) (3.2MM)
9	22555-PRP-003	Plate - CLUTCH END (5) (2.7MM)
9	22562-PRP-003	Plate - CLUTCH END (12) (3.4MM)
9	22557-PRP-003	Plate - CLUTCH END (7) (2.9MM)
9	22552-PRP-003	Plate - CLUTCH END (2) (2.4MM)
9	22559-PRP-003	Plate - CLUTCH END (9) (3.1MM)
9	22554-PRP-003	Plate - CLUTCH END (4) (2.6MM)
9	22561-PRP-003	Plate - CLUTCH END (11) (3.3MM)
9	22556-PRP-003	Plate - CLUTCH END (6) (2.8MM)
9	22551-PRP-003	Plate - CLUTCH END (1) (2.3MM)
10	90603-P6H-003	Circlip - EXTERNAL, 43MM
11	90605-PX4-000	Ring - SNAP, 129MM
12	91302-PA9-003	O-ring, 39.8X2.2 (ARAI)
13	91303-PX4-004	O-ring - 114X2.2 (NOK)

Clutch (SECOND) 21

#	OEM	部品名
1	22533-RCL-003	Retainer comp - RETURN SPRING
2	22537-PRP-003	Spring - CLUTCH WAVE
3	22541-PRP-003	Spring - CLUTCH RETURN (F.C.C)
4	22545-PRP-013	Disk - CLUTCH
5	22577-PRP-003	Plate - CLUTCH END (7) (3.2MM)
5	22572-PRP-003	Plate - CLUTCH END (2) (2.7MM)
5	22579-PRP-003	Plate - CLUTCH END (9) (3.4MM)
5	22574-PRP-003	Plate - CLUTCH END (4) (2.9MM)
5	22576-PRP-003	Plate - CLUTCH END (6) (3.1MM)
5	22571-PRP-003	Plate - CLUTCH END (1) (2.6MM)
5	22578-PRP-003	Plate - CLUTCH END (8) (3.3MM)
5	22573-PRP-003	Plate - CLUTCH END (3) (2.8MM)
5	22575-PRP-003	Plate - CLUTCH END (5) (3.0MM)
6	22610-PRP-013	Guide comp - SECOND CLUTCH
7	22621-PRP-003	Piston - SECOND CLUTCH
8	22643-RCL-003	Plate - CLUTCH WAVE (2.0MM)
9	22653-P7Z-003	Plate - CLUTCH (2.0MM)
10	90603-P6H-003	Circlip - EXTERNAL, 43MM
11	90605-PX4-000	Ring - SNAP, 129MM
12	91302-PA9-003	O-ring, 39.8X2.2 (ARAI)
13	91303-PX4-004	O-ring - 114X2.2 (NOK)

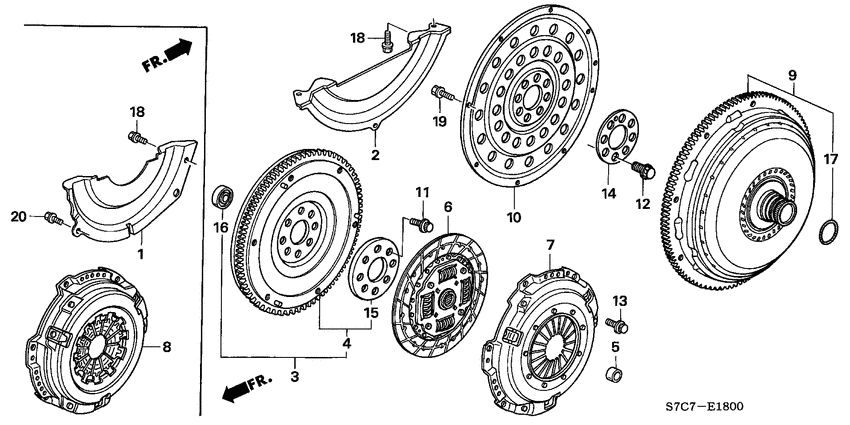

Clutch/torque converter 7

#	OEM	部品名
2	21351-PNA-000	Cover - TORQUE CONVERTER CASE
9	26000-PNC-305	Converter assy - TORQUE
9	26000-RJJ-305	Converter assy - TORQUE
10	26251-PNA-000	Plate - DRIVE
12	90023-PA9-000	Bolt - SPECIAL
14	90429-PC6-900	Washer - 40X86X2
17	91302-P7A-003	O-ring - 32X1.9

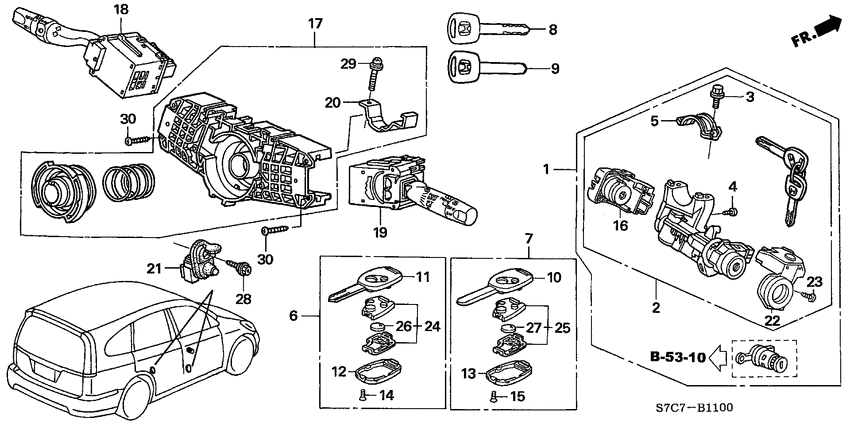

Combination switch 25

#	OEM	部品名
1	06350-S7A-Y21	Cylinder set - KEY
2	35100-S7A-N31	Lock assy - STEERING
3	35102-SV4-003	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN
6	35111-SAA-Y11	Key comp. - IMMOBILIZER & TRANSMITTER
7	35111-SAA-307	Key comp. - IMMOBILIZER & TRANSMITTER (BLANK)
8	35111-S9A-G01	Key comp - MAIN) (IMMOBILIZER) (H-MARK:BLACK
9	35113-S9A-G01	Key - BLANK (MAIN) (BLACK) (IMMOBILIZER)
10	35113-SAA-305	TRANSMITTER TOP CASE (BLANK) KEY COMP.
11	35113-SED-E11	Key comp. - TRANSMITTER TOP CASE
12	35114-SDA-T01	Bottom comp. - TRANSMITTER KEY CASE
14	35116-SDA-A11	Screw - FLAT
16	35130-S5A-J51	Switch comp - STEERING
17	35251-S5A-Y03	Body comp - SWITCH
18	35255-S5K-F12	Switch assy - LIGHTING & TURN SIGNAL
19	35256-S6A-G01	Switch assy
20	35257-S5A-J01	Bracket
21	35400-S6A-003	Switch assy - DOOR (DAIICHI)
22	39730-SEA-E01	Immobilizer unit
23	72118-ST7-003	Screw - TAPPING, 3X5
24	72147-SAA-Y01	Module assy. - KEYLESS
26	72148-S0A-000	Battery CR1616
28	90132-S2H-G11	Screw - ET, 5.5X18
28	90132-S2H-G01	Screw - ET, 5X18

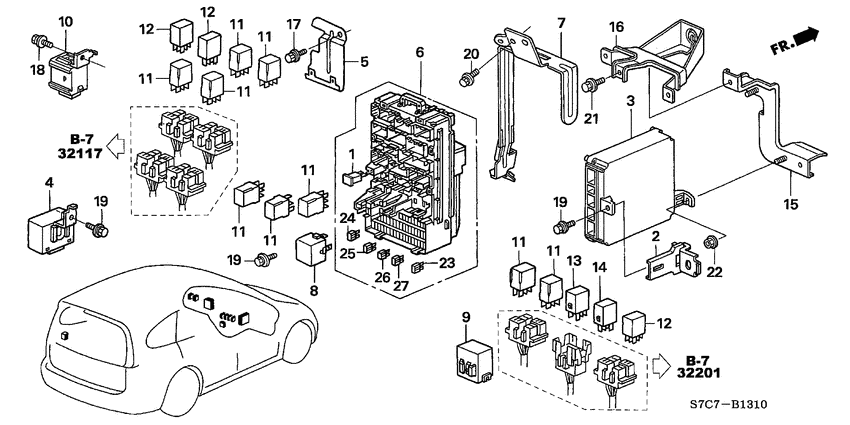

Control unit (CABIN; LH) 18

#	OEM	部品名
2	32752-PLM-A00	Stay m - ENGINE WIRE HARNESS
3	37820-PNE-Y55	Control module - ENGINE
4	38140-S7A-G01	Wiper unit - INTERMITTENT
5	38184-S7A-E00	Bracket - RELAY BLOCK (ISO)
6	38200-S7A-K13	Box assy - FUSE
7	38203-S7A-G00	Bracket - FUSE BOX (LH)
8	38300-S5T-004	Relay assy - TURN SIGNAL & HAZARD (066500-5080) (DENSO)
8	38300-S5T-003	Relay assy - TURN SIGNAL & HAZARD (FR-3321) (MITSUBA)
9	38385-S7A-G61	Receiver unit - KEYLESS ENTRY
11	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
11	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
12	39794-S10-003	Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
13	39794-S5A-004	Relay assy - FUEL PUMP(5P) (DENSO)
13	39794-S5A-003	Relay assy - FUEL PUMP(5P) (MITSUBA)
14	39794-S5A-901	Relay assy - ENGINE CONTROL MODULE(4P)(MITSUBA)
14	39794-S5A-902	Relay assy - ENGINE CONTROL MODULE(4P)(DENSO)
15	79820-S5A-A00	Bracket - ENGINE CONTROL MODULE
16	79830-S7A-G11	Bracket a - HEATER

Control unit (ENGINE ROOM; 2.0L) 25

#	OEM	部品名
1	32411-S7A-900	Bracket - STARTER CABLE
2	38100-SX0-K02	Horn assy - LOW (MITSUBA)
3	38150-S7A-Y01	Horn assy - HIGH (MITSUBA)
4	38211-SM4-003	Fuse - BLOCK (30A)
5	38213-SM4-003	Fuse - BLOCK (50A)
6	38218-SM4-003	Fuse - BLOCK (100A)
7	38231-S04-961	Fuse - BLOCK (40A)
8	38231-S10-003	Fuse - BLOCK (20A)
9	38235-S04-003	Puller - MINI FUSE (SUMITOMO)
10	38250-S7A-G12	Box assy - RELAY
11	38251-S7A-G12	Cover - UPPER
12	38251-S7C-900	Bracket a - RELAY BOX
13	38252-S5A-003	Cover - LOWER
14	38252-S7A-900	Bracket b - RELAY BOX
15	39792-SE0-004	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)
15	39792-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7410)
16	39794-SL0-004	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)
16	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)
17	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
17	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
18	80521-S7A-941	Bracket - AMBIENT SENSOR
19	80525-S30-941	Sensor assy - AMBIENT
20	90129-SP0-000	Screw-washer - 5X12
21	90150-S84-003	Bolt - EARTH, 8X16
22	91551-SV4-003	Clip - BRACKET

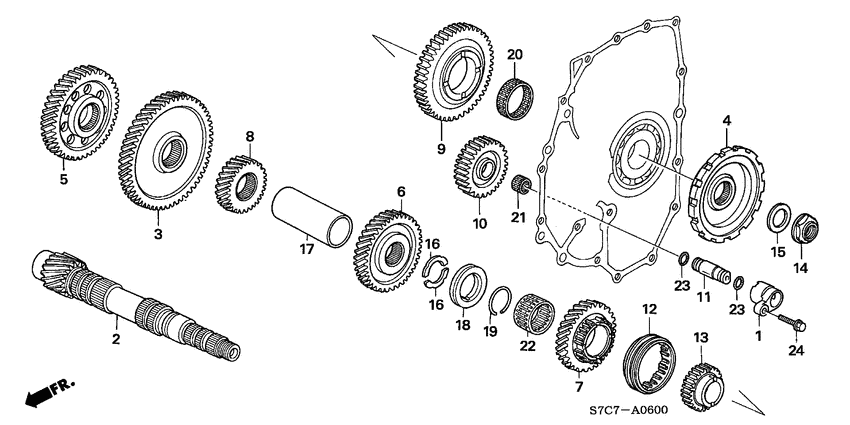

Countershaft 28

#	OEM	部品名
1	21215-PRP-000	Holder - IDLE SHAFT
2	23221-RCR-900	Countershaft
2	23221-PRP-010	Countershaft
3	23421-RFK-000	Gear - COUNTERSHAFT LOW
3	23421-PPV-010	Gear - COUNTERSHAFT LOW
4	23427-PRP-010	Gear - PARKING
5	23441-PPV-010	Gear - COUNTERSHAFT SECOND
5	23441-PPV-000	Gear - COUNTERSHAFT SECOND
6	23451-PRP-010	Gear - COUNTERSHAFT THIRD
7	23471-PRP-010	Gear - COUNTERSHAFT FOURTH
8	23491-PRP-000	Gear - COUNTERSHAFT FIFTH
8	23491-PRP-010	Gear - COUNTERSHAFT FIFTH
9	23531-PRP-010	Gear - COUNTERSHAFT REVERSE
10	23541-PRP-000	Gear - REVERSE IDLE
11	23542-P6H-000	Shaft - REVERSE IDLE GEAR
12	23565-PRP-010	Selector - REVERSE GEAR
13	23566-PRP-000	Hub - SELECTOR
14	90201-PRP-000	Nut - FLANGE, 24MM (LEFT HAND THREAD)
15	90402-P0Z-000	Washer - SPRING, 24MM
16	90431-P6H-000	Cotter - 31MM
17	90441-PRP-010	Collar - 37X41X57.8
17	90441-RFK-010	Collar - 37X41X54.3
18	90445-PPV-000	Collar - 35X47X7.8
19	90614-P0Z-000	Ring - SNAP, 35MM
20	91024-PRP-004	Bearing - NEEDLE, 40X46X14.5 (KOYO)
21	91025-P0X-003	Bearing - NEEDLE, 15X20X16 (NTN)
22	91028-P0Z-013	Bearing - NEEDLE, 35X41X25.8 (NTN)
23	91306-P0X-003	O-ring - 8.1X4 (NOK)

Cylinder block/oil pan (2.0L) 23

#	OEM	部品名
1	11000-PNC-000	Block assy - CYLINDER
2	11106-PNA-300	Bolt - SEALING, 20MM
3	11106-PR4-013	Bolt - SEALING, 28MM
4	11108-PT0-003	Bolt - SEALING, 18MM
5	11135-PNA-000	Orifice - LOWER BLOCK
6	11200-PNA-000	Pan comp - OIL
7	11221-PNA-000	Plate a - BAFFLE
8	11222-RAA-A00	Plate b - BAFFLE
9	11223-PNA-000	Plate c - BAFFLE
10	30530-PNA-003	Knock Sensor - 30530-PNA-003
10	30530-PPL-A01	Knock Sensor
11	37240-PT0-014	Switch - OIL PRESSURE (TEC)
11	37240-PT0-023	Switch - OIL PRESSURE(DENSO)
12	90006-PNA-003	Bolt-washer - 11X95
13	90009-PH1-000	Bolt - DRAIN PLUG, 14MM
14	90041-PA5-000	Bolt - STUD, 6X28
15	90401-PR4-000	Washer - SEALING, 28MM
16	90703-PE0-000	Dowel pin - 18X22
17	90715-PNA-000	Dowel pin - 13X14
18	91214-PNA-014	Oil seal - 80X98X10 (ARAI)
18	91214-RNB-A01	Oil seal (80x98x10)
18	91214-PWA-Y01	Oil seal - 80X98X10 (NOK)
18	91214-PWA-003	Oil seal - 80X98X10 (NOK)

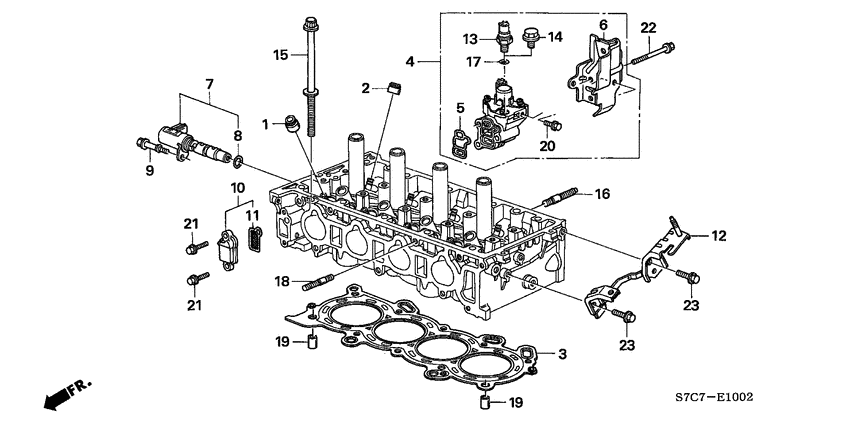

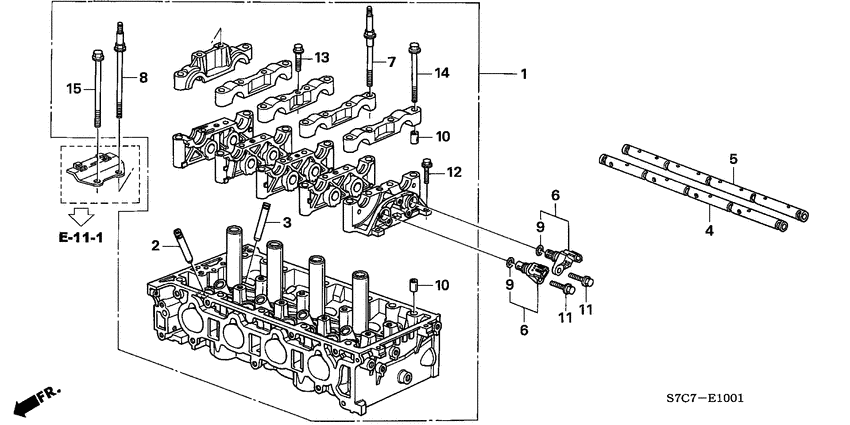

Cylinder head (2.0L) 9

#	OEM	部品名
1	12100-PNB-Y00	Head assy - CYLINDER
2	12204-PNA-305	Guide - IN. VALVE (OS)
3	12205-PNA-305	Guide - EX. VALVE (OS)
4	14631-PNE-000	Shaft - IN. ROCKER
5	14633-PNA-000	Shaft - EX. ROCKER
6	37510-PNB-003	Sensor assy - TDC
7	90011-PNA-003	Bolt A, Head Cover
8	90012-PNA-003	Bolt b - HEAD COVER
9	91333-PNA-003	O-ring - 15X1.9

Cylinder head cover (2.0L) 11

#	OEM	部品名
1	12030-PNA-010	Packing set - HEAD COVER
2	12310-PND-030	Cover comp. - CYLINDER HEAD
3	12341-PNA-000	Packing - CYLINDER HEAD COVER
3	12341-RTA-000	Packing, CYLINDER HEAD COVER
4	12342-PCX-004	Seal - SPARK PLUG TUBE (NOK)
5	15610-P5G-000	Cap assy. - OIL FILLER
5	15610-RGA-000	Cap assy. - OIL FILLER
6	15613-PC6-000	Packing, Oil Filler
7	15650-PNA-014	Gauge comp. - OIL LEVEL
8	90213-PH3-000	Nut - CAP, 6MM
9	90441-PNA-010	Washer - HEAD COVER

Differential 75

#	OEM	部品名
1	41100-PPV-900	Differential comp.
1	41100-PRP-020	Differential comp.
1	41100-PPV-901	Differential comp.
2	41233-RCR-900	Gear - FINAL DRIVEN
2	41233-PRP-000	Gear - FINAL DRIVEN
3	41381-PPV-000	Spacer - 41X80X1
4	41382-RKY-900	Spacer - 41X76.2X1
5	41450-PK4-000	Shim j - 76MM (2.65)
5	41434-PRP-000	Shim og - 76MM (1.85)
5	41448-PAX-000	Shim u - 76MM (2.575)
5	41432-PAX-000	Shim e - 76MM (1.775)
5	41445-PK4-000	Shim e - 76MM (2.40)
5	41429-PRP-000	Shim ob - 76MM (1.60)
5	41443-PAX-000	Shim p - 76MM (2.325)
5	41456-PK4-000	Shim p - 76MM (2.95)
5	41440-PX4-700	Shim u - 76MM (2.15)
5	41454-PAX-000	Shim oa - 76MM (2.875)
5	41438-PAX-000	Shim k - 76MM (2.075)
5	41451-PK4-000	Shim k - 76MM (2.70)
5	41435-PRP-000	Shim oh - 76MM (1.90)
5	41449-PAX-000	Shim v - 76MM (2.625)
5	41433-PAX-000	Shim f - 76MM (1.825)
5	41446-PK4-000	Shim f - 76MM (2.45)
5	41430-PRP-000	Shim oc - 76MM (1.65)
5	41428-PAX-000	Shim a - 76MM (1.575)
5	41444-PAX-000	Shim q - 76MM (2.375)
5	41457-PK4-000	Shim q - 76MM (3.00)
5	41441-PK4-000	Shim a - 76MM (2.20)
5	41455-PAX-000	Shim ob - 76MM (2.925)
5	41439-PAX-000	Shim l - 76MM (2.125)
5	41452-PK4-000	Shim l - 76MM (2.75)
5	41436-PRP-000	Shim oi - 76MM (1.95)
5	41450-PAX-000	Shim w - 76MM (2.675)
5	41434-PAX-000	Shim g - 76MM (1.875)
5	41447-PK4-000	Shim g - 76MM (2.50)
5	41431-PRP-000	Shim od - 76MM (1.70)
5	41445-PAX-000	Shim r - 76MM (2.425)
5	41429-PAX-000	Shim b - 76MM (1.625)
5	41442-PK4-000	Shim b - 76MM (2.25)
5	41456-PAX-000	Shim oc - 76MM (2.975)
5	41440-PAX-000	Shim m - 76MM (2.175)
5	41453-PK4-000	Shim m - 76MM (2.80)
5	41437-PRP-000	Shim oj - 76MM (2.00)
5	41451-PAX-000	Shim x - 76MM (2.725)
5	41435-PAX-000	Shim h - 76MM (1.925)
5	41448-PK4-000	Shim h - 76MM (2.55)
5	41432-PRP-000	Shim oe - 76MM (1.75)
5	41446-PAX-000	Shim s - 76MM (2.475)
5	41430-PAX-000	Shim c - 76MM (1.675)
5	41443-PK4-000	Shim c - 76MM (2.30)
5	41457-PAX-000	Shim od - 76MM (3.025)
5	41441-PAX-000	Shim n - 76MM (2.225)
5	41454-PK4-000	Shim n - 76MM (2.85)
5	41438-PX4-700	Shim s - 76MM (2.05)
5	41452-PAX-000	Shim y - 76MM (2.775)
5	41436-PAX-000	Shim i - 76MM (1.975)
5	41449-PK4-000	Shim i - 76MM (2.60)
5	41433-PRP-000	Shim of - 76MM (1.80)
5	41447-PAX-000	Shim t - 76MM (2.525)
5	41431-PAX-000	Shim d - 76MM (1.725)
5	41428-PRP-000	Shim oa - 76MM (1.55)
5	41444-PK4-000	Shim d - 76MM (2.35)
5	41458-PK4-000	Shim r - 76MM (3.05)
5	41442-PAX-000	Shim o - 76MM (2.275)
5	41455-PK4-000	Shim o - 76MM (2.90)
5	41439-PX4-700	Shim t - 76MM (2.10)
5	41453-PAX-000	Shim z - 76MM (2.825)
5	41437-PAX-000	Shim j - 76MM (2.025)
6	90003-PA9-003	Bolt - FLANGE, 10MM
7	91121-P6H-013	Bearing - SPECIAL TAPER, 40X80X18.75
7	91121-RFK-013	Bearing - SPECIAL TAPER, 40X80X20.25
7	91121-RFK-003	Bearing - SPECIAL TAPER, 40X80X20.25
8	91122-RFK-013	Bearing - SPECIAL TAPER, 40X76.2X19
8	91122-RFK-003	Bearing - SPECIAL TAPER, 40X76.2X19
8	91122-PRP-003	Bearing - SPECIAL TAPER, 40X76.2X17.5

Duct (LH) 5

#	OEM	部品名
1	83331-S7A-G00	Duct - RR. HEATER
2	83332-S7A-G00	Duct - RR. HEATER JOINT (A)
3	83333-S7A-G00	Duct assy - RR. HEATER JOINT (B)
4	84616-S7A-003	Duct - RR. AIR CONDITIONER
6	91550-SS0-003	Clip - SRS COVER

Emblem/caution label 7

#	OEM	部品名
1	17669-P3R-X00	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
2	19043-PLA-E00	Label - COOLANT INFORMATION
3	42760-S7C-T00	Plate - TIRE PRESSURE CAUTION
5	75722-S7A-900	Emblem - RR. (STREAM)
10	75725-S7A-E01	Emblem - SIDE (I-VTEC)
11	77875-S84-G80	Label - SRS CAUTION
12	77969-S2H-000	Label - SRS UNIT POSITION

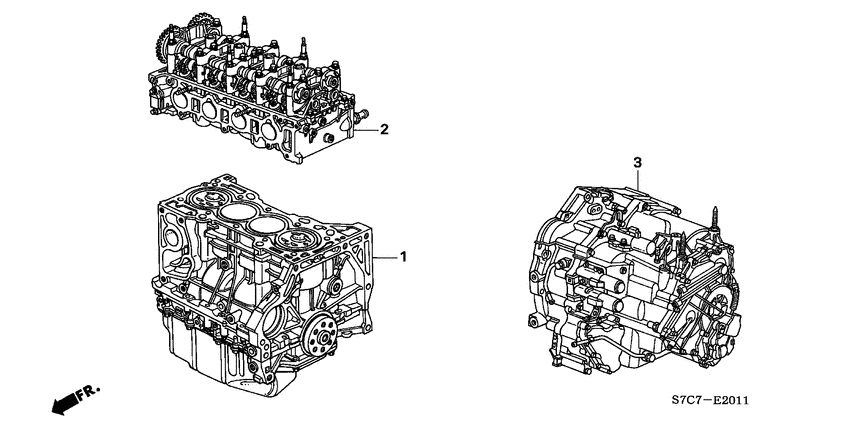

Engine assy./ transmission assy. (2.0L) 5

#	OEM	部品名
1	10002-PNE-E10	General assy. - CYLINDER BLOCK
1	10002-PNE-Y05	General assy. - CYLINDER BLOCK
2	10003-PNE-Y03	General assy. - CYLINDER HEAD
2	10003-PNE-Y02	General assy. - CYLINDER HEAD
3	20021-PRP-010	Transmission assy - AT

Engine cover (2.0L) 4

#	OEM	部品名
1	17121-PNA-000	Cover assy. - ENGINE
2	17122-PNC-J00	Stay comp - ENGINE COVER
3	17124-PNA-J00	Stay comp - ENGINE COVER C
4	90102-PNA-000	Bolt - SPECIAL FLANGE, 6X20

Engine hood (LH) 24

#	OEM	部品名
1	17706-SC3-003	Clip - FUEL PIPE
5	74120-S7A-013	Lock assy - HOOD
8	74141-S7C-010	Insulator - HOOD
9	74143-S7A-000	Rubber - RR. HOOD SEAL
10	74144-S5A-000	Sub seal - HOOD
11	74145-S7C-010	Stay - HOOD OPENER
12	74146-S7A-013	Rubber - HOOD SEAL
13	74210-S7A-G00	Cowl top assy. - L. FR. SIDE
14	74212-S7A-000	Cover - R. HOOD HINGE
15	74220-S7A-G00	Cowl top assy. - R. FR. SIDE
16	74222-S7A-000	Cover - L. HOOD HINGE
17	74231-S6A-000	Valve - DRAIN
18	90108-S0A-003	Bolt - FLANGE, 6X15
19	90602-SX0-003	Clip - COWL TOP
20	90602-S2K-003	Holder - ROD
21	90602-S5A-003	Clip - COWL TOP
22	90603-SX0-003	Grommet - COWL TOP
23	91501-SL4-003	Clip - FR. COWL
24	91501-S1K-003	Clip - ENGINE HOOD INSULATOR
25	91502-S84-A11	Clip - SEAL RUBBER (BLACK)
26	91518-SM4-003	Clip - TRUNK MOLDING
27	91522-SM4-003	Clip - TUBE & INSULATOR
28	91530-ST5-003	Clip A - DOOR WEATHERSTRIP
29	91604-S5A-003	Grommet - HOOD STAY

Engine mounting bracket (2.0L) 10

#	OEM	部品名
1	11910-PNA-000	Bracket - ENGINE SIDE MOUNTING
3	31170-PNA-023	Tensioner assy, Auto
4	31180-PNA-J01	Pulley comp., IDLER
5	31185-PNA-003	Cover - BEARING
6	90002-PNA-000	Bolt - SPECIAL, 10X28
7	90008-PNA-000	Bolt - 10X75
8	90025-PNA-000	Bolt - SPECIAL, 8X105
9	90027-PNA-000	Bolt - SPECIAL, 10X50
10	90043-PNA-010	Bolt - STUD, 12X91
11	90202-PNA-003	Nut - 10MM

Engine mounts (AT) 22

#	OEM	部品名
1	50805-SJF-981	Rubber assy. - TRANSMISSION MOUNTING (AT)
1	50805-S6M-981	Rubber assy.
2	50810-S7C-981	Rubber assy. - RR. ENGINE MOUNTING
3	50820-S7C-053	Rubber assy. - ENGINE SIDE MOUNTING
4	50821-S7C-043	Rubber comp - ENGINE SIDE MOUNTING
5	50825-S7C-980	Bracket - TRANSMISSION MOUNTING
6	50827-S7C-980	Bracket - RR. ENGINE MOUNTING
7	50828-S7C-980	Stay - RR. ENGINE BRACKET
8	50829-S7C-980	Mass - RR. MOUNTING BRACKET
9	50830-S7C-980	Mass - MISSION MOUNTING BRACKET
10	50840-SCA-980	Stopper - FR. ENGINE
10	50840-S7C-J80	Stopper - FR. ENGINE
11	90161-S7C-000	Bolt - SPECIAL FLANGE, 10X77
12	90163-S5A-000	Bolt - FLANGE, 10X20
13	90167-S5A-010	Bolt - FLANGE, 12X88
14	90168-S5A-000	Bolt - FLANGE, 12X35
15	90170-SM4-000	Bolt - FLANGE, 12X40
16	90186-SL4-000	Bolt - FLANGE, 12X67
17	90190-S04-000	Bolt - FLANGE, 12X38
18	90192-SM4-003	Bolt - FLANGE, 12X139
19	90371-S5A-000	Nut - YOKE, 12MM
20	90371-S7C-000	Nut - SIDE

Engine wire harness (2.0L) 31

#	OEM	部品名
1	32110-PNE-K51	Harness - ENGINE WIRE
2	32111-PNE-G01	Sub cord - STARTER
3	32113-PLD-003	Collar - HARNESS GROMMET
4	32117-PNA-003	Holder - CORRUGATED TUBE (15L)
5	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)
6	32118-PLM-A01	Holder - CORRUGATED TUBE (DARK GREEN) (19MM)
7	32118-P72-003	Holder - CORRUGATED(DARK GREEN) (19MM)
8	32121-PNA-000	Holder - ENGINE WIRE HARNESS (A)
9	32122-PNA-000	Holder b - ENGINE HARNESS
10	32123-PNA-000	Holder c - ENGINE HARNESS
11	32124-PNA-010	Holder d - ENGINE HARNESS
12	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
13	32418-PNN-300	Cover - BATTERY TERMINAL
14	32601-SK7-900	Bolt - BATTERY TERMINAL
15	32602-SK7-900	Nut - BATTERY TERMINAL
16	32610-S7C-000	Cable - SUB EARTH
18	32741-PLM-A00	Stay a - ENGINE WIRE HARNESS
19	32742-PNA-000	Stay b - ENGINE WIRE HARNESS
20	32746-PNA-G00	Stay f - ENGINE WIRE HARNESS
22	32747-PNA-G00	Stay g - ENGINE WIRE HARNESS
23	80372-SKC-000	Stay - DISCHARGE HOSE
24	90114-SM4-900	Bolt - 6X15
25	90149-SE0-003	Bolt - EARTH, 6X16
26	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
27	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
28	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
29	91531-S5B-003	Band - HARNESS (BLACK) (120MM)
30	91551-PNA-003	Band - WIRE HARNESS (BLACK) (172MM)
31	91552-PNA-003	Clip - HARNESS BAND (BLACK) (110MM)
32	91556-PDF-E01	Band - CLAMP(NATURAL)(143.2MM)
33	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)

Exhaust manifold (2.0L) 10

#	OEM	部品名
1	11942-PNA-000	Stay - EX. MANIFOLD
2	18100-PND-010	Manifold comp - EX.
3	18115-PNB-003	Gasket - EX. MANIFOLD (ISHINO GASKET)
3	18115-PRB-A01	Gasket comp - EX. MANIFOLD (NIPPON LEAKLESS)
4	18120-PND-A00	Cover comp. - EX. MANIFOLD
5	90005-P0A-000	Bolt-washer - 10X22
6	90010-PE2-900	Bolt - SPECIAL, 10X22
7	90015-PT0-J00	Bolt-washer - 8X14
8	90212-SA5-003	Nut - SELF-LOCK, 10MM
9	90451-PE2-000	Washer - SPECIAL, 11X28

Exhaust pipe/silencer (2.0L) 32

#	OEM	部品名
1	18030-S7C-J00	Silencer set - EX.
2	18160-PNE-K00	Converter comp.
3	18176-P08-003	Bolt - CONVERTER
4	18181-PNE-G00	Cover comp. - LOWER
5	18182-PNE-G00	Cover comp. - UPPER
6	18215-SL5-A00	Rubber - EX. MOUNTING
7	18215-S5A-A11	Rubber - EX. MOUNTING
8	18215-S5A-J01	Rubber - EX. MOUNTING
9	18220-S7C-E02	Pipe b - EX.
10	18229-S04-X01	Gasket - EX. FLEXIBLE
10	18229-SNA-A01	Gasket, EX. FLEXIBLE
11	18229-S7C-003	Gasket - EX. FLEXIBLE
12	18230-SV4-000	Spring - FLEXIBLE JOINT
13	18231-SR3-A22	Bolt b - FLEXIBLE JOINT
14	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
15	36531-PNE-K01	Sensor - FR. OXYGEN (WITH CLIP)
19	36536-PNE-G00	Stay - OXYGEN SENSOR
20	36538-PNA-003	Clip - WIRE HARNESS
22	74250-S7C-000	Insulator - DASHBOARD LOWER
23	74252-S7C-000	Plate - DASHBOARD LOWER BAFFLE
24	74262-S7C-000	Extension - DASHBOARD LOWER HEAT BAFFLE
25	74601-S7C-G01	Plate a - FLOOR HEAT BAFFLE
26	74604-S7A-000	Plate comp - FLOOR HEAT BAFFLE (B)
27	74650-S7A-000	Plate comp - TANK BAFFLE
28	74655-S7A-000	Plate - SILENCER BAFFLE
29	80275-S7C-900	Cover - DRAIN
30	90023-PK1-000	Bolt - FLANGE, 6X10
30	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
31	90149-SA0-003	Bolt - BUMPER
32	90212-SA5-003	Nut - SELF-LOCK, 10MM
33	90301-SV7-000	Nut - PAINT CUTTING, 6MM
34	91597-S5H-T31	Clip - DRAIN TUBE

Floor mat 7

#	OEM	部品名
1	74251-S7A-G00	Insulator - DASHBOARD LOWER OUTER
2	74260-S7A-G00	Insulator - DASHBOARD
10	90676-SB2-003	Clip - DASHBOARD INSULATOR
11	90676-S5A-003	Clip - DASHBOARD INSULATOR
12	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR
13	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
14	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)

Floor/inner panels 1

#	OEM	部品名
32	80461-S7A-000	Grommet - AIR CONDITIONER PIPE

Fog light 8

#	OEM	部品名
1	33165-S10-003	Bulb - FOG LIGHT (H3 55W)
2	33901-S7A-J01	Lamp unit - R. FOG
3	33909-S06-J01	Band - HARNESS
4	33912-S7A-J01	Bracket comp. - R.
5	33913-S3N-J01	Bolt - SPECIAL, 5X16
6	33951-S7A-J01	Lamp unit - L. FOG
7	33962-S7A-J01	Bracket comp. - L.
8	91565-S0X-003	Clip - COUPLER (DARK GREEN)

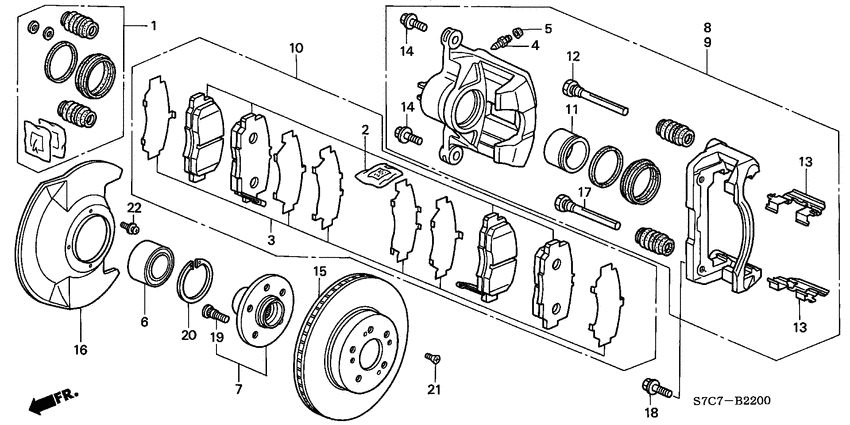

Front brake 24

#	OEM	部品名
1	01463-S7A-N00	Caliper set - FR.
1	01463-S7A-N01	SETCALIPER FR 1
2	06450-S7A-D01	Pad set - FR. (WITHOUT SHIM)
3	06455-S7A-E00	Shim set - FR.
4	43352-SM4-951	Screw - BLEEDER
5	43353-SD5-003	Cap - BLEEDER SCREW
6	44300-S47-008	Bearing assy - HUB (NTN)
6	44300-S47-305	Bearing assy
7	44600-S7A-000	Hub assy - FR.
8	45018-S7A-N02	Caliper sub assy. - R. FR.
9	45019-S7A-N02	Caliper sub assy. - L. FR.
10	45022-S7A-D01	Pad set - FR.
11	45216-S5A-J01	Piston
12	45235-S0K-A01	Pin a
13	45237-S7A-N02	Retainer
14	45240-SM4-003	Bolt - FLANGE, 10X24
15	45251-S7A-E10	Disk - FR. BRAKE (15")
16	45255-S7A-N00	Guard - FR. SPLASH
17	45262-S0K-A01	Pin b
18	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)
19	90113-SD4-902	Bolt - WHEEL (SAGA)
19	90113-SD4-901	Bolt - WHEEL (MEIRA)
19	90113-S84-901	Bolt - WHEEL (ROCKNEL FASTENER)
20	90681-SG0-000	Circlip - INTERNAL, 84MM

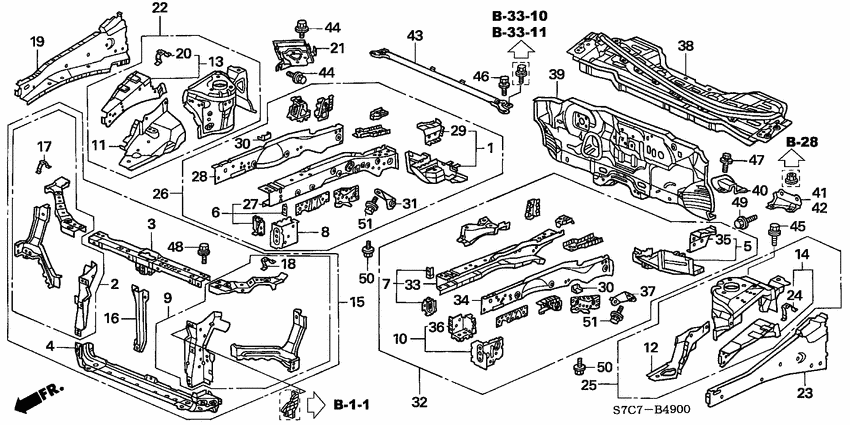

Front bulkhead/dashboard 6

#	OEM	部品名
41	74185-S7A-000	Gusset - R. FR. SHOCK ABSORBER BASE
42	74195-S7A-000	Gusset - L. FR. SHOCK ABSORBER BASE
43	74230-S7C-000	Rod comp - SUB FRAME PERFORMANCE
44	90105-634-000	Bolt-washer (8x20)
45	90108-S0A-003	Bolt - FLANGE, 6X15
46	90801-S5A-000	BOLT, FLANGE, 8X25

Front door glass/ door regulator 14

#	OEM	部品名
1	39885-S5A-G01	Label - IMMOBILIZER
2	72210-S7A-G03	Regulator assy - R. FR. DOOR POWER
3	72230-S7A-003	Sash - R. FR. DOOR FR. LOWER
4	72231-S7A-003	Sash - R. FR. DOOR CENTER LOWER
5	72235-S7A-003	Runchannel - R. FR. DOOR
6	72250-S7A-G03	Regulator assy - L. FR. DOOR POWER
7	72270-S7A-003	Sash - L. FR. DOOR FR. LOWER
8	72271-S7A-003	Sash - L. FR. DOOR CENTER LOWER
9	72275-S7A-003	Runchannel - L. FR. DOOR
10	73300-S7A-G02	Glass assy - R. FR. DOOR (GREEN) (ASAHI)
11	73350-S7A-G02	Glass assy - L. FR. DOOR (GREEN) (ASAHI)
12	90126-SS0-000	Bolt-washer - 6X16
13	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)
14	91580-SM4-003	Clip - COUPLER(ORANGE)

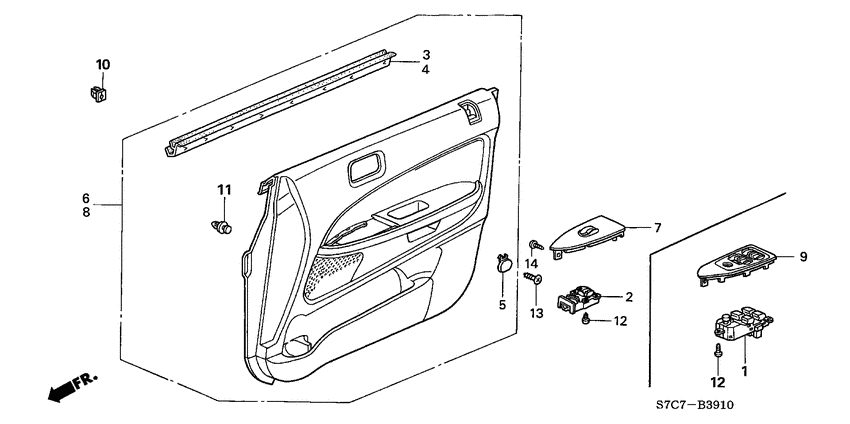

Front door lining (LH) 4

#	OEM	部品名
3	72335-S7A-003	Weatherstrip - R. FR. DOOR INNER
4	72375-S7A-003	Weatherstrip - L. FR. DOOR INNER
10	90662-SB2-003	Grommet - SCREW, 5MM
11	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

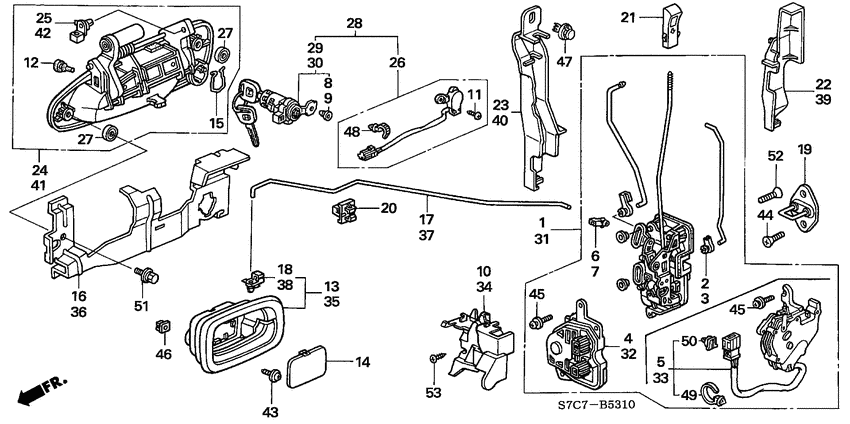

Front door locks/ outer handle 38

#	OEM	部品名
1	72110-S7A-G01	Lock assy - R. FR. DOOR POWER
2	72112-SR4-004	Snap - BROWN
3	72113-SR4-004	Snap - BLACK
4	72115-S5A-003	ACTUATOR ASSY, DOOR LOCK (R. RR.)
6	72116-SM4-003	Snap d - VIOLET
7	72116-SV4-003	Snap - ORANGE
8	72116-S04-003	Holder - ROD(SKY BLUE)
9	72117-S04-003	Holder - ROD (YELLOW)
10	72117-S6A-Q01	Protector - R. FR. DOOR LOCK
12	72119-S04-003	Stopper a - OUTSIDE HANDLE
15	72123-SR0-003	Ring - OUTSIDE HANDLE
16	72130-S6A-E01	Protector - R. FR. DOOR OUTER HANDLE
17	72131-S7A-003	Rod - R. FR. INSIDE HANDLE
18	72134-SM4-003	Snap - R. (VIOLET)
19	72135-S5A-003	Striker assy - DOOR LOCK
20	72136-SM4-003	Holder - ROD, 4MM
22	72138-S7A-000	Protector - R. FR. DOOR KEY ROD
23	72139-S7A-000	Protector - R. FR. DOOR KNOB ROD
24	72140-S7A-003	Handle assy - R. FR. DOOR OUTSIDE
25	72141-SD4-004	Bush - R. JOINT
27	72143-S04-003	Packing
29	72145-S0X-A51	Cylinder - R. DOOR
30	72146-S0X-A51	Cylinder - L. DOOR
31	72150-S7A-G01	Lock assy - L. FR. DOOR POWER
32	72155-S5A-A01	Actuator assy - DOOR LOCK
34	72157-S6A-Q01	Protector - L. FR. DOOR LOCK
36	72170-S6A-E01	Protector - L. FR. DOOR OUTER HANDLE
37	72171-S7A-003	Rod - L. FR. INSIDE HANDLE
38	72174-SM4-003	Snap - L. (YELLOW)
39	72178-S7A-000	Protector - L. FR. DOOR KEY ROD
40	72179-S7A-000	Protector - L. FR. DOOR KNOB ROD
41	72180-S7A-003	Handle assy - L. FR. DOOR OUTSIDE
42	72181-SD4-004	Bush - L. JOINT
43	90120-SM4-000	Screw - TAPPING
44	90120-SV4-000	Bolt - LOCK STRIKER
45	90141-S84-003	Screw - 3X10
46	90866-SA0-000	Grommet - SCREW, 4MM
47	91501-S04-003	Clip - INNER FENDER

Front door panels 21

#	OEM	部品名
5	67328-S7A-003	Tape - R. FR. DOOR UPPER OUTER
6	67368-S7A-003	Tape - L. FR. DOOR UPPER OUTER
11	72310-S7A-003	Weatherstrip - R. FR. DOOR
12	72321-S7A-G00	Seal - R. FR. DOOR HOLE
13	72325-S7A-003	Sub seal - R. FR. DOOR
14	72340-S7A-003	Checker comp. - R. FR. DOOR
15	72350-S7A-003	Weatherstrip - L. FR. DOOR
16	72361-S7A-G00	Seal - L. FR. DOOR HOLE
17	72365-S7A-003	Sub seal - L. FR. DOOR
18	72380-S7A-003	Checker comp. - L. FR. DOOR
19	72435-S7A-J01	Seal - R. FR. DOOR LOWER SILL
20	72475-S7A-J01	Seal - L. FR. DOOR LOWER SILL
21	75891-SA7-000	Stopper - DOOR
22	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)
23	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
23	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
24	90141-S04-000	Bolt - FLANGE, 8X22
25	90686-692-003	Cap - LINING MOUNT
26	91530-SP1-003	Clip A - DOOR WEATHERSTRIP
27	91568-SR2-003	Clip - DOOR WEATHERSTRIP
28	91651-S84-A00	Seal - DOOR PANEL HOLE

Front driveshaft (2.0L) 26

#	OEM	部品名
1	44014-S6M-950	Joint set - OUTBOARD
2	44017-S0A-030	Boot set - INBOARD
2	44017-S0A-040	BOOT SETINBOARD
3	44018-S6M-000	Boot set - OUTBOARD
4	44305-S7C-950	Driveshaft assy. - R.
5	44306-S7C-950	Driveshaft assy. - L.
6	44310-S0A-300	Joint comp - INBOARD
7	44310-S0A-900	JOINT, INBOARD, LH - (LH)
8	44319-S0A-300	Set ring - 28X2.0
8	44319-S84-300	Set ring - 28X2.0
8	44319-SE0-000	Set ring - 28X2.0
9	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)
10	44327-S04-A01	Band b - DRIVESHAFT (NIPPON HATSUJO)
11	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
12	44329-S04-A01	Band c - DRIVESHAFT (NIPPON HATSUJO)
13	44337-SA2-300	Ring b - STOPPER
14	44338-SA2-300	Circlip - 24MM
15	44351-S5A-J01	Damper - DYNAMIC (TOUKAI)
16	44351-S7C-J01	Damper - DYNAMIC (TOUKAI)
17	44500-SEA-900	Shaft assy - HALF
18	90102-SF1-000	Bolt - HEX., 10X1.25
19	90165-SE0-000	Bolt - FLANGE, 10X37
20	90305-692-010	Nut
21	90681-SR3-000	Circlip - EXTERNAL, 33MM
22	91057-SR3-008	Bearing - HALF SHAFT(NTN)
23	91260-SDB-A01	Seal - HALF SHAFT OUTER(NOK)

Front fenders 15

#	OEM	部品名
3	74101-S7A-N10	Fender R. FR. INNER
4	74105-S7A-000	Fairing - R. FR. FENDER
5	74111-S7C-000	FR. Splash Shield
6	74151-S7A-N10	Fender L. FR. INNER
7	74155-S7A-000	Fairing - L. FR. FENDER
8	90108-S0A-003	Bolt - FLANGE, 6X15
9	90114-SE0-000	Screw - TAPPING, 5X20
10	90305-SM4-003	Nut - CLIP, 6MM
11	90501-SM4-003	Bolt - FENDER
12	90682-SB0-003	Grommet - SCREW, 5MM
13	91503-SZ3-003	Clip A
14	91503-SZ5-003	Clip - BUMPER FACE
15	91512-SX0-003	Clip - INNER FENDER CLIP
16	91533-SG0-000	Clip b - FAIRING
17	91545-SE0-003	Clip assy. - 8MM

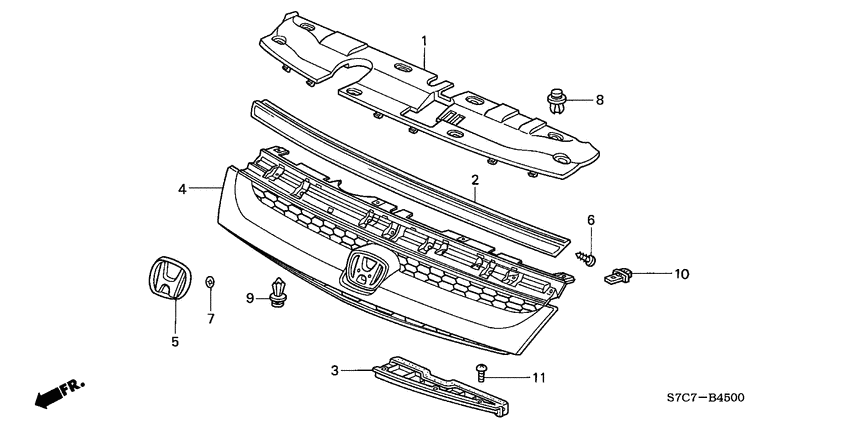

Front grille 9

#	OEM	部品名
1	71123-S7A-J01	Cover - FR. GRILLE
2	71124-S7A-N01	Lens comp - FR. GRILLE
3	71125-S7A-003	Plate - FR. GRILLE
5	75700-S6A-003	Emblem - FR. CENTER (H)
6	90116-SE3-000	Screw-washer - 4X12
7	90301-ST0-003	push nut, 3mm
8	91503-SZ3-003	Clip A
9	91503-S7A-003	Clip - FR. GRILLE
10	91578-SW5-003	Clip b - FR. GRILLE

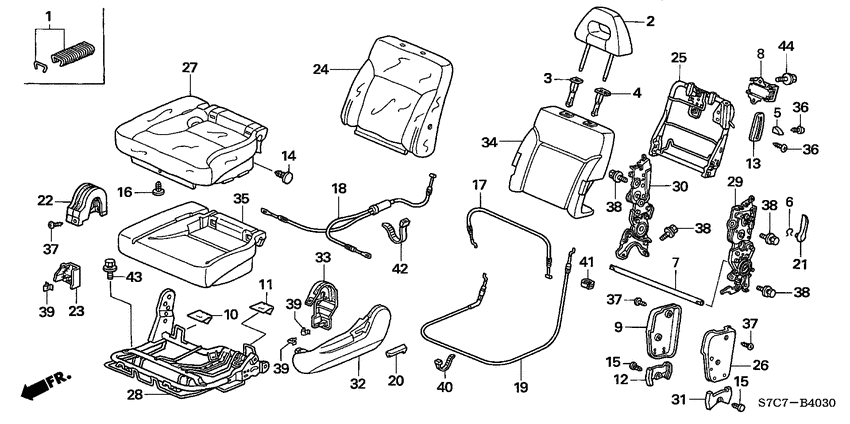

Front seat (L.) 14

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
6	81182-S7A-J41	Pin comp. - R. ARMREST
7	81189-S70-013	Bush - ARMREST
9	81223-S04-000	Clip - SHAFT, 8MM
13	81526-S7A-G02	Frame comp - L. FR. SEATBACK
14	81527-S7A-G42	Pad comp - L. FR. SEATBACK
18	81537-S7A-G02	Pad comp - L. FR. SEAT CUSHION
24	90134-SE3-003	Screw - TAPPING, 5X10
25	90142-S70-003	Bolt-washer - 10X18
26	90143-S70-J21	Bolt-washer - 8X16
28	90610-SR3-003	Clip - GARNISH (KATO)
29	90650-KV3-000	Band - WIRE
30	90650-S7A-J01	Clip - RATCHET, 15MM

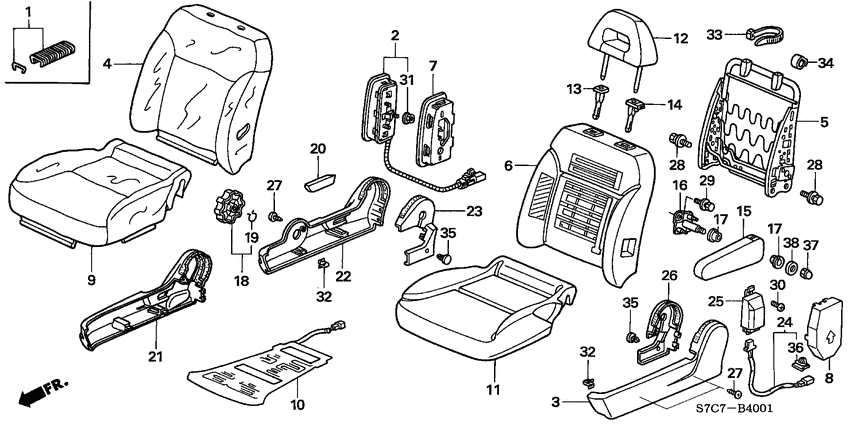

Front seat (R.) 9

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
5	81126-S7A-J02	Frame comp - FR. SEATBACK
6	81127-S7A-J02	Pad comp - R. FR. SEATBACK
11	81137-S7A-G02	Pad comp - R. FR. SEAT CUSHION
28	90142-S70-003	Bolt-washer - 10X18
32	90610-SR3-003	Clip - GARNISH (KATO)
33	90650-KV3-000	Band - WIRE
34	90650-S7A-J01	Clip - RATCHET, 15MM

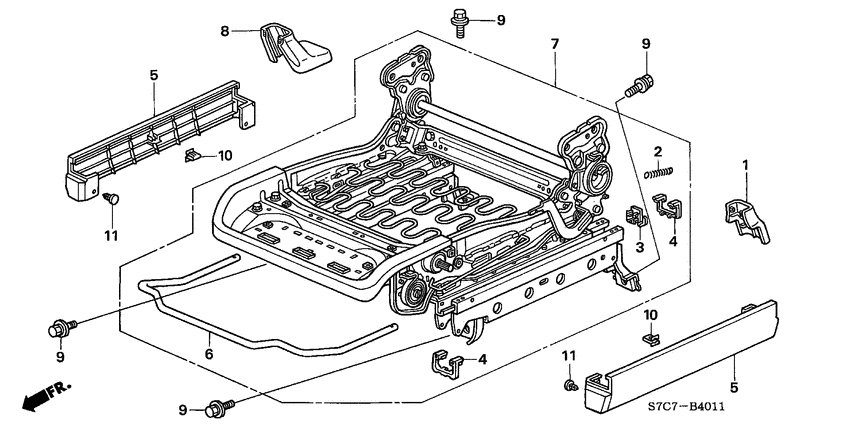

Front seat components (L.; 2) 7

#	OEM	部品名
2	81237-S7A-J01	Spring - LEVER
3	81261-S7A-J01	Protector b
4	81262-S7A-J01	Protector a
6	81271-S7A-003	Lever
7	81536-S7A-B01	Frame comp - L. FR. SEAT CUSHION
9	90135-S5A-003	Bolt-washer - 10X27
10	90610-SR3-003	Clip - GARNISH (KATO)

Front seat components (R.; 1) 10

#	OEM	部品名
1	81136-S7A-J01	Frame comp - FR. SEAT CUSHION
3	81176-S7A-J41	Rail comp - UNDER BOX GUIDE
4	81177-S7A-J41	Bracket - R. UNDER BOX GUIDE RAIL
7	81237-S7A-J01	Spring - LEVER
8	81261-S7A-J01	Protector b
9	81262-S7A-J01	Protector a
11	81271-S7A-003	Lever
12	81577-S7A-J41	Bracket - L. UNDER BOX GUIDE RAIL
13	90135-S5A-003	Bolt-washer - 10X27
14	90610-SR3-003	Clip - GARNISH (KATO)

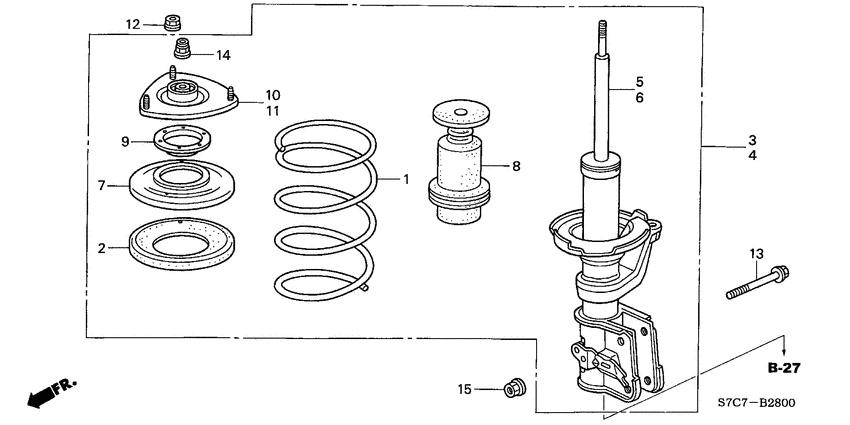

Front shock absorber 16

#	OEM	部品名
1	51401-S7C-N05	Spring - FR. (SHOWA)
2	51402-S6M-014	Rubber - SPRING UPPER SEAT
3	51601-S7C-N12	Absorber assy - R. FR. SHOCK
4	51602-S7C-N12	Absorber assy - L. FR. SHOCK
5	51605-S7C-N08	Absorber unit - R. FR. SHOCK
6	51606-S7C-N08	Absorber unit - L. FR. SHOCK
7	51688-S6M-014	Seat - FR. SPRING UPPER
8	51722-S7A-014	Rubber - FR. BUMP STOPPER
9	51726-S5A-004	BEARING, FR. SHOCK ABSORBER MOUNT
10	51920-S7A-024	Mount comp - R. FR. SHOCK ABSORBER
11	51925-S7A-024	Mount comp - L. FR. SHOCK ABSORBER
12	90002-S10-000	Nut - FLANGE, 10MM
13	90188-S6M-Z01	Bolt - FLANGE, 16X62 (SERVICE)
13	90119-S6M-Z01	Bolt - FLANGE, 16X62
14	90213-SJ6-004	Nut - SELF-LOCK, 12MM(NYLON)
15	90382-S6M-Z01	Nut - FLANGE, 16MM

Front sub frame/ cross beam 4

#	OEM	部品名
1	50200-S7C-030	Sub frame comp. - FR. SUSPENSION
4	50300-S7A-000	Beam - RR. SUSPENSION CROSS
5	90161-S7A-000	Bolt - FLANGE, 12X100
7	90175-S5A-000	Bolt - FLANGE, 14X115

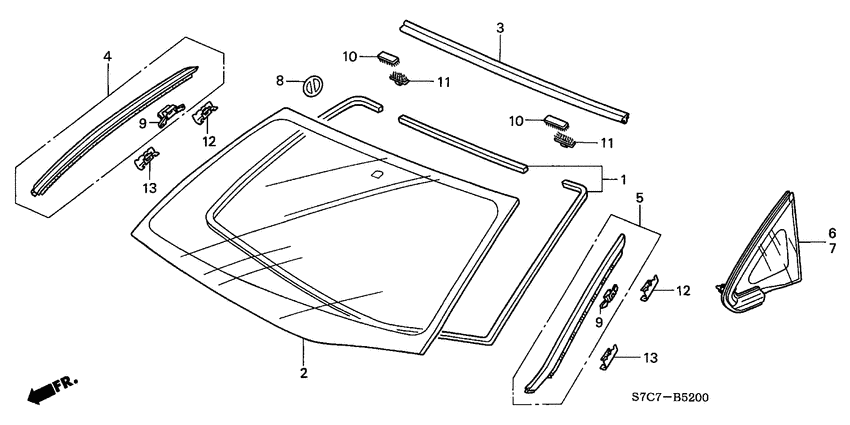

Front windshield 12

#	OEM	部品名
1	04731-S7A-J00	Rubber set - FR. WINDSHIELD DAM
2	73111-S7A-G02	Glass - FR. WINDSHIELD (GREEN) (ASAHI)
3	73150-S7A-003	Molding - FR. WINDSHIELD
4	73152-S7A-003	Garnish assy - R. FR. WINDSHIELD SIDE
5	73162-S7A-003	Garnish assy - L. FR. WINDSHIELD SIDE
6	73331-S7A-013	Glass set - R. FR. CORNER (GREEN) (ASAHI)
7	73371-S7A-013	Glass set - L. FR. CORNER (GREEN) (ASAHI)
9	91533-S2X-003	Clip c - FR. WINDSHIELD SIDE GARNISH
10	91568-SX0-003	Fastener a - WINDSHIELD
11	91569-SX0-013	Fastener b - WINDSHIELD
12	91573-S2X-003	Clip A - FR. WINDSHIELD SIDE GARNISH (12.4MM)
13	91574-S2X-003	Clip b - FR. WINDSHIELD SIDE GARNISH (17.4MM)

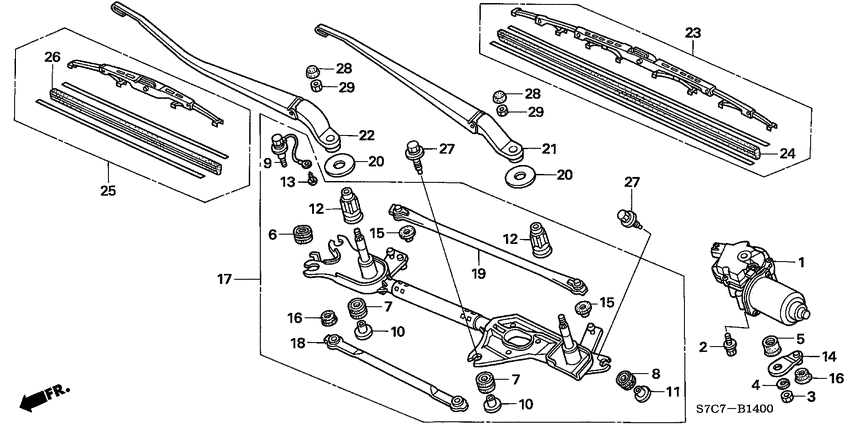

Front wiper (LH) 28

#	OEM	部品名
1	76505-S7A-G01	Motor comp - FR. WIPER
2	76506-S7A-004	Bolt-washer - 6X14
3	76511-S2K-004	Nut - HEX. (8MM)
4	76512-S2K-004	Washer - SPRING, 8MM
5	76515-S7A-004	Seal a
6	76516-S7A-J01	Rubber b - MOUNTING
7	76516-S7A-J11	Rubber c - MOUNTING
8	76516-S7A-004	Rubber a - MOUNTING
9	76517-S7A-J01	Bolt assy - EARTH (WITH COLLAR)
10	76517-S7A-J11	Collar c
11	76517-S7A-004	Collar a
12	76518-S2K-004	Cap - PIVOT
13	76518-S7A-004	Screw - TAPPING, 5MM
14	76520-S7A-004	Link comp - A
15	76524-S2K-004	Dust seal - 16
16	76524-S7A-004	Dust seal a
17	76530-S7A-G01	Link comp - FR. WIPER (LH)
18	76540-S7A-004	Rod unit a
19	76550-S7A-004	Rod unit b
20	76561-S2K-004	Washer - PIVOT
21	76600-S7A-G01	Arm - WINDSHIELD WIPER (DRIVER SIDE)
22	76610-S7A-G01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
23	76620-S7A-G02	Blade - WINDSHIELD WIPER (DRIVER SIDE)
24	76622-S7A-014	Rubber - BLADE (600MM)
25	76630-S7A-G02	Blade - WINDSHIELD WIPER (PASSENGER SIDE)
26	76632-S7A-014	RUBBER, BLADE (350MM)
27	90126-SR3-000	Bolt-washer - 6X32
28	91611-S5A-000	Cap - FR. WIPER

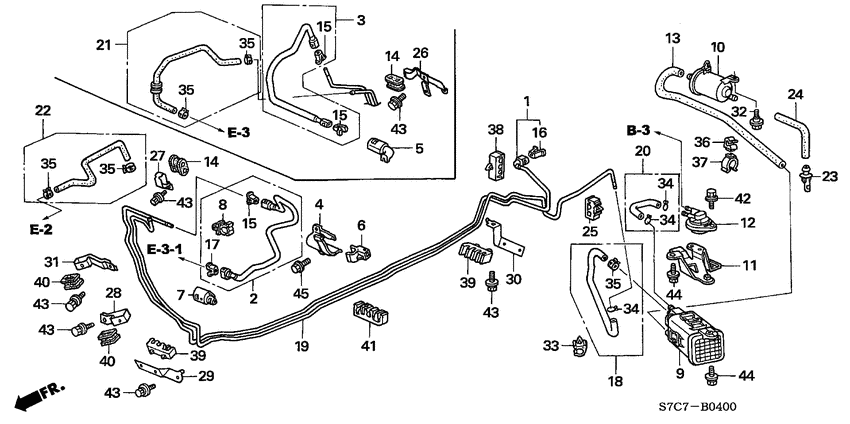

Fuel pipe 37

#	OEM	部品名
1	16040-S7C-931	Pipe comp - FUEL FEED
2	16722-PNE-003	Hose comp. - FUEL FEED
4	16723-PNE-G00	Bracket comp. - FUEL FEED HOSE
6	16726-PNA-003	Clamp b - FUEL HOSE (NATURAL)
7	16726-PWA-004	Cover b - FUEL CONNECTOR (BLACK)
8	16727-PND-004	Clamp - FUEL HOSE (BLACK)
9	17300-S5C-931	Canister assy
10	17315-S7A-931	Filter - CANISTER
11	17358-S7C-Y00	Bracket - CANISTER
12	17371-SR3-003	Valve - TWO WAY
13	17372-S7A-930	Tube - CANISTER DRAIN
14	17701-S7A-000	Rubber - FUEL PIPE INSULATOR
15	17711-S0X-A31	Retainer - GREEN)(TOKAI
16	17711-S0X-003	Retainer - ORANGE) (TOKAI
17	17711-S0X-931	Retainer - BLUE GREEN) (TOKAI
18	17716-S7A-931	Tube assy - PURGE
19	17720-S7C-932	Pipe - FUEL PURGE
20	17724-S7C-Y00	Tube assy - FUEL VENT
22	17726-S7C-G00	Hose assy - FUEL PURGE
23	17742-S7A-003	Joint - DRAIN TUBE
24	17743-S7A-930	Tube - CANISTER FILTER
25	17759-S7A-931	Clip b - FUEL PIPE
27	17761-S7C-930	Stay a - FUEL PIPE
28	17762-S5A-930	Stay b - FUEL PIPE
29	17763-S7A-930	Stay c - FUEL PIPE
30	17764-S7A-930	Stay d - FUEL PIPE
31	17765-S5A-930	Stay e - FUEL PIPE
32	90671-SB2-000	Bolt - FR. FENDER (DACRO COATING)
33	90684-SA0-003	Clip - FUEL HOSE
34	91401-SDC-000	Clip - TUBE(B10)
35	91405-SDA-000	Clamp - TUBE(D10.5)
36	91546-SD4-Z01	Clamp - 10.5MM(SIDE)
37	91547-SD4-Z01	Clamp - 19MM (UPPER)
38	91592-S7A-003	Clip A - FUEL PIPE
39	91595-S7A-931	Clamp a - FUEL PIPE
40	91598-S7A-930	Rubber - FUEL PIPE INSULATOR
41	91599-S7A-931	Clamp b - FUEL PIPE

Fuel tank 32

#	OEM	部品名
1	16010-S7A-931	Strainer set - FUEL
2	16015-SDC-E00	Regulator assy
3	16016-S7A-931	Wire comp - LEAD
4	16711-S5H-T31	Rubber - FUEL PUMP INSULATOR
5	17040-S7A-931	Pump set - FUEL
6	17043-S5H-T30	O-ring
7	17044-S7A-K30	Tank comp. - FUEL
8	17044-SDC-E01	Bracket c
9	17516-S7A-931	Filter set - FUEL PUMP
10	17519-S7A-000	Protector - FUEL PIPE
11	17521-S7A-000	Band - R. FUEL TANK MOUNTING
12	17522-S7A-000	Band - L. FUEL TANK MOUNTING
13	17525-SM4-000	Bolt-washer - 10X35
14	17574-S84-A01	Packing - BASE
15	17579-S0A-932	Plate - SETTING
16	17630-S7A-931	Meter comp
17	17651-S7A-931	Tube - FILLER NECK
18	17652-SDA-T01	Clip - FILLER TUBE
19	17653-S7A-930	Tube - BREATHER
20	17660-S7A-G31	Pipe comp - FUEL FILLER
21	17662-S1A-E01	Packing - FUEL FILLER
22	17670-S5A-E33	Cap comp. - FUEL FILLER (TOYODA)
23	17705-S0X-A01	Grommet
24	17721-S7C-Y00	Tube assy - FUEL VENT
25	17738-SP0-003	Clip - FUEL PIPE (BLACK)
26	74660-S7A-000	Cap assy. - FLOOR MAINTENANCE HOLE
27	90150-S04-003	Bolt - EARTH, 6X16
28	91401-SDC-000	Clip - TUBE(B10)
29	91413-S5A-003	Clamp - FUEL TUBE (D17)
30	91594-S1A-E01	Clip - FUEL FILLER CAP
31	91594-S7A-931	Clamp - VENT TUBE
32	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)

Gasket kit (2.0L) 6

#	OEM	部品名
1	06110-PNB-010	Gasket kit - CYLINDER HEAD
1	06110-PNB-000	Gasket kit - CYLINDER HEAD
2	06112-PRP-030	Gasket kit - AT TRANSMISSION
2	06112-PRP-020	Gasket kit - AT TRANSMISSION
3	06114-PNA-040	Gasket kit - CHAIN CASE
3	06114-PNA-030	Gasket kit - CHAIN CASE

Grommet (FRONT) 19

#	OEM	部品名
1	74177-SD4-000	Cushion a - HOOD
2	74514-S7A-000	Seal a - R. QUARTER HOLE
3	74515-S7A-000	Seal b - R. QUARTER HOLE
4	74558-S7A-000	Seal - L. QUARTER HOLE
5	75826-634-300	Seal - INSIDE PANEL, 15MM
6	90615-SR3-000	Cap - WELD HOLE, 51X77
7	90615-S5A-003	Plug - HOLE, 27X56
9	91601-S7A-003	Plug - HOLE, 8.5 (BLACK)
10	91603-S9A-003	Cushion - HOOD(25MM-32MM)
11	91606-S2G-000	Plug - HOLE, 19.5MM
12	91611-SD5-000	Stopper - BUMPER
13	91611-S7A-000	Block a - RR. INNER
14	91612-S7A-000	Block b - RR. INNER
15	91613-SN4-003	Plug - FLOOR HOLE, 25MM
16	91613-S7A-000	Block c - RR. INNER
17	91614-S7A-000	Block d - RR. INNER
18	91615-SH3-000	Cap - FLOOR HOLE, 49MM
19	91615-S9A-000	Block a - DASHBOARD UPPER
20	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (LOWER) 4

#	OEM	部品名
1	74687-S47-000	Rubber - SPARE TIRE SET PLATE
4	90810-SB2-660	Grommet - TIE DOWN, 20X35
5	91606-SK7-003	Plug - BLIND, 25MM
6	91606-S2G-000	Plug - HOLE, 19.5MM

Grommet (REAR) 6

#	OEM	部品名
1	72367-SK8-000	Seal - OUTER HANDLE HOLE
2	82871-671-000	Grommet - DRAIN HOLE, 25MM
3	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
4	90857-SD4-000	Cap - WELD HOLE
5	91610-SD4-000	Plug - HOLE, 28MM
6	91615-S6E-E00	Block a - DASHBOARD UPPER

Grommet (SIDE) 8

#	OEM	部品名
1	91616-SJ4-000	Seal - FR. PILLAR INNER LOWER
2	91616-S04-000	Block - FR. PILLAR INNER LOWER
3	91618-SE3-010	Seal - RR. PILLAR UPPER
4	91618-S5A-000	Seal - HOLE, 30X90
5	91618-S7A-000	Block - FR. PILLAR INNER LOWER
6	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
7	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
8	91902-SJ8-003	Cushion - WIRE HARNESS (50X50)

Harness band/bracket (LH) 33

#	OEM	部品名
1	32103-679-000	Grommet - WIRE HARNESS(BLACK)
2	32112-S2K-003	Band - CABLE (90MM)
3	32112-S5A-900	Grommet - WIRE HARNESS
4	32116-S7A-G00	Bracket - HARNESS
6	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
7	32132-S6A-003	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
8	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
9	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
11	32203-S7A-000	Bracket - ENGINE ROOM WIRE HARNESS
12	38617-S5A-J01	Filter comp - NOISE
14	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
15	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
16	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
17	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
18	91533-S04-003	Clip - COUPLER (NATURAL)
19	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)
20	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
21	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)
22	91541-S6M-003	Clip - HARNESS BAND (BLACK) (140MM)
23	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)
24	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
25	91545-S2A-003	Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL)
27	91551-SW5-003	Clip - HARNESS BAND (BROWN) (151MM)
28	91556-SM4-003	Clip - BAND (BLACK) (100MM)
29	91558-SJ6-003	Strap - HARNESS (30) (BLACK) (107.5MM)
30	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)
31	91565-S0X-003	Clip - COUPLER (DARK GREEN)
32	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)
33	91577-SS0-003	Clip - WIRE HARNESS (BLUE) (122.5MM)
34	91582-SM4-003	Clip - WIRE HARNESS
35	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
36	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
37	91902-S3N-003	Plaster - WIRE HARNESS (50X50)

Headlight 20

#	OEM	部品名
1	33101-S7A-G12	Headlight unit - R.
2	33103-SL5-A02	Bulb - HEADLIGHT (HB3) (12V 60W) (KOITO)
2	33115-S7A-003	Bulb - HEADLIGHT(HB3)(12V 60W) (KOITO)
3	33107-S7A-003	Nut - SPECIAL
4	33116-S6M-003	Adapter
5	33126-S3V-A01	Cover - RUBBER
6	33126-S7A-003	Cover - RUBBER
7	33130-S2A-G01	Adjuster unit - HEADLIGHT
8	33151-S7A-G12	Headlight unit - L.
9	33301-S5H-T01	Bulb - WEDGE BASE (WY 12V 5W) (STANLEY) (AMBER)
10	33303-S30-003	Bulb - T20W 12V 21W
11	33303-S7A-J11	Socket comp - T20 S
12	33304-S5A-003	Socket comp - T10
13	33304-S6M-003	Socket - T10
14	34301-S5H-T02	Lamp unit
15	34901-SZ3-000	Bulb - HEADLIGHT(H1)(12V 55W)
16	34908-SB6-741	Bulb - 12V 5W
16	34351-657-921	Bulb - 12V/5W) (STANLEY
17	90101-S5A-003	Tapping - SPECIAL, 5X18
18	90682-SB0-003	Grommet - SCREW, 5MM

Heater blower (LH) 18

#	OEM	部品名
1	79191-SZ3-A01	Nut - HOLDER
2	79303-S5A-003	Lid - BLOWER
3	79305-S7A-G11	Blower sub assy.
4	79308-S5A-003	Seal - BLOWER OUTER (B)
5	79309-S5A-003	Seal - BLOWER OUTER (A)
6	79310-S7A-G12	Motor assy. - FAN
7	79330-S7A-941	Transistor - POWER
7	79330-S5A-942	Transistor - POWER
8	79350-S5A-A01	Motor assy. - FRESH & RECIRCULAR
9	79800-S7A-G11	Duct assy
10	80291-S5A-J01	Plate assy. - BLOWER (A)
13	80296-S5A-J01	Plate assy. - BLOWER (B)
16	90121-SR3-003	Screw - TAPPING, 5X12
17	90127-SX0-003	Screw - TAPPING, 4X16
18	90132-SR3-003	Screw - TAPPING, 5X16
19	90133-SR3-003	Screw-washer - 4X16
20	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
21	90659-692-000	Clamp - CASE

Heater control 1

#	OEM	部品名
12	79671-S84-A41	Bulb - NEO WEDGE (14V 100MA)

Heater unit (LH) 38

#	OEM	部品名
1	39248-692-003	Packing - HEATER
2	79026-S7A-941	Bracket - ASPIRATOR
3	79027-S5D-A01	Case - EXPANSION VALVE COVER
4	79028-S5D-A01	Cover - FLANGE
5	79029-S7A-G11	Cover - FOOT DUCT
6	79103-S5A-003	Seal - DRAIN
7	79104-S5D-A01	Seal a
8	79105-S5D-A01	Seal b
9	79106-S7A-G12	Heater sub assy.
9	79106-S7A-G42	Heater sub assy.
10	79107-S5D-A01	Seal c
11	79110-S5D-A02	Core sub assy. - HEATER
12	79140-S5D-A01	Motor assy. - MODE
13	79160-S5A-A01	Motor assy. - TEMPERATURE
14	79191-SZ3-A01	Nut - HOLDER
15	79544-S5D-A00	Cable - WATER VALVE CONTROL
16	79770-SE0-000	Grommet - WATER VALVE CABLE
17	79831-S7A-003	Bracket b - HEATER
18	79832-S7A-003	Bracket - HARNESS
21	80215-S5D-A02	Evaporator comp.
23	80219-S5A-003	Seal - EXPANSION VALVE
24	80220-S7A-003	Valve - EXPANSION
25	80271-S7C-900	Hose - DRAIN
26	80534-S84-A41	Aspirator
27	80560-S5A-941	Sensor assy - EVAPORATOR
28	80650-S7A-A00	Sub harness - AIR CONDITIONER
29	80871-S5A-003	O-ring - 5/8"
30	80872-S5A-003	O-ring - 1/2"
31	90121-SR3-003	Screw - TAPPING, 5X12
32	90122-S5A-003	Screw - TAPPING, 4X14
34	90126-S5A-003	Bolt - SOCKET, 5X40
35	90127-SX0-003	Screw - TAPPING, 4X16
36	90133-SR3-003	Screw-washer - 4X16
37	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
38	90156-SH3-000	Bolt-washer - 6X24
39	90659-692-000	Clamp - CASE
40	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
41	91548-SV4-003	Clip - BAND (6MM BOSS)(NATURAL) (127MM)

Hoses/pipes (LH; DUAL; 2.0L) 29

#	OEM	部品名
1	38608-SA5-000	Rubber - MOUNTING
2	38609-SA5-000	Collar - DISTANCE
3	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
4	80311-S7C-G01	Hose comp. a - SUCTION
5	80312-S7C-013	Hose comp. b - SUCTION
6	80315-SKC-003	Hose comp. - DISCHARGE
7	80321-S7C-G61	Pipe comp - RR. AIR CONDITIONER
8	80341-S7C-G02	Pipe comp - RECEIVER
9	80361-S7C-000	Stay - SUCTION HOSE
10	80362-S7C-000	Stay - SUCTION PIPE
11	80363-S7C-010	Clamp - SUCTION PIPE
12	80364-S7A-961	Clamp - AIR CONDITIONER PIPE
13	80371-S7A-000	Clamp - DISCHARGE HOSE
14	80381-SV7-A01	Clamp - RECEIVER PIPE
15	80382-S7A-003	Clip - AIR CONDITIONER PIPE
16	80387-SM4-A01	Clip - RECEIVER PIPE
17	80440-S3N-003	Switch assy - PRESSURE (DENSO)
18	80464-S5A-000	Grommet - AIR CONDITIONER PIPE
19	80465-S7C-G01	Cover - AIR CONDITIONER PIPE
20	80865-SN7-003	Cap h - VALVE
21	80866-SN7-003	Cap l - VALVE
22	80871-SN7-003	O-ring - 5/8"
23	80872-SN7-003	O-ring - 1/2"
24	80873-SN7-003	O-ring - 8MM
25	90133-SD2-000	Bolt - CONDENSER
26	90361-SV4-003	Nut - PAINT CUTTING, 6MM
27	91531-S9P-003	Clamp - HEATER & ATF HOSE
28	91536-SR3-003	Clip - SUCTION PIPE (BLACK)
29	91594-SH3-003	Clamp - FUEL PIPE (WHITE)

Hoses/pipes (LH; SINGLE; 2.0L) 29

#	OEM	部品名
1	38608-SA5-000	Rubber - MOUNTING
2	38609-SA5-000	Collar - DISTANCE
3	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
4	80311-S7C-G01	Hose comp. a - SUCTION
5	80312-S7C-013	Hose comp. b - SUCTION
6	80315-SKC-003	Hose comp. - DISCHARGE
7	80321-S7C-G01	Pipe comp - AIR CONDITIONER
8	80341-S7C-G02	Pipe comp - RECEIVER
9	80361-S7C-000	Stay - SUCTION HOSE
10	80362-S7C-000	Stay - SUCTION PIPE
11	80363-S7C-010	Clamp - SUCTION PIPE
12	80364-S7A-961	Clamp - AIR CONDITIONER PIPE
13	80371-S7A-000	Clamp - DISCHARGE HOSE
14	80381-SV7-A01	Clamp - RECEIVER PIPE
15	80382-S7A-003	Clip - AIR CONDITIONER PIPE
16	80387-SM4-A01	Clip - RECEIVER PIPE
17	80440-S3N-003	Switch assy - PRESSURE (DENSO)
18	80464-S5A-000	Grommet - AIR CONDITIONER PIPE
19	80465-S7C-G01	Cover - AIR CONDITIONER PIPE
20	80865-SN7-003	Cap h - VALVE
21	80866-SN7-003	Cap l - VALVE
22	80871-SN7-003	O-ring - 5/8"
23	80872-SN7-003	O-ring - 1/2"
24	80873-SN7-003	O-ring - 8MM
25	90133-SD2-000	Bolt - CONDENSER
26	90361-SV4-003	Nut - PAINT CUTTING, 6MM
27	91531-S9P-003	Clamp - HEATER & ATF HOSE
28	91536-SR3-003	Clip - SUCTION PIPE (BLACK)
29	91594-SH3-003	Clamp - FUEL PIPE (WHITE)

Idle shaft 5

#	OEM	部品名
1	22750-PRP-000	Pipe comp - LUBRICATION
2	23515-PRP-020	Gear - IDLE
3	23516-RCL-010	Shaft - IDLE
4	90431-PRP-000	Cotter - 17MM
5	90432-PRP-000	Retainer - COTTER

Ignition coil (2.0L) 3

#	OEM	部品名
1	30520-PNA-007	Coil comp - PLUG HOLE
1	30520-RRA-007	IGNITION COIL
2	30522-PFB-007	SEAL, PLUG HOLE

Install pipe/tubing (2.0L) 11

#	OEM	部品名
1	16725-PNA-003	Clamp a - FUEL HOSE
2	17400-PNE-G00	Pipe - INSTALL
3	36145-PG7-004	Valve - CHECK
4	36161-PFD-004	Valve assy. - REGULATOR LEAK CONTROL SOLENOID
5	36164-PNA-000	Stay - BYPASS CONTROL VALVE
6	36364-PNA-000	Tube - BYPASS SOLENOID
7	36365-PNA-000	Tube - VACUUM TANK
8	36366-PNA-000	Tube - CHECK VALVE
9	46408-S7C-G51	Tube a - MASTER POWER
10	53729-671-003	Clamp d - 15.5MM
11	90634-PA0-000	Cap - SEALING

Instrument panel (LH) 17

#	OEM	部品名
2	32756-S7A-000	Bracket - RELAY
3	34254-SV4-003	Lamp assy. - GLOVE BOX
4	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI
7	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
13	77466-S5A-000	Seal - FR. INSTRUMENT
14	77506-S6A-000	Stopper - GLOVE BOX LID
17	77982-S04-N81	Holder - COUPLER (2P)
18	90101-S6A-000	Bolt-washer - 8MM
19	90104-SV4-000	Bolt-washer - 8X25
20	90106-S3N-000	Bolt-washer - 8X86
21	90106-S5H-000	Bolt-washer - 8X40
22	90110-S84-A00	Bolt-washer - 8X20
23	90140-SH3-003	Bolt-washer - 5X18
24	90321-SP0-A80	Nut-washer - 6MM
25	90361-SR3-000	Nut - FLANGE, 8MM
26	90651-S0A-003	Cap - BOLT, 8MM
27	91641-SM4-003	Grommet - SCREW, 4MM

Instrument panel garnish (LH; DRIVER SIDE) 6

#	OEM	部品名
1	38205-S7A-G01	Label - FUSE
9	77631-S5A-A01	Bush - OUTLET
13	77873-S04-G80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
15	90302-SA4-003	Nut - SPRING, 4MM
16	90665-S04-003	Clip - SNAP FITTING
17	90666-S84-A01	Clip - SNAP FITTING

Instrument panel garnish (LH; PASSENGER SIDE) 17

#	OEM	部品名
1	39610-S6A-003	Knob assy
2	39620-S6A-003	Housing assy.
3	39625-S6A-003	Ring - MOUNTING
4	66417-SA0-000	Rubber - GLOVE BOX STOPPER
5	77205-S0X-A01	Clip - SNAP FITTING
7	77252-S7A-900	Duct assy - CENTER OUTLET
8	77259-S7A-013	Cap - CENTER
18	77508-SX0-000	Arm - GLOVE BOX STOPPER
23	77631-S5A-A01	Bush - OUTLET
26	77730-S7A-000	Holder comp - FR.
27	90140-SH3-003	Bolt-washer - 5X18
28	90144-SM4-003	Screw - 4X12
29	90302-SA4-003	Nut - SPRING, 4MM
30	90666-S84-A01	Clip - SNAP FITTING
31	90670-SB2-671	Screw - FILLER NECK RIVET
33	91640-SM4-003	Grommet - SCREW, 4MM
40	90361-SV4-003	Nut - PAINT CUTTING, 6MM

Intake manifold (2.0L) 21

#	OEM	部品名
1	16450-PPA-A01	Injector assy - FUEL
2	16451-PLC-000	Clip - INJECTOR
3	16620-PNE-J11	Pipe comp - FUEL
4	16638-PNA-000	Insulator - FUEL PIPE
5	16680-PZA-L01	Damper assy. - PULSATION
6	16681-PRB-A00	Cap - PULSATION DAMPER
7	16705-PD1-003	Gasket - SILENCER
8	17050-PNE-000	Base comp. - INJECTOR
9	17055-PNA-004	Gasket a - INJECTOR BASE
10	06170-PNC-J00	Manifold kit - INTAKE
11	17105-PNA-J01	Gasket b - INJECTOR BASE
12	17106-PNC-J01	O-ring - 54X5.0
13	17107-PNA-J01	Gasket - THROTTLE BODY
14	17108-PNC-J01	Bearing b - FRICTION
15	17109-PNC-J01	O-ring - 10X3.5
16	17120-PNA-J01	Valve assy. - ROTARY
17	17127-PNA-J01	Screw - 6X16
18	17128-PNA-J01	Screw - 6X35
19	91301-PLC-000	O-ring - 7.47X3.6
20	91302-PCA-000	O-ring - 6.95X1.7
21	91302-PNA-003	O-ring - 7.45X3.61(NOK)

Interior light 11

#	OEM	部品名
1	34251-S5A-003	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W
4	34260-SH3-004	Light assy - TRUNK ROOM
5	34262-SH3-004	Lens
6	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI
7	34401-S5A-003	Lens
8	34402-S5A-003	Lens
10	90131-S47-003	Screw - ET, 5X16
10	90131-S30-003	Screw-washer - ET, 6X16
11	90148-S6A-003	Bolt - EARTH, 5X14

Knuckle 21

#	OEM	部品名
1	32205-S7C-000	Bracket - R. ABS SENSOR
2	32206-S7C-000	Bracket - L. ABS SENSOR
3	51210-S7A-020	Knuckle comp - R. FR.
4	51215-S7A-020	Knuckle comp - L. FR.
5	51225-S5A-003	Boot - LOWER BALL DUST
6	51300-S7C-023	Spring - FR. STABILIZER
7	51306-S7B-014	STABILIZER HOLDER Bush - Front
8	51308-S5A-000	Holder - FR. STABILIZER
9	51320-S5A-003	RH FR. STABILIZER LINK
10	51321-S5A-003	LH FR. STABILIZER LINK
11	51350-S7C-800	Arm comp - R. FR. LOWER
12	51360-S7C-800	Arm comp - L. FR. LOWER
13	51391-S7A-801	Bush - FR. COMPLIANCE
14	51392-S5A-004	Bush - FR. LOWER ARM (YAMASHITA)
15	57450-S7A-J02	Sensor assy - R. FR.
16	57455-S7A-J02	Sensor assy - L. FR.
17	90002-S10-000	Nut - FLANGE, 10MM
18	90118-S5A-000	Bolt - FLANGE, 14X91
19	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
20	90363-S47-000	Nut - LOWER ARM, 12MM
21	90701-SX0-003	Clip - UPPER ARM

L. side cover 41

#	OEM	部品名
1	21240-RCL-010	Cover comp. - L. SIDE
2	21515-PPV-010	Stay e - HARNESS
3	21720-RCT-000	Cover comp. - POSITION SENSOR
4	21724-RCT-000	Rubber - POSITION SENSOR COVER
5	21725-RCT-000	Collar - POSITION SENSOR COVER
6	21812-PRP-030	Packing - L. SIDE COVER
7	22713-PW4-000	Guide a - FEED PIPE
8	22713-PX4-000	Guide a - FEED PIPE
9	22715-PRP-000	Pipe comp. b - FEED
10	22725-P6H-000	Pipe comp. b - FEED
11	24282-634-000	Bolt - SHAFT FORK SETTING
12	24532-PX4-000	Lever - PARKING BRAKE
13	24535-PRP-040	Spring - PARKING BRAKE
14	24539-PA9-003	Stopper - PARKING BRAKE (3)
14	24538-PA9-003	Stopper - PARKING BRAKE (2)
14	24537-PA9-003	Stopper - PARKING BRAKE (1)
15	24552-PRP-000	Spring - PARKING PAWL
16	24553-PN6-000	Roller - PARKING BRAKE
17	24555-PN6-000	Pin - ROLLER, 6MM
18	24561-PRP-010	Pawl - PARKING BRAKE
19	24562-PRP-000	Shaft - PARKING
20	28900-PPV-013	Sensor assy - POSITION
20	28900-PPV-003	Sensor assy - POSITION
21	28950-PRP-010	Harness - POSITION SENSOR
22	90004-PRH-010	Bolt - SPECIAL, 8X30
23	90005-PRH-010	Bolt - SPECIAL, 8X38
24	90024-612-000	Bolt - SEALING, 8MM
25	90433-639-000	Washer - LOCK, 6MM
26	90471-580-000	Packing - 8MM
27	90602-PX4-000	Circlip b - INTERNAL, 47MM
28	90702-PL4-000	Dowel pin - 8X44
29	91006-P1B-003	Bearing - BALL, 9X20X6
30	91103-RCL-003	Bearing - NEEDLE, 32X55X18.5
30	91103-RCL-013	Bearing - NEEDLE, 32X55X18.5
31	91201-PA9-004	Oil seal - 9X18X7 (ARAI)
32	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)
33	91305-PC9-003	O-ring - 34X1.9 (ARAI)
34	91305-PX4-003	O-ring - 40X1.9 (NOK)
35	91311-PA9-004	O-ring - 7.7X1.9 (NOK)
36	91314-PW4-003	O-ring - 11X1.9 (NOK)
37	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)

Main valve body 9

#	OEM	部品名
1	25145-PA9-010	Shaft - OIL PUMP GEAR
2	27000-PRP-030	Body assy - MAIN VALVE
3	27112-PRP-020	Plate - MAIN SEPARATING
4	27122-P6H-000	Cap - 12MM
5	27132-P6H-000	Cap - 14MM
6	27142-P6H-000	Cap - 15MM
7	27263-PX3-000	Seat - VALVE SPRING
8	27524-P6H-000	Clip - CAP
9	91108-PRP-003	Roller - 4X23.8

Mainshaft 22

#	OEM	部品名
1	22814-PRP-003	Ring - SEALING, 29MM
2	23210-PRP-000	Mainshaft comp.
3	23461-PRP-010	Gear - MAINSHAFT FOURTH
4	23481-PRP-010	Gear - MAINSHAFT FIFTH
5	23511-RCL-010	Gear - MAINSHAFT IDLE
6	90203-PX4-010	Nut - FLANGE, 24MM
7	90402-P0Z-000	Washer - SPRING, 24MM
8	90417-PRP-010	Washer - THRUST, 41X68X6.50
8	90419-PRP-010	Washer - THRUST, 41X68X6.60
8	90414-PRP-010	Washer - THRUST, 41X68X6.35
8	90416-PRP-010	Washer - THRUST, 41X68X6.45
8	90418-PRP-010	Washer - THRUST, 41X68X6.55
8	90415-PRP-010	Washer - THRUST, 41X68X6.40
9	90501-PRP-000	Collar - 27X34X66.3
10	90603-P0X-000	Set ring - 23MM
11	91017-PZK-003	Bearing - NEEDLE, 23X29X18
12	91018-PW7-A02	Bearing - THRUST NEEDLE, 34X46X2
13	91023-PCJ-003	Bearing - THRUST NEEDLE, 34X53.5X2.5
14	91026-PRP-003	Bearing - THRUST NEEDLE, 57.6X71X2
15	91107-PRP-003	Bearing - NEEDLE, 34X40X39.5
16	91109-PRP-003	Bearing - NEEDLE, 52X57X18
17	91316-PR9-003	O-ring - 33X1.9 (ARAI)

Meter components (NS; 1) 9

#	OEM	部品名
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	37115-SA0-601	Packing - NS
3	78120-S7C-Y22	Meter assy - SPEED & TACHO & FUEL & TEMPERATURE
4	78135-S3N-003	Socket assy - BULB (14V 1.12W)
5	78135-S7A-003	Socket assy - BULB
6	78155-S7A-J01	Visor assy - METER
7	78156-S7A-J01	Lens - METER
8	78171-S7C-G53	Visor assy - METER UNDER
9	90302-SA4-003	Nut - SPRING, 4MM

Meter components (NS; 2) 6

#	OEM	部品名
1	37115-SA0-601	Packing - NS
2	78120-S7C-Y32	Meter assy - SPEED & TACHO & FUEL & TEMPERATURE
3	78155-S7A-J01	Visor assy - METER
4	78156-S7A-J01	Lens - METER
5	78171-S7C-901	Visor assy - METER UNDER
6	90302-SA4-003	Nut - SPRING, 4MM

Middle seat (L.) 26

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
6	81223-S04-000	Clip - SHAFT, 8MM
7	81273-S7A-J01	Pipe - RECLINING CONNECT
8	81324-S7A-003	Damper - MIDDLE SEAT
10	81342-S7A-J01	Cover - R. UNDER
11	81344-S7A-J01	Cover - L. UNDER
14	81382-S7A-003	Clip - MAT, 8MM
15	81383-S7A-003	Clip - MAT, 5MM
16	81384-S7A-003	Clip - MAT, 6MM
17	81431-S7A-J11	Cable - MIDDLE SEAT RECLINING
18	81461-S7A-J01	Cable - MIDDLE SEAT WALK-IN SLIDE
19	81481-S7A-J11	Cable - MIDDLE SEATBACK WALK-IN
25	81726-S7A-J22	Frame comp - L. MIDDLE SEATBACK
28	81736-S7A-J01	Frame comp - L. MIDDLE SEAT CUSHION
29	81751-S7A-003	Adjuster - L. MIDDLE SEAT OUTER RECLINING
30	81752-S7A-J21	Adjuster - L. MIDDLE SEAT INNER RECLINING
34	81827-S7A-J22	Pad comp - L. MIDDLE SEATBACK
35	81837-S7A-J22	Pad comp - L. MIDDLE SEAT CUSHION
36	90102-S2G-000	Screw - TAPPING
37	90134-SE3-003	Screw - TAPPING, 5X10
38	90142-S70-003	Bolt-washer - 10X18
39	90610-SR3-003	Clip - GARNISH (KATO)
40	90650-KV3-000	Band - WIRE
41	90650-S7A-J01	Clip - RATCHET, 15MM
42	90650-S7A-003	Band - WIRE

Middle seat (R.) 35

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
2	81108-S70-013	Bush - PIVOT
6	81188-S7A-J21	Bezel b
7	81223-S04-000	Clip - SHAFT, 8MM
10	81273-S7A-J01	Pipe - RECLINING CONNECT
16	81322-S7A-003	Rivet
17	81324-S7A-003	Damper - MIDDLE SEAT
18	81326-S7A-J22	Frame comp - R. MIDDLE SEATBACK
19	81327-S7A-J22	Pad comp - R. MIDDLE SEATBACK
22	81336-S7A-J21	Frame comp - R. MIDDLE SEAT CUSHION
23	81337-S7A-J22	Pad comp - R. MIDDLE SEAT CUSHION
24	81342-S7A-J01	Cover - R. UNDER
25	81344-S7A-J01	Cover - L. UNDER
26	81351-S7A-003	Adjuster - R. MIDDLE SEAT OUTER RECLINING
27	81352-S7A-J21	Adjuster - R. MIDDLE SEAT INNER RECLINING
34	81382-S7A-003	Clip - MAT, 8MM
35	81383-S7A-J11	Bracket - CENTER MIDDLE SEAT CONNECT
36	81383-S7A-J21	Adjuster - CENTER MIDDLE SEAT RECLINING
37	81383-S7A-003	Clip - MAT, 5MM
38	81384-S7A-003	Clip - MAT, 6MM
39	81386-S7A-J21	Frame comp - MIDDLE SEAT CENTER
41	81387-S7A-J22	Pad comp - MIDDLE SEAT CENTER
44	81431-S7A-J11	Cable - MIDDLE SEAT RECLINING
45	81461-S7A-J01	Cable - MIDDLE SEAT WALK-IN SLIDE
46	81481-S7A-J11	Cable - MIDDLE SEATBACK WALK-IN
47	81482-S7A-J21	Cable - MIDDLE SEAT CENTER RECLINING
55	90102-S2G-000	Screw - TAPPING
56	90134-SE3-003	Screw - TAPPING, 5X10
57	90142-S70-003	Bolt-washer - 10X18
58	90610-SR3-003	Clip - GARNISH (KATO)
59	90650-KV3-000	Band - WIRE
60	90650-S7A-J01	Clip - RATCHET, 15MM
61	90650-S7A-003	Band - WIRE
62	90651-SW5-003	Clip

Middle seat components 7

#	OEM	部品名
1	81360-S7A-003	Adjuster - R. OUTER MIDDLE SEAT SLIDE
2	81370-S7A-003	Adjuster - R. INNER MIDDLE SEAT SLIDE
3	81372-S7A-J11	Lever - R. MIDDLE SEAT SLIDE
6	81760-S7A-003	Adjuster - L. OUTER MIDDLE SEAT SLIDE
7	81770-S7A-003	Adjuster - L. INNER MIDDLE SEAT SLIDE
8	81772-S7A-J11	Lever - L. MIDDLE SEAT SLIDE
11	90135-S5A-003	Bolt-washer - 10X27

Mirror 14

#	OEM	部品名
1	76200-S7C-Y03	Mirror assy - R. DOOR (R.C.)
2	76202-S7A-G01	Cover - R. BASE
3	76203-S7A-Y02	Mirror - R. (1400R)
4	76210-S7A-G01	Actuator set - R.
5	76250-S7C-Y03	Mirror assy - L. DOOR (R.C.)
6	76252-S7A-G01	Cover - L. BASE
7	76253-S7A-Y02	Mirror - L. (1400R)
8	76260-S7A-G01	Actuator set - L.
9	76400-SEA-004	Mirror assy - RR. VIEW (DAY/NIGHT)
10	90106-S70-003	Screw - TAPPING, 4X12 (TRUSS)
11	90109-S70-003	Screw - TAPPING, 4X16 (TRUSS)
12	90145-S04-006	Screw - 3X16
13	90145-S50-003	Screw-washer - 5X12
14	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)

Molding/side sill garnish 31

#	OEM	部品名
3	72410-S7A-003	Molding assy. - R. FR. DOOR
4	72430-S7A-003	Garnish - R. FR. DOOR SASH
5	72450-S7A-003	Molding assy. - L. FR. DOOR
6	72470-S7A-003	Garnish - L. FR. DOOR SASH
7	72721-S7A-003	Garnish - R. RR. DOOR QUARTER
8	72761-S7A-003	Garnish - L. RR. DOOR QUARTER
9	72910-S7A-003	Molding - R. RR. DOOR
10	72930-S7A-003	Garnish - R. RR. DOOR SASH
11	72950-S7A-003	Molding - L. RR. DOOR
12	72970-S7A-003	Garnish - L. RR. DOOR SASH
13	74306-S7A-003	Molding assy. R. ROOF
14	74308-ST0-003	Bracket - ROOF MOLDING
15	74316-S7A-003	Molding assy. L. ROOF
17	74551-S7A-N00	Fender - R. RR. INNER
18	74591-S7A-N00	Fender - L. RR. INNER
19	90103-SDA-A00	Screw - TAPPING, 5X20
20	90104-SR2-003	Bolt c - BUMPER
21	90106-S3Y-000	Screw - TAPPING, 4X10(PO)
22	90114-SE0-000	Screw - TAPPING, 5X20
23	90141-S5T-G01	Bolt - BUMPER SPOILER
24	90142-S04-000	Screw - TAPPING, 4X10
25	90305-SM4-000	Nut - AIR SPOILER CLIP
26	90331-S3Y-003	Nut - SPRING, 5MM
27	90657-SA5-003	Clip - SIDE APRON MOLDING
28	90664-SB3-003	Grommet - SCREW, 5MM
29	91501-S7A-003	Clip - DOOR MOLDING END
30	91512-SX0-003	Clip - INNER FENDER CLIP
31	91513-S7A-000	Clip - SIDE SILL GARNISH UPPER
32	91514-S5A-003	Clip - SIDE SILL GARNISH
33	91527-S7A-003	Clip - DOOR MOLDING
34	91562-S2X-003	Clip - MOLDING END

Oil pump/oil strainer (2.0L) 20

#	OEM	部品名
3	13432-PNA-000	Sprocket - DRIVEN(17T)
4	13441-PNA-004	Chain - 62L
5	13450-PNA-004	Tensioner comp - BALANCER SHAFT CHAIN
6	13460-PNA-004	Guide comp - BALANCER SHAFT CHAIN
8	15115-R40-A01	Metal - BALANCER SHAFT(DAIDO)
9	15123-PCX-003	Dowel pin - 18X13
10	15231-PE0-000	Valve - RELIEF
11	15232-RAA-A01	Spring - RELIEF VALVE
12	15233-R40-000	Bolt - SEALING, 18MM
13	15400-RTA-003	OIL FILTER (MAHLE TENNEX)
13	15400-PLM-A02	OIL FILTER (HONEYWELL)
13	15400-RTA-004	Cartridge - OIL FILTER (TOYO ROKI)
13	15400-PLC-003	Cartridge - OIL FILTER (TENNEX)
13	15400-PLM-A01	OIL FILTER CARTRIDGE - OIL FILTER (FILTECH TOYO ROKI)
13	15400-PLC-004	Cartridge, OIL FILTER (TOYO ROKI)
15	90004-PNA-000	Bolt - CHAIN GUIDE
16	90009-PNA-000	Bolt - FLANGE, 8X55
17	90015-PH1-013	Holder - OIL FILTER
18	90031-PNA-004	Bolt-washer - 10X30
29	15100-PNE-013	Pump assy. - OIL

Outer panels/rear panel 7

#	OEM	部品名
24	70494-SE0-000	Spring - FUEL LID OPENER
25	70495-692-000	Cushion - FUEL FILLER LID
27	75450-S7A-000	Outlet assy - RR. AIR
28	90147-634-003	Bolt - FENDER, 6X18
29	91551-S7A-003	Clamp - FUEL LID OPENER CABLE
30	91558-SE3-003	Clip - HOOD WIRE
31	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

P.s. gear box (LH) 22

#	OEM	部品名
1	52362-S30-003	Boot - TIE ROD END (MUSASHI)
2	53434-S5D-A01	Bracket b - STEERING GEAR BOX
4	53438-S7C-G00	Bracket - R. GEAR BOX
5	53501-S7A-000	Grommet - STEERING
6	53521-S7A-003	Rod sub assy. - TIE
7	53536-S5A-900	Washer - TIE ROD LOCK
8	53541-S7A-000	Rod assy - TIE
9	53541-S7A-003	End comp - TIE ROD
10	53601-S7C-G05	Box assy - POWER STEERING GEAR
10	53601-S7C-G06	Box assy - POWER STEERING GEAR
11	53685-SH3-000	Bush - STEERING GEAR BOX MOUNTING
12	53685-S5A-000	Bush - STEERING GEAR BOX MOUNTING (A)
13	53686-S5A-901	Collar - STEERING GEAR BOX MOUNTING (B)
14	53686-S7A-000	Collar - STEERING GEAR BOX MOUNTING (A)
15	53692-S7A-G00	Cover - STEERING DUST SEAL
16	90108-S5A-000	Bolt - GEAR BOX MOUNTING
17	90301-S5A-003	Nut - HEX.
18	90450-S5A-020	Nut - FLANGE, 10MM
19	90505-S5A-000	Washer - PLAIN, 10MM
20	90506-S5A-010	Washer - PLAIN, 10MM
22	90665-S5A-013	Clip - DUST SEAL COVER
23	90801-S5A-000	BOLT, FLANGE, 8X25

P.s. gear box components (LH) 40

#	OEM	部品名
1	06531-S6M-J01	Seal kit a - POWER STEERING
2	06532-S50-003	Oil seal set - ROTARY VALVE
3	06534-S84-A01	Ring set - POWER STEERING SEAL (ROTARY VALVE)
4	06535-S50-003	Ring set - POWER STEERING SEAL (ROTARY VALVE)
5	06536-S5A-H01	Boot set
6	06537-S7A-J01	Boot set b
7	06538-S5A-H01	Slider
8	53413-S04-G51	Spring - RACK GUIDE PRESSURE
9	53414-S04-003	Screw - RACK GUIDE
10	53416-S5A-003	Guide - STEERING RACK
11	53418-S04-G51	Washer - DISK
12	53434-S5A-003	Clip - STEERING TIE ROD
13	53446-S7A-003	Guard - BOOT
14	53447-S7A-003	Band c - BELLOWS
15	53448-S5A-003	Band b - BELLOWS
16	53449-S5A-003	Band - BELLOWS
17	53455-S5A-003	Ring b - STOPPER
18	53456-S5A-003	Plug - RACK END
19	53457-S5A-003	Lock - SCREW
20	53458-S50-003	Nut - LOCK
21	53535-S5A-003	Washer - LOCK
22	53536-S7A-003	Boot b
23	53604-S5A-003	Bracket
24	53608-S7A-G52	Housing comp - STEERING GEAR BOX
25	53611-S7C-G02	Cylinder comp
26	53626-S7C-G02	Rack comp - STEERING
27	53641-S7A-G51	Valve sub assy. - STEERING
28	53645-S7C-G51	Housing comp - VALVE
29	53660-S50-003	Oil seal - 27X38X5.5 (SHOWA)
30	53661-S50-003	Washer - WAVE (SHOWA)
31	53662-S5A-003	O-ring - 11.5X1.5
32	53663-S7A-003	Ring - BACK UP
33	53664-S7A-003	Circlip - INTERNAL, 47MM
34	53666-S50-003	O-ring - 41.5X2 (SHOWA)
35	53670-S7C-G02	Pipe comp. a - CYLINDER
36	53671-S7C-G02	Pipe comp. b - CYLINDER
37	90105-S50-003	Bolt - FLANGE, 8X28
38	90455-S5A-003	Bolt - FLANGE, 12X40
39	90456-S7A-003	Bolt - FLANGE, 8X12
40	90601-S50-003	Circlip - EXTERNAL, 20MM

P.s. lines (2.0L; LH; 2) 25

#	OEM	部品名
1	53697-SB3-952	Cap - OIL TANK
2	53701-S7C-003	Tank comp. - POWER STEERING OIL
3	53711-S7C-020	Bracket - POWER STEERING OIL TANK
4	53713-S7C-G03	Hose comp. - POWER STEERING FEED
5	53720-S7C-G01	Pipe comp - RETURN
6	53728-S0X-A01	Clip - RETURN PIPE
7	53729-671-003	Clamp d - 15.5MM
8	53730-S7C-010	Pipe comp - POWER STEERING
9	53731-S7C-000	Tube - POWER STEERING SUCTION
10	53732-S7C-G03	Hose - POWER STEERING RETURN
11	53733-S7C-T01	Hose - POWER STEERING OIL TANK
12	53735-S7C-J01	Hose - POWER STEERING OIL COOLER
13	53741-S7C-G10	Holder - POWER STEERING PIPE
14	53745-S5D-A01	Stay - FEED HOSE
15	53765-S7C-J00	Pipe comp - OIL COOLER
16	53775-S7C-G00	Clamp - FEED HOSE
17	53781-SE0-952	Clip - RETURN HOSE
18	56490-PNA-003	Switch assy - POWER STEERING PRESSURE
19	90501-S7C-000	Washer - PLAIN, 6MM
20	90635-SM4-A01	Clip - OIL HOSE (MEIJI)
20	90635-SM4-A02	Clip - OIL HOSE (MEIJI)
21	91304-PA6-003	O-ring - 7.8X1.9
22	91370-SV4-000	O-ring - 14.4X1.9
23	91405-PE0-003	Clamp - TUBE (D20)
23	91417-SZ3-003	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)

Parking brake 12

#	OEM	部品名
7	47342-S6A-E11	Switch - PARKING BRAKE
7	47342-S6A-E01	Switch - PARKING BRAKE
8	47360-SB2-000	Equalizer
9	47365-538-000	Pin - EQUALIZER
10	47510-S7A-G02	Wire b - R. PARKING BRAKE
11	47522-594-000	Nut - PARKING BRAKE ADJUSTING
12	47537-671-670	Spring - PARKING BRAKE ROD
13	47560-S7A-G02	Wire b - L. PARKING BRAKE
14	47572-S6A-G02	Base comp. - WIRE GUIDE
15	47577-S7A-G00	Guard - BRAKE WIRE
17	90666-S84-A01	Clip - SNAP FITTING
19	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)

Parking brake shoe 18

#	OEM	部品名
1	43053-S47-E50	Shoe set - RR. BRAKE
2	43110-S7A-J51	Plate comp - R. RR. BRAKE BACK
3	43120-S7A-J51	Plate comp - L. RR. BRAKE BACK
5	43171-SX0-J01	Spring - ROD
6	43172-SX0-N01	Spring a - BRAKE
7	43300-S7A-J51	Bolt comp - ANCHOR
8	43361-S7A-003	Lever - R. PARKING BRAKE
9	43362-SX0-N01	Rod - R. CONNECTING
10	43365-SX0-N01	Pin - PARKING LEVER
11	43366-SX0-J01	Adjuster assy
12	43367-SX0-J01	Spring b - BRAKE
13	43371-S7A-003	Lever - L. PARKING BRAKE
14	43372-SX0-N01	Rod - L. CONNECTING
15	43375-SA0-003	U-clip
16	43379-SA5-003	Washer - WAVE
17	45172-SP0-003	Spring - SHOE CLAMP
18	45175-SX0-N01	Pin - TENSIONER
19	90382-SP0-003	Nut - FLANGE, 16MM

Pedal (LH) 16

#	OEM	部品名
1	17800-S7A-A01	Pedal assy - ACCELERATOR
2	17818-S7A-A01	Stopper - ACCELERATOR STROKE
3	17910-S7C-Y02	Wire - THROTTLE
4	17921-SA4-730	Seal - THROTTLE CABLE
5	17930-S7A-G00	Clamp - THROTTLE WIRE
8	17932-S5A-A00	Clamp - THROTTLE WIRE
9	35350-S5A-J01	Switch assy - STOP (MATSUSHITA)
9	35350-S5A-J03	Switch assy - STOP (TOYO)
10	41936-PDZ-003	Clamp - BREATHER TUBE
11	46505-SA5-000	Pad - PEDAL STOPPER
12	46505-SA7-000	Pad - PEDAL STOPPER
13	46530-S7A-003	Spring assy - PEDAL RETURN
15	46545-S84-A81	Cover - PEDAL
16	46600-S7A-G81	Pedal assy - BRAKE
23	46991-S7A-A01	Bracket comp. - FOOTREST
24	46992-SV4-003	Clip - FOOTREST

Pillar garnish 2

#	OEM	部品名
17	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
18	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)

Piston/crankshaft (2.0L) 38

#	OEM	部品名
1	13010-PNB-Y00	Piston set a - STD.
1	13020-PNB-Y01	Piston set b - STD.
1	13030-PNB-Y01	Piston set - OS 0.25
1	13020-PNB-Y00	Piston set b - STD.
1	13030-PNB-Y00	Piston set - OS 0.25
2	13011-PNB-P01	Ring set - PISTON (STD.) (RIKEN)
2	13021-PNB-P01	Ring set - PISTON (OS 0.25) (RIKEN)
3	13111-PNA-000	Pin - PISTON
3	13111-PNA-010	Pin - PISTON
4	13115-PRB-A00	Clip - PISTON PIN
5	13204-P8A-A01	Bolt - CONNECTING ROD
6	13210-PNA-000	Rod comp - CONNECTING
7	13213-PAA-Y01	Bearing c - CONNECTING ROD (BROWN) (DAIDO)
7	13212-PAA-Y01	Bearing b - CONNECTING ROD (BLACK) (DAIDO)
7	13216-PAA-Y01	Bearing f - CONNECTING ROD (PINK) (DAIDO)
7	13211-PAA-Y01	BEARING A - CONNECTING ROD (BLUE) (DAIDO)
7	13215-PAA-Y01	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)
7	13214-PAA-Y01	Bearing d - CONNECTING ROD (GREEN) (DAIDO)
8	13310-PNA-000	Crankshaft comp.
9	13323-PNA-003	Bearing c - MAIN UPPER (BROWN) (DAIDO)
9	13325-PNA-003	Bearing e - MAIN UPPER (YELLOW) (DAIDO)
9	13322-PNA-003	Bearing b - MAIN UPPER (BLACK) (DAIDO)
9	13324-PNA-003	Bearing d - MAIN UPPER (GREEN) (DAIDO)
9	13326-PNA-003	Bearing f - MAIN UPPER (PINK) (DAIDO)
9	13321-PNA-003	BEARING A - MAIN UPPER (BLUE) (DAIDO)
10	13331-PNA-004	Washer - THRUST(TAIHO)
11	13341-PNA-003	BEARING A - MAIN LOWER (BLUE) (DAIDO)
11	13343-PNA-003	Bearing c - MAIN LOWER (BROWN) (DAIDO)
11	13345-PNA-003	Bearing e - MAIN LOWER (YELLOW) (DAIDO)
11	13342-PNA-003	Bearing b - MAIN LOWER (BLACK) (DAIDO)
11	13344-PNA-003	Bearing d - MAIN LOWER (GREEN) (DAIDO)
11	13346-PNA-003	Bearing f - MAIN LOWER (PINK) (DAIDO)
12	13620-RAA-A02	Sprocket comp - CHAIN DRIVE
13	13622-PNA-003	Plate - CRANK PULSER
14	13810-PNA-003	Pulley comp - CRANKSHAFT
15	90017-PCX-013	Bolt-washer - 16X49
15	90017-PCX-003	Bolt-washer - 16X49
16	90704-PNA-000	Key - 4.5X21

Power steering pump (2.0L) 22

#	OEM	部品名
1	17123-PNA-000	Stay comp. b - ENGINE COVER
2	17213-P8A-A00	Rubber - INTAKE MANIFOLD COVER MOUNTING
3	56100-PNA-G02	Pump assy. - POWER STEERING
4	56121-PGM-003	Plug - VALVE
5	56122-PNA-003	Plug - CAM
6	56123-PNA-003	Hose - CONNECTOR
7	56483-PNA-003	Pulley comp - POWER STEERING PUMP
8	90105-PGM-003	Bolt
9	90106-PNA-003	Bolt-washer
10	90693-PGM-003	Ring - RETAINING
11	91249-PGM-003	Oil seal
12	91340-PGM-003	O-ring
13	91341-PGM-003	O-ring
14	91342-PGM-003	O-ring
15	91343-PNA-003	Rubber - SPRING
16	91344-PNA-003	Seal - CAM
17	91345-PGM-003	O-ring a - BODY
18	91346-PGM-003	O-ring b - BODY
19	91347-PGM-003	O-ring - VALVE
20	91348-PNA-003	O-ring - CAM
21	91349-PGM-003	O-ring - CONNECTOR
22	91350-PNA-003	O-ring c - PLATE

Radiator (2.0L) 22

#	OEM	部品名
1	19010-PNA-H53	Radiator comp - DENSO
1	19010-PNA-H52	Radiator comp - DENSO
2	19011-PH1-621	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)
4	19013-PNA-023	Seal
5	19014-PNA-003	Seal - LOWER
6	19015-PNA-003	Shroud comp - DENSO
7	19020-PNA-003	Fan - COOLING
8	19030-PNA-003	Motor - COOLING FAN
9	19045-PAA-A01	Cap comp. - RADIATOR (DENSO)
9	19045-RAA-003	Cap comp. - RADIATOR (DENSO)
10	19046-PAA-A00	Label - RADIATOR CAP
10	19046-RAA-A00	Label - RADIATOR CAP
11	19046-PLC-Y10	Label - RADIATOR CAP(ARABIC)
12	19047-PLC-003	Cover - RADIATOR CAP (DENSO)
13	37760-P00-004	Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT)
13	37760-P00-003	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
14	90041-P5A-003	Screw-washer - 4X11
15	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)
16	90043-PD2-003	Nut - HEX., 5MM (DENSO)
17	91307-PN4-000	O-ring - 17.5X1.4
17	91307-PN3-000	O-ring,17.8x1.4

Radiator hose/reserve tan k (2.0L) 20

#	OEM	部品名
1	17163-PH7-300	Collar - MANIFOLD COVER MOUNTING
2	19101-PNA-000	Tank - RESERVE
3	19104-PNA-000	Tube - RESERVE TANK
4	19109-PH1-620	Cap - FILLER
5	19501-PNE-000	Hose - WATER UPPER
6	19502-PNE-000	Hose - WATER LOWER
7	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)
7	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)
8	25212-P24-J01	Hose - ATF, 210MM(BRIDGESTONE)
9	25214-PCA-000	Hose - ATF, 315MM
10	25215-PNA-003	Hose - ATF, 230MM
11	25216-PR3-000	Clamp - ATF HOSE (BLACK)
12	25430-PLR-003	Filter, ATF
13	25431-PNA-000	Stay a - ATF FILTER
14	25432-PNA-000	Stay comp. b - ATF FILTER
15	74171-S7A-000	Bracket - RADIATOR MOUNT UPPER
16	74172-SR3-000	Cushion - RADIATOR MOUNTING LOWER
17	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER
18	90635-PT0-802	Clip, Oil Pipe
18	90635-RV0-003	CLIP, OIL PIPE

Rear brake 26

#	OEM	部品名
1	01473-SZ3-A00	Caliper set - RR.
1	01473-SZ3-A01	SET, RR CALIPER
2	06430-S3N-J00	Pad set - RR. (WITHOUT SHIM)
3	06435-S0K-J00	Shim set - RR.
4	42200-S7A-008	Bearing assy - RR. HUB UNIT
5	42326-ST7-Z00	Cap - HUB UNIT
5	42326-SLJ-000	Cap, Hub unit
6	42510-S7A-J00	Disk - RR. BRAKE
6	42510-S7A-J50	Disk - RR. BRAKE
7	42511-SP0-000	Cap - MAINTENANCE HOLE
8	43018-S7A-000	Caliper sub assy. - R.
9	43019-S7A-000	Caliper sub assy. - L.
10	43022-S3N-000	Pad set - RR. (10CL-15SN,NF78)
11	43215-S7A-003	Piston
12	43227-SG0-013	Spring - PAD
13	43235-S84-A51	Pin a
14	43244-SZ3-A01	Retainer
15	43262-S84-A51	Pin b
16	43352-SM4-951	Screw - BLEEDER
17	43353-SD5-003	Cap - BLEEDER SCREW
18	45240-SC2-003	Bolt - FLANGE, 8X22
19	90103-SV4-003	Bolt - FLANGE, 10X30
20	90113-SA0-006	Bolt - WHEEL (SAGA)
20	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
20	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
21	90305-S30-003	Nut - SPINDLE

Rear door glass/ door regulator 14

#	OEM	部品名
1	72710-S7A-013	Regulator assy - R. RR. DOOR POWER
2	72730-S7A-003	Sash - R. RR. DOOR FR. LOWER
3	72731-S7A-003	Sash - R. RR. DOOR RR. LOWER
4	72735-S7A-003	Runchannel - R. RR. DOOR
5	72737-SH4-000	Collar a - RR. DOOR PANEL UPPER
6	72737-SR4-000	Collar a - RR. DOOR PANEL LOWER
7	72739-S7A-003	Runchannel - RR. DOOR LOWER
8	72750-S7A-013	Regulator assy - L. RR. DOOR POWER
9	72770-S7A-003	Sash - L. RR. DOOR FR. LOWER
10	72771-S7A-003	Sash - L. RR. DOOR RR. LOWER
11	72775-S7A-003	Runchannel - L. RR. DOOR
12	73400-S7A-020	Glass assy - R. RR. DOOR (GREEN) (ASAHI)
13	73450-S7A-020	Glass assy - L. RR. DOOR (GREEN) (ASAHI)
14	91580-SM4-003	Clip - COUPLER(ORANGE)

Rear door lining 6

#	OEM	部品名
2	72835-S7A-003	Weatherstrip - R. RR. DOOR INNER
3	72875-S7A-003	Weatherstrip - L. RR. DOOR INNER
12	90615-SK7-003	Clip - MIRROR GARNISH
13	90662-SB2-003	Grommet - SCREW, 5MM
14	91560-S5B-E81	Clip - DOOR LINING (YELLOW)
15	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Rear door locks/ outer handle 32

#	OEM	部品名
1	72115-S5A-003	ACTUATOR ASSY, DOOR LOCK (R. RR.)
2	72119-S04-003	Stopper a - OUTSIDE HANDLE
4	72135-S5A-003	Striker assy - DOOR LOCK
6	72139-S0A-003	Snap - PINK
6	72139-SR0-A01	Snap - VIOLET
8	72143-S04-003	Packing
9	72149-SR4-000	Snap - R.
10	72155-S5A-003	ACTUATOR ASSY, DOOR LOCK (L. RR.)
11	72175-SH3-901	Holder - DOOR LOCK ROD
12	72189-SR4-000	Snap - L.
13	72610-S7A-003	Lock assy - R. RR. POWER DOOR
14	72612-S84-A00	Cap - R. CHILD LOCK
16	72617-S6A-Q02	Protector - R. RR. DOOR LOCK
18	72630-S0A-003	Crank assy - LOCK ROD
19	72631-S7A-013	Rod - R. RR. INSIDE HANDLE
20	72632-S7A-003	Rod - R. RR. DOOR LOCK
21	72633-S7A-003	Rod - RR. DOOR LOCK KNOB
22	72639-S7A-G00	Protector - R. RR. DOOR ROD
23	72640-S7A-003	Handle assy - R. RR. DOOR OUTSIDE
24	72645-S7A-E01	Protector - R. RR. DOOR OUTSIDE HANDLE
25	72650-S7A-003	Lock assy - L. RR. POWER DOOR
26	72652-S84-A00	Cap - L. CHILD LOCK
28	72657-S6A-Q02	Protector - L. RR. DOOR LOCK
30	72671-S7A-013	Rod - L. RR. INSIDE HANDLE
31	72672-S7A-003	Rod - L. RR. DOOR LOCK
32	72679-S7A-G00	Protector - L. RR. DOOR ROD
33	72680-S7A-003	Handle assy - L. RR. DOOR OUTSIDE
34	72685-S7A-E01	Protector - L. RR. DOOR OUTSIDE HANDLE
35	90120-SM4-000	Screw - TAPPING
36	90120-SV4-000	Bolt - LOCK STRIKER
37	90141-S84-003	Screw - 3X10
38	90866-SA0-000	Grommet - SCREW, 4MM

Rear door panels 20

#	OEM	部品名
5	67828-S7A-003	Tape - R. RR. DOOR UPPER OUTER
6	67868-S7A-003	Tape - L. RR. DOOR UPPER OUTER
11	72142-SM4-000	Stopper - DOOR
12	72810-S7A-003	Weatherstrip - R. RR. DOOR
13	72821-S7A-G00	Seal - R. RR. DOOR HOLE
14	72825-S7A-003	Sub seal - R. RR. DOOR
15	72840-S7A-003	Checker comp. - R. RR. DOOR
16	72850-S7A-003	Weatherstrip - L. RR. DOOR
17	72861-S7A-G00	Seal - L. RR. DOOR HOLE
18	72865-S7A-003	Sub seal - L. RR. DOOR
19	72880-S7A-003	Checker comp. - L. RR. DOOR
20	72935-S7A-003	Seal - RR. DOOR LOWER SILL
21	75891-SA7-000	Stopper - DOOR
22	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
22	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
23	90141-S04-000	Bolt - FLANGE, 8X22
24	90361-SR3-000	Nut - FLANGE, 8MM
25	91530-SP1-003	Clip A - DOOR WEATHERSTRIP
26	91567-SR2-013	Clip
27	91568-SR2-003	Clip - DOOR WEATHERSTRIP

Rear lower arm 27

#	OEM	部品名
1	52210-S7C-020	Knuckle comp - R. RR.
2	52215-S7C-020	Knuckle comp - L. RR.
3	52300-S7C-013	Spring - RR. STABILIZER
4	52306-S7C-004	Bush - STABILIZER HOLDER
5	52308-S0E-000	Stabilizer Bush Holder
6	52320-S7A-003	Link comp - R. RR. STABILIZER
7	52321-S7A-003	Link comp - L. RR. STABILIZER
8	52352-S5A-A01	Protector - RR. LOWER ARM
9	52364-S5A-004	BUSH, REAR LOWER ARM INNER
9	52364-S6M-004	BUSH, REAR LOWER ARM INNER
10	52366-S5A-024	Bush b - RR. LOWER ARM
12	52370-S7A-060	Arm comp - R. RR. TRAILING
13	52371-S7A-060	Arm comp - L. RR. TRAILING
14	52387-S5A-000	Bolt - TRAILING ARM ADJUST
15	52388-S5A-003	Plate - CAM
16	52390-S7A-000	Arm comp - RR. UPPER
17	52395-S5A-004	Bush - RR. UPPER ARM
18	57470-S7A-J52	Sensor assy - R. RR.
19	57475-S7A-J52	Sensor assy - L. RR.
20	90002-S10-000	Nut - FLANGE, 10MM
21	90181-S7A-000	Bolt - FLANGE, 14X77
22	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
23	90395-S5A-003	Nut - LOCK FLANGE(CLINCH)
24	90396-S7A-000	Bolt - FLANGE, 12X75
24	90396-S7A-010	Bolt - FLANGE, 12X75
25	90398-S5A-000	Bolt - FLANGE, 12X81.5
26	90399-S5A-000	Bolt - FLANGE, 12X73

Rear seat 25

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
5	82124-S7A-J01	Cable b - SLIDE
6	82126-S7A-J01	Frame comp - RR. SEATBACK
7	82127-S7A-J01	Pad comp - RR. SEATBACK
9	82129-S7A-J01	Cable a
11	82133-S7A-J01	Cable c - LOCK
12	82136-S7A-003	Frame comp - RR. SEAT CUSHION
13	82137-S7A-J01	Pad comp - RR. SEAT CUSHION
17	82151-S7A-003	Damper
20	82176-S7A-J01	Clip - CABLE
24	82230-S7A-003	Adjuster - R. RR. SEAT RECLINING
27	82280-S7A-003	Lock assy - RR. SEAT CUSHION
28	82281-S7A-003	E-ring - 5MM
29	82292-S7A-003	Striker - RR. SEAT
30	82524-S7A-J01	Spring - RR. SEATBACK HANDLE
33	82528-S7A-J01	Pin a - RR. SEATBACK
34	82529-S7A-J01	E-ring - 4MM
35	82530-S7A-J01	Cable b - RECLINING
36	82630-S7A-003	Adjuster - L. RR. SEAT RECLINING
39	90134-S7A-003	Screw - TAPPING
40	90135-S5A-003	Bolt-washer - 10X27
41	90142-S70-003	Bolt-washer - 10X18
42	90650-KV3-000	Band - WIRE
43	90651-SW5-003	Clip

Rear seat components 11

#	OEM	部品名
3	82260-S7A-003	Adjuster - R. RR. SEAT SLIDE
5	82263-S7A-J01	Cable d - SLIDE
7	82270-S7A-J01	Member - RR. SEAT FR.
8	82271-S7A-J01	Member - RR. SEAT RR.
10	82330-S7A-013	Pivot comp - R. RR. SEAT CUSHION
12	82660-S7A-003	Adjuster - L. RR. SEAT SLIDE
16	82730-S7A-013	Pivot comp - L. RR. SEAT CUSHION
17	90134-SE3-003	Screw - TAPPING, 5X10
18	90135-S5A-003	Bolt-washer - 10X27
19	90142-S70-003	Bolt-washer - 10X18
21	91560-SE0-003	Band a - HARNESS (NATURAL)

Rear shock absorber 18

#	OEM	部品名
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING
2	51689-SH3-004	Plate - BUMP STOP (SHOWA)
3	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
4	52441-S7A-G01	Spring - RR. (SHOWA)
5	52610-S7C-G04	Absorber assy - R. RR. SHOCK
6	52611-S7C-N05	Absorber unit - RR. SHOCK
7	52620-S7C-G04	Absorber assy - L. RR. SHOCK
8	52622-S7A-014	Bush - RR. SHOCK ABSORBER LOWER
9	52631-S5A-004	Rubber - SHOCK ABSORBER MOUNTING
10	52675-S7A-004	Base - RR. SHOCK ABSORBER MOUNTING
11	52676-S5A-004	Seal - SHOCK ABSORBER MOUNTING
12	52685-S5A-004	Plate - SHOCK ABSORBER MOUNT
13	52686-S5A-004	Rubber - RR. SPRING MOUNTING
14	52687-S5A-014	Cover - RR. DUST
15	52722-S7A-034	Rubber - RR. BUMP STOPPER
16	90181-S7A-000	Bolt - FLANGE, 14X77
17	90304-S10-014	Nut - FLANGE, 10MM
18	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear windshield/ quarter glass 16

#	OEM	部品名
1	04733-S7A-000	Rubber set - RR. WINDSHIELD DAM
2	73211-S7A-023	Glass set - RR. WINDSHIELD (GREEN) (ASAHI)
3	73511-S7A-023	Glass - R. QUARTER (GREEN) (ASAHI)
4	73526-S7A-000	Rubber - WINDSHIELD DAM
5	73561-S7A-023	Glass - L. QUARTER (GREEN) (ASAHI)
6	73810-S7A-003	Garnish - R. QUARTER GLASS
7	73850-S7A-003	Garnish - L. QUARTER GLASS
8	75701-S7A-003	Emblem - RR. CENTER (H)
9	91501-S2R-003	Clip - QUARTER WINDSHIELD
10	91502-S7A-003	Clip b - QUARTER GLASS
11	91513-S70-003	Clip
12	91536-SS0-J01	Fastener a - WINDSHIELD
13	91536-S7A-003	Fastener a - QUARTER GLASS
14	91537-S7A-003	Fastener b - QUARTER GLASS
15	91538-SX8-T01	Fastener c - WINDSHIELD GLASS
16	91538-S7A-003	Fastener a - WINDSHIELD

Rear wiper 16

#	OEM	部品名
1	38422-SA0-003	Collar
2	38448-SD2-003	Rubber - WIPER MOUNTING
3	76622-S50-003	Rubber - BLADE (300MM)
3	76632-SFA-003	RUBBER, BLADE (300MM)
4	76707-S2X-003	Seal a
5	76708-S7A-003	Seal - RR. WIPER UNIT
6	76709-S2H-003	Nut - SPECIAL (M14)
7	76710-S7A-013	Motor comp - RR. WINDSHIELD WIPER
8	76711-S2X-003	Cap - PIVOT
9	76719-S7A-013	Nozzle & collar assy.
10	76720-S7A-003	Arm - RR. WIPER
11	76721-S2X-003	Cover - ARM
12	76726-SW3-921	O-ring
13	76730-S3N-003	Blade - WINDSHIELD WIPER (300MM)
14	76740-S7A-003	Arm & blade - RR. WINDSHIELD WIPER
15	76818-S3N-003	Tube c

Regulator 26

#	OEM	部品名
1	22741-P7Z-000	Pipe - 8X198
2	22753-PRP-000	Pipe - 6X201
3	22770-PRP-000	Pipe comp - JOINT
3	22770-RCL-305	PIPE SET, JOINT
4	22772-PRP-000	Pipe b - JOINT
5	25155-PRP-000	Shaft assy - STATOR
6	27132-P6H-000	Cap - 14MM
7	27200-RCR-000	Body assy - REGULATOR
8	27212-PRP-010	Plate - REGULATOR SEPARATING
9	27246-PN6-800	Cap - REGULATOR SPRING
10	27263-PX3-000	Seat - VALVE SPRING
11	27524-P6H-000	Clip - CAP
12	27561-PRP-000	Piston - LOW ACCUMULATOR
13	27562-PRP-000	Spring a - LOW ACCUMULATOR
14	27564-PRP-000	Spring b - LOW ACCUMULATOR
15	27574-PRP-000	Piston - THIRD ACCUMULATOR
16	27583-PRP-000	Spring - THIRD ACCUMULATOR
17	27591-RFK-900	Cover - REGULATOR ACCUMULATOR
18	90001-RFK-900	Bolt - HEX., 6X32
19	90089-PK4-000	Bolt - STOPPER, 6MM
20	90701-PK4-000	Dowel pin - 8X80
21	91316-PF4-003	O-ring - 31X1.7 (ARAI)
22	91321-PF4-004	O-ring - 18.3X2.4(NOK)
23	91331-PC9-003	O-ring
29	22770-RCL-010	Pipe a - JOINT
30	22772-RCL-010	Pipe b - JOINT

Roof lining 8

#	OEM	部品名
5	83203-S7A-003	Pad - R. FR. ROOF SIDE
6	83204-S7A-003	Pad - R. RR. ROOF SIDE
15	83253-S7A-003	Pad - L. FR. ROOF SIDE
16	83254-S7A-003	Pad - L. RR. ROOF SIDE
19	90136-S30-003	Screw - ET, 5X18
20	90136-S7A-003	Screw - ET, 5X20
20	90137-S0A-003	Screw - ET, 6X28
21	91560-S1C-E01	Clip - ROOF LINING (NATURAL)

Roof slide components 15

#	OEM	部品名
1	70040-S7A-003	Shim - 1.0MM
2	70240-S7A-003	Rail assy - DRIP
3	70300-S7A-003	Guide assy - R.
4	70305-S7A-003	Guide assy - L.
5	70410-S7A-003	Drive unit
6	70442-S7A-003	Screw - TRUSS, 4X8
7	70443-S7A-003	Cushion b
8	70444-S7A-003	Stopper - SUNSHADE
9	70450-S7A-003	Motor assy.
10	70460-S7A-003	Cable assy - R.
11	70465-S7A-003	Cable assy - L.
12	70500-S7A-003	Deflector comp.
13	70544-S7A-003	Screw - TAPPING, 3X5
14	90143-S10-003	Screw - PAN, 5X47
15	90148-SH3-003	Bolt - EARTH, 6X16

Rr. hose/rr. pipe (LH; DUAL; 2.0L) 22

#	OEM	部品名
1	80113-S0X-A01	Nut
2	80322-S7C-G61	Pipe comp. a - RR. SUCTION
3	80323-S7A-961	Pipe comp. a - RR. AIR CONDITIONER
4	80324-S7A-961	Pipe comp. b - RR. AIR CONDITIONER
5	80342-S7C-G61	Pipe comp. a - RR. RECEIVER
6	80365-S7C-960	Stay - AIR CONDITIONER PIPE
7	80366-S7C-960	Clamp a - AIR CONDITIONER PIPE
8	80367-S7A-960	Clamp b - AIR CONDITIONER PIPE
9	80368-S7A-960	Clamp c - RR. AIR CONDITIONER PIPE
10	80369-S7A-960	Clamp d - RR. AIR CONDITIONER PIPE
11	80391-S7A-960	Protector a - RR. PIPE
12	80392-S7A-960	Protector b - RR. PIPE
13	80395-S7A-960	Cover - SPLASH
14	80396-S7A-960	Bracket - SPLASH
15	80397-S7A-961	Clamp - SPLASH
16	80464-S7A-960	Grommet - AIR CONDITIONER PIPE
17	80465-S7A-960	Cover - AIR CONDITIONER PIPE
18	80466-S7A-960	Guard - RR. PIPE
19	80872-SN7-003	O-ring - 1/2"
20	80873-SN7-003	O-ring - 8MM
21	90012-PC6-000	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)
22	91601-S7A-961	Grommet - SCREW, 5MM

Seatbelts 4

#	OEM	部品名
6	81491-S7A-J20	Protector - R. FR. SEATBELT
12	81691-S3N-J00	Protector - MIDDLE SEATBELT
16	81891-S7A-J20	Protector - L. FR. SEATBELT
20	90101-S84-A00	Screw - ET, 6X16

Secondary shaft 46

#	OEM	部品名
1	22814-PRP-003	Ring - SEALING, 29MM
2	23230-PRP-020	Shaft comp. - SECONDARY
3	23411-PRP-010	Gear - SECONDARY SHAFT LOW
3	23411-RFK-000	Gear - SECONDARY SHAFT LOW
4	23431-PRP-020	Gear - SECONDARY SHAFT SECOND
4	23431-PRP-010	Gear - SECONDARY SHAFT SECOND
5	23455-PRP-010	Gear - SECONDARY SHAFT THIRD
6	23521-PRP-010	Gear - SECONDARY SHAFT IDLE
7	90201-PRP-000	Nut - FLANGE, 24MM (LEFT HAND THREAD)
8	90402-P0Z-000	Washer - SPRING, 24MM
9	90443-PRP-000	Collar - 27X37X36.5
10	90507-PRP-000	Washer - THRUST, 40X51.5X5.00
10	90504-PRP-000	Washer - THRUST, 40X51.5X4.85
10	90506-PRP-000	Washer - THRUST, 40X51.5X4.95
10	90508-PRP-000	Washer - THRUST, 40X51.5X5.05
10	90503-PRP-000	Washer - THRUST, 40X51.5X4.80
10	90505-PRP-000	Washer - THRUST, 40X51.5X4.90
11	90514-PRP-010	Washer - THRUST, 37X58X3.975
11	90526-PRP-000	Washer - THRUST, 37X58X4.275
11	90521-PRP-010	Washer - THRUST, 37X58X4.150
11	90516-PRP-010	Washer - THRUST, 37X58X4.025
11	90511-PRP-010	Washer - THRUST, 37X58X3.900
11	90528-PRP-000	Washer - THRUST, 37X58X4.325
11	90523-PRP-000	Washer - THRUST, 37X58X4.200
11	90518-PRP-010	Washer - THRUST, 37X58X4.075
11	90513-PRP-010	Washer - THRUST, 37X58X3.950
11	90530-PRP-000	Washer - THRUST, 37X58X4.375
11	90525-PRP-000	Washer - THRUST, 37X58X4.250
11	90520-PRP-010	Washer - THRUST, 37X58X4.125
11	90515-PRP-010	Washer - THRUST, 37X58X4.000
11	90527-PRP-000	Washer - THRUST, 37X58X4.300
11	90522-PRP-010	Washer - THRUST, 37X58X4.175
11	90517-PRP-010	Washer - THRUST, 37X58X4.050
11	90512-PRP-010	Washer - THRUST, 37X58X3.925
11	90529-PRP-000	Washer - THRUST, 37X58X4.350
11	90524-PRP-000	Washer - THRUST, 37X58X4.225
11	90519-PRP-010	Washer - THRUST, 37X58X4.100
12	90621-PRP-000	Circlip - EXTERNAL, 32MM
13	91021-PRP-013	Needle - THRUST, 40X53X2.5
14	91022-PRP-003	Needle - THRUST, 46.6X59.5X2.5
15	91027-PRP-003	Needle - THRUST, 37X57X2.5
16	91028-PRP-003	Bearing - NEEDLE, 37X43X33.5 (NTN) (ROLLER QTY 24)
17	91105-PRP-005	Bearing - NEEDLE, 40X47X16 (NSK)
18	91106-PRP-025	Bearing - NEEDLE, 40X46X20.5 (NSK)
19	91316-PR9-003	O-ring - 33X1.9 (ARAI)
20	91326-P4V-003	O-ring - 26.7X1.9(NOK)

Select lever (LH) 22

#	OEM	部品名
1	35505-692-003	Bulb - 14V 1.4W
2	35710-S7C-G81	Switch set - SHIFT
3	35720-S7C-981	Harness set - LAMP
4	35740-S7C-981	Switch set - PARKING PIN
5	35750-S7C-981	Harness set - SHIFT LOCK SOLENOID
6	39550-S6A-981	Solenoid assy. - AT SHIFT LOCK
7	54021-S6A-981	Cushion - SHIFT LOCK STOPPER
8	54030-S6A-G81	Release - SHIFT LOCK
9	54031-S6A-G81	Spring - RELEASE RETURN
10	54033-S7C-G83	Stopper - SHIFT LOCK
11	54130-S7A-Z81	Knob assy - SELECT LEVER (BLACK)
12	54130-S7A-981	Knob assy - SELECT LEVER
13	54200-S7C-G83	Bracket set - SELECT LEVER
14	54217-S7C-981	Cover - SLIDER
15	54222-S7C-981	Cover - SELECT LEVER
16	54315-S7C-982	Wire - CONTROL
17	54361-S6A-981	Piece - WIRE ADJUST LOCK
18	54710-S7C-G82	Escutcheon comp. - CONSOLE
19	54714-S7A-981	Lid - ESCUTCHEON
20	54718-S7C-G81	Plate - BACK UP
21	54719-S7C-G81	Plate - ESCUTCHEON
22	90361-SV4-003	Nut - PAINT CUTTING, 6MM

Servo body 26

#	OEM	部品名
1	22748-P24-J00	Pipe - 8X220
2	24271-PRP-000	Shaft - SHIFT FORK
3	24630-PRP-000	Arm comp - CHANGE DETENT
4	24635-PRP-000	Collar - CHANGE DETENT ARM
5	27263-PX3-000	Seat - VALVE SPRING
6	27405-PRP-J00	Body sub assy. - SERVO
7	27412-PRP-010	Plate - SERVO SEPARATING
8	27561-PRP-000	Piston - LOW ACCUMULATOR
9	27562-PRP-000	Spring a - LOW ACCUMULATOR
10	27564-PRP-000	Spring b - LOW ACCUMULATOR
11	27572-PRP-000	Piston - SECOND ACCUMULATOR
12	27574-PRP-000	Piston - THIRD ACCUMULATOR
13	27580-PRP-J00	Cover - SERVO ACCUMULATOR
14	27581-PRP-000	Spring a - SECOND ACCUMULATOR
15	27583-PRP-000	Spring - THIRD ACCUMULATOR
16	27584-PRP-000	Spring b - SECOND ACCUMULATOR
17	28400-PRP-004	Solenoid assy. a
18	28500-PRP-004	Solenoid assy. b
19	90001-PRP-000	Bolt - FLANGE, 6X30
20	90433-PRP-000	Washer - LOCK, 6MM
21	91301-P7Z-004	O-ring - 7.6X1.9 (DENSO)
22	91302-P7Z-004	O-ring - 9.6X1.9 (DENSO)
23	91321-PF4-004	O-ring - 18.3X2.4(NOK)
24	91331-PC9-003	O-ring
25	91331-PL5-J00	O-ring - 20.2X2.4 (NOK)
26	91344-580-000	O-ring - 31X2.7 (ARAI)

Shift fork 15

#	OEM	部品名
1	24111-PRP-000	Fork - REVERSE SHIFT
2	24282-634-000	Bolt - SHAFT FORK SETTING
3	24410-PRP-030	Shaft comp. - CONTROL
4	24412-PNA-000	Lever comp - CONTROL
5	24414-PST-010	Pin - CONTROL WIRE
6	24634-PRP-060	Spring - DETENT LEVER
7	25420-PRP-003	Strainer assy - ATF
8	25421-RCL-000	Plate - BAFFLE
9	90001-PA9-000	Bolt - HEX., 6MM
10	90433-P0G-000	Washer - LOCK, 6MM
10	90433-RCL-000	Washer - LOCK, 6MM
11	90433-639-000	Washer - LOCK, 6MM
12	90706-PST-000	Pin - SNAP, 9MM
13	91209-612-003	Oil seal - 12X22X7 (ARAI)
14	91308-PW4-003	O-ring - 21.8X1.9

Side lining 27

#	OEM	部品名
1	39620-SZ3-003	Cap assy.
2	39624-SZ3-003	Socket assy
3	64501-SB2-000	Bush a - FRESH AIR CASE
6	79553-S7A-961	Display
7	79570-S7A-961	Switch assy - HEATER FAN
8	79580-S7A-961	Knob assy - PUSH
9	79671-S84-A41	Bulb - NEO WEDGE (14V 100MA)
10	80411-SX0-961	Knob - FAN
11	80470-S7A-961	Switch assy - RR. AIR CONDITIONER
15	84402-S7A-003	Spring
16	84403-S7A-003	Pipe - R
18	84405-S7A-003	Rivet
20	84407-S7A-003	Rivet
21	84408-S7A-003	Stopper - FR.
22	84409-S7A-003	Stopper - RR.
24	84453-S7A-003	Pipe - L
27	84534-S10-003	Latch - FLOOR SIDE LID
31	84614-S7A-000	Hook assy - TIE DOWN
34	84617-S7A-003	Lock - LID
36	84629-SR3-000	Stopper - TRUNK BOX
40	84660-S7A-J01	Nut - PUSH
42	84662-S7A-J01	Buckle comp.
46	90101-S10-000	Screw-washer - 6X14
47	90132-SS0-000	Screw - TAPPING, 4X10 (PO)
48	90666-S84-A01	Clip - SNAP FITTING
50	91560-S7A-901	Clip - RR. SIDE LINING (DARK BROWN)
51	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Sliding roof 16

#	OEM	部品名
1	18534-634-670	Clip - AIR HOSE, 16MM
2	70020-S7A-003	Fastener - ROOF LINING
3	70050-S7A-000	Tube - FR. DRAIN VINYL (SUNROOF)
4	70052-S7A-000	Valve - DRAIN (SUNROOF)
5	70060-S7A-000	Tube - RR. DRAIN VINYL (SUNROOF)
6	70081-S7A-003	Seal - TAPE (A)
7	70100-S7A-003	Frame assy - SUB
8	70191-S7A-003	Drip - R. FR.
9	70196-S7A-003	Drip - L. FR.
10	70200-S7A-003	Glass assy - ROOF
13	70620-S7A-003	Cover - R. DECORATION
14	70625-S7A-003	Cover - L. DECORATION
15	70630-S7A-003	Protector - HEAD
17	90342-S10-003	Nut-washer - 6MM
18	91504-S7A-J01	Clip - DRAIN TUBE
19	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)

Solenoid 17

#	OEM	部品名
1	21511-PRP-000	Stay a - HARNESS
2	21516-PRP-000	Stay f - HARNESS
3	22749-PW4-000	Pipe - 35MM
4	22760-PPW-000	Pipe comp - JOINT
5	28250-RPC-003	Solenoid assy. a - LINEAR
6	28252-PRP-000	Packing a - LINEAR SOLENOID
7	28260-PRP-014	SOLENOID ASSY. B, LINEAR
8	28262-PRP-000	Packing b - LINEAR SOLENOID
9	28360-PRP-003	Harness - SOLENOID WIRE
10	28600-RCL-003	Switch assy - AT OIL PRESSURE (TEXAS INSTRUMENTS JAPAN)
10	28600-RCL-004	SWITCH ASSY., AT OIL PRESSURE (SAGINOMIYA)
12	28810-P7W-004	Pick up assy. - MATSUSHITA
13	28820-PCJ-014	Pick up assy. - COUNTER (MATSUSHITA)
14	90471-PW7-A00	PACKING, 10MM
15	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)
16	91309-PX4-003	O-ring - 16X2.1 (NOK)
17	91329-PRP-003	O-ring - 23.3X2.4

Spool valve (2.0L) 23

#	OEM	部品名
1	12210-PZ1-003	Seal a - VALVE STEM(ARAI)
1	12210-PZ1-004	SEAL A, VALVE STEM (NOK)
2	12211-PZ1-003	Seal b - VALVE STEM(ARAI)
2	12211-PZ1-004	Seal b - VALVE STEM(NOK)
3	12251-PNA-004	Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS)
4	15810-RAD-Y03	Spool Valve Assy
4	15810-RAD-Y02	Valve assy. - SPOOL
4	15810-RAD-Y01	Spool Valve Assy
5	15815-RAA-A01	Filter assy - SPOOL VALVE
5	15815-RAA-A02	Filter assy, SPOOL VALVE
6	15816-PNA-003	Cover - VTEC SPOOL VALVE
6	15816-PNA-013	Cover - VTEC SPOOL VALVE
7	15830-PNC-003	Valve assy. - VTC OIL CONTROL
8	15832-PNA-003	O-ring
8	15832-PNA-023	ORING
9	15835-PNA-003	Bolt - VTC SOLENOID
10	15840-RAA-A00	Strainer assy - VTC
11	15845-RAA-A01	Filter assy - VTC
12	17261-PNA-000	Stay comp. a - AIR CLEANER
14	90001-P70-000	Bolt - FLANGE, 10X10.5
15	90005-PNA-003	Bolt-washer - 11X155
16	90026-PNA-003	Bolt - STUD, 10X39.5
17	91319-PAA-A01	O-ring - 13X1.5

Srs unit (LH) 6

#	OEM	部品名
1	77900-S7S-U01	Reel assy - CABLE (SUMITOMO)
2	77930-S7A-N91	Sensor assy - R. FR. SIDE
3	77940-S7A-N91	Sensor assy - L. FR. SIDE
4	77960-S7A-Y81	Srs unit
6	90137-S84-A01	Bolt - TORX EARTH, 6X20
7	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)

Starter motor (DENSO; 2.0L) 26

#	OEM	部品名
1	30201-PH9-004	Ring - SNAP (DENSO)
2	30202-P3F-003	Collar - CLUTCH STOP
3	31200-PNC-013	Motor assy. - STARTER (DSKE3) (DENSO)
4	31201-PNA-003	Housing comp - DRIVE SIDE
5	31202-PNA-003	Endframe comp. - COMMUTATOR
6	31202-PM3-J01	Bolt - THROUGH (DENSO)
7	31203-P3F-003	Lever - PINION DRIVE
8	31204-PNC-003	Switch assy - MAGNET
9	31205-PNC-003	Yoke comp.
10	31206-P3F-003	Armature comp.
11	31207-PNA-003	Clutch comp. - OVERRUNNING
12	31208-P3F-003	Screw - PAN, 4MM
13	31213-PNA-003	Shaft - DRIVE
14	31213-P64-N01	Cover
15	31214-P3F-003	Gear assy. - INTERNAL
16	31215-P3F-003	Gear comp - PLANETARY
17	31216-RAA-003	Absorber comp - SHOCK
18	31217-P3F-003	Plate - SEAL
19	31218-P3F-003	Washer a
20	31219-P3F-003	Washer b
21	31220-PH9-004	Nut - HEX., 8MM
22	31220-P3F-003	Washer c
23	31223-PA0-006	Nut - HEX.
24	31231-P3F-003	Plate comp - BRUSH HOLDER
25	31291-PNA-003	Stay - ENGINE WIRE HARNESS
26	31292-PLR-A01	Bolt-washer

Steering column 5

#	OEM	部品名
1	53200-S7A-G03	Column assy - STEERING
2	53323-SEN-013	Joint comp. b - STEERING
3	90135-SF1-000	Bolt - CENTER SHAFT YOKE
4	90361-SR3-000	Nut - FLANGE, 8MM
5	90511-671-003	Washer - TOOTHED LOCK

Steering wheel (SRS) 5

#	OEM	部品名
2	35720-S7A-003	Lid
3	35880-S7A-003	Switch assy - AUDIO REMOTE (DUMMY)
7	78525-S7A-J61	Guide - CORD
8	90134-S6A-A80	Bolt - HEX., 6X23
9	90161-SV4-003	Bolt - STEERING HANDLE

Switch (LH) 4

#	OEM	部品名
2	35510-S6A-J01	Switch assy - HAZARD
5	35850-S6A-J01	Bulb comp. - 14V 60MA
6	35850-S7A-G01	Bulb comp. - 14V 60MA
7	35850-S7A-003	Bulb comp. - 14V 60MA

Tailgate 21

#	OEM	部品名
1	04741-S7A-Y10	Stay set - R. TAILGATE OPEN
2	04746-S7A-Y10	Stay set - L. TAILGATE OPEN
3	17706-SC3-003	Clip - FUEL PIPE
6	71704-SL3-000	Seal - GASKET
7	74440-S7A-000	Weatherstrip - TAILGATE
9	74800-S7A-003	Lock & cable assy. - TAILGATE
10	74801-SAA-E21	Lock - TAILGATE
12	74806-S05-003	Screw
13	74810-S7A-003	Handle assy - TAILGATE
14	74813-S2K-003	Striker assy - TAILGATE
15	74816-S2G-003	Band
16	74829-SDA-A01	Stopper - TRUNK LID
17	74830-S7A-003	Cable - TAILGATE OPENER
18	74896-SAA-003	Actuator assy - TAILGATE
19	74899-S7A-000	Damper - TAILGATE DYNAMIC
20	75353-671-000	Lock - SCREW
21	90107-S2G-003	Bolt - TAILGATE LOCK
22	90109-S7A-000	Bolt - FLANGE, 6X12
23	90120-SV4-000	Bolt - LOCK STRIKER
24	90302-S6A-000	Nut - FLANGE CAP, 8MM
25	91580-SM4-003	Clip - COUPLER(ORANGE)

Tailgate lining 2

#	OEM	部品名
12	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
13	91566-SP0-003	Clip - BACK COVER (NATURAL)

Taillight/license light 33

#	OEM	部品名
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
2	33302-S5A-A01	Socket comp. - T20 W
3	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)
4	33303-S5A-003	Socket comp - T20 S
5	33304-S5A-003	Socket comp - T10
6	33501-S7A-J01	Lamp unit - R. TAIL
7	33506-S7A-003	Cap - BOLT
8	33513-S50-003	Socket - T20W S2
9	33551-S7A-J01	Lamp unit - L. TAIL
10	34100-S60-013	Light assy - LICENSE
11	34101-S60-013	Lens
12	34102-S60-003	Housing comp
13	34103-S60-003	Gasket
14	34151-S7A-J01	Lamp unit - R.
15	34153-S7A-003	Gasket - BASE
16	34156-S7A-J01	Lamp unit - L.
17	34271-S7A-J01	Lamp unit - HIGH MOUNT STOP
18	34272-S7A-013	Cover - COUPLER
19	34273-S7A-003	Bolt - SPECIAL
20	34274-S7A-013	Seal - GASKET
21	34276-S7A-003	Tapping - SPECIAL, 3X12
22	34906-ST5-003	Bulb - 12V 21W/5W) (STANLEY
24	90001-S10-010	Bolt-washer - 5X16
25	90102-S7A-000	Bolt-washer - 6X12
26	90301-ST0-003	push nut, 3mm
27	90303-S2G-003	Nut - 6MM
28	90321-S2X-003	Nut - SPECIAL, 5MM
29	90650-SL9-003	Grommet - R. RR. COMBINATION (WHITE)
30	90655-SL9-003	Grommet - L. RR. COMBINATION (GRAY)
31	90665-SS0-003	Grommet - RR. COMBINATION
32	90665-S47-003	Clip
33	91512-S50-003	Clip - LICENSE GARNISH
34	91560-S0X-A01	Clip - DOOR LINING (NATURAL)

Throttle body (2.0L) 10

#	OEM	部品名
1	16022-PNA-J51	Valve set - ROTARY AIR CONTROL
2	16400-PNE-G52	Throttle Body Assy - GYA1B
3	16405-PNA-000	Cover assy. - THROTTLE DRUM
4	16407-PNA-000	Grommet - THROTTLE DRUM COVER
5	16411-PNA-J51	Stay - THROTTLE WIRE
6	16456-P8A-A01	Gasket - ROTARY AIR CONTROL VALVE
7	36162-PNA-003	Valve assy. - PURGE CONTROL SOLENOID
8	37830-PNC-003	Map Sensor assy
9	37835-PGK-A01	O-ring
10	90001-PEL-003	Bolt - FLANGE, 6X12

Tire/wheel disk 44

#	OEM	部品名
2	42700-S7C-G81	Disk - ALUMINIUM WHEEL (15X6JJ) (ENKEI)
3	42700-S7C-003	Disk - WHEEL (15X6JJ) (RING TECHS) (BLACK)
5	42751-S7C-G56	Tire - (195/65R15 91V) (YOKOHAMA)
5	42751-S7C-G54	Tire - (195/65R15 91V) (BRIDGESTONE)
6	42753-SH3-003	Valve - RIM (US PACIFIC)
6	42753-SB8-661	Valve - RIM (SCHRADER)
9	44726-SEA-J02	Weight - BALANCE (5G) (YAMATE)
9	44729-SEA-003	Weight - BALANCE (35G) (YAMATE)
9	44723-SEA-004	Weight - BALANCE (30G) (TOHO)
9	44723-SEA-J01	Weight - BALANCE (30G) (TOHO)
9	44729-SEA-J01	Weight - BALANCE (35G) (TOHO)
9	44728-SEA-003	Weight - BALANCE (25G) (YAMATE)
9	44722-SEA-003	Weight - BALANCE (20G) (YAMATE)
9	44729-SEA-004	Weight - BALANCE (35G) (TOHO)
9	44723-SEA-J02	Weight - BALANCE (30G) (YAMATE)
9	44728-SEA-004	Weight - BALANCE (25G) (TOHO)
9	44722-SEA-004	Weight - BALANCE (20G) (TOHO)
9	44728-SEA-J01	Weight - BALANCE (25G) (TOHO)
9	44722-SEA-J01	Weight - BALANCE (20G) (TOHO)
9	44727-SEA-003	Weight - BALANCE (15G) (YAMATE)
9	44721-SEA-003	Weight - BALANCE (10G) (YAMATE)
9	44729-SEA-J02	Weight - BALANCE (35G) (YAMATE)
9	44728-SEA-J02	Weight - BALANCE (25G) (YAMATE)
9	44722-SEA-J02	Weight - BALANCE (20G) (YAMATE)
9	44727-SEA-004	Weight - BALANCE (15G) (TOHO)
9	44721-SEA-004	Weight - BALANCE (10G) (TOHO)
9	44727-SEA-J01	Weight - BALANCE (15G) (TOHO)
9	44721-SEA-J01	Weight - BALANCE (10G) (TOHO)
9	44726-SEA-003	Weight - BALANCE (5G) (YAMATE)
9	44727-SEA-J02	Weight - BALANCE (15G) (YAMATE)
9	44721-SEA-J02	Weight - BALANCE (10G) (YAMATE)
9	44726-SEA-004	Weight - BALANCE (5G) (TOHO)
9	44726-SEA-J01	Weight - BALANCE (5G) (TOHO)
9	44723-SEA-003	Weight - BALANCE (30G) (YAMATE)
10	44732-S9A-A00	Cap - ALUMINIUM WHEEL CENTER
11	44733-S7C-J00	Trim - WHEEL (15")
12	44737-SA0-981	Washer - WHEEL NUT (FUSE RASHI)
13	44745-S7C-003	Protector - SPARE WHEEL
14	74620-S7A-E00	Carrier assy - SPARE TIRE
17	74645-S47-000	Hook - CARRIER
18	74646-S47-000	Bolt - CARRIER HOOK
19	90304-SA0-981	Nut comp. - WHEEL (FUSE RASHI)
20	90304-SB0-000	Nut - FIXED TORQUE
21	90381-S4L-003	Nut - WHEEL(FUSE RASHI)

Tools/jack 10

#	OEM	部品名
1	71969-SA7-890	Wrench - SUNROOF
2	74717-S3N-000	Bolt - EYE
3	84702-ST5-000	Bag - TOOL
4	84703-S7A-000	Bag - EYEBOLT (M16)
5	89000-S7A-000	Tool set
6	89000-S7A-900	Tool set - SUNROOF
7	89211-S70-013	Wrench - WHEEL, 19X19
8	89310-SZ3-Y01	Jack assy - PANTOGRAPH
9	89311-SZ3-Y01	Plate - JACK CAUTION
10	89320-S05-003	Bar - JACK

Torque converter case 24

#	OEM	部品名
1	21101-PRP-000	Plate - BEARING SETTING
1	21101-RG0-A00	Plate - BEARING SETTING
2	21111-PRP-050	Case - TORQUE CONVERTER
2	21111-PRP-020	Case - TORQUE CONVERTER
2	21111-PRP-040	Case - TORQUE CONVERTER
2	21111-PRP-010	Case - TORQUE CONVERTER
2	21111-PRP-030	Case - TORQUE CONVERTER
3	23225-PRP-010	Plate - OIL GUIDE
4	23235-PRP-000	Collar - OIL GUIDE
5	25422-PN6-801	Magnet comp. - TRANSMISSION
6	90024-612-000	Bolt - SEALING, 8MM
7	90081-PX4-003	Bolt - PLUG, 18MM
8	90433-639-000	Washer - LOCK, 6MM
9	90471-PX4-000	Washer - DRAIN PLUG, 18MM
10	90471-580-000	Packing - 8MM
11	90705-PA9-000	Dowel pin - 14X25
12	91001-PRP-004	Bearing - BALL, 40X68X7.5
13	91005-PRP-003	Bearing - BALL, 32X68X9
14	91102-PPV-003	Bearing - NEEDLE, 36X64X18
14	91102-RFK-003	Bearing - NEEDLE, 36X64X19.5
15	91206-RCT-003	Oil seal - 35X58X8 (NOK)
15	91206-PHR-003	Oil seal - 35X58X8 (NOK)
16	91207-P7Z-003	Oil seal - 44X68X8 (NOK)
17	91301-PRP-003	O-ring - 31.7X1.95 (NOK)

Transmission case 23

#	OEM	部品名
1	21210-PRP-020	Case comp. - TRANSMISSION
1	21210-PRP-030	Case comp. - TRANSMISSION
2	21231-PRP-000	Hanger - TRANSMISSION
3	21320-PRP-000	Tube assy - BREATHER
4	21321-689-000	Plug - BREATHER TUBE
5	21512-PRP-000	Stay b - HARNESS
6	21513-PRP-000	Stay c - HARNESS
7	21514-PRP-000	Stay d - HARNESS
8	21811-PRP-020	Packing - TORQUE CONVERTER CASE
9	28450-PRP-000	Cover - SOLENOID
10	28451-PRP-010	Packing - SOLENOID COVER
11	90380-S10-000	Bolt - STUD, 12X83.8
12	90609-PX4-000	Ring - SNAP, 80MM
13	90613-PRP-000	Ring - SNAP, 48MM
14	90614-PRP-000	Ring - SNAP, 55MM
15	90615-P0Z-000	Ring - SNAP, 82MM
16	91002-RCR-016	Bearing - BALL, 27X82X18.5
16	91002-RCR-006	Bearing - BALL, 27X82X18.5
17	91003-RFK-015	Bearing - BALL, 31X80X16
17	91003-RFK-005	Bearing - BALL, 31X80X16
18	91004-RFK-016	Bearing - BALL, 26.8X55X14.5
19	91006-PRP-016	Bearing - BALL, 20X48X24
20	91205-P0X-005	Oil seal - 40X56X9 (NOK)

Valve/rocker arm (2.0L) 18

#	OEM	部品名
1	14620-RAA-A00	Arm assy. - ROCKER
2	14624-RAA-A00	Arm assy. - EX. ROCKER
3	14647-RAA-A00	Washer - THRUST
4	14711-PNA-000	Valve - IN.
5	14721-PNB-Y00	Valve - EX.
6	14744-PNA-004	Screw - TAPPET ADJUSTING
7	14744-PT0-004	Screw - TAPPET ADJUSTING
8	14761-PNE-004	Spring - IN. VALVE(GREEN) (CHUO SPRING)
8	14761-PNE-003	Spring - IN. VALVE(GREEN) (NIPPON HATSUJO)
9	14762-PNA-003	Spring - EX. VALVE (GRAY) (NIPPON HATSUJO)
9	14762-PNA-004	Spring - EX. VALVE (GRAY) (CHUO SPRING)
10	14765-RAA-A00	Retainer - VALVE SPRING
10	14765-PNA-000	Retainer - VALVE SPRING
11	14775-PT0-000	Seat - VALVE SPRING
12	14781-PR7-A01	Valve Cotter
12	14781-PRB-A02	Cotter - VALVE (SERVICE)
13	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)
14	90206-PT0-004	Nut - TAPPET ADJUSTING

Water hose (2.0L) 2

#	OEM	部品名
1	19508-PNC-000	Hose - THROTTLE BODY IN.
2	19509-PNC-000	Hose - ROTARY AIR CONTROL VALVE OUTLET

Water pump (2.0L) 22

#	OEM	部品名
1	19200-PNA-003	Pump comp - WATER
2	19222-PNA-003	Packing - WATER PUMP
3	19301-PNA-003	Thermostat assy - NIPPON THERMOSTAT
4	19305-PNA-003	Seal - THERMOSTAT COVER (NIPPON THERMOSTAT)
5	19320-PNA-003	Case comp. - THERMOSTAT (NIPPON THERMOSTAT)
6	19322-PCX-003	O-ring - 43.8X3.1
7	19322-PNA-003	Seal - THERMOSTAT CASE (NIPPON THERMOSTAT)
8	19350-PNE-G00	Outlet assy - WATER
9	19352-PNA-000	Seal - WATER OUTLET
10	19410-PNC-000	Passage - WATER
11	19500-PNA-000	Joint - TUBE
12	19504-PNA-000	Hose - BYPASS IN.
13	19506-PNA-013	Clamp - BYPASS HOSE
14	19510-PNA-000	Pipe comp - HEATER
15	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
16	36282-PNA-G00	Tube - AIR ASSIST IN.
17	36283-PNA-G00	Tube - AIR ASSIST OUTLET
18	37870-PNA-003	Sensor assy - WATER TEMP (KEIHIN)
19	90050-PNA-003	Bolt - SPECIAL, 6X19 (NIPPON THERMOSTAT)
20	90051-PNA-000	Bolt - SPECIAL, 6X28
21	91307-PNA-003	O-ring - 9.5X1.9
22	91315-PNA-003	O-ring - 19.3X3.8

Water valve (LH) 12

#	OEM	部品名
1	79710-S7A-G01	Valve assy. - WATER
2	79720-S7C-G00	Hose assy - WATER IN.
4	79722-S5D-A00	Hose b - WATER IN.
5	79725-S7C-G00	Hose - WATER OUTLET
6	79731-S5A-000	Grommet - HEATER PIPE
7	79746-SL4-003	Clamp - HEATER HOSE
9	79748-S7C-003	Protector - WATER HOSE
10	79749-S7C-003	Band - PROTECTOR
11	90661-SL5-003	Clip, WATER HOSE
12	91405-PK1-003	Clip, WATER HOSE, 24MM
12	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
13	91551-SD5-003	Clamp - HEATER

Windshield washer 30

#	OEM	部品名
1	38516-SA0-671	Packing - PARALLEL TYPE) (MITSUBA
2	38516-SA5-671	Packing - T-TYPE) (MITSUBA
3	38516-SB3-003	Holder - MOTOR
4	38519-SB0-003	Bush - WASHER TANK (MITSUBA)
5	38562-663-920	Joint b - WASHER TUBE (MITSUBA)
6	76802-SFA-003	Cap unit - MOUTH
7	76805-S7A-013	Hose
8	76806-SE0-921	Motor - RR. WASHER (MITSUBA)
9	76806-SL0-E01	Motor - WASHER (HIGH) (MITSUBA)
9	76806-SL0-E11	Motor - WASHER (HIGH) (MITSUBA)
10	76809-SE0-003	Grommet - WASHER TANK
12	76812-S7A-013	Mouth assy. - WASHER
13	76815-SD5-003	Valve - ONE WAY (RR.) (MITSUBA)
14	76819-SX0-003	Cushion
15	76820-S7A-013	Grommet - WASHER TUBE
16	76830-SM4-003	Joint y - WASHER
17	76832-SAE-T01	Tube - 240MM
18	76832-S7A-013	Tube - 790MM
19	76837-S7A-013	Tube - 1380MM
20	76839-SL0-G51	Tube f - 50MM) (BLACK
21	76839-S7A-013	Tube - 790MM
22	76840-S7A-G02	Tank set - WASHER (4.0L FR-RR)
23	76851-S7A-003	Grommet - WASHER TUBE
24	90652-SB2-023	Clip - TUBE, 7MM
25	90697-SB2-003	Clip - HOOD WIRE
26	91504-SR3-003	Clip - WASHER TUBE
27	91523-SM4-000	Clip - WASHER TUBE (BLACK)
28	91570-S04-003	Clip - WASHER TUBE
29	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
30	91902-SJ8-003	Cushion - WIRE HARNESS (50X50)

Wire harness (LH) 21

#	OEM	部品名
1	32103-S7C-Y11	Sub cord - COMBINATION
2	32107-S7C-Y01	Harness - FLOOR WIRE
2	32107-S7C-Y11	Harness - FLOOR WIRE
3	32108-S7A-010	Harness - RR. WIRE
3	32108-S7C-E01	Harness - RR. WIRE
4	32109-S7C-901	Cord - TAILGATE
5	32117-S7C-Y01	Harness - INSTRUMENT WIRE
5	32117-S7C-Y11	Harness - INSTRUMENT WIRE
6	32155-S7A-G01	Cord - INTERIOR & SUNROOF
6	32155-S7A-G11	Cord - INTERIOR & SUNROOF
7	32200-S7C-Y11	Harness - ENGINE ROOM WIRE
7	32200-S7C-Y21	Harness - ENGINE ROOM WIRE
8	32201-S7C-K12	Sub cord - ENGINE CONTROL MODULE
9	32751-S7A-G01	Harness - DRIVER DOOR WIRE
10	32752-S7A-G00	Harness - PASSENGER DOOR WIRE
11	32753-S7A-000	Harness - R. RR. DOOR WIRE
12	32754-S7A-000	Harness - L. RR. DOOR WIRE
13	35505-692-003	Bulb - 14V 1.4W
14	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
15	90149-SE0-003	Bolt - EARTH, 6X16
16	90149-SE0-902	Bolt - EARTH, 6X24(SN)
