Abs modulator (1.7L) 4

#	OEM	部品名
1	57101-S2A-003	Rubber - ABS MOUNTING
2	57102-S2A-003	Bolt - ABS MOUNTING
3	57110-S7A-J01	Modulator assy
4	57115-S7A-J10	Bracket - MODULATOR

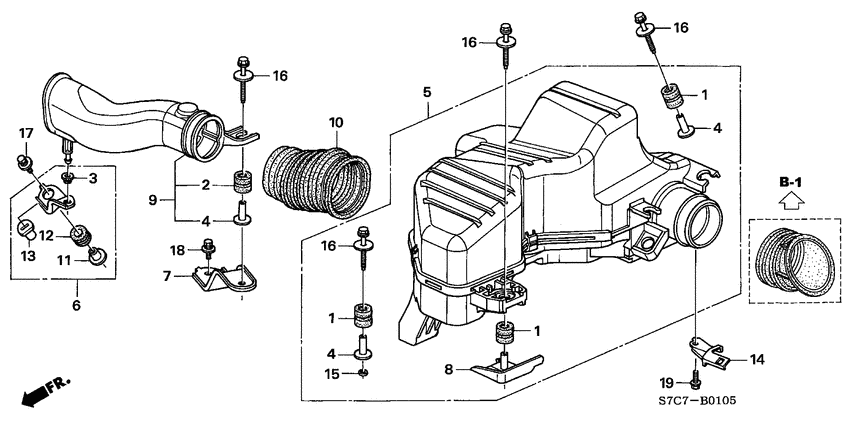

Air cleaner (1.7L) 19

#	OEM	部品名
1	17153-PLC-000	Tube - BREATHER
2	17205-PLD-000	Case set - AIR CLEANER
3	17211-PLD-000	Cover comp. - AIR CLEANER
4	17212-PN3-000	Rubber, AIR CLEANER MOUNTING
4	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
5	17213-P13-000	Rubber - AIR CLEANER CASE MOUNTING
6	17216-PN3-000	Collar - AIR CLEANER MOUNTING
7	17217-PLD-300	Clip - AIR CLEANER
8	17220-PLD-000	Element assy. - AIR CLEANER
9	17228-PLC-000	Rubber - THROTTLE JOINT
10	17247-PLC-000	Grommet - INTAKE
11	17315-PLC-000	Band - THROTTLE CABLE
12	37880-PLC-004	Sensor assy - AIR TEMP (MATSUSHITA DENSHI)
13	37881-P2A-000	Grommet - TA SENSOR
14	90001-P0A-000	Bolt-washer - SPECIAL, 6X35
15	90002-PLC-000	Bolt-washer - 5X35
16	90091-PLD-000	Bolt-washer - 5X75
17	91405-PLC-000	Clamp - TUBE (D24)
18	91406-PLC-003	Clip - TUBE (D21.5)

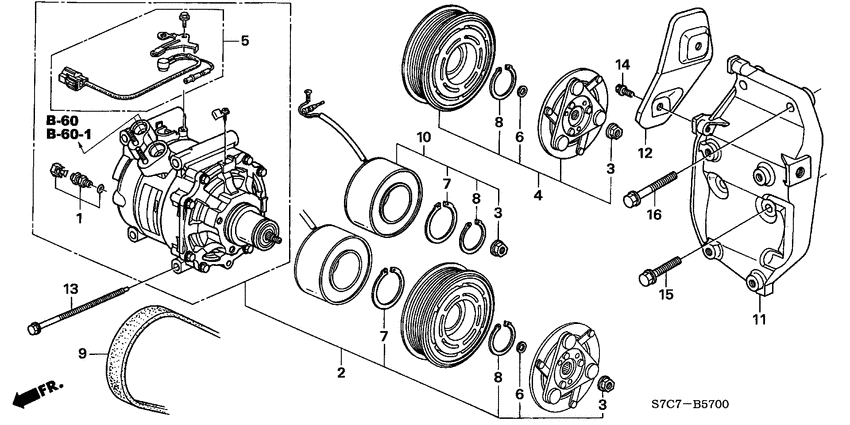

Air conditioner (COMPRESSOR; 1.7L) 13

#	OEM	部品名
1	38801-PDF-E02	Valve sub assy. - SAFETY
2	38810-PLA-E01	Compressor comp. - SANDEN
3	38829-PDF-E02	Nut - 9MM
4	38900-PSA-E01	Clutch set - COMPRESSOR
5	38908-PSA-E01	Protector set - THERMAL
6	38912-PE1-702	Shim set
7	38913-PP4-E02	Ring - SNAP
8	38914-P07-004	Ring f - SNAP
9	38920-PLR-003	Belt - COMPRESSOR (BANDO)
10	38924-PLM-A01	Coil set - FIELD
11	38930-PLC-000	Bracket - COMPRESSOR
11	38935-PLM-A00	Insulator - COMPRESSOR BRACKET HEAT
12	90023-P2A-000	Bolt - FLANGE, 8X100

Air conditioner (CONDENSER) 22

#	OEM	部品名
1	19031-PLC-003	Cover - MOTOR END
2	19033-PAA-A01	Clip - COUPLER (DENSO)
3	38611-PSA-003	Fan - COOLING (DENSO)
4	38615-PSA-003	Shroud comp. - AIR CONDITIONER
5	38616-PSA-003	Motor - COOLING FAN
7	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
7	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
8	80100-S7A-023	Condenser assy
9	80101-S7A-003	Filter sub assy.
10	80111-S7A-013	Bracket - UPPER
11	80112-S7A-013	Upper comp. - BRACKET
12	80113-S7A-003	Bracket comp. a - CONDENSER LOWER
13	80114-S7A-003	Bracket comp. b - CONDENSER LOWER
14	80175-S0X-A01	Mount - RUBBER
15	80175-S0X-A21	Mount - CONDENSER
16	80191-S7A-003	Bolt-washer - 6X30
17	80192-S7A-003	Bolt-washer - 5X24
18	80193-S7A-003	Bolt-washer - 6X16
19	80194-S7A-003	Plate
20	90003-PG7-660	Bolt-washer - 6X16 (DACRO COATING)
22	90041-P5A-003	Screw-washer - 4X11
23	90043-PD2-003	Nut - HEX., 5MM (DENSO)

Air conditioner (COOLING UNIT; 1.7L) 16

#	OEM	部品名
2	80212-S7A-G61	Pipe assy.
4	80215-S7A-G61	Evaporator comp.
5	80219-S5A-003	Seal - EXPANSION VALVE
6	80220-S7A-003	Valve - EXPANSION
7	80271-S7A-000	Hose - DRAIN
8	80275-S7A-000	Stay - DRAIN
10	80460-S7A-000	Harness - AIR CONDITIONER WIRE
11	80560-S5A-941	Sensor assy - EVAPORATOR
12	80871-S5A-003	O-ring - 5/8"
13	80872-S5A-003	O-ring - 1/2"
14	90125-S5A-003	Bolt - SOCKET, 5X30
15	90126-S5A-003	Bolt - SOCKET, 5X40
16	90153-SE0-003	Bolt - EARTH, 6X12
17	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)
18	91565-SD5-003	Clip - COUPLER(NATURAL)
19	91597-S5H-T31	Clip - DRAIN TUBE

Air conditioner (KIT) 1

#	OEM	部品名
2	80000-S7A-G13	General assy. - AIR CONDITIONER

Alternator (DENSO; 1.7L) 21

#	OEM	部品名
1	31100-PSA-013	Alternator assy - CJX24) (DENSO
2	31101-PSA-003	Rotor assy.
3	31105-PR7-A01	Holder assy. - BRUSH
4	31111-PT0-003	Bearing - RR. GENERATOR
5	31114-PT0-013	Bearing - FR. GENERATOR
6	31118-PT0-003	Bush - INSULATION
7	31119-PSA-003	Bush - INSULATION
8	31127-P8C-A01	Rectifier assy.
9	31135-PSA-003	Cover - RR. END
10	31138-PD1-004	Cover - BEARING
11	31141-PY3-J01	Pulley
12	31142-PD1-004	Nut - PULLEY LOCK
13	31145-PD1-004	Bolt - STUD, 6X68
14	31146-PT0-003	Screw
15	31147-PT0-003	Screw-washer
16	31147-P13-003	Screw
17	31148-PT0-003	Screw - WAVE WASHER
18	31148-P13-003	Screw - WAVE WASHER
19	31150-PSA-003	Regulator assy
20	90231-PD1-014	Nut-washer - 5MM
21	90232-PT0-003	Nut - HEX., 6MM

Antenna/speaker 14

#	OEM	部品名
1	39120-S5A-911	Speaker assy - 17CM SINGLE) (PIONEER
3	39150-S7A-G03	Antenna assy - ROOF
4	39152-S7A-G01	Mast assy. - ANTENNA
5	39154-SEN-003	Pad
6	39151-SAA-003	Cap - ROOF ANTENNA
7	39156-S7A-G21	Sub feeder
7	39156-S7A-G11	Sub feeder
8	39159-S7A-G01	Feeder - ROOF ANTENNA
9	72327-SD5-000	Seal b - FR. DOOR HOLE (30X50)
15	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
16	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
17	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
18	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)
19	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)

Auto radio 4

#	OEM	部品名
1	39100-S7A-E20	Tuner assy - PIONEER) (30WX4
6	77255-S7A-900	Bracket - R. RADIO
7	77256-S7A-900	Bracket - L. RADIO
8	91551-SE0-003	Bolt - FLANGE, 5X7

Battery (1.7L) 11

#	OEM	部品名
1	31500-S5A-G01	Battery - 46B24R-MF) (PANASONIC
2	31512-S7A-000	Plate - BATTERY SETTING
3	31513-SP0-010	Bolt - BATTERY SETTING (210MM)
4	31521-S7A-000	Box - BATTERY
5	31531-S7A-000	Cover - BATTERY
6	31542-SA5-665	Plug - VENT (MF) (PANASONIC)
7	32600-S7A-920	Cable assy - BATTERY EARTH
8	32601-SK7-900	Bolt - BATTERY TERMINAL
9	32602-SK7-900	Nut - BATTERY TERMINAL
10	90149-SE0-003	Bolt - EARTH, 6X16
11	90182-SB6-000	Bolt-washer - 6X16

Brake lines (ABS; 1.7L; LH) 28

#	OEM	部品名
1	01464-S7A-E00	Hose set - R. FR. BRAKE
2	01465-S7A-N01	Hose set - L. FR. BRAKE
3	01466-S7A-E00	Hose set - R. RR. BRAKE
4	01468-S7A-E00	Hose set - L. RR. BRAKE
5	46330-S7A-J10	Pipe comp. c - BRAKE
6	46340-S7A-J10	Pipe comp. d - BRAKE
7	46374-S7A-G00	Pipe comp. u - BRAKE
8	46375-S7A-G00	Pipe comp. v - BRAKE
9	46376-S7A-J01	Pipe comp. w - BRAKE
10	46377-S7A-J01	Pipe comp. x - BRAKE
11	46378-S7A-J00	Pipe comp. y - BRAKE
12	46379-S7A-J00	Pipe comp. z - BRAKE
13	46380-SH3-000	Grommet a - BRAKE PIPE
14	46391-S5A-J01	Clip - BRAKE PIPE
15	46391-S5A-000	Clip - BRAKE PIPE
16	46393-S5A-J00	Clip - BRAKE PIPE
17	46393-S84-A00	Clamp - BRAKE PIPE
18	46394-S04-003	Clip A
19	46396-S7A-003	Clip - BRAKE PIPE
20	46435-S7A-J00	Bracket a - R. RR. BRAKE HOSE
21	46436-S7A-J00	Bracket a - L. RR. BRAKE HOSE
22	46437-S7A-J50	Bracket - R. RR. BRAKE HOSE
23	46438-S7A-J50	Bracket - L. RR. BRAKE HOSE
24	46462-SE0-000	Bolt - OIL
25	46470-S7A-003	Joint - FOUR WAY
26	46472-568-000	Packing - OIL BOLT
27	90361-SV4-003	Nut - PAINT CUTTING, 6MM
28	90651-538-000	Clip - BRAKE HOSE

Brake master cylinder/mas ter power (LH) 29

#	OEM	部品名
1	01469-S6D-R00	Power set - MASTER (7"+8")
2	46017-S7A-000	Hose set - RESERVE TANK
3	46100-S7A-G02	Cylinder assy. - MASTER
4	46120-S0A-013	Piston assy. - PRIMARY
5	46122-S5A-J51	Piston assy. - SECONDARY
6	46135-S5A-J41	Guide assy - PISTON
7	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
8	46185-SE0-003	Seal - ROD
9	46191-S2K-000	Packing - MASTER POWER
10	46402-S7A-G01	Tube assy - MASTER POWER
12	46403-S6A-000	Joint - TWO WAY
13	46404-S7A-G10	Tube a - MASTER POWER
14	46406-S7A-G10	Stay - MASTER POWER TUBE
15	46407-S84-A01	Clamp - TUBE
16	46512-S70-000	Pin - PEDAL
17	46661-S7A-G00	Reservoir set
18	46662-S9A-003	Cap comp. - RESERVE TANK
19	46665-S04-J01	Grommet
20	46666-S2K-003	Filter - BRAKE RESERVOIR
21	46669-S5A-003	Diaphragm
22	46672-S6A-003	Hose - RESERVE TANK
23	46674-S7A-G00	Bracket comp. - BRAKE RESERVE TANK
25	46680-S7A-003	Union - RESERVOIR
26	46911-S70-003	Pin, LOCK(8MM)
27	53729-671-003	Clamp d - 15.5MM
28	57173-SB0-801	O-ring - CONNECTOR
29	57515-S30-003	Pin - STOP
30	57562-SF1-003	Circlip
31	90361-SV4-003	Nut - PAINT CUTTING, 6MM

Breather cover (1.7L) 4

#	OEM	部品名
1	11850-PLA-000	Cover comp. - BREATHER
2	11855-P72-000	Grommet, PCV Valve
3	17130-PH1-003	Valve assy. - PCV
4	17131-PLC-000	Tube - PCV

Bumpers 21

#	OEM	部品名
3	33505-S7A-J01	Reflector assy - R. RR.
4	33555-S7A-J01	Reflector assy - L. RR.
5	71110-S7A-E01	Spoiler - R. FR. BUMPER AIR
7	71140-S7A-N00	Beam comp - R. FR. BUMPER UPPER
8	71143-S7A-N00	Beam - FR. BUMPER CENTER
9	71145-S7A-G01	Base - FR. LICENSE PLATE
10	71150-S7A-E00	Spoiler - L. FR. BUMPER AIR
11	71190-S7A-N00	Beam comp - L. FR. BUMPER UPPER
12	71193-S7A-003	Spacer - R. FR. BUMPER SIDE
13	71198-S7A-003	Spacer - L. FR. BUMPER SIDE
16	71555-S7A-N00	Stay - RR. BUMPER LOWER
17	71593-S7A-003	Spacer - R. RR. BUMPER SIDE
18	71598-S7A-003	Spacer - L. RR. BUMPER SIDE
19	90103-SDA-A00	Screw - TAPPING, 5X20
20	90103-SP0-000	Bolt - CORNER CLIP
21	90106-SS0-003	Grommet - SCREW
22	90664-SB3-003	Grommet - SCREW, 5MM
23	90675-SA5-003	Nut - CLIP, 6MM
24	91503-SZ3-003	Clip A
25	91503-SZ5-003	Clip - BUMPER FACE
26	91503-S7A-003	Clip - FR. GRILLE

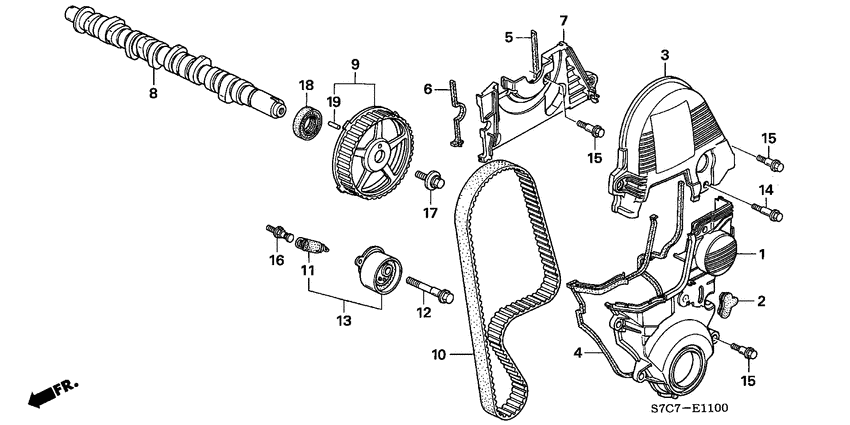

Camshaft/timing belt (1.7L) 19

#	OEM	部品名
1	11811-PLC-000	TIMING BELT LOWER COVER
2	11812-PLC-000	LOWER TIMING BELT COVER GROMMET
3	11821-PLM-000	TIMING BELT UPPER COVER
4	11831-PLC-000	LOWER COVER RUBBER SEAL
5	11832-PLM-000	Rubber - R. BACK SEAL
6	11833-PLM-000	Rubber - L. BACK SEAL
7	11840-PLM-000	Cover comp. - TIMING BELT BACK
8	14111-PLR-000	Camshaft
9	14210-PLM-003	Pulley comp - TIMING BELT DRIVEN
10	14400-PLM-014	Belt - TIMING (104RU22 B-333)
11	14516-PLC-000	Spring comp - TIMING BELT ADJUSTER
12	14517-PLC-013	Bolt a - TENSIONER
13	14520-PLC-335	Tensioner set - TIMING BELT
14	90007-PLC-000	Bolt a - TIMING BELT COVER
15	90007-679-000	Bolt a - TIMING BELT COVER
16	90011-PG6-004	Bolt - TIMING BELT ADJUSTER SPRING
17	90031-PT0-003	Bolt-washer - 8X22
17	90032-ZW5-003	Bolt-washer, 8x22
18	91213-PE1-722	Oil seal - 29X45X8 (NOK)

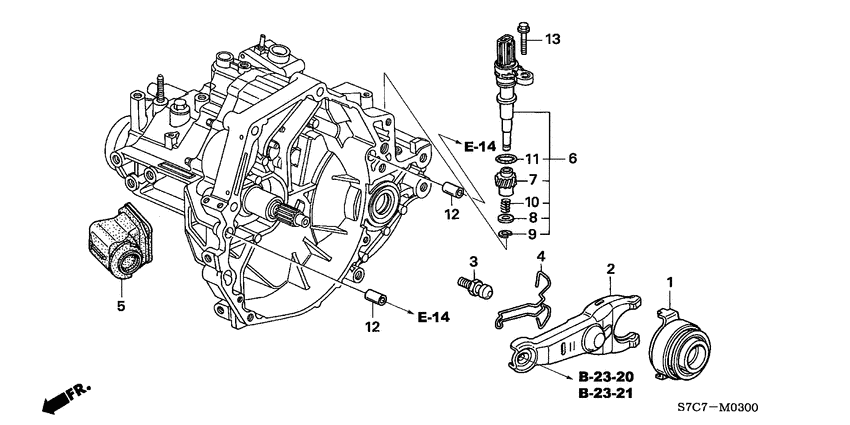

Clutch case (1.7L) 12

#	OEM	部品名
1	21000-PSW-000	Case comp. - CLUTCH
2	21101-PG2-000	Plate - NEEDLE BEARING SETTING
3	21103-PX5-010	Plate c - OIL GUIDE
4	21120-PG2-003	Magnet - TRANSMISSION
5	24601-PLT-020	Stay - CHANGE WIRE
6	90030-PG2-000	Bolt - SPECIAL, 6MM
7	90705-PG2-000	Dowel pin - 14X20
8	91002-PG1-018	Bearing - BALL, 63/28C (TOYO)
9	91101-PSW-003	Bearing - NEEDLE, 33X62X22
10	91205-P0X-005	Oil seal - 40X56X9 (NOK)
11	91216-PH8-003	Oil seal - 28X41X7 (ARAI)
11	91216-PH8-005	Oil seal - 28X41X7 (NOK)

Clutch master cylinder (1.7L; LH) 34

#	OEM	部品名
1	43352-567-000	Screw - BLEEDER
2	43353-SD5-003	Cap - BLEEDER SCREW
3	46151-S5A-A01	Yoke
4	46182-500-013	Circlip
5	46911-S70-003	Pin, LOCK(8MM)
6	46912-S84-A00	Pin - CLUTCH PEDAL
7	46920-S7A-A02	Cylinder assy. - CLUTCH MASTER
8	46921-S5A-003	Plate - STOPPER
9	46926-S5A-013	Piston comp - CLUTCH MASTER CYLINDER
10	46928-S5A-A01	Seal - MASTER CYLINDER
11	46930-S5A-013	Cylinder assy. - CLUTCH SLAVE
12	46931-S5A-003	Pin - SPRING
13	46932-S5A-003	Piston - SLAVE CYLINDER
14	46937-SS1-003	Boot - SLAVE CYLINDER
15	46941-S5A-A01	Connector - CLUTCH MASTER CYLINDER
16	46941-S5A-003	Connector - CLUTCH MASTER CYLINDER
17	46942-S5A-003	Pin - SNAP
18	46943-S5A-003	Seal - RING
19	46944-S5A-J01	Connector
20	46945-S5A-003	O-ring
21	46946-S5A-003	Screw-washer - 4X12
22	46947-S5A-003	Rod - PUSH
23	46948-S5A-003	Rod - PUSH
24	46949-S5A-003	Seal - RING
25	46960-S7A-G02	Pipe comp. a - CLUTCH
26	46961-S7A-A01	Hose - CLUTCH
27	46965-S5A-013	Tank assy. - CLUTCH FLUID
28	46968-S5A-000	Bracket a - CLUTCH PIPE
29	46970-S5A-013	Pipe comp. b - CLUTCH
30	46971-S7A-G02	Tube - CLUTCH FLUID
31	46995-S5A-G01	Bracket a - CLUTCH PIPE
32	90106-S7A-E00	Bolt - FLANGE, 8X30
33	90651-538-000	Clip - BRAKE HOSE
34	91597-S50-013	Clip A - FUEL PIPE

Clutch release (1.7L) 12

#	OEM	部品名
1	22810-PLW-003	Bearing - CLUTCH RELEASE (FUJIKOSHI)
1	22810-PLW-005	Bearing, CLUTCH RELEASE (NSK)
2	22821-P20-010	Fork - CLUTCH RELEASE
3	22825-PX5-A00	Bolt - RELEASE FORK
4	22835-P7N-000	Spring - RELEASE FORK SETTING
5	22841-P20-000	Boot - RELEASE FORK
6	78410-S7A-E02	Sensor assy - SPEED
7	78415-S7A-G01	Gear
8	78416-S2R-003	Washer
9	78417-S2R-003	Ring - STOP (C-TYPE)
10	78418-S2R-003	Spring
11	78419-S2R-003	Seal - RING

Clutch/torque converter 7

#	OEM	部品名
1	21350-P2A-020	Cover - CLUTCH CASE
3	22100-PLR-003	Flywheel comp.
6	22200-PLR-023	Disk comp - FRICTION
8	22300-PSA-003	Disk comp - PRESSURE
11	90011-PM0-000	Bolt - 12MM
13	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)
16	91006-P10-000	Bearing - CLUTCH PILOT

Combination switch 21

#	OEM	部品名
1	06350-S7A-G21	Cylinder set - KEY
2	35100-S7A-G21	Lock assy - STEERING
3	35102-SV4-003	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN
7	35111-SAA-305	Key comp. - IMMOBILIZER & TRANSMITTER (BLANK)
10	35113-SAA-305	TRANSMITTER TOP CASE (BLANK) KEY COMP.
13	35114-SEA-E11	Bottom comp. - TRANSMITTER KEY CASE
15	35116-SDA-A11	Screw - FLAT
16	35130-S5A-J51	Switch comp - STEERING
17	35251-S5A-Y03	Body comp - SWITCH
18	35255-S5A-A22	Switch assy - LIGHTING & TURN SIGNAL
19	35256-S6A-G01	Switch assy
20	35257-S5A-J01	Bracket
21	35400-S6A-003	Switch assy - DOOR (DAIICHI)
22	39730-SEA-E01	Immobilizer unit
23	72118-ST7-003	Screw - TAPPING, 3X5
25	72147-SAA-E01	KEYLESS MODULE ASSY
27	72148-S0A-000	Battery CR1616
28	90132-S2H-G11	Screw - ET, 5.5X18
28	90132-S2H-G01	Screw - ET, 5X18

Control unit (CABIN; LH) 17

#	OEM	部品名
2	32752-PLM-A00	Stay m - ENGINE WIRE HARNESS
3	37820-PSA-G04	Control module - ENGINE
4	38140-S7A-G01	Wiper unit - INTERMITTENT
5	38184-S7A-E00	Bracket - RELAY BLOCK (ISO)
6	38200-S7A-G02	Box assy - FUSE
7	38203-S7A-G00	Bracket - FUSE BOX (LH)
8	38300-S5T-004	Relay assy - TURN SIGNAL & HAZARD (066500-5080) (DENSO)
8	38300-S5T-003	Relay assy - TURN SIGNAL & HAZARD (FR-3321) (MITSUBA)
9	38385-S7A-G61	Receiver unit - KEYLESS ENTRY
11	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
11	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
13	39794-S5A-004	Relay assy - FUEL PUMP(5P) (DENSO)
13	39794-S5A-003	Relay assy - FUEL PUMP(5P) (MITSUBA)
14	39794-S5A-901	Relay assy - ENGINE CONTROL MODULE(4P)(MITSUBA)
14	39794-S5A-902	Relay assy - ENGINE CONTROL MODULE(4P)(DENSO)
15	79820-S5A-A00	Bracket - ENGINE CONTROL MODULE
16	79830-S7A-G11	Bracket a - HEATER

Control unit (ENGINE ROOM; 1.7L) 25

#	OEM	部品名
2	32411-S7A-000	Bracket - STARTER CABLE
4	38100-SX0-K02	Horn assy - LOW (MITSUBA)
5	38150-S7A-Y01	Horn assy - HIGH (MITSUBA)
6	38211-SM4-003	Fuse - BLOCK (30A)
7	38213-SM4-003	Fuse - BLOCK (50A)
8	38216-SM4-003	Fuse - BLOCK (80A)
9	38231-S04-961	Fuse - BLOCK (40A)
10	38231-S10-003	Fuse - BLOCK (20A)
11	38235-S04-003	Puller - MINI FUSE (SUMITOMO)
12	38250-S7A-G02	Box assy - RELAY
13	38251-S7A-G02	Cover - UPPER
14	38251-S7A-000	Bracket a - RELAY BOX
15	38252-S5A-003	Cover - LOWER
16	38252-S7A-000	Bracket b - RELAY BOX
17	39792-SE0-004	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)
17	39792-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7410)
18	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)
18	39794-SL0-004	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)
19	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
19	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
20	80521-S7A-941	Bracket - AMBIENT SENSOR
21	80525-S30-941	Sensor assy - AMBIENT
22	90129-SP0-000	Screw-washer - 5X12
23	90150-S84-003	Bolt - EARTH, 8X16
24	91551-SV4-003	Clip - BRACKET

Countershaft (1.7L) 18

#	OEM	部品名
1	23220-PSW-000	Countershaft comp.
2	23421-PSW-000	Gear - COUNTERSHAFT LOW
3	23431-PSW-000	Gear - COUNTERSHAFT SECOND
4	23461-P16-010	Gear - COUNTERSHAFT FIFTH
5	23471-PSW-000	Gear - COUNTERSHAFT THIRD
6	23481-PSW-000	Gear - COUNTERSHAFT FOURTH
7	23521-PEV-305	Sleeve set - SYNCHRONIZER (1-2)
8	23918-P21-010	Collar - DISTANCE, 36.5X42X29 (0.07-0.09)
9	23921-PG1-000	Washer a - 40X54X1.96
10	23926-PG1-010	Washer - SPRING, 23MM
11	90202-PH8-000	Nut - HEX., 23MM
12	90602-PG1-770	Ring - SNAP, 56MM
13	91003-PG2-008	Bearing - SPECIAL BALL (NTN)
14	91102-PG2-008	Bearing - NEEDLE, 25X56.4X19
15	91105-P21-003	Bearing - NEEDLE, 42X47X24
16	91107-PSW-003	Bearing - NEEDLE, 34X40X21.3
17	91211-PBW-008	Damper - FRICTION
18	91212-PX5-018	Damper - FRICTION (SECOND)

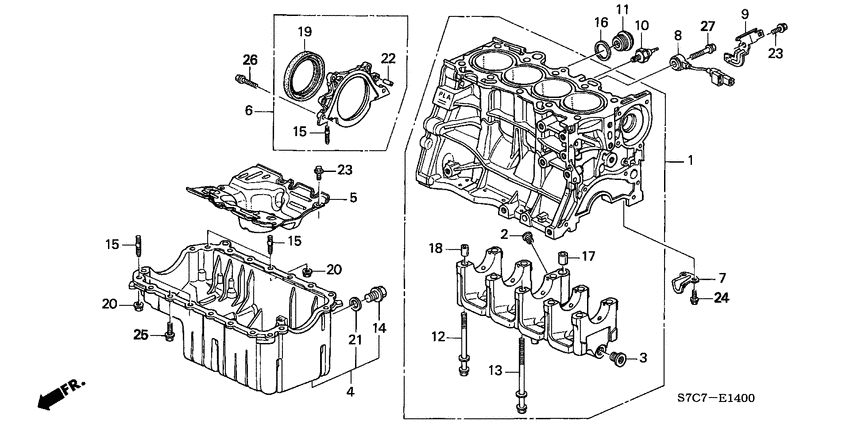

Cylinder block/oil pan (1.7L) 21

#	OEM	部品名
1	11000-PLM-000	Block assy - CYLINDER
2	11106-PE0-300	Bolt - SEALING, 14MM
3	11126-PK1-003	Bolt - SEALING, 22MM
4	11200-PLE-000	Pan comp - OIL
5	11221-PLE-000	Plate - BAFFLE
6	11300-PLC-020	Cover assy. - R. SIDE
7	11311-PLC-000	Cover - BREATHING PORT
8	30530-PLE-004	Sensor - KNOCK
9	32745-PLC-000	Stay e - ENGINE HARNESS
10	37240-PT0-023	Switch - OIL PRESSURE(DENSO)
10	37240-PT0-014	Switch - OIL PRESSURE (TEC)
11	90001-PM3-003	Bolt - DRAIN PLUG, 28MM
12	90007-PM6-003	Bolt-washer - 11X116
13	90008-PM6-003	Bolt-washer - 11X131
14	90009-PY3-000	DRAIN PLUG BOLT, 14MM
15	90042-PR3-000	Bolt - STUD, 6X28
16	90401-PR4-000	Washer - SEALING, 28MM
17	90703-PE0-000	Dowel pin - 18X22
18	90715-PC6-000	Dowel pin - 13X20
19	91214-PLE-003	Oil seal
19	91214-PH1-004	Oil seal - 80X100X10 (ARAI)

Cylinder head (1.7L) 26

#	OEM	部品名
1	12100-PLE-000	Head assy - CYLINDER
2	12204-PJ7-305	Guide - IN. VALVE (OS)
3	12210-PZ1-003	Seal a - VALVE STEM(ARAI)
3	12210-PZ1-004	SEAL A, VALVE STEM (NOK)
4	12211-PZ1-004	Seal b - VALVE STEM(NOK)
4	12211-PZ1-003	Seal b - VALVE STEM(ARAI)
5	12251-PLC-004	Gasket - CYLINDER HEAD (NIPPON LEAKLESS)
5	12251-PLC-003	Gasket - CYLINDER HEAD (ISHINO GASKET)
6	12513-P72-003	Plug - CYLINDER HEAD
7	14631-PLE-000	Shaft - IN. ROCKER ARM
8	14633-P2A-000	Shaft - EX. ROCKER ARM
9	15810-PLR-A01	Valve assy. - SPOOL
10	15825-P2M-005	Filter assy - SPOOL VALVE
11	17233-PLD-000	Stay comp - RESONATOR
12	37250-PHM-003	Switch assy - VALVE TIMING OIL PRESSURE
13	37840-RJH-006	TDC CYLINDER SENSOR ASSY
14	90004-PT0-000	Bolt - FLANGE, 6X50
15	90004-PT2-000	Bolt - FLANGE, 6X35
15	90003-PT2-000	Bolt - FLANGE, 6X35
16	90004-P2J-000	Bolt - SEALING, 10MM
17	90005-PM3-003	Bolt-washer - 10X140 (SAGA)
18	90007-P08-000	Bolt - FLANGE, 8X80
19	90026-PE0-000	Bolt - STUD, 8X37
19	90026-PT0-000	Bolt - STUD, 8X38
20	91319-PR3-000	O-ring - 13X1.5
20	91319-PR3-003	O-ring - 13X1.5 (ARAI)

Cylinder head cover (1.7L) 15

#	OEM	部品名
1	12030-PLC-010	Packing set - HEAD COVER
2	12310-PLC-000	Cover comp. - CYLINDER HEAD
3	12315-PLC-000	Bolt - STUD
4	12316-PLC-000	Washer
5	12341-PLC-000	Packing - CYLINDER HEAD COVER
6	12342-P08-004	Seal
6	12342-RYE-004	Seal,spark plug t
7	15610-PLC-000	Cap assy. - OIL FILLER
8	15613-PLC-000	Packing - OIL FILLER
9	15650-PLM-004	Gauge comp. - OIL LEVEL
10	90011-PLC-000	Bolt comp. a - HEAD COVER
11	90012-PLC-000	Bolt comp. b - HEAD COVER
12	90013-PLC-000	Bolt a - HEAD COVER
13	90014-PLC-000	Bolt b - HEAD COVER
14	90442-PLC-000	Washer - HEAD COVER

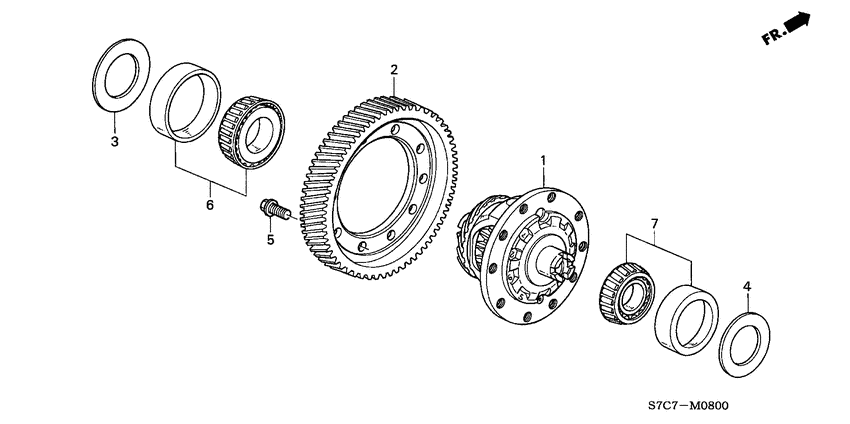

Differential (1.7L) 26

#	OEM	部品名
1	41100-PSW-000	Differential comp.
2	41233-PSW-000	Gear - FINAL DRIVEN
3	41380-PG2-A10	Shim - 75MM
4	41398-PX5-000	Shim r - 68MM (2.41)
4	41393-PX5-000	Shim m - 68MM (2.26)
4	41388-PX5-000	Shim h - 68MM (2.11)
4	41383-PX5-000	Shim c - 68MM (1.96)
4	41400-PX5-000	Shim t - 68MM (2.47)
4	41395-PX5-000	Shim o - 68MM (2.32)
4	41390-PX5-000	Shim j - 68MM (2.17)
4	41385-PX5-000	Shim e - 68MM (2.02)
4	41397-PX5-000	Shim q - 68MM (2.38)
4	41392-PX5-000	Shim l - 68MM (2.23)
4	41387-PX5-000	Shim g - 68MM (2.08)
4	41382-PX5-000	Shim b - 68MM (1.93)
4	41399-PX5-000	Shim s - 68MM (2.44)
4	41394-PX5-000	Shim n - 68MM (2.29)
4	41389-PX5-000	Shim i - 68MM (2.14)
4	41384-PX5-000	Shim d - 68MM (1.99)
4	41396-PX5-000	Shim p - 68MM (2.35)
4	41391-PX5-000	Shim k - 68MM (2.20)
4	41386-PX5-000	Shim f - 68MM (2.05)
4	41381-PX5-000	Shim a - 68MM (1.90)
5	90017-689-000	Bolt - SPECIAL, 10MM
6	91005-PG2-004	Bearing - TAPER, 40X75X21 (KOYO)
7	91006-PX5-008	Bearing - TAPER, 40X68X22 (NTN)

Duct (LH) 4

#	OEM	部品名
1	83331-S7A-G00	Duct - RR. HEATER
2	83332-S7A-G00	Duct - RR. HEATER JOINT (A)
3	83333-S7A-G00	Duct assy - RR. HEATER JOINT (B)
6	91550-SS0-003	Clip - SRS COVER

Emblem/caution label 9

#	OEM	部品名
1	17669-SS0-X30	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
2	19043-PLA-G00	Label - COOLANT INFORMATION
3	42760-S7A-G10	Plate - TIRE PRESSURE CAUTION
5	75722-S7A-013	Emblem - RR. (STREAM)
9	75725-S04-T00	Emblem - RR. (VTEC)
11	77875-S84-G80	Label - SRS CAUTION
12	77969-S2H-000	Label - SRS UNIT POSITION
13	78031-S1A-E80	Label - SIDE AIRBAG CAUTION
14	78527-S04-G80	Label - SRS CAUTION (CHILD SEAT)

Engine assy./ transmission assy. (1.7L) 3

#	OEM	部品名
1	10002-PSA-E01	General assy. - CYLINDER BLOCK
2	10003-PLR-A01	General assy. - CYLINDER HEAD
3	20011-PSW-F00	Transmission assy - MT

Engine hood (LH) 24

#	OEM	部品名
1	17706-SC3-003	Clip - FUEL PIPE
5	74120-S7A-G02	Lock assy - HOOD
8	74141-S7C-010	Insulator - HOOD
9	74143-S7A-000	Rubber - RR. HOOD SEAL
10	74144-S5A-000	Sub seal - HOOD
11	74145-S7A-000	Stay - HOOD OPENER
12	74146-S7A-013	Rubber - HOOD SEAL
13	74210-S7A-G00	Cowl top assy. - L. FR. SIDE
14	74212-S7A-000	Cover - R. HOOD HINGE
15	74220-S7A-G00	Cowl top assy. - R. FR. SIDE
16	74222-S7A-000	Cover - L. HOOD HINGE
17	74231-S6A-000	Valve - DRAIN
18	90108-S0A-003	Bolt - FLANGE, 6X15
19	90602-SX0-003	Clip - COWL TOP
20	90602-S2K-003	Holder - ROD
21	90602-S5A-003	Clip - COWL TOP
22	90603-SX0-003	Grommet - COWL TOP
23	91501-SL4-003	Clip - FR. COWL
24	91501-S1K-003	Clip - ENGINE HOOD INSULATOR
25	91502-S84-A11	Clip - SEAL RUBBER (BLACK)
26	91518-SM4-003	Clip - TRUNK MOLDING
27	91522-SM4-003	Clip - TUBE & INSULATOR
28	91530-ST5-003	Clip A - DOOR WEATHERSTRIP
29	91604-S5A-003	Grommet - HOOD STAY

Engine mounting bracket (1.7L) 14

#	OEM	部品名
1	11910-PLC-010	Bracket - ENGINE MOUNTING
2	11950-P2J-000	Stiffener - FR. ENGINE
3	11960-PLE-000	Stiffener - RR. ENGINE
4	31110-PLA-E01	Belt - ALTERNATOR (BANDO)
5	31113-PLC-000	Stay - ALTERNATOR
6	31118-PLC-000	Stay - ALTERNATOR ADJUSTER
7	32755-PLC-000	Stay - OXYGEN SENSOR COUPLER
8	90041-PSA-000	Bolt - STUD, 12X90
9	90042-PSA-000	Bolt - STUD, 12X42
10	90050-PG7-000	Bolt - FLANGE, 12X65
11	90051-PE0-000	Bolt - FLANGE, 12X70
12	90311-PLC-000	Bolt - ADJUSTER
13	90312-PLC-000	Bolt - ALTERNATOR
14	90313-PLC-010	Bolt - SPECIAL, 10X98

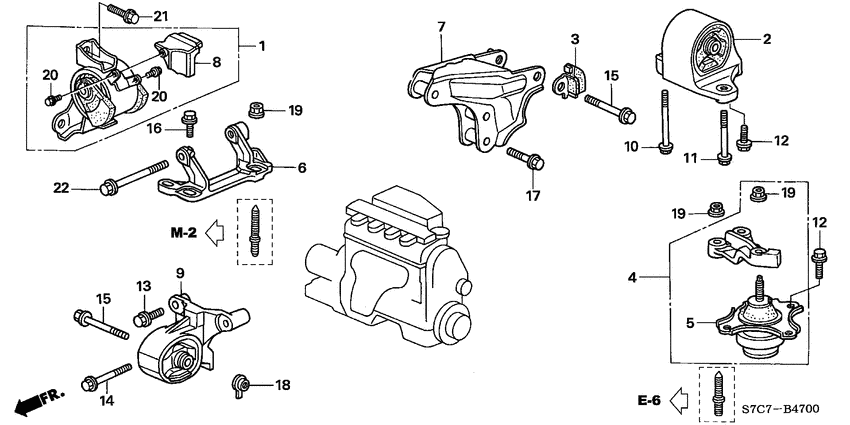

Engine mounts (1.7L) 18

#	OEM	部品名
1	50805-S5A-A01	Rubber assy. - TRANSMISSION MOUNTING
2	50810-S6A-013	Rubber - RR. ENGINE MOUNTING
3	50815-S5A-000	Damper - RR. ENGINE MOUNTING BRACKET
4	50820-S5A-A08	Rubber assy. - ENGINE SIDE MOUNTING (YAMASHITA)
5	50821-S5A-A07	Rubber comp, ENGINE SIDE MOUNTING (YAMASHITA)
6	50825-S5C-000	Bracket - TRANSMISSION MOUNTING
7	50827-S5A-000	Bracket - ENGINE RR. MOUNTING
8	50830-S5A-A02	Mass - MISSION MOUNTING
9	50840-S5A-010	Stopper, FR. ENGINE
10	90161-S5A-000	Bolt - FLANGE, 10X110
11	90162-S5A-000	Bolt - FLANGE, 10X80
12	90163-S5A-000	Bolt - FLANGE, 10X20
13	90164-S5A-000	Bolt - FLANGE, 12X40
14	90165-S5A-000	Bolt - FLANGE, 10X70
15	90167-S5A-010	Bolt - FLANGE, 12X88
16	90168-S5A-000	Bolt - FLANGE, 12X35
17	90170-S5A-000	Bolt - FLANGE, 12X60
18	90371-S5A-000	Nut - YOKE, 12MM

Engine wire harness (1.7L) 31

#	OEM	部品名
1	32110-PSA-G22	Harness - ENGINE WIRE
2	32113-PLD-003	Collar - HARNESS GROMMET
3	32117-PLC-000	Harness - SUB SENSOR WIRE
4	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)
6	32118-PLM-A01	Holder - CORRUGATED TUBE (DARK GREEN) (19MM)
7	32118-P72-003	Holder - CORRUGATED(DARK GREEN) (19MM)
8	32120-PLR-000	Cover assy. - ENGINE WIRE HARNESS
10	32127-PLC-000	Holder comp. a - HARNESS
11	32128-PLC-000	Holder assy. b - ENGINE HARNESS
12	32129-PLC-000	Holder c - HARNESS
13	32131-PLC-000	Holder d - HARNESS
14	32132-PSA-000	Holder - WIRE HARNESS (E)
15	32418-PLA-300	Cover - BATTERY TERMINAL
16	32601-SK7-900	Bolt - BATTERY TERMINAL
17	32602-SK7-900	Nut - BATTERY TERMINAL
18	32610-S7A-000	Cable - SUB EARTH
20	32741-PLM-A00	Stay a - ENGINE WIRE HARNESS
21	32742-PSA-G00	Stay b - ENGINE WIRE HARNESS
23	32748-PSA-000	Stay h - ENGINE WIRE HARNESS
24	32750-PLC-003	Clamp k - ENGINE WIRE HARNESS
25	90114-SM4-900	Bolt - 6X15
26	90149-SE0-003	Bolt - EARTH, 6X16
27	90501-SS8-A01	Retainer
28	91501-P8A-A01	Stud
29	91506-P0A-A01	Clip - ALTERNATOR CORD
30	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
31	91531-SW5-003	Band - HARNESS, 6MM (NATURAL) (120MM)
32	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
33	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)
34	91601-P8A-A01	Receptacle
38	90207-PG6-010	Nut - CAP, 6MM (BLACK)

Exhaust manifold (1.7L) 6

#	OEM	部品名
1	18100-PMR-G00	Manifold comp - EX.
2	18115-PLC-J02	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)
2	18115-PLC-J01	Gasket - EX. MANIFOLD (ISHINO GASKET)
3	18120-PLD-000	Cover - EX. MANIFOLD
4	90003-PLC-000	Bolt - FLANGE, 8X22
5	90015-PAA-L20	Bolt - FLANGE, 8X12

Exhaust pipe/silencer (1.7L) 32

#	OEM	部品名
1	18030-S7A-J00	Silencer set - EX.
2	18160-PLR-G11	Converter comp.
3	18176-P08-003	Bolt - CONVERTER
4	18181-PLD-000	Cover - LOWER
5	18182-PLD-000	Cover - UPPER
6	18215-SL5-A00	Rubber - EX. MOUNTING
7	18215-S5A-A11	Rubber - EX. MOUNTING
8	18215-S5A-J01	Rubber - EX. MOUNTING
9	18220-S7A-023	Pipe b - EX.
10	18229-S04-X01	Gasket - EX. FLEXIBLE
10	18229-SNA-A01	Gasket, EX. FLEXIBLE
11	18229-S5A-J01	Gasket - EX. FLEXIBLE
12	18230-SV4-000	Spring - FLEXIBLE JOINT
13	18231-SR3-A22	Bolt b - FLEXIBLE JOINT
14	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
15	36531-PLR-A01	Sensor - OXYGEN
16	36532-PSA-004	Sensor - RR. OXYGEN
17	36533-PLD-000	Clamp - OXYGEN SENSOR
18	36534-PLD-000	Clamp - OXYGEN SENSOR
19	36535-PLD-000	Clamp - OXYGEN SENSOR
20	36537-PSA-000	Clamp - RR. OXYGEN SENSOR
21	74252-S5A-000	Plate - DASHBOARD LOWER BAFFLE
22	74602-S6A-000	Plate comp - FLOOR HEAT BAFFLE (A)
23	74604-S7A-000	Plate comp - FLOOR HEAT BAFFLE (B)
24	74650-S7A-000	Plate comp - TANK BAFFLE
25	74655-S7A-000	Plate - SILENCER BAFFLE
26	80275-S7A-000	Stay - DRAIN
27	90023-PK1-000	Bolt - FLANGE, 6X10
27	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
28	90212-SA5-003	Nut - SELF-LOCK, 10MM
29	90301-SV7-000	Nut - PAINT CUTTING, 6MM
30	91597-S5H-T31	Clip - DRAIN TUBE

Floor mat 7

#	OEM	部品名
1	74251-S7A-G00	Insulator - DASHBOARD LOWER OUTER
2	74260-S7A-G00	Insulator - DASHBOARD
10	90676-SB2-003	Clip - DASHBOARD INSULATOR
11	90676-S5A-003	Clip - DASHBOARD INSULATOR
12	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR
13	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
14	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)

Floor/inner panels 1

#	OEM	部品名
32	80461-S7A-000	Grommet - AIR CONDITIONER PIPE

Fog light 8

#	OEM	部品名
1	33165-SB0-731	Bulb - 12V55W H3) (HALOGEN
2	33901-S7A-G01	Lamp unit - R. FOG
3	33909-S06-J01	Band - HARNESS
4	33912-S7A-J01	Bracket comp. - R.
5	33913-S3N-J01	Bolt - SPECIAL, 5X16
6	33951-S7A-G01	Lamp unit - L. FOG
7	33962-S7A-J01	Bracket comp. - L.
8	91565-S0X-003	Clip - COUPLER (DARK GREEN)

Front brake 24

#	OEM	部品名
1	01463-S7A-N00	Caliper set - FR.
1	01463-S7A-N01	SETCALIPER FR 1
2	06450-S7A-E50	Pad set - FR. (WITHOUT SHIM)
3	06455-S7A-E00	Shim set - FR.
4	43352-SM4-951	Screw - BLEEDER
5	43353-SD5-003	Cap - BLEEDER SCREW
6	44300-S47-008	Bearing assy - HUB (NTN)
6	44300-S47-305	Bearing assy
7	44600-S87-A00	Hub assy - FR.
8	45018-S7A-N02	Caliper sub assy. - R. FR.
9	45019-S7A-N02	Caliper sub assy. - L. FR.
10	45022-S7A-E50	Pad set - FR.
11	45216-S5A-J01	Piston
12	45235-S0K-A01	Pin a
13	45237-S7A-N02	Retainer
14	45240-SM4-003	Bolt - FLANGE, 10X24
15	45251-S7A-E10	Disk - FR. BRAKE (15")
16	45255-S7A-N00	Guard - FR. SPLASH
17	45262-S0K-A01	Pin b
18	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)
19	90113-SD4-902	Bolt - WHEEL (SAGA)
19	90113-SD4-901	Bolt - WHEEL (MEIRA)
19	90113-S84-901	Bolt - WHEEL (ROCKNEL FASTENER)
20	90681-SG0-000	Circlip - INTERNAL, 84MM

Front bulkhead/dashboard 6

#	OEM	部品名
41	74185-S7A-000	Gusset - R. FR. SHOCK ABSORBER BASE
42	74195-S7A-000	Gusset - L. FR. SHOCK ABSORBER BASE
43	74230-S7A-G00	Rod comp - SUB FRAME PERFORMANCE
44	90105-634-000	Bolt-washer (8x20)
45	90108-S0A-003	Bolt - FLANGE, 6X15
46	90801-S5A-000	BOLT, FLANGE, 8X25

Front door glass/ door regulator 14

#	OEM	部品名
1	39885-S5A-G01	Label - IMMOBILIZER
2	72210-S7A-G03	Regulator assy - R. FR. DOOR POWER
3	72230-S7A-003	Sash - R. FR. DOOR FR. LOWER
4	72231-S7A-003	Sash - R. FR. DOOR CENTER LOWER
5	72235-S7A-003	Runchannel - R. FR. DOOR
6	72250-S7A-G03	Regulator assy - L. FR. DOOR POWER
7	72270-S7A-003	Sash - L. FR. DOOR FR. LOWER
8	72271-S7A-003	Sash - L. FR. DOOR CENTER LOWER
9	72275-S7A-003	Runchannel - L. FR. DOOR
10	73300-S7A-G02	Glass assy - R. FR. DOOR (GREEN) (ASAHI)
11	73350-S7A-G02	Glass assy - L. FR. DOOR (GREEN) (ASAHI)
12	90126-SS0-000	Bolt-washer - 6X16
13	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)
14	91580-SM4-003	Clip - COUPLER(ORANGE)

Front door lining (LH) 4

#	OEM	部品名
3	72335-S7A-003	Weatherstrip - R. FR. DOOR INNER
4	72375-S7A-003	Weatherstrip - L. FR. DOOR INNER
10	90662-SB2-003	Grommet - SCREW, 5MM
11	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Front door locks/ outer handle 34

#	OEM	部品名
1	72110-S7A-G11	Lock assy - R. FR. DOOR POWER
3	72113-SR4-004	Snap - BLACK
4	72115-S5A-003	ACTUATOR ASSY, DOOR LOCK (R. RR.)
6	72116-SM4-003	Snap d - VIOLET
7	72116-SV4-003	Snap - ORANGE
9	72117-S04-003	Holder - ROD (YELLOW)
10	72117-S6A-Q01	Protector - R. FR. DOOR LOCK
12	72119-S04-003	Stopper a - OUTSIDE HANDLE
15	72123-SR0-003	Ring - OUTSIDE HANDLE
16	72645-S6A-E01	Protector - R. DOOR OUTSIDE HANDLE
17	72131-S7A-003	Rod - R. FR. INSIDE HANDLE
18	72134-SM4-003	Snap - R. (VIOLET)
19	72135-S5A-003	Striker assy - DOOR LOCK
20	72136-SM4-003	Holder - ROD, 4MM
23	72139-S7A-000	Protector - R. FR. DOOR KNOB ROD
24	72140-S7A-G11	Handle assy - R. FR. DOOR OUTSIDE
25	72141-SD4-004	Bush - R. JOINT
27	72143-S04-003	Packing
30	72146-S0X-A51	Cylinder - L. DOOR
31	72150-S7A-G01	Lock assy - L. FR. DOOR POWER
32	72155-S5A-A01	Actuator assy - DOOR LOCK
34	72157-S6A-Q01	Protector - L. FR. DOOR LOCK
36	72170-S6A-E01	Protector - L. FR. DOOR OUTER HANDLE
37	72171-S7A-003	Rod - L. FR. INSIDE HANDLE
38	72174-SM4-003	Snap - L. (YELLOW)
39	72178-S7A-000	Protector - L. FR. DOOR KEY ROD
40	72179-S7A-000	Protector - L. FR. DOOR KNOB ROD
41	72180-S7A-003	Handle assy - L. FR. DOOR OUTSIDE
42	72181-SD4-004	Bush - L. JOINT
43	90120-SM4-000	Screw - TAPPING
44	90120-SV4-000	Bolt - LOCK STRIKER
45	90141-S84-003	Screw - 3X10
46	90866-SA0-000	Grommet - SCREW, 4MM
47	91501-S04-003	Clip - INNER FENDER

Front door panels 21

#	OEM	部品名
5	67328-S7A-003	Tape - R. FR. DOOR UPPER OUTER
6	67368-S7A-003	Tape - L. FR. DOOR UPPER OUTER
11	72310-S7A-003	Weatherstrip - R. FR. DOOR
12	72321-S7A-G00	Seal - R. FR. DOOR HOLE
13	72325-S7A-003	Sub seal - R. FR. DOOR
14	72340-S7A-003	Checker comp. - R. FR. DOOR
15	72350-S7A-003	Weatherstrip - L. FR. DOOR
16	72361-S7A-G00	Seal - L. FR. DOOR HOLE
17	72365-S7A-003	Sub seal - L. FR. DOOR
18	72380-S7A-003	Checker comp. - L. FR. DOOR
19	72435-S7A-J01	Seal - R. FR. DOOR LOWER SILL
20	72475-S7A-J01	Seal - L. FR. DOOR LOWER SILL
21	75891-SA7-000	Stopper - DOOR
22	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)
23	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
23	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
24	90141-S04-000	Bolt - FLANGE, 8X22
25	90686-692-003	Cap - LINING MOUNT
26	91530-SP1-003	Clip A - DOOR WEATHERSTRIP
27	91568-SR2-003	Clip - DOOR WEATHERSTRIP
28	91651-S84-A00	Seal - DOOR PANEL HOLE

Front driveshaft (1.7L) 19

#	OEM	部品名
1	44014-S7A-951	Joint set - OUTBOARD
2	44017-S3X-000	Boot set - INBOARD
2	44017-S3X-010	Boot set
3	44018-SX0-C20	Boot set - OUTBOARD
4	44305-S7A-950	Driveshaft assy. - R.
5	44306-S7A-950	Driveshaft assy. - L.
6	44310-S7A-300	Joint comp - INBOARD
7	44310-S9A-300	Joint comp - INBOARD
8	44319-S0A-300	Set ring - 28X2.0
8	44319-S84-300	Set ring - 28X2.0
9	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)
10	44327-SX0-C02	Band - OUTBOARD BOOT (NIPPON HATSUJO)
11	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
12	44329-SX0-C02	Band - DRIVESHAFT (NIPPON HATSUJO)
13	44337-SB0-300	Ring b - STOPPER
14	44338-SB0-300	Circlip - 26MM
15	44351-S10-A11	Damper - DYNAMIC (TOUKAI)
16	44351-S7A-003	Damper - DYNAMIC (TOUKAI)
17	90305-SD4-003	Nut - SPINDLE (24MM)

Front fenders 16

#	OEM	部品名
3	74101-S7A-N10	Fender R. FR. INNER
4	74105-S7A-000	Fairing - R. FR. FENDER
5	74111-S7A-E10	Shield - FR. SPLASH
6	74151-S7A-N10	Fender L. FR. INNER
7	74155-S7A-000	Fairing - L. FR. FENDER
8	90108-S0A-003	Bolt - FLANGE, 6X15
9	90114-SE0-000	Screw - TAPPING, 5X20
10	90305-SM4-003	Nut - CLIP, 6MM
11	90501-SM4-003	Bolt - FENDER
12	90682-S7A-003	Grommet - SCREW, 5MM
12	90682-SB0-003	Grommet - SCREW, 5MM
13	91503-SZ3-003	Clip A
14	91503-SZ5-003	Clip - BUMPER FACE
15	91512-SX0-003	Clip - INNER FENDER CLIP
16	91533-SG0-000	Clip b - FAIRING
17	91545-SE0-003	Clip assy. - 8MM

Front grille 8

#	OEM	部品名
1	71123-S7A-J01	Cover - FR. GRILLE
2	71124-S7A-N01	Lens comp - FR. GRILLE
5	75700-S6A-003	Emblem - FR. CENTER (H)
6	90116-SE3-000	Screw-washer - 4X12
7	90301-ST0-003	push nut, 3mm
8	91503-SZ3-003	Clip A
9	91503-S7A-003	Clip - FR. GRILLE
10	91578-SW5-003	Clip b - FR. GRILLE

Front seat (L.) 13

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
9	81223-S04-000	Clip - SHAFT, 8MM
13	81526-S7A-G12	Frame comp - L. FR. SEATBACK
14	81527-S7A-E12	Pad comp - L. FR. SEATBACK
15	81528-S5A-J01	Holder - L. MODULE
18	81537-S7A-G02	Pad comp - L. FR. SEAT CUSHION
24	90134-SE3-003	Screw - TAPPING, 5X10
25	90142-S70-003	Bolt-washer - 10X18
27	90321-SP0-A80	Nut-washer - 6MM
28	90610-SR3-003	Clip - GARNISH (KATO)
29	90650-KV3-000	Band - WIRE
30	90650-S7A-J01	Clip - RATCHET, 15MM

Front seat (R.) 12

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
5	81126-S7A-J12	Frame comp - R. FR. SEATBACK
6	81127-S7A-J12	Pad comp - R. FR. SEATBACK
7	81128-S5A-J01	Holder - R. MODULE
11	81137-S7A-G02	Pad comp - R. FR. SEAT CUSHION
27	90134-SE3-003	Screw - TAPPING, 5X10
28	90142-S70-003	Bolt-washer - 10X18
31	90321-SP0-A80	Nut-washer - 6MM
32	90610-SR3-003	Clip - GARNISH (KATO)
33	90650-KV3-000	Band - WIRE
34	90650-S7A-J01	Clip - RATCHET, 15MM

Front seat components (L.; 2) 7

#	OEM	部品名
2	81237-S7A-J01	Spring - LEVER
3	81261-S7A-J01	Protector b
4	81262-S7A-J01	Protector a
6	81271-S7A-003	Lever
7	81536-S7A-G11	Frame comp - L. FR. SEAT CUSHION
9	90135-S5A-003	Bolt-washer - 10X27
10	90610-SR3-003	Clip - GARNISH (KATO)

Front seat components (R.; 1) 10

#	OEM	部品名
1	81136-S7A-G11	Frame comp - R. FR. SEAT CUSHION
3	81176-S7A-J41	Rail comp - UNDER BOX GUIDE
4	81177-S7A-J41	Bracket - R. UNDER BOX GUIDE RAIL
7	81237-S7A-J01	Spring - LEVER
8	81261-S7A-J01	Protector b
9	81262-S7A-J01	Protector a
11	81271-S7A-003	Lever
12	81577-S7A-J41	Bracket - L. UNDER BOX GUIDE RAIL
13	90135-S5A-003	Bolt-washer - 10X27
14	90610-SR3-003	Clip - GARNISH (KATO)

Front shock absorber 16

#	OEM	部品名
1	51401-S7C-G02	Spring - FR. (SHOWA)
2	51402-S6M-014	Rubber - SPRING UPPER SEAT
3	51601-S7A-E01	Absorber assy - R. FR. SHOCK
4	51602-S7A-E01	Absorber assy - L. FR. SHOCK
5	51605-S7A-E01	Absorber unit - R. FR. SHOCK
6	51606-S7A-E01	Absorber unit - L. FR. SHOCK
7	51688-S6M-014	Seat - FR. SPRING UPPER
8	51722-S5A-801	Rubber - FR. BUMP STOPPER
9	51726-S5A-004	BEARING, FR. SHOCK ABSORBER MOUNT
10	51920-S6M-014	MOUNT, RH. FR. SHOCK ABSORBER
11	51925-S6M-014	MOUNT, LH FR. SHOCK ABSORBER
12	90002-S10-000	Nut - FLANGE, 10MM
13	90188-S6M-Z01	Bolt - FLANGE, 16X62 (SERVICE)
13	90119-S6M-Z01	Bolt - FLANGE, 16X62
14	90213-SJ6-004	Nut - SELF-LOCK, 12MM(NYLON)
15	90382-S6M-Z01	Nut - FLANGE, 16MM

Front sub frame/ cross beam 7

#	OEM	部品名
1	50200-S7A-G03	Sub frame comp. - FR.
2	50205-S7A-000	Damper - FR. SUB FRAME RR.
3	50206-S5A-013	Damper - FR.
4	50300-S7A-G00	Beam - RR. SUSPENSION CROSS
5	90161-S7A-000	Bolt - FLANGE, 12X100
6	90174-S5A-003	Bolt-washer - 10X32
7	90175-S5A-000	Bolt - FLANGE, 14X115

Front windshield 13

#	OEM	部品名
1	04731-S7A-J00	Rubber set - FR. WINDSHIELD DAM
2	73111-S7A-G02	Glass - FR. WINDSHIELD (GREEN) (ASAHI)
3	73150-S7A-003	Molding - FR. WINDSHIELD
4	73152-S7A-003	Garnish assy - R. FR. WINDSHIELD SIDE
5	73162-S7A-003	Garnish assy - L. FR. WINDSHIELD SIDE
6	73331-S7A-013	Glass set - R. FR. CORNER (GREEN) (ASAHI)
7	73371-S7A-013	Glass set - L. FR. CORNER (GREEN) (ASAHI)
8	78527-S04-E80	Label - SRS CAUTION (CHILD SEAT)
9	91533-S2X-003	Clip c - FR. WINDSHIELD SIDE GARNISH
10	91568-SX0-003	Fastener a - WINDSHIELD
11	91569-SX0-013	Fastener b - WINDSHIELD
12	91573-S2X-003	Clip A - FR. WINDSHIELD SIDE GARNISH (12.4MM)
13	91574-S2X-003	Clip b - FR. WINDSHIELD SIDE GARNISH (17.4MM)

Front wiper (LH) 28

#	OEM	部品名
1	76505-S7A-G01	Motor comp - FR. WIPER
2	76506-S7A-004	Bolt-washer - 6X14
3	76511-S2K-004	Nut - HEX. (8MM)
4	76512-S2K-004	Washer - SPRING, 8MM
5	76515-S7A-004	Seal a
6	76516-S7A-J01	Rubber b - MOUNTING
7	76516-S7A-J11	Rubber c - MOUNTING
8	76516-S7A-004	Rubber a - MOUNTING
9	76517-S7A-J01	Bolt assy - EARTH (WITH COLLAR)
10	76517-S7A-J11	Collar c
11	76517-S7A-004	Collar a
12	76518-S2K-004	Cap - PIVOT
13	76518-S7A-004	Screw - TAPPING, 5MM
14	76520-S7A-004	Link comp - A
15	76524-S2K-004	Dust seal - 16
16	76524-S7A-004	Dust seal a
17	76530-S7A-G01	Link comp - FR. WIPER (LH)
18	76540-S7A-004	Rod unit a
19	76550-S7A-004	Rod unit b
20	76561-S2K-004	Washer - PIVOT
21	76600-S7A-G01	Arm - WINDSHIELD WIPER (DRIVER SIDE)
22	76610-S7A-G01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
23	76620-S7A-G02	Blade - WINDSHIELD WIPER (DRIVER SIDE)
24	76622-S7A-014	Rubber - BLADE (600MM)
25	76630-S7A-G02	Blade - WINDSHIELD WIPER (PASSENGER SIDE)
26	76632-S7A-014	RUBBER, BLADE (350MM)
27	90126-SR3-000	Bolt-washer - 6X32
28	91611-S5A-000	Cap - FR. WIPER

Fuel pipe 33

#	OEM	部品名
1	16040-S7A-E31	Pipe comp - FUEL FEED
3	16722-PSA-003	Hose comp. - FUEL FEED
5	16725-PLC-003	Clamp a - FUEL HOSE (BLACK)
9	17300-S5C-931	Canister assy
10	17315-S7A-931	Filter - CANISTER
11	17358-S7A-930	Bracket - CANISTER
12	17371-SR3-003	Valve - TWO WAY
13	17372-S7A-930	Tube - CANISTER DRAIN
14	17701-S7A-000	Rubber - FUEL PIPE INSULATOR
15	17711-S0X-A31	Retainer - GREEN)(TOKAI
16	17711-S0X-003	Retainer - ORANGE) (TOKAI
18	17716-S7A-931	Tube assy - PURGE
19	17720-S7A-933	Pipe - FUEL PURGE
20	17724-S7A-930	Tube assy - FUEL VENT
21	17726-S7A-930	Hose assy - FUEL PURGE
23	17742-S7A-003	Joint - DRAIN TUBE
24	17743-S7A-930	Tube - CANISTER FILTER
25	17759-S7A-931	Clip b - FUEL PIPE
26	17761-S7A-932	Stay a - FUEL PIPE
28	17762-S5A-930	Stay b - FUEL PIPE
29	17763-S7A-930	Stay c - FUEL PIPE
30	17764-S7A-930	Stay d - FUEL PIPE
31	17765-S5A-930	Stay e - FUEL PIPE
32	90671-SB2-000	Bolt - FR. FENDER (DACRO COATING)
33	90684-SA0-003	Clip - FUEL HOSE
34	91401-SDC-000	Clip - TUBE(B10)
35	91405-SDA-000	Clamp - TUBE(D10.5)
36	91546-SD4-Z01	Clamp - 10.5MM(SIDE)
37	91547-SD4-Z01	Clamp - 19MM (UPPER)
38	91592-S7A-003	Clip A - FUEL PIPE
39	91595-S7A-931	Clamp a - FUEL PIPE
40	91598-S7A-930	Rubber - FUEL PIPE INSULATOR
41	91599-S7A-931	Clamp b - FUEL PIPE

Fuel tank 32

#	OEM	部品名
1	16010-S7A-931	Strainer set - FUEL
2	16015-S7A-930	Regulator assy
3	16016-S7A-931	Wire comp - LEAD
4	16711-S5H-T31	Rubber - FUEL PUMP INSULATOR
5	17040-S7A-931	Pump set - FUEL
6	17043-S5H-T30	O-ring
7	17044-S7A-G30	Tank comp. - FUEL
8	17044-SDC-E01	Bracket c
9	17516-S7A-931	Filter set - FUEL PUMP
10	17519-S7A-000	Protector - FUEL PIPE
11	17521-S7A-000	Band - R. FUEL TANK MOUNTING
12	17522-S7A-000	Band - L. FUEL TANK MOUNTING
13	17525-SM4-000	Bolt-washer - 10X35
14	17574-S84-A01	Packing - BASE
15	17579-S0A-932	Plate - SETTING
16	17630-S7A-931	Meter comp
17	17651-S7A-931	Tube - FILLER NECK
18	17652-SDA-T01	Clip - FILLER TUBE
19	17653-S7A-930	Tube - BREATHER
20	17660-S7A-G31	Pipe comp - FUEL FILLER
21	17662-S1A-E01	Packing - FUEL FILLER
22	17670-S5A-E33	Cap comp. - FUEL FILLER (TOYODA)
23	17705-S0X-A01	Grommet
24	17721-S7A-930	Tube assy - FUEL VENT
25	17738-SP0-003	Clip - FUEL PIPE (BLACK)
26	74660-S7A-000	Cap assy. - FLOOR MAINTENANCE HOLE
27	90150-S04-003	Bolt - EARTH, 6X16
28	91401-SDC-000	Clip - TUBE(B10)
29	91413-S5A-003	Clamp - FUEL TUBE (D17)
30	91594-S1A-E01	Clip - FUEL FILLER CAP
31	91594-S7A-931	Clamp - VENT TUBE
32	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)

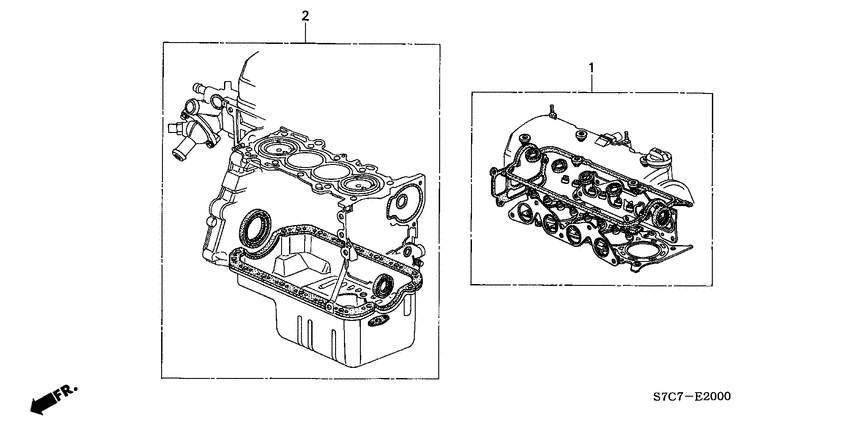

Gasket kit (1.7L) 2

#	OEM	部品名
1	06110-PLD-010	Gasket kit - CYLINDER HEAD
2	06111-PLA-E01	Gasket kit - CYLINDER BLOCK

Grommet (FRONT) 19

#	OEM	部品名
1	74177-SD4-000	Cushion a - HOOD
2	74514-S7A-000	Seal a - R. QUARTER HOLE
3	74515-S7A-000	Seal b - R. QUARTER HOLE
4	74558-S7A-000	Seal - L. QUARTER HOLE
5	75826-634-300	Seal - INSIDE PANEL, 15MM
6	90615-SR3-000	Cap - WELD HOLE, 51X77
7	90615-S5A-003	Plug - HOLE, 27X56
8	90852-671-003	Plug - HOLE
9	91601-S7A-003	Plug - HOLE, 8.5 (BLACK)
10	91603-S9A-003	Cushion - HOOD(25MM-32MM)
11	91606-S2G-000	Plug - HOLE, 19.5MM
12	91611-SD5-000	Stopper - BUMPER
13	91611-S7A-000	Block a - RR. INNER
14	91612-S7A-000	Block b - RR. INNER
15	91613-SN4-003	Plug - FLOOR HOLE, 25MM
18	91615-SH3-000	Cap - FLOOR HOLE, 49MM
19	91615-S9A-000	Block a - DASHBOARD UPPER
20	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
21	91631-S5A-000	Plug - AIR CONDITIONER HOLE (36X74)

Grommet (LOWER) 5

#	OEM	部品名
1	74687-S47-000	Rubber - SPARE TIRE SET PLATE
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
4	90810-SB2-660	Grommet - TIE DOWN, 20X35
5	91606-SK7-003	Plug - BLIND, 25MM
6	91606-S2G-000	Plug - HOLE, 19.5MM

Grommet (REAR) 6

#	OEM	部品名
1	72367-SK8-000	Seal - OUTER HANDLE HOLE
2	82871-671-000	Grommet - DRAIN HOLE, 25MM
3	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
4	90857-SD4-000	Cap - WELD HOLE
5	91610-SD4-000	Plug - HOLE, 28MM
6	91615-S6E-E00	Block a - DASHBOARD UPPER

Grommet (SIDE) 8

#	OEM	部品名
1	91616-SJ4-000	Seal - FR. PILLAR INNER LOWER
2	91616-S04-000	Block - FR. PILLAR INNER LOWER
3	91618-SE3-010	Seal - RR. PILLAR UPPER
4	91618-S5A-000	Seal - HOLE, 30X90
5	91618-S7A-000	Block - FR. PILLAR INNER LOWER
6	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
7	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
8	91902-SJ8-003	Cushion - WIRE HARNESS (50X50)

Harness band/bracket (LH) 35

#	OEM	部品名
1	32103-679-000	Grommet - WIRE HARNESS(BLACK)
2	32112-S2K-003	Band - CABLE (90MM)
3	32112-S5A-900	Grommet - WIRE HARNESS
4	32116-S7A-G00	Bracket - HARNESS
5	32131-SV4-003	Cap - COUPLER (CP 2P, 3P)
6	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
7	32132-S6A-003	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
8	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
9	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
10	32134-S04-000	Cap - WPC 4P
11	32203-S7A-000	Bracket - ENGINE ROOM WIRE HARNESS
12	38617-S5A-J01	Filter comp - NOISE
13	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
15	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
16	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
17	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
18	91533-S04-003	Clip - COUPLER (NATURAL)
19	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)
20	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
21	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)
22	91541-S6M-003	Clip - HARNESS BAND (BLACK) (140MM)
24	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
25	91545-S2A-003	Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL)
26	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
27	91551-SW5-003	Clip - HARNESS BAND (BROWN) (151MM)
28	91556-SM4-003	Clip - BAND (BLACK) (100MM)
29	91558-SJ6-003	Strap - HARNESS (30) (BLACK) (107.5MM)
30	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)
31	91565-S0X-003	Clip - COUPLER (DARK GREEN)
32	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)
33	91577-SS0-003	Clip - WIRE HARNESS (BLUE) (122.5MM)
34	91582-SM4-003	Clip - WIRE HARNESS
35	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)
36	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
37	91902-S3N-003	Plaster - WIRE HARNESS (50X50)

Headlight 20

#	OEM	部品名
1	33101-S7A-G12	Headlight unit - R.
2	33103-SL5-A02	Bulb - HEADLIGHT (HB3) (12V 60W) (KOITO)
2	33115-S7A-003	Bulb - HEADLIGHT(HB3)(12V 60W) (KOITO)
3	33107-S7A-003	Nut - SPECIAL
4	33116-S6M-003	Adapter
5	33126-S3V-A01	Cover - RUBBER
6	33126-S7A-003	Cover - RUBBER
7	33130-S2A-G01	Adjuster unit - HEADLIGHT
8	33151-S7A-G12	Headlight unit - L.
9	33301-S5H-T01	Bulb - WEDGE BASE (WY 12V 5W) (STANLEY) (AMBER)
10	33303-S30-003	Bulb - T20W 12V 21W
11	33303-S7A-J11	Socket comp - T20 S
12	33304-S5A-003	Socket comp - T10
13	33304-S6M-003	Socket - T10
14	34301-S5H-T02	Lamp unit
15	34901-SZ3-000	Bulb - HEADLIGHT(H1)(12V 55W)
16	34908-SB6-741	Bulb - 12V 5W
16	34351-657-921	Bulb - 12V/5W) (STANLEY
17	90101-S5A-003	Tapping - SPECIAL, 5X18
18	90682-SB0-003	Grommet - SCREW, 5MM

Heater blower (LH) 20

#	OEM	部品名
1	79191-SZ3-A01	Nut - HOLDER
2	79303-S5A-003	Lid - BLOWER
3	79305-S7A-G11	Blower sub assy.
4	79308-S5A-003	Seal - BLOWER OUTER (B)
5	79309-S5A-003	Seal - BLOWER OUTER (A)
6	79310-S7A-G12	Motor assy. - FAN
7	79330-S7A-941	Transistor - POWER
7	79330-S5A-942	Transistor - POWER
8	79350-S5A-A01	Motor assy. - FRESH & RECIRCULAR
9	79800-S7A-G11	Duct assy
11	80291-S5A-003	Frame - FILTER (A)
12	80292-S7A-003	Element - FILTER
14	80296-S5A-003	Frame - FILTER (B)
15	80297-S5A-003	Seal - BLOWER PLATE
16	90121-SR3-003	Screw - TAPPING, 5X12
17	90127-SX0-003	Screw - TAPPING, 4X16
18	90132-SR3-003	Screw - TAPPING, 5X16
19	90133-SR3-003	Screw-washer - 4X16
20	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
21	90659-692-000	Clamp - CASE

Heater control 2

#	OEM	部品名
2	79552-S7A-G02	Lid - AIR CONDITIONER SWITCH
12	79671-S84-A41	Bulb - NEO WEDGE (14V 100MA)

Heater unit (LH) 39

#	OEM	部品名
1	39248-692-003	Packing - HEATER
3	79027-S5D-A01	Case - EXPANSION VALVE COVER
4	79028-S5D-A01	Cover - FLANGE
5	79029-S7A-G11	Cover - FOOT DUCT
6	79103-S5A-003	Seal - DRAIN
7	79104-S5D-A01	Seal a
8	79105-S5D-A01	Seal b
9	79106-S7A-G02	Heater sub assy.
9	79106-S7A-G12	Heater sub assy.
10	79107-S5D-A01	Seal c
11	79110-S5D-A02	Core sub assy. - HEATER
12	79140-S5D-A01	Motor assy. - MODE
13	79160-S5A-A01	Motor assy. - TEMPERATURE
14	79191-SZ3-A01	Nut - HOLDER
15	79544-S5D-A00	Cable - WATER VALVE CONTROL
16	79770-SE0-000	Grommet - WATER VALVE CABLE
17	79831-S7A-003	Bracket b - HEATER
18	79832-S7A-003	Bracket - HARNESS
19	80211-S5D-A51	Plate assy. - HEATER
20	80212-S7A-G61	Pipe assy.
22	80215-S7A-G61	Evaporator comp.
23	80219-S5A-003	Seal - EXPANSION VALVE
24	80220-S7A-003	Valve - EXPANSION
25	80271-S7A-000	Hose - DRAIN
27	80560-S5A-941	Sensor assy - EVAPORATOR
28	80650-S7A-A10	Sub harness - AIR CONDITIONER
28	80650-S7A-A00	Sub harness - AIR CONDITIONER
29	80871-S5A-003	O-ring - 5/8"
30	80872-S5A-003	O-ring - 1/2"
31	90121-SR3-003	Screw - TAPPING, 5X12
33	90125-S5A-003	Bolt - SOCKET, 5X30
34	90126-S5A-003	Bolt - SOCKET, 5X40
35	90127-SX0-003	Screw - TAPPING, 4X16
36	90133-SR3-003	Screw-washer - 4X16
37	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
38	90156-SH3-000	Bolt-washer - 6X24
39	90659-692-000	Clamp - CASE
40	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)
41	91548-SV4-003	Clip - BAND (6MM BOSS)(NATURAL) (127MM)

Hoses/pipes (LH; 1.7L) 27

#	OEM	部品名
1	38608-SA5-000	Rubber - MOUNTING
2	38609-SA5-000	Collar - DISTANCE
3	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
4	80285-S5A-A00	Holder
5	80311-S7A-G01	Hose comp. - SUCTION
6	80315-S7A-013	Hose comp. - DISCHARGE
7	80321-S7A-G01	Pipe comp - AIR CONDITIONER
8	80322-S7A-G01	Pipe comp. a - SUCTION
9	80341-S7A-G02	Pipe comp - RECEIVER
10	80360-SE0-013	Clamp a - SUCTION HOSE
11	80362-S5A-A00	Clamp - AIR CONDITIONER PIPE
12	80362-S7A-G00	Stay - SUCTION HOSE
13	80363-S5A-A01	Stay - SUCTION PIPE
14	80371-S7A-000	Clamp - DISCHARGE HOSE
15	80381-SV7-A01	Clamp - RECEIVER PIPE
16	80387-SM4-A01	Clip - RECEIVER PIPE
17	80440-S3N-003	Switch assy - PRESSURE (DENSO)
18	80464-S5A-000	Grommet - AIR CONDITIONER PIPE
19	80465-S5A-A00	Cover - AIR CONDITIONER PIPE
20	80466-S5A-A00	Rubber - AIR CONDITIONER HOSE
21	80865-SN7-003	Cap h - VALVE
22	80866-SN7-003	Cap l - VALVE
23	80871-SN7-003	O-ring - 5/8"
24	80872-SN7-003	O-ring - 1/2"
25	80873-SN7-003	O-ring - 8MM
26	90133-SD2-000	Bolt - CONDENSER
27	90361-SV4-003	Nut - PAINT CUTTING, 6MM

Hoses/pipes (LH; SINGLE; 1.7L) 28

#	OEM	部品名
1	38608-SA5-000	Rubber - MOUNTING
2	38609-SA5-000	Collar - DISTANCE
3	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
4	80285-S5A-A00	Holder
5	80311-S7A-G01	Hose comp. - SUCTION
6	80315-S7A-013	Hose comp. - DISCHARGE
7	80321-S7A-G01	Pipe comp - AIR CONDITIONER
8	80322-S7A-G01	Pipe comp. a - SUCTION
9	80341-S7A-E12	Pipe comp. a - RECEIVER
10	80342-S7A-G12	Pipe comp. b - RECEIVER
11	80360-SE0-013	Clamp a - SUCTION HOSE
12	80362-S5A-A00	Clamp - AIR CONDITIONER PIPE
13	80362-S7A-G00	Stay - SUCTION HOSE
14	80363-S5A-A01	Stay - SUCTION PIPE
15	80371-S7A-000	Clamp - DISCHARGE HOSE
16	80381-SV7-A01	Clamp - RECEIVER PIPE
17	80387-SM4-A01	Clip - RECEIVER PIPE
18	80440-S3N-003	Switch assy - PRESSURE (DENSO)
19	80464-S5A-000	Grommet - AIR CONDITIONER PIPE
20	80465-S5A-A00	Cover - AIR CONDITIONER PIPE
21	80466-S5A-A00	Rubber - AIR CONDITIONER HOSE
22	80865-SN7-003	Cap h - VALVE
23	80866-SN7-003	Cap l - VALVE
24	80871-SN7-003	O-ring - 5/8"
25	80872-SN7-003	O-ring - 1/2"
26	80873-SN7-003	O-ring - 8MM
27	90133-SD2-000	Bolt - CONDENSER
28	90361-SV4-003	Nut - PAINT CUTTING, 6MM

Ignition coil (1.7L) 4

#	OEM	部品名
1	30520-PGK-A01	Coil comp - PLUG HOLE
1	30520-PVJ-A01	Coil comp - PLUG HOLE
2	30522-PFB-007	SEAL, PLUG HOLE
3	90207-PG6-010	Nut - CAP, 6MM (BLACK)

Instrument panel (LH) 15

#	OEM	部品名
2	32756-S7A-000	Bracket - RELAY
7	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
13	77466-S5A-000	Seal - FR. INSTRUMENT
14	77506-S6A-000	Stopper - GLOVE BOX LID
17	77982-S04-N81	Holder - COUPLER (2P)
18	90101-S6A-000	Bolt-washer - 8MM
19	90104-SV4-000	Bolt-washer - 8X25
20	90106-S3N-000	Bolt-washer - 8X86
21	90106-S5H-000	Bolt-washer - 8X40
22	90110-S84-A00	Bolt-washer - 8X20
23	90140-SH3-003	Bolt-washer - 5X18
24	90321-SP0-A80	Nut-washer - 6MM
25	90361-SR3-000	Nut - FLANGE, 8MM
26	90651-S0A-003	Cap - BOLT, 8MM
27	91641-SM4-003	Grommet - SCREW, 4MM

Instrument panel garnish (LH; DRIVER SIDE) 6

#	OEM	部品名
1	38205-S7A-G01	Label - FUSE
9	77631-S5A-A01	Bush - OUTLET
13	77873-S04-G80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
15	90302-SA4-003	Nut - SPRING, 4MM
16	90665-S04-003	Clip - SNAP FITTING
17	90666-S84-A01	Clip - SNAP FITTING

Instrument panel garnish (LH; PASSENGER SIDE) 17

#	OEM	部品名
1	39610-S6A-003	Knob assy
2	39620-S6A-003	Housing assy.
3	39625-S6A-003	Ring - MOUNTING
4	66417-SA0-000	Rubber - GLOVE BOX STOPPER
5	77205-S0X-A01	Clip - SNAP FITTING
7	77252-S7A-900	Duct assy - CENTER OUTLET
8	77259-S7A-013	Cap - CENTER
18	77508-SX0-000	Arm - GLOVE BOX STOPPER
23	77631-S5A-A01	Bush - OUTLET
26	77730-S7A-000	Holder comp - FR.
27	90140-SH3-003	Bolt-washer - 5X18
28	90144-SM4-003	Screw - 4X12
29	90302-SA4-003	Nut - SPRING, 4MM
30	90666-S84-A01	Clip - SNAP FITTING
31	90670-SB2-671	Screw - FILLER NECK RIVET
33	91640-SM4-003	Grommet - SCREW, 4MM
40	90361-SV4-003	Nut - PAINT CUTTING, 6MM

Intake manifold (1.7L) 23

#	OEM	部品名
1	16176-PLC-003	Packing - THROTTLE BODY (NOK)
1	16176-PMR-A01	Packing - THROTTLE BODY (FREUDENBERG-NOK)
2	16450-PLD-003	Injector assy - FUEL (KEIHIN)
3	16451-PLC-000	Clip - INJECTOR
4	16610-PLR-A01	Damper assy. - PULSATION
5	16625-PLC-000	Stiffener - INJECTOR BASE
6	16638-PH3-S00	Insulator - FUEL PIPE
7	17050-PLC-000	Base, FR. INJECTOR
8	17055-PLD-004	Gasket - FR. INJECTOR BASE (NIPPON LEAKLESS)
9	17100-PLD-000	Manifold comp - INTAKE
10	17105-PLC-003	Packing - INTAKE MANIFOLD (NOK)
10	17105-PMR-A01	Packing - INTAKE MANIFOLD (FREUDENBERG-NOK)
11	17132-PLC-000	Stay comp - R. INTAKE MANIFOLD
12	17133-PLC-000	Stay comp - L. INTAKE MANIFOLD
13	17134-PLC-000	Plate - INTAKE MANIFOLD STAY
14	17201-PLC-000	Stay a - AIR CLEANER
15	17202-PLC-000	Stay b - AIR CLEANER
16	37830-PGK-A01	Sensor assy, MAP
17	37835-PGK-A01	O-ring
18	90201-PLC-003	Nut - SPECIAL, 8MM
19	90634-PLC-000	Cap - SEALING
20	91301-PLC-000	O-ring - 7.47X3.6
21	91302-PLC-000	O-ring - 7.85X3.53

Interior light 11

#	OEM	部品名
1	34251-S5A-003	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W
4	34260-SH3-004	Light assy - TRUNK ROOM
5	34262-SH3-004	Lens
6	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI
7	34401-S5A-003	Lens
8	34402-S5A-003	Lens
10	90131-S47-003	Screw - ET, 5X16
10	90131-S30-003	Screw-washer - ET, 6X16
11	90148-S6A-003	Bolt - EARTH, 5X14

Knuckle 21

#	OEM	部品名
3	51210-S7A-020	Knuckle comp - R. FR.
4	51215-S7A-020	Knuckle comp - L. FR.
5	51225-S5A-003	Boot - LOWER BALL DUST
6	51300-S7A-G01	Spring - FR. STABILIZER
7	51306-S7B-014	STABILIZER HOLDER Bush - Front
8	51308-S5A-000	Holder - FR. STABILIZER
9	51320-S5A-003	RH FR. STABILIZER LINK
10	51321-S5A-003	LH FR. STABILIZER LINK
11	51350-S7A-801	Arm comp - R. FR. LOWER
11	51350-S7A-800	Arm comp - R. FR. LOWER
12	51360-S7A-801	Arm comp - L. FR. LOWER
12	51360-S7A-800	Arm comp - L. FR. LOWER
13	51391-S7A-801	Bush - FR. COMPLIANCE
14	51392-S5A-004	Bush - FR. LOWER ARM (YAMASHITA)
15	57450-S7A-023	Sensor assy - R. FR.
16	57455-S7A-013	Sensor assy - L. FR.
17	90002-S10-000	Nut - FLANGE, 10MM
18	90118-S5A-000	Bolt - FLANGE, 14X91
19	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
20	90363-S47-000	Nut - LOWER ARM, 12MM
21	90701-SX0-003	Clip - UPPER ARM

Mainshaft (1.7L) 20

#	OEM	部品名
1	23210-PSW-000	Mainshaft comp.
2	23261-PX5-A00	Shaft - REVERSE IDLE GEAR
3	23440-PSW-000	Gear comp - MAINSHAFT THIRD
4	23451-PSW-000	Gear - MAINSHAFT FOURTH
5	23540-PEV-900	Gear comp - REVERSE IDLE
6	23581-PX5-J41	Gear - MAINSHAFT FIFTH
7	23623-P21-315	Sleeve set - SYNCHRONIZER (3-4)
8	23626-P16-316	Sleeve set - SYNCHRONIZER (5)
9	23645-PX5-010	Ring - BLOCKING (50S)
10	23646-PX5-000	Ring - BRAKE STOPPER
11	23647-P16-000	Ring - TAPER CONE
12	23652-PB6-000	Spring - SYNCHRONIZER (50MM)
13	23915-P21-000	Collar - DISTANCE, 31X38X56.5
14	23916-P16-000	Collar - DISTANCE, 28X37X14.3
15	23927-PG2-A00	Washer - SPRING, 28MM
16	23928-PS1-000	Washer - 28MM
17	90401-PG1-000	Washer - DRAIN PLUG, 10MM
18	91004-PX5-008	Bearing - BALL, 28X78X20
19	91104-P21-008	Bearing - NEEDLE, 38X43X26 (NTN)
20	91108-P16-008	Bearing - NEEDLE, 37X42X14 (TOYO)

Meter components (NS; 1) 8

#	OEM	部品名
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	37115-SA0-601	Packing - NS
3	78120-S7A-G02	Meter assy - SPEED & TACHO & FUEL & TEMPERATURE
5	78135-S7A-003	Socket assy - BULB
6	78155-S7A-J01	Visor assy - METER
7	78156-S7A-J01	Lens - METER
8	78171-S7C-G53	Visor assy - METER UNDER
9	90302-SA4-003	Nut - SPRING, 4MM

Middle seat (L.) 26

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
6	81223-S04-000	Clip - SHAFT, 8MM
7	81273-S7A-J01	Pipe - RECLINING CONNECT
8	81324-S7A-003	Damper - MIDDLE SEAT
10	81342-S7A-J01	Cover - R. UNDER
11	81344-S7A-J01	Cover - L. UNDER
14	81382-S7A-003	Clip - MAT, 8MM
15	81383-S7A-003	Clip - MAT, 5MM
16	81384-S7A-003	Clip - MAT, 6MM
17	81431-S7A-J11	Cable - MIDDLE SEAT RECLINING
18	81461-S7A-J01	Cable - MIDDLE SEAT WALK-IN SLIDE
19	81481-S7A-J11	Cable - MIDDLE SEATBACK WALK-IN
25	81726-S7A-J22	Frame comp - L. MIDDLE SEATBACK
28	81736-S7A-G01	Frame comp - L. MIDDLE SEAT CUSHION
29	81751-S7A-003	Adjuster - L. MIDDLE SEAT OUTER RECLINING
30	81752-S7A-J21	Adjuster - L. MIDDLE SEAT INNER RECLINING
34	81827-S7A-G01	Pad comp - L. MIDDLE SEATBACK
35	81837-S7A-G01	Pad comp - L. MIDDLE SEAT CUSHION
36	90102-S2G-000	Screw - TAPPING
37	90134-SE3-003	Screw - TAPPING, 5X10
38	90142-S70-003	Bolt-washer - 10X18
39	90610-SR3-003	Clip - GARNISH (KATO)
40	90650-KV3-000	Band - WIRE
41	90650-S7A-J01	Clip - RATCHET, 15MM
42	90650-S7A-003	Band - WIRE

Middle seat (R.) 34

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
2	81108-S70-013	Bush - PIVOT
6	81188-S7A-J21	Bezel b
7	81223-S04-000	Clip - SHAFT, 8MM
10	81273-S7A-J01	Pipe - RECLINING CONNECT
16	81322-S7A-003	Rivet
17	81324-S7A-003	Damper - MIDDLE SEAT
18	81326-S7A-J22	Frame comp - R. MIDDLE SEATBACK
19	81327-S7A-G01	Pad comp - R. MIDDLE SEATBACK
22	81336-S7A-G01	Frame comp - R. MIDDLE SEAT CUSHION
23	81337-S7A-G01	Pad comp - R. MIDDLE SEAT CUSHION
24	81342-S7A-J01	Cover - R. UNDER
25	81344-S7A-J01	Cover - L. UNDER
26	81351-S7A-003	Adjuster - R. MIDDLE SEAT OUTER RECLINING
27	81352-S7A-J21	Adjuster - R. MIDDLE SEAT INNER RECLINING
34	81382-S7A-003	Clip - MAT, 8MM
35	81383-S7A-J11	Bracket - CENTER MIDDLE SEAT CONNECT
36	81383-S7A-J21	Adjuster - CENTER MIDDLE SEAT RECLINING
37	81383-S7A-003	Clip - MAT, 5MM
38	81384-S7A-003	Clip - MAT, 6MM
39	81386-S7A-G01	Frame comp - MIDDLE SEAT CENTER
40	81387-S7A-G01	Pad comp - ARMREST
44	81431-S7A-J11	Cable - MIDDLE SEAT RECLINING
45	81461-S7A-J01	Cable - MIDDLE SEAT WALK-IN SLIDE
46	81481-S7A-J11	Cable - MIDDLE SEATBACK WALK-IN
47	81482-S7A-G01	Cable - MIDDLE SEAT CENTER RECLINING
55	90102-S2G-000	Screw - TAPPING
56	90134-SE3-003	Screw - TAPPING, 5X10
57	90142-S70-003	Bolt-washer - 10X18
58	90610-SR3-003	Clip - GARNISH (KATO)
59	90650-KV3-000	Band - WIRE
60	90650-S7A-J01	Clip - RATCHET, 15MM
61	90650-S7A-003	Band - WIRE

Middle seat components 7

#	OEM	部品名
1	81360-S7A-003	Adjuster - R. OUTER MIDDLE SEAT SLIDE
2	81370-S7A-003	Adjuster - R. INNER MIDDLE SEAT SLIDE
3	81372-S7A-J11	Lever - R. MIDDLE SEAT SLIDE
6	81760-S7A-003	Adjuster - L. OUTER MIDDLE SEAT SLIDE
7	81770-S7A-G01	Adjuster - L. INNER MIDDLE SEAT SLIDE
8	81772-S7A-J11	Lever - L. MIDDLE SEAT SLIDE
11	90135-S5A-003	Bolt-washer - 10X27

Mirror 20

#	OEM	部品名
1	76200-S7A-G03	Mirror assy - R. DOOR (R.C.)
1	76200-S7A-G23	Mirror assy - R. DOOR (HEATED)
2	76202-S7A-G01	Cover - R. BASE
3	76203-S7A-E02	Mirror - R. (1400R)
3	76203-S7A-G22	Mirror - R. (HEATED) (1400R)
4	76210-S7A-G01	Actuator set - R.
4	76210-S7A-G11	Actuator set - R. (HEATED)
5	76250-S7A-G03	Mirror assy - L. DOOR (R.C.)
5	76250-S7A-G23	Mirror assy - L. DOOR (HEATED)
6	76252-S7A-G01	Cover - L. BASE
7	76253-S7A-E02	Mirror - L. (1400R)
7	76253-S7A-G22	Mirror - L. (HEATED) (1400R)
8	76260-S7A-G01	Actuator set - L.
8	76260-S7A-G11	Actuator set - L. (HEATED)
9	76400-SEA-004	Mirror assy - RR. VIEW (DAY/NIGHT)
10	90106-S70-003	Screw - TAPPING, 4X12 (TRUSS)
11	90109-S70-003	Screw - TAPPING, 4X16 (TRUSS)
12	90145-S04-006	Screw - 3X16
13	90145-S50-003	Screw-washer - 5X12
14	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)

Molding/side sill garnish 32

#	OEM	部品名
3	72410-S7A-003	Molding assy. - R. FR. DOOR
4	72430-S7A-003	Garnish - R. FR. DOOR SASH
5	72450-S7A-003	Molding assy. - L. FR. DOOR
6	72470-S7A-003	Garnish - L. FR. DOOR SASH
7	72721-S7A-003	Garnish - R. RR. DOOR QUARTER
8	72761-S7A-003	Garnish - L. RR. DOOR QUARTER
9	72910-S7A-003	Molding - R. RR. DOOR
10	72930-S7A-003	Garnish - R. RR. DOOR SASH
11	72950-S7A-003	Molding - L. RR. DOOR
12	72970-S7A-003	Garnish - L. RR. DOOR SASH
13	74306-S7A-003	Molding assy. R. ROOF
14	74308-ST0-003	Bracket - ROOF MOLDING
15	74316-S7A-003	Molding assy. L. ROOF
16	74401-S7A-G00	Tape - SIDE SILL PROTECTION
17	74551-S7A-N00	Fender - R. RR. INNER
18	74591-S7A-N00	Fender - L. RR. INNER
19	90103-SDA-A00	Screw - TAPPING, 5X20
20	90104-SR2-003	Bolt c - BUMPER
21	90106-S3Y-000	Screw - TAPPING, 4X10(PO)
22	90114-SE0-000	Screw - TAPPING, 5X20
23	90141-S5T-G01	Bolt - BUMPER SPOILER
24	90142-S04-000	Screw - TAPPING, 4X10
25	90305-SM4-000	Nut - AIR SPOILER CLIP
26	90331-S3Y-003	Nut - SPRING, 5MM
27	90657-SA5-003	Clip - SIDE APRON MOLDING
28	90664-SB3-003	Grommet - SCREW, 5MM
29	91501-S7A-003	Clip - DOOR MOLDING END
30	91512-SX0-003	Clip - INNER FENDER CLIP
31	91513-S7A-000	Clip - SIDE SILL GARNISH UPPER
32	91514-S5A-003	Clip - SIDE SILL GARNISH
33	91527-S7A-003	Clip - DOOR MOLDING
34	91562-S2X-003	Clip - MOLDING END

Navigation system 10

#	OEM	部品名
1	39011-SAA-G01	Dvd-rom - NAVIGATOR
3	39540-S7A-G00	Navigation unit - AVN-DVD) (ALPINE
4	39543-S9A-J01	Knob - VOLUME
5	39544-S9A-G01	Knob - JOY
6	39835-S7A-Z11	Antenna assy - GPS
7	77255-S7A-900	Bracket - R. RADIO
8	77256-S7A-900	Bracket - L. RADIO
9	90302-SA4-003	Nut - SPRING, 4MM
10	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)
11	91551-SE0-003	Bolt - FLANGE, 5X7

Oil pump/oil strainer (1.7L) 27

#	OEM	部品名
1	15100-PLC-003	Pump assy. - OIL (YAMADA)
1	15100-PLE-005	Pump assy. - OIL (AISIN)
2	15220-PLC-000	Strainer comp. - OIL
3	15221-PZ1-000	Packing - OIL STRAINER
4	15231-PM3-000	Valve - RELIEF
5	15231-P2J-005	Valve - OIL PUMP RELIEF (AISIN)
6	15232-PM3-000	Spring - RELIEF VALVE
7	15232-P2J-005	Spring - OIL PUMP RELIEF VALVE (AISIN)
8	15233-P2A-003	Bolt - SEALING, 14MM (YAMADA)
9	15233-P2J-005	Bolt - SEALING, 18MM (AISIN)
10	15302-PE0-300	Washer - SEALING, 14MM
11	15400-PLC-004	Cartridge, OIL FILTER (TOYO ROKI)
11	15400-PLM-A01	OIL FILTER CARTRIDGE - OIL FILTER (FILTECH TOYO ROKI)
11	15400-PLM-A02	OIL FILTER (HONEYWELL)
11	15400-RTA-003	OIL FILTER (MAHLE TENNEX)
11	15400-RTA-004	Cartridge - OIL FILTER (TOYO ROKI)
11	15400-PLC-003	Cartridge - OIL FILTER (TENNEX)
13	37500-PLC-015	CRANK SENSOR ASSY
14	37509-PLC-015	Grommet - CRANK SENSOR
15	90015-PH1-013	Holder - OIL FILTER
16	90042-P2J-005	Bolt - STUD, 6X28 (AISIN)
16	90042-PR3-000	Bolt - STUD, 6X28
17	90701-P2J-005	Dowel pin - 8X11 (AISIN)
18	91212-PLC-004	Oil seal - 38X50X7 (ARAI)
18	91212-PLC-003	Oil seal - 38X50X7 (NOK)
19	91308-P2J-005	O-ring - 26.2X2.4 (AISIN)
19	91308-PK1-003	O-ring - 26.2X2.4 (NOK)

Outer panels/rear panel 7

#	OEM	部品名
24	70494-SE0-000	Spring - FUEL LID OPENER
25	70495-692-000	Cushion - FUEL FILLER LID
27	75450-S7A-000	Outlet assy - RR. AIR
28	90147-634-003	Bolt - FENDER, 6X18
29	91551-S7A-003	Clamp - FUEL LID OPENER CABLE
30	91558-SE3-003	Clip - HOOD WIRE
31	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

P.s. gear box (LH) 22

#	OEM	部品名
1	52362-S30-003	Boot - TIE ROD END (MUSASHI)
2	53434-S5D-A01	Bracket b - STEERING GEAR BOX
3	53435-S7A-G50	Stiffener a - STEERING GEAR BOX
4	53438-S7C-G00	Bracket - R. GEAR BOX
5	53501-S7A-000	Grommet - STEERING
6	53521-S7A-003	Rod sub assy. - TIE
7	53536-S5A-900	Washer - TIE ROD LOCK
8	53541-S7A-000	Rod assy - TIE
9	53541-S7A-003	End comp - TIE ROD
10	53601-S7A-G56	Box assy - POWER STEERING GEAR
10	53601-S7A-G55	Box assy - POWER STEERING GEAR
11	53685-SH3-000	Bush - STEERING GEAR BOX MOUNTING
12	53685-S5A-000	Bush - STEERING GEAR BOX MOUNTING (A)
13	53686-S5A-901	Collar - STEERING GEAR BOX MOUNTING (B)
14	53686-S7A-000	Collar - STEERING GEAR BOX MOUNTING (A)
15	53692-S7A-G00	Cover - STEERING DUST SEAL
16	90108-S5A-000	Bolt - GEAR BOX MOUNTING
17	90301-S5A-003	Nut - HEX.
18	90450-S5A-020	Nut - FLANGE, 10MM
20	90506-S5A-010	Washer - PLAIN, 10MM
22	90665-S5A-013	Clip - DUST SEAL COVER
23	90801-S5A-000	BOLT, FLANGE, 8X25

P.s. gear box components (LH) 40

#	OEM	部品名
1	06531-S9A-003	Seal kit a - POWER STEERING
2	06532-S50-003	Oil seal set - ROTARY VALVE
3	06534-S84-A01	Ring set - POWER STEERING SEAL (ROTARY VALVE)
4	06535-S50-003	Ring set - POWER STEERING SEAL (ROTARY VALVE)
5	06536-S5A-H01	Boot set
6	06537-S7A-J01	Boot set b
7	06538-S5A-H01	Slider
8	53413-S04-G51	Spring - RACK GUIDE PRESSURE
9	53414-S04-003	Screw - RACK GUIDE
10	53416-S5A-003	Guide - STEERING RACK
11	53418-S04-G51	Washer - DISK
12	53434-S5A-003	Clip - STEERING TIE ROD
13	53446-S7A-003	Guard - BOOT
14	53447-S7A-003	Band c - BELLOWS
15	53448-S5A-003	Band b - BELLOWS
16	53449-S5A-003	Band - BELLOWS
17	53455-S5A-003	Ring b - STOPPER
18	53456-S5A-003	Plug - RACK END
19	53457-S5A-003	Lock - SCREW
20	53458-S50-003	Nut - LOCK
21	53535-S5A-003	Washer - LOCK
22	53536-S7A-003	Boot b
23	53604-S5A-003	Bracket
24	53608-S7A-G52	Housing comp - STEERING GEAR BOX
25	53611-S7A-G52	Cylinder comp
26	53626-S7A-G52	Rack comp - STEERING
27	53641-S7A-G51	Valve sub assy. - STEERING
28	53645-S7A-G51	Housing comp - VALVE
29	53660-S50-003	Oil seal - 27X38X5.5 (SHOWA)
30	53661-S50-003	Washer - WAVE (SHOWA)
31	53662-S5A-003	O-ring - 11.5X1.5
32	53663-S7A-003	Ring - BACK UP
33	53664-S7A-003	Circlip - INTERNAL, 47MM
34	53666-S50-003	O-ring - 41.5X2 (SHOWA)
35	53670-S7A-G51	Pipe comp. a - CYLINDER
36	53671-S7A-G52	Pipe comp. b - CYLINDER
37	90105-S50-003	Bolt - FLANGE, 8X28
38	90455-S5A-003	Bolt - FLANGE, 12X40
39	90456-S7A-003	Bolt - FLANGE, 8X12
40	90601-S50-003	Circlip - EXTERNAL, 20MM

P.s. lines (1.7L; LH) 19

#	OEM	部品名
1	53697-SB3-952	Cap - OIL TANK
2	53701-S7A-G01	Tank comp. - POWER STEERING OIL
3	53711-S5D-A02	Bracket - POWER STEERING OIL TANK
4	53713-S7A-G02	Hose comp. - POWER STEERING FEED
5	53720-S7A-G00	Pipe comp - RETURN
6	53729-671-003	Clamp d - 15.5MM
7	53731-S5D-A01	Tube - POWER STEERING SUCTION
8	53732-S7A-G02	Hose - POWER STEERING RETURN
9	53745-S5D-A01	Stay - FEED HOSE
10	53747-S7A-G00	Clamp - RETURN HOSE
11	53774-S5D-A01	Clamp - FEED HOSE
12	53774-S7A-G00	Stay - POWER STEERING RETURN HOSE
13	56490-PFV-003	Switch assy - POWER STEERING PRESSURE(SAGINOMIYA)
14	90635-SM4-A01	Clip - OIL HOSE (MEIJI)
14	90635-SM4-A02	Clip - OIL HOSE (MEIJI)
15	91304-PA6-003	O-ring - 7.8X1.9
16	91370-SV4-000	O-ring - 14.4X1.9
17	91405-PE0-003	Clamp - TUBE (D20)
17	91417-SZ3-003	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)

Parking brake 12

#	OEM	部品名
7	47342-S6A-E11	Switch - PARKING BRAKE
7	47342-S6A-E01	Switch - PARKING BRAKE
8	47360-SB2-000	Equalizer
9	47365-538-000	Pin - EQUALIZER
10	47510-S7A-G11	Wire b - R. PARKING BRAKE
11	47522-594-000	Nut - PARKING BRAKE ADJUSTING
12	47537-671-670	Spring - PARKING BRAKE ROD
13	47560-S7A-G11	Wire b - L. PARKING BRAKE
14	47572-S6A-G02	Base comp. - WIRE GUIDE
15	47577-S7A-G00	Guard - BRAKE WIRE
17	90666-S84-A01	Clip - SNAP FITTING
19	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)

Parking brake shoe 18

#	OEM	部品名
1	43053-S47-E50	Shoe set - RR. BRAKE
2	43110-S7A-J51	Plate comp - R. RR. BRAKE BACK
3	43120-S7A-J51	Plate comp - L. RR. BRAKE BACK
5	43171-SX0-J01	Spring - ROD
6	43172-SX0-N01	Spring a - BRAKE
7	43300-S7A-J51	Bolt comp - ANCHOR
8	43361-S7A-003	Lever - R. PARKING BRAKE
9	43362-SX0-N01	Rod - R. CONNECTING
10	43365-SX0-N01	Pin - PARKING LEVER
11	43366-SX0-J01	Adjuster assy
12	43367-SX0-J01	Spring b - BRAKE
13	43371-S7A-003	Lever - L. PARKING BRAKE
14	43372-SX0-N01	Rod - L. CONNECTING
15	43375-SA0-003	U-clip
16	43379-SA5-003	Washer - WAVE
17	45172-SP0-003	Spring - SHOE CLAMP
18	45175-SX0-N01	Pin - TENSIONER
19	90382-SP0-003	Nut - FLANGE, 16MM

Pedal (LH) 25

#	OEM	部品名
1	17800-S7A-A01	Pedal assy - ACCELERATOR
2	17818-S7A-A01	Stopper - ACCELERATOR STROKE
3	17910-S7A-G02	Wire - THROTTLE
4	17921-SA4-730	Seal - THROTTLE CABLE
5	17930-S7A-G00	Clamp - THROTTLE WIRE
6	17931-S6A-020	Clamp - THROTTLE WIRE
7	17931-S7A-980	Clamp - THROTTLE WIRE
8	17932-S5A-A00	Clamp - THROTTLE WIRE
9	35350-S5A-J01	Switch assy - STOP (MATSUSHITA)
9	35350-S5A-J03	Switch assy - STOP (TOYO)
9	35350-S5A-J04	Switch assy - STOP (TOYO)
11	46505-SA5-000	Pad - PEDAL STOPPER
12	46505-SA7-000	Pad - PEDAL STOPPER
13	46530-S7A-003	Spring assy - PEDAL RETURN
14	46545-SA5-000	Cover, Pedal
16	46600-S7A-G01	Pedal assy - BRAKE
17	46900-S7A-A02	Pedal assy - CLUTCH
18	46905-SK7-000	Stopper - CLUTCH PEDAL
19	46907-S7A-A01	Spring - CLUTCH ASSISTANT
20	46911-SD4-930	Bush - PEDAL PIN
21	46981-S2A-003	Bush a - CLUTCH ASSISTANT
22	46982-S2A-003	Bush b - ASSISTANT
23	46991-S7A-A01	Bracket comp. - FOOTREST
24	46992-SV4-003	Clip - FOOTREST
25	90207-PG6-010	Nut - CAP, 6MM (BLACK)

Pillar garnish 2

#	OEM	部品名
17	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
18	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)

Piston/crankshaft (1.7L) 46

#	OEM	部品名
1	13010-PSA-G00	Piston set - STD.
1	13020-PSA-G00	Piston set - OS 0.25
1	13030-PSA-G00	Piston set - OS 0.50
2	13031-PSA-G01	Ring set - PISTON (OS 0.50)
2	13011-PSA-G01	Ring set - PISTON (STD.)
2	13021-PSA-G01	Ring set - PISTON (OS 0.25)
3	13112-PE0-000	Pin - PISTON
4	13204-PE1-003	Bolt
5	13205-634-010	Nut
6	13210-PLM-A00	Rod comp - CONNECTING
7	13216-PLM-A01	Bearing f - CONNECTING ROD (PINK) (DAIDO)
7	13213-PLM-A02	Bearing c - CONNECTING ROD (BROWN) (TAIHO)
7	13211-PLM-A01	BEARING A - CONNECTING ROD (BLUE) (DAIDO)
7	13217-PLM-A01	Bearing g - CONNECTING ROD (RED) (DAIDO)
7	13214-PLM-A02	Bearing d - CONNECTING ROD (GREEN) (TAIHO)
7	13212-PLM-A01	Bearing b - CONNECTING ROD (BLACK) (DAIDO)
7	13215-PLM-A02	Bearing e - CONNECTING ROD (YELLOW) (TAIHO)
7	13213-PLM-A01	Bearing c - CONNECTING ROD (BROWN) (DAIDO)
7	13216-PLM-A02	Bearing f - CONNECTING ROD (PINK) (TAIHO)
7	13214-PLM-A01	Bearing d - CONNECTING ROD (GREEN) (DAIDO)
7	13211-PLM-A02	BEARING A - CONNECTING ROD (BLUE) (TAIHO)
7	13217-PLM-A02	Bearing g - CONNECTING ROD (RED) (TAIHO)
7	13215-PLM-A01	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)
7	13212-PLM-A02	Bearing b - CONNECTING ROD (BLACK) (TAIHO)
8	13310-PLM-A00	Crankshaft
9	13327-P2E-003	Bearing g - MAIN (RED) (DAIDO)
9	13324-P2E-004	Bearing d - MAIN (GREEN) (TAIHO)
9	13322-P2E-003	Bearing b - MAIN (BLACK) (DAIDO)
9	13325-P2E-004	Bearing e - MAIN (YELLOW) (TAIHO)
9	13323-P2E-003	Bearing c - MAIN (BROWN) (DAIDO)
9	13326-P2E-004	Bearing f - MAIN (PINK) (TAIHO)
9	13324-P2E-003	Bearing d - MAIN (GREEN) (DAIDO)
9	13321-P2E-004	BEARING A - MAIN (BLUE) (TAIHO)
9	13327-P2E-004	Bearing g - MAIN (RED) (TAIHO)
9	13325-P2E-003	Bearing e - MAIN (YELLOW) (DAIDO)
9	13322-P2E-004	Bearing b - MAIN (BLACK) (TAIHO)
9	13326-P2E-003	Bearing f - MAIN (PINK) (DAIDO)
9	13323-P2E-004	Bearing c - MAIN (BROWN) (TAIHO)
9	13321-P2E-003	BEARING A - MAIN (BLUE) (DAIDO)
10	13331-PLM-003	Washer - THRUST (DAIDO)
10	13331-PLM-004	Washer - THRUST (TAIHO)
11	13621-PLD-013	Pulley - TIMING BELT DRIVE
12	13622-PLC-000	Plate - TIMING BELT GUIDE
13	13810-PSA-J01	Pulley comp - CRANKSHAFT
14	90017-PLC-003	Bolt-washer - 14X36
15	90704-634-000	Key - 4.5X11.0

Power steering pump/ bracket (1.7L) 30

#	OEM	部品名
1	32746-PLM-A00	Clamp f - ENGINE HARNESS
2	56110-PSA-G04	Pump sub assy - POWER STEERING
2	56110-PSA-G03	Pump sub assy - POWER STEERING
3	56123-PLA-003	Joint - IN.
4	56141-PLA-003	Shaft - POWER STEERING PUMP DRIVE
5	56483-PLA-003	Pulley comp - POWER STEERING PUMP
6	56992-PSA-004	Belt - POWER STEERING PUMP (MITSUBOSHI)
7	56995-P0A-000	Bolt - POWER STEERING PUMP ADJUSTING
8	56996-PLR-A00	Bolt - SPECIAL, 8X50
9	56996-P01-000	Bolt - POWER STEERING PUMP ADJUSTING WING
10	56997-PLR-A00	Bracket - POWER STEERING PUMP
11	56998-P0A-000	Stay - POWER STEERING PUMP ADJUSTER
12	56999-PLR-A00	Insulator - POWER STEERING PUMP BRACKET
13	90202-P0A-A01	Nut-washer - 8MM
14	90305-PAA-A01	Nut - POWER STEERING PULLEY
15	90693-PAA-A01	Circlip - INTERNAL, 40MM
15	90693-P2A-003	Circlip - INTERNAL, 40MM
16	91048-P2A-003	Bearing - RADIAL BALL, 17X40X12
17	91249-PLA-003	Seal - POWER STEERING PUMP
18	91343-PLA-003	Seal - RUBBER
19	91344-PLA-003	Seal
20	91345-PAA-A01	O-ring - 13.0X1.9
20	91345-PY3-000	O-ring - 13.0X1.9
21	91346-PLA-003	O-ring - 23.8X2.4
22	91347-PAA-A01	O-ring - 16.7X1.8
23	91347-PLA-003	O-ring - 12.7X1.8
24	91348-P2A-003	O-ring - 51.0X2.4
25	91349-PNC-J01	Seal - PUMP COVER
26	91350-PLA-003	Bolt - FLANGE, 8X35
27	91350-P8C-A01	Bolt - FLANGE, 6X20

Radiator (1.7L) 14

#	OEM	部品名
1	19010-PSA-003	Radiator comp - DENSO
2	19011-PH1-621	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)
4	19015-PSA-003	Shroud comp - DENSO
5	19020-PLC-003	Fan - COOLING (DENSO)
6	19030-PLC-003	Motor - COOLING FAN (DENSO)
6	19030-PAA-A01	Motor - COOLING FAN (DENSO)
7	19031-PLC-003	Cover - MOTOR END
8	19045-PAA-A01	Cap comp. - RADIATOR (DENSO)
9	19046-PAA-A00	Label - RADIATOR CAP
11	19047-PLC-003	Cover - RADIATOR CAP (DENSO)
12	90041-P5A-003	Screw-washer - 4X11
13	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)
14	90043-PD2-003	Nut - HEX., 5MM (DENSO)

Radiator hose/reserve tan k (1.7L) 12

#	OEM	部品名
1	17163-PH7-300	Collar - MANIFOLD COVER MOUNTING
2	19101-PLC-000	Tank - RESERVE
3	19103-PLC-000	Hose a - RESERVE TANK
4	19104-PSA-000	Hose comp. - RESERVE TANK
5	19105-PLC-000	Joint
6	19109-PH1-620	Cap - FILLER
7	19501-PSA-E00	Hose - WATER UPPER
8	19502-PSA-E00	Hose - WATER LOWER
9	19511-PLC-003	Clip - WATER HOSE (CHUO SPRING)
10	74171-S7A-000	Bracket - RADIATOR MOUNT UPPER
11	74172-S5A-000	Cushion - RADIATOR MOUNTING LOWER
12	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER

Rear brake 25

#	OEM	部品名
1	01473-SZ3-A00	Caliper set - RR.
1	01473-SZ3-A01	SET, RR CALIPER
2	06430-S3N-J00	Pad set - RR. (WITHOUT SHIM)
3	06435-S0K-J00	Shim set - RR.
4	42200-S7A-008	Bearing assy - RR. HUB UNIT
5	42326-ST7-Z00	Cap - HUB UNIT
5	42326-SLJ-000	Cap, Hub unit
6	42510-S7A-J00	Disk - RR. BRAKE
7	42511-SP0-000	Cap - MAINTENANCE HOLE
8	43018-S7A-000	Caliper sub assy. - R.
9	43019-S7A-000	Caliper sub assy. - L.
10	43022-S3N-E50	Pad set - RR. (10CL-15SN,NF78)
11	43215-S7A-003	Piston
12	43227-SG0-013	Spring - PAD
13	43235-S84-A51	Pin a
14	43244-SZ3-A01	Retainer
15	43262-S84-A51	Pin b
16	43352-SM4-951	Screw - BLEEDER
17	43353-SD5-003	Cap - BLEEDER SCREW
18	45240-SC2-003	Bolt - FLANGE, 8X22
19	90103-SV4-003	Bolt - FLANGE, 10X30
20	90113-SA0-006	Bolt - WHEEL (SAGA)
20	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
20	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)
21	90305-S30-003	Nut - SPINDLE

Rear door glass/ door regulator 14

#	OEM	部品名
1	72710-S7A-013	Regulator assy - R. RR. DOOR POWER
2	72730-S7A-003	Sash - R. RR. DOOR FR. LOWER
3	72731-S7A-003	Sash - R. RR. DOOR RR. LOWER
4	72735-S7A-003	Runchannel - R. RR. DOOR
5	72737-SH4-000	Collar a - RR. DOOR PANEL UPPER
6	72737-SR4-000	Collar a - RR. DOOR PANEL LOWER
7	72739-S7A-003	Runchannel - RR. DOOR LOWER
8	72750-S7A-013	Regulator assy - L. RR. DOOR POWER
9	72770-S7A-003	Sash - L. RR. DOOR FR. LOWER
10	72771-S7A-003	Sash - L. RR. DOOR RR. LOWER
11	72775-S7A-003	Runchannel - L. RR. DOOR
12	73400-S7A-020	Glass assy - R. RR. DOOR (GREEN) (ASAHI)
13	73450-S7A-020	Glass assy - L. RR. DOOR (GREEN) (ASAHI)
14	91580-SM4-003	Clip - COUPLER(ORANGE)

Rear door lining 6

#	OEM	部品名
2	72835-S7A-003	Weatherstrip - R. RR. DOOR INNER
3	72875-S7A-003	Weatherstrip - L. RR. DOOR INNER
12	90615-SK7-003	Clip - MIRROR GARNISH
13	90662-SB2-003	Grommet - SCREW, 5MM
14	91560-S5B-E81	Clip - DOOR LINING (YELLOW)
15	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Rear door locks/ outer handle 32

#	OEM	部品名
1	72115-S5A-003	ACTUATOR ASSY, DOOR LOCK (R. RR.)
2	72119-S04-003	Stopper a - OUTSIDE HANDLE
4	72135-S5A-003	Striker assy - DOOR LOCK
6	72139-S0A-003	Snap - PINK
6	72139-SR0-A01	Snap - VIOLET
8	72143-S04-003	Packing
9	72149-SR4-000	Snap - R.
10	72155-S5A-003	ACTUATOR ASSY, DOOR LOCK (L. RR.)
11	72175-SH3-901	Holder - DOOR LOCK ROD
12	72189-SR4-000	Snap - L.
13	72610-S7A-003	Lock assy - R. RR. POWER DOOR
14	72612-S84-A00	Cap - R. CHILD LOCK
16	72617-S6A-Q02	Protector - R. RR. DOOR LOCK
18	72630-S0A-003	Crank assy - LOCK ROD
19	72631-S7A-013	Rod - R. RR. INSIDE HANDLE
20	72632-S7A-003	Rod - R. RR. DOOR LOCK
21	72633-S7A-003	Rod - RR. DOOR LOCK KNOB
22	72639-S7A-G00	Protector - R. RR. DOOR ROD
23	72640-S7A-003	Handle assy - R. RR. DOOR OUTSIDE
24	72645-S7A-E01	Protector - R. RR. DOOR OUTSIDE HANDLE
25	72650-S7A-003	Lock assy - L. RR. POWER DOOR
26	72652-S84-A00	Cap - L. CHILD LOCK
28	72657-S6A-Q02	Protector - L. RR. DOOR LOCK
30	72671-S7A-013	Rod - L. RR. INSIDE HANDLE
31	72672-S7A-003	Rod - L. RR. DOOR LOCK
32	72679-S7A-G00	Protector - L. RR. DOOR ROD
33	72680-S7A-003	Handle assy - L. RR. DOOR OUTSIDE
34	72685-S7A-E01	Protector - L. RR. DOOR OUTSIDE HANDLE
35	90120-SM4-000	Screw - TAPPING
36	90120-SV4-000	Bolt - LOCK STRIKER
37	90141-S84-003	Screw - 3X10
38	90866-SA0-000	Grommet - SCREW, 4MM

Rear door panels 20

#	OEM	部品名
5	67828-S7A-003	Tape - R. RR. DOOR UPPER OUTER
6	67868-S7A-003	Tape - L. RR. DOOR UPPER OUTER
11	72142-SM4-000	Stopper - DOOR
12	72810-S7A-003	Weatherstrip - R. RR. DOOR
13	72821-S7A-G00	Seal - R. RR. DOOR HOLE
14	72825-S7A-003	Sub seal - R. RR. DOOR
15	72840-S7A-003	Checker comp. - R. RR. DOOR
16	72850-S7A-003	Weatherstrip - L. RR. DOOR
17	72861-S7A-G00	Seal - L. RR. DOOR HOLE
18	72865-S7A-003	Sub seal - L. RR. DOOR
19	72880-S7A-003	Checker comp. - L. RR. DOOR
20	72935-S7A-003	Seal - RR. DOOR LOWER SILL
21	75891-SA7-000	Stopper - DOOR
22	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)
22	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)
23	90141-S04-000	Bolt - FLANGE, 8X22
24	90361-SR3-000	Nut - FLANGE, 8MM
25	91530-SP1-003	Clip A - DOOR WEATHERSTRIP
26	91567-SR2-013	Clip
27	91568-SR2-003	Clip - DOOR WEATHERSTRIP

Rear lower arm 29

#	OEM	部品名
1	52210-S7C-G00	Knuckle comp - R. RR.
2	52215-S7C-G00	Knuckle comp - L. RR.
3	52300-S7A-G01	Spring - RR. STABILIZER
4	52306-S7A-G01	Bush - STABILIZER HOLDER
5	52308-S0E-000	Stabilizer Bush Holder
6	52320-S7A-003	Link comp - R. RR. STABILIZER
7	52321-S7A-003	Link comp - L. RR. STABILIZER
8	52352-S5A-A01	Protector - RR. LOWER ARM
9	52364-S5A-004	BUSH, REAR LOWER ARM INNER
9	52364-S6M-004	BUSH, REAR LOWER ARM INNER
10	52365-S7C-801	Bush a - RR. LOWER ARM OUTER
11	52366-S5A-024	Bush b - RR. LOWER ARM
12	52370-S7A-G10	Arm comp - R. RR. TRAILING
13	52371-S7A-G10	Arm comp - L. RR. TRAILING
14	52387-S5A-000	Bolt - TRAILING ARM ADJUST
15	52388-S5A-003	Plate - CAM
16	52390-S7A-000	Arm comp - RR. UPPER
17	52395-S5A-004	Bush - RR. UPPER ARM
18	57470-S7A-J52	Sensor assy - R. RR.
19	57475-S7A-J52	Sensor assy - L. RR.
20	90002-S10-000	Nut - FLANGE, 10MM
21	90181-SFE-020	Bolt - FLANGE, 14X88.5
21	90181-S7A-000	Bolt - FLANGE, 14X77
22	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
23	90395-S5A-003	Nut - LOCK FLANGE(CLINCH)
24	90396-S7A-000	Bolt - FLANGE, 12X75
24	90396-S7A-010	Bolt - FLANGE, 12X75
25	90398-S5A-000	Bolt - FLANGE, 12X81.5
26	90399-S5A-000	Bolt - FLANGE, 12X73

Rear seat 25

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
5	82124-S7A-J01	Cable b - SLIDE
6	82126-S7A-E01	Frame comp - RR. SEATBACK
7	82127-S7A-E01	Pad comp - RR. SEATBACK
9	82129-S7A-J01	Cable a
11	82133-S7A-J01	Cable c - LOCK
12	82136-S7A-003	Frame comp - RR. SEAT CUSHION
13	82137-S7A-J01	Pad comp - RR. SEAT CUSHION
17	82151-S7A-003	Damper
20	82176-S7A-J01	Clip - CABLE
24	82230-S7A-003	Adjuster - R. RR. SEAT RECLINING
27	82280-S7A-003	Lock assy - RR. SEAT CUSHION
28	82281-S7A-003	E-ring - 5MM
29	82292-S7A-003	Striker - RR. SEAT
30	82524-S7A-J01	Spring - RR. SEATBACK HANDLE
33	82528-S7A-J01	Pin a - RR. SEATBACK
34	82529-S7A-J01	E-ring - 4MM
35	82530-S7A-J01	Cable b - RECLINING
36	82630-S7A-003	Adjuster - L. RR. SEAT RECLINING
39	90134-S7A-003	Screw - TAPPING
40	90135-S5A-003	Bolt-washer - 10X27
41	90142-S70-003	Bolt-washer - 10X18
42	90650-KV3-000	Band - WIRE
43	90651-SW5-003	Clip

Rear seat components 11

#	OEM	部品名
3	82260-S7A-003	Adjuster - R. RR. SEAT SLIDE
5	82263-S7A-J01	Cable d - SLIDE
7	82270-S7A-J01	Member - RR. SEAT FR.
8	82271-S7A-J01	Member - RR. SEAT RR.
10	82330-S7A-013	Pivot comp - R. RR. SEAT CUSHION
12	82660-S7A-003	Adjuster - L. RR. SEAT SLIDE
16	82730-S7A-013	Pivot comp - L. RR. SEAT CUSHION
17	90134-SE3-003	Screw - TAPPING, 5X10
18	90135-S5A-003	Bolt-washer - 10X27
19	90142-S70-003	Bolt-washer - 10X18
21	91560-SE0-003	Band a - HARNESS (NATURAL)

Rear shock absorber 18

#	OEM	部品名
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING
2	51689-SH3-004	Plate - BUMP STOP (SHOWA)
3	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
4	52441-S7A-E01	Spring - RR.
5	52610-S7A-E02	Absorber assy - R. RR. SHOCK
6	52611-S7A-E02	Absorber unit - RR. SHOCK
7	52620-S7A-E02	Absorber assy - L. RR. SHOCK
8	52622-S7A-014	Bush - RR. SHOCK ABSORBER LOWER
9	52631-S5A-004	Rubber - SHOCK ABSORBER MOUNTING
10	52675-S7A-004	Base - RR. SHOCK ABSORBER MOUNTING
11	52676-S5A-004	Seal - SHOCK ABSORBER MOUNTING
12	52685-S5A-004	Plate - SHOCK ABSORBER MOUNT
13	52686-S5A-004	Rubber - RR. SPRING MOUNTING
14	52687-S5A-014	Cover - RR. DUST
15	52722-S7A-034	Rubber - RR. BUMP STOPPER
16	90181-S7A-000	Bolt - FLANGE, 14X77
17	90304-S10-014	Nut - FLANGE, 10MM
18	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear windshield/ quarter glass 16

#	OEM	部品名
1	04733-S7A-000	Rubber set - RR. WINDSHIELD DAM
2	73211-S7A-023	Glass set - RR. WINDSHIELD (GREEN) (ASAHI)
3	73511-S7A-023	Glass - R. QUARTER (GREEN) (ASAHI)
4	73526-S7A-000	Rubber - WINDSHIELD DAM
5	73561-S7A-023	Glass - L. QUARTER (GREEN) (ASAHI)
6	73810-S7A-003	Garnish - R. QUARTER GLASS
7	73850-S7A-003	Garnish - L. QUARTER GLASS
8	75701-S7A-003	Emblem - RR. CENTER (H)
9	91501-S2R-003	Clip - QUARTER WINDSHIELD
10	91502-S7A-003	Clip b - QUARTER GLASS
11	91513-S70-003	Clip
12	91536-SS0-J01	Fastener a - WINDSHIELD
13	91536-S7A-003	Fastener a - QUARTER GLASS
14	91537-S7A-003	Fastener b - QUARTER GLASS
15	91538-SX8-T01	Fastener c - WINDSHIELD GLASS
16	91538-S7A-003	Fastener a - WINDSHIELD

Rear wiper 16

#	OEM	部品名
1	38422-SA0-003	Collar
2	38448-SD2-003	Rubber - WIPER MOUNTING
3	76622-S50-003	Rubber - BLADE (300MM)
3	76632-SFA-003	RUBBER, BLADE (300MM)
4	76707-S2X-003	Seal a
5	76708-S7A-003	Seal - RR. WIPER UNIT
6	76709-S2H-003	Nut - SPECIAL (M14)
7	76710-S7A-013	Motor comp - RR. WINDSHIELD WIPER
8	76711-S2X-003	Cap - PIVOT
9	76719-S7A-013	Nozzle & collar assy.
10	76720-S7A-003	Arm - RR. WIPER
11	76721-S2X-003	Cover - ARM
12	76726-SW3-921	O-ring
13	76730-S3N-003	Blade - WINDSHIELD WIPER (300MM)
14	76740-S7A-003	Arm & blade - RR. WINDSHIELD WIPER
15	76818-S3N-003	Tube c

Resonator chamber (1.7L) 17

#	OEM	部品名
1	17212-PLC-000	Rubber - AIR CLEANER MOUNTING
2	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
3	17213-P8A-A00	Rubber - INTAKE MANIFOLD COVER MOUNTING
4	17216-PN3-000	Collar - AIR CLEANER MOUNTING
5	17230-PLD-000	Chamber assy - RESONATOR
6	17231-PSA-010	Stay assy. a - AIR INTAKE TUBE
7	17232-PLC-000	Stay b - AIR INTAKE TUBE
8	17234-PLC-300	Cover comp. - RESONATOR STAY
9	17243-PSA-000	Tube assy. b - AIR INTAKE
10	17244-PLC-000	Tube - AIR INTAKE CONNECTING
11	17255-PD6-000	Collar - RESONATOR
12	17256-PD6-000	Rubber - RESONATOR MOUNTING
13	17263-PSA-000	Rubber - AIR INTAKE TUBE STAY
14	32744-PLM-A00	Stay d - ENGINE HARNESS
15	75353-671-000	Lock - SCREW
16	90001-P0A-000	Bolt-washer - SPECIAL, 6X35
17	90006-PN4-000	Bolt-washer - SPECIAL, 6X25

Roof lining 8

#	OEM	部品名
5	83203-S7A-003	Pad - R. FR. ROOF SIDE
6	83204-S7A-003	Pad - R. RR. ROOF SIDE
15	83253-S7A-003	Pad - L. FR. ROOF SIDE
16	83254-S7A-003	Pad - L. RR. ROOF SIDE
19	90136-S30-003	Screw - ET, 5X18
20	90136-S7A-003	Screw - ET, 5X20
20	90137-S0A-003	Screw - ET, 6X28
21	91560-S1C-E01	Clip - ROOF LINING (NATURAL)

Seatbelts 4

#	OEM	部品名
6	81491-S7A-J20	Protector - R. FR. SEATBELT
12	81691-S3N-J00	Protector - MIDDLE SEATBELT
16	81891-S7A-J20	Protector - L. FR. SEATBELT
20	90101-S84-A00	Screw - ET, 6X16

Shift arm/shift lever (1.7L) 21

#	OEM	部品名
1	24411-PBW-000	Arm a - SHIFT
2	24412-PBW-000	Arm b - SHIFT
3	24413-PBW-000	Arm comp. c - GEARSHIFT
4	24431-PBW-000	Interlock comp.
5	24433-PBW-000	Bolt - SELECT SPRING
6	24433-PX5-000	Bolt - INTERLOCK
7	24455-P4A-000	Spring - FORK SETTING BALL
8	24460-PLT-010	Lever comp - SELECT
9	24464-PSW-000	Spring - SELECT RETURN
10	24465-PSW-000	Spring - FIFTH & REVERSE SELECT
11	24470-PLT-010	Lever comp - SHIFT
12	24475-PBW-000	Shaft - SHIFT ARM
13	24480-PBW-000	Arm comp - SELECT
14	24519-PB6-000	Screw - BALL SPRING SETTING
15	90029-PL3-010	Bolt - SPECIAL, 8MM
16	90401-PBW-003	Washer - THRUST, 16X30X1.5
17	90406-P4V-010	Washer - THRUST, 22X32X2
18	90412-679-000	Washer - CONICAL SPRING, 8MM
19	91201-PBW-003	Oil seal - 16X30X7
20	91209-PE9-005	Dust seal - 16X23X5(NOK)
20	91209-PE9-003	Dust seal - 16X23X5(ARAI)

Shift fork (1.7L) 9

#	OEM	部品名
1	24201-PBW-000	Fork comp - FIFTH-REVERSE GEARSHIFT
2	24210-PBW-010	Fork comp - GEARSHIFT (3-4)
3	24220-PBW-030	Fork comp - GEARSHIFT (1-2)
4	24230-PEV-000	Holder comp - REVERSE SHIFT
5	24243-PBW-020	Piece - FIFTH & REVERSE SHIFT
6	24440-PBW-000	Cam comp - REVERSE LOCK
7	24452-P16-000	Spring a - BALL SETTING
8	24519-PB6-000	Screw - BALL SPRING SETTING
9	90028-PB6-010	Bolt - SPECIAL, 6X22.5

Shift lever 11

#	OEM	部品名
1	54100-S7A-013	Lever sub assy. - CHANGE
3	54117-S6A-003	Rubber - FLOATING
4	54119-S30-003	Collar - FLOATING
5	54310-S7A-013	Wire comp - CHANGE
6	54318-S5C-020	Clamp - CHANGE WIRE
7	54357-SF1-003	Plate - CHANGE WIRE
8	90361-SV4-003	Nut - PAINT CUTTING, 6MM
9	90555-SF1-000	Washer a - SHIFT WIRE(1.6MM)
10	90556-SF1-000	Washer b - SHIFT WIRE (0.5MM)
11	90557-SF1-000	Washer a - SELECT WIRE (1.6MM)
12	90558-SF1-000	Washer b - SELECT WIRE (0.5MM)

Side lining 12

#	OEM	部品名
1	39620-SZ3-003	Cap assy.
2	39624-SZ3-003	Socket assy
27	84534-S10-003	Latch - FLOOR SIDE LID
31	84614-S7A-000	Hook assy - TIE DOWN
34	84617-S7A-003	Lock - LID
36	84629-SR3-000	Stopper - TRUNK BOX
40	84660-S7A-J01	Nut - PUSH
42	84662-S7A-J01	Buckle comp.
46	90101-S10-000	Screw-washer - 6X14
47	90132-SS0-000	Screw - TAPPING, 4X10 (PO)
50	91560-S7A-901	Clip - RR. SIDE LINING (DARK BROWN)
51	91560-S84-A01	CLIP, DOOR LINING (NATURAL)

Srs unit (LH) 6

#	OEM	部品名
1	77900-S7S-U01	Reel assy - CABLE (SUMITOMO)
2	77930-S6A-N91	Sensor assy - R. FR. SIDE
3	77940-S6A-N91	Sensor assy - L. FR. SIDE
4	77960-S7A-G92	Srs unit
5	77970-S7A-N92	Sensor assy - SIDE IMPACT
6	90137-S84-A01	Bolt - TORX EARTH, 6X20

Starter motor (MITSUBA; 1.7L) 9

#	OEM	部品名
1	31200-PSA-E02	Motor assy. - STARTER (SM-44233) (MITSUBA)
2	31202-P1R-004	Bolt - SETTING
3	31204-P2A-004	Gear assy.
4	31207-PCB-902	Armature assy.
5	31208-PEJ-J61	Stay assy - BRUSH
6	31210-PEL-004	Switch assy - MAGNETIC
7	31217-PC2-006	Screw-washer - 4X28 (MITSUBA)
8	31220-PAA-A02	Nut - TERMINAL (M)
9	31291-PLC-902	Stay - ENGINE HARNESS

Steering column 5

#	OEM	部品名
1	53200-S7A-G03	Column assy - STEERING
2	53323-SEN-013	Joint comp. b - STEERING
3	90135-SF1-000	Bolt - CENTER SHAFT YOKE
4	90361-SR3-000	Nut - FLANGE, 8MM
5	90511-671-003	Washer - TOOTHED LOCK

Steering wheel (SRS) 5

#	OEM	部品名
2	35720-S7A-003	Lid
3	35880-S7A-003	Switch assy - AUDIO REMOTE (DUMMY)
7	78525-S7A-J61	Guide - CORD
8	90134-S6A-A80	Bolt - HEX., 6X23
9	90161-SV4-003	Bolt - STEERING HANDLE

Switch (LH) 4

#	OEM	部品名
2	35510-S6A-J01	Switch assy - HAZARD
5	35850-S6A-J01	Bulb comp. - 14V 60MA
6	35850-S7A-G01	Bulb comp. - 14V 60MA
8	35910-S04-G01	Switch assy - INERTIA

Tailgate 19

#	OEM	部品名
1	04741-S7A-900	Stay set - R. TAILGATE OPEN
2	04746-S7A-900	Stay set - L. TAILGATE OPEN
3	17706-SC3-003	Clip - FUEL PIPE
6	71704-SL3-000	Seal - GASKET
7	74440-S7A-000	Weatherstrip - TAILGATE
9	74800-S7A-003	Lock & cable assy. - TAILGATE
10	74801-SAA-E21	Lock - TAILGATE
12	74806-S05-003	Screw
13	74810-S7A-003	Handle assy - TAILGATE
14	74813-S2K-003	Striker assy - TAILGATE
15	74816-S2G-003	Band
16	74829-SDA-A01	Stopper - TRUNK LID
17	74830-S7A-003	Cable - TAILGATE OPENER
18	74896-SAA-003	Actuator assy - TAILGATE
21	90107-S2G-003	Bolt - TAILGATE LOCK
22	90109-S7A-000	Bolt - FLANGE, 6X12
23	90120-SV4-000	Bolt - LOCK STRIKER
24	90302-S6A-000	Nut - FLANGE CAP, 8MM
25	91580-SM4-003	Clip - COUPLER(ORANGE)

Tailgate lining 2

#	OEM	部品名
12	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
13	91566-SP0-003	Clip - BACK COVER (NATURAL)

Taillight/license light 33

#	OEM	部品名
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
2	33302-S5A-A01	Socket comp. - T20 W
3	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)
4	33303-S5A-003	Socket comp - T20 S
5	33304-S5A-003	Socket comp - T10
6	33501-S7A-J01	Lamp unit - R. TAIL
7	33506-S7A-003	Cap - BOLT
8	33513-S50-003	Socket - T20W S2
9	33551-S7A-J01	Lamp unit - L. TAIL
10	34100-S60-013	Light assy - LICENSE
11	34101-S60-013	Lens
12	34102-S60-003	Housing comp
13	34103-S60-003	Gasket
14	34151-S7A-T01	Lamp unit - R.
15	34153-S7A-003	Gasket - BASE
16	34156-S7A-G01	Lamp unit - L.
17	34271-S7A-J01	Lamp unit - HIGH MOUNT STOP
18	34272-S7A-013	Cover - COUPLER
19	34273-S7A-003	Bolt - SPECIAL
20	34274-S7A-013	Seal - GASKET
21	34276-S7A-003	Tapping - SPECIAL, 3X12
22	34906-ST5-003	Bulb - 12V 21W/5W) (STANLEY
24	90001-S10-010	Bolt-washer - 5X16
25	90102-S7A-000	Bolt-washer - 6X12
26	90301-ST0-003	push nut, 3mm
27	90303-S2G-003	Nut - 6MM
28	90321-S2X-003	Nut - SPECIAL, 5MM
29	90650-SL9-003	Grommet - R. RR. COMBINATION (WHITE)
30	90655-SL9-003	Grommet - L. RR. COMBINATION (GRAY)
31	90665-SS0-003	Grommet - RR. COMBINATION
32	90665-S47-003	Clip
33	91512-S50-003	Clip - LICENSE GARNISH
34	91560-S0X-A01	Clip - DOOR LINING (NATURAL)

Throttle body (1.7L) 11

#	OEM	部品名
1	16022-PLC-003	Valve set - ROTARY AIR CONTROL
2	16400-PLM-A03	Throttle Body Assy - GY76A
2	16400-PLM-A01	Throttle Body Assy - GY76A
3	16411-PLC-000	Stay - THROTTLE WIRE
4	16412-PLC-000	Stay comp - PURGE CONTROL SOLENOID
5	16456-PLE-J01	Seal - ROTARY AIR CONTROL RING
6	36162-PLC-003	Valve - PURGE CONTROL SOLENOID
7	36166-PAA-A01	Joint - PURGE
8	36167-PLC-010	Tube a - PURGE
9	36168-PLC-000	Tube b - PURGE
10	36169-PLC-000	Tube c - PURGE

Tire/wheel disk 32

#	OEM	部品名
1	42700-S7C-G01	Disk - WHEEL (15X4T) (RING TECHS)
3	42700-S7C-003	Disk - WHEEL (15X6JJ) (RING TECHS) (BLACK)
4	42751-S04-947	Tire - T135/70D15 99M) (DUNLOP
4	42751-S04-945	Tire - T135/70D15 99M) (BRIDGESTONE
4	42751-S04-946	Tire - T135/70D15 99M) (DUNLOP
5	42751-S7C-G55	Tire - (195/65R15 91V) (DUNLOP)
6	42753-SH3-003	Valve - RIM (US PACIFIC)
6	42753-SB8-661	Valve - RIM (SCHRADER)
7	42767-SB0-600	Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH)
8	42767-SH3-E00	Plate - SPARE TIRE CAUTION (T-TYPE)
9	44729-SEA-003	Weight - BALANCE (35G) (YAMATE)
9	44723-SEA-004	Weight - BALANCE (30G) (TOHO)
9	44728-SEA-003	Weight - BALANCE (25G) (YAMATE)
9	44722-SEA-003	Weight - BALANCE (20G) (YAMATE)
9	44729-SEA-004	Weight - BALANCE (35G) (TOHO)
9	44728-SEA-004	Weight - BALANCE (25G) (TOHO)
9	44722-SEA-004	Weight - BALANCE (20G) (TOHO)
9	44727-SEA-003	Weight - BALANCE (15G) (YAMATE)
9	44721-SEA-003	Weight - BALANCE (10G) (YAMATE)
9	44727-SEA-004	Weight - BALANCE (15G) (TOHO)
9	44721-SEA-004	Weight - BALANCE (10G) (TOHO)
9	44726-SEA-003	Weight - BALANCE (5G) (YAMATE)
9	44726-SEA-004	Weight - BALANCE (5G) (TOHO)
9	44723-SEA-003	Weight - BALANCE (30G) (YAMATE)
11	44733-S7C-J00	Trim - WHEEL (15")
12	44737-SA0-981	Washer - WHEEL NUT (FUSE RASHI)
15	74620-S7A-G00	Carrier assy - SPARE TIRE
16	74624-S7A-G00	Spacer - SPARE TIRE CARRIER
17	74645-S7A-G00	Hook - CARRIER
18	74646-S7A-G00	Bolt - CARRIER HOOK
19	90304-SA0-981	Nut comp. - WHEEL (FUSE RASHI)
20	90304-SB0-000	Nut - FIXED TORQUE

Tools/jack 7

#	OEM	部品名
2	74717-S3N-000	Bolt - EYE
3	84702-ST5-000	Bag - TOOL
4	84703-S7A-000	Bag - EYEBOLT (M16)
5	89000-S7A-000	Tool set
7	89211-S70-013	Wrench - WHEEL, 19X19
8	89310-SP0-003	Jack assy - PANTOGRAPH
10	89320-S05-003	Bar - JACK

Transmission case (1.7L) 54

#	OEM	部品名
1	21104-PX5-010	Plate m - OIL GUIDE
2	21200-PBW-020	Case comp. TRANSMISSION
3	21211-PBW-010	Plate - OIL GUTTER
4	21220-PLT-000	Hanger comp. - TRANSMISSION
5	21225-PSW-000	Stay a - RESONATOR
6	21226-PSW-000	Stay b - RESONATOR
7	21396-P20-000	Cap - BREATHER
8	21520-PLT-000	Cover comp. - SHIFT ARM
9	23953-P16-000	Shim m - 78MM (1.56)
9	23980-P16-000	Shim an - 78MM (2.37)
9	23948-P16-000	Shim h - 78MM (1.41)
9	23975-P16-000	Shim ai - 78MM (2.22)
9	23943-P16-000	Shim c - 78MM (1.26)
9	23970-P16-000	Shim ad - 78MM (2.07)
9	23965-P16-000	Shim y - 78MM (1.92)
9	23960-P16-000	Shim t - 78MM (1.77)
9	23955-P16-000	Shim o - 78MM (1.62)
9	23950-P16-000	Shim j - 78MM (1.47)
9	23977-P16-000	Shim ak - 78MM (2.28)
9	23945-P16-000	Shim e - 78MM (1.32)
9	23972-P16-000	Shim af - 78MM (2.13)
9	23967-P16-000	Shim aa - 78MM (1.98)
9	23962-P16-000	Shim v - 78MM (1.83)
9	23957-P16-000	Shim q - 78MM (1.68)
9	23952-P16-000	Shim l - 78MM (1.53)
9	23979-P16-000	Shim am - 78MM (2.34)
9	23947-P16-000	Shim g - 78MM (1.38)
9	23974-P16-000	Shim ah - 78MM (2.19)
9	23942-P16-000	Shim b - 78MM (1.23)
9	23969-P16-000	Shim ac - 78MM (2.04)
9	23964-P16-000	Shim x - 78MM (1.89)
9	23959-P16-000	Shim s - 78MM (1.74)
9	23954-P16-000	Shim n - 78MM (1.59)
9	23949-P16-000	Shim i - 78MM (1.44)
9	23976-P16-000	Shim aj - 78MM (2.25)
9	23944-P16-000	Shim d - 78MM (1.29)
9	23971-P16-000	Shim ae - 78MM (2.10)
9	23966-P16-000	Shim z - 78MM (1.95)
9	23961-P16-000	Shim u - 78MM (1.80)
9	23956-P16-000	Shim p - 78MM (1.65)
9	23951-P16-000	Shim k - 78MM (1.50)
9	23978-P16-000	Shim al - 78MM (2.31)
9	23946-P16-000	Shim f - 78MM (1.35)
9	23941-P16-000	Shim a - 78MM (1.20)
9	23973-P16-000	Shim ag - 78MM (2.16)
9	23968-P16-000	Shim ab - 78MM (2.01)
9	23963-P16-000	Shim w - 78MM (1.86)
9	23958-P16-000	Shim r - 78MM (1.71)
10	35600-PBW-003	Switch assy - BACK UP LIGHT
11	90081-PB6-000	Bolt - PLUG, 14MM
12	90081-PX5-000	Screw - SEALING, 32MM
13	90380-S04-000	Bolt - STUD, 12X73
14	91206-PX5-003	Oil seal - 40X58X8 (ARAI)
14	91206-PX5-005	Oil seal - 40X58X8(NOK)

Valve/rocker arm (1.7L) 20

#	OEM	部品名
1	14620-PLE-000	Arm assy. - INTAKE ROCKER
2	14623-PLE-010	Arm comp. a - EX. ROCKER
3	14624-PLE-010	Arm comp. b - EX. ROCKER
4	14645-P08-000	Spring - ROCKER ARM
5	14651-P2P-000	Collar a - INTAKE ROCKER
6	14711-P2A-000	Valve - IN.
7	14721-P2A-000	Valve - EX.
8	14744-PT0-004	Screw - TAPPET ADJUSTING
9	14761-P2A-004	Spring - VALVE (SKY BLUE) (CHUO SPRING)
9	14761-P2A-003	Spring - VALVE (SKY BLUE) (NIPPON HATSUJO)
10	14761-P2M-013	Spring - IN. VALVE (WHITE) (NIPPON HATSUJO)
10	14761-P2M-014	Spring - IN. VALVE (WHITE) (CHUO SPRING)
11	14765-P08-000	Retainer - VALVE SPRING
12	14775-P08-000	Seat - VALVE SPRING
13	14781-PJ7-003	Cotter - VALVE (FUJI VALVE)
14	15140-PM3-000	Orifice assy - OIL PATH
15	90206-590-000	Nut - TAPPET ADJUSTING
15	90206-PT0-004	Nut - TAPPET ADJUSTING
17	91303-KE7-003	O-ring - 7.2X1.7 (ARAI)
17	91312-107-000	O-ring (7x1.7)

Water hose (1.7L) 2

#	OEM	部品名
1	19506-PLC-901	Hose - ROTARY AIR CONTROL VALVE IN.
2	19507-PLC-901	Hose - ROTARY AIR CONTROL VALVE OUTLET

Water pump (1.7L) 27

#	OEM	部品名
1	18011-PLC-020	Valve set - EGR
1	18011-PLC-030	Valve set - EGR
2	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)
3	19200-PLM-A01	Pump comp - WATER
4	19222-P08-004	O-ring - WATER PUMP (YAMADA)
5	19301-PLC-315	Thermostat assy - FUJI THOMSON
5	19301-REA-305	Thermostat assy - NIPPON THERMOSTAT
6	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING
7	19311-PLC-000	Cover - THERMOSTAT
8	19410-PLC-000	Passage comp. - WATER
9	19411-PLC-003	Gasket - FR. WATER PASSAGE (ISHINO GASKET)
9	19411-PLC-004	Gasket - FR. WATER PASSAGE (NIPPON LEAKLESS)
10	19503-PLC-000	Hose - CONNECTING PIPE
11	19504-PLC-000	Pipe b - CONNECTING
12	19505-PLC-000	Pipe a - CONNECTING
13	19511-P08-003	Clip - WATER HOSE (CHUO SPRING)
13	19511-PA6-003	Clip - WATER HOSE(CHUO SPRING)
14	32747-PLC-000	Stay g - ENGINE HARNESS
15	32749-PLC-000	Stay j - ENGINE WIRE HARNESS
16	37760-P00-004	Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT)
16	37760-P00-003	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
17	37870-PLC-004	Sensor assy, WATER TEMP (MATSUSHITA)
18	90204-PH7-000	Nut - SPECIAL
19	91307-PLC-004	O-ring - 9.5X1.9 (MATSUSHITA)
20	91307-PN4-000	O-ring - 17.5X1.4
20	91307-PN3-000	O-ring,17.8x1.4
21	91314-634-000	O-ring

Water valve (LH) 9

#	OEM	部品名
1	79710-S7A-G01	Valve assy. - WATER
3	79721-S5D-A00	Hose a - WATER IN.
4	79722-S5D-A00	Hose b - WATER IN.
5	79725-S5D-A00	Hose - WATER OUTLET
6	79731-S5A-000	Grommet - HEATER PIPE
7	79746-SL4-003	Clamp - HEATER HOSE
8	79746-S5A-003	Clamp - HEATER HOSE (NATURAL)
11	91405-PK1-003	Clip, WATER HOSE, 24MM
11	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Windshield washer 31

#	OEM	部品名
1	38516-SA0-671	Packing - PARALLEL TYPE) (MITSUBA
2	38516-SA5-671	Packing - T-TYPE) (MITSUBA
3	38516-SB3-003	Holder - MOTOR
4	38519-SB0-003	Bush - WASHER TANK (MITSUBA)
5	38562-663-920	Joint b - WASHER TUBE (MITSUBA)
6	76802-SFA-003	Cap unit - MOUTH
7	76805-S7A-013	Hose
8	76806-SE0-921	Motor - RR. WASHER (MITSUBA)
8	76806-SE0-J01	Motor - RR. WASHER (MITSUBA)
9	76806-SL0-E11	Motor - WASHER (HIGH) (MITSUBA)
9	76806-SL0-E01	Motor - WASHER (HIGH) (MITSUBA)
10	76809-SE0-003	Grommet - WASHER TANK
12	76812-S7A-013	Mouth assy. - WASHER
13	76815-SD5-003	Valve - ONE WAY (RR.) (MITSUBA)
14	76819-SX0-003	Cushion
15	76820-S7A-013	Grommet - WASHER TUBE
16	76830-SM4-003	Joint y - WASHER
17	76832-SAE-T01	Tube - 240MM
18	76832-S7A-013	Tube - 790MM
19	76837-S7A-013	Tube - 1380MM
20	76839-SL0-G51	Tube f - 50MM) (BLACK
21	76839-S7A-013	Tube - 790MM
22	76840-S7A-G02	Tank set - WASHER (4.0L FR-RR)
23	76851-S7A-003	Grommet - WASHER TUBE
24	90652-SB2-023	Clip - TUBE, 7MM
25	90697-SB2-003	Clip - HOOD WIRE
26	91504-SR3-003	Clip - WASHER TUBE
27	91523-SM4-000	Clip - WASHER TUBE (BLACK)
28	91570-S04-003	Clip - WASHER TUBE
29	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
30	91902-SJ8-003	Cushion - WIRE HARNESS (50X50)

Wire harness (LH) 19

#	OEM	部品名
1	32103-S7A-G02	Sub cord - COMBINATION
2	32107-S7A-G11	Harness - FLOOR WIRE
3	32108-S7A-E01	Harness - RR. WIRE
4	32109-S7A-G00	Cord - TAILGATE
5	32117-S7A-G60	Harness - INSTRUMENT WIRE
5	32117-S7A-G50	Harness - INSTRUMENT WIRE
6	32155-S7A-G01	Cord - INTERIOR & SUNROOF
7	32200-S7A-R00	Harness - ENGINE ROOM WIRE
7	32200-S7A-R10	Harness - ENGINE ROOM WIRE
8	32201-S7A-G20	Sub cord - ENGINE CONTROL MODULE
8	32201-S7A-G01	Sub cord - ENGINE CONTROL MODULE
9	32751-S7A-G01	Harness - DRIVER DOOR WIRE
10	32752-S7A-G00	Harness - PASSENGER DOOR WIRE
11	32753-S7A-000	Harness - R. RR. DOOR WIRE
12	32754-S7A-000	Harness - L. RR. DOOR WIRE
13	35505-692-003	Bulb - 14V 1.4W
14	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
15	90149-SE0-003	Bolt - EARTH, 6X16
16	90149-SE0-902	Bolt - EARTH, 6X24(SN)
