Search › Model › RB13

RB13

Toyota COASTER · 1980 · 3,394 parts · 139 categories

3,394 items

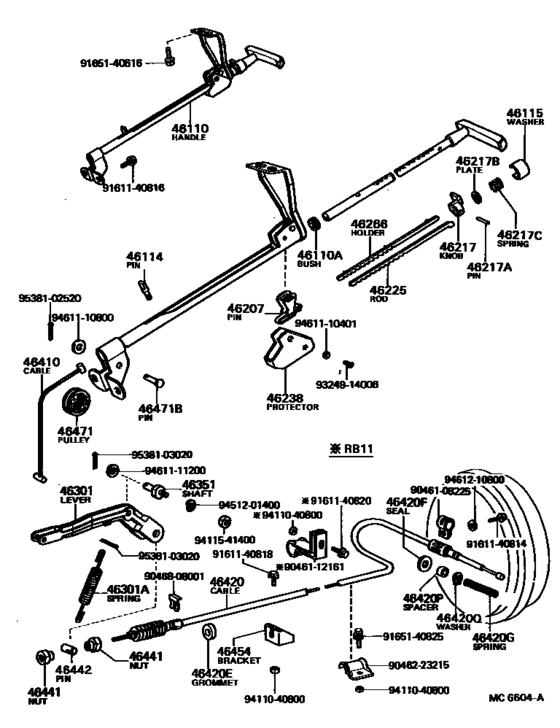

Parking Brake & Cable ([05.1979 - ] (7905- )ARL) 53

#	OEM	Part name
46110	46104-36011	Handle Assy, Parking Brake Control
46110	46104-36070	Handle Assy, Parking Brake Control
46110	90386-12048	Bush Or Ring, O (For Parking Brake Plunger)
46114	46114-20010	Pin(For Parking Brake Handle Set)
46115	46115-36010	Washer, Parking Brake Plunger
46207	46207-35010	Pin Sub-Assy, Plunger Lock
46217	46217-36020	Knob, Parking Brake Release Rod
46217	90254-02030	Pin, Slotted Spring (For Detent Rod)
46217	90201-12017	Washer, Plate(For Parking Brake Release Rod Knob)
46217	90501-10023	Spring, Compression(For Parking Brake Release Rod Knob)
46225	46225-35030	Rod, Parking Brake Pawl Release
46238	46238-35010	Protector, Plunger Lock Pin
46266	46266-35010	Holder, Plunger Lock Pin
46301	46301-36021	Lever Sub-Assy, Parking Brake Intermediate
46301	90506-18055	Spring, Tension(For Clutch Release Fork Return)
46351	46351-36010	Shaft, Intermediate Lever Pivot
46410	46410-36080	Cable Assy, Parking Brake, No.1
46420	46420-36130	Cable Assy, Parking Brake, No.2
46420	90303-10001	Seal, Dust(For Parking Brake Cable)
46420	90501-14021	Spring(For Parking Cable Inner Wire Set)
46420	90560-08002	Spacer(For Parking Brake Handle)
46420	96160-00700	Ring, E(For Chain Tensioner Slipper)
46441	46441-36020	Nut, Wire Adjusting, No.1
46442	46442-35010	Pin, Wire Pivot
46454	46454-36020	Bracket, Cable Retainer, Front
46471	46471-20010	Pulley, Wire
46471	90240-08062	Pin, W/hole(For Intermediate Lever)
9046108225	90461-08225	Clamp, No.3(For Parking Brake Cable)
9046112161	90461-12161	New Genuine Part
9046223215	90462-23215	New Genuine Part
9046808001	90468-08001	CLIP
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9161140814	91611-60814	Bolt
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816	91611-B0816	Bolt
9161140818	91611-40818	Bolt(for Oil Receiver Pipe)
9161140818	90119-08830	Bolt(For Oil Receiver Pipe)
9161140820	91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)
9165140616	91651-40616	BOLT
9165140616	91621-60614	Bolt(For Transaxle & Engine Setting)
9165140616	90080-11395	New Genuine Part
9165140825	91651-40825	Bolt(For Clutch Release Cylinder Setting)
9324914006	93249-14006	New Genuine Part
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9411541400	94115-41400	Nut(For Backing Plate To Steering Knuckle Setting)
9451201400	94512-01400	Washer(For Rear Spring U Bolt)
9461110401	94611-10401	New Genuine Part
9461110800	94611-10800	Washer, Plate (For Transmission Control Cable)
9461111200	94611-11200	New Genuine Part
9461210800	94612-10800	Washer, Plate(For Repair Actuator Set)
9538102520	95381-02520	PINCOTTER
9538103020	95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)

OEM	Part name	Category
46104-36011	Handle Assy, Parking Brake Control	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
46104-36070	Handle Assy, Parking Brake Control	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
46114-20010	Pin(For Parking Brake Handle Set)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
46115-36010	Washer, Parking Brake Plunger	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
46207-35010	Pin Sub-Assy, Plunger Lock	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
46217-36020	Knob, Parking Brake Release Rod	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
46225-35030	Rod, Parking Brake Pawl Release	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
46238-35010	Protector, Plunger Lock Pin	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
46266-35010	Holder, Plunger Lock Pin	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
46301-36021	Lever Sub-Assy, Parking Brake Intermediate	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
46351-36010	Shaft, Intermediate Lever Pivot	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
46410-36080	Cable Assy, Parking Brake, No.1	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
46420-36130	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
46441-36020	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
46442-35010	Pin, Wire Pivot	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
46454-36020	Bracket, Cable Retainer, Front	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
46471-20010	Pulley, Wire	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
90080-11395	New Genuine Part	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
90119-08830	Bolt(For Oil Receiver Pipe)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
90201-12017	Washer, Plate(For Parking Brake Release Rod Knob)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
90240-08062	Pin, W/hole(For Intermediate Lever)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
90254-02030	Pin, Slotted Spring (For Detent Rod)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
90303-10001	Seal, Dust(For Parking Brake Cable)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
90386-12048	Bush Or Ring, O (For Parking Brake Plunger)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
90461-08225	Clamp, No.3(For Parking Brake Cable)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
90461-12161	New Genuine Part	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
90462-23215	New Genuine Part	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
90468-08001	CLIP	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
90501-10023	Spring, Compression(For Parking Brake Release Rod Knob)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
90501-14021	Spring(For Parking Cable Inner Wire Set)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
90506-18055	Spring, Tension(For Clutch Release Fork Return)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
90560-08002	Spacer(For Parking Brake Handle)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
91611-40818	Bolt(for Oil Receiver Pipe)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
91611-60814	Bolt	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
91611-B0816	Bolt	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
91621-60614	Bolt(For Transaxle & Engine Setting)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
91651-40616	BOLT	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
91651-40825	Bolt(For Clutch Release Cylinder Setting)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
93249-14006	New Genuine Part	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
94110-40800	Nut(For Steering Damper)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
94115-41400	Nut(For Backing Plate To Steering Knuckle Setting)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
94130-00802	Nut, No.1 (For Center Support Bearing)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
94512-01400	Washer(For Rear Spring U Bolt)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
94611-10401	New Genuine Part	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
94611-10800	Washer, Plate (For Transmission Control Cable)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
94611-11200	New Genuine Part	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
94612-10800	Washer, Plate(For Repair Actuator Set)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
95381-02520	PINCOTTER	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
96160-00700	Ring, E(For Chain Tensioner Slipper)	Parking Brake & Cable ([05.1979 - ] (7905- )ARL)
