Search › Model › RB13

RB13

Toyota COASTER · 1980 · 3,394 parts · 139 categories

3,394 items

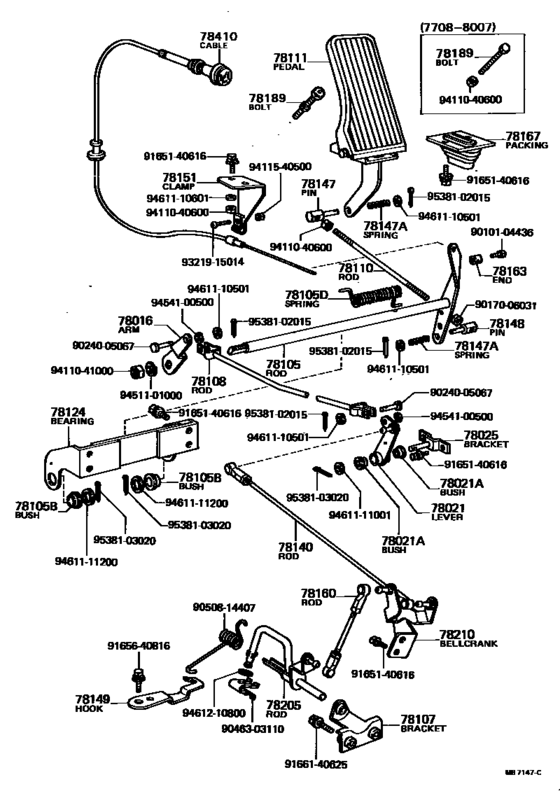

Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD) 55

#	OEM	Part name
78016	78145-90503	Arm Sub-Assy, Accelerator Link Rod
78021	78106-90740	Lever Sub-Assy, Accelerator Control, No.1
78021	78106-90743	Lever Sub-Assy, Accelerator Control, No.1
78021	90386-10150	Bush, Accelerator Control Lever
78025	78105-90500	Bracket Sub-Assy, Accelerator Connecting Rod Arm
78105	78103-90506	Rod Sub-Assy, Accelerator Connecting, No.3
78105	90386-12017	Bush (For Accelerator Torque Rod)
78105	90508-23035	Spring (For Accelerator Torque Rod)
78107	78107-20031	Bracket Sub-Assy, Accelerator Torque Rod
78108	78107-90502	Rod Sub-Assy, Accelerator Connecting, No.4
78110	78121-90504	Rod Assy, Accelerator Pedal
78111	78110-90502	Pedal, Accelerator
78124	78108-90502	Bearing, Accelerator Link, No.1
78140	78140-90740	Rod Assy, Accelerator, No.3
78140	78140-90741	Rod Assy, Accelerator, No.3
78147	78147-90011	Pin, Connecting Rod, Rh
78147	90501-10005	Spring, Accelerator Rod Pin
78148	78145-90011	Pin, Connecting Rod, Lh
78149	78149-20060	Hook, Accelerator Torque Rod Spring
78151	78151-90740	Clamp, Throttle Wire
78160	78160-90740	Rod Assy, Accelerator, No.4
78160	78160-90741	Rod Assy, Accelerator, No.4
78163	78163-55020	End, Flexible Wire
78167	78167-90503	Packing, Accelerator Pedal Hinge
78189	78107-95A00	Bolt, Accelerator Pedal Stopper
78205	78205-90741	Rod Sub-Assy, Accelerator Torque
78205	78205-90742	Rod Sub-Assy, Accelerator Torque
78210	78210-90740	Bellcrank Assy, Accelerator
78210	78210-90741	Bellcrank Assy, Accelerator
78410	78410-90504	Cable Assy, Throttle Control
9010104436	90101-04436	New Genuine Part
9017006031	90170-06031	New Genuine Part
9024005067	90240-05067	New Genuine Part
9046303110	90463-03110	Clamp (For Accelerator Torque Rod)
9050814407	90508-14407	Spring (For Accelerator Connecting Rod, No.1)
9165140616	91651-40616	BOLT
9165140616	91621-60614	Bolt(For Transaxle & Engine Setting)
9165140616	90080-11395	New Genuine Part
9165640816	91656-40816	New Genuine Part
9165640816	91651-B0814	Bolt with washer
9165640816	90119-A0109	New Genuine Part
9166140625	91661-40625	BOLT
9321915014	93219-15014	Screw, Cover Set, No.1
9411040600	94110-40600	Nut, Rock
9411041000	94110-41000	Nut(For Steering Damper)
9411540500	94115-40500	Nut(For Lpg Filter Stud Bolt Set)
9451101000	94511-01000	Washer(For Rear Drive Shaft)
9454100500	94541-00500	New Genuine Part
9461110501	94611-10501	New Genuine Part
9461110601	94611-10601	WASHER
9461111001	94611-11001	Plate, Rear Seat Back Stopper
9461111200	94611-11200	New Genuine Part
9461210800	94612-10800	Washer, Plate(For Repair Actuator Set)
9538102015	95381-02015	New Genuine Part
9538103020	95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)

OEM	Part name	Category
78103-90506	Rod Sub-Assy, Accelerator Connecting, No.3	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78105-90500	Bracket Sub-Assy, Accelerator Connecting Rod Arm	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78106-90740	Lever Sub-Assy, Accelerator Control, No.1	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78106-90743	Lever Sub-Assy, Accelerator Control, No.1	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78107-20031	Bracket Sub-Assy, Accelerator Torque Rod	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78107-90502	Rod Sub-Assy, Accelerator Connecting, No.4	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78107-95A00	Bolt, Accelerator Pedal Stopper	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78108-90502	Bearing, Accelerator Link, No.1	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78110-90502	Pedal, Accelerator	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78121-90504	Rod Assy, Accelerator Pedal	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78140-90740	Rod Assy, Accelerator, No.3	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78140-90741	Rod Assy, Accelerator, No.3	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78145-90011	Pin, Connecting Rod, Lh	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78145-90503	Arm Sub-Assy, Accelerator Link Rod	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78147-90011	Pin, Connecting Rod, Rh	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78149-20060	Hook, Accelerator Torque Rod Spring	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78151-90740	Clamp, Throttle Wire	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78160-90740	Rod Assy, Accelerator, No.4	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78160-90741	Rod Assy, Accelerator, No.4	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78163-55020	End, Flexible Wire	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78167-90503	Packing, Accelerator Pedal Hinge	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78205-90741	Rod Sub-Assy, Accelerator Torque	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78205-90742	Rod Sub-Assy, Accelerator Torque	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78210-90740	Bellcrank Assy, Accelerator	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78210-90741	Bellcrank Assy, Accelerator	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
78410-90504	Cable Assy, Throttle Control	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
90080-11395	New Genuine Part	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
90101-04436	New Genuine Part	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
90119-A0109	New Genuine Part	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
90170-06031	New Genuine Part	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
90240-05067	New Genuine Part	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
90386-10150	Bush, Accelerator Control Lever	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
90386-12017	Bush (For Accelerator Torque Rod)	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
90463-03110	Clamp (For Accelerator Torque Rod)	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
90501-10005	Spring, Accelerator Rod Pin	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
90508-14407	Spring (For Accelerator Connecting Rod, No.1)	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
90508-23035	Spring (For Accelerator Torque Rod)	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
91621-60614	Bolt(For Transaxle & Engine Setting)	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
91651-40616	BOLT	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
91651-B0814	Bolt with washer	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
91656-40816	New Genuine Part	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
91661-40625	BOLT	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
93219-15014	Screw, Cover Set, No.1	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
94110-40600	Nut, Rock	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
94110-41000	Nut(For Steering Damper)	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
94115-40500	Nut(For Lpg Filter Stud Bolt Set)	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
94511-01000	Washer(For Rear Drive Shaft)	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
94541-00500	New Genuine Part	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
94611-10501	New Genuine Part	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
94611-10601	WASHER	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
94611-11001	Plate, Rear Seat Back Stopper	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
94611-11200	New Genuine Part	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
94612-10800	Washer, Plate(For Repair Actuator Set)	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
95381-02015	New Genuine Part	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)
95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)	Accelerator Link ([08.1977 - ] (7708- )RB11,13..RHD)

Source: Public OEM parts-catalog data
Variants: 2 / 113
Category: 139
Collected: 2026-08-02
