Search › Model › NSP122

NSP122

Toyota RACTIS · 2010 · 3,002 parts · 223 categories

3,002 items

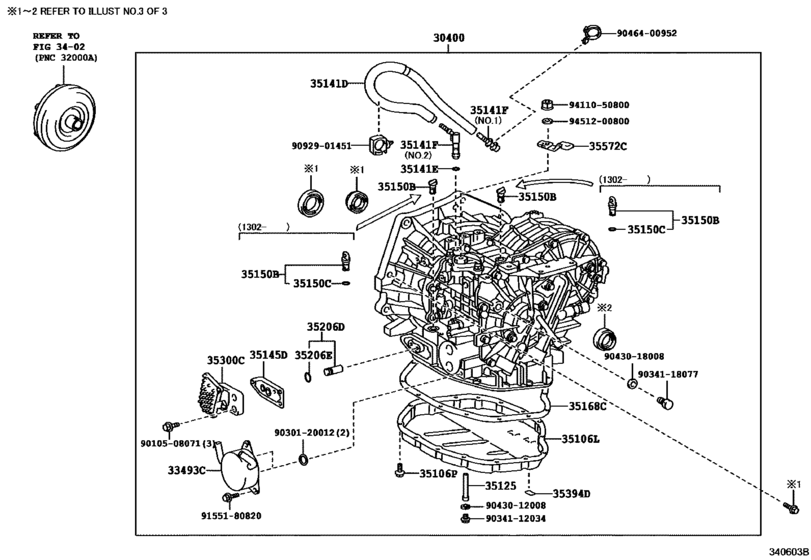

Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#) 34

#	OEM	Part name
30400	30400-52202	Transaxle Assy, Continuously Variable
30400	91552-81245	Bolt(For Transaxle & Engine Setting)
30400	90311-42039	Seal, Type T Oil(For Cvt Oil Pump)
30400	30400-52200	Transaxle Assy, Continuously Variable
30400	30400-52201	Transaxle Assy, Continuously Variable
33493	33493-52030	Cooler, Transmission Oil
33493	33493-12050	Cooler, Oil
33493	33493-52010	Cooler, Oil
35106	35106-52080	Pan Sub-Assy, Transaxle Oil(Cvt)
35106	35106-52090	Pan Sub-Assy, Transaxle Oil(Cvt)
35106	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35125	35125-52200	Tube, Transmission Oil Filler, No.1
35141	35121-52030	Hose(For Breather Plug)
35141	90301-08015	Ring, O (For Breather Plug)
35141	90930-03149	Plug Sub-Assy, Breather(For Transmission)
35141	90930-03209	Plug, Breather, No.1(Cvt)
35150	35150-48010	Plug, Transaxle Hole
35150	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35150	35150-44010	Plug(For Transmission Case)
35168	35168-52030	Gasket, Transaxle Oil Pan(Cvt)
35394	35394-48010	Magnet, Oil Cleaner (For Transmission)
35572	35572-52070	Lever, Transmission Control Shaft
9010508071	90105-08071	Bolt (For Transaxle Rear Cover Setting)
9030120012	90301-20012	Ring, O (For Transmission Oil Cooler)
9034112034	90341-12034	Plug Sub-Assy, Drain (Atm)
9034118077	90341-18077	Plug , Filler(CVT FE)
9043012008	90430-12008	Gasket (For Shift Inter Lock Plate)
9043018008	90430-18008	Gasket
9043018008	90430-T0021	Gasket(For Manual Transmission Filler Plug)
9046400952	90464-00952	New Genuine Part
9092901451	90929-01451	New Genuine Part
9155180820	91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)
9411050800	94110-50800	Nut(For Repair Actuator Set)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
30400-52200	Transaxle Assy, Continuously Variable	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
30400-52201	Transaxle Assy, Continuously Variable	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
30400-52202	Transaxle Assy, Continuously Variable	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
33493-12050	Cooler, Oil	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
33493-52010	Cooler, Oil	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
33493-52030	Cooler, Transmission Oil	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
35106-52080	Pan Sub-Assy, Transaxle Oil(Cvt)	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
35106-52090	Pan Sub-Assy, Transaxle Oil(Cvt)	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
35121-52030	Hose(For Breather Plug)	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
35125-52200	Tube, Transmission Oil Filler, No.1	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
35150-44010	Plug(For Transmission Case)	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
35150-48010	Plug, Transaxle Hole	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
35168-52030	Gasket, Transaxle Oil Pan(Cvt)	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
35394-48010	Magnet, Oil Cleaner (For Transmission)	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
35572-52070	Lever, Transmission Control Shaft	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
90105-08071	Bolt (For Transaxle Rear Cover Setting)	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
90301-08015	Ring, O (For Breather Plug)	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
90301-20012	Ring, O (For Transmission Oil Cooler)	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
90311-42039	Seal, Type T Oil(For Cvt Oil Pump)	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
90341-12034	Plug Sub-Assy, Drain (Atm)	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
90341-18077	Plug , Filler(CVT FE)	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
90430-12008	Gasket (For Shift Inter Lock Plate)	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
90430-18008	Gasket	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
90464-00952	New Genuine Part	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
90929-01451	New Genuine Part	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
90930-03149	Plug Sub-Assy, Breather(For Transmission)	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
90930-03209	Plug, Breather, No.1(Cvt)	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
91552-81245	Bolt(For Transaxle & Engine Setting)	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
94110-50800	Nut(For Repair Actuator Set)	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Transaxle Assy(Cvt) ([11.2010 - ] K411 (1011- )NSP12#)
