Search › Model › NSP122

NSP122

Toyota RACTIS · 2010 · 3,002 parts · 223 categories

3,002 items

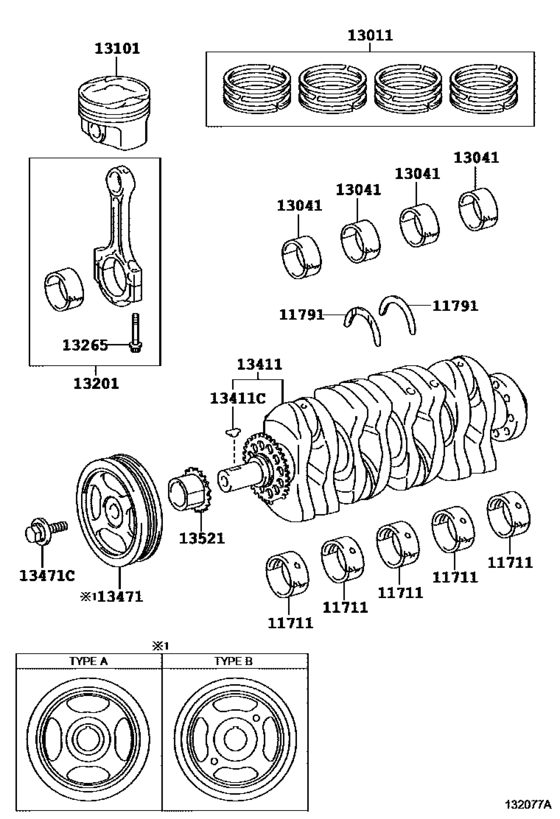

Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE) 29

#	OEM	Part name
11711	11701-47030-02	Bearing, Crankshaft
11711	11701-47032-02	Bearing, Crankshaft
11711	11701-47030-03	Bearing, Crankshaft
11711	11701-47031-03	Bearing, Crankshaft
11711	11701-47030-04	Bearing, Crankshaft
11711	11701-47031-04	Bearing, Crankshaft
11711	11701-47030-05	Bearing, Crankshaft
11711	11701-47032-05	Bearing, Crankshaft
11711	11701-47031-02	Bearing, Crankshaft
11711	11701-47031-05	Bearing, Crankshaft
11791	11791-47030	Washer, Crankshaft Thrust, Upper
11791	11791-47031	Washer, Crankshaft Thrust, Upper
13011	13011-47100	Ring Set, Piston
13011	13011-47120	Ring Set, Piston
13041	13041-47011-01	Bearing, Connecting Rod
13041	13041-47012-01	Bearing, Connecting Rod
13041	13041-47011-02	Bearing, Connecting Rod
13041	13041-47011-03	Bearing, Connecting Rod
13101	13101-47100	Piston Sub-Assy, W/pin
13201	13201-49086	Rod Sub-Assy, Connecting
13201	13201-49087	Rod Sub-Assy, Connecting
13265	13265-21020	Bolt, Connecting Rod
13411	13401-47070	Crankshaft
13411	90280-04001	Pin, Straight(For Crankshaft)
13471	13470-47080	Pulley, Crankshaft
13471	13470-47090	Pulley, Crankshaft
13471	90119-14106	Bolt(For Crankshaft Pulley Set)
13471	90119-14175	Bolt(For Crankshaft Pulley Set)
13521	13521-47020	Gear Or Sprocket, Crankshaft Timing

OEM	Part name	Category
11701-47030-02	Bearing, Crankshaft	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
11701-47030-03	Bearing, Crankshaft	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
11701-47030-04	Bearing, Crankshaft	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
11701-47030-05	Bearing, Crankshaft	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
11701-47031-02	Bearing, Crankshaft	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
11701-47031-03	Bearing, Crankshaft	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
11701-47031-04	Bearing, Crankshaft	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
11701-47031-05	Bearing, Crankshaft	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
11701-47032-02	Bearing, Crankshaft	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
11701-47032-05	Bearing, Crankshaft	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
11791-47030	Washer, Crankshaft Thrust, Upper	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
11791-47031	Washer, Crankshaft Thrust, Upper	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
13011-47100	Ring Set, Piston	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
13011-47120	Ring Set, Piston	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
13041-47011-01	Bearing, Connecting Rod	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
13041-47011-02	Bearing, Connecting Rod	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
13041-47011-03	Bearing, Connecting Rod	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
13041-47012-01	Bearing, Connecting Rod	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
13101-47100	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
13201-49086	Rod Sub-Assy, Connecting	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
13201-49087	Rod Sub-Assy, Connecting	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
13265-21020	Bolt, Connecting Rod	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
13401-47070	Crankshaft	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
13470-47080	Pulley, Crankshaft	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
13470-47090	Pulley, Crankshaft	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
13521-47020	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
90119-14106	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
90119-14175	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
90280-04001	Pin, Straight(For Crankshaft)	Crankshaft & Piston ([05.2014 - ] (1405- )1NRFKE)
