NRE185

Toyota AURIS-COROLLA · 2015 · 2,894 parts · 176 categories

← Back to categories

2,894 items

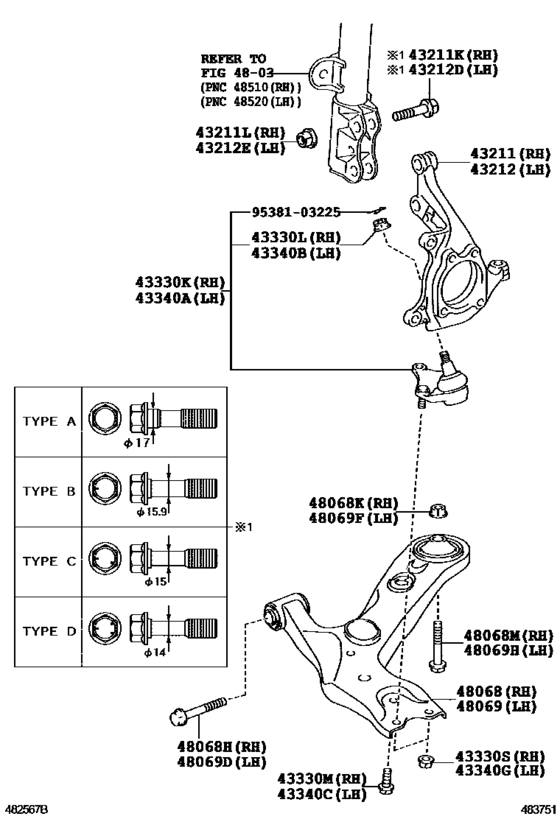

Front Axle Arm & Steering Knuckle ([10.2012 - ] (1210- )) 18

#	OEM	Part name
43211	43211-05090	Knuckle, Steering, Rh
43211	90105-17009	Bolt (For Steering Knuckle Rh)
43211	90105-17010	Bolt (For Steering Knuckle Rh)
43211	90105-17011	Bolt (For Steering Knuckle Rh)
43211	90105-W0070	Bolt (For Steering Knuckle Rh)
43211	90178-17002	Nut (For Rear Axle Carrier Rh)
43212	43212-05090	Knuckle, Steering, Lh
43330	43330-09630	Joint Assy, Lower Ball, Front Rh
43330	43330-09631	Joint Assy, Lower Ball, Front
43330	90171-14003	Nut, Castle (For Front Lower Ball Joint Setting)
43330	90105-W0077	Bolt (For Front Lower Ball Joint Rh)
43330	90105-12346	Bolt (For Front Lower Ball Joint)
43330	90178-12019	Nut (For Front Lower Ball Joint Setting)
48068	48068-02130	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	90105-16090	Bolt(For Front Suspension Lower Arm No.1 Rh)
48068	90178-16006	Nut(For Front Suspension Lower Arm No.2 Rh)
48069	48069-02130	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
9538103225	95381-03225	PIN COTTER

OEM	Part name	Category
43211-05090	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([10.2012 - ] (1210- ))
43212-05090	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([10.2012 - ] (1210- ))
43330-09630	Joint Assy, Lower Ball, Front Rh	Front Axle Arm & Steering Knuckle ([10.2012 - ] (1210- ))
43330-09631	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([10.2012 - ] (1210- ))
48068-02130	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([10.2012 - ] (1210- ))
48069-02130	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([10.2012 - ] (1210- ))
90105-12346	Bolt (For Front Lower Ball Joint)	Front Axle Arm & Steering Knuckle ([10.2012 - ] (1210- ))
90105-16090	Bolt(For Front Suspension Lower Arm No.1 Rh)	Front Axle Arm & Steering Knuckle ([10.2012 - ] (1210- ))
90105-17009	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([10.2012 - ] (1210- ))
90105-17010	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([10.2012 - ] (1210- ))
90105-17011	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([10.2012 - ] (1210- ))
90105-W0070	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([10.2012 - ] (1210- ))
90105-W0077	Bolt (For Front Lower Ball Joint Rh)	Front Axle Arm & Steering Knuckle ([10.2012 - ] (1210- ))
90171-14003	Nut, Castle (For Front Lower Ball Joint Setting)	Front Axle Arm & Steering Knuckle ([10.2012 - ] (1210- ))
90178-12019	Nut (For Front Lower Ball Joint Setting)	Front Axle Arm & Steering Knuckle ([10.2012 - ] (1210- ))
90178-16006	Nut(For Front Suspension Lower Arm No.2 Rh)	Front Axle Arm & Steering Knuckle ([10.2012 - ] (1210- ))
90178-17002	Nut (For Rear Axle Carrier Rh)	Front Axle Arm & Steering Knuckle ([10.2012 - ] (1210- ))
95381-03225	PIN COTTER	Front Axle Arm & Steering Knuckle ([10.2012 - ] (1210- ))
