NRE181

Toyota COROLLA · 2016 · 3,539 parts · 180 categories

3,539 items

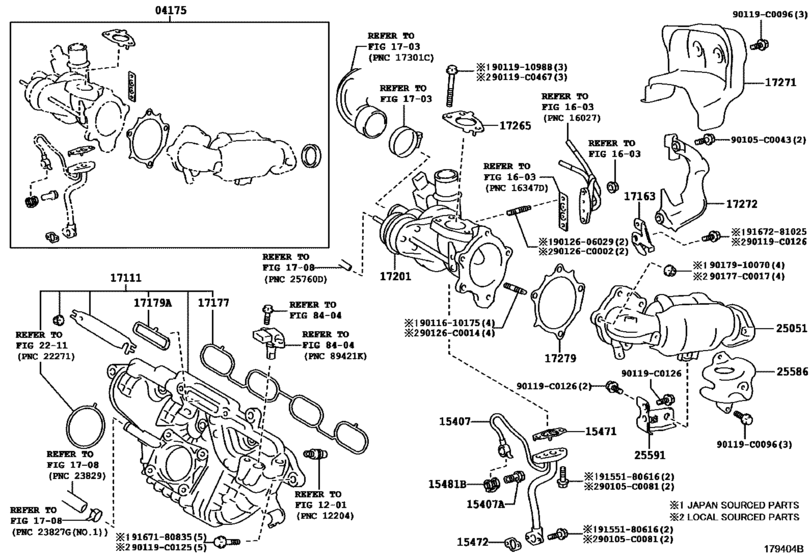

Manifold ([10.2016 - ] (1610- )9NRFTS) 44

#	OEM	Part name
4175	04175-0Y010	Gasket Kit, Turbocharger
4175	04175-47010	Gasket Kit, Turbocharger
15407	15407-0Y010	Pipe Sub-Assy, Turbo Oil Inlet
15407	15407-47011	Pipe Sub-Assy, Turbo Oil Inlet
15407	96341-11200	Bolt, Union(For Turbo Oil Inlet Pipe)
15471	15471-0Y010	Gasket, Turbo Oil Inlet
15471	15471-47010	Gasket, Turbo Oil Inlet
15472	15472-0Y010	Gasket, Turbo Oil Outlet, No.1
15472	15472-47010	Gasket, Turbo Oil Outlet, No.1
15481	90430-12037	Gasket(For Union Bolt No.1)
17111	17120-0Y090	Manifold, Intake
17111	17120-47100	Manifold, Intake
17163	17586-0Y010	Bracket, Heat Insulator, No.1
17163	17586-47010	Bracket, Heat Insulator, No.1
17177	17177-0Y070	Gasket, Intake Manifold To Head, No.1
17177	17177-47050	Gasket, Intake Manifold To Head, No.1
17179	17179-0Y010	Gasket, Intake Manifold, No.2
17179	17179-47010	Gasket, Intake Manifold, No.2
17201	17201-0Y010	Turbocharger Sub-Assy
17201	17201-47011	Turbocharger Sub-Assy
17265	17265-0Y010	Gasket, Turbocharger
17265	17265-47010	Gasket, Turbocharger
17271	17271-0Y010	Insulator, Turbo, No.1
17272	17272-0Y020	Insulator, Turbo, No.2
17279	17279-0Y010	Gasket, Turbine Outlet Elbow
25051	25051-0Y120	Converter Sub-Assy, Exhaust Manifold
25586	25586-0Y010	Insulator, Manifold Converter, No.1
25591	25591-0Y010	Bracket, Manifold Support
90105	90105-C0043	New Genuine Part
90105	90105-C0081	New Genuine Part
90119	90119-C0096	New Genuine Part
90119	90119-C0125	New Genuine Part
90119	90119-C0126	New Genuine Part
90126	90126-C0002	New Genuine Part
90177	90177-C0017	Nut, Exhaust Pipe Set Stud Bolt
9011610175	90116-10175	Bolt, Stud(For Turbine Housing)
9011910988	90119-10988	New Genuine Part
9012606029	90126-06029	Bolt, Stud(For Vacuum Transmitting Pipe)
9012606029	90126-A0014	Bolt, Stud(For Oil Strainer)
9017910070	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
9017910070	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
9155180616	91551-80616	BOLT FLANGE
9167180835	91671-80835	Bolt, Compressor, No.1
9167281025	91672-81025	Bolt, Center Support Bearing Bracket

OEM	Part name	Category
04175-0Y010	Gasket Kit, Turbocharger	Manifold ([10.2016 - ] (1610- )9NRFTS)
04175-47010	Gasket Kit, Turbocharger	Manifold ([10.2016 - ] (1610- )9NRFTS)
15407-0Y010	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([10.2016 - ] (1610- )9NRFTS)
15407-47011	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([10.2016 - ] (1610- )9NRFTS)
15471-0Y010	Gasket, Turbo Oil Inlet	Manifold ([10.2016 - ] (1610- )9NRFTS)
15471-47010	Gasket, Turbo Oil Inlet	Manifold ([10.2016 - ] (1610- )9NRFTS)
15472-0Y010	Gasket, Turbo Oil Outlet, No.1	Manifold ([10.2016 - ] (1610- )9NRFTS)
15472-47010	Gasket, Turbo Oil Outlet, No.1	Manifold ([10.2016 - ] (1610- )9NRFTS)
17120-0Y090	Manifold, Intake	Manifold ([10.2016 - ] (1610- )9NRFTS)
17120-47100	Manifold, Intake	Manifold ([10.2016 - ] (1610- )9NRFTS)
17177-0Y070	Gasket, Intake Manifold To Head, No.1	Manifold ([10.2016 - ] (1610- )9NRFTS)
17177-47050	Gasket, Intake Manifold To Head, No.1	Manifold ([10.2016 - ] (1610- )9NRFTS)
17179-0Y010	Gasket, Intake Manifold, No.2	Manifold ([10.2016 - ] (1610- )9NRFTS)
17179-47010	Gasket, Intake Manifold, No.2	Manifold ([10.2016 - ] (1610- )9NRFTS)
17201-0Y010	Turbocharger Sub-Assy	Manifold ([10.2016 - ] (1610- )9NRFTS)
17201-47011	Turbocharger Sub-Assy	Manifold ([10.2016 - ] (1610- )9NRFTS)
17265-0Y010	Gasket, Turbocharger	Manifold ([10.2016 - ] (1610- )9NRFTS)
17265-47010	Gasket, Turbocharger	Manifold ([10.2016 - ] (1610- )9NRFTS)
17271-0Y010	Insulator, Turbo, No.1	Manifold ([10.2016 - ] (1610- )9NRFTS)
17272-0Y020	Insulator, Turbo, No.2	Manifold ([10.2016 - ] (1610- )9NRFTS)
17279-0Y010	Gasket, Turbine Outlet Elbow	Manifold ([10.2016 - ] (1610- )9NRFTS)
17586-0Y010	Bracket, Heat Insulator, No.1	Manifold ([10.2016 - ] (1610- )9NRFTS)
17586-47010	Bracket, Heat Insulator, No.1	Manifold ([10.2016 - ] (1610- )9NRFTS)
25051-0Y120	Converter Sub-Assy, Exhaust Manifold	Manifold ([10.2016 - ] (1610- )9NRFTS)
25586-0Y010	Insulator, Manifold Converter, No.1	Manifold ([10.2016 - ] (1610- )9NRFTS)
25591-0Y010	Bracket, Manifold Support	Manifold ([10.2016 - ] (1610- )9NRFTS)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([10.2016 - ] (1610- )9NRFTS)
90105-C0043	New Genuine Part	Manifold ([10.2016 - ] (1610- )9NRFTS)
90105-C0081	New Genuine Part	Manifold ([10.2016 - ] (1610- )9NRFTS)
90116-10175	Bolt, Stud(For Turbine Housing)	Manifold ([10.2016 - ] (1610- )9NRFTS)
90119-10988	New Genuine Part	Manifold ([10.2016 - ] (1610- )9NRFTS)
90119-C0096	New Genuine Part	Manifold ([10.2016 - ] (1610- )9NRFTS)
90119-C0125	New Genuine Part	Manifold ([10.2016 - ] (1610- )9NRFTS)
90119-C0126	New Genuine Part	Manifold ([10.2016 - ] (1610- )9NRFTS)
90126-06029	Bolt, Stud(For Vacuum Transmitting Pipe)	Manifold ([10.2016 - ] (1610- )9NRFTS)
90126-A0014	Bolt, Stud(For Oil Strainer)	Manifold ([10.2016 - ] (1610- )9NRFTS)
90126-C0002	New Genuine Part	Manifold ([10.2016 - ] (1610- )9NRFTS)
90177-C0017	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([10.2016 - ] (1610- )9NRFTS)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([10.2016 - ] (1610- )9NRFTS)
90430-12037	Gasket(For Union Bolt No.1)	Manifold ([10.2016 - ] (1610- )9NRFTS)
91551-80616	BOLT FLANGE	Manifold ([10.2016 - ] (1610- )9NRFTS)
91671-80835	Bolt, Compressor, No.1	Manifold ([10.2016 - ] (1610- )9NRFTS)
91672-81025	Bolt, Center Support Bearing Bracket	Manifold ([10.2016 - ] (1610- )9NRFTS)
96341-11200	Bolt, Union(For Turbo Oil Inlet Pipe)	Manifold ([10.2016 - ] (1610- )9NRFTS)
