NRE160

Toyota カローラアクシオ / フィールダー · 2012 · 2,918 部品 · 181 カテゴリ

← カテゴリ一覧に戻る

2,918 件

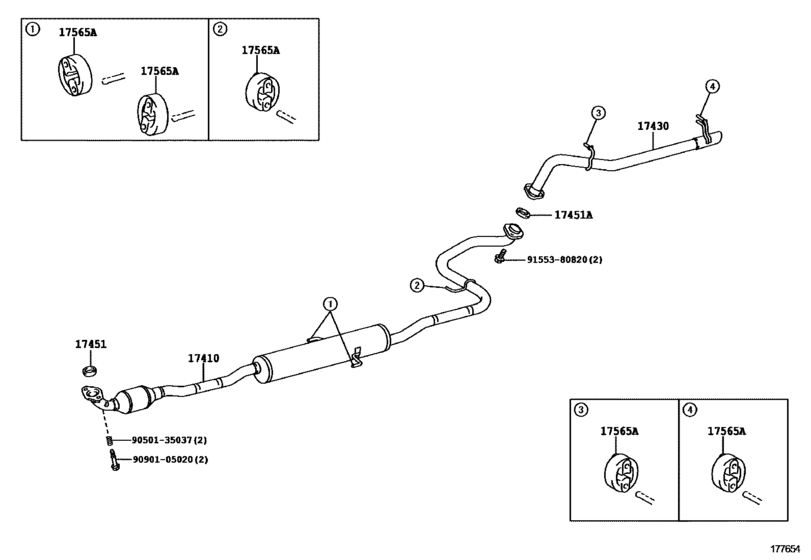

Exhaust Pipe ([04.2012 - ] (1204- )1NRFE) 9

#	OEM	部品名
17410	17410-47240	Pipe Assy, Exhaust, Front
17410	17410-47241	Pipe Assy, Exhaust, Front
17430	17430-47150	Pipe Assy, Exhaust, Tail
17451	17451-21070	Gasket, Exhaust Pipe
17451	90917-06039	Gasket, Exhaust Pipe
17565	17565-47010	Support, Exhaust Pipe, No.5
9050135037	90501-35037	Spring, Exhaust Pipe
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)
9155380820	91553-80820	BOLTFLANGE

OEM	部品名	カテゴリ
17410-47240	Pipe Assy, Exhaust, Front	Exhaust Pipe ([04.2012 - ] (1204- )1NRFE)
17410-47241	Pipe Assy, Exhaust, Front	Exhaust Pipe ([04.2012 - ] (1204- )1NRFE)
17430-47150	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([04.2012 - ] (1204- )1NRFE)
17451-21070	Gasket, Exhaust Pipe	Exhaust Pipe ([04.2012 - ] (1204- )1NRFE)
17565-47010	Support, Exhaust Pipe, No.5	Exhaust Pipe ([04.2012 - ] (1204- )1NRFE)
90501-35037	Spring, Exhaust Pipe	Exhaust Pipe ([04.2012 - ] (1204- )1NRFE)
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([04.2012 - ] (1204- )1NRFE)
90917-06039	Gasket, Exhaust Pipe	Exhaust Pipe ([04.2012 - ] (1204- )1NRFE)
91553-80820	BOLTFLANGE	Exhaust Pipe ([04.2012 - ] (1204- )1NRFE)

ソース: OEM純正パーツカタログ公開情報
