Search › Model › NRE160

NRE160

Toyota COROLLA-AXIO-FIELDER · 2012 · 2,918 parts · 181 categories

2,918 items

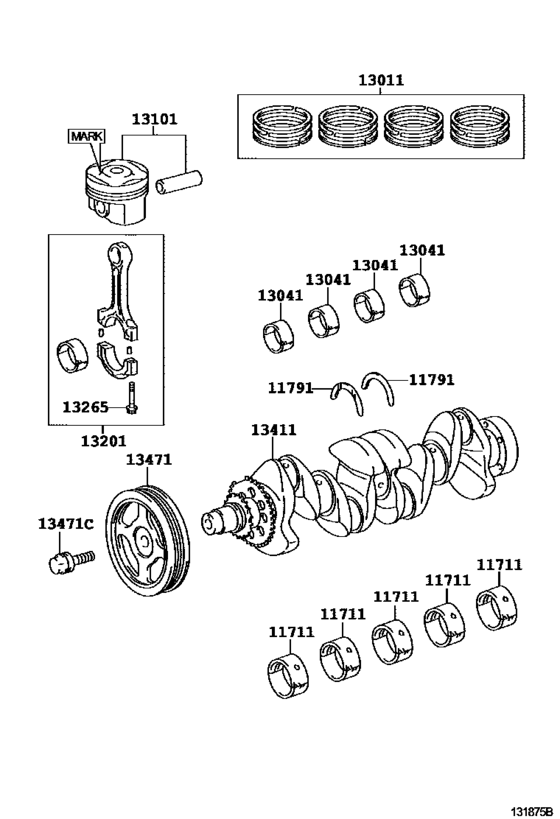

Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE) 45

#	OEM	Part name
11711	11701-47012-02	Bearing, Crankshaft
11711	11701-47013-02	Bearing, Crankshaft
11711	11701-47012-03	Bearing, Crankshaft
11711	11701-47012-04	Bearing, Crankshaft
11711	11701-47012-05	Bearing, Crankshaft
11711	11701-47013-03	Bearing, Crankshaft
11711	11701-47013-04	Bearing, Crankshaft
11711	11701-47013-05	Bearing, Crankshaft
11711	11701-47030-02	Bearing, Crankshaft
11711	11701-47032-02	Bearing, Crankshaft
11711	11701-47030-03	Bearing, Crankshaft
11711	11701-47031-03	Bearing, Crankshaft
11711	11701-47030-04	Bearing, Crankshaft
11711	11701-47031-04	Bearing, Crankshaft
11711	11701-47030-05	Bearing, Crankshaft
11711	11701-47032-05	Bearing, Crankshaft
11711	11701-47031-02	Bearing, Crankshaft
11711	11701-47031-05	Bearing, Crankshaft
11791	11791-47010	Washer, Crankshaft Thrust, Upper
11791	11791-47011	Washer, Crankshaft Thrust, Upper
11791	11791-47030	Washer, Crankshaft Thrust, Upper
11791	11791-47031	Washer, Crankshaft Thrust, Upper
13011	13011-47031	Ring Set, Piston
13011	13011-47032	Ring Set, Piston
13011	13011-47033	Ring Set, Piston
13041	13041-47010-01	Bearing, Connecting Rod
13041	13041-47011-01	Bearing, Connecting Rod
13041	13041-47012-01	Bearing, Connecting Rod
13041	13041-47010-02	Bearing, Connecting Rod
13041	13041-47011-02	Bearing, Connecting Rod
13041	13041-47012-02	Bearing, Connecting Rod
13041	13041-47010-03	Bearing, Connecting Rod
13041	13041-47011-03	Bearing, Connecting Rod
13041	13041-47012-03	Bearing, Connecting Rod
13101	13101-47021	Piston Sub-Assy, W/pin (STD)
13101	13101-47022	Piston Sub-Assy, W/pin
13101	13101-47110	Piston Sub-Assy, W/pin
13201	13201-49085	Rod Sub-Assy, Connecting
13201	13201-49086	Rod Sub-Assy, Connecting
13201	13201-49087	Rod Sub-Assy, Connecting
13265	13265-21020	Bolt, Connecting Rod
13411	13401-47011	Crankshaft
13411	13401-47020	Crankshaft
13471	13470-47070	Pulley, Crankshaft
13471	90119-12345	Bolt(For Crankshaft Pulley Set)

OEM	Part name	Category
11701-47012-02	Bearing, Crankshaft	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
11701-47012-03	Bearing, Crankshaft	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
11701-47012-04	Bearing, Crankshaft	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
11701-47012-05	Bearing, Crankshaft	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
11701-47013-02	Bearing, Crankshaft	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
11701-47013-03	Bearing, Crankshaft	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
11701-47013-04	Bearing, Crankshaft	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
11701-47013-05	Bearing, Crankshaft	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
11701-47030-02	Bearing, Crankshaft	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
11701-47030-03	Bearing, Crankshaft	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
11701-47030-04	Bearing, Crankshaft	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
11701-47030-05	Bearing, Crankshaft	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
11701-47031-02	Bearing, Crankshaft	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
11701-47031-03	Bearing, Crankshaft	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
11701-47031-04	Bearing, Crankshaft	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
11701-47031-05	Bearing, Crankshaft	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
11701-47032-02	Bearing, Crankshaft	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
11701-47032-05	Bearing, Crankshaft	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
11791-47010	Washer, Crankshaft Thrust, Upper	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
11791-47011	Washer, Crankshaft Thrust, Upper	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
11791-47030	Washer, Crankshaft Thrust, Upper	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
11791-47031	Washer, Crankshaft Thrust, Upper	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
13011-47031	Ring Set, Piston	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
13011-47032	Ring Set, Piston	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
13011-47033	Ring Set, Piston	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
13041-47010-01	Bearing, Connecting Rod	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
13041-47010-02	Bearing, Connecting Rod	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
13041-47010-03	Bearing, Connecting Rod	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
13041-47011-01	Bearing, Connecting Rod	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
13041-47011-02	Bearing, Connecting Rod	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
13041-47011-03	Bearing, Connecting Rod	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
13041-47012-01	Bearing, Connecting Rod	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
13041-47012-02	Bearing, Connecting Rod	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
13041-47012-03	Bearing, Connecting Rod	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
13101-47021	Piston Sub-Assy, W/pin (STD)	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
13101-47022	Piston Sub-Assy, W/pin	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
13101-47110	Piston Sub-Assy, W/pin	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
13201-49085	Rod Sub-Assy, Connecting	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
13201-49086	Rod Sub-Assy, Connecting	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
13201-49087	Rod Sub-Assy, Connecting	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
13265-21020	Bolt, Connecting Rod	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
13401-47011	Crankshaft	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
13401-47020	Crankshaft	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
13470-47070	Pulley, Crankshaft	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
90119-12345	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([04.2012 - ] (1204- )1NRFE)
