Search › Model › NRE150

NRE150

Toyota AURIS-COROLLA · 2008 · 4,170 parts · 346 categories

← Back to categories

4,170 items

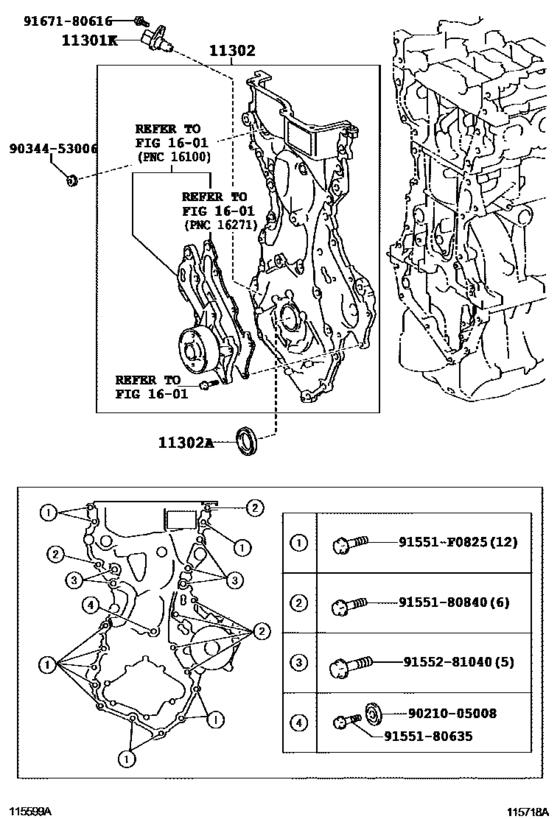

Timing Gear Cover & Rear End Plate ([11.2008 - ] (0811- )1NRFE) 16

#	OEM	Part name
11301	90919-05073	Sensor, Camshaft Position - CRANK POSITION
11302	11310-47010	Cover Sub-Assy, Timing Chain Or Belt
11302	11310-47013	Cover Sub-Assy, Timing Chain Or Belt
11302	91552-81050	Bolt, No.2(For Alternator)
11302	91671-10825	BOLT, FLANGE
11302	11310-47011	Cover Sub-Assy, Timing Chain Or Belt
11302	90311-25021	Seal, Oil(For Timing Chain Or Belt Cover)
11302	90311-25032	Seal, Oil(For Timing Chain Or Belt Cover)
11302	90311-25031	Seal, Oil(For Timing Chain Or Belt Cover)
91551	91551-F0825	BOLT FLANGE
9021005008	90210-05008	Washer, Seal(For Cylinder Head Cover)
9034453006	90344-53006	Plug, Tight, No.1(For Timing Gear Cover)
9155180635	91551-80635	Bolt(For Head To Camshaft Bearing Cap)
9155180840	91551-80840	Bolt(For Head To Camshaft Bearing Cap)
9155281040	91552-81040	Bolt(For Alternator)
9167180616	91671-80616	BOLT FLANGE

OEM	Part name	Category
11310-47010	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([11.2008 - ] (0811- )1NRFE)
11310-47011	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([11.2008 - ] (0811- )1NRFE)
11310-47013	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([11.2008 - ] (0811- )1NRFE)
90210-05008	Washer, Seal(For Cylinder Head Cover)	Timing Gear Cover & Rear End Plate ([11.2008 - ] (0811- )1NRFE)
90311-25021	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([11.2008 - ] (0811- )1NRFE)
90311-25031	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([11.2008 - ] (0811- )1NRFE)
90311-25032	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([11.2008 - ] (0811- )1NRFE)
90344-53006	Plug, Tight, No.1(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([11.2008 - ] (0811- )1NRFE)
90919-05073	Sensor, Camshaft Position - CRANK POSITION	Timing Gear Cover & Rear End Plate ([11.2008 - ] (0811- )1NRFE)
91551-80635	Bolt(For Head To Camshaft Bearing Cap)	Timing Gear Cover & Rear End Plate ([11.2008 - ] (0811- )1NRFE)
91551-80840	Bolt(For Head To Camshaft Bearing Cap)	Timing Gear Cover & Rear End Plate ([11.2008 - ] (0811- )1NRFE)
91551-F0825	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([11.2008 - ] (0811- )1NRFE)
91552-81040	Bolt(For Alternator)	Timing Gear Cover & Rear End Plate ([11.2008 - ] (0811- )1NRFE)
91552-81050	Bolt, No.2(For Alternator)	Timing Gear Cover & Rear End Plate ([11.2008 - ] (0811- )1NRFE)
91671-10825	BOLT, FLANGE	Timing Gear Cover & Rear End Plate ([11.2008 - ] (0811- )1NRFE)
91671-80616	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([11.2008 - ] (0811- )1NRFE)
