Search › Model › NRE150

NRE150

Toyota AURIS-COROLLA · 2008 · 4,170 parts · 346 categories

4,170 items

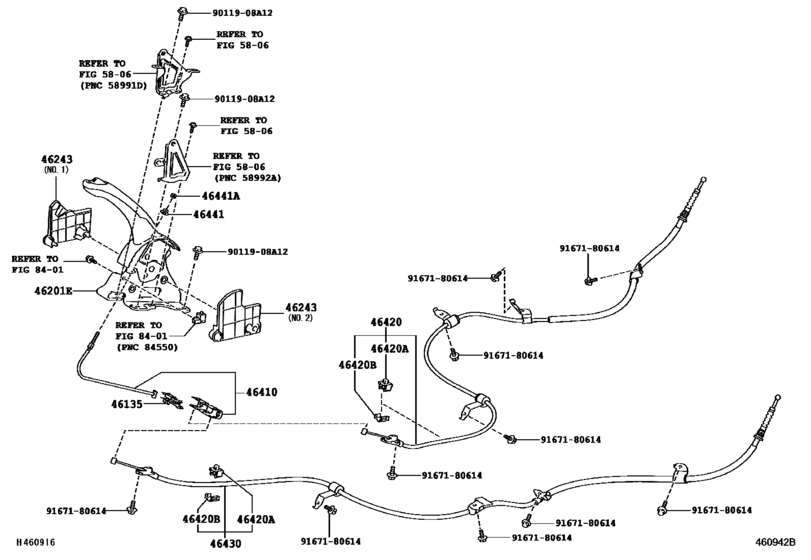

Parking Brake & Cable ([06.2007 - 12.2009] (0706-0912)5F,5FS,6FS ; (0706-0912)ADE150,NRE150 ..RX,TERRA ; (0706-1001)ZRE15#..6F. .RS,RT,RX ; (0706 -1001)ADE150,NRE150..RS,SOL) 20

#	OEM	Part name
46135	46135-02010	Stopper, Parking Brake Cable End
46135	46135-0F020	Stopper, Parking Brake Cable End
46201	46201-02260-B0	Lever Sub-Assy, Parking Brake
46201	46201-02470-B0	Lever Sub-Assy, Parking Brake
46201	46201-02471-B0	Lever Sub-Assy, Parking Brake
46243	46243-02040	Cover, Parking Brake Lever
46243	46243-02050	Cover, Parking Brake Lever
46243	46243-02060	Cover, Parking Brake Lever
46243	46243-02070	Cover, Parking Brake Lever
46410	46410-02090	Cable Assy, Parking Brake, No.1
46410	46410-02190	Cable Assy, Parking Brake, No.1
46420	46420-02121	Cable Assy, Parking Brake, No.2
46420	46411-12030	Clamp, No.3(For Parking Brake Cable)
46420	46411-12040	Clamp, No.4(For Parking Brake Cable)
46430	46430-02121	Cable Assy, Parking Brake, No.3
46441	46441-12010	Nut, Wire Adjusting, No.1
46441	90179-06171	Nut, Cap(For Cylinder Head Cover)
46441	90179-06299	Nut, Wire Adjusting, No.1
9011908	90119-08A12	New Genuine Part
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
46135-02010	Stopper, Parking Brake Cable End	Parking Brake & Cable ([06.2007 - 12.2009] (0706-0912)5F,5FS,6FS ; (0706-0912)ADE150,NRE150 ..RX,TERRA ; (0706-1001)ZRE15#..6F. .RS,RT,RX ; (0706 -1001)ADE150,NRE150..RS,SOL)
46135-0F020	Stopper, Parking Brake Cable End	Parking Brake & Cable ([06.2007 - 12.2009] (0706-0912)5F,5FS,6FS ; (0706-0912)ADE150,NRE150 ..RX,TERRA ; (0706-1001)ZRE15#..6F. .RS,RT,RX ; (0706 -1001)ADE150,NRE150..RS,SOL)
46201-02260-B0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([06.2007 - 12.2009] (0706-0912)5F,5FS,6FS ; (0706-0912)ADE150,NRE150 ..RX,TERRA ; (0706-1001)ZRE15#..6F. .RS,RT,RX ; (0706 -1001)ADE150,NRE150..RS,SOL)
46201-02470-B0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([06.2007 - 12.2009] (0706-0912)5F,5FS,6FS ; (0706-0912)ADE150,NRE150 ..RX,TERRA ; (0706-1001)ZRE15#..6F. .RS,RT,RX ; (0706 -1001)ADE150,NRE150..RS,SOL)
46201-02471-B0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([06.2007 - 12.2009] (0706-0912)5F,5FS,6FS ; (0706-0912)ADE150,NRE150 ..RX,TERRA ; (0706-1001)ZRE15#..6F. .RS,RT,RX ; (0706 -1001)ADE150,NRE150..RS,SOL)
46243-02040	Cover, Parking Brake Lever	Parking Brake & Cable ([06.2007 - 12.2009] (0706-0912)5F,5FS,6FS ; (0706-0912)ADE150,NRE150 ..RX,TERRA ; (0706-1001)ZRE15#..6F. .RS,RT,RX ; (0706 -1001)ADE150,NRE150..RS,SOL)
46243-02050	Cover, Parking Brake Lever	Parking Brake & Cable ([06.2007 - 12.2009] (0706-0912)5F,5FS,6FS ; (0706-0912)ADE150,NRE150 ..RX,TERRA ; (0706-1001)ZRE15#..6F. .RS,RT,RX ; (0706 -1001)ADE150,NRE150..RS,SOL)
46243-02060	Cover, Parking Brake Lever	Parking Brake & Cable ([06.2007 - 12.2009] (0706-0912)5F,5FS,6FS ; (0706-0912)ADE150,NRE150 ..RX,TERRA ; (0706-1001)ZRE15#..6F. .RS,RT,RX ; (0706 -1001)ADE150,NRE150..RS,SOL)
46243-02070	Cover, Parking Brake Lever	Parking Brake & Cable ([06.2007 - 12.2009] (0706-0912)5F,5FS,6FS ; (0706-0912)ADE150,NRE150 ..RX,TERRA ; (0706-1001)ZRE15#..6F. .RS,RT,RX ; (0706 -1001)ADE150,NRE150..RS,SOL)
46410-02090	Cable Assy, Parking Brake, No.1	Parking Brake & Cable ([06.2007 - 12.2009] (0706-0912)5F,5FS,6FS ; (0706-0912)ADE150,NRE150 ..RX,TERRA ; (0706-1001)ZRE15#..6F. .RS,RT,RX ; (0706 -1001)ADE150,NRE150..RS,SOL)
46410-02190	Cable Assy, Parking Brake, No.1	Parking Brake & Cable ([06.2007 - 12.2009] (0706-0912)5F,5FS,6FS ; (0706-0912)ADE150,NRE150 ..RX,TERRA ; (0706-1001)ZRE15#..6F. .RS,RT,RX ; (0706 -1001)ADE150,NRE150..RS,SOL)
46411-12030	Clamp, No.3(For Parking Brake Cable)	Parking Brake & Cable ([06.2007 - 12.2009] (0706-0912)5F,5FS,6FS ; (0706-0912)ADE150,NRE150 ..RX,TERRA ; (0706-1001)ZRE15#..6F. .RS,RT,RX ; (0706 -1001)ADE150,NRE150..RS,SOL)
46411-12040	Clamp, No.4(For Parking Brake Cable)	Parking Brake & Cable ([06.2007 - 12.2009] (0706-0912)5F,5FS,6FS ; (0706-0912)ADE150,NRE150 ..RX,TERRA ; (0706-1001)ZRE15#..6F. .RS,RT,RX ; (0706 -1001)ADE150,NRE150..RS,SOL)
46420-02121	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([06.2007 - 12.2009] (0706-0912)5F,5FS,6FS ; (0706-0912)ADE150,NRE150 ..RX,TERRA ; (0706-1001)ZRE15#..6F. .RS,RT,RX ; (0706 -1001)ADE150,NRE150..RS,SOL)
46430-02121	Cable Assy, Parking Brake, No.3	Parking Brake & Cable ([06.2007 - 12.2009] (0706-0912)5F,5FS,6FS ; (0706-0912)ADE150,NRE150 ..RX,TERRA ; (0706-1001)ZRE15#..6F. .RS,RT,RX ; (0706 -1001)ADE150,NRE150..RS,SOL)
46441-12010	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([06.2007 - 12.2009] (0706-0912)5F,5FS,6FS ; (0706-0912)ADE150,NRE150 ..RX,TERRA ; (0706-1001)ZRE15#..6F. .RS,RT,RX ; (0706 -1001)ADE150,NRE150..RS,SOL)
90119-08A12	New Genuine Part	Parking Brake & Cable ([06.2007 - 12.2009] (0706-0912)5F,5FS,6FS ; (0706-0912)ADE150,NRE150 ..RX,TERRA ; (0706-1001)ZRE15#..6F. .RS,RT,RX ; (0706 -1001)ADE150,NRE150..RS,SOL)
90179-06171	Nut, Cap(For Cylinder Head Cover)	Parking Brake & Cable ([06.2007 - 12.2009] (0706-0912)5F,5FS,6FS ; (0706-0912)ADE150,NRE150 ..RX,TERRA ; (0706-1001)ZRE15#..6F. .RS,RT,RX ; (0706 -1001)ADE150,NRE150..RS,SOL)
90179-06299	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([06.2007 - 12.2009] (0706-0912)5F,5FS,6FS ; (0706-0912)ADE150,NRE150 ..RX,TERRA ; (0706-1001)ZRE15#..6F. .RS,RT,RX ; (0706 -1001)ADE150,NRE150..RS,SOL)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Parking Brake & Cable ([06.2007 - 12.2009] (0706-0912)5F,5FS,6FS ; (0706-0912)ADE150,NRE150 ..RX,TERRA ; (0706-1001)ZRE15#..6F. .RS,RT,RX ; (0706 -1001)ADE150,NRE150..RS,SOL)
