Search › Model › NRE150

NRE150

Toyota AURIS-COROLLA · 2008 · 4,170 parts · 346 categories

4,170 items

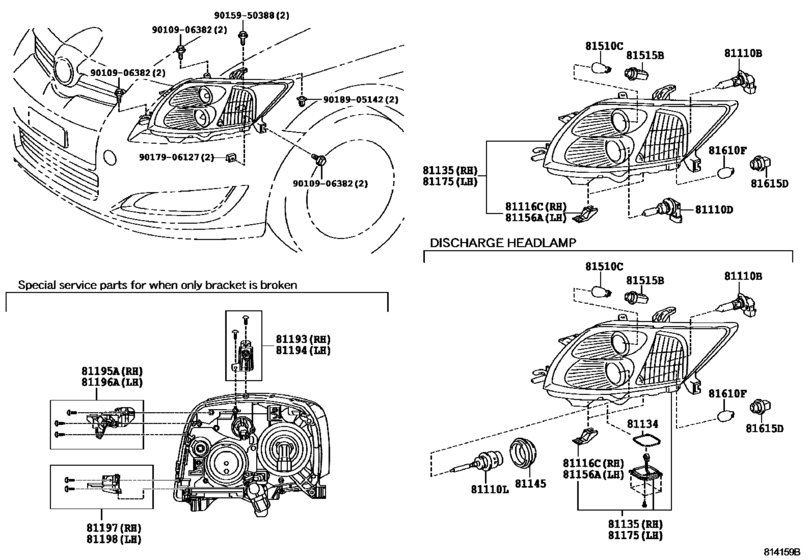

Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA) 28

#	OEM	Part name
81110	90080-81041	Bulb(For Headlamp, No.1)
81110	90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)
81110	90981-13081	Bulb(For Headlamp, No.1)
81116	81117-02470	Bracket, Headlamp, Rh - HEADLAMP RH
81135	81130-02470	Unit Assy, Headlamp, Rh
81135	81130-02A40	Unit Assy, Headlamp, Rh
81175	81170-02460	Unit Assy, Headlamp, Lh
81175	81170-02540	Unit Assy, Headlamp, Lh
81193	81193-12040	Retainer, Headlamp Protector, Upper Rh
81193	81193-12060	Retainer, Headlamp Protector, Upper Rh - HEADLAMP PROTECTOR, UPR RH
81194	81194-12040	Retainer, Headlamp Protector, Upper Lh
81194	81194-12100	Retainer, Headlamp Protector, Upper Lh - HEADLAMP PROTECTOR, UPR LH
81195	81195-12040	Retainer, Headlamp Protector, Lower Rh
81195	81195-12130	Retainer, Headlamp Protector, Lower Rh - HEADLAMP PROTECTOR, LWR RH
81196	81196-12040	Retainer, Headlamp Protector, Lower Lh
81196	81196-12130	Retainer, Headlamp Protector, Lower Lh - HEADLAMP PROTECTOR, LWR LH
81197	81197-12030	Bracket, Headlamp, Lower Rh - HEADLAMP, LWR RH
81197	81197-12040	Bracket, Headlamp, Lower Rh
81198	81198-12030	Bracket, Headlamp, Lwr Lh
81198	81198-12040	Bracket, Headlamp, Lwr Lh
81510	90981-WF003	Bulb, Rear Turn Signal Lamp - FRONT TURN SIGNAL LAMP
81515	90069-81052	Socket, Front Turn Signal Lamp
81610	90981-WB003	Bulb(For Clearance Lamp)
81615	81275-02070	Socket And Wire, License Plate Lamp
9010906382	90109-06382	BOLT
9015950388	90159-50388	SCREW, W/WASHER
9017906127	90179-06127	Bracket, Front Licence Plate Mounting
9018905142	90189-05142	GROMMET, SCREW

OEM	Part name	Category
81117-02470	Bracket, Headlamp, Rh - HEADLAMP RH	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81130-02470	Unit Assy, Headlamp, Rh	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81130-02A40	Unit Assy, Headlamp, Rh	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81170-02460	Unit Assy, Headlamp, Lh	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81170-02540	Unit Assy, Headlamp, Lh	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81193-12040	Retainer, Headlamp Protector, Upper Rh	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81193-12060	Retainer, Headlamp Protector, Upper Rh - HEADLAMP PROTECTOR, UPR RH	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81194-12040	Retainer, Headlamp Protector, Upper Lh	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81194-12100	Retainer, Headlamp Protector, Upper Lh - HEADLAMP PROTECTOR, UPR LH	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81195-12040	Retainer, Headlamp Protector, Lower Rh	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81195-12130	Retainer, Headlamp Protector, Lower Rh - HEADLAMP PROTECTOR, LWR RH	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81196-12040	Retainer, Headlamp Protector, Lower Lh	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81196-12130	Retainer, Headlamp Protector, Lower Lh - HEADLAMP PROTECTOR, LWR LH	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81197-12030	Bracket, Headlamp, Lower Rh - HEADLAMP, LWR RH	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81197-12040	Bracket, Headlamp, Lower Rh	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81198-12030	Bracket, Headlamp, Lwr Lh	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81198-12040	Bracket, Headlamp, Lwr Lh	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81275-02070	Socket And Wire, License Plate Lamp	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90069-81052	Socket, Front Turn Signal Lamp	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90080-81041	Bulb(For Headlamp, No.1)	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90109-06382	BOLT	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90159-50388	SCREW, W/WASHER	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90179-06127	Bracket, Front Licence Plate Mounting	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90189-05142	GROMMET, SCREW	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90981-13081	Bulb(For Headlamp, No.1)	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90981-WB003	Bulb(For Clearance Lamp)	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90981-WF003	Bulb, Rear Turn Signal Lamp - FRONT TURN SIGNAL LAMP	Headlamp ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
